Supermicro X13SAE User manual

X13SAE
X13SAE-F
ENGLISH
繁體中文
简体中文
日本語
( 한국어
QUICK REFERENCE GUIDE
Revision 1.0a

Standardized Warning Statements
Motherboards
About Standardized Warning Statements
The following statements are industry standard warnings, provided to warn the user of situations where bodily injury
might occur. Should you have questions or experience di󰀩culty, contact Supermicro's Technical Support Department
for assistance. Only certied technicians should attempt to install or congure components.
Read this section in its entirety before installing or conguring components in the Supermicro chassis.
WARNING: This product can expose you to chemicals including
lead, known to the State of California to cause cancer and birth
defects or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
!
Battery Handling
Warning!
There is a danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or an equiva-
lent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
警告
電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有電池。請按照製造商的說明指示處理
廢棄舊電池。
警告
电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更换原有电池。请按制造商的说明处理
废旧电池。
電池の取り扱い
電池交換が正しく行われなかった場合、破裂の危険性があります。 交換する電池はメーカーが推奨する型、または同等のもの
を使用下さい。 使用済電池は製造元の指示に従って処分して下さい。
경고!
배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제조사에서 권장하는 동등한
종류의 배터리로만 교체해야 합니다. 제조사의 안내에 따라 사용된 배터리를 처리하여 주십시오.




Note: For complete product safety information, refer to http://www.supermicro.com/about/policies/safety_information.cfm.
X13SAE/X13SAE-F QUICK REFERENCE GUIDE Product Safety Information

X13SAE/X13SAE-F QUICK REFERENCE GUIDE 限用物質含有情況標示聲明書
限
限
用
用
物
物
質
質
含
含
有
有
情
情
況
況
標
標
示
示
聲
聲
明
明
書
書
設備名稱：主機板
/
Motherboard
型號（型式）：
X13SAE, X13SAE-F
單元Ｕnit
限用物質及其化學符號
鉛Lead
(Pb) 汞Mercury (Hg) 鎘Cadmium (Cd)
六價鉻
Hexavalent
chromium
(Cr+6)
多溴聯苯
Polybrominated
biphenyls
(PBB)
多溴二苯醚
Polybrominated
diphenyl ethers
(PBDE)
主機板
(Motherboard)
－○○○○○
備考1.〝超出0.1 wt %〞及〝超出0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準
值。
備考2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。
備考3.〝－〞係指該項限用物質為排除項目。
Equipment name
Type designation (Type)
Restricted substances and its chemical symbols
Declaration of the Presence Condition of the Restricted Substances Marking
Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the
reference percentage value of presence condition.
Note 2：“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.
Note 3：The “−” indicates that the restricted substance corresponds to the exemption.

AMI BIOS POST Codes
About AMI BIOS POST Codes
The table below lists some of AMI BIOS POST codes for this motherboard. For more information, refer to https://www.
supermicro.com/manuals/other/AMI_AptioV_BIOS_POST_Codes_for_SM_Motherboards.pdf.
Code Description
0x32 CPU post-memory initialization is started
0x55 No Memory detected or memory failed
0x63 CPU DXE initialization is started
0x69 North Bridge DXE initialization is started
0x70 South Bridge DXE initialization is started
0x92 PCI Bus initialization is started
0x99 Super IO Initialization
0x9A USB initialization is started
0xA0 IDE initialization is started
0xA9 Boot into BIOS setup menu
0xAE Legacy Boot event
0xB2 Legacy Option ROM Initialization
0xB4 USB hot plug
0xD6 No console output devices are found
0xD7 No console input devices are found
0xF2 Recovery process started
0xF9 Recovery capsule is not found
X13SAE/X13SAE-F QUICK REFERENCE GUIDE BIOS POST Codes

M.2 Device Installation Instructions
M.2 Device Installation
DIMMA1
DIMMA2
DIMMB1
DIMMB2
BMC
BIOS LICENSE
X13SAE-F
DESIGNED IN USA
REV:1.00
PCH
2280
2280
2280
This motherboard has three PCIe 4.0 M.2
M-key sockets that support the M.2 2280
module. One stando󰀨 is pre-installed into
the position of 2280 mounting hole. Refer
to the illustration on the right for the loca-
tions of M.2 sockets and mounting holes.
Follow the steps below to install the M.2
device.
1. Locate the pre-installed stando󰀨 and
screw. Remove the screw and set it
aside.
2. Carefully insert the M.2 device into
the M.2 socket and lower the semi-
circle notched end onto the stando󰀨.
3. Tighten the stando󰀨 screw to secure
the M.2 device into place. Do not
overtighten so as to avoid damaging
the M.2 device.
X13SAE/X13SAE-F QUICK REFERENCE GUIDE M.2 Device Installation Instructions

Notes
X13SAE/X13SAE-F QUICK REFERENCE GUIDE Notes

X13SAE / X13SAE-F
Quick RefeRence Guide Rev. 1.0a
SUPERMICR R

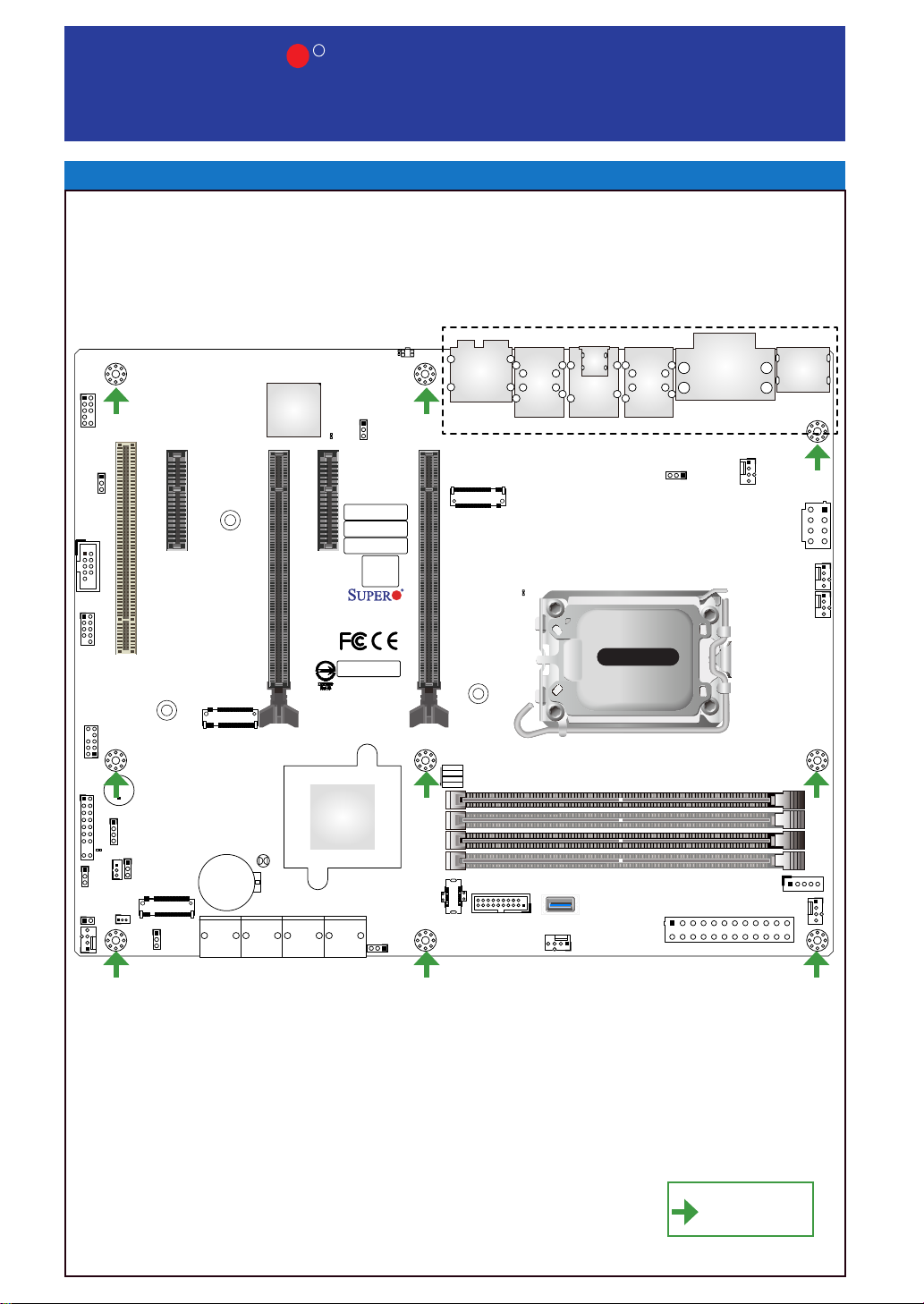

Motherboard Layout and Features
=mounting hole
DIMMA1
DIMMA2
DIMMB1
DIMMB2
USB11 (3.2 (20Gb)) USB4/5 (3.2 (5Gb)) USB6 (3.2 (5Gb))
LED4
BMC_HB_LED
UID
DP
HDMI
VGA
DVI
IPMI_LAN
USB0/1
LAN1
USB7 (3.2 (10Gb))
USB10 (3.2 (20Gb))
LAN2
USB8/9 (3.2 (10Gb))
JPL2
JPAC1
PCI-E M.2-M2
PCI-E M.2-M3
PCI-E M.2-M1
JPW1
CPU SLOT7 PCI-E 5.0 X16 CPU SLOT4 PCI-E 5.0 X8 (IN x16) PCH SLOT5 PCI-E 3.0 X4 PCH SLOT2 PCI-E 3.0 X4
SLOT1 PCI 33MHZ
BMC
BT1
MAC CODE
BMC CODE
BAR CODE
MAC CODE
BIOS LICENSE
X13SAE-F
DESIGNED IN USA
REV:1.00
JPME2
JLED1
JD1
JPG1
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SATA4
I-SATA5
I-SATA6
I-SATA7
JWD1
PWR_LED
CATERR_LED
JSTBY1
JL1
JSD1
SYS_FAN3
SYS_FAN2
SYS_FAN1
CPU_FAN2
CPU_FAN1
JPW2
12V_PUMP_PWR1
AUDIO_FP
COM1
USB2/3
JTPM1
SP1
JF1
JBT1
JPI2C1
PCH
AUDIO
JPL1
BACK PANEL I/O
LGA 1700

Package contents
• One Supermicro Motherboard
• Four SATA Cables
• One I/O Shield
• One Quick Reference Guide
Connector Description
12V_PUMP_PWR1 12V 4-pin Power Connector (for CPU liquid cooling pump)
AUDIO Back Panel High Denition Audio Ports
AUDIO_FP Front Panel Audio Header
BT1 Onboard Battery
COM1 COM Header
CPU_FAN1, CPU_FAN2,
SYS_FAN1 - SYS_FAN3
CPU_FAN1, CPU_FAN2: CPU Fan Headers
SYS_FAN1 - SYS_FAN3: System Fan Headers
DP, HDMI Back Panel DisplayPort 1.4a and High Denition Multimedia Interface (HDMI) 2.0b Port
DVI Digital Video Interface (DVI-D)
I-SATA0 - I-SATA7 Intel® Serial ATA (SATA 3.0) Ports (6 Gb/second)
IPMI_LAN Dedicated IPMI LAN Port (X13SAE-F only)
JF1 Front Control Panel Header
JL1 Chassis Intrusion Header
JLED1 3-pin Power LED Header
JPI2C1 Power Supply SMBus I2C Header (X13SAE-F only)
JPW1 24-pin ATX Main Power Connector (Required)
JPW2 +12V 8-pin CPU Power Connector (Required)
JSD1 SATA DOM (Disk-On-Module) Power Connector
JSTBY1 Standby Power Header (5V)
JTPM1 Trusted Platform Module (TPM)/Port 80 Header
LAN1, LAN2 LAN1: RJ45 1 Gb LAN Port. LAN2: RJ45 2.5 Gb LAN Port
MH10, MH14, MH15 M.2 Device Mounting Holes
PCI-E M.2-M1,
PCI-E M.2-M2,
PCI-E M.2-M3
PCIe 4.0 x4 M.2 M-key Sockets (Support 2280 form factor)
* Small form factor devices and other portable devices for high speed NVMe SSDs
SLOT1 PCI 33MHZ PCI Slot (32 Bit/33 MHz with 5V single voltage)
(PCH) SLOT2, (PCH) SLOT5 PCIe 3.0 x4 Slots
(CPU) SLOT4 PCIe 5.0 x8 (IN x16) Slot
(CPU) SLOT7 PCIe 5.0 x16 Slot
SP1 Internal Speaker/Buzzer
UID Unit Identier (UID) Switch (X13SAE-F only)
USB0, USB1 Back Panel USB 2.0 Ports
USB2/3 Front Access USB 2.0 Header
USB4/5 Front Access USB 3.2 Gen. 1 Header (5 Gb)
USB6 Internal USB 3.2 Gen. 1 Connector (5 Gb, vertical Type-A)
USB7, USB8, USB9 Back Panel USB 3.2 Gen. 2x1 Ports (10 Gb, Type-A)
USB10 Back Panel USB 3.2 Gen. 2x2 Port (20 Gb, Type-C)
USB11 Front Access USB 3.2 Gen. 2x2 Header (20 Gb, Type-C)
VGA VGA Port (X13SAE-F only)
Jumpers and Connectors
Jumper Description Default
JBT1 Clear CMOS (Onboard) Short Pads to Clear CMOS
JD1 Speaker/Buzzer Pins 1-4: External Speaker
Pins 3-4: Buzzer (Default)
JPAC1 HD Audio Enable/Disable Pins 1-2 (Enabled)
JPG1 VGA Enable/Disable (X13SAE-F only) Pins 1-2 (Enabled)
JPL1, JPL2 LAN1/LAN2 Enable/Disable Pins 1-2 (Enabled)
JPME2 ME Manufacturing Mode Pins 1-2 (Normal)
JWD1 Watch Dog Function Enable Pins 1-2 (Reset)
Connectors
Jumpers

ContaCt InformatIon
• www.supermicro.com (Email: [email protected])
• Manuals: http://www.supermicro.com/support/manuals
• Drivers & Utilities: https://www.supermicro.com/wdl/driver/
• Safety: http://www.supermicro.com/about/policies/safety_information.cfm
The X13SAE/X13SAE-F motherboard supports a single 12th/13th Generation Intel Core™ i9/i7/i5/i3 series processor, up to 128GB of Unbuffered
(UDIMM) ECC/Non-ECC DDR5 memory with speeds of up to 4400MT/s in four 288-pin memory slots. Populating these DIMM slots with a
pair of memory modules of the same type and size will result in interleaved memory, which will improve memory performance.
Notes:1) For memory optimization, use only DIMM modules that have been validated by Supermicro. For the latest memory updates,
please refer to our website at http://www.supermicro.com/products/motherboard.
2) Always connect the power cord last, and always remove it before adding, removing, or changing any hardware components.
DIMM Memory Installation
Memory Population Guidelines
When installing memory modules, the DIMM slots should be populated in the following order: DIMMA2, DIMMB2, DIMMA1,
DIMMB1.
• To optimize memory performance, please use (DDR5) memory of the same type, size, and speed on the motherboard.
• Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the slowest DIMM.
• In a given channel, the black slot can be enabled only when the gray slot is populated rst.

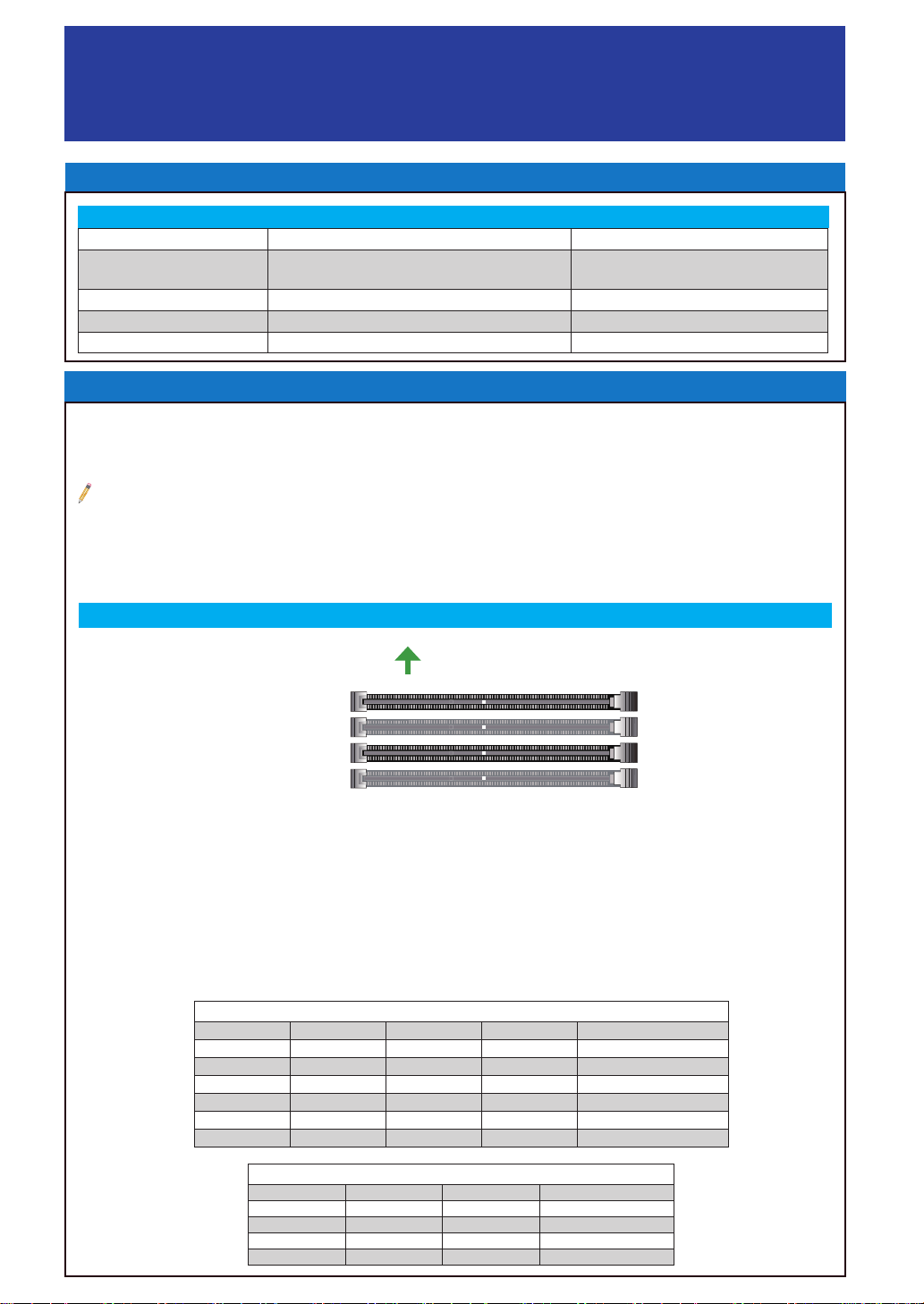

LED Indicators
LED Description Color/State
BMC_HB_LED X13SAE: Standby Power LED
X13SAE-F: BMC Heartbeat LED
X13SAE: Solid Green (Standby Power On)
X13SAE-F: Blinking Green (BMC Normal)
CATERR_LED Catastrophic Error LED Solid Orange: System CATERR
LED4 Unit Identier (UID) LED (X13SAE-F, IPMI only) Solid Blue: Unit Identied
PWR_LED Onboard Power LED Solid Green: Power On
CPU and Memory Support
Recommended Population (Balanced)
DIMMA1 DIMMB1 DIMMA2 DIMMB2 Total System Memory
8GB DIMM 8GB DIMM 16GB
8GB DIMM 8GB DIMM 8GB DIMM 8GB DIMM 32GB
16GB DIMM 16GB DIMM 32GB
16GB DIMM 16GB DIMM 16GB DIMM 16GB DIMM 64GB
32GB DIMM 32GB DIMM 64GB
32GB DIMM 32GB DIMM 32GB DIMM 32GB DIMM 128GB
LED Indicators
Towards the CPU
DIMMA2 (Gray Slot)
DIMMA1 (Black Slot)
DIMMB2 (Gray Slot)
DIMMB1 (Black Slot)
Memory Support
Frequency 3600MT/s 4000MT/s 4400MT/s
DIMM A1 2R DIMM 1R DIMM N/A
DIMM A2 2R DIMM 1R DIMM 1R or 2R DIMM
DIMM B1 2R DIMM 1R DIMM N/A
DIMM B2 2R DIMM 1R DIMM 1R or 2R DIMM

MNL-2425-QRG-10a
© 2023 Supermicro Computer Inc. All rights reserved. Reproduction of this document whether in part or in whole is strictly prohibited without Supermicro's written consent. All Trademarks are property of their respective entities. All information provided is deemed accurate at the time of printing; however, it is not guaranteed.
Notes
• Graphics shown in this quick reference guide are for illustration only. Your components may or
may not look exactly the same as drawings shown in this guide.
• Refer to Chapter 2 in the User's Manual for detailed information on jumpers, connectors, LED
indicators, memory support and CPU/motherboard installation instructions.
Back Panel I/O Connectors
1. DisplayPort 1.4a 6. USB0: USB 2.0 Port 11. LAN2: 2.5Gb LAN Port 16. S/PDIF Out
2. HDMI 2.0b Port 7. USB1: USB 2.0 Port 12. USB8: USB 3.2 Gen. 2x1 Port
(10 Gb, Type-A) 17. Line In
3. VGA Port (X13SAE-F only) 8. LAN1: 1Gb LAN Port 13. USB9: USB 3.2 Gen. 2x1 Port
(10 Gb, Type-A) 18. Line Out
4. Digital Video Interface (DVI-D) 9. USB7: USB 3.2 Gen. 2x1 Port
(10 Gb, Type-A) 14. Center/LFE Out 19. Mic In
5. Dedicated IPMI LAN Port
(X13SAE-F only)
10. USB10: USB 3.2 Gen. 2x2 Port
(20 Gb, Type-C) 15. Surround Out 20. UID Switch (X13SAE-F only)
CPU Installation Heatsink Installation
Front Control Panel (JF1)
Power Button
OH/Fan Fail LED
20
NIC1 LED
Reset Button
19
Power Fail LED
HDD LED
Power LED
#3~4
#1~2
Vcc
Vcc (X13SAE)
UID SW (X13SAE-F)
Vcc
Vcc
Ground
Ground
21
Vcc
X
Ground
NMI
X
Vcc
NIC2 LED
CPU notch
CPU load
bracket notch
Pin 1
Screw
Screw
Screw
Motherboard
1
2
X13SAE-F
3
4
5
6
7
8
13
11
12
14
15
16
18
19
20
17
9
10

SUPERMICR R
美超微電腦股份有限公司
X13SAE / X13SAE-F 快速參考指南版本 1.0a
主機板元件配置圖
=裝機孔
DIMMA1
DIMMA2
DIMMB1
DIMMB2
USB11 (3.2 (20Gb)) USB4/5 (3.2 (5Gb)) USB6 (3.2 (5Gb))
LED4
BMC_HB_LED
UID
DP
HDMI
VGA
DVI
IPMI_LAN
USB0/1
LAN1
USB7 (3.2 (10Gb))
USB10 (3.2 (20Gb))
LAN2
USB8/9 (3.2 (10Gb))
JPL2
JPAC1
PCI-E M.2-M2
PCI-E M.2-M3
PCI-E M.2-M1
JPW1
CPU SLOT7 PCI-E 5.0 X16 CPU SLOT4 PCI-E 5.0 X8 (IN x16) PCH SLOT5 PCI-E 3.0 X4 PCH SLOT2 PCI-E 3.0 X4
SLOT1 PCI 33MHZ
BMC
BT1
MAC CODE
BMC CODE
BAR CODE
MAC CODE
BIOS LICENSE
X13SAE-F
DESIGNED IN USA
REV:1.00
JPME2
JLED1
JD1
JPG1
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SATA4
I-SATA5
I-SATA6
I-SATA7
JWD1
PWR_LED
CATERR_LED
JSTBY1
JL1
JSD1
SYS_FAN3
SYS_FAN2
SYS_FAN1
CPU_FAN2
CPU_FAN1
JPW2
12V_PUMP_PWR1
AUDIO_FP
COM1
USB2/3
JTPM1
SP1
JF1
JBT1
JPI2C1
PCH
AUDIO
JPL1
BACK PANEL I/O
LGA 1700

單一主機板包裝盒內容清單
• Supermicro 主機板 x1
• SATA 訊號線 x4
• 後擋板 x1
• 快速參考指南 x1
連接埠 說明
12V_PUMP_PWR1 12V 4針腳 水冷幫浦電源插座
AUDIO 背板高清晰音效插孔
AUDIO_FP 前面板音效接頭
BT1 內建電池
COM1 前面板 COM 序列連接埠接頭
CPU_FAN1, CPU_FAN2,
SYS_FAN1 - SYS_FAN3
CPU_FAN1, CPU_FAN2：中央處理器風扇接頭
SYS_FAN1 - SYS_FAN3：系統風扇接頭
DP, HDMI 背板 DisplayPort 1.4a 連接埠
、 高清晰度多媒體介面 (HDMI 2.0b) 連接埠
DVI Digital Video Interface (DVI-D) 連接埠
I-SATA0 - I-SATA7 Intel 序列 ATA 介面 (SATA 3.0) 連接埠 (6 Gb/秒)
IPMI_LAN IPMI 網路連接埠 (僅限 X13SAE-F)
JF1 前控制面板接頭
JL1 機殼防盜裝置接頭
JLED1 3針腳電源指示燈接頭
JPI2C1 電源供應 SMBus I2C 接頭 (僅限 X13SAE-F)
JPW1 24針腳 ATX 主電源連接埠 (必備)
JPW2 +12V 8針腳 CPU 電源連接埠 (必備)
JSD1 SATA DOM (磁碟模組) 電源連接埠
JSTBY1 待機電源接頭 (5V)
JTPM1 TPM 信任平台模組/Port 80 接頭
LAN1, LAN2 LAN1：RJ45 1 Gb 網路線連接埠。LAN2：RJ45 2.5 Gb 網路線連接埠
MH10, MH14, MH15 M.2 安裝螺柱孔
PCI-E M.2-M1,
PCI-E M.2-M2,
PCI-E M.2-M3
PCIe 4.0 x4 M.2 M-key 裝置連接埠 (支援 2280 尺寸 M.2 模組規格)
* 適用具高速傳輸 NVMe 介面小尺寸及其他可攜式 M.2 固態硬碟。
SLOT1 PCI 33MHZ PCI 插槽 (32 Bit/33 MHz, 5V single voltage)
(PCH) SLOT2, (PCH) SLOT5 PCIe 3.0 x4 插槽
(CPU) SLOT4 PCIe 5.0 x8 (IN x16) 插槽
(CPU) SLOT7 PCIe 5.0 x16 插槽
SP1 內建喇叭/蜂鳴器
UID 單位識別按鈕 (僅限 X13SAE-F)
USB0, USB1 背板 USB 2.0 規格連接埠
USB2/3 前面板 USB 2.0 規格接頭
USB4/5 前面板 USB 3.2 Gen. 1 規格接頭 (5 Gb)
USB6 前面板 USB 3.2 Gen. 1 規格連接埠 (5 Gb, vertical Type-A)
USB7, USB8, USB9 背板 USB 3.2 Gen. 2x1 規格連接埠 (10 Gb, Type-A)
USB10 背板 USB 3.2 Gen. 2x2 規格連接埠 (20 Gb, Type-C)
USB11 前面板 USB 3.2 Gen. 2x2 規格接頭 (20 Gb, Type-C)
VGA VGA 連接埠 (僅限 X13SAE-F)
跳線器/連接埠
跳線器 (Jumper)
跳線器 說明 預設值
JBT1 組態資料清除 (內建)設為短路清除 CMOS 資料
JD1 喇叭/蜂鳴器 針腳 1-4：外接喇叭
針腳 3-4：蜂鳴器 (預設值)
JPAC1 啟用/停用音源 針腳 1-2 (啟用)
JPG1 啟用/停用 VGA (僅限 X13SAE-F) 針腳 1-2 (啟用)
JPL1, JPL2 啟用/停用 LAN1/LAN2 針腳 1-2 (啟用)
JPME2 Intel 製造模式 針腳 1-2 (正常)
JWD1 啟用系統監控 (Watch Dog) 功能 針腳 1-2 (重設)
連接埠 (Connector)

線上技術支援及下載
• 聯絡我們 ( 技術支援信箱 ) ： www.supermicro.com (Email: [email protected])
• 產品手冊文件： http://www.supermicro.com/support/manuals
• 驅動程式及工具程式： https://www.supermicro.com/wdl/driver/
• 產品安全性須知： http://www.supermicro.com/about/policies/safety_information.cfm
主機板 X13SAE/X13SAE-F 支援單顆第十二／十三代 Intel Core i9/i7/i5/i3 系 列 處 理 器。記 憶 體 支 援 128GB Unbuffered (UDIMM) ECC/
Non-ECC DDR5 ； 及四根 288 支針腳記憶體插槽，傳輸速度最高可達 4400MT/s 。欲取得雙通道效能，請安裝成對相同型號與速
度的記憶體。
註： 1) 請安裝使用本公司所認可記憶體模組以達記憶體模組最佳化。更多記憶體模組相關訊息，請參閱本公司網頁
http://www.supermicro.com/products/motherboard 。
2) 增加、移除和更換任何硬體元件前，請務必先拔掉電源線。待確實完成所有程序後，再重新連接電源線。
3) Unbuffered DIMM ，或做 UDIMM ，為「無緩衝雙通道記憶體模組」； ECC 是 Error Correction Code 的縮寫，中譯為
「錯誤修正碼」； DDR 為「雙倍速動態隨機存取記憶體」。
記憶體模組 (DIMM) 安裝
請依照以下說明及表格安裝記憶體模組：
• 請遵循此插槽編號順序依序安裝：
DIMMA2 (通道A插槽2) 、 DIMMB2 (通道B插槽2) 、 DIMMA1 (通道A插槽1) 、 DIMMB1 (通道B插槽1)。
• 請使用相同型號與速度的記憶體 (DDR5)。
• 若混合使用不同速度記憶體，系統將依較低記憶體速度執行。
• 安裝記憶體模組時，請先安裝該通道灰色插槽，黑色插槽才能發揮效能。
LED 指示燈
LED燈說明 燈號顏色及狀態
BMC_HB_LED X13SAE：待機電源指示燈
X13SAE-F：BMC 運作指示燈
X13SAE：綠燈恆亮 (待機電源已開啟)
X13SAE-F：綠燈閃爍 (BMC 運作正常)
CATERR_LED 主機故障識別燈 (需配合相關軟體)橘燈恆亮：該機故障
LED4 單位識別指示燈 (僅限 X13SAE-F, IPMI) 藍燈恆亮：識別中
PWR_LED 內建電源指示燈 綠燈恆亮：內建電源已開啟
中央處理器和記憶體支援
記憶體插槽配置組態 (Balanced)
DIMMA1 DIMMB1 DIMMA2 DIMMB2 系統記憶體總容量
8GB DIMM 8GB DIMM 16GB
8GB DIMM 8GB DIMM 8GB DIMM 8GB DIMM 32GB
16GB DIMM 16GB DIMM 32GB
16GB DIMM 16GB DIMM 16GB DIMM 16GB DIMM 64GB
32GB DIMM 32GB DIMM 64GB
32GB DIMM 32GB DIMM 32GB DIMM 32GB DIMM 128GB
LED 指示燈
此面朝向中央處理器
DIMMA2 (灰色插槽)
DIMMA1 (黑色插槽)
DIMMB2 (灰色插槽)
DIMMB1 (黑色插槽)
記憶體支援
傳輸頻率 3600MT/s 4000MT/s 4400MT/s
DIMM A1 2R DIMM 1R DIMM N/A
DIMM A2 2R DIMM 1R DIMM 1R or 2R DIMM
DIMM B1 2R DIMM 1R DIMM N/A
DIMM B2 2R DIMM 1R DIMM 1R or 2R DIMM

備註
• 快速參考指南中圖例僅供安裝及操作說明使用，可能與實際產品外觀不同。
• 欲知更多跳線器/連接埠/指示燈/記憶體/主機板/中央處理器安裝相關資訊，請參閱
《Supermicro X13SAe / X13SAe-F 使用手冊》第二章。
© 2023 美超微股份有限公司（以下簡稱「本公司」）版權所有。未經本公司書面同意，嚴禁重製本文件部分或全部內容。所有商標均為所屬公司所有， 所有提供資訊於印刷之際視為但不保證正確。 MNL-2425-QRG-10a
背板輸出/輸入連接埠
1. DisplayPort 1.4a 連接埠 6. USB0：USB 2.0 規格連接埠 11. LAN2：2.5Gb 網路線連接埠 16. S/PDIF 輸出
2. 高清晰度多媒體介面連接埠
(HDMI 2.0b) 7. USB1：USB 2.0 規格連接埠 12. USB8：USB 3.2 Gen. 2x1 規格連接埠 (10 Gb, Type-A) 17. 音效輸入
3. VGA 連接埠
(僅限 X13SAE-F) 8. LAN1：1Gb 網路線連接埠 13. USB9：USB 3.2 Gen. 2x1 規格連接埠 (10 Gb, Type-A) 18. 音效輸出
4. DVI-D 連接埠 9. USB7：USB 3.2 Gen. 2x1 規格連接埠
(10 Gb, Type-A) 14. 中央/低音聲道輸出 19. 麥克風插孔
5. IPMI 網路連接埠
(僅限 X13SAE-F)
10. USB10：USB 3.2 Gen. 2x2 規格連接埠
(20 Gb, Type-C) 15. 環繞聲道輸出 20. 單位識別按紐 (僅限 X13SAE-F)
中央處理器安裝 散熱器安裝
前控制面板配置 (JF1)
電源鍵
過熱及風扇故障LED
20
網卡1 LED
重設鍵
19
電源故障LED
硬碟機LED
電源LED
#3~4
#1~2
Vcc電壓
Vcc電壓 (X13SAE)
單位識別按鈕 (X13SAE-F)
Vcc電壓
Vcc電壓
接地
接地
21
Vcc電壓
X
接地
非可遮蔽中斷
X
Vcc電壓
網卡2 LED
Power Button
OH/Fan Fail LED
20
NIC1 LED
Reset Button
19
Power Fail LED
HDD LED
Power LED
#3~4
#1~2
Vcc
Vcc (X13SAE)
UID SW (X13SAE-F)
Vcc
Vcc
Ground
Ground
21
Vcc
X
Ground
NMI
X
Vcc
NIC2 LED
CPU 校準缺口
CPU 固定底座
校準點
針腳 1
螺絲
主機板
螺絲
螺絲
1
2
X13SAE-F
3
4
5
6
7
8
13
11
12
14
15
16
18
19
20
17
9
10

SUPERMICR R
美超微电脑股份有限公司
X13SAE / X13SAE-F 快速参考指南版本1.0a
主板布局和功能
= 安装孔
DIMMA1
DIMMA2
DIMMB1
DIMMB2
USB11 (3.2 (20Gb)) USB4/5 (3.2 (5Gb)) USB6 (3.2 (5Gb))
LED4
BMC_HB_LED
UID
DP
HDMI
VGA
DVI
IPMI_LAN
USB0/1
LAN1
USB7 (3.2 (10Gb))
USB10 (3.2 (20Gb))
LAN2
USB8/9 (3.2 (10Gb))
JPL2
JPAC1
PCI-E M.2-M2
PCI-E M.2-M3
PCI-E M.2-M1
JPW1
CPU SLOT7 PCI-E 5.0 X16 CPU SLOT4 PCI-E 5.0 X8 (IN x16) PCH SLOT5 PCI-E 3.0 X4 PCH SLOT2 PCI-E 3.0 X4
SLOT1 PCI 33MHZ
BMC
BT1
MAC CODE
BMC CODE
BAR CODE
MAC CODE
BIOS LICENSE
X13SAE-F
DESIGNED IN USA
REV:1.00
JPME2
JLED1
JD1
JPG1
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SATA4
I-SATA5
I-SATA6
I-SATA7
JWD1
PWR_LED
CATERR_LED
JSTBY1
JL1
JSD1
SYS_FAN3
SYS_FAN2
SYS_FAN1
CPU_FAN2
CPU_FAN1
JPW2
12V_PUMP_PWR1
AUDIO_FP
COM1
USB2/3
JTPM1
SP1
JF1
JBT1
JPI2C1
PCH
AUDIO
JPL1
I/O后面板
LGA 1700

包装内容
• Supermicro主板x1
• SATA线x4
• I/O扩展板x1
• 快速参考指南x1
接口 描述说明
12V_PUMP_PWR1 12V 4针电源连接器（用于CPU液体冷却泵）
AUDIO 后面板高清音频端口
AUDIO_FP 前面板音频接脚
BT1 板载电池
COM1 COM 接脚
CPU_FAN1, CPU_FAN2,
SYS_FAN1 - SYS_FAN3
CPU_FAN1, CPU_FAN2：CPU风扇接脚
SYS_FAN1 - SYS_FAN3：系统风扇接脚
DP, HDMI 后面板DisplayPort 1.4a和高清多媒体接口 (HDMI) 2.0b 端口
DVI 数字视频接口 (DVI-D)
I-SATA0 - I-SATA7 Intel串行ATA (SATA 3.0) 端口 (6 Gb/秒)
IPMI_LAN 专用IPMI LAN端口 (仅限X13SAE-F)
JF1 前端控制面板接脚
JL1 机箱侵入接脚
JLED1 3针电源LED接脚
JPI2C1 电源SMBus I2C接脚 (仅限X13SAE-F)
JPW1 24针ATX主电源接口（必需）
JPW2 +12V 8针CPU电源接口（必需）
JSD1 SATA DOM (Disk-On-Module) 电源接口
JSTBY1 备用电源接脚（5V）
JTPM1 受信任平台模块（TPM）/端口80接脚
LAN1，LAN2 LAN1：RJ45 1 Gb LAN端口。LAN2：RJ45 2.5 Gb LAN端口
MH10, MH14, MH15 M.2设备安装孔
PCI-E M.2-M1,
PCI-E M.2-M2,
PCI-E M.2-M3
PCIe 4.0 x4 M.2 M-key插口（支持2280规格尺寸）
（用于高速NVMe SSD的小尺寸设备和其他便携式设备）
插槽1 PCI 33MHZ PCI插槽（32 Bit/33 MHz，5V单电压）
(PCH) 插槽2, (PCH) 插槽5 PCIe 3.0 x4插槽
(CPU) 插槽4 PCIe 5.0 x8 (IN x16) 插槽
(CPU) 插槽7 PCIe 5.0 x16插槽
SP1 内置扬声器/蜂鸣器
UID 装置标识符 (UID) 开关（仅限X13SAE-F）
USB0, USB1 后面板 USB 2.0 端口
USB2/3 前接入USB 2.0 接脚
USB4/5 前接入USB 3.2 Gen. 1接脚 (5 Gb)
USB6 内置USB 3.2 Gen. 1接口 (5 Gb，垂直Type-A)
USB7, USB8, USB9 后面板 USB 3.2 Gen. 2x1 端口 (10 Gb, Type-A)
USB10 后面板USB 3.2 Gen. 2x2端口 (20 Gb, Type-C)
USB11 前接入 USB 3.2 Gen. 2x2接脚 (20 Gb, Type-C)
VGA VGA端口（仅限X13SAE-F）
跳线和接口
跳线 描述说明 默认
JBT1 清除CMOS信息（板载） 清除CMOS信息的短接焊盘
JD1 扬声器/蜂鸣器 针脚1-4：外置扬声器
针脚3-4：蜂鸣器（默认）
JPAC1 HD自动启用/禁用 针脚1-2（已启用）
JPG1 VGA启用/禁用（仅限X13SAE-F） 针脚1-2（已启用）
JPL1, JPL2 LAN1/LAN2启用/禁用 针脚1-2（已启用）
JPME2 ME 制造模式 针脚1-2（正常）
JWD1 看门狗功能启用 针脚1-2（重置）
接口
跳线

线上技术支持及下载
• 联络我们（技术支持信箱）：www.supermicro.com（Email: suppor[email protected]）
• 产品手冊文件：http://www.supermicro.com/support/manuals
• 驱动程序及工具：https://www.supermicro.com/wdl/driver/
• 产品安全性须知：http://www.supermicro.com/about/policies/safety_information.cfm
X13SAE/X13SAE-F主板支持单个第12/13代Intel Core i9/i7/i5/i3系列处理器，最高128GB无缓冲 (UDIMM) ECC/非ECC
DDR5内存，在四个288针内存插槽中速度高达4400MT/s。在这些DIMM插槽中填充一对相同类型和大小的内存模块将
产生交错内存，这将提高内存性能。
备注：1）要进行内存优化，请仅使用经Supermicro超微验证的DIMM模块。有关最新的内存更新，请访问我们的网站
http://www.supermicro.com/products/motherboard。
2）始终最后连接电源线，并在添加、移除或更换任何硬件组件之前始终将其断开。
DIMM内存安装
内存占用指南
安装内存模块时，应按照以下顺序插入 DIMM 插槽：DIMMA2，DIMMB2，之后DIMMA1，DIMMB1。
• 为优化内存性能，请在主板上使用相同类型、大小和速度的 (DDR5) 内存。
• 可安装混合DIMM速度。但所有DIMM将会以最慢的DIMM速度运行。
• 在指定通道中，只有在灰色插槽首先已填充时才能启用黑色插槽。
LED 指示器
LED 描述说明 颜色/状态
BMC_HB_LED X13SAE：待机电源LED
X13SAE-F：BMC心跳LED
X13SAE：绿灯亮起（待机电源开）
X13SAE-F：绿灯闪烁（BMC正常）
CATERR_LED 灾难性错误LED 橙灯亮起：系统灾难性错误
LED4 装置标识符 (UID) LED (X13SAE-F，仅限IPMI) 蓝灯闪烁：装置标识符
PWR_LED 板载电源LED 绿灯保持亮起：开机
CPU和内存支持
推荐数量（平衡型）
DIMMA1 DIMMB1 DIMMA2 DIMMB2 总系统内存
8GB DIMM 8GB DIMM 16GB
8GB DIMM 8GB DIMM 8GB DIMM 8GB DIMM 32GB
16GB DIMM 16GB DIMM 32GB
16GB DIMM 16GB DIMM 16GB DIMM 16GB DIMM 64GB
32GB DIMM 32GB DIMM 64GB
32GB DIMM 32GB DIMM 32GB DIMM 32GB DIMM 128GB
LED 指示器
朝向CPU
DIMMA2 (灰色插槽)
DIMMA1 (黑色插槽)
DIMMB2 (灰色插槽)
DIMMB1 (黑色插槽)
内存支持
频率 3600MT/s 4000MT/s 4400MT/s
DIMM A1 2R DIMM 1R DIMM N/A
DIMM A2 2R DIMM 1R DIMM 1R 或 2R DIMM
DIMM B1 2R DIMM 1R DIMM N/A
DIMM B2 2R DIMM 1R DIMM 1R 或 2R DIMM

MNL-2425-QRG-10a
备注
• 此快速参考指引中显示的图片，仅用于图示目的。您的组件可能和或可能不和
此指引中显示的图片完全相同。
• 有关跳线、接口、LED指示灯、内存支持和CPU/主板安装说明的详细信息，请
参阅用户手册第2章。
© 2023 美超微股份有限公司（以下簡稱「本公司」）版權所有。未經本公司書面同意，嚴禁重製本文件部分或全部內容。所有商標均為所屬公司所有， 所有提供資訊於印刷之際視為但不保證正確。
后面板I/O接口
1. DisplayPort 1.4a 6. USB0：USB 2.0端口 11. LAN2：2.5Gb LAN端口 16. S/PDIF输出
2. HDMI 2.0b端口 7. USB1：USB 2.0 端口 12. USB8：USB 3.2 Gen. 2x1端口
(10 Gb, Type-A) 17. 线路输入
3. VGA端口（仅限
X13SAE-F） 8. LAN1：1Gb LAN端口 13. USB9：USB 3.2 Gen. 2x1端口 (10 Gb, Type-A) 18. 线路输出
4. 数字视频接口 (DVI-D) 9. USB7：USB 3.2 Gen. 2x1端口
(10 Gb, Type-A) 14. 中心/LFE输出 19. 麦克风输入
5. 专用IPMI LAN端口（仅限
X13SAE-F）
10. USB10：USB 3.2 Gen. 2x2端口
(20 Gb, Type-C) 15. 环绕输出 20. UID开关（仅限 X13SAE-F）
CPU安装 散热器安装
前面控制面板(JF1)
电源键
OH/风扇故障LED
20
NIC1 LED
重启键
19
电源故障LED
HDD LED
电源LED
#3~4
#1~2
Vcc
Vcc (X13SAE)
UID SW (X13SAE-F)
Vcc
Vcc
接地
接地
21
Vcc
X
接地
NMI
X
Vcc
NIC2 LED
CPU槽口
CPU负载托架槽口
针脚1
螺钉
螺钉
螺钉
主板
1
2
X13SAE-F
3
4
5
6
7
8
13
11
12
14
15
16
18
19
20
17
9
10
Power Button
OH/Fan Fail LED
20
NIC1 LED
Reset Button
19
Power Fail LED
HDD LED
Power LED
#3~4
#1~2
Vcc
Vcc (X13SAE)
UID SW (X13SAE-F)
Vcc
Vcc
Ground
Ground
21
Vcc
X
Ground
NMI
X
Vcc
NIC2 LED

X13SAE / X13SAE-F
クイック参照ガイド 1.0a版
SUPERMICR R
マザーボードのレイアウトと機能
= 取付け用穴
DIMMA1
DIMMA2
DIMMB1
DIMMB2
USB11 (3.2 (20Gb)) USB4/5 (3.2 (5Gb)) USB6 (3.2 (5Gb))
LED4
BMC_HB_LED
UID
DP
HDMI
VGA
DVI
IPMI_LAN
USB0/1
LAN1
USB7 (3.2 (10Gb))
USB10 (3.2 (20Gb))
LAN2
USB8/9 (3.2 (10Gb))
JPL2
JPAC1
PCI-E M.2-M2
PCI-E M.2-M3
PCI-E M.2-M1
JPW1
CPU SLOT7 PCI-E 5.0 X16 CPU SLOT4 PCI-E 5.0 X8 (IN x16) PCH SLOT5 PCI-E 3.0 X4 PCH SLOT2 PCI-E 3.0 X4
SLOT1 PCI 33MHZ
BMC
BT1
MAC CODE
BMC CODE
BAR CODE
MAC CODE
BIOS LICENSE
X13SAE-F
DESIGNED IN USA
REV:1.00
JPME2
JLED1
JD1
JPG1
I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SATA4
I-SATA5
I-SATA6
I-SATA7
JWD1
PWR_LED
CATERR_LED
JSTBY1
JL1
JSD1
SYS_FAN3
SYS_FAN2
SYS_FAN1
CPU_FAN2
CPU_FAN1
JPW2
12V_PUMP_PWR1
AUDIO_FP
COM1
USB2/3
JTPM1
SP1
JF1
JBT1
JPI2C1
PCH
AUDIO
JPL1
I/O バックパネル
LGA 1700
