Preface
Preface
About This Manual
This manual is written for professional system integrators and PC technicians. It
provides information for the installation and use of the 6027R-E1CR12L. Installation
and maintainance should be performed by experienced technicians only.
The 6027R-E1CR12L is a high-end storage system based on the SC826BE1C-
R920LPB 2U rackmountable chassis and the X9DRD-EF dual processor
serverboard.
Manual Organization
Chapter 1: Introduction
The rst chapter provides a checklist of the main components included with the
system and describes the main features of the X9DRD-EF serverboard and the
SC826BE1C-R920LPB chassis.
Chapter 2: Server Installation
This chapter describes the steps necessary to install the 6027R-E1CR12L into a
rack and check out the server conguration prior to powering up the system. If your
server was ordered without processor and memory components, this chapter will
refer you to the appropriate sections of the manual for their installation.
Chapter 3: System Interface
Refer here for details on the system interface, which includes the functions and
information provided by the control panel on the chassis as well as other LEDs
located throughout the system.
Chapter 4: Standardized Warning Statements
You should thoroughly familiarize yourself with this chapter for a general overview
of safety precautions that should be followed when installing and servicing the
6027R-E1CR12L.

SUPERSTORAGESYSTEM 6027R-E1CR12L User's Manual
iv
Chapter 5: Advanced Serverboard Setup
Chapter 5 provides detailed information on the X9DRD-EF serverboard, including
the locations and functions of connections, headers and jumpers. Refer to this
chapter when adding or removing processors or main memory and when recong-
uring the serverboard.
Chapter 6: Advanced Chassis Setup
Refer to Chapter 6 for detailed information on the SC826BE1C-R920LPB chassis.
You should follow the procedures given in this chapter when installing, removing or
reconguring SATA or peripheral drives and when replacing system power supply
units and cooling fans.
Chapter 7: BIOS
The BIOS chapter includes an introduction to BIOS and provides detailed informa-
tion on running the CMOS Setup Utility.
Appendix A: BIOS Error Beep Codes
Appendix B: System Specications

Notes
Preface
v

vi
Table of Contents
Chapter 1 Introduction
1-1 Overview ......................................................................................................... 1-1
1-2 Serverboard Features ..................................................................................... 1-2
Processors ...................................................................................................... 1-2
Memory ........................................................................................................... 1-2
SATA................................................................................................................ 1-2
I/O Ports.......................................................................................................... 1-2
PCI Expansion Slots ....................................................................................... 1-2
Onboard Graphics........................................................................................... 1-2
1-3 Server Chassis Features ................................................................................ 1-3
System Power................................................................................................. 1-3
Hard Drive Subsystem .................................................................................... 1-3
Front Control Panel......................................................................................... 1-3
Cooling System............................................................................................... 1-3
1-4 Contacting Supermicro.................................................................................... 1-6
Chapter 2 Server Installation
2-1 Overview ......................................................................................................... 2-1
2-2 Unpacking the System .................................................................................... 2-1
2-3 Preparing for Setup......................................................................................... 2-1
Choosing a Setup Location............................................................................. 2-1
Rack Precautions............................................................................................ 2-2
Server Precautions.......................................................................................... 2-2
Rack Mounting Considerations ....................................................................... 2-3
Ambient Operating Temperature ................................................................ 2-3
Airow......................................................................................................... 2-3
Mechanical Loading ................................................................................... 2-3
Circuit Overloading..................................................................................... 2-3
Reliable Ground ......................................................................................... 2-3
2-4 Installing the System into a Rack ................................................................... 2-4
Separating the Sections of the Rack Rails..................................................... 2-4
Installing the Inner Rail Extension .................................................................. 2-4
Outer Rack Rails............................................................................................. 2-6
Chapter 3 System Interface
3-1 Overview ......................................................................................................... 3-1
3-2 Control Panel Buttons ..................................................................................... 3-1
Reset............................................................................................................... 3-1
SUPERSTORAGESYSTEM 6027R-E1CR12L User's Manual

vii
Power .............................................................................................................. 3-1
3-3 Control Panel LEDs ........................................................................................ 3-2
Power Fail ....................................................................................................... 3-2
Overheat/Fan Fail: .......................................................................................... 3-2
NIC1 ................................................................................................................ 3-2
NIC2 ................................................................................................................ 3-2
HDD................................................................................................................. 3-3
Power .............................................................................................................. 3-3
3-4 Drive Carrier LEDs.......................................................................................... 3-3
Chapter 4 Standardized Warning Statements for AC Systems
4-1 About Standardized Warning Statements....................................................... 4-1
Warning Denition ........................................................................................... 4-1
Installation Instructions.................................................................................... 4-4
Circuit Breaker ................................................................................................ 4-5
Power Disconnection Warning ........................................................................ 4-6
Equipment Installation..................................................................................... 4-8
Restricted Area................................................................................................ 4-9
Battery Handling............................................................................................ 4-10
Redundant Power Supplies .......................................................................... 4-12
Backplane Voltage ........................................................................................ 4-13
Comply with Local and National Electrical Codes........................................ 4-14
Product Disposal........................................................................................... 4-15
Hot Swap Fan Warning................................................................................. 4-16
Power Cable and AC Adapter ...................................................................... 4-18
Chapter 5 Advanced Serverboard Setup
5-1 Handling the Serverboard ............................................................................... 5-1
Precautions ..................................................................................................... 5-1
Unpacking ....................................................................................................... 5-1
5-2 Processor and Heatsink Installation................................................................ 5-2
Installing an LGA 2011 Processor................................................................... 5-2
Installing a Passive CPU Heatsink ................................................................. 5-5
Removing the Heatsink................................................................................... 5-5
5-3 Connecting Cables.......................................................................................... 5-6
Connecting Data Cables ................................................................................. 5-6
Connecting Power Cables .............................................................................. 5-6
Connecting the Control Panel......................................................................... 5-6
5-4 I/O Ports.......................................................................................................... 5-7
5-5 Installing Memory............................................................................................ 5-8
Table of Contents

viii
5-6 Adding Add-on Cards.....................................................................................5-11
5-7 Serverboard Details ...................................................................................... 5-12
X9DRD-EF Quick Reference ........................................................................ 5-12
5-8 Connector Denitions.................................................................................... 5-14
5-9 Jumper Settings ............................................................................................ 5-21
5-10 Onboard Indicators........................................................................................ 5-23
5-11 SATA Drive Ports........................................................................................... 5-24
5-12 Installing Drivers............................................................................................ 5-25
SuperDoctor III.............................................................................................. 5-26
Chapter 6 Advanced Chassis Setup
6-1 Static-Sensitive Devices.................................................................................. 6-1
Precautions ..................................................................................................... 6-1
Unpacking ....................................................................................................... 6-1
6-2 Control Panel .................................................................................................. 6-2
6-3 Accessing the Inside of the Chassis............................................................... 6-2
6-4 System Fans ................................................................................................... 6-3
System Fan Failure......................................................................................... 6-3
Replacing System Fans .................................................................................. 6-4
6-5 Air Shroud ....................................................................................................... 6-5
6-6 Drive Bay Installation/Removal ....................................................................... 6-6
Accessing the Drive Bays ............................................................................... 6-6
SATA Drive Installation.................................................................................... 6-6
Hard Drive Backplane ..................................................................................... 6-8
6-7 Power Supply.................................................................................................. 6-9
Power Supply Failure...................................................................................... 6-9
Removing/Replacing the Power Supply.......................................................... 6-9
6-8 Attaching a JBOD Expansion Chassis...........................................................6-11
Chapter 7 BIOS
7-1 Introduction...................................................................................................... 7-1
7-2 Main Setup...................................................................................................... 7-2
7-3 Advanced Setup Congurations...................................................................... 7-4
7-4 Event Logs .................................................................................................... 7-25
7-5 IPMI............................................................................................................... 7-27
7-6 Boot............................................................................................................... 7-29
7-7 Security......................................................................................................... 7-30
7-8 Save & Exit ................................................................................................... 7-31
Appendix A BIOS Error Beep Codes
Appendix B System Specications
SUPERSTORAGESYSTEM 6027R-E1CR12L User's Manual

Chapter 1
Introduction
1-1 Overview
The 6027R-E1CR12L is a high-end storage system comprised of two main subsys-
tems: the SC826BE1C-R920LPB 2U/rack mount chassis and the X9DRD-EF dual
processor serverboard. Please refer to our web site for information on operating
systems that have been certied for use with the system (www.supermicro.com).
In addition to the serverboard and chassis, various hardware components have
been included with the 6027R-E1CR12L, as listed below:
•Two passive CPU heatsinks (SNK-P0048PS)
•Three 8-cm system fans (FAN-0126L4)
•One air shroud (MCP-310-29014-0N)
•SATA Accessories
One SATA backplane (BPN-SAS3-826EL1)
Twelve drive carriers (MCP-220-00075-OB)
•Add-on card for SAS3 connections (AOC-S3008L-L8E)
•One rackmount kit (MCP-290-00053-0N)
Note: For your system to work properly, please follow the links below to download
all necessary drivers/utilities and the user’s manual for your server.
•Supermicro product manuals: http://www.supermicro.com/support/manuals/
•Product drivers and utilities: ftp://ftp.supermicro.com
•Product safety info: http://super-dev/about/policies/safety_information.cfm
•If you have any questions, please contact our support team at:
[email protected]
Chapter 1: Introduction
1-1

1-2
SUPERSTORAGESYSTEM 6027R-E1CR12L User's Manual
1-2 Serverboard Features
The 6047R-E1R36L is built around the X9DRD-EF, a dual processor serverboard
based on Intel's C602J chipset. Below are the main features of the X9DRD-EF (see
Figure 1-1 for a block diagram of the chipset).
Processors
The X9DRD-EF supports single or dual Intel®Xeon®E5-2600 Series processors in
LGA 2011 sockets. Please refer to the serverboard description pages on our web
site for a complete listing of supported processors.
Memory
The X9DRD-EF has 16 DIMM sockets that can support up to 512 GB of registered
(RDIMM), 1 TB of Load Reduced (LRDIMM) or 128 GB of ECC or Unbuffered
(UDIMM) ECC/non-ECC 1866/1600/1333/1066/800 DDR3 memory. Please refer
to Chapter 5 for installing memory.
SATA
An on-chip SATA controller is integrated into the X9DRD-EF to provide a six-port,
Serial ATA subsystem, which is RAID 0, 1, 5 and 10 supported. Two of the ports
support SATA 3.0, while the other four are SATA 2.0 ports. The SATA drives are
hot-swappable units.
I/O Ports
The color-coded I/O ports include one COM port, a VGA (monitor) port, four USB
2.0 ports and two gigabit Ethernet ports. A dedicated IPMI LAN port is also included.
PCI Expansion Slots
The X9DRD-EF features six PCI-E 3.0 x8 expansion slots. One of these slots may
be populated with an add-on card with the use of the RSC-RR1U-E8 riser card
(included with the system).
Onboard Graphics
The X9DRD-EF provides onboard grpahics with a Matrox G200eW graphics con-
troller.

1-3
Chapter 1: Introduction
1-3 Server Chassis Features
The SC826BE1C-R920LPB is an 2U form factor chassis designed to be used in a
storage conguration. The following is a general outline of the main features of the
SC826BE1C-R920LPB chassis.
System Power
The SC826BE1C-R920LPB features a redundant 920W power supply composed of
two separate power modules. This power redundancy feature allows you to replace
a failed power supply without shutting down the system.
Hard Drive Subsystem
The SC826BE1C-R920LPB chassis was designed to support 12 hot-swap SATA
hard drives. Two 2.5" rear-mounted, hot-swap drive bays are available as an op-
tion for use with the onboard SATA controller (MCP-220-82609-0N). These drives
install between the power supplies and the I/O panel (see Figure 6-1).
Front Control Panel
The control panel on the SC826BE1C-R920LPB provides you with system monitor-
ing and control. LEDs indicate system power, HDD activity, network activity, system
overheat and power supply failure. A main power button and a system reset button
are also included.
Cooling System
The SC826BE1C-R920LPB chassis includes three 8-cm hot-plug system cooling
fans located in the middle section of the chassis. An air shroud channels the airow
from the system fans to efciently cool the processor area of the system. Each
power supply module also includes a cooling fan.

1-4
SUPERSTORAGESYSTEM 6027R-E1CR12L User's Manual
Figure 1-1. Intel C602J Chipset:
System Block Diagram
Note: This is a general block diagram. Please see Chapter 5 for details.
J23 SLOT#3 PCIE 3.0 x8 J24 SLOT#4 PCIE 3.0 x8 J25 SLOT#5 PCIE 3.0 x8
P0 P1
PE2
(AB) PE2 (CD)
PE1
(AB) DMI
DDR3 DIMM
CPU REAR
PROCESSOR
SANDYBRIDGE
PROCESSOR
SANDYBRIDGE
F
ESocket 01
#2
#1
DDR3 DIMM
#2
#1
PE3
J22 SLOT#2
PCIE 3.0 x8
PCIE 3.0 x8
PCIE 3.0 x4
LAN1 LAN2
RJ45 RJ45
VGA CONN
IPMI LAN
PHY
RTL8201F
I350-AM2
Dual GLAN
J26 SLOT#6
J21 SLOT#1
PCIE 3.0 x8
DDR3 DIMM
H
G
#2
#1
DDR3 DIMM
#2
#1
P1 P0
PE2
(AB) PE2 (CD) (AB)(CD)
PE1
(AB) PE3 DMI
PCH C602J
BIOS
SATA
SPI SATA Gen3
6Gbps
SATA Gen3
6Gbps
SATA
SATA [0..1]
SCU0
USB
LPCPCI 32
SPI FLASH
DDR3 DIMM
CPU FRONT
D
CSocket 00
#2
#1
#2
#1
PE3
DDR3 DIMM
B
A
#2
#1
DDR3 DIMM
QPI QPI
#2
#1
I-SATA0 I-SATA1
S-SATA0 S-SATA1 S-SATA2 S-SATA3
REAR
HDR 2X5
0,1
TYPE-A
REAR
2,3
4,5 6 8,9
HDR 2X5
TPM HDR Port 80
HERMON
WPCM450R
NCT7904D
HW Monitor
DDR3
DDR3 DIMM

1-5
Chapter 1: Introduction

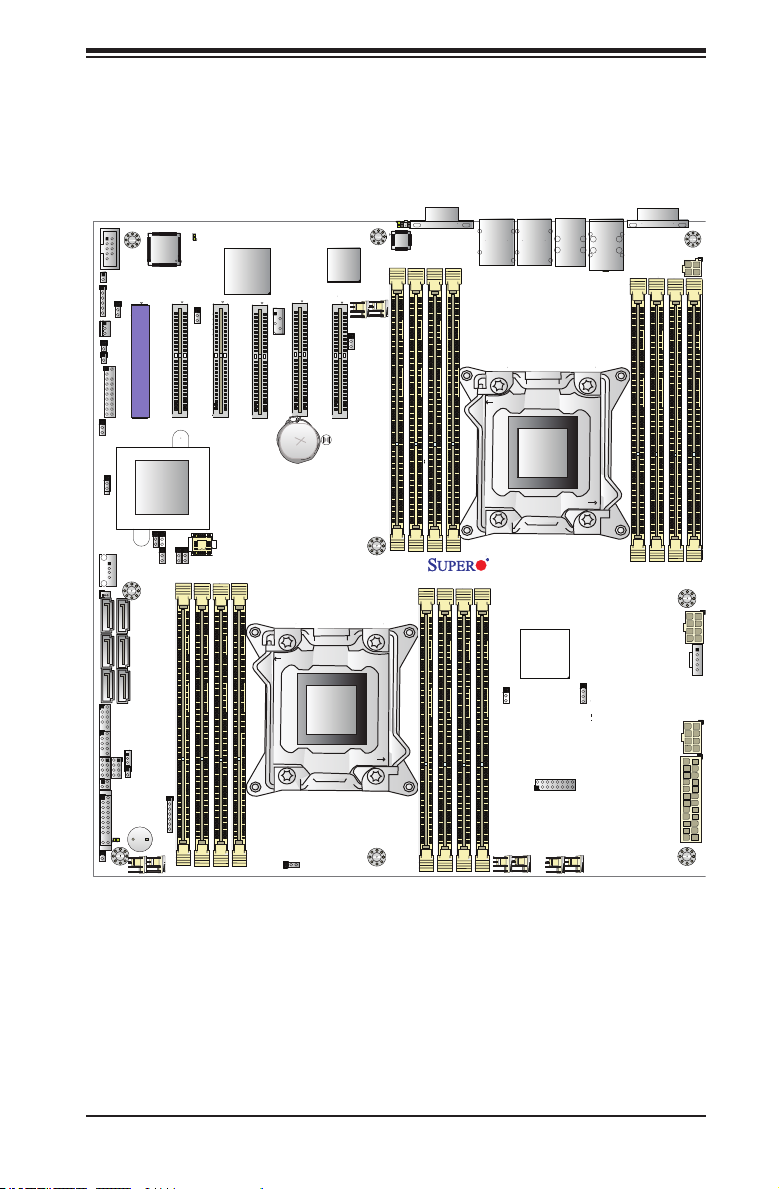

Figure 1-2. X9DRD-EF Serverboard
JPME1
JI2C1
VGA1
I-SATA1
I-SATA0
I-SATA5
I-SATA4
I-SATA3
I-SATA2
JIPMB1
JPME2
JPL1
JBR1
JWD1
JPG1
JPB1
JVRM_I2C1
JVRM_I2C2
JVR1
FAN5
FAN6
FAN8 FAN7
FAN1
FAN2
FAN3
FAN4
JF2
T-SGPIO1
T-SGPIO2
JUSB6
JSD1
JBT1
JBAT1
JTPM1
JF1
JPI2C1
JOH1
JI2C2
JL1
JSTBY1
JUIDB
J4
JD1
LED3
LEDM1
LED2
LAN2 LAN1
CPU1
CPU2
CPU2
CPU1
CPU2
CPU1
PWR I2C
UID
P2-DIMME1 P2-DIMMF2 P2-DIMMF1
P2-DIMMG2
P2-DIMMG1
P2-DIMMH2 P2-DIMMH1
P1-DIMMA2
P1-DIMMA1
P1-DIMMB2
P1-DIMMB1
P1-DIMMC1 P1-DIMMC2
P1-DIMMD1
P1-DIMMD2
USB4/5USB8/9
SLOT1 PCI-E 3.0 X8
SLOT2 PCI-E 3.0 X8
SLOT3 PCI-E 3.0 X8
SLOT4 PCI-E 3.0 X8
SLOT5 PCI-E 3.0 X8
USB6
TPM/PORT80
BUZZER
CMOS CLEAR
SLOT6 PCI-E 3.0 X8
COM2
USB2/3
COM1
USB0/1
SP1
CPU2
IPMI_LAN
CPU2
CPU2
Battery
BIOS
JPW1
JPW2
24-Pin Main PWR
8-Pin PWR
JPW4
P2-DIMME2
JPW3
8-Pin PWR
4-Pin PWR
Intel
PCH
LAN
CTRL
BMC
CPU1
X9DRD-EF
Rev. 1.02
JBOD Expansion Port

1-6
SUPERSTORAGESYSTEM 6027R-E1CR12L User's Manual
1-4 Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)
[email protected] (Technical Support)
Web Site: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)
[email protected] (Technical Support)
[email protected] (Customer Support)
Web Site: www.supermicro.nl
Asia-Pacic
Address: Super Micro Computer, Inc.
3F, No. 150, Jian 1st Rd.
Zhonghe Dist., New Taipei City 235
Taiwan (R.O.C)
Tel: [phone]
Fax: [phone]
Email: [email protected]
Web Site: www.supermicro.com.tw

Chapter 2: Server Installation
2-1
Chapter 2
Server Installation
2-1 Overview
This chapter provides a quick setup checklist to get your 6027R-E1CR12L up and
running. Following these steps in the order given should enable you to have the
system operational within a minimum amount of time. This quick setup assumes
that your system has come to you with the processors and memory preinstalled. If
your system is not already fully integrated with a serverboard, processors, system
memory etc., please turn to the chapter or section noted in each step for details on
installing specic components.
2-2 Unpacking the System
You should inspect the box the 6027R-E1CR12L was shipped in and note if it was
damaged in any way. If the server itself shows damage you should le a damage
claim with the carrier who delivered it.
Decide on a suitable location for the rack unit that will hold the 6027R-E1CR12L.
It should be situated in a clean, dust-free area that is well ventilated. Avoid areas
where heat, electrical noise and electromagnetic elds are generated. You will also
need it placed near a grounded power outlet. Read the Rack and Server Precau-
tions in the next section.
2-3 Preparing for Setup
The box the 6027R-E1CR12L was shipped in should include two sets of rail assem-
blies, two rail mounting brackets and the mounting screws you will need to install the
system into the rack. Follow the steps in the order given to complete the installation
process in a minimum amount of time. Please read this section in its entirety before
you begin the installation procedure outlined in the sections that follow.
Choosing a Setup Location
•Leave enough clearance in front of the rack to enable you to open the front door
completely (~25 inches) and approximately 30 inches of clearance in the back
of the rack to allow for sufcient airow and ease in servicing.

2-2
SUPERSTORAGESYSTEM 6027R-E1CR12L User's Manual
•This product is for installation only in a Restricted Access Location (dedicated
equipment rooms, service closets and the like).
•This product is not suitable for use with visual display work place devices
acccording to §2 of the the German Ordinance for Work with Visual Display
Units.
Rack Precautions
•Ensure that the leveling jacks on the bottom of the rack are fully extended to
the oor with the full weight of the rack resting on them.
•In single rack installation, stabilizers should be attached to the rack. In multiple
rack installations, the racks should be coupled together.
•Always make sure the rack is stable before extending a component from the
rack.
•You should extend only one component at a time - extending two or more si-
multaneously may cause the rack to become unstable.
Server Precautions
•Review the electrical and general safety precautions in Chapter 4.
•Determine the placement of each component in the rack before you install the
rails.
•Install the heaviest server components on the bottom of the rack rst, and then
work up.
•Use a regulating uninterruptible power supply (UPS) to protect the server from
power surges, voltage spikes and to keep your system operating in case of a
power failure.
•Allow any hot plug drives and power supply modules to cool before touching
them.
•Always keep the rack's front door and all panels and components on the servers
closed when not servicing to maintain proper cooling.

Chapter 2: Server Installation
2-3
Warning! To prevent bodily injury when mounting or servicing this unit in a
rack, you must take special precautions to ensure that the system remains
stable. The following guidelines are provided to ensure your safety:
•This unit should be mounted at the bottom of the rack if it is the only unit in
the rack.
•When mounting this unit in a partially lled rack, load the rack from the bottom
to the top with the heaviest component at the bottom of the rack.
•If the rack is provided with stabilizing devices, install the stabilizers before
mounting or servicing the unit in the rack.
Rack Mounting Considerations
Ambient Operating Temperature
If installed in a closed or multi-unit rack assembly, the ambient operating tempera-
ture of the rack environment may be greater than the ambient temperature of the
room. Therefore, consideration should be given to installing the equipment in an
environment compatible with the manufacturer’s maximum rated ambient tempera-
ture (Tmra).
Airow
Equipment should be mounted into a rack so that the amount of airow required
for safe operation is not compromised.
Mechanical Loading
Equipment should be mounted into a rack so that a hazardous condition does not
arise due to uneven mechanical loading.
Circuit Overloading
Consideration should be given to the connection of the equipment to the power
supply circuitry and the effect that any possible overloading of circuits might have
on overcurrent protection and power supply wiring. Appropriate consideration of
equipment nameplate ratings should be used when addressing this concern.
Reliable Ground
A reliable ground must be maintained at all times. To ensure this, the rack itself
should be grounded. Particular attention should be given to power supply connec-
tions other than the direct connections to the branch circuit (i.e. the use of power
strips, etc.).

2-4
SUPERSTORAGESYSTEM 6027R-E1CR12L User's Manual
2-4 Installing the System into a Rack
This section provides information on installing the SC826 chassis into a rack unit
with the quick-release rails provided. There are a variety of rack units on the market,
which may mean the assembly procedure will differ slightly. You should also refer to
the installation instructions that came with the rack unit you are using.
Separating the Sections of the Rack Rails
The chassis package includes two rail assemblies in the rack mounting kit. Each
assembly consists of two sections: an inner xed chassis rail that secures directly
to the server chassis and an outer xed rack rail that secures directly to the rack
itself.
Installing the Inner Rail Extension
The SC826 chassis includes a set of inner rails in two sections: inner rails and inner
rail extensions. The inner rails are pre-attached to the chassis, and do not interfere
with normal use of the chassis if you decide not to use a server rack. The inner rail
extension is attached to the inner rail to mount the chassis in the rack.
Installing the Inner Rails
1. Place the inner rail extensions on the side of the chassis aligning the hooks
of the chassis with the rail extension holes. Make sure the extension faces
"outward" just like the pre-attached inner rail.
2. Slide the extension toward the front of the chassis.
3. Secure the chassis with 2 screws as illustrated. Repeat steps for the other
inner rail extension.

Chapter 2: Server Installation
2-5

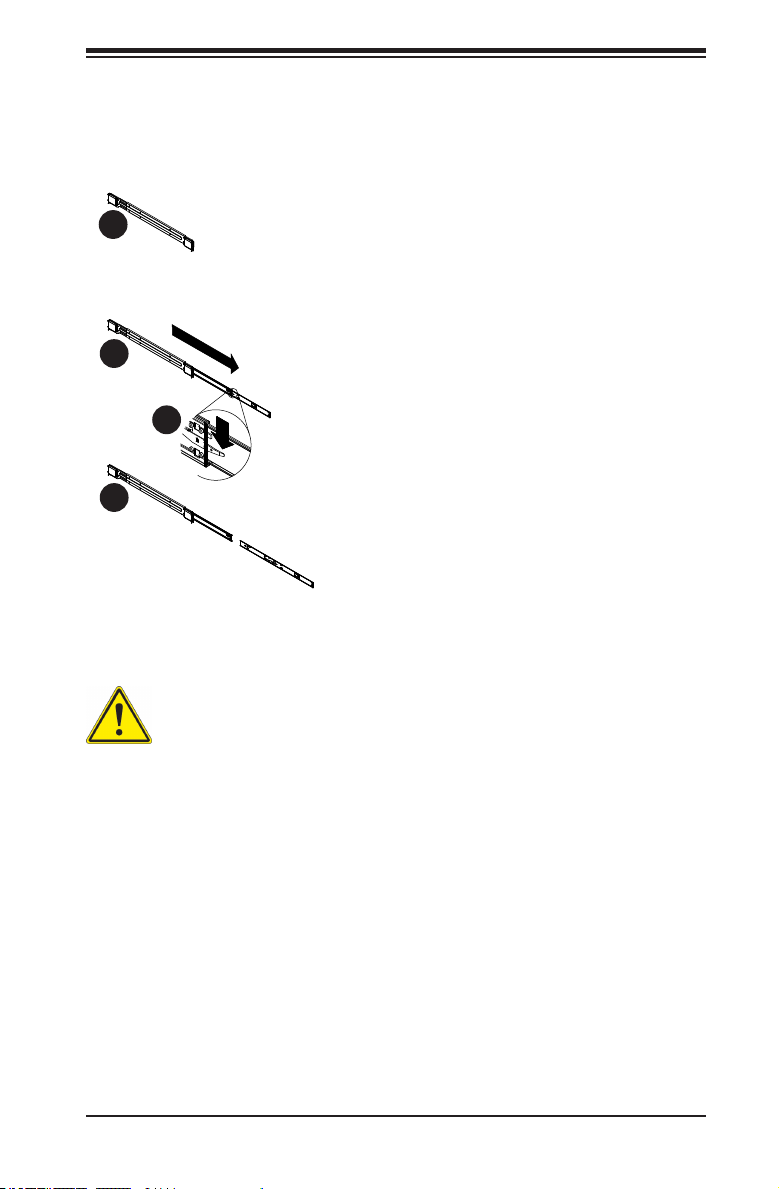

Figure 2-1: Separating the Rack Rails
screw the handles the
outer rails for secure
purpose if necessary
F.
ABLECOM
DATE:2008/08/14
REV:2
SCREW
SCREW
COMPLETE
1
2
1
1
1
2
1
4
1
3
Separating the Inner and Outer Rails
1. Locate the rail assembly in the chassis
packaging.
2. Extend the rail assembly by pulling it
outward.
3. Press the quick-release tab.
4. Separate the inner rail extension from
the outer rail assembly.
Rail Assembly
Extending the Rails
Quick-Release
Tab
Separating the Inner
Rail Extension
Warning: do not pick up the server with the front handles. They are de-
signed to pull the system from a rack only.

2-6
SUPERSTORAGESYSTEM 6027R-E1CR12L User's Manual
Outer Rack Rails
Outer rails attach to the rack and hold the chassis in place. The outer rails for the
SC826 chassis extend between 30 inches and 33 inches.
Installing the Outer Rails to the Rack
1. Secure the back end of the outer rail to the rack, using the screws provided.
2. Press the button where the two outer rails are joined to retract the smaller
outer rail.
3. Hang the hooks of the rails onto the rack holes and if desired, use screws to
secure the front of the outer rail onto the rack.
4. Repeat steps 1-3 for the remaining outer rail.
Figure 2-2. Assembling the Outer Rails
screw the handles the
outer rails for secure
purpose if necessary
F.
ABLECOM
DATE:2008/08/14
REV:2
SCREW
SCREW
COMPLETE
1
2
1
1
1
2
1
3
