Master Air II
Installation Guide
Model BA404, BA405, BA406, BA407
Congratulations on choosing Supreme!
Warm Air Hand ryers for your
Washroom requirements
For best results simply follow
these instructions.
NZ Phone: [phone]
Product Disclaimer
This appliance must only be used for the purpose which
it was designed. All other uses must be considered to be
potentially dangerous.
Supreme Products Ltd accepts no responsibility for any
damage or injury to property or persons caused by
improper, incorrect or unreasonable use.
For all warranty enquiries on this product contact:
Supreme Products Limited
PO Box 437, Cambridge 3450
New Zealand
Phone [phone]
Fax + 62 7 823 5792
Email: [email protected]
www.supreme.co.nz
WARRANTY
Your Supreme Hand ryer is fully guaranteed against defective materials and faulty workmanship for a period of 12 months from date of sale, subject to it being installed and maintained in accordance with the manufacturers instructions. Supreme Products Ltd warrants that should any part of the dryer fail within one year of installation that part will be replaced or repaired free of charge. Mileage and travelling time outside metropolitan areas by tradesperson or accredited service agents is payable by the customer. Alternatively, the dryer may be returned to Supreme Products Ltd or its accredited service agents for repair under warranty with the cost of removal, re-installation and cartage will be payable by the customer. This warranty does not cover the damage resulting from non-operation of the hand dryer, the use of non–authorised parts, failure due to accident, misuse, abuse or failure to follow installation and maintenance instructions or consequential damage to any other goods, furnishings or property. This warranty does not displace any statutory warranty in relation to the dryer but any liability of Supreme Products Ltd under any statutory warranty will be limited to a
replacement or repair of the dryer or payment of the cost of such replacement or repair at the option of Supreme Products Ltd.

Planning
We suggest that one hand dryer be installed for every two
hand basins.
The BA404, BA40 , BA406 AND BA407 hand dryer
should NOT be installed over bench tops or reflective
surfaces.
When positioning dryers take note of traffic flows in the
washroom, also be aware of obstructing doors, cabinets
etc.
Electrical Connection
Installation must be carried out by a qualified person in
accordance with all local wiring regulations.
Fixed wiring is recommended for all installations. Wiring
should emerge from the wall in the position marked on the
mounting diagram.
A fixed wiring should incorporate a switch or breaker with
a contact separation of at least 3mm in all poles.

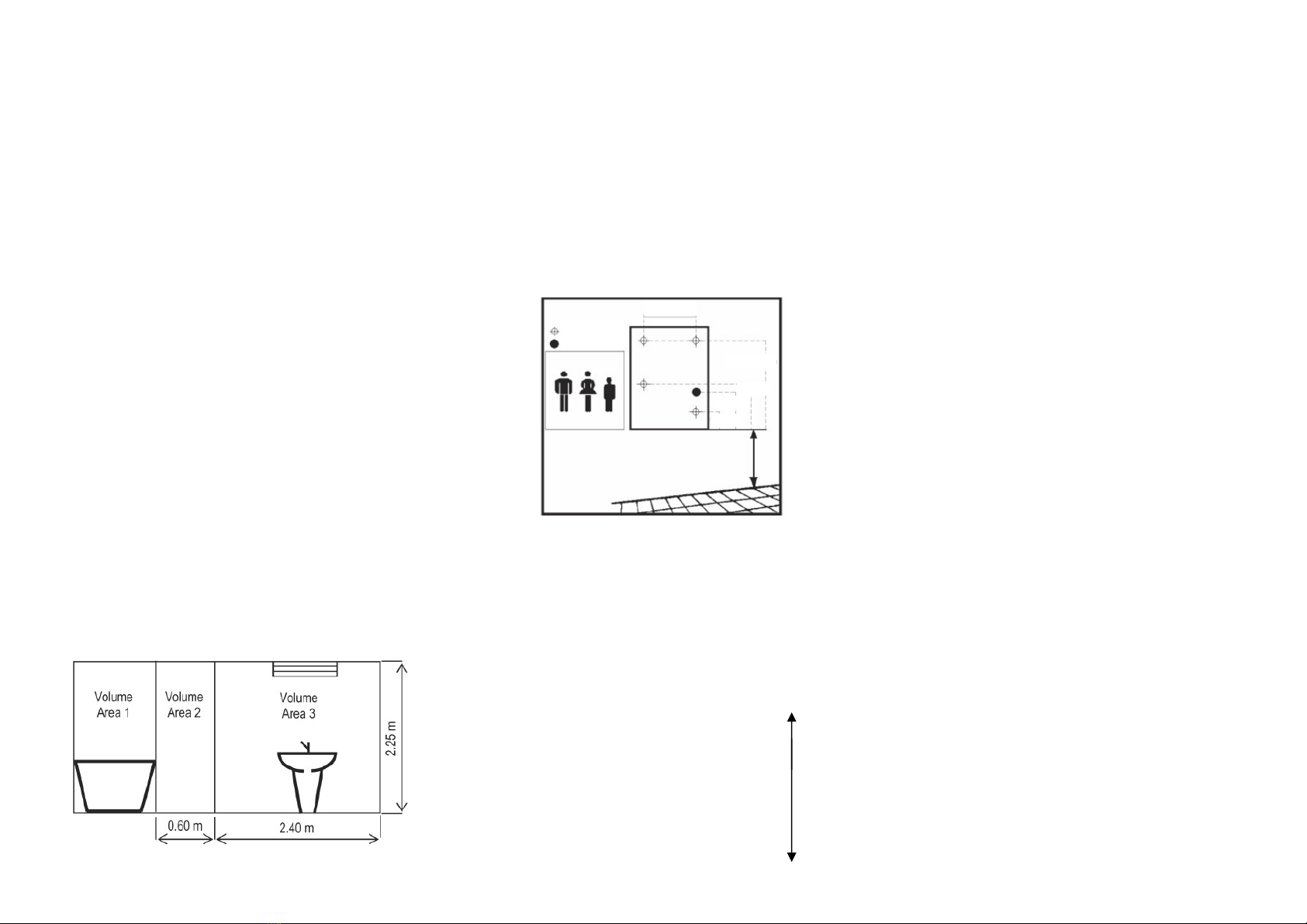

Installation may be permitted in area 2 and 3 due to class
II and IP23 rating as long as the whole electrical circuit is
protected by an earth leakage breaker with a maximum
sensitivity of 30ma.
Installation Instructions
NOTE: Dryer should not be installed within 00mm of
a bench top or reflective surface.
1.Remove cover by firstly loosening the two screws at top
of cover using allen key supplied.
2. Pull top of cover away from back plate and push down
and out to remove.
3. Pass power supply cable through hole in back plate.
4. Position back plate on wall as per mounting diagram
and securely fasten.
5. After terminating cable replace the cover and test
operation.
6. The sensor sensitivity should be adjusted as
required by turning the trim pot at base of machine.
Turning anti-clockwise to increase sensitivity
(range), clockwise to decrease (less range).
Maintenance Instructions
Very little maintenance is required to keep your hand
dryer in first class operating order. However, the
following maintenance should be carried out six
monthly in high traffic areas and twelve monthly in
normal traffic areas.
1. isconnect power supply and remove cover
2. Carefully clean lint from inside the dryer
3. Wash cover in warm soapy water to remove grime
Your guarantee could become void if the above is not
performed at the specified intervals.
NOTE: If the power cord of this appliance is damaged,
it must only be replaced by a repair shop appointed by
the manufacturer, or a suitably qualified person in
order to avoid a hazard.
Service Hints
All service work should be carried out by a qualified
trades person. Turn off power supply before removing
the cover. In event of your hand dryer failing to start,
firstly check that the power is available, the sensor
lenses are clean and sensor sensitivity has been
adjusted.
Safety Precautions &
Standards Compliance
Supreme Hand ryers have been tested and comply
with all relevant Australian and New Zealand standards
for electrical safety and electromagnetic interference.
CAUTION
• The dryer is not intended for use by young children or
infirm persons without supervision.
• Young children should be supervised to ensure that
they do not play with the appliance.
• o not insert objects into the air outlet, doing so can
be hazardous and could result in electric shock.
• o not obstruct the air inlets or outlets in any way.
• o service your Hand ryer at regular
intervals.
135m
mounting holes 6mm
cable entry
250mm
245mm
65mm
120mm
Height recommendations
Recommended height to bottom of dryer.
Men’s washroom 1100mm
Ladies’ washroom 1050mm
Children’s washroom 13-17yrs 1000mm
Children’s washroom 10-13yrs 950mm
Children’s washroom 7-10yrs 900mm
Children’s washroom 4-7yrs 800mm
isabled Person’s 800mm
