SureLife Classic User manual

Classic Model
Arm Blood Pressure Monitor
SYS.
mmHg
DIA.
mmHg
Pulse
/min

2
SAFETY PRECAUTIONS
• Infants, young children or individuals who cannot express their
consent are not suitable to take blood pressure measurement.
• Individuals with serious arteriosclerosis are not suitable to take
blood pressure measurement.
• Blood pressure readings may change in case of pregnancy.
Pregnant women should consult their doctor before taking
measurement.
• Self-measurement is not medical treatment. If there are
unusual values, consult your doctor.
• Handling batteries properly:
° As soon as old batteries run out, replace with new batteries.
° Do not use old and new batteries together.
° Align the polarities of batteries correctly.
° When the unit will not be used for more than 3 months, remove
the batteries. Otherwise, batteries may leak and cause damage
to the unit.
Classic Model

Avoid smoking, eating, drinking caeinated drinks or exercising for
30 minutes before taking measurement.
1. Sit upright in a chair with both feet on the oor.
2. Remove tight tting clothing from
your upper arm along with any
thick clothing.
3. Pull on the end of the cu until
it wraps securely around your
upper arm. Place your arm on a
table so that the cu will be at
the same level as your heart.
4. Press the“ ” button. The cu will automatically inate and the
measurement will start.
5. When the measurement is complete, the cu will automatically
deate and your systolic and diastolic pressure values and
pulse rate will display.
3
QUICK START GUIDE

4
OVERVIEW
Monitor
Features
• One Touch Operation
• 99 Total Memory
• Irregular Heartbeat Detector
• Auto-o Power Saving Feature
• Operated by 4 AA batteries (AC Adapter optional)
Cu Outlet Memory Recall (Up) Power (Start)
SYS.
mmHg
DIA.
mmHg
Pulse
/min

SYS.
mmHg
DIA.
mmHg
Pulse
/min
5
Display
Systolic
Diastolic
Pulse
Low Battery
Indicator
Memory No.
(1-99 readings)
Pulse Symbol
Memory
Package Contents
4 x AA
Alkaline Batteries
Instruction
Manual
Arm CuMain Unit

2.1 Battery Installation
1. Pull and lift on the lock to remove the battery cover.
2. Insert 4 AA batteries
with the polarities in
the correct direction.
3. Replace the battery
cover. Press it lightly
until the lock securely
clicks into place.
Note: Replace batteries when the battery indicator ” “ shows
low voltage
6
PREPARATION

Note:
• Avoid smoking, eating, drinking any caeinated drinks or
exercising for 30 minutes before taking measurement.
• Do not move or talk during measurement.
3.1 Sitting Correctly
1. Relax
2. Sit upright in a chair with both feet on the oor.
3. Remove tight tting clothing from your
upper arm along with any thick clothing.
Do not roll up your sleeve if it is too tight.
4. Place your arm on a table so that the cu
will be at the same level as your heart.
3.2 Applying the Arm Cu
1. Place your elbow on a table and palm facing upward, and wrap
the arm cu around the upper left arm.
2. Pull on the end of the cu until it wraps securely around your
upper arm. Do not over tighten the cu. Allow 1–2 cm or 1/2
inch between the bottom of the cu and your elbow joint.
3. Make sure the cu is at the same level as your heart.
TAKING MEASUREMENT
7

3.3 Taking Measurement
1. Press the“ ” button. The cu will automatically inate and the
measurement will start.
2. When the measurement is complete, the cu will automatically
deate and your systolic and diastolic pressure values and
pulse rate will display.
3. Remove the arm cu and take note of your
measurement results.
Note: You can press the “ ” button to stop measurement at
any time.
3.4 Heartbeat Readings
Besides Systolic and Diastolic values,
Pulse will also be displayed after
a measurement.
8
Pulse

9
Irregular Heartbeat
This unit has a unique feature that alerts user of irregular heartbeat
detection during measurement.
Note: An irregular heartbeat is dened as a heartbeat rhythm that
has a variation of more than 25% from the average rhythm
detected during measurement.
If such irregular rhythm occurs twice of more during the same
measurement, the display screen will show the pulse value and “IH”
symbol alternately. Example: (90 / IH)
Note: Please consult your doctor if irregular heartbeat occurs often.

10

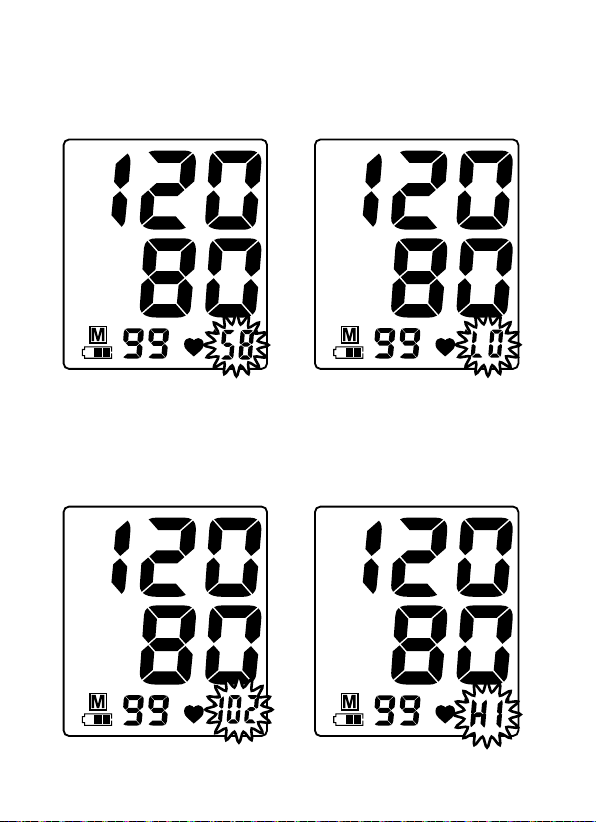

Regular but Below Normal Heartbeat
If the monitor detects a pulse rate below 60 beats per minute during
measurement, the monitor will display the pulse value and “LO”
symbol alternately. Example: (58 / LO)
Regular but Above Normal Heartbeat
If the monitor detects a pulse rate above 100 beats per minute during
measurement, the monitor will display the pulse value and “HI”
symbol alternately. Example: (102 / HI)

11
After measurement, the last set of measured values will be saved
automatically after measurement when the unit is turned o by
pressing “ ”button or by automatic power o after 3 minutes.
4.1 View Past Readings
1. Press the “M”button to enter memory function.
2. Press the “M”button to display the next sets of values. Past
readings are displayed from the most recent to the oldest.
3. This device can store up to 99 sets of past readings.
4.2 Delete Past Readings
When the monitor’s power is o, press and hold the memory button
“M” for 5 seconds until the memory icon “ ” appears in the display.
Without releasing the memory button, press the power button “ ”
and “ALL EE” will appear. Release the power button “ ” and the
memory button “M”to erase all stored readings from the monitor.
MEMORY FUNCTIONS

12
TROUBLESHOOTING
Check if the cu is
properly connected.
Replace the air tube
if it is broken.
Fail to inate“Err P” displayed
“Err 1” displayed
“Err 2” displayed
“Err 3” displayed Incorrect results Measure again.
Remove interfering
source e.g. mobile
phones, magnets.
Do not move during
measurement
Return for servicing.Deate too rapidly
Movement during
measurement
Signal interference
Problem Cause Solution
No display when
you press the
Power/Start
button
Have the batteries
run out?
Are the battery
polarities wrong?
Replace new
batteries.
Re-align batteries
in correct polarities.
Note: If your problem cannot be solved by the above, consult your
store of purchase. Do not disassemble the unit.

13
STORAGE & MAINTENANCE
• Keep the unit away from direct sunlight, extreme temperatures,
humidity or moisture
• Use a dry, soft cloth to clean the unit, or if desired, use a cloth
lightly dampened with water.
• Do not use alcohol, benzene, thinner or other volatile liquids to
clean the unit.
• Do not wash or expose the arm cu to liquid.
• Remove batteries from the unit when it will not be used for more
than 3 months.

14
SPECIFICATIONS
Note: Subject to modication without prior notice.
Model No.
Measurement Method
Measurement Range
Accuracy
Ination
Pressure Detection
Power Supply
Auto Power O
Storage Environment
Operation Environment
External Dimensions
Net Weight
Cu Dimensions
Package Content
Classic (SL-BA201)
Oscillometric
Pressure: 20 – 280 mmHg
Pulse Rate: 40 – 195 beats/min
Pressure: +/- 3 mmHg
Pulse Rate: +/- 5%
Pump driven
Semi-Conductor
4 x AA batteries
3 minutes after last operation
-4°F to 140°F, 10% to 95% RH
50°F to 104°F, 30% to 85% RH
5.8” (L) x 4.25” (W) x 2.83” (H) or
14.8 (L) x 10.8 (W) x 7.2 (H) cm
10.1oz/285g (batteries excluded)
Arm Cu
9-14 in/22-34 cm
Cu, Instruction Manual,
Battery Set, Main Unit

15
WARRANTY
A Full 5-Year Warranty on Your Monitor
The SureLife® Arm Blood Pressure Monitor, excluding the arm cu,
is warranted to be free from defects in materials and workmanship
within 5 years from the date of purchase.
A Full 1-Year Warranty on Your Arm Cu
The arm cu is warranted to be free from defects and workmanship
within 1 year from the date of purchase. Both the monitor and arm
cu must be used in accordance with the instructions provided with
the monitor.
Keep Your Proof of Purchase (Store Invoice)
The above warranty is extended to only the original retail purchaser.
Proof of Purchase required.
We will, at our option, repair or replace without charge any monitor or
arm cu covered by the above warranties.
To obtain warranty service, please contact MHC Medical Products
at [phone].
ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THE
APPLICABLE WRITTEN WARRANTY ABOVE.
FOR CUSTOMER
SERVICE CALL OUR
TOLL FREE NUMBER:
[phone]
AD-121015.3

Manufactured in accordance with
FDA and International Standards
0123
MHC Medical Products, LLC
8695 Seward Road
Faireld, Ohio 45011
Made in China to MHC Medical Products’specications.
Package design © 2010
SureLife® is a trademark of MHC Medical Products, LLC.
