Surgically Clean Air JADE 2.0 User manual

SURGICALLY CLEAN AIR
TM
JADE™2.0 (SCA5100C)
OPERATION MANUAL
Read the manual thoroughly before
operation and retain for future reference.
EPA
Establishment#
100231-CHN-001
AUTO
2 3
E520581

TABLE OF CONTENTS
SAFETY PRECAUTIONS
HOW IT WORKS
FEATURES AND SPECIFICATIONS
PART NAME
INSTALLATION
OPERATION
CARE AND MAINTENANCE
TROUBLESHOOTING
4-7
8
9
10
11
12-14
15-17
18

04
SAFETY PRECAUTIONS 1
Be sure to follow all precautions below:
Running Environment Cautions
•Use only a 120-volt outlet with grounding wire receptacle.
•Do not put it in rooms with high heat, damp or wet places.
•Best working condition is 10-40
0
C.
• Level the unit well, never use unit when it is tilted or laying down.
• To reduce the risk of electric shock, this equipment has a grounding type plug that has a third (grounding) pin.
This plug will only fit into a grounding type power outlet. If the plug does not fit into the outlet, contact qualified
personnel to install the proper outlet. Do not alter the plug in any way.
Unit Operation
• Do not insert fingers or foreign objects into the intake or air outlet.
• Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.
• Do not block the air intake and air outlet. Never insert small things into the air intake/outlet.
• Do not use the air purifier if the power cord or plug is damaged or the connection to the wall outlet is loose.
• When removing the power plug, always hold the plug and never pull by the cord.
• Do not use the unit near or on hot objects, such as range or where it may be exposed to steam.
• Stop the unit and unplug the power when moving or maintenance. Always hold the handles on the side
of the unit when moving it.
• To avoid causing fire and/or shock do not attempt to disassemble the unit - only certified technicians
should do this.
• Do not wash or reuse the HEPA-Rx filter and the Activated carbon filter.
WARNING
The internal UV-C+ lamp contains a small amount of
mercury which is contained inside the lamp unless
broken. Mercury and mercury compounds are known to
the State of California to cause birth defects or other
reproductive harm.
For more information go to www.P65Warnings.ca.gov

05
SAFETY PRECAUTIONS 2

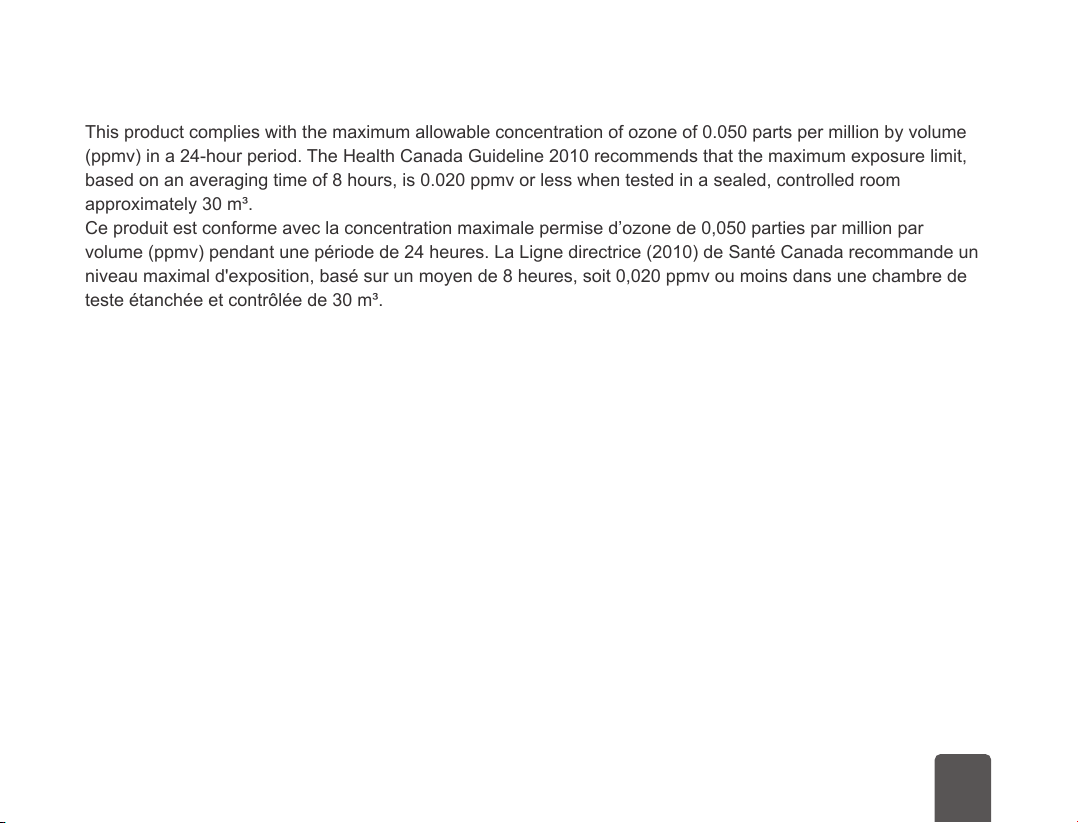

This product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume
(ppmv) in a 24-hour period. The Health Canada Guideline 2010 recommends that the maximum exposure limit,
based on an averaging time of 8 hours, is 0.020 ppmv or less when tested in a sealed, controlled room
approximately 30 m³.
Ce produit est conforme avec la concentration maximale permise d’ozone de 0,050 parties par million par
volume (ppmv) pendant une période de 24 heures. La Ligne directrice (2010) de Santé Canada recommande un
niveau maximal d'exposition, basé sur un moyen de 8 heures, soit 0,020 ppmv ou moins dans une chambre de
teste étanchée et contrôlée de 30 m³.
INTENDED USE
The JADE™2.0 Air Purifier is intended to remove particles and microorganisms from the air.
UTILISATION PREVUE
Le purificateur d'air JADE2.0 est destine a éliminer les particules et les micro-organismes de l'air.
DIRECTIONS FOR USE
Plug the power cord in and you will hear a "Beep". The small, inner circle will turn green - this indicates the air purifier is in
standby mode. Use your hand to wave over the sensor, this waving motion turns the unit on & off, and can also adjust the fan
speed.
MODE D'EMPLOI
Branchez le cordon d'alimentation et vous entendrez un (< bip ». Le petit cercle interieur deviendra vert - ce indique que le
purificateur d'air est en mode veille. Utilisez votre main pour agiler le capteur, ce mouvement d'ondulation allume et eteint
!'unite et peut egalement ajuster la vitesse du ventilateur.
DISPOSAL INSTRUCTIONS
Dispose of filters and UV-C+ bulbs according to local regulations based on location of use (e.g. medical waste if used in a
medical setting such as dental clinics, laboratories, etc.).
INSTRUCTIONS D'ELIMINATION
Eliminez les filtres conformement aux reglementations locales en fonction du lieu.

06
SAFETY PRECAUTIONS 3
WARNING - The internal UV-C lamp contains a small amount of mercury which is contained inside the bulb unless
broken. Mercury and mercury compounds are known to the State of California to cause birth defects or other reproductive
harm. For more information, go to www.p65warnings.ca.gov.
The following safety warnings as per regulatory requirements of PCPA (Pest Control Products Act) in Canada:
Avertissements de securite selon Ies exigences reglementaires de Ia PCPA (Loi sur Ies produits antiparasitaires) au Canada.
PRECAUTIONS
- READ THE LABEL AND ANY OPERATING MANUAL BEFORE USING
- KEEP OUT OF THE REACH OF CHILDREN
- WARNING - UV radiation only emitted internally in this device.
- Unintended use of the device, or damage to the housing, may result in exposure to ultraviolet radiation.
- Ultraviolet radiation may cause eye and skin irritation.
- Avoid exposing eyes and skin to ultraviolet radiation.
- The use of this device is a supplement to and not a substitute for standard infection control practices; users must continue
to follow all current infection control practices, including those practices related to cleaning and disinfection of
environmental surfaces.
FIRST AID INSTRUCTIONS
Clean the injury using soap and warm water, apply antibiotic ointment and a bandage, and watch for signs of infection.
INSTRUCTIONS DE PREMIERS SOINS
Nettoyez la blessure avec du savon et de l'eau tiede, appliquez une pommade antibiotique et un pansement et surveillez les
signes d'infection.

07
SAFETY PRECAUTIONS 4
FCC Warning statements
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
ISED Warning statements
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two
conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.

08
The air is purified in five stages:
1. PRE-FILTER STAGE
2. PROPRIETARY HEPA-Rx FILTER
3. ACTIVATED CARBON FILTER
4. UV-C+ LAMP
5. REVITALIZING NEGATIVE ION CHAMBER
HOW IT WORKS
When the DC fan motor is running, the indoor air will be drawn through the bottom of the unit. The air will then
pass through the HEPA-Rx Filter, the Activated Carbon Filter, the UV-C+ chamber. The purified air is then
released through the outlet on the top of the unit. The Revitalizing Negative Ion Generators near the air outlet
releases revitalizing negative ions into the air to refresh the air.

FEATURES AND SPECIFICATIONS
The unit has five stages of filtration. A Pre Filter, HEPA-Rx Filter, Activated Carbon Filter, UV-C+ lamp, and
two Revitalizing Negative Ion Generators.
Touch-free hand gesture operation
The JADE™2.0 can be operated completely with the wave of your hand, making it suitable in medical settings
to avoid cross contamination.
Filters and UV-C+ Lamp Replacement Indicator Lights
The indicator lights tell you when to replace the HEPA-Rx filter, the Activated carbon filter or the UV-C+ lamp.
Safety and Easy Maintenance
The unit is also equipped with a safety interlock switch that will turn the power off if the bottom plate is opened.
When the filters need to be replaced, simply open the bottom plate and pull out the filters and put the new
ones in. No screws, hooks or tools are required.
Model No.
Power Requirement
Rated Power
Negative Ion
UV Lamp
Dimensions
Weight
JADE™2.0 (SCA5100C)
120V, 60Hz
72W, 1A
2x3x106/cm³
10W
Φ31.6cm x H89.5cm (Φ12.4 inches x H35.2 inches )
14.5kg (31.9 pounds)
09

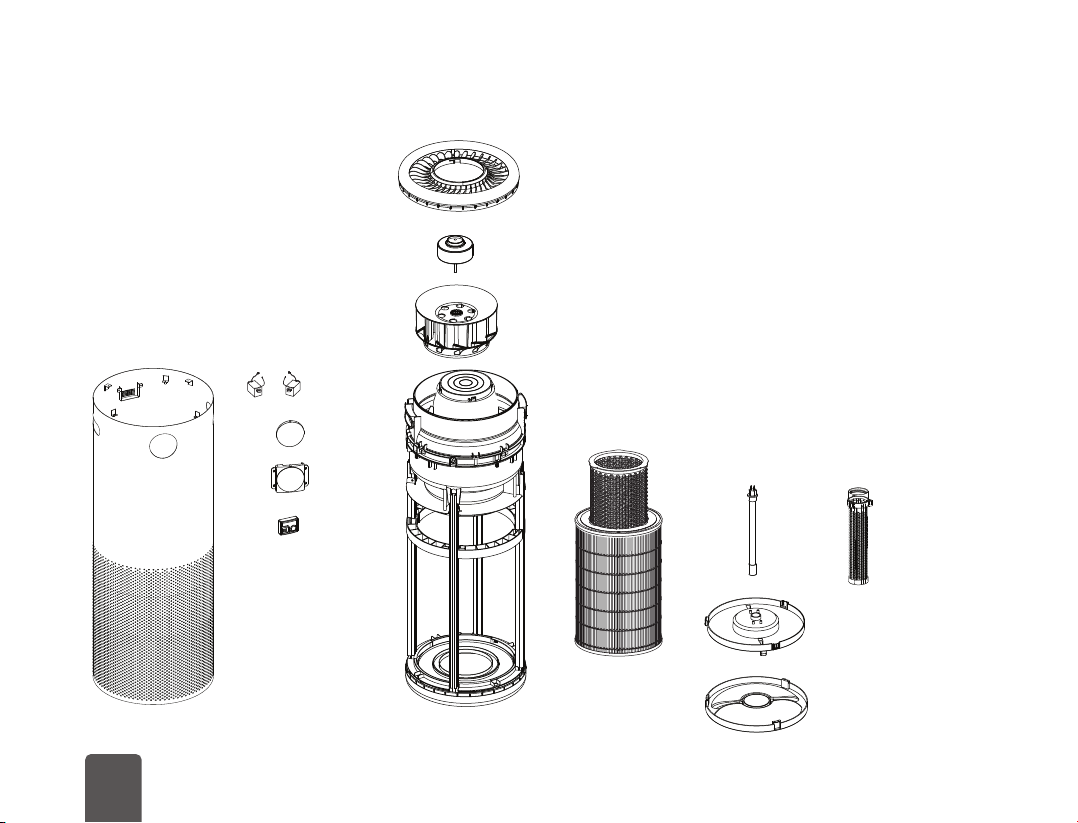

PART NAME
-01
-02
-03
-04
-05
-06
-09
-10
-11
-07
-08
9- Particle laser sensor
10- HEPA-Rx filter
11- Activated carbon filter
12- UV-C+ lamp holder
13- Photo catalytic filter
14- Unit lock
15- Bottom plate
01- Unit body
02- Unit housing
03- Air outlet
04- Fan motor
05- Fan blade
06- Ion generator
07- LED display
circuit board
08- Display panel
-12
-14
-13
-15
10

INSTALLATION
1. Power supply condition: Use only a 120-volt outlet with grounding wire receptacle.
2. Operational conditions: Temperature: 0℃~40℃; Relative humidity: <75%.
3. The unit should be installed in an indoor area with less personnel activities, and the unit should be set up
against the wall.
4. This product is suitable for indoor air disinfection in human environment. It is strictly prohibited to use in
flammable, explosive and other gas environment.

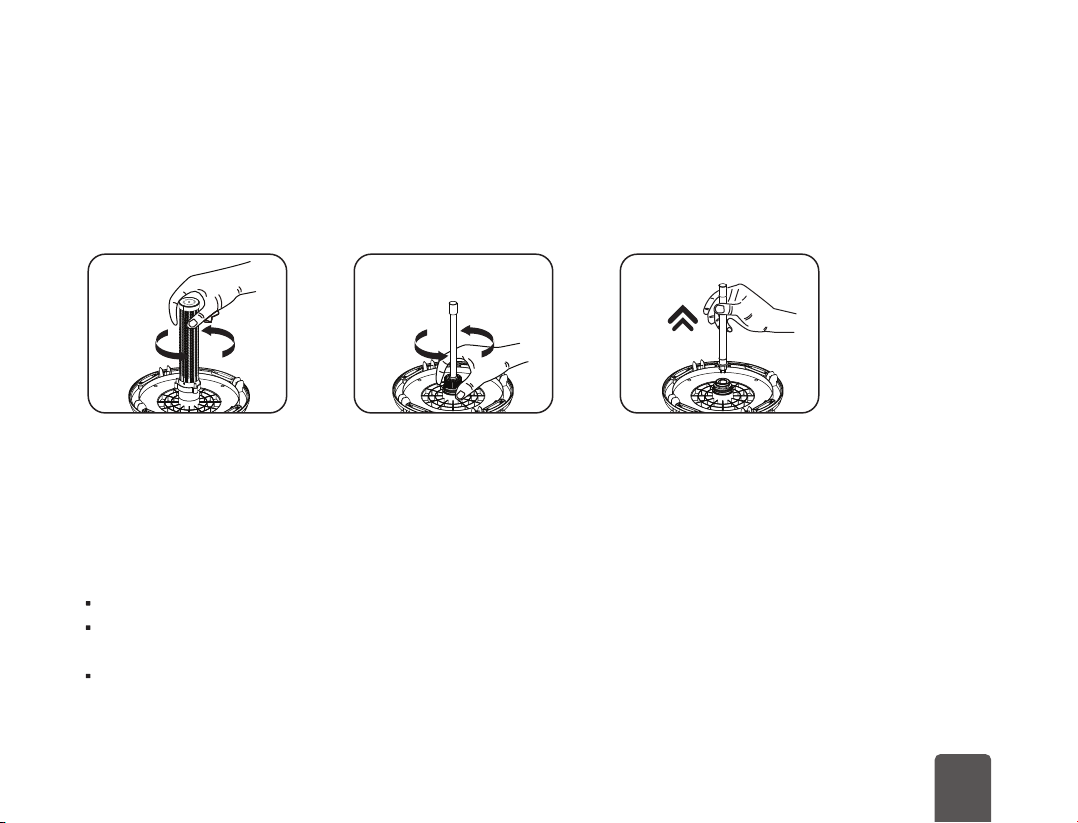

Before operation
1. Turn unit upside down - put towel or any soft pad on the ground to avoid damage to the unit when you
turn it upside down.
2. Open unit from the bottom - Turn counterclockwise to open bottom.
3. After the plastic bottom is removed, take off the unit lock.
4. Take out the HEPA-Rx filter and the activated carbon filter to remove the plastic cover.
5. Put the HEPA-Rx filter and activated carbon filter back into unit. Align the blue arrow with blue arrow, turn
the unit lock clockwise until the blue arrow is aligned with the letter C on the unit bottom.
6. Install the bottom plate by rotating clockwise the same with the Step 5.
Prior to using unit for the first time, you must remove the plastic
bag from the HEPA and activated carbon filter inside the unit.
Caution
11

OPERATION 1

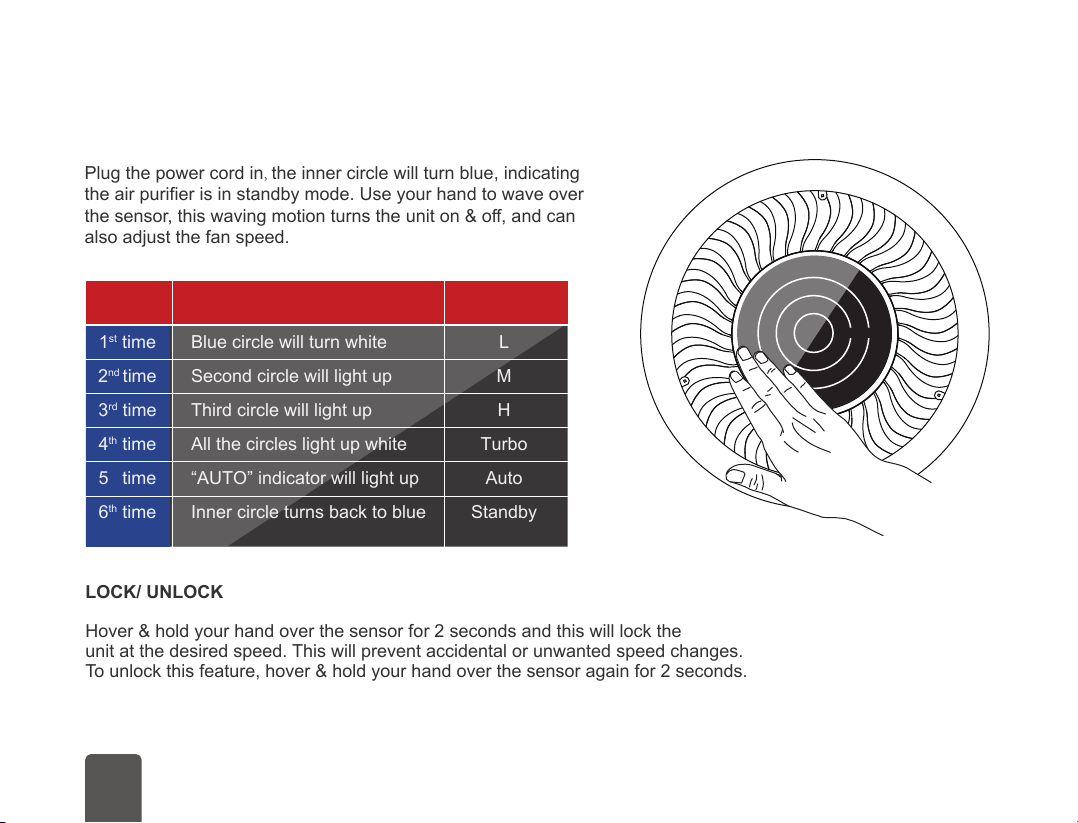

Hand Gesture Operation
Plug the power cord in, the inner circle will turn blue, indicating
the air purifier is in standby mode. Use your hand to wave over
the sensor, this waving motion turns the unit on & off, and can
also adjust the fan speed.
LOCK/ UNLOCK
Hover & hold your hand over the sensor for 2 seconds and this will lock the
unit at the desired speed. This will prevent accidental or unwanted speed changes.
To unlock this feature, hover & hold your hand over the sensor again for 2 seconds.
AUTO
2 3
Speed
L
M
H
Turbo
Auto
Standby
Circles on the sensor panel
Blue circle will turn white
Second circle will light up
Third circle will light up
All the circles light up white
“AUTO” indicator will light up
Inner circle turns back to blue
Wave
1st time
2nd time
3rd time
4th time
5th time
6th time
12

13
OPERATION 2
1 POWER Button
- When the unit is plugged into an electrical outlet, the display panel
shows the indoor PM2.5 concentration (μg/m³), temperature and
humidity.
Press the button, turns the unit On and Off.
- Hold the button for 3 seconds to reset the filters indicator light.
2 TIMER Button: Press this button to select the time for operation.
The timer setting switches as shown: 2H -- 4H -- 6H -- 8H -- 10H --
12H -- cancel timing.
3 UV-C+ LAMP Button: When the button is pressed, it will turn off
the UV-C+ lamps, pressing again will turn on the UV-C+ light.
4 NEG.ION Button: Turns Negative Ions on and off.
5 NIGHT Button: When pressed, all the indicator lights on the
display panel will disappear.
6 LOCK Indicator Light: When the unit is locked the indicator light
is on (See page12).
7 Pollutant level display
The different colors indicate the air quality level:
Blue=Good, Orange=Moderate, Red=Poor
Button Operation
TVOC
PM2.5
°C %
1 234 5
67
If the unit is not operated for one minute,
the UV-C+ lamp button and NIGHT
button light will go off except the POWER
button, entering the screensaver mode.
NOTE
Control Display Panel
Indicator Color
Blue
Orange
Red
PM2.5
≤35μg/m³
36~150μg/m³
>150μg/m³
TVOC Level Speed
L
M
H
~
~

14
8
1
4
5
2
6
TIME
SURGICALLY CLEAN AIR
TM
OPERATION 3
Remote Control Operation
3
7
1 POWER Button: The unit will start operating when the POWER
button is pressed. Pressing the button again will stop operation.
2 SPEED Button: The fan speed can be switched among L- M- H-
Turbo- AUTO settings.
3 LOCK Button: When pressed, all the operation will lock at the
desired speed except the NIGHT button.
4 NIGHT Button: When pressed, all the indicator lights on the display
panel will go out.
5 UV-C+ LAMP Button: Turns UV lights on and off.
6 TIMER Button: The set time switches every time the button is
pressed as shown below: 2H - 4H - 6H - 8H - 10H - 12H - Cancel.
7 NEG. ION Button: Turns negative ions on and off.
8 RESET Button: Pressing the reset button 3 times will reset the
replacement indicator lights.
RF Remote Control
Before using the RF remote control
1. As soon as the unit is plugged in, press and hold the
POWER button on the remote control for 5 seconds.
2. The indicator light will start flashing and this means the
configuration is succcessful. The unit can now be operated
with the remote control.

15
Main Unit
Wipe with a dry, soft cloth for stubborn stains or dirt. Do not use volatile fluids, benzene, paint thinner or
polishing powder as this may damage the surface.
Do not use detergents as detergent ingredients may also damage the unit. Keep the unit away from water.
Warning
1. Turn off and unplug the power cord before cleaning the body, air outlet or opening the bottom to avoid electric
shock.
2. Turn off and unplug the power cord before replacement of the HEPA-Rx Filter, Activated Carbon Filter and the
UV-C+ Lamp or unit maintenance. If the power cord is damaged, it must be replaced by the service center or a
similarly qualified person.
CARE AND MAINTENANCE 1
To maintain optimum performance of this air purifier, the HEPA-Rx Filter, the Activated Carbon Filter and the
UV-C+ Lamp need to be replaced when the indicator lights are flashing. If the device is operating in an
atmosphere with heavy dust, particulate or pet dander, you may need to periodically vacuum the pre filters for
optimal performance.
1. Make sure all the filters are installed properly before operating the unit.
2. When conducting maintenance on the unit, be sure to unplug the power cord.
3. Never handle the plug with wet hands. If so, electrical shock and bodily injury may occur as a result.
Filters Life
1. HEPA-Rx Filter needs to be replaced once a year (running 24/7).
2. Activated Carbon Filter needs to be replaced once every 6 months (running 24/7).
3. UV-C+ Lamp needs to be replaced once a year (running 24/7).

16
CARE AND MAINTENANCE 2
AUTO
2 3

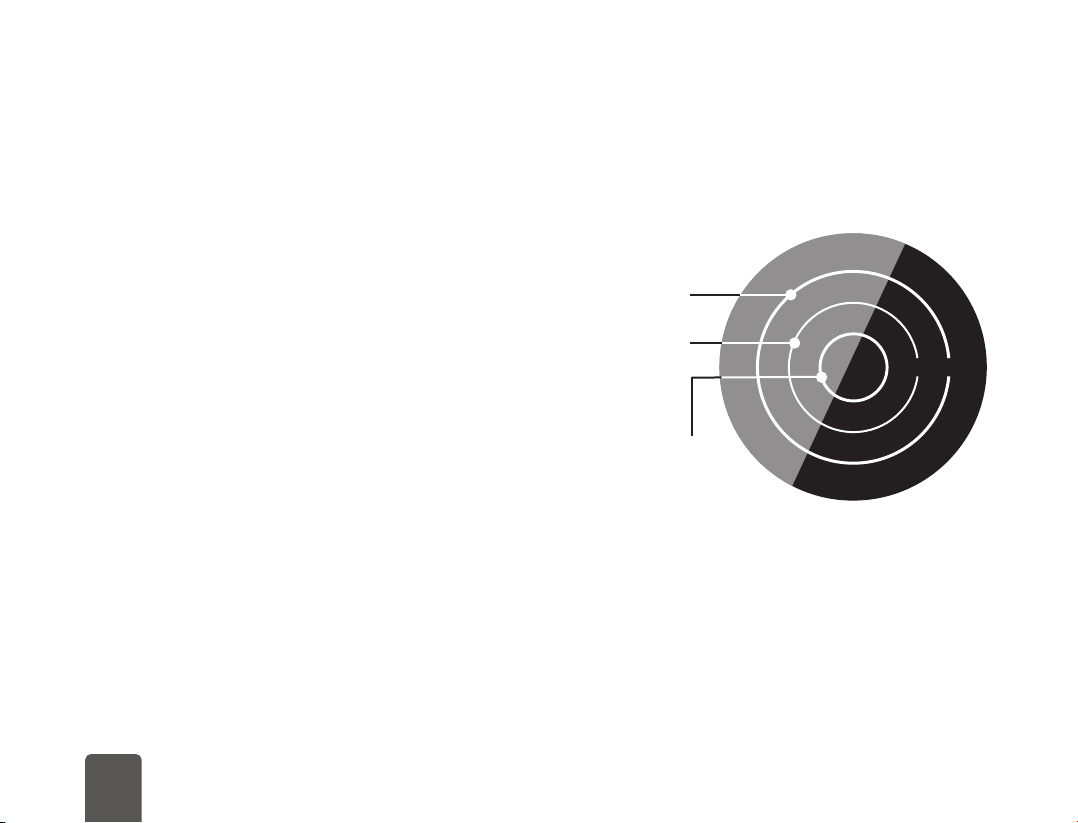

Schematic diagram of sensor plate panel on
top of the unit. After replacing the filters and
UV-C+ lamp, hold the POWER button to
reset the indicator light.
The 3rd circle
flashes, replace
the HEPA-Rx filter.
The 2nd circle
flashes, replace the
activated carbon
filter.
The inner circle
flashes, replace
the UV-C+ lamp.
Replacing the HEPA-Rx filter
When the 3rd circle on the sensor plate flashes, the
HEPA-Rx filter needs to be replaced.
1. Stop the operation and unplug the unit.
2. Open the bottom plate, take off the unit lock.
3. Take out the used HEPA-Rx filter and replace
with a new one.
4. After replacing the HEPA-Rx filter, hold the
POWER button to reset the time for the HEPA-Rx
filter.
Replacing the Activated Carbon Filter
When the 2nd circle on the sensor plate flashes,
the activated carbon filter needs to be replaced.
1. Stop the operation and unplug the unit.
2. Open the bottom plate and take off the unit lock.
3. Take out the used activated carbon filter and
replace with a new one.
4. Operate the unit, press the POWER button for 3
seconds to reset the life time.

17
CARE AND MAINTENANCE 3
Warning
DO NOT reuse or clean the HEPA-Rx filter and the Activated carbon filter.
DO NOT clean the HEPA-Rx filter, the Activated carbon filter and any other parts with liquid, especially
alcohol, gasoline, paint thinner, etc. It may cause fire!
Never look directly at UV-C+ lamp. Direct exposure to the light can cause temporary or chronic
damage to your eyesight, or even blindness.
3. Operate the unit, press the POWER button for 3 seconds to reset the indicator light.
1. Take out all filters, unscrew the
Photo catalyst device by turning
it counterclockwise.
2. Unscrew the UV lamp holder
by turning it counterclockwise.
3. Take out the UV-C+ lamp
upward, replace the new
UV lamp
Replacing the UV-C+ Lamp
When the inner circle on the sensor plate flashes, the UV-C+ lamp needs to be replaced (See page16).
1. Stop the operation and unplug the unit.
2. Open the bottom plate and the unit lock, take out all filters. Replace UV-C+ lamp, as shown below:

18
TROUBLESHOOTING
Most service problems that appear to be major can often be resolved easily. You can be your own
troubleshooter by reviewing the following guide. All other major servicing should be done by a Surgically
Clean Air authorized service center.
UV-C+ lamps should only be purchased from Surgically Clean Air or an authorized dealer at Surgically Clean
Air. This will ensure that you are receiving UV-C+ lamp that do not generate ozone. Many after-market sellers
are selling ozone-generating UV-C+ lamp.
TO ORDER FILTERS OR UV-C+ LAMPS -
www.surgicallycleanair.com MODEL: JADE™2.0 (SCA5100C)
Power failure?
Power plug disconnected?
Bottom plate or interlock
switch failure?
There is too much dust on the
HEPA-Rx filter or Activated carbon filter?
Replace the HEPA-Rx filter or the
Activated carbon filter.
Check other electrical appliances.
Make sure plug is fully inserted.
The unit does not operate when
the bottom plate is detached.
Install properly. Check interlock switch.
What to check Measure
The unit does not operate
When functions do not
work properly
Case

1A - 6300 Viscount Road
Mississauga, Ontario
Canada, L4V 1H3
Tel: [phone]
www.surgicallycleanair.com
[e-mail]
SURGICALLY CLEAN AIR
TM
