SVBONY SV305 Pro User manual

User Manual
SV305 Pro
Hong Kong Svbony Technology Co.,Ltd
Add: Unit B, 5th Floor, Gallo Commercial Building, 114-118
Lockhart Road, Wanchai, Hong Kong
Facebook: facebook.com/svbony
E-mail: [email protected]
Web: www.svbony.com
MADE IN CHINA
EN
JP
RU
FR
DE
IT
ES

Hello friends, you can download SV305 Pro User
Manual pdf file or print this file. SVBONY has the
rights to modify this document without prior
notice. Please download the latest version from
our official website.
Thanks for purchasing your new SVBONY
astronomy camera! This manual will give you a
brief introduction of the SV305 Pro camera.
Please read this manual completely before using
it. If you have any questions, please feel free to
contact us:
Facebook: www.facebook.com/svbony
For software installation instructions and other
technical support, please email us:
[e-mail]
Contents
Package Including ---------------------------------------------------------------------
Specification ----------------------------------------------------------------------------
How to use the SV305 Pro camera -----------------------------------------------
General Clean --------------------------------------------------------------------------
Structrue ---------------------------------------------------------------------------------
Quality Assurance ---------------------------------------------------------------------
Warnings --------------------------------------------------------------------------------
Warranty ---------------------------------------------------------------------------------
01
01
03
05
07
07
08
11
TO CUSTOMERS
English

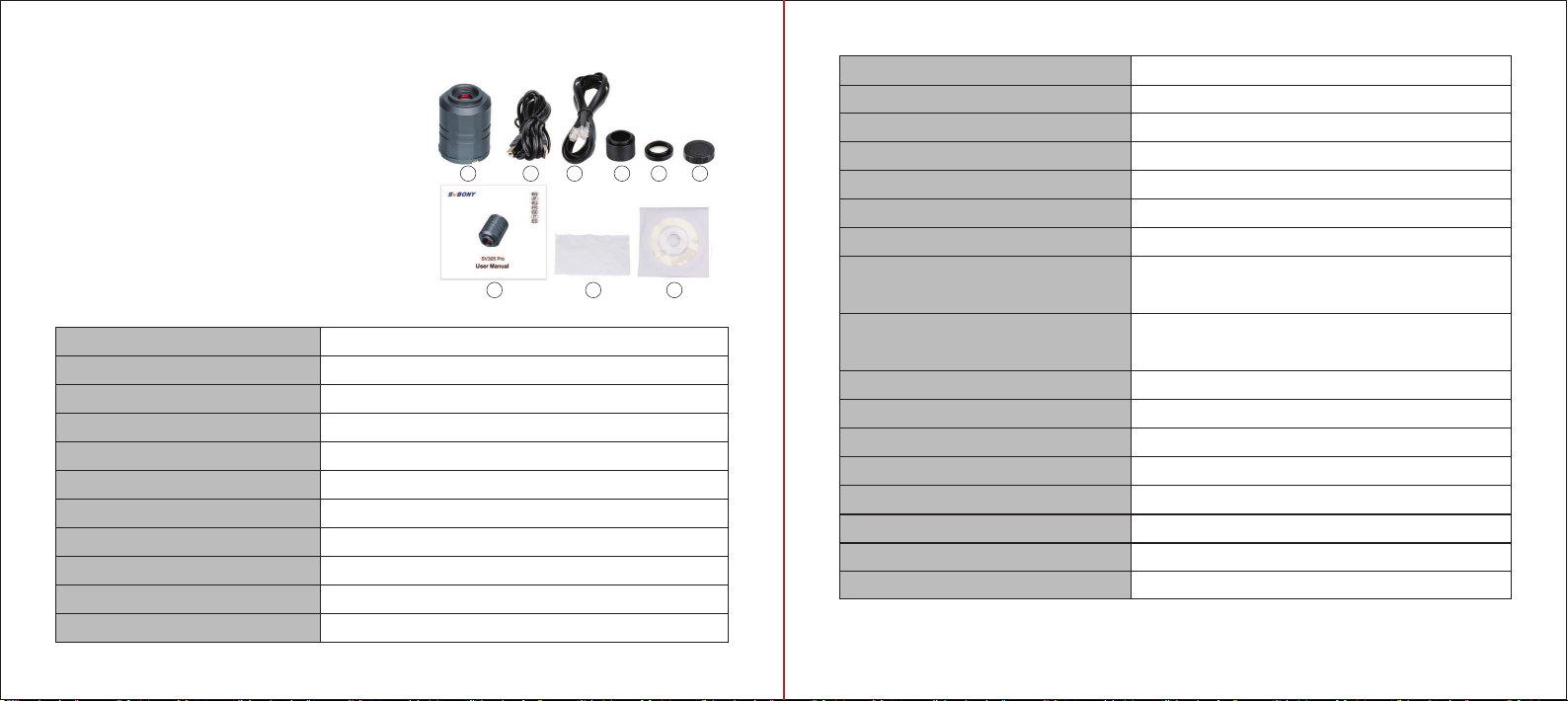

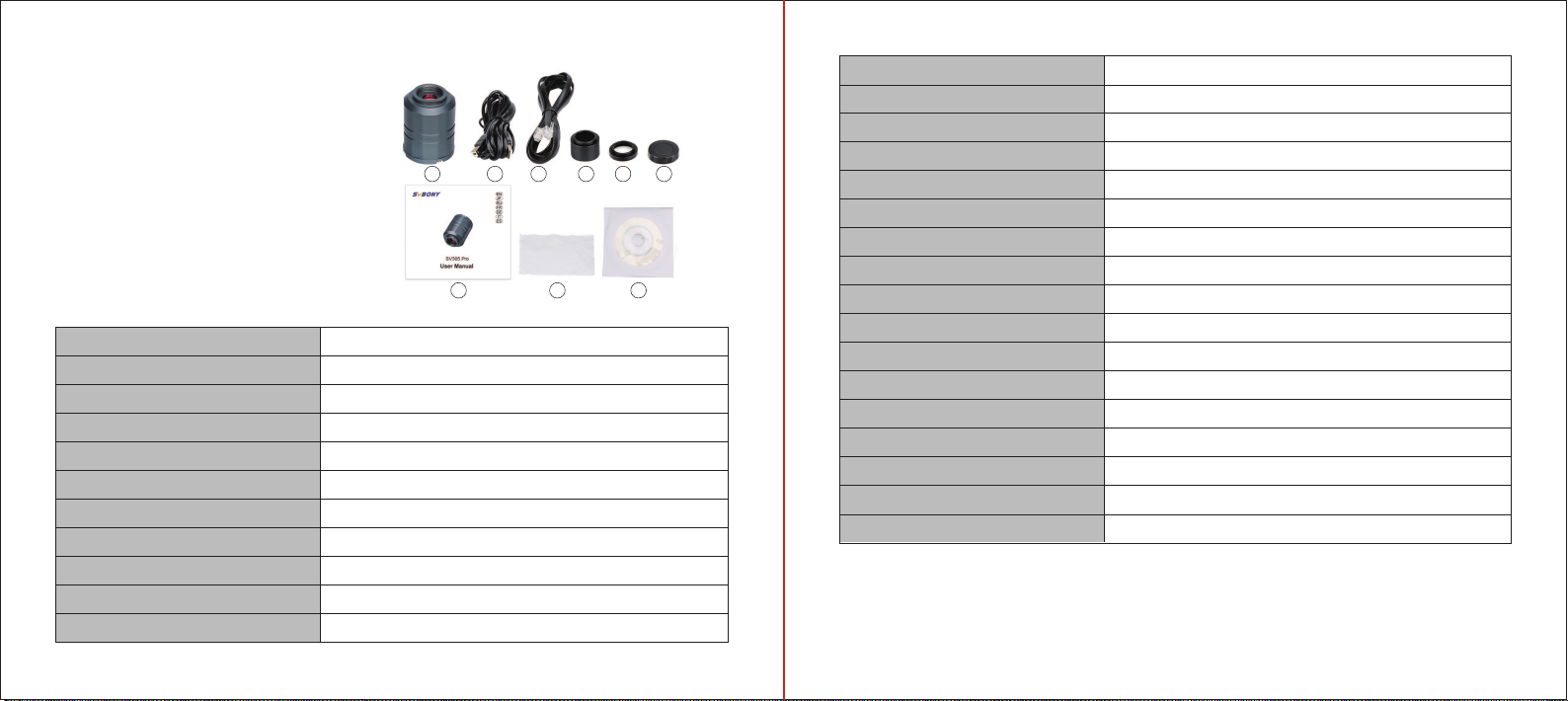

Package Including
1) SV305 Pro Astronomy Camera
2) 2m USB 3.0 Cable
3) 6 pin Guiding Cable
4) 1.25” Extension Tube
5) C-lens Adapter
6) 1.25” Dust Cover
7) Cleaning Cloth
8) User Manual
9) CD
Specification
Gain Mode
White Balance
Maximum Frame Rate
ADC
Built-in buffer
ROI
USB3.0 Cable Length
Auto/Manual
R 1-255 G 1-255 B 1-255
130FPS (1920*1080) 500FPS(320X240)
10 bit/12bit, Output 8bit/12bit
128M
Any resolution
2m
Image Sensor
Sensor Model
Image Resolution
Diagonal Line
Pixel Size
USB Type
Guiding Type
Shutter
Exposure Time
Exposure Mode
Gain
1/2.8” COMS Color Sensor
SONY IMX290
2M Pixels (1920*1080)
6.5mm
2.9μm X 2.9μm
USB 3.0
6 Pin ST4 Port
Electronic Rolling Shutter
1ms-1800s
Auto/Manual
0-30
6 Pin Guiding Cabler
Adapter 1
Adapter 2
Net Weight
Support System
Product Size
Working Humidity
Storage Humidity
Operating Temperature
Storage Temperature
1.5m
1.25”Extension Tube/M28.5*0.6
C-lens adapter
135g
Windows & Linux
Ø49.5X65mm
30%-80%
20%-90%
-10℃to +50℃-20℃to +60℃-01- -02-
1 2
7 8 9
3 4 5 6

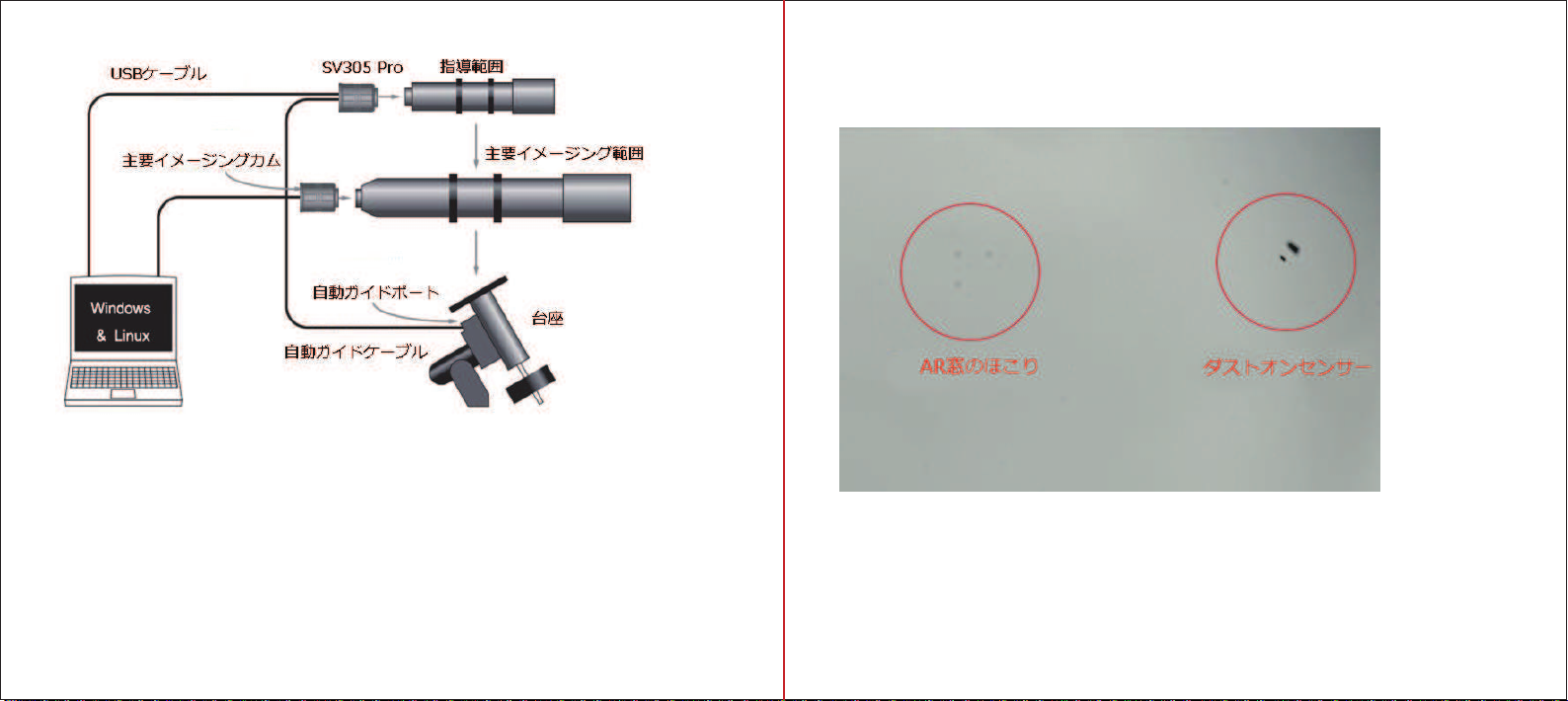

How to use the SV305 Pro camera

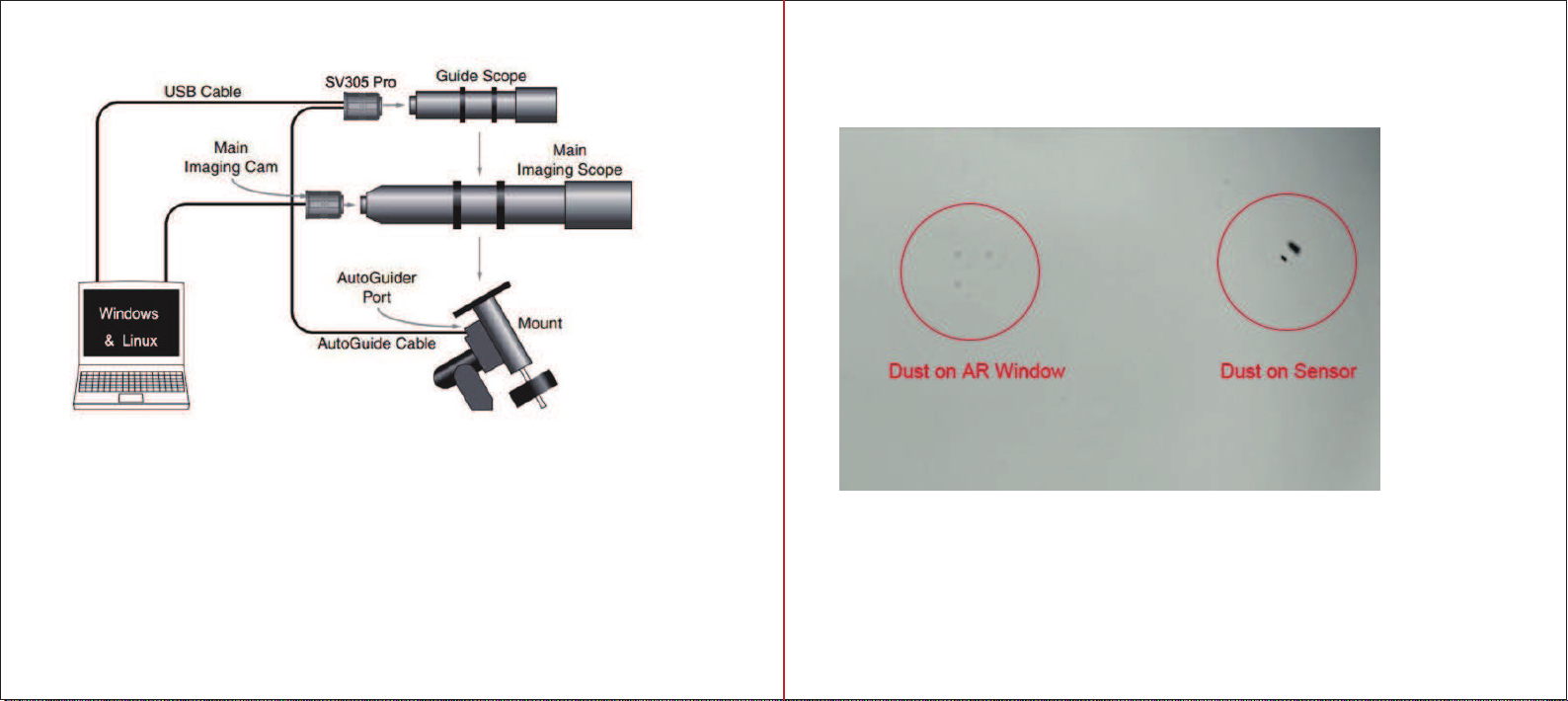

1) Main Imaging Camera
-03- -04-

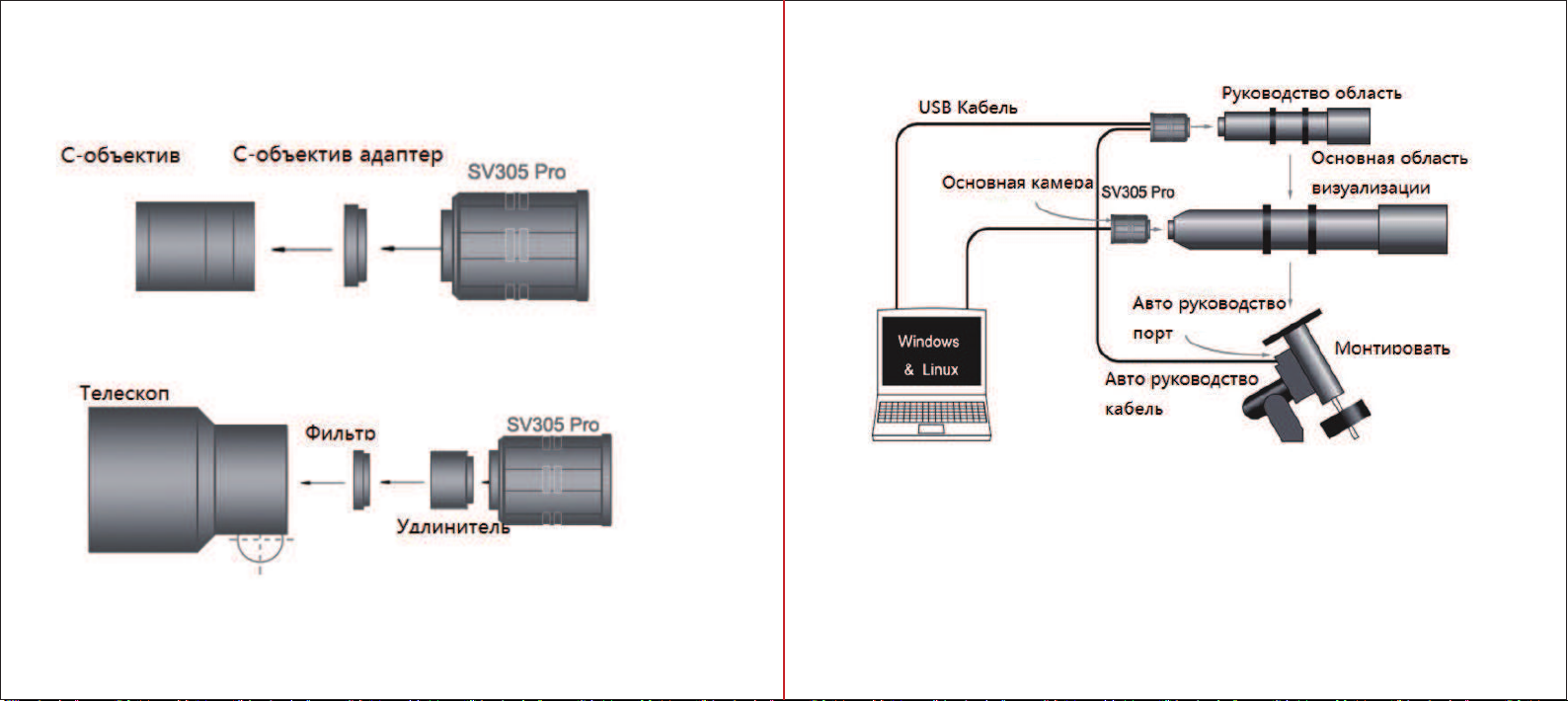

Connecting C-lens

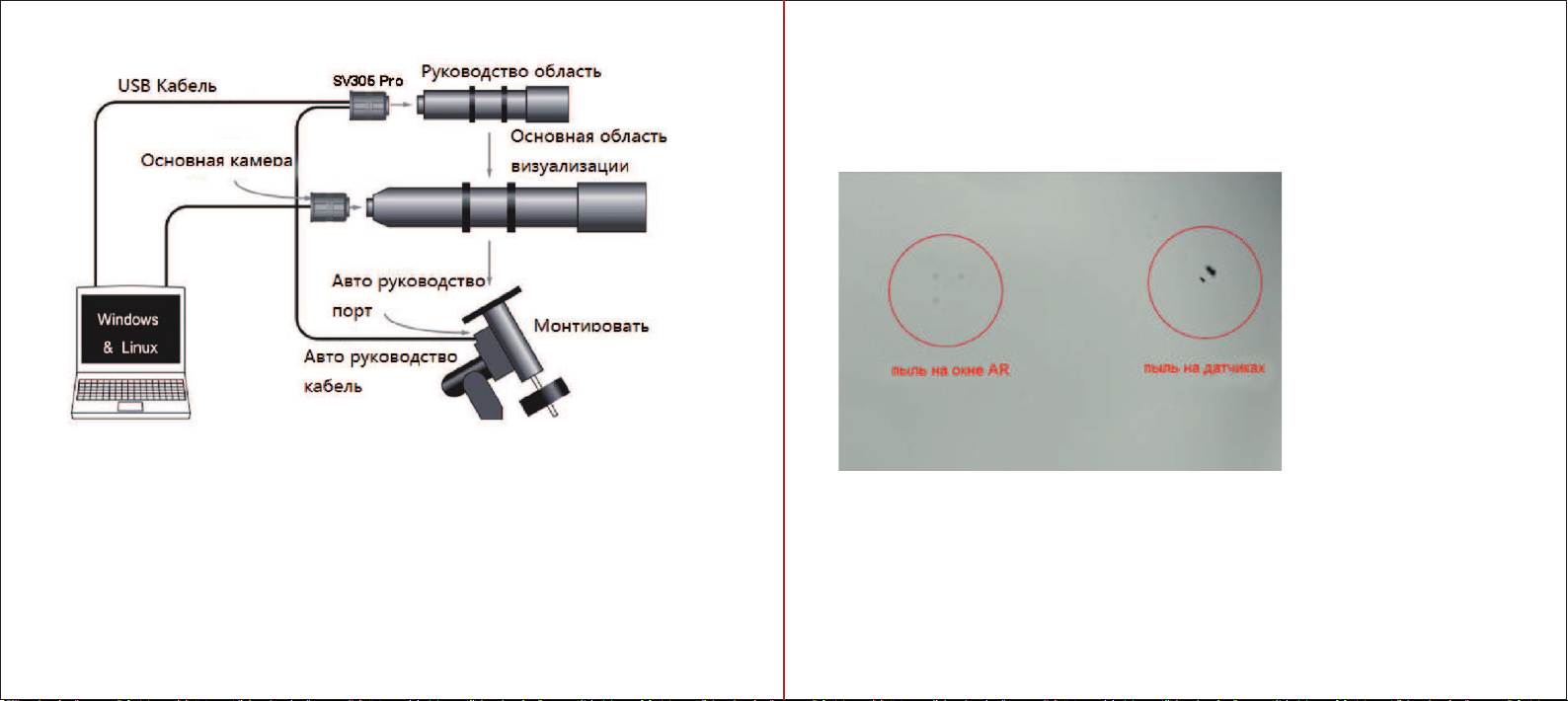

Connecting Telescope 2) Guiding Camera

the telescope to a bright place, a Barlow is required to see the dust clearly.
Then adjust the exposure time in the software, make sure not over exposed.
You will see the dust showing as the following image.
1) The big spot on the image (left) are the shadows of dust on the protection
window. The Suggested way to clean them is try to blow them away with a
manual air pump.
2) The small but dark spots on the image (right) are the shadows of dust on the
sensor. The suggested way to clean it is editing the image by photography
software.
-05- -06-
General Clean
Svbony SV305 Pro camera comes with an optical protection window – AR
glass, which could protect the sensor from dust and humidity. And the inside of
the image sensor is dry and sealed. We don’t recommend customer to
disassemble the camera and clean it. Because disassemble the camera may
lead the sensor to get wet, or it may cause more dust to come in. If you need
clean the protection window, it is best to do it during the daytime. To see the
dust clearly, please connect the SV305 Pro camera to your telescope. Point

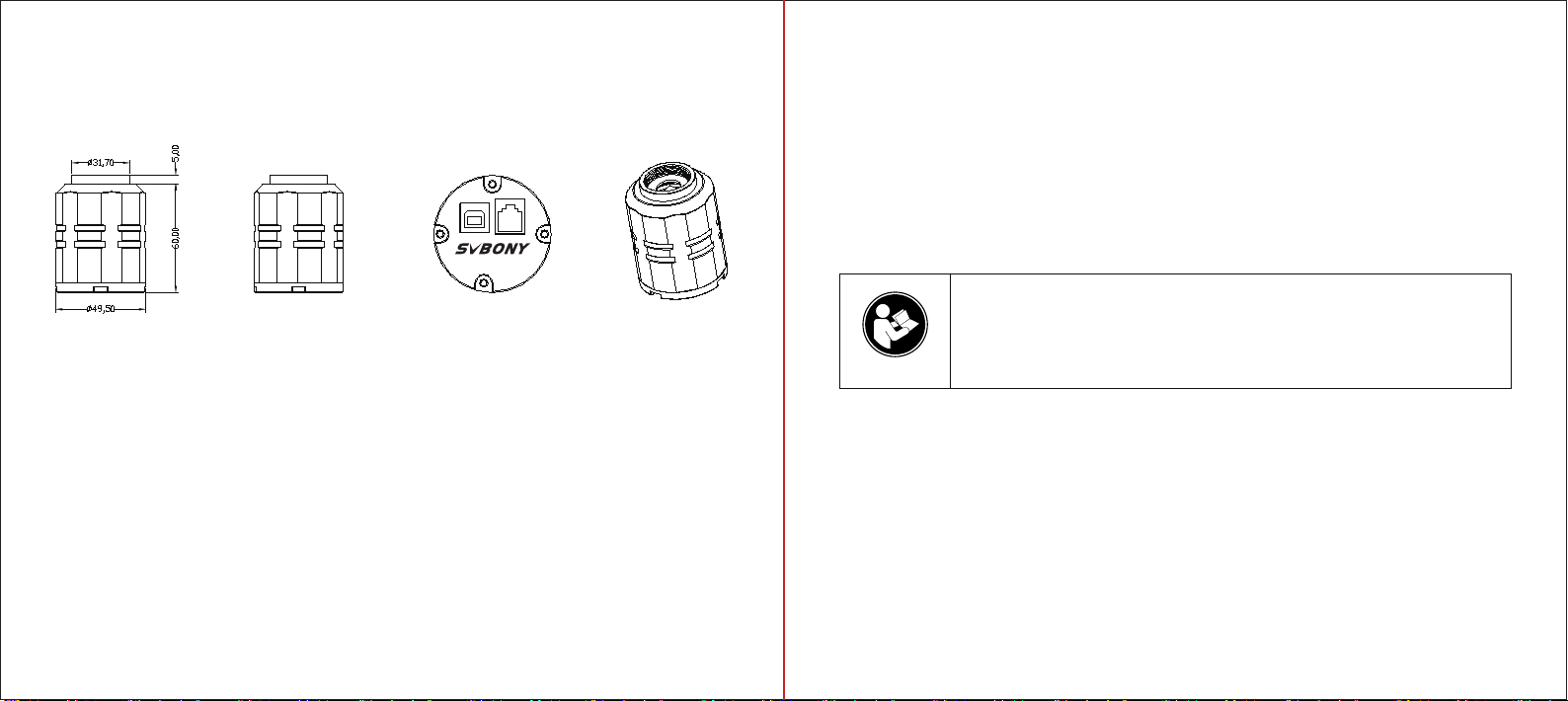

Structure
Quality Assurance
The SV305 Pro camera warranty time is one year. Within warranty period, if
the camera fails to function, we will provide free after-sales maintenance
service. Besides the warranty days, we provide life-long maintenance services
and charge only the parts that need repair or replacement. The buyer will pay
for the postage of returning camera to factory to be repaired. Within the
warranty period, if the following condition occurs, certain maintenance costs
will be charged.
1, The malfunction and damaged caused by incorrect use, the unauthorized
repairs and alteration.
2, The damage caused by fire, flood, earthquake, other natural disasters and
secondary product damage.
3, The product malfunction caused by the fall and transportation failures after
purchase.
4, The malfunction and damaged caused by the otherbarriers (man-made
factors or external device).
5, Purchase without the warranty card and purchase invoices.
Warnings
FCC Requirements:
•Products authorized under Part 15 using SDoC or Certification require a label
containing one of the following compliance statements
(1) Receivers associated with licensed device service operaions:
This device complies with part 15 of the FCC Rules. Operation is subject to
the condition that this device does not cause harmful interference.
(2) Stand-alone cable input selector switch:
This device complies with part 15 of the FCC Rules for use with cable
television service.
(3) All other devices:
•This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
-07- -08-
ATTENTION!
Before using this device, read this guide which contains important
operating instructions for safe usage and control for compliance
with applicable standards and regulations.

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
CE Requirements:
•(Simple EU declaration of conformity) Hong Kong Svbony Technology Co.,Ltd
declares that the equipment type is in compliance with the essential
requirements and other relevant provisions of RED Directive 2014/30/EU and
the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU; the full
text of the EU declaration of conformity is available at the following internet
address: www.svbony.com.
•Disposal
The crossed-out wheeled-bin symbol on your product, literature, or packaging
reminds you that in the European Union, all electrical and electronic
products, batteries, and accumulators (rechargeable batteries) must
be taken to designated collection locations at the end of their working
life. Do not dispose of these products as unsorted municipal waste. Dispose of
them according to the laws in your area.
IC Requirements:
CAN ICES-3(B)/NMB-3(B)
Avoid Choking Hazard
Small Parts. Not for children under 3 years.
Approved Accessories
•This device meets the regulatory standards when used
with the Svbony accessories supplied or designated
for the product.
•For a list of Svbony-approved accessories for your
item, visit the following website:
http://www.svbony.com
-09- -10-
WARNING

01
01
03
05
07
07
08
11
-1- -1-
こんにちは、sv 305 proユーザーマニュアルのpdf
ファイルをダウンロードしたり、このファイルを
印刷したりできます。このファイルの通知なく
svbony改正権利があります。わが社の公式サイ
トから最新バージョンをダウンロードしてくださ
い。
購入新svbony天文学カメラ、ホントにありがとございました。本手帳があなたにブリーフィングsv305 proのカメラを紹介します。ご使用になる前に、このマニュアルをよくお読みください。あなたに何の問題があったら、いつでもご連絡ください:フェイスブック:www.facebook.com/svbony
ソフトをインストール説明と他の技術支援、電子メールを[e-mail]送ってください。内容小包にはどのようなものがある ---------------------------------------------------
製品の详细------------------------------------------------------------------------------
このカメラの使い方 ------------------------------------------------------------------
日常の清洁------------------------------------------------------------------------------
構造---------------------------------------------------------------------------------------
品質保証---------------------------------------------------------------------------------
警告する ---------------------------------------------------------------------------------
補修---------------------------------------------------------------------------------------
お客様に
日本語

小包にはどのようなものがある
1) SV305 Pro天文学専攻カメラ
2) 2 mのusb 3.0ケーブル
3) 6ピンガイドケーブル
4) 1.25”伸缩管
5) 球面レンズ アダプタ
6) 1.25”防塵カバー
7) 清潔布
8) ユーザーが手帳
9) CD
製品の详细獲得モデル
ホワイトバランス
最大のフレーム率
アプリケーションデータセンター
内蔵緩衝ROI
USB3.0 ケーブル長 自動/手動R 1-255 G 1-255 B 1-255
130FPS (1920*1080) 500FPS(320X240)
10 bit/12bit, Output 8bit/12bit
128M
いかなる決議
2m
画像センサー
センサーの模型
画像の解像度
対角線画素の大きさ
usbタイプ
指導タイプ
シャッター
露光时间露出モード
獲得
1/2.8” COMS Color Sensor
SONY IMX290
2M 画素(1920*1080)
6.5mm
2.9μm X 2.9μm
USB 3.0
6 Pin ST4 ポート
電子転がるシャッター
1ms-1800s
自動/手動0-30
6ピンガイドケーブル
アダプタ1
アダプタ2
净重支援システム
製品のサイズ
作業湿度ストレージ湿度
作業温度ストレージ温度
1.5m
1.25”伸縮管/M28.5*0.6
C-lens 球面レンズ アダプタ
135g
Windows & Linux
Ø49.5X65mm
30%-80%
20%-90%
-10℃to +50℃-20℃to +60℃-01- -02--1-
1 2
7 8 9
3 4 5 6

この SV305 Proカメラの使い方
1) 主要イメージングカメラ
-03- -04-

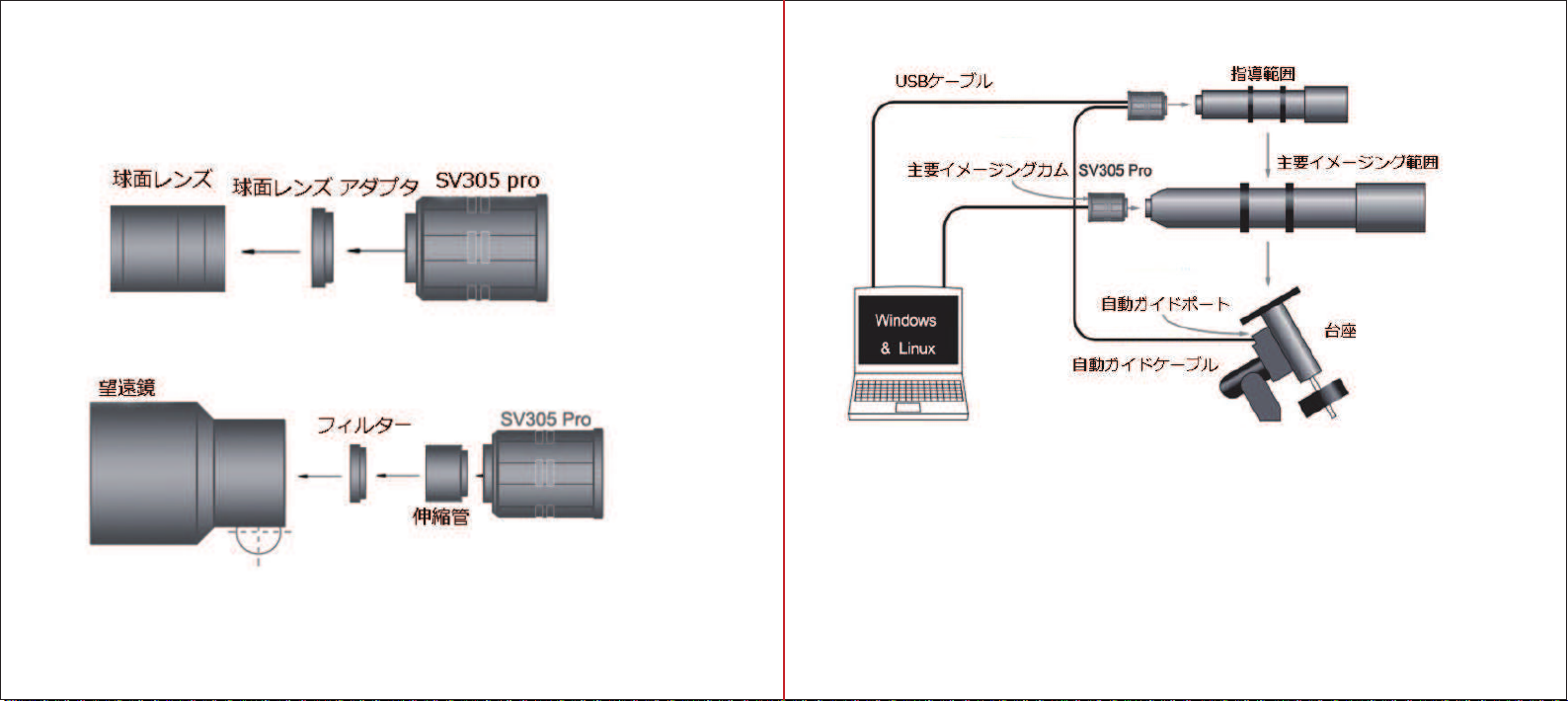

Cレンズ接続
接続望遠鏡2) 指導カメラ
