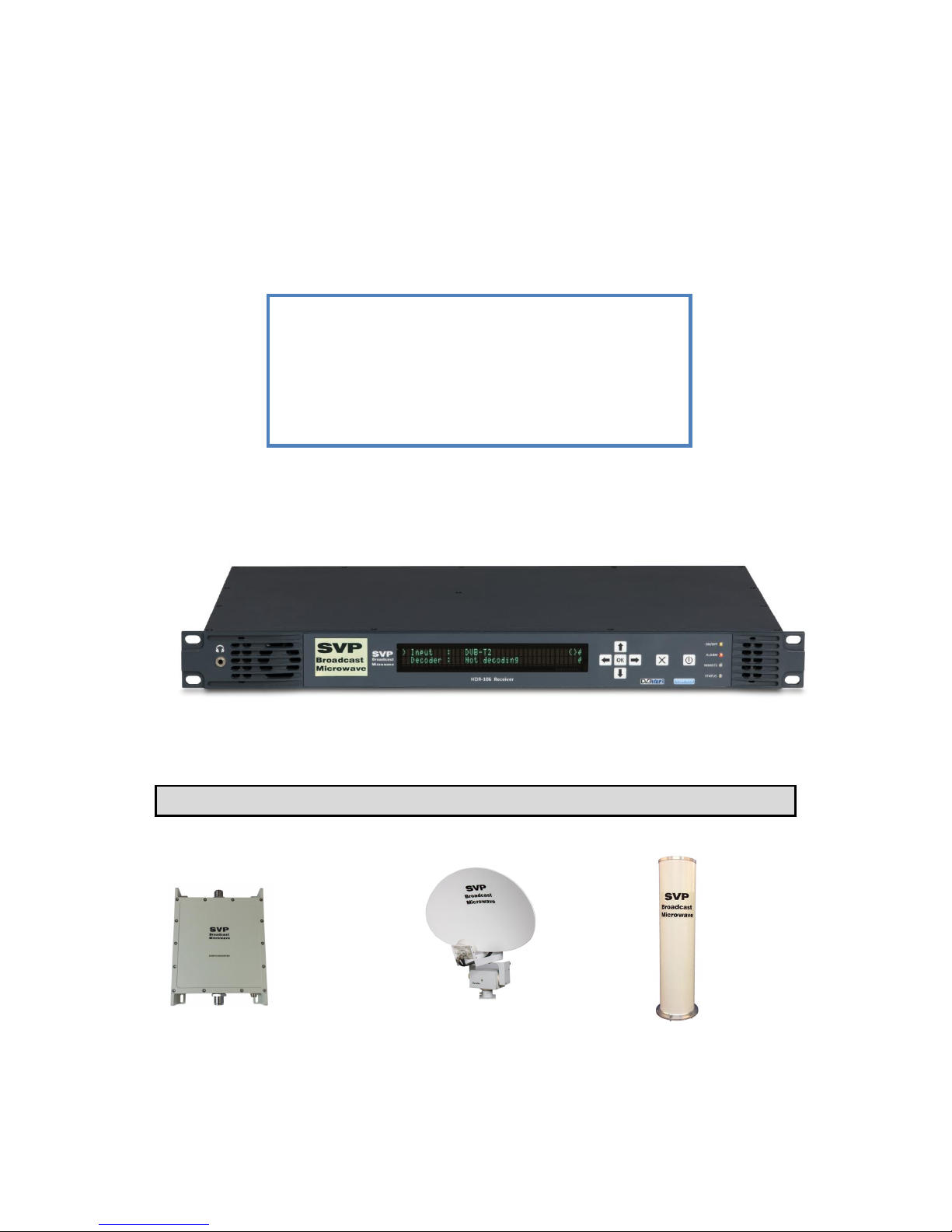

SVP HDR-106 User manual

SVP
Broadcast
Microwave
HDR-106
MPEG-2/H.264 –4:2:2 –10 bits
DVB-T2/T DIVERSITY 6
DVB-S2/S RECEIVER
MANUAL V7.0
Accessories included in this manual:
Down Converter
QPT Pan & Tilt Positioner
Multisector Antennas

HDR-106 MPEG2/H264 –4:2:2 –10 bits –DVB-T2/T Diversity 6 –DVB-S2/S Receiver
MANUAL 7.0
Contents
Chapter 1: Introduction
This first chapter provides a general description of the High Definition HDR-
106 receiver equipment.
Chapter 2: Technical features
This second part offers the receiver’s physical and environmental
characteristics.
Chapter 3: Receiver Operation and Menus
This third part provides the user all the necessary information to control and
operate the equipment properly. It is detailed the function of each button on
the keyboard. It is also explained how the information is shown on the
display, receiver’s menus, alarms, etc.
Chapter 4: Autotracking Antenna
In this chapter it is explained the autotracking antenna control and how to
configure this option.
Chapter 5: GPS
This fifth chapter indicates the operation of the HDR-106’s GPS system and
specifies the parameters that are shown in the GPS screen.
Chapter 6: Web Server
This sixth chapter provides a detailed description of the Web Server tool.
This feature allows controlling the HDR-106 receiver through a website.
Chapter 7: Block Diagram
This chapter provides a block diagram of the HDR-106 receiver internal
performance.
Chapter 8: Equipment Installation
This chapter indicates the available connections of the receiver, their
characteristics and the installation.
Index A, B, C, D: Accessories available for this receiver.
Index E: Video over IP PC monitoring

HDR-106 MPEG2/H264 –4:2:2 –10 bits –DVB-T2/T Diversity 6 –DVB-S2/S Receiver
MANUAL 7.0
Dear Customer,
We would like to thank you for selecting this equipment and welcome you to
the SVP’s growing family of products.
We are sure that the addition of this equipment will cause you a complete
satisfaction in your existing installation.
Please read these instructions carefully, and keep them in hand in case you
have to refer to them.
About this manual

HDR-106 MPEG2/H264 –4:2:2 –10 bits –DVB-T2/T Diversity 6 –DVB-S2/S Receiver
MANUAL 7.0
This user’s guide provides indications and explanations about how to set up
the HDR-106 receiver easily for the most common use cases.
This document is intended to help first time users:
-To find their way around the GUI.
-To understand the different possibilities of the HDR-106 receiver.
-To configure the HDR-106 for their specific configurations.
Symbols
The symbols that appear in this manual are:
An information message which indicates explanations for the
proper operation of the equipment.
It advises users that if they do not take, avoid or make specific
actions, several damages could appear in the device.
In the places where this symbol appears it means that by
pressing the Down button of the equipment the user can
access to the next screen.
This symbol means that pressing the OK button in the options
where this symbol appear, the user can access to the submenu
related to that option or can change the value of the
parameter.
<> These symbols mean that the parameter can be modified in the
same screen with the right and left keys.
Important Notes

HDR-106 MPEG2/H264 –4:2:2 –10 bits –DVB-T2/T Diversity 6 –DVB-S2/S Receiver
MANUAL 7.0
1. The HDR-106 MPEG2/H.264-4:2:2 –10 bits –DVB-T2/T/ISDB-T with
Diversity 6 receiver is fully compatible with the DVB-T standard included
in European Standard ETSI EN300744, with DVB-T2 standard included in
ETSI EN300755, with DVB-S2 standard included in EN302307 and with
DVB-S standard included in ETSI EN 300421.
2. The HDR-106 is a diversity 6 receiver. Therefore, it can receive DVB-
T2/T signals from up to 6 down converters that are connected to it.
3. This device has the ASI and IP outputs available when the input is ASI.
Besides, it has the ASI output available when the input is IP.

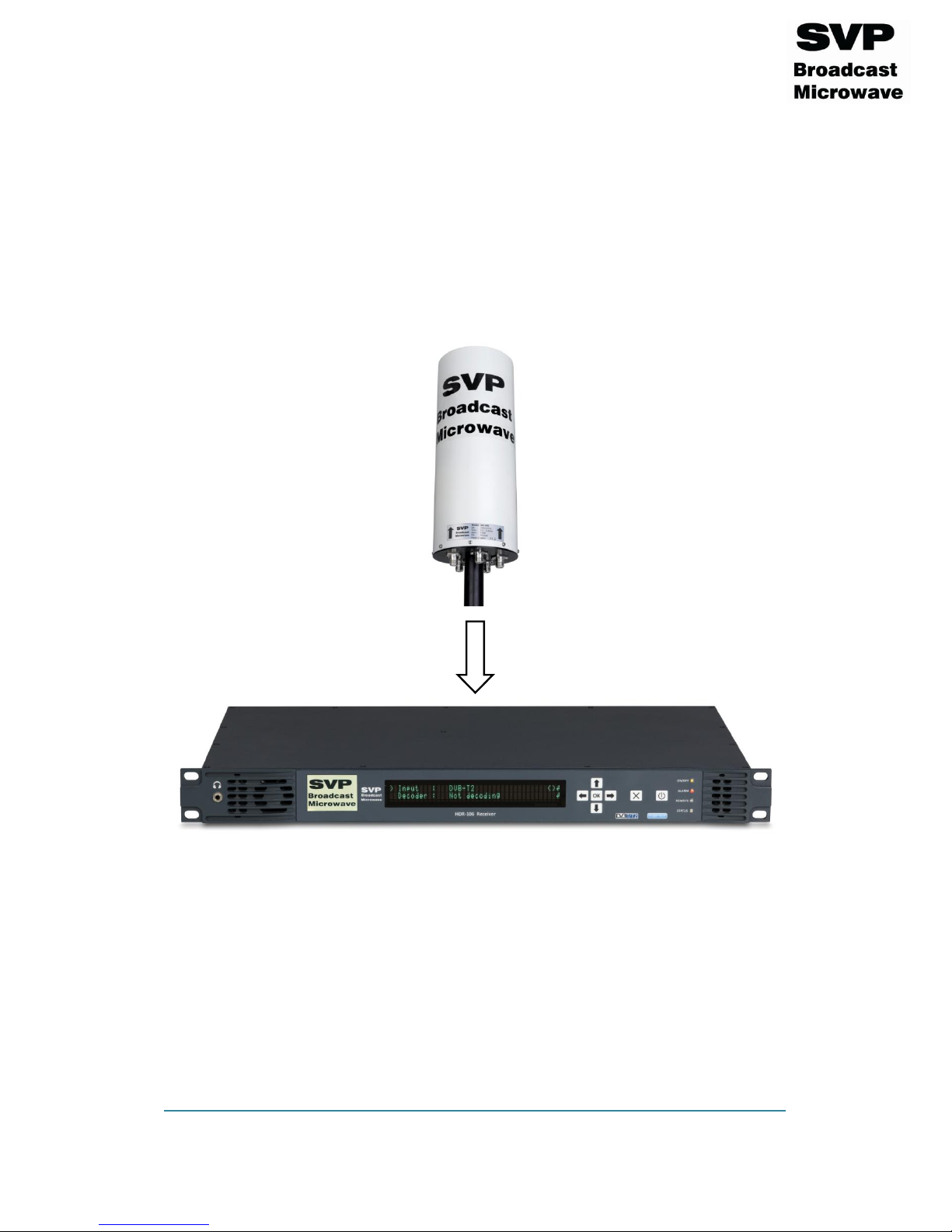

4. The complete receiver system consists of two parts: firstly, there are one
or more down-converters, which are installed outdoors next to the
receiver antennas and secondly, the HDR-106 receiver which
demodulates the IF delivered by the down converter.
5. The HDR-106 receivers are commonly used with SVP DC down
converters, which are available from 1.3 to 10.5 GHz in different
frequency bands.
6. On the receiver site it is important to determine if the channel in which
the transmission will be done is interfered, if any other transmission is
being done in that channel.
7. While the equipment is being installed, the power supply of the down-
converters should be disabled in the Setup Configuration menu in order
to avoid the risk of short circuits.
8. If Celflex 1/2 and RG-214 coaxial cables are used, the maximum length
is 150 m.
9. The receiver must be well chilled. Some space must be left next to the
sides of the HDR-160 receiver for ventilation purposes. This is especially
important when it is installed in a rack case.
10.Special care should be taken with SDI cables. Quality and length are
very important especially with HD-SDI or 3G-SDI signals.
11.If the user wants to install the rack mount demodulator unit horizontally,
guides should be used, due to the weight of the equipment.
12.It is not advisable to use a power supply lead with a cross-section less
than that of the lead supplied, since this would cause a drop in the
supply voltage and a deficient operation of the equipment.
13.Only authorized personnel should open the product and any repair or
warranty will be invalidated if the seals are broken.

HDR-106 MPEG2/H264 –4:2:2 –10 bits –DVB-T2/T Diversity 6 –DVB-S2/S Receiver
MANUAL 7.0
First Aid in Case of Electric Shock
DO NOT TOUCH THE VICTIM WITH YOUR BARE HANDS until the circuit is
broken. SWITCH OFF. If this is not possible, PROTECT YOURSELF with DRY
insulating material and pull the victim clear of the conductor.
If breathing has stopped, indicated by unconsciousness, lack of respiratory
movements and a ‘blue’ look to cheeks, lips, ears and nails, START
RESUSCITATION AT ONCE.
EMERGENCY RESUSCITATION –THE EXPIRED AIR METHOD
(Approved by the Royal Life Saving Society)
1. If possible, lie the victim on his back with his head slightly higher
than his feet. Clear the mouth and throat of any obvious obstruction.
2. Kneel on one side of the victim, level with his head. LIFT THE JAW
AND TILT THE HEAD BACK AS FAR AS POSSIBLE (Figs. 1a and 1b)
3. One of the following may happen:
a) Breathing may begin and consciousness
returns.
b) Breathing may begin but consciousness NOT
returns. Turn the victim on his side and ensure
that the airway is kept clear.
c) Breathing may return but be NOISY which
means that the airway is not fully clear. Try to
clear the airway.
4. IF THERE NO SIGN OF BREATHING:
a) Check that the head is still tilted back.
b) Take a deep breath.
c) Pinch the victim’s nose and blow firmly into his
mouth (Fig. 2). As you do, the chest will RISE.
d) Turn your head away and take another breath,
watching for the chest to FALL (Fig. 3).
5. Start with four quick breaths and then continue with
one breath every five seconds (i.e. 12 times a
minute). This should be continued until the victim
revives or a doctor certifies death.
6. As consciousness returns the victim will start to
breathe on his own, and a ‘pink’ color replaces the
‘blue’ look: this is the time to stop resuscitation.
Continue to hold his chin up and so keep the airway clear.
7. In the case of injuries to the mouth, it may be necessary to use
mouth-to-nose resuscitation. Seal the victim’s mouth with your cheek
and blow firmly into his nose, proceeding as above.

HDR-106 MPEG2/H264 –4:2:2 –10 bits –DVB-T2/T Diversity 6 –DVB-S2/S Receiver
MANUAL 7.0
8. In the case of severe facial injuries it may be necessary to do a
manual method of artificial respiration (Silvester-Brosch or Holger
Nielsen). Briefly, these methods apply compression to ribcage with
the victim lying on his back (S-B) or face down (H.N.) with associated
movement of his arms up and out. The cycle of movement should
take about five seconds, i.e. the normal breathing phase.
9. Whatever the method, it is ESSENTIAL to commence resuscitation
WITHOUT DELAY and to send for medical assistance immediately.
TREATMENT FOR BURNS
If the victim is also suffering from burns, then, without hindrance to
resuscitation, observe the following:
a) DO NOT ATTEMP TO REMOVE CLOTHING ADHERING TO THE BURN.
b) If possible alleviate the pain from the burnt part by immersing in
cold water.
c) If help as available or as soon as resuscitation is no longer required
the wound should be covered with a DRY clean dressing.
d) Oil or grease in any form should not be applied.
e) If severely burnt, get the victim to hospital immediately.

HDR-106 MPEG2/H264 –4:2:2 –10 bits –DVB-T2/T Diversity 6 –DVB-S2/S Receiver
MANUAL 7.0
Main Index
Chapter 1: Introduction ................................................................. 11
Chapter 2: Technical features ........................................................ 13
Chapter 3: Receiver Operation and Menus ..................................... 17
3.1 Display..................................................................................17
3.1.1 1st Main Screen for the DVB-T2 ...........................................18
3.1.2 1st Main Screen for the DVB-T.............................................20
3.1.3 1st Main Screen for the ASI Input ........................................21
3.1.4 1st Main Screen for the IP Input ..........................................23
3.1.5 2nd Main Screen (For the DVB-T2/T) ....................................24
3.1.6 3rd Main Screen (For the DVB-T2/T).....................................24
3.1.7 4th Main Screen (For the DVB-T2)........................................25
3.2 Reception Examples................................................................26
3.3 TFT Screen ............................................................................28
3.4 Speaker & Headphones audio outputs .......................................28
3.5 LEDs .....................................................................................29
3.6 Front panel ............................................................................30
3.6.1ON/OFF Button .................................................................30
3.6.2 OK Button ........................................................................31
3.6.3 Cross Button ....................................................................31
3.6.4Left and Right Button ........................................................31
3.6.5 Up and Down Button .........................................................32
3.7 Menus ...................................................................................33
3.7.1 Menu Navigation ...............................................................37
3.7.2 Menu Structure.................................................................38
3.7.2.1 Input Select Menu .......................................................39
3.7.2.1.1 DVB-T ...................................................................39
3.7.2.1.2 DVB-T2..................................................................43
3.7.2.1.3 DVB S2/S (optional) ................................................47
3.7.2.1.4 ASI .......................................................................51
3.7.2.1.5 IP .........................................................................52
3.7.2.2 Decoder Menu.............................................................57
3.7.2.2.1 Decoder Mode Screen..............................................58
3.7.2.2.2 Decoder Video Format Screen...................................60
3.7.2.2.3 Decoder Encoding System Screen .............................61
3.7.2.2.4 Decoder Audio Status Screen ...................................62
3.7.2.2.5 Decoder Data Screen...............................................63
GPS Screen ......................................................................64

HDR-106 MPEG2/H264 –4:2:2 –10 bits –DVB-T2/T Diversity 6 –DVB-S2/S Receiver
MANUAL 7.0
3.7.2.2.6 Decoder GenLock Screen .........................................66
3.7.2.2.7 Decoder Frame Error Screen ....................................66
3.7.2.2.8 Decoder Frame Without Signal Screen .......................67
3.7.2.3 Autotracking Menu.......................................................68
3.7.2.4 CA-BISS Menu ............................................................72
3.7.2.5 IP Output Menu ...........................................................74
3.7.2.6 Unit ...........................................................................77
3.7.2.6.1 Unit Video Monitor Screen........................................78
3.7.2.6.2 Unit Audio Monitor Screen........................................78
3.7.2.6.3 Unit Alarms Screen .................................................79
3.7.2.6.4 Unit Monitor Screen.................................................80
3.7.2.6.5 Unit Webserver & SNMP Screen ................................82
3.7.2.6.6 Unit Miscellaneous Screen ........................................84
3.7.2.6.7 Unit Firmware Screen ..............................................88
Chapter 4: Autotracking Antenna (optional).................................. 93
4.1 Autotracking with panel switching.............................................94
4.1.1 How Does It Work .............................................................94
4.1.2 Configuration....................................................................95
4.2 Autotracking with positioner in 2 axis ........................................97
4.2.1 How Does It Work .............................................................97
4.2.2 Configuration....................................................................98
Chapter 5: GPS ............................................................................ 100
5.1 Introduction......................................................................... 100
5.2 Main Screen......................................................................... 100
5.3 GPS receiver screen .............................................................. 101
5.4 Application example 1 –Constant positioning........................... 102
5.5 HyperTerminal configuration .................................................. 104
Chapter 6: Web Server / SNMP.................................................... 106
6.1 Introduction......................................................................... 106
6.2 Web Page Overview .............................................................. 108
6.2.1 DVB-T INPUT.................................................................. 108
6.2.2 DVB-T2 INPUT ................................................................ 111
6.2.3 ASI INPUT...................................................................... 114
6.2.4 IP INPUT........................................................................ 114
6.2.5 DECODER....................................................................... 117
6.2.6 Autotracking................................................................... 122
6.2.7 DESCRAMBLING.............................................................. 127
6.2.8 TSoverIP Output ............................................................. 128
6.2.9 UNIT ............................................................................. 130
6.3 Web Page Setup Notes .......................................................... 137
6.4 SNMP .................................................................................. 137

HDR-106 MPEG2/H264 –4:2:2 –10 bits –DVB-T2/T Diversity 6 –DVB-S2/S Receiver
MANUAL 7.0
6.4.1 SNMP commands ............................................................ 138
6.4.2 MIB ............................................................................... 139
Chapter 7: Block Diagram ............................................................ 141
Chapter 8: Equipment Installation ............................................... 143
8.1 Introduction......................................................................... 143
8.2 Connections ......................................................................... 143
8.2.1 Power supply.................................................................. 145
AC Power supply ..................................................................... 145
DC Power supply ..................................................................... 147
8.2.2 Intermediate frequency ................................................... 148
Intermediate frequency inputs I.F.1 … I.F.6 ................................ 148
Intermediate frequency inputs for DVB S2/S (optional) ................ 148
8.2.3 DVB-ASI Transport Stream............................................... 149
DVB-ASI Transport Stream Input .............................................. 149
DVB-ASI Transport Stream Output ............................................ 149
8.2.4 Video Outputs................................................................. 150
8.2.5 Genlock ......................................................................... 151
8.2.6 Transport Stream over IP (optional) .................................. 152
8.2.7 Audio Output .................................................................. 153
8.2.8 GPS............................................................................... 155
8.2.9 Autotracking (optional) .................................................... 159
8.2.10 Remote control ............................................................ 160
8.2.11 USB............................................................................ 160
8.3 Rack Unit Installation ............................................................ 161
8.4 Down-Converter Installation .................................................. 161
Index A: DC-COFDM User’s Guide ................................................ 162
A.1 Description .......................................................................... 163
A.2 Technical Specifications ...................................................... 165
A.2.1 RF Section ....................................................................... 165
A.2.2 Power supply ...................................................................... 165
A.2.3 Consumption .................................................................... 165
A.2.4 Physical Characteristics ......................................................... 166
A.2.5 Environmental conditions....................................................... 166
A.3 Block Diagram ....................................................................... 167
Index B: QPT User’s Guide ........................................................... 169
B.1 Description ............................................................................ 170
B.2 Technical Specifications......................................................... 171
B.2.1 QPT-20 ............................................................................... 171
B.2.2 QPT-35 ............................................................................... 173

HDR-106 MPEG2/H264 –4:2:2 –10 bits –DVB-T2/T Diversity 6 –DVB-S2/S Receiver
MANUAL 7.0
B.2.3 QPT-90 ............................................................................... 175
INDEX C: NX-820 User’s Guide..................................................... 177
C.1 Description ............................................................................ 178
C.2 Technical Specifications......................................................... 179
INDEX D: Multisector Antennas User’s Guide............................... 180
D.1 AM-206 Multisector Antenna ................................................. 181
D.1.1 Introduction ........................................................................ 181
D.1.2 Technical Specifications......................................................... 182
D.2 AM-406L Multisector Antenna................................................ 184
D.2.1 Introduction ........................................................................ 184
D.2.2 Technical Specifications......................................................... 185
D.3 AM-204 Multisector Antenna ................................................. 187
D.3.1 Introduction ........................................................................ 187
D.3.2 Technical Specifications......................................................... 188
D.4 AMS Multisector Switch Antennas ......................................... 190
D.4.1 Introduction ........................................................................ 190
D.4.2 Technical Specifications......................................................... 191
INDEX E: Video over IP Monitoring on a PC ................................. 195
E.1 Introduction .......................................................................... 195
E.2 VLC media player ................................................................... 195
E.2.1 VLC as a player .................................................................... 195
E.2.2 VLC as a recorder ................................................................. 201

HDR-106 MPEG2/H264 –4:2:2 –10 bits –DVB-T2/T Diversity 6 –DVB-S2/S Receiver
MANUAL 7.0
Chapter 1: Introduction
The new HDR-106 receiver performs DVB-T2, DVB-T, DVB-S2 (optional)
and DVB-S (optional) demodulation. The latter enables compatibility with
nearly all types of COFDM transmitters. The former modulation outperforms
DVB-T modulation and offers much higher data rate and therefore, higher
quality signal or much more robust signal than DVB-T, making possible
longer and more difficult links. The DVB-S2 modulation outperforms DVB-S
modulation because the DVB-S2 has four modulation modes available
(QPSK, 8PSK, 16APSK and 32APSK) while the DVB-S only has one
modulation available (QPSK). Besides, DVB-S2 uses LDPC code while DVB-S
employs Viterbi code.
It integrates diversity 6 DVB-T2 and DVB-T demodulation, using spatial
diversity based on MRC (Maximum Ration Combining) technique with the
DVB-T standard and TS switch with the DVB-T2 standard, which reduces the
effects of multipath and fading losses.
An important feature of this receiver in DVB-T2 mode is that it is not
saturated in case of receiving RF signals with a very high signal level.
Another feature is the implementation of the DVB-S2 and DVB-S
demodulation. This device is capable of receiving DVB-S2/S signal with a
baudrate range from 2 to 45 Mbaud/s. This receiver also has an LNB supply
available so as to power up the Low Noise Block.
The down-converters are connected to an independent receiver antenna in
order to provide diversity. This allows the user to install different antennas
in order to take advantage of their combined characteristics, or employ
antennas with similar characteristics oriented in different directions in order
to offer wider coverage. The use of a diversity system makes the link more
robust and offers better performance than a non-diversity system.
This receiver features H.264 and MPEG-2 decoding for high definition (HD)
and standard definition (SD) signals. H.264 compression makes possible HD
signal transmission and reception using 40% lower bit-rate than
conventional MPEG-2 systems. Moreover, it works in 4:2:2 with 10 bits.
MPEG-2 has been included so that the new HDR-106 receiver is backwards
compatible with previous SVP transmitter systems.
Based on the ultimate and most advanced NTT-NEL H.264 compression
technology, the new HDR-106 offers the highest video quality with the
minimum end to end latency available in the market, 33 ms. For added
security, encrypted transmitted signal can be decrypted using BISS or AES
decryption technology.
ASI input and Transport Stream over IP input make possible to use this
receiver as a standalone decoder. Besides, the ASI output and the
Transport Stream over IP output enable the user to handle the receiver as a
demodulator.

HDR-106 MPEG2/H264 –4:2:2 –10 bits –DVB-T2/T Diversity 6 –DVB-S2/S Receiver
MANUAL 7.0
This new generation receiver has several outputs: 3G/HD/SD-SDI, HDMI,
Transport Stream over IP and analogue video outputs. The HDR-106
receiver offers the received signal simultaneously in all the outputs. SDI
embedded, HDMI embedded, analogue and AES audio outputs are available
as standard. User data or GPS data can be received over the data channel.
The easy control, operation and monitoring make the HDR-106 receiver
very manageable. All the parameters of the receiver can be configured in
field. Four user-friendly interfaces are available: front panel and display,
web-browser and SNMP connection.
Figure 1.1 Connection figure between the HDR-106 and the AM-205
antenna

HDR-106 MPEG2/H264 –4:2:2 –10 bits –DVB-T2/T Diversity 6 –DVB-S2/S Receiver
MANUAL 7.0
Chapter 2: Technical features
RF Stage DVB-T2 and DVB-T:
Frequency Range: 1,3 to 10,5 GHz
Tuning Step: 100 kHz
Input Level Range: -20 to -95 dBm -> DVB-T @ 8MHz
-20 to -99dBm -> DVB-T2 @ 8MHz
-20 to -101dBm -> DVB-T2 @ 5MHz
Diversity: 6 (DVB-T2, DVB-T and ISDB-T)
Diversity Technique: MRC (Maximum Ratio Combining) in DVB-T
TS switch in DVB-T2
IF Stage DVB-S2 and DVB-S (optional):
Frequency Range: 950 to 2.150 GHz
Input Level Range: -30 to -60 dBm
LNB supply: 13V/14V/18V/19V 500 mA
Input Connector: 4 x F female
Demodulation:
DVB-T2: COFDM 1K, 2K
QPSK, 16QAM, 64QAM, 256QAM
LDPC FEC: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
IG: 1/4, 19/128, 1/8, 19/256, 1/16, 1/32
1/128
Bandwidth: 1.7, 6, 7, 8 MHz
Max. bitrate: 50.3 Mbps
Min. bitrate: 1 Mbps
DVB-T: COFDM 2K and 8K mode
QPSK, 16QAM, 64QAM
FEC: 1/2, 2/3, 3/4, 5/6, 7/8
IG: 1/4, 1/8, 1/16, 1/32
Bandwidth: 5, 6, 7, 8 MHz
Max. bitrate: 31.67 Mbps
DVB-S2/S (optional): DVB-S: QPSK
DVB-S2: QPSK, 8PSK, 16 APSK, 32 APSK
LDPC FEC (DVB-S2): 1/4, 1/3, 2/5, 1/2,
3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
FEC (DVB-S): 1/2, 2/3, 3/4, 5/6, 7/8
Baud Rate: 2 to 45 Mbaud/s

HDR-106 MPEG2/H264 –4:2:2 –10 bits –DVB-T2/T Diversity 6 –DVB-S2/S Receiver
MANUAL 7.0
Decoder:
H.264: Profiles: Baseline, Main, High
High 422 Support 10 bits
Level: 4.1 –4.2
Latency: 33 ms
MPEG-2: Profiles: 422P@HL, MP@HL, 422P@ML,
MP@ML
Latency: 33 ms
Audio Decoder: MPEG-1 Layer I/II
Max. input bitrate: 320 Mbps
Genlock input: Black burst or tri-level, Genlock loop active
Decryption:
BISS: BISS-1 and BISS-E
AES: AES-128 and AES-256 (Optional)
Video:
Outputs: 3G-SDI
HD-SDI
SD-SDI
HDMI (1.4)
Composite video (PAL/NTSC)
Formats: 1080p (1920x1080) –23,98/ 24/ 25/
29,97/ 30/ 50/ 59,94/ 60 Hz
1080i (1920x1080) –50/ 59.94/ 60 Hz
720p (1280x720) –23,98/ 24/ 25/ 29,97/
30/ 50/ 59,94/ 60 Hz
576i (720x576) –50 Hz
480i (720x480) –59,94 Hz
Audio:
Output: HDMI/ SDI embedded/ AES Digital/
Analogue
Analogue: 2 Stereo/ 4 Mono
SDI embedded: 1 Group (4 audio channels)
AES/EBU: 2 Stereo channels

HDR-106 MPEG2/H264 –4:2:2 –10 bits –DVB-T2/T Diversity 6 –DVB-S2/S Receiver
MANUAL 7.0
Data Channels:
Data channel: User data or GPS
Data rate: 1.200 to 57.600 bps
ASI and IP:
Outputs and Inputs: ASI Transport Stream (EN50083-9)
Transport Stream over IP
(SMTP2022/CoP3) - FEC
Max. TS packets / IP packet: 7
Control and Monitorization of the device:
Control Interfaces: Front panel & display
Web Server interface
SNMP
RTC-01 via cable
Monitoring: Decoder parameters
Demodulation parameters
Frequency and input level
MER, BER, C/N
Alarms, warnings, logbook and clock
Video & Audio: TFT Video screen 2”
2x Stereo loud-speakers
Earphone output
Antenna Control:
Parabolic: Autotracking with positioner in 2 axis
Remote polarization control
Multisector: Autotracking with panel switching
Power Supply:
AC input: 100 to 240 V
DC input: 11 to 36 V
Consumption: 55 W @ 12V (with 6 DC connected)
Recovery time: 9 seconds

HDR-106 MPEG2/H264 –4:2:2 –10 bits –DVB-T2/T Diversity 6 –DVB-S2/S Receiver
MANUAL 7.0
(It is the time that takes to the equipment
to regain an image in case of a cut in the
power supply)
Mechanical:
Size: 1 RU, 255 mm (10 inches) depth
Weight: 3 kg (6.6 lb)
Environmental:
Aeronautical: RTCA / DO-160 compliant
Temperature range: -10 to 50 ºC
Height: 4.500 m
Humidity: 95%

HDR-106 MPEG2/H264 –4:2:2 –10 bits –DVB-T2/T Diversity 6 –DVB-S2/S Receiver
MANUAL 7.0
Chapter 3: Receiver Operation and Menus
This section contains all the necessary information to operate, control and
configure the HDR-106 receiver.
3.1 Display
To switch the equipment on and off, press On/Off button. When the
equipment is turned on, the display will show the start-up message (model
of the equipment), and then it will display the first main screen. So as to
change from one main screen to another, the OK button must be pressed.
1st main screen: displays the most important parameters of the
received signal.
2nd main screen: shows signal reception conditions, level and quality
(for DVB-T2 and DVB-T).
3rd main screen: displays the level of the six received signals in the
whole screen (for DVB-T2 and DVB-T).
4th main screen: displays the level and the C/N value of the received
signal with the better values of these parameters when it is working in
diversity mode (for DVB-T2).
It is important to consider that the 1st main screen is different depending on
the standard of the received signal and the selected input.
Next, there are shown the linkages between the input and the character
displayed in the principal screen:
Audio
A
Data
DATA
D
GPS
G
Table 3.1 Linkages between the input and the character displayed
Next, the main screen for each input type (DVB-T2, DVB-T, ASI and IP) is
shown:

HDR-106 MPEG2/H264 –4:2:2 –10 bits –DVB-T2/T Diversity 6 –DVB-S2/S Receiver
MANUAL 7.0
3.1.1 1st Main Screen for the DVB-T2
In the table below, the function of each parameter is explained. These
values are numbered in the order they appear in the main screen (the first
one is the one allocated in the first line beginning from the left, the second
one the next at the right …).
Parameter nº
Function
1
Received standard (DVB-T2)
2
Received bitrate (Mbps)
3
Video Codification (H.264 / MPEG-2)
4
Video Format (1080p, 1080i, 720p, 576i, 480i)
5
Video options:
Profile (4:2:0 or 4:2:2)
Delay (Standard (S), Low delay (L) or Super Low delay (SL))
6
Characters 1 (Audio 1) and 2 (Audio 2):
Audio status indication (Audio 1 and 2 not darkened -> audio
received / darkened -> audio not received)
Character 3:
Data status indication (not darkened -> data received /
darkened -> data not received)
7
Reception frequency (MHz)
8
Modulation (QPSK, 16QAM, 64QAM, 256QAM)
9
LDPC FEC (1/2, 3/5, 2/3, 3/4, 4/5, 5/6)
10
Guard Interval (1/4, 19/128, 1/8, 19/256, 1/16, 1/32)
11
Bandwidth (1.7, 6, 7, 8 MHz)

HDR-106 MPEG2/H264 –4:2:2 –10 bits –DVB-T2/T Diversity 6 –DVB-S2/S Receiver
MANUAL 7.0
12
Carriers (1K, 2K)
13
Number of cuts occurred to the input RF signal: In case there is a
cut in the RF received signal, the number of cuts counter will
increase its value in 1. To reset and set to 0 this value, press left
button
Table 3.2 Main screen for DVB-T2 standard

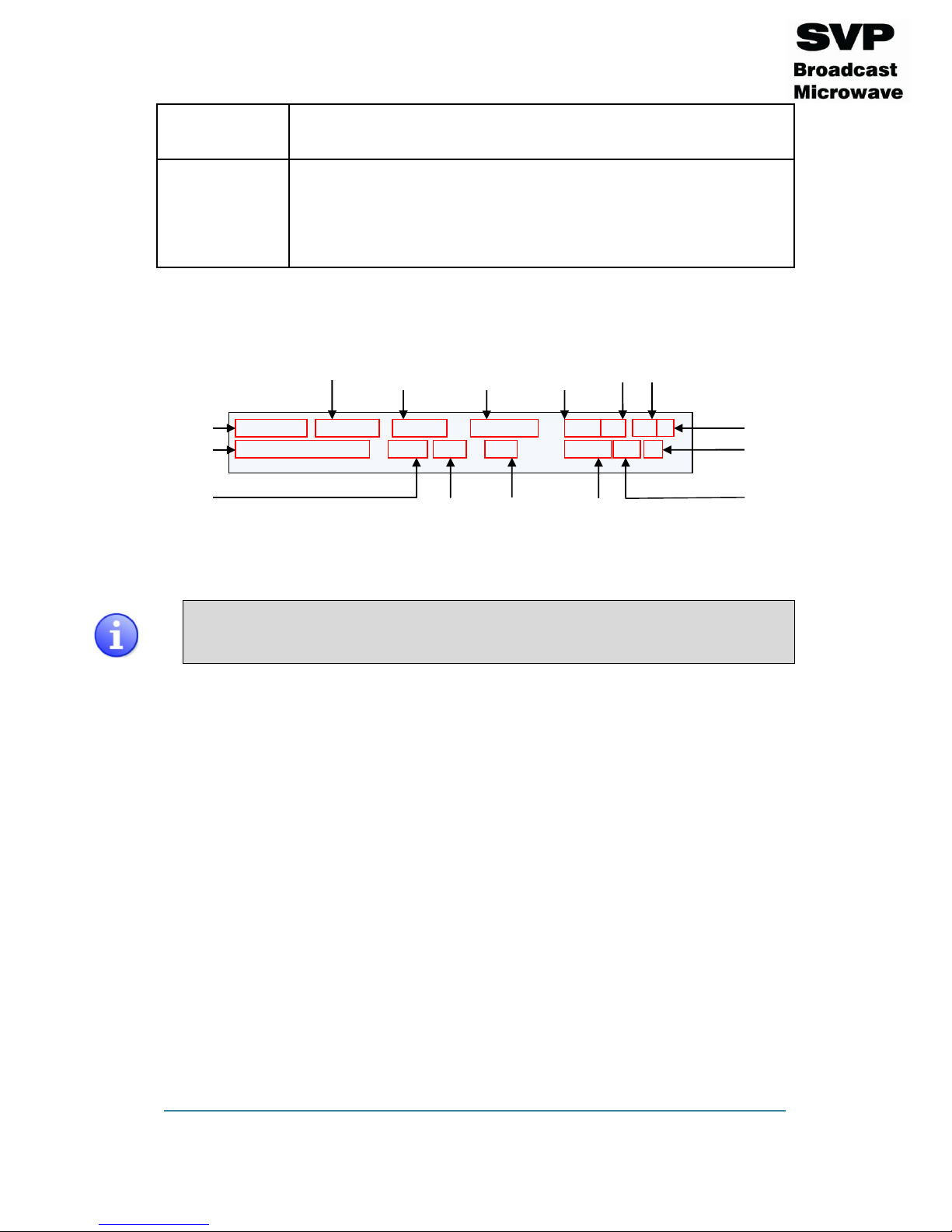

Figure 3.1 Main screen 1 DVB-T2
Before the audio status field, there could be a padlock depending on the
encryption mode. If the input signal is BISS encrypted, then a padlock
will appear in this field.
DVBT2: 26.2Mb H.264 576/50i 420/S AAG
F:2.300,0MHz Q64 5/6 1/4 8MHz 8K 0
Received Signal Standard
Reception Frequency
Bitrate
Video
Codification
Output Video
Signal Format
Profile
Delay
Audio Status
Data Status
Number of cuts
FEC
Modulation
Guard
Interval
FEC
Bandwidth
Carriers
