SVS SB-3000 User manual

1
Unbox It
Quick Start Guide
SB-3000
If you followed the SB-3000 Subwoofer unboxing instructions properly you will
have the following items in front of you. Please confirm all pieces are available
before continuing.
Congratulations on choosing the SVS SB-3000, one of the most powerful and advanced
subwoofers in the world. We know you’re anxious to get it cranking so the following steps will
guide you through the quick and easy installation process.
We strongly recommend reading the SB-3000 Owner’s Manual to get the best possible
performance out of your new subwoofer. You’ll find useful information about subwoofer
placement, connections, DSP functions and more.
[SB-3000 Subwoofer] [Removable Metal Grille]
[Detachable Power Cord]

For most set-ups, a single RCA subwoofer interconnect cable running from the AV Receiver’s “SUB 1” output to the SB-3000’s
“LFE” line level input is all that’s required to connect the subwoofer into your system. If you run separate Preamplifier and Power
Amplifiers, follow the “Line Level Connection – Stereo Receiver or Preamplifier Left/Right Channels” connection guide below.
ONOFF
R
3V-12V| AC/DC
100V-120V ~50-60Hz 800W
L
+
VOL
LOW
PASS
LOWPASS
PHASE
PHASE
0°
90° 180°
30Hz 40Hz 60Hz 90Hz 140Hz LFE
_
LINELEVEL
INPUT OUTPUT
TRIGGERINPUT
SVSSOUNDPATH WIRELESS
AUDIOADAPTER
STA-800D|2
LFE
AUTO[amber]
ON[blue]
CENTER
REAR FRONT
SUBWOOFER
(SUB1)
LINE LEVEL OUTPUTS
RL
INPUT OUTPUT
LFE
RECEIVER/PREAMP
2
Set It Up
3
Hook It Up
Need Help?
Line Level Connection – Single LFE Channel Line Level Connection – Stereo Receiver or Preamplifier Left/Right Channels
The location of your subwoofer in the listening environment can affect its performance. If possible, start with corner placement
on the same wall as the front speakers, or anywhere along the front stage in between or outside of your main speakers.
Our Sound Experts are standing by to help with subwoofer placement, installation,
calibration, AV receiver settings, room rattle and anything else you need advice about.
Just call, email or chat online with our Sound Experts:
[phone] | [email protected] | www.svsound.com
Corner Placement: offers huge impact and reduces the
potential to encounter bass nulls, or ‘dead spots’. If “boomi-
ness” occurs, you can try pulling it away from the wall and
using the DSP tuning controls to smooth performance.
Front Placement: In between or to the side of the front
channel speakers often results in the best blending with the
main speakers and center channel and minimizes localiza-
tion effects.
Side Wall Placement: Side wall placement is less frequently
used but can be an effective subwoofer location for
excellent accuracy and output.
R
3V-12V | AC/DC
L
+
VOL
LOW
PASS
LOW PASS
PHASE
PHASE
0°
90° 180°
30Hz 40Hz 60Hz 90Hz 140Hz LFE
_
LINE LEVEL
INPUT OUTPUT
TRIGGER INPUT
LFE
AUTO [amber]
ON [blue]
LINE LEVEL OUTPUTS
REAR FRONT
R
L
RECEIVER/PREAMP

4
For connection to a Stereo Receiver or
Preamplifier without auto-set-up, adjust the
SB-3000 volume to match the output of your
main speakers, and adjust the low pass filter
to blend the bass between the SB-3000 and
your speakers. If needed, consult with our
Sound Experts on the best phase setting.
For additional guidance on recommended crossover or low pass filter settings specific to your system,
visit our Subwoofer Matching Tool at www.svsound.com/merlin, or contact our Sound Experts.
For connection to an AV Receiver, set the SB-3000 volume to -10 in the app (on
the rear panel, all but the last two lights illuminated). Set the low pass filter to LFE
and the phase to 0 degrees, then run auto-set-up on the AV Receiver. Always
re-run set-up if you move the subwoofer to
another location.

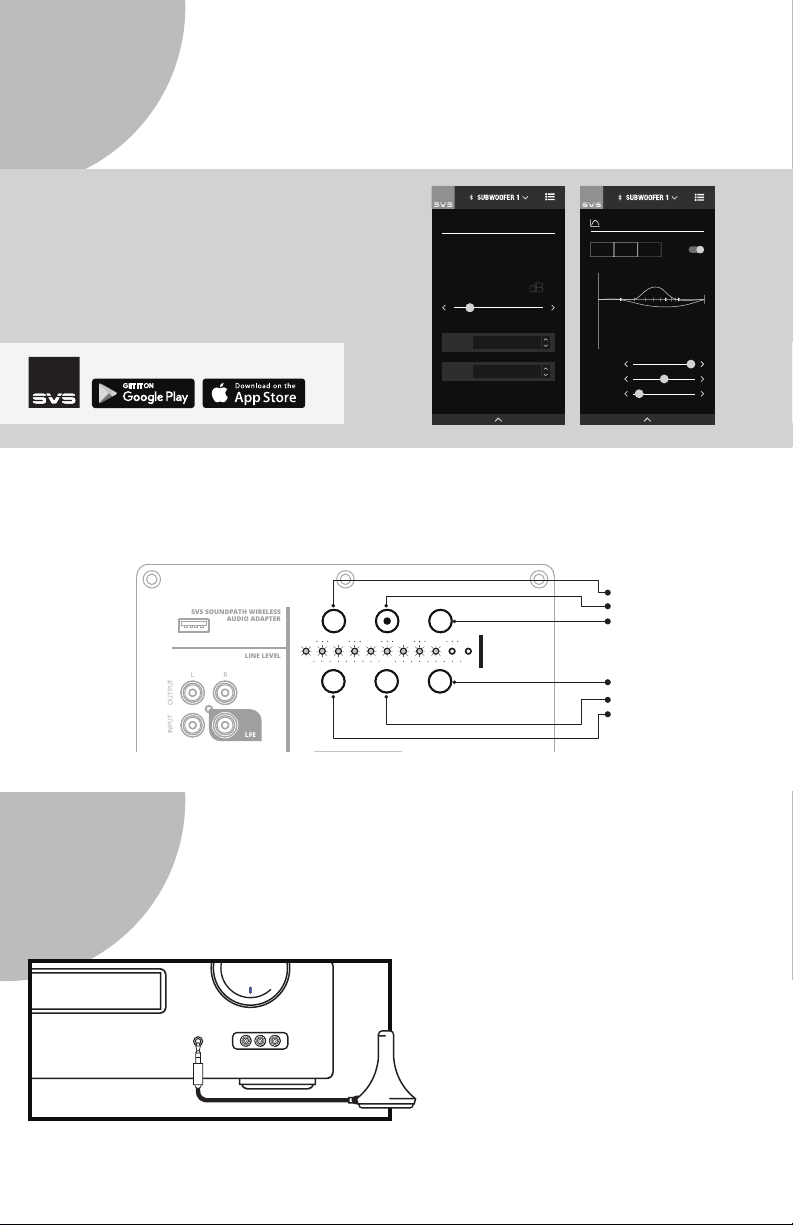

The rear panel features an intuitive all-new user interface with controls for adjusting the subwoof-
er’s primary settings. The blue LED bar shows settings for Volume, Low Pass Frequency, and Phase.
Simply press the setting you want to change and then use the “+” and “-” buttons to adjust the
settings.
Please note, some DSP settings can only be accessed using the SVS app.
The SVS App is the easiest and most convenient
way to access all of the advanced control features
available on your SB-3000, from the comfort of
your favorite seat.
Get Control
5
Get Calibrated
 HOME / VOLUME
MOVIE
PRESET
LOW PASS FILTER
OPTIONS
-22
10050
20 40 200 0
6
4
2
0
-2
-4
-6
-8
-10
-12
PEQ1
ACTIVE
PEQ2
ACTIVE
PEQ3
DISABLED
BOOST: 0 dB
Q FACTOR: 1.2
FREQ: 200 Hz
PARAMETRIC EQ
AUTO EQ - START
MIC INPUT
Your SVS SB-3000 Subwoofer can be controlled from the new SVS Mobile App
or via the rear panel for maximum flexibility when optimizing performance
based on your room layout, speakers, system set-up and more.
Download The App
On The Subwoofer
For iOS & Android Devices
ONOFF
100V-120V ~ 50-60Hz 800W
ONOFF
R
3V-12V | AC/DC
100V-120V ~50-60Hz 800W
L
LINE LEVEL
INPUT OUTPUT
TRIGGER INPUT
SVS SOUNDPATH WIRELESS
AUDIO ADAPTER
STA - 80 0D|2
LFE
+
VOL
LOW
PASS
LOW PASS
PHASE
PHASE
0°
90° 180°
30Hz 40Hz 60Hz 90Hz 140Hz LFE
_
AUTO [amber]
ON [blue]
AUTO / ON
UP (+)
LOW PASS FREQUENCY
PHASE
VOLUME
DOWN (-)
