SVS PC-2000 PRO User manual

1
Unbox It
Quick Start Guide
PC-2000 PRO
If you followed the PC-2000 PRO Subwoofer unboxing instructions properly
you will have the following items in front of you. Please confirm all pieces are
available before continuing.
Congratulations on choosing the SVS PC-2000 PRO, one of the most powerful and advanced
subwoofers in the world. We know you’re anxious to get it cranking so the following steps will
guide you through the quick and easy installation process.
We strongly recommend reading the PC-2000 PRO Owner’s Manual to get the best possible
performance out of your new subwoofer. You’ll find useful information about subwoofer
placement, connections, DSP functions and more. The full SVS PC-2000 PRO Owner’s Manual can
be found here: www.svsound.com/pc-2000pro-manual
[PC-2000 PRO Subwoofer]
[Including SVS SoundPath Subwoofer Isolation System]
[Detachable Power Cord]
4
The rear panel features an intuitive all-new user interface with controls for adjusting the subwoof-
er’s primary settings. The blue LED bar shows settings for Volume, Low Pass Frequency, and Phase.
Simply press the setting you want to change and then use the “+” and “-” buttons to adjust the
settings.
Please note, some DSP settings can only be accessed using the SVS app.
The SVS App is the easiest and most convenient
way to access all of the advanced control features
available on your PC-2000 PRO, from the comfort
of your favorite seat.
Get Control
5
Get Calibrated
 HOME / VOLUME
MOVIE
PRESET
LOW PASS FILTER
OPTIONS
-22
10050
20 40 200 0
6
4
2
0
-2
-4
-6
-8
-10
-12
PEQ1
ACTIVE
PEQ2
ACTIVE
PEQ3
DISABLED
BOOST: 0 dB
Q FACTOR: 1.2
FREQ: 200 Hz
PARAMETRIC EQ
Your SVS PC-2000 PRO Subwoofer can be controlled from the new SVS Mobile
App or via the rear panel for maximum flexibility when optimizing performance
based on your room layout, speakers, system set-up and more.
Download The App
On The Subwoofer
For iOS & Android Devices
ONOFF
R
3V-12V |AC/DC
100V-120V ~ 50-60Hz 800W
L
LINE LEVEL
INPUT OUTPUT
TRIGGER INPUT
SVS SOUNDPATH WIRELESS
AUDIO ADAPTER
STA -800D|2
LFE
AUTO / ON
UP (+)
LOW PASS FREQUENCY
PHASE
VOLUME
DOWN (-)
REG ISTER
REG ISTER
Register Your New SVS Product:
Thank you for choosing SVS! Registering your SVS product expedites any Sound Experts support requests, confirms your warranty registration and provides a proof of purchase. Plus, as a registered customer, you’ll be the first to get SVS news and updates.
Register your product now at: www.svsound.com/register
For connection to a Stereo Receiver or Preamplifier
without auto-set-up, adjust the PC-2000 PRO volume
to match the output of your main speakers, and
adjust the low pass filter to blend the bass between
the PC-2000 PRO and your speakers. If needed,
consult with our Sound Experts on the best phase
setting.
For additional guidance on recommended crossover or low pass filter settings specific to your system,
visit our Subwoofer Matching Tool at www.svsound.com/merlin, or just call, email or chat online with
our Sound Experts: [phone] | [email protected] | www.svsound.com
For connection to an AV Receiver, set the PC-2000 PRO volume to -10 in the app (on
the rear panel, all but the last two lights illuminated). Set the low pass filter to LFE
and the phase to 0 degrees, then run auto-set-up on the AV Receiver. Always re-run
set-up if you move the subwoofer to another location.
AUTO EQ - START
MIC INPUT
+
VOL
LOW
PASS
LOW PASS
PHASE
PHASE
0°
90° 180°
30Hz 40Hz 60Hz 90Hz 140Hz LFE
_

For most set-ups, a single RCA subwoofer interconnect cable running from the AV Receiver’s “SUB 1” output to the PC-2000 PRO’s
“LFE” line level input is all that’s required to connect the subwoofer into your system. If you run separate Preamplifier and Power
Amplifiers, follow the “Line Level Connection – Stereo Receiver or Preamplifier Left/Right Channels” connection guide below.
ONOFF
R
3V-12V|AC/DC
100V-120V ~ 50 -60Hz 80 0W
L
+
VOL
LOW
PASS
LOWPASS
PHASE
PHASE
0°
90° 180°
30Hz 40Hz 60Hz 90Hz 140Hz LFE
_
LINELEVEL
INPUT OUTPUT
TRIGGERINPUT
SVSSOUNDPATH WIRELESS
AUDIOADAPTER
STA-800D|2
LFE
CENTER
REAR FRONT
SUBWOOFER
(SUB1)
LINE LEVEL OUTPUTS
RL
INPUT OUTPUT
LFE
RECEIVER/PREAMP
2
Set It Up
3
Hook It Up
Need Help?
Line Level Connection – Single LFE Channel Line Level Connection – Stereo Receiver or Preamplifier Left/Right Channels
The location of your subwoofer in the listening environment can affect its performance. If possible, start with corner placement
on the same wall as the front speakers, or anywhere along the front stage in between or outside of your main speakers.
Our Sound Experts are standing by to help with subwoofer placement, installation,
calibration, AV receiver settings, room rattle and anything else you need advice about.
Just call, email or chat online with our Sound Experts:
[phone] | [email protected] | www.svsound.com

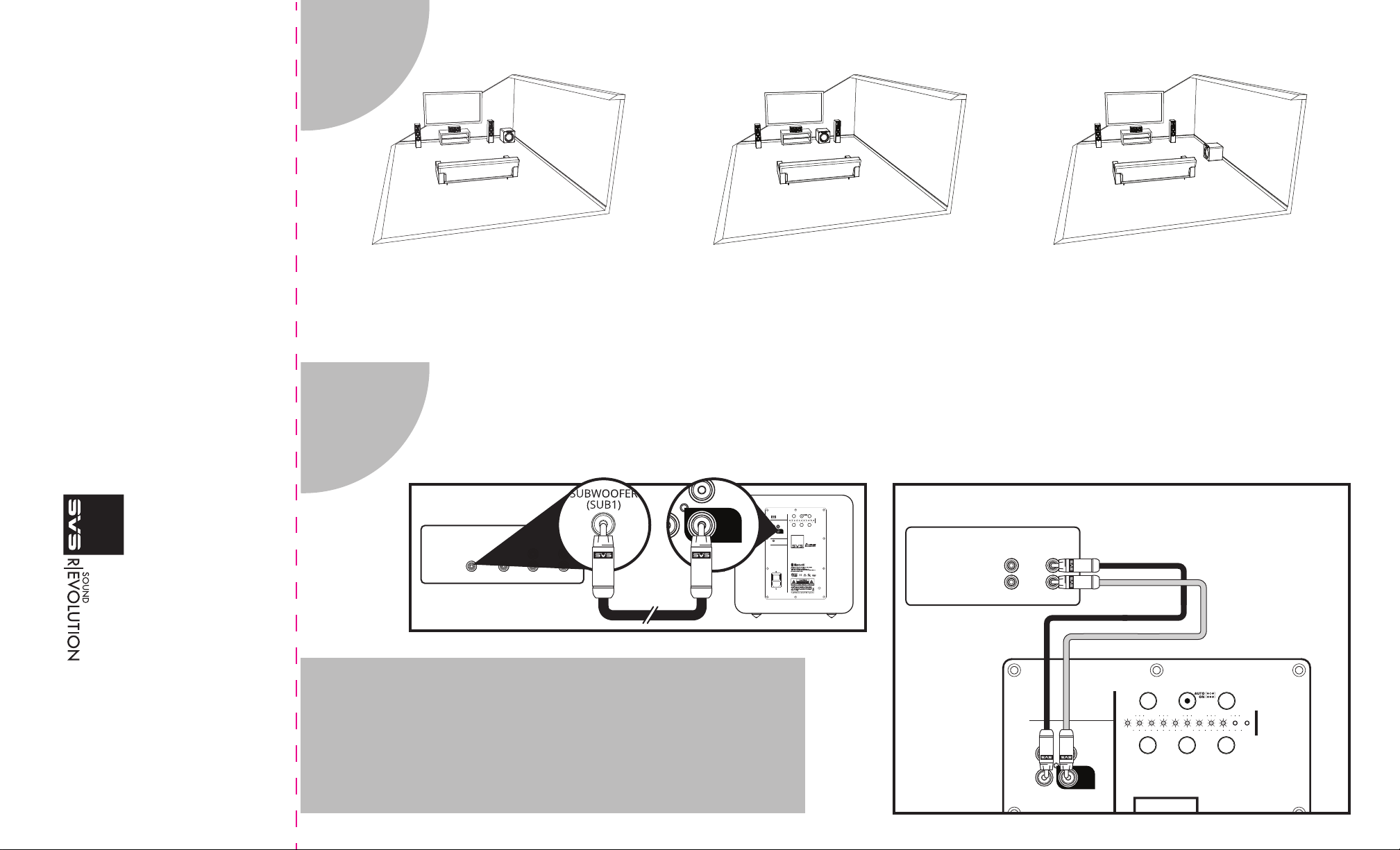

Corner Placement: offers huge impact and reduces the
potential to encounter bass nulls, or ‘dead spots’. If “boomi-
ness” occurs, you can try pulling it away from the wall and
using the DSP tuning controls to smooth performance.
Front Placement: In between or to the side of the front
channel speakers often results in the best blending with the
main speakers and center channel and minimizes localiza-
tion effects.
Side Wall Placement: Side wall placement is less frequently
used but can be an effective subwoofer location for
excellent accuracy and output.
Review your product now at: www.svsound.com/review
Review Your New SVS Product:
Your SVS product is built with the highest standards of engineering excellence to achieve stunning sound quality and dynamics. Honest feedback is important to us and others making decisions about audio products. Please share your ownership experience with the SVS community by writing a review today.
RE
VIEW
RE
VIEW
R
3V-12V |AC/DC
L
+
VOL
LOW
PASS
LOW PASS
PHASE
PHASE
0°
90° 180°
30Hz 40Hz 60Hz 90Hz 140Hz LFE
_
LINE LEVEL
INPUT OUTPUT
TRIGGER INPUT
LFE
LINE LEVEL OUTPUTS
REAR FRONT
R
L
RECEIVER/PREAMP

2000 PRO
SUBWOOFER
