Swann SWIFI-2KOCAM-EU User manual

1
EN
2K Outdoor Wi-Fi Spotlight Camera
Cámara 2K con reflector Wi-Fi para exteriores
2K Caméra de projecteur Wi-Fi extérieure
Telecamera esterno con illuminazione Wi-Fi 2K
2K WLAN-kamera den Außenbereich
EN QUICK START GUIDE ES GUÍA DE INICIO RÁPIDO FR GUIDE DE DÉMARRAGE RAPIDE
IT GUIDA RAPIDA DE SCHNELLSTARTANLEITUNG
SWIFI-2KOCAM

2
EN
CAMERA OVERVIEW
Night detection
sensor
Microphone
LED indicator
Passive infrared
motion sensor
Ethernet
connector
4 interchangeable plug adapters
Power LED
Universal Power over Ethernet (PoE) Adapter
(supplies power to camera using Ethernet cable)
Spotlight Reset (Pair)
button
Speaker
(bottom)
Infrared LEDs
(for night vision)

3
EN
Ethernet connector
CONNECT THE CAMERA
1Connect the camera to the port labelled "CAM" on the bottom of the Power over Ethernet (PoE)
adapter using the supplied Ethernet cable.
2Attach the appropriate plug adapter to the PoE adapter then plug the PoE adapter into an indoor
power outlet. Make sure the camera is within range of the Wi-Fi network to which you want to
connect.
LAN1WAN LAN2 LAN3 LAN4
Ethernet cable
Ethernet cable to router (not supplied)(Optional waterproof connector kit supplied,
see page 8for installation instructions)
PoE Adapter (Indoor use only)
(Optional) The LAN port
provides the option of a wired
connection to your router as
backup (when Wi-Fi network
is unstable). Camera must
first be paired to your Wi-Fi
network via app. Remove
yellow sticker before use.
Select adapter that corresponds to
your country. To attach, place adapter
on the prongs and slide down until it
clicks into place on the PoE adapter.
To remove, press the "PUSH" button
and slide adapter out.

4
EN
GET THE SWANN SECURITY APP
1Download the latest version of the Swann Security app from the Apple App Store® or Google
Play™ Store on your iOS or Android device. Simply search for "Swann Security".
2Open the app and create your Swann Security account by tapping “Not yet registered? Sign Up” on
the screen. Then, activate your Swann Security account by confirming the verification email that is
sent to the registered email address.

5
EN
SET UP THE CAMERA
Launch the Swann Security app and sign in. Tap the Pair Device button on the screen (or tap the menu
icon in the top left and select “Pair Device”). The app will now guide you through the pairing process
to set up the camera with your Wi-Fi network.
Before you begin, have the camera powered close to your router and get your Wi-Fi network password
ready. Please note that the camera is only compatible with the 2.4GHz network. If your router is using
the 5GHz band, please ensure it is operating in mixed mode.

6
EN
• The camera can be easily mounted on a flat surface using the included screws (and wall plugs).
• Choose a location with strong, reliable Wi-Fi reception to ensure best video streaming
performance. The easiest way to check is to use your smartphone. Connect your smartphone to
your Wi-Fi network at the spot you have chosen and see if you get 2 bars of Wi-Fi signal or more.
• As a general rule, the nearer the camera is to your router, the better the wireless connection
quality. If you’re finding the Wi-Fi signal to be weak or out of range at the location where you
intend to mount the camera, consider installing a Wi-Fi range extender to boost the Wi-Fi
coverage of your existing network or you can try connecting an Ethernet cable from the "LAN"
port of the PoE adapter directly to your router for a more reliable wired connection.
MOUNT THE CAMERA
Adjusting the viewing angle
Loosen the locking ring to pan, tilt and rotate the camera. Tighten
the locking ring back securely to lock the camera’s position in
place after adjustment.
WARNING: DO NOT APPLY TOO MUCH FORCE WHEN TIGHTENING
THE LOCKING RING, AS THIS MAY DAMAGE THE JOINT.
If mounting to a wooden surface, screw the camera directly
to the surface. If mounting to a masonry surface (bricks,
concrete), insert wall plugs before screwing the camera to
the surface. Tighten enough to secure the camera in place.
Make sure to remove the protective film covering the camera lens
once installation is complete.

7
EN
HELP AND RESOURCES
LED status guide
The LED indicator on the front of the camera tells you what is happening with the device connection.
Accessing the Swann Security app manual
To better understand the Swann Security App’s interface and features, download the app manual via
Menu > User Manual. You can learn about navigating the various app screens to view live camera
stream, playback and download motion event recordings, adjust camera settings, and more.
Slow Blinking Blue Wi-Fi Pairing mode
Fast Blinking Blue Connecting to Wi-Fi
Solid Red Live streaming / Motion recording
Infrared LEDs Blinking Firmware update in progress

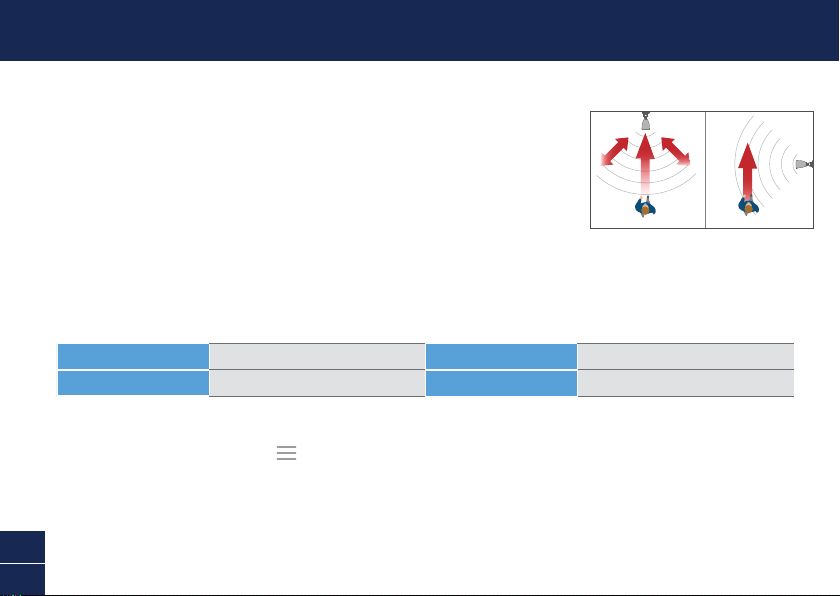

Optimizing motion detection
The camera’s PIR motion sensor detects heat signatures of moving
objects. You’ll generally get good detection results by pointing the
camera downwards at an angle where people will be moving across
the coverage area before heading directly towards the camera. The
camera's motion detection sensitivity settings can also be adjusted
in the Swann Security app. As every home environment is unique,
we recommend experimenting with the motion detection sensitivity
levels to find out which works best for yours.
Less
sensitive
More
sensitive

8
EN
1. Place the ring gasket around the camera's Ethernet connector.
2. Pass the Ethernet cable through the waterproof connector nut, foam gasket and waterproof
connector cover.
3. Connect the Ethernet cable to the camera's Ethernet connector, then
attach the waterproof connector cover and rotate clockwise until tight.
4. Push the foam gasket onto the inside of the waterproof connector
cover fingers until it is snug and slightly protrudes out of the waterproof connector cover.
5. Attach the waterproof connector nut to the waterproof connector
cover then rotate clockwise until tight. The foam gasket expands to
ensure a waterproof seal around the cable and the nut.
Note: For extra layer of protection, you may also want to seal the ends with silicone tape.
Have questions?
Visit our Support Center at support.swann.com.You can register your product for dedicated technical
support, find FAQs and troubleshooting articles, participate in the community forums, and more. You
can also reach out to us at: [email protected]
Installing the waterproof connector kit (optional)
The waterproof connector kit provides a weather-resistant shield for the camera's Ethernet connector to
prevent damage from moisture, dust, and other external factors that could interfere with the connection.
HELP AND RESOURCES
Camera Ethernet connector
Ethernet cable
Waterproof connector cover
Ring gasket Foam gasket
Waterproof connector nut

9
ES
DESCRIPCIÓN GENERAL DE LA CÁMARA
Sensor de
detección
nocturna
Micrófono
Indicador LED
Sensor infrarrojo
pasivo de movimiento
Conector
Ethernet
Adaptadores específicos para el país
LED de energía
Adaptador universal de alimentación por Ethernet (Power over Ethernet, PoE)
(le da energía a la cámara usando un cable Ethernet)
Reflector Botón de
reinicio
Altavoz
(inferior)
LED infrarrojos
(para visión
nocturna)

10
ES
CONEXIÓN DE LA CÁMARA
Conector Ethernet
1Conecte la cámara al puerto de nombre “CAM” en la parte de abajo del adaptador de
alimentación por Ethernet usando el cable Ethernet proporcionado.
2Conecte el adaptador para el país correspondiente al adaptador PoE y enchúfelo a un
tomacorriente interior de pared. Verifique que la cámara se encuentre dentro del rango de la red
Wi-Fi a la que desea conectarla.
LAN1WAN LAN2 LAN3 LAN4
Cable Ethernet
Cable Ethernet al enrutador (no suministrado)
Adaptador PoE
(Nota: solo para uso en interiores)
(Opcional) El puerto LAN ofrece
la opción de una conexión por
cable a su enrutador como
conexión de respaldo. La
cámara debe estar primero
emparejada al Wi-Fi mediante
la aplicación.
El adaptador de corriente variará
según su país. Para conectarlo,
ponga el adaptador en las clavijas
y deslícelo hasta que quede en su
lugar. Para retirarlo, presione el botón
“PRESIONAR” (“PUSH”) y deslice el
adaptador hacia afuera.
(Se suministra un kit de conector impermeable
opcional, consulte la página 15 para obtener
instrucciones de instalación)
