SWIMSHAPE SSSBM-019A User manual

Need Assistance?
As a manufacturer, we are committed
to providing complete customer
satisfaction.
If you have questions, or if a part
is damaged or missing, follow the
directions below based on your
location:
For U.S. and Canadian Customers:
DO NOT CONTACT THE RETAILER.
Instead call us toll free at:
1-877-793-2198
Monday - Friday, 8:00 am to 5:00 pm
(Mountain Standard Time)
For customers outside the U.S.
and Canada:
Contact the retailer for assistance.
USER’S MANUAL
Sleeve-Mounted Base
For use with the QuikFire™ Pool Basketball Hoop,
QuikSpike™ Pool Volleyball Set™, and Pool-Up Bar.
Part No. SSSBM-019A
WWW.SWIMSHAPEFITNESS.COM
WARNING:
To ensure your safety, do not
attempt to install this system
without reading and following
all instructions. Please read all
precautions in this user’s
manual and the product user’s
manuals before using this
equipment. Failure to comply
may result in serious injury or
death. Keep this manual for
future reference.
!
© 2019 | SwimShape, LLCDocument # 1001-19A-r2
INSTALLATION INSTRUCTIONS START ON PAGE 4.
i

Contents
Introduction...........................................................................................................................................................................
Important Precautions.......................................................................................................................................................
Part Identication...............................................................................................................................................................
Installation.............................................................................................................................................................................
Mounting and Removing the Base...............................................................................................................................
Proper Care and Maintenance........................................................................................................................................
Limited Warranty..................................................................................................................................................................
Introduction
Thanks for purchasing a quality SwimShape pool sports and fitness product. The Sleeve-Mounted
Base is the mechanism installed on the deck of the pool that allows you to attach and use the
Pool-Up Bar, QuikFire Pool Basketball Hoop, and QuikSpike Pool Volleyball Set.
For your benefit, read this manual carefully before using or installing the Sleeve-Mounted Base. If you
have questions after reading this manual, please call the toll-free number on the front cover of this
manual.
1
1
2
3
4
7
8
9
© 2019 | SwimShape, LLC

Important Precautions
!
WARNING: To ensure your safety, please review and adhere to the following important
warnings and pre-cautions. Failure to do so may lead to serious injury or even death.
Read this manual in its entirety before installing or using the Sleeve-Mounted Base.
It is the responsibility of the owner to ensure that all users are informed of all pre-cau
tions.
The Sleeve-Mounted Base is intended for use with the following SwimShape products
only:
QuikFire Pool Basketball Hoop
QuikSpike Pool Volleyball Set
Pool-Up Bar
Use of this product with any other product or device can result in serious injury or death.
If installing this product for use with QuikFire Pool Basketball Hoop or QuikSpike Pool
Volleyball Set, then install in the shallow end of the pool.
This product was designed for residential in ground pool use only. Use of this product on a
commercial or above ground pool may result in serious injury or death.
Always insert the Sleeve Cap into the Sleeve after removing the Base (see page 3 to iden
tify these parts).
Remove any accessory (QuikFire Pool Basketball Hoop, QuikSpike Pool Volleyball Set, or
Pool-Up Bar) from the Base before attempting to mount or remove the Base from the
Sleeve. Failure to do so can result in serious injury or death. Refer to page 3 to identify
these parts.
Tension Knob
Read all precautions listed in the user’s manual before using
this equipment.
Make sure the tension knob is fully tight before each use.
Do not climb on or jump from this equipment or attachments.
Always insert the sleeve cap after removing this equipment
from the deck.
Each time before use, make sure
the Tension Knob (shown in
drawing to the right) is fully
tightened.
The warning sticker (shown in
drawing to the right) has been
placed on the Sleeve-Mounted
Base. If the sticker is missing or
illegible, call the toll-free tele-
phone number on the front
cover of this manual and order a
free replacement sticker. Apply
the sticker in the location
shown.
2© 2019 | SwimShape, LLC

Part Identification
Use the information on this page to identify each part included with the Sleeve-Mounted Base (part
no. SSSMB-019A. If a part is damaged or missing, call the customer service number on the front
cover of this manual to receive a replacement part.
3
Key No. Description Qty.
1 Base 1
2 Sleeve 1
3 Sleeve Insert 1
4 2” End Cap 2
5 Chrome Decal 1
6 Warning Sticker 1
7 Grounding Lug (screw included) 1
8 Tension Knob 1
9 Rubber Bumper 1
10 Bumper Screw 1
11 Sleeve Cap 1
4
1
9
10
58
4
3
11
7
6
SwimShape
Location of product serial number.
2
Leveling Post (optional purchase
for installation of the Sleeve)
i
© 2019 | SwimShape, LLC

4
Installation
This section details the process of installing the sleeve on a new pool being constructed.
Important: Please read and adhere to all guidelines and instructions before attempting to install the
sleeve. SwimShape, LLC is not responsible for improper installation of the sleeve.
It is the responsibility of the installer to ensure that the sleeve is installed in accordance with all
local building codes, including any grounding or bonding requirements.
Contact your local building inspector for details of any grounding requirements in your area.
The sleeve is designed to install in concrete or cement surfaces. Do not install on any other
surface type.
1. Determine the setback (distance from the pool edge) to install the sleeve (refer to TABLE 1 below).
Pool Edge
Pool Edge
PRODUCT RECOMMENDED SETBACK SETBACK RANGE
Pool-Up Bar
10.5” 10.5”
Pool Edge
10.5”
Sleeve
Sleeve
16.0” 16.0”
Pool Edge
Sleeve
Sleeve
QuikFire Pool Basketball Hoop
QuikSpike Pool Volleyball Set
10.5 inches to 18.0 inches
Note: The front of backboard
is even with the pool edge
when setback is 19.5 inches
from pool edge.
i
None
Maximum setback from the
pool edge is 10.5” if sleeve is
being installed for use with
the Pool-Up Bar.
i
10.5” - 18.0”
16.0” 16.0”
Pool Edge
Sleeve
Pool Edge
10.5” - 18.0”
Sleeve
10.5 inches to 18.0 inches
TABLE 1: Sleeve Setback
© 2019 | SwimShape, LLC

5
5.25”
2.5”
5.0”
2. After determining the setback for the sleeve, prepare the surface of the ground where the sleeve
will be installed so that it is flat and level.

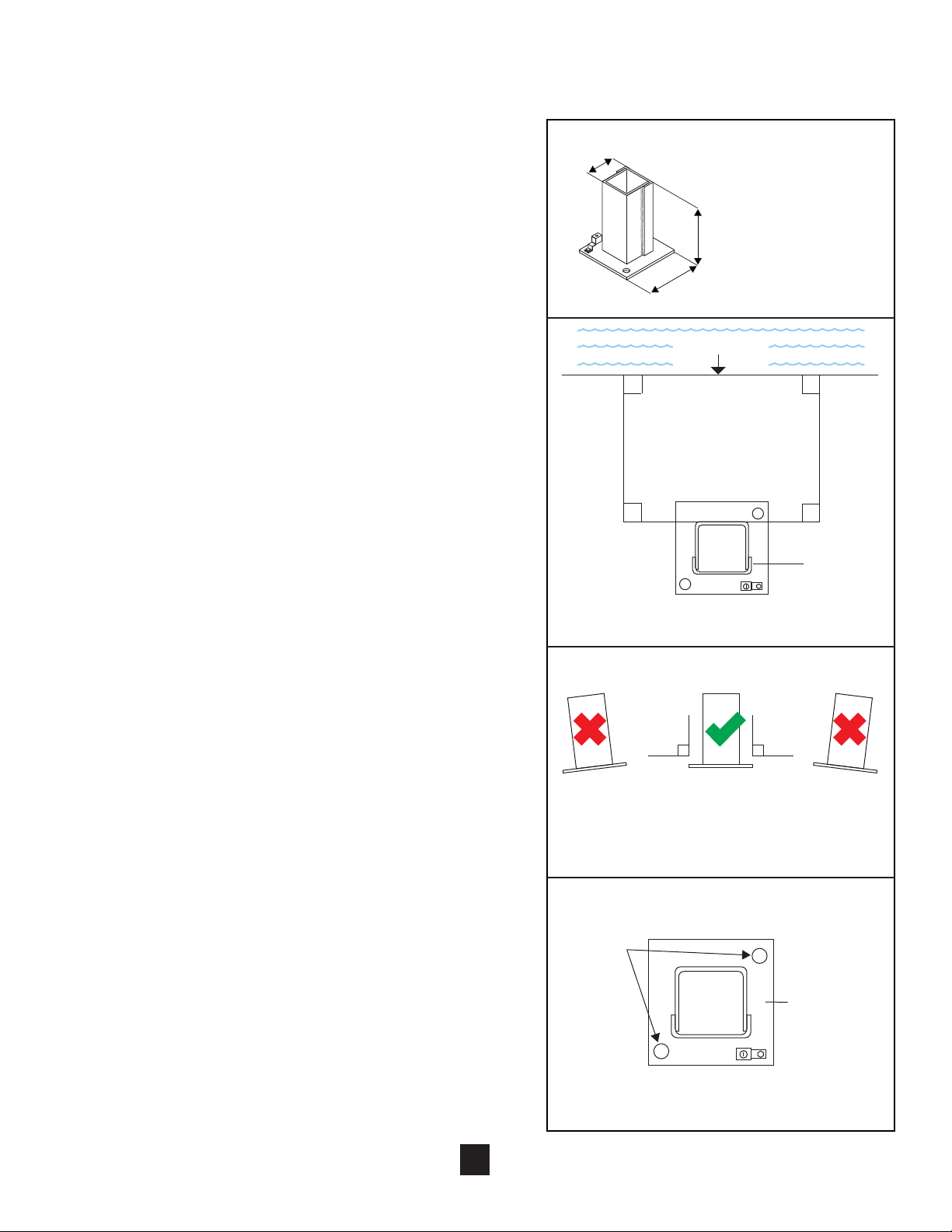

FIGURE 3: Sleeve Dimensions
3. Set the depth of the sleeve so that after the concrete
is poured, the top of the Sleeve will be level with the
surface of the concrete (see FIGURE 3 for sleeve
dimensions).
4. Using an angle square or similar device, align the
Sleeve so that it is square with the edge of the
pool as shown in FIGURE 4.
FIGURE 4: Overhead View
Pool Edge
5. Place a level on each side of the sleeve and make
sure it is vertically oriented straight up and down at
a 90 degrees angle to the level surface of the ground
(refer to FIGURE 5).
6. To secure the sleeve in place so that it won’t shift
or move when pouring the deck, you can use ribar or
stakes to secure the sleeve in place.
The two holes in the Sleeve Plate can be utilized for
this purpose (refer to FIGURE 6).
holes
Sleeve
Plate
FIGURE 6: Securing the Sleeve
Incorrect
Correct
FIGURE 5: Vertical Alignment
900900
Incorrect
900
900900
900
Sleeve
© 2019 | SwimShape, LLC

FIGURE 7: Grounding
7
7. Ground or bond the sleeve according to local building
codes using the grounding lug (7) and appropriate
grounding wire.
9. (Conditional) If using the red leveling post, insert it
into the sleeve (2) at this time.
The red leveling post serves the following purposes:
a. Makes the sleeve (2) more visible to the workers
pouring the deck so they do not accidentally bump
or move it.
b. Makes it easier for the installer to confirm the
sleeve is still vertically oriented and square with
the edge of the pool.
c. Helps to prevent concrete from getting into the
sleeve when the deck is poured.
d. Makes it easier to adjust the sleeve if necessary.
10. (Conditional) If using the red leveling post, attach
a magnetic level to adjacent sides of the leveling
post. Check the levels during the pouring of the
concrete deck to ensure that the sleeve remains
vertically aligned straight up and down.
11. While the concrete is being poured, visually
inspect the sleeve or leveling post and make
sure it is square with the edge of the pool (see
step 4) and vertically aligned straight up and
down (see step 5). Adjust if necessary.
8. Conduct a check to ensure the sleeve is still square
with the edge of the pool (see step 4) and vertically
oriented straight up and down (see step 5). Adjust as
necessary.
6
Leveling Post
Provide this manual to the pool owner once
installation is complete.
Remove the leveling post and retain for
future installations.
Do not use the sleeve until the concrete is
fully cured.
Before
After
Post Installation Notes:
i
2
Leveling Post
2
FIGURE 9: Leveling Post
© 2019 | SwimShape, LLC
Magnetic
Levels
FIGURE 10: Magnetic Levels

Mounting and Removing the Base
This section describes how to mount the Base into the Sleeve and how to remove the Base from the
Sleeve.
To mount the Base in the Sleeve:
1. Loosen the Tension Knob (8) by turning it counter-
clockwise.
2. Fully insert the Sleeve Insert (3) into the Sleeve (2).
3. Firmly tighten the Tension Knob (8) by turning it
clockwise.
To remove the Base from the Sleeve:
1. (Conditional) Remove any attached
product from the Base (1).
2. Loosen the Tension Knob (8).
3. Lift up on the Base (1) until the Sleeve Insert is
clear of the Sleeve (2).
4. After setting the Base (1) aside, insert the Sleeve
Cap (11).
8
1
3
2
11
SwimShape
WARNING: Remove any product (QuikFire Pool Basketball Hoop, QuikSpike Pool
Volleyball Set, or Pool-Up Bar) from the Base before attempting to mount or remove
the Base from the Sleeve. Failure to do so can result in serious injury or death. Refer
to the product manual for instructions on removing the product from the Base.
!
7© 2019 | SwimShape, LLC
If the Base does not remove easily, firmly
tap down on the Tension Knob to break apart
the wedge on the Sleeve Insert (3).

Proper Care and Maintenance
SwimShape has designed and engineered its pool sports and fitness products to provide years of use
and enjoyment. Properly maintaining and caring for your product is required to maintain the appear
ance of the equipment and to prevent rust and corrosion.
SwimShape uses both powder-coated steel and stainless steel in the construction of its pool sports
and fitness products. Over time, the sun, water, chlorine, salt, and other contaminants can damage
the powder coating protecting the base metals. This will result in rust. For this reason, we recommend
that you take the following actions:
1. Periodically wipe down the product with a sponge or rag and a small concentration of dish soap
mixed with water. This will help remove harmful contaminants, thereby extending the life of the
powder coating. If necessary, you can use mild cleansers like Windex® or Formula 409®. Do not
use abrasive cloths or cleansers as they can damage the powder coating.
2. Regularly inspect the powder-coating surfaces and look for scratches or signs of rust or corrosion.
Weld seams, crevices, and the surfaces beneath end caps and slider bushings are particularly
vulnerable to corrosion as they can trap water.
3. (Conditional) If scratches or signs of corrosion are discovered during inspection of the product, it is
recommended that you touch up the affected areas to prevent rust damage. Be sure to remove
end caps or bushings before applying the touch up paint to those areas. Touch up paint can be
ordered from your local dealer or picked up from your local hardware store or paint supply store.
The color code for the powder coating is: RAL 7001 Silver Gray
4. During the offseason when the equipment is not in use, it is recommended that you remove it and
store it in a location out of the weather.
a. If your product was installed using a sleeve, make sure and insert the sleeve cap into the sleeve
after removing the equipment from the deck.
b. If your product was installed using drop-in anchors, make sure and seal the openings in the
drop-in anchors with marine grease after removing the equipment from the deck. This will
help protect the threads and extend the life of the anchors. Marine grease can be
purchased from your local hardware store or marine supply store.
5. Make sure that the warning stickers are well-maintained and readable. Replacement warning
stickers can be obtained upon request by calling 877-793-2198.
8© 2019 | SwimShape, LLC

Limited Warranty
SwimShape, LLC (SwimShape) guarantees its products to be free of defects in workmanship, under
normal use and service conditions, for a period two (2) years from the date of retail purchase. This
limited warranty extends to the original purchaser (product owner) only and is not transferable to
subsequent owners or consumers of the product.
SwimShape’s obligation under this warranty is to repair or replace, at its option, any of its products
should they fail during the warranty period because of defects in workmanship or material. The word
“defects” is defined as imperfections that impair the use of the products. This limited warranty does
not cover damage caused by rusting, “acts of nature” or any other event beyond the control of the
manufacturer.
SwimShape disclaims all responsibility or liability for its products if they have been repaired, altered,
improperly installed, or subject to improper use. This limited warranty expressly does not cover any
material or property damage resulting from installation of any and all SwimShape products, or labor
or re-installation expenses related to the replacement of SwimShape products.
This limited warranty only applies to residential (single family) installations of SwimShape products.
SwimShape expressly disclaims any liability or warranty claims resulting from public, semi-public, or
commercial installations of its products. To the extent permitted by law, SwimShape disclaims all
liability for indirect, special or consequential damages arising out of or in connection with the use or
performance of its products or damages with respect to any economic loss, loss of revenues or prof-
its, loss of enjoyment or use, costs of removal or installation, or other consequential damages regard-
less of nature.
While every attempt is made to embody the highest degree of safety in our products, SwimShape
cannot guarantee freedom from injury. The user assumes all risk of injury (or death) resulting from
the use of this product. All SwimShape products are sold on this condition, and no representative of
the company are authorized to waive or change this policy. Under no circumstances shall SwimShape
be liable for more than the total amount paid to SwimShape by the purchaser of the defective or
damaged product.
No other warranty beyond that specifically set forth above is authorized by SwimShape. SwimShape,
nor any representative assumes any other liability in connection with this product.
Submitting a Warranty Claim
To submit a warranty claim, the product owner (or representative) must notify SwimShape in writing
or by sending an email to warr[email protected] or by sending a fax to [phone].
The notification should include the customer’s contact information, the product model # or part #,
the product serial number and/or proof of purchase, a description of the defect, the requested action
(credit or replacement), and photos of the defect if necessary. A representative from SwimShape will
then contact the customer to process the claim. SwimShape reserves the right to physically inspect
the defective or damaged product or parts to determine a cause before authorizing a repair or
replacement.
This warranty is subject to change without notice. Please visit swimshapefitness.com for the latest
warranty information.
9© 2019 | SwimShape, LLC
