Swisher T11044, T11544, T10544BSPB, T1 User manual

44” FINISH CUT
TRAILMOWER
OWNER’S
MANUAL
1602 CORPORATE DRIVE, WARRENSBURG, MISSOURI 64093 PHONE [phone]
FAX [phone]
MODEL NO.
T11044
Manufacturing quality lawn care equipment since 1945
Assembly
Operation
Service and Adjustment
Repair Parts
Made In The
USA
Rev.2.27.2003
Read and follow all Safety
Precautions and
Instructions before
operating this equipment.
IMPORTANT
swisherinc.com
ONT442003
RK10544
T1144HSP
T8544SPB
T10544BSPB
T12544CHB
SERIAL NUMBER:
02-287001

LIMITED WARRANTY
The manufacturer’s warranty to the original consumer purchaser is: This product is free from
defects in materials and workmanship for a period of one (1) year from the date of purchase
by the original consumer purchaser. We will repair or replace, at our discretion, parts found to
be defective due to materials or workmanship. This warranty is subject to the following
limitations and exclusions:
1) Engine Warranty all engines utilized on our products has a separate warranty
extended to them by the individual engine manufacturer. Any
engine service difficulty is the responsibility of the engine
manufacturer and in no way is Swisher Mower Co., Inc. or its
agents responsible for the engine warranty. The Briggs &
Stratton Engine Service Hot-Line is 1-800-233-3723. The
Tecumseh Engine Service Hot-Line is 1-800-558-5402.
2) Commercial Use the warranty period for any product used for commercial or rental
is limited to ninety days from the date of original purchase.
3) Limitations this warranty applies only to products, which have been
properly assembled, adjusted, and operated in accordance with
the instructions contained within this manual. This warranty
does not apply to any product of Swisher Mower Co., Inc., that
has been subject to alteration, misuse, abuse, improper assembly
or installation, shipping damage, or to normal wear of the
product.
4) Exclusions excluded from this warranty are normal wear, normal
adjustments, and normal maintenance.
In the event you have aclaim under this warranty, you must return the product to an
authorized service dealer.All transportation charges,damage, or lossincurred during
transportationof parts submittedfor replacement orrepair underthis warranty shall be borne
by thepurchaser. Shouldyou haveany questions concerning this warranty,please contact us
toll-free at 1-800-222-8183. The model number, serial number, date of purchase, and the
name of the authorized Swisherdealer from whom you purchasedthe mower will be needed
before any warranty claim can be processed.
THIS WARRANTY DOES NOT APPLY TO ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME
PERIODS STATED HEREIN FOR ALL EXPRESSED WARRANTIES. Some states do not
allow the limitation of consequential damages or limitations on how long an implied warranty
may last, so the above limitations or exclusions may not apply to you. This warranty gives
you specific legal rights and you may have other rights, which vary from state-to-state. This is
a limited warranty as defined by the Magnuson-Moss Act of 1975.

This Safety Alert Symbol indicates important messages in this
manual. When you see this symbol, carefully read the message that
follows and be alert to the possibility of personal injury.
Read this manual completely. This machine can amputate hands, feet, and throw
objects. Failure to observe the following safety instructions could result in serious
injury or death.
SAFETY PRECAUTIONS
• Read the manual. Learn to operate this machine safely.
• Always disconnect the spark plug wire and place the wire where it cannot
contact the spark plug, to prevent accidental starting of the engine when setting
up, transporting, adjusting or making repairs.
• Keep all shields and guards in
place.
• Understand the speed, steering and stability of this machine. Know the
positions and operations of all controls before you operate this machine. Check
all of the controls in a safe area before starting to work with this machine.
• Clear the area of objects such as rocks, toys, wire, etc. that can be picked up
and thrown by the blade.
• Allow only responsible adults who are familiar with these instructions to
operate this machine. Never allow children to operate this machine.
• Be sure the area is clear of other people before mowing. Be aware of the
mower discharge direction and do not point at anyone. Stop the machine if
anyone enters the mowing area. Children are often attracted to the machine and
the mowing activity. Never assume that children will remain where you last saw
them.Keep children under the watchful care of another responsible adult.
•No riders!
• Do not put hands or feet near or under rotating parts. Keep clear of the
discharge opening at all times.
• Do not mow in reverse. Always look down and behind before and while
backing.

•Turn off the blades when not mowing. Before leaving the machine, turn off the
blades and stop the engine.
•Watch for traffic when operating near or crossing roadways.
• Do not operate the mower if it has been dropped or damaged in any manner
or if the mower vibrates excessively. Excessive vibration is an indication of
damage. Repair mower as necessary.
• Dress properly. Do not operate the mower when barefoot or wearing open
sandals. Wear only solid shoes with good traction when mowing.
• Do not operate the machine while under the influence of alcohol or drugs.
• Operate self-propelled machines up and down slopes. There is significant risk
of overturns when operating across slopes. Operate walk-behind machines across
slopes. There is a significant risk of slipping under a walk-behind machine when
operating up and down slopes. Do not operate on slopes greater than 15 degrees.
• Never tamper with safety devices. Check their proper operation regularly.
• Stop and inspect the equipment if you strike an object. Repair, if necessary,
before restarting.
• Never make adjustments or repairs with the engine running.
• Mower blades are sharp and can cut. Wrap the blades or wear gloves, and
use extra caution when servicing them.

OD36-Deflector Decal
OD45-Warning Decal
OD103-Single Point Height Adjust Decal
OD29-Danger Decal
Engine Serial #
OD11-No Step Decal
OD15-Void Warranty Decal
OD33-Speed Decal
OD55-Triangle Danger Decal
(All four deck corners)
TrailMower Serial #
SAFETY DECALS
Replace decal immediately if damaged. Order by part number from Swisher Mower and Machine Co. Inc.
OD99125-Medium Swisher
Logo White Decal
(Not Pictured)
OD99127-44" Deck White Decal
(Not Pictured)
OD99127-44" Deck White Decal
(Not Pictured)

OPERATING YOUR TRAILMOWER
INTENDED USE
The 44” TrailMower is designed to produce a quality finish cut on lawns, golf courses,
etc. It is not intended to clear brush or cut saplings. Your TrailMower should be
towed behind an ATV, golf cart, lawn tractor, or other approved vehicle. It is not
designed for speeds exceeding 5 MPH. WARNING: To avoid serious injury,
operate your mower up and down the face of slopes, NEVER across the face. DO
NOT MOW SLOPES GREATER THAN 15 DEGREES! (See attached guide for
sighting slopes.)
ATTACHING TRAILMOWER TO TOW VEHICLE
•Back vehicle up to desired towing position.
• Offset the TrailMower to the side opposite the tow vehicle discharge (if any).
This prevents the tow vehicle from throwing grass into TrailMower engine.
• Bolt swivel hitch (H10) to vehicle tow receiver. If tow vehicle has a ball hitch,
the ball must be removed before swivel hitch can be fastened.
• Attach tow hitch (4582) to the swivel hitch with hitch pin (H11). Make certain
the hitch pin goes completely through each piece and is clipped to prevent
accidental separation. (FIGURE FOUR)

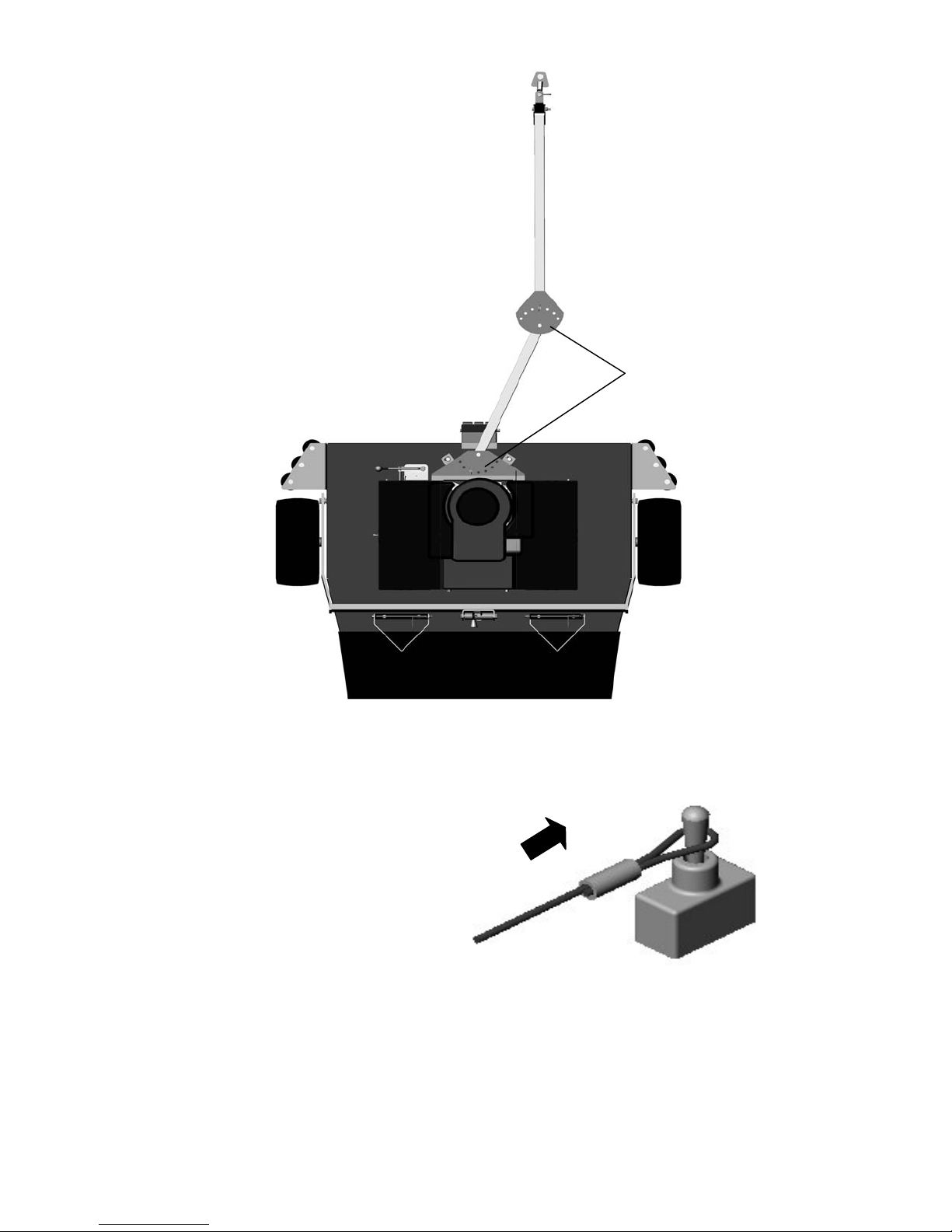

• Securely attach safety tether (6736) to tow vehicle and to the TrailMower
toggle switch located on right side of the engine. The safety tether will stop the
TrailMower engine either manually or if the two should become separated. It is
very important that the safety tether is securely attached to both the toggle
switch and to the tow vehicle. (FIGURE TWO)
The operation of any mower can produce foreign objects to be thrown into the
eyes, resulting in severe eye damage. Always wear certified safety glasses or
wide-vision safety goggles over spectacles before staring any cutting machine
and while operating such a machine.
The operation of any cutter produces sound waves that are damaging to the
human ear. Ear protection is recommended.
CAUTION!
Tragic accidents can occur if the operator is not alert to the presence of
children. Children are often attracted to the machine and the mowing
activity. Never assume that children will remain where you last saw
them.
TRANSPORTING MOWER
•Stop TrailMower.
•Place TrailMower deck in its highest position.
• When transporting unattached from tow vehicle, remove spark plug wire
and place it where it cannot contact the spark plug.

• Set vehicle parking brake or chock wheels to prevent accidental rolling.
• Start engine properly.
• Slowly, engage blade control.
• In a safe environment, i.e. no children, allow blades to rotate and engine to
idle for 5 minutes. This breaks in the belts and the engine.
• Stop mower properly.
ENGAGING BLADES (without T-handle option, Standard)
The TrailMower will not start if the blade lever is in the “ENGAGED” position.
• Engage blades by rotating blade lever into the “ENGAGED” position.
• Rotate blade lever in opposite direction to disengage blade.
• The dual braking system is applied when the blades become disengaged. It is
designed to bring the blades to quick stop (approximately 7 seconds). Each
TrailMower brake system has been tested and calibrated. For safety, the
consumer should not alter the braking system.
ENGAGING BLADES (with T-handle option, for order information see detail)
The TrailMower will not start if the T-handle console is in the “ENGAGED”
position.
• Engage blades by pulling T-handle lever into its horizontal position.
• Return lever to its vertical position to disengage blades.
• The dual braking system is applied when the blades become disengaged. It
is designed to bring the blades to quick stop (approximately 7 seconds). Each
TrailMower brake system has been tested and calibrated. For safety, the
consumer should not alter the braking system.
STARTING THE ENGINE
See engine manufacturer’s recommendations for the type and amount of oil and fuel
used. Trail Mowers equipped with an electric start engine will need a battery (sold
separately). Swisher recommends using a standard “12N12A” battery.
• Make sure the tow vehicle parking brake is set, mower is level, and blades are
disengaged. Engine must be level to accurately check and fill oil. Do not overfill.
• Check spark plug wire, oil, and fuel.
• Check all electrical connections for build-up or debris.
• Make sure toggle switch is not turned “OFF” and safety tether is attached.
• Set engine idle to “CHOKE” position.
• With feet clear of mower deck, turn key switch to the “START”position; release
when engine begins to run (12volt models). Recoil models must use pull-rope.
Pull rope with a single fluid motion.
• Set engine throttle at maximum RPM.
• Allow engine to run a few moments before engaging blades.
BREAKING IN YOUR MOWER
CAUTION!
SHUT OFF MOWER ENGINE AND REMOVE SPARK PLUG WIRE FROM
SPARK PLUG BEFORE MAKING ANY ADJUSTMENTS TO THE MOWER.

• There is approximately 1 _” to 4 _” of height adjustment.
• Rotate height adjust crank handle(s) in a clockwise direction to lift the mower
deck. A counter-clockwise direction is used to lower the mower deck.
• Make sure the height adjustment is the same at both crank handles (Dual
Height Adjustment only). For best results, see “SUGGESTED PRACTICE”
section. Graduated scales are for reference only, not the actual cutter height.
• Bring tow vehicle to a complete stop, shut off engine, and set parking brake.
• Disengage blades.
• Manually shut toggle switch and/or key switch to their “OFF”positions.
• Always remember to remove keys to avoid irresponsible usage.
• Adjust the cutting height.
• Double check vehicle to mower attachment.
• Start mower engine and set throttle to “FAST”for best cutting performance.
• Slowly engage blade clutch lever.
• Carefully mount vehicle and start mowing at a slow travel speed.
• Swisher recommends if the tow vehicle is equipped with a mid-mount mower
to overlap the cut approximately 6”. This may vary depending on mowing
terrain, obstacles, and/or tow vehicle. Always keep SAFETY the first priority.
• If the tow vehicle is not equipped with a mid-mount mower, we still
recommend offsetting the mower so that the tow vehicle does not crush the
grass.
•To change the offsetting position both ball-lock pins should be removed
(Figure One). The hitches will swivel around remaining bolts. Set hitches to
desired positions and return ball-lock pins, making sure they go thru the hitch
tubing and the semi-circled hole patterned plates.
• Remove bolts from the “L” hitch (H1), (SEE FIGURE FOUR).
• Raise or lower hitch section to obtain proper front to back adjustment.
• Re-install bolts in “L” hitch securely.
MOWER HEIGHT ADJUSTMENT
•Make adjustments while TrailMower is not running.
FRONT TO BACK ADJUSTMENT
For best cutting results, the mowing deck should be raised to _” higher in the
rear.
•Make adjustments while TrailMower is not running.
TOW HITCH OFFSET
This TrailMower has been designed to operate offset from the center of the tow
vehicle or consecutively with another TrailMower, providing additional cutting width.
When offsetting the mower do so to the side opposite the discharge of the tow
vehicle.
STARTING TO MOW
STOPPING THE MOWING SESSION

SUGGESTED MOWING PRACTICES
•Operate mower engine at full throttle to assure the best cutting performance and
maximum material discharge.
• Allow wet grass to dry. Wet grass will clump and collect under the mowing deck.
• Mowing should be started with tow vehicle in low gear and increased only as safe
mowing conditions permit. Mowing speed should not exceed 5 MPH.
• The average lawn should be cut to approximately 2.5”during the cool season and to
over 3” during the hot months.
• For a healthier lawn and better aesthetics, your lawn should be mowed often and
after moderate growth.
• When cutting high or dense grass areas go slowly. Some areas may need to be
mowed twice. The second cut should be at 90 degrees to the first, if possible.
•Mowing thick or high grass: Raise rear of deck to _” to _” above front of deck.
See “FRONT TO BACK ADJUSTMENT”. When mowing thick or high grass, it is
recommended to cut area twice. The first at a higher setting and the second at the
desired lawn height.
•Creating a manicured lawn: Never cut more than 1/3 of the grass height in one
cutting.
GENERAL TROUBLE SHOOTING
The mower is not cutting level.
• Level deck, making sure the side crank-handles are equal.
• Check air pressure of all tires; make sure they are equal. See tires for
maximum inflation.
• Make certain blades are installed identical, without the engine running.
The engine will not start.
• Disengage blades, turn toggle switch to “OFF”position, check battery and all
other electrical connections, and inspect spark plug and wire (FIGURE
THREE).
•Contact engine manufacturer or qualified mechanic.
Engine runs poorly.
• See engine manual.
• Check the throttle adjuster.
• Replace fuel, clean fuel filter and fuel line.
• Check spark plug and gap.
Mower bounces excessively while towing.
• Lower tire pressure.
• Tow at a slower speed.
IF PROBLEMS PERSIST HAVE A QUALIFIED MECHANIC SERVICE THE
MOWER. NEVER ATTEMPT TO MAKE AN ADJUSTMENT THAT YOU
ARE NOT SURE IS CORRECT. DOING SO CAN CAUSE OTHER
PROBLEMS.

MOWER MAINTENANCE
GENERAL RECOMMENDATIONS
The warranty on this TrailMower does not cover items that have been subjected to
operator abuse or negligence. To receive full value from the warranty, operator must
maintain unit as instructed in this manual.
Some adjustments will need to be made periodically to maintain your unit properly.
All adjustments in this manual should be checked at least once each season.
BEFORE EACH USE
•Check engine oil level on a level surface. (Check twice to insure an accurate
reading.)
• Check condition of air filter; clean and replace as necessary.
• Check blade operation; keep blades in good condition.
• Check for loose fasteners and tighten them as needed.
AFTER EACH USE
• Keep blades sharp.
• Remove fresh grass clippings with garden hose.
• Hardened grass clippings on underside should be scraped out with a putty
knife.
• Keep fluids at proper levels.
• Cover unit to prevent rain or other debris build-up. Definitely cover the
engine.
BEFORE AND/OR AFTER EACH SEASON
•Replace the spark plug.
• Clean or replace the air filter.
• A new spark plug and clean air filter assure proper air-fuel mixture and help
your engine run better and last longer.
• Check blades and belts for wear. Replace as necessary.
• Change the oil.
• See engine manufacturer’s recommendations for servicing.
STORAGE RECOMMENDATIONS
CAUTION! Do not store engine indoors or other poorly ventilated area. Keep
engine away from gas appliances and water heaters where fumes could contact
open flame, pilot lights, or sparks.
If engine is to be stored for 30 or more days, prepare unit as follows:
·Drain fuel outside into an approved container.
·Start engine properly and run until unit is out of fuel.
·Let engine cool.
·Remove remaining gasoline from carburetor and fuel tank to prevent gum
deposits from forming within the engine. Gum deposits can cause
malfunction in the engine.
·Store mower with blades disengaged to prevent belts from being permanently
stretched.

BLADE CARE AND SERVICE
For best results cutter blades must be kept sharp. The blades can be sharpened with a
few strokes of a file or grinding wheel. Do not attempt to sharpen blades while they are
on the cutter. Disconnect spark plug wire before servicing unit.
Important: Replace blades that have been damaged or deeply nicked.
Important: Check blade and spindle hardware on a regular basis to make sure nuts
are tight.
Only a qualified mechanic should make any
adjustments, disassembly or other kind of repairs.
REPAIR PARTS
Your 44” TrailMower has been produced with components designed specific to this
machine. Although standard V-belts, springs, bearings, blades, pulleys, hardware, etc.
look similar to parts used on other machinery, they may in some cases be made of a
different construction and/or materials.
NOTES:______________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________

FRONT
LEFT RIGHT
REAR
BALL LOCK PINS
Left offset shown
FIGURE TWO
FIGURE ONE
Slide plastic tube snug against
toggle switch.
(FIGURE FIVE FOR DETAILS)

WIRING HARNESSES
B&S ENGINE WH44CHB12V
HONDA ENGINE WH1144H
REMOTE OPTION WH44RCH
PULL START W/ B&S ENGINE 4598
BLADE ENGAGE CABLE 9074
12 VOLT MODELS
BATTERY (12N12A) RECOMMENDED SOLD SEPARATELY
SOLENOID 9043
BATTERY CABLE - POSITIVE BCSR
BATTERY CABLE - NEGATIVE BCS
EXTRAS
VELCRO STRAPS 7033
SWISHER DECAL OD99116
44" DECAL OD99119
T44 RECOIL START T44 12 VOLT START
FIGURE THREE
PARTS NOT SHOWN

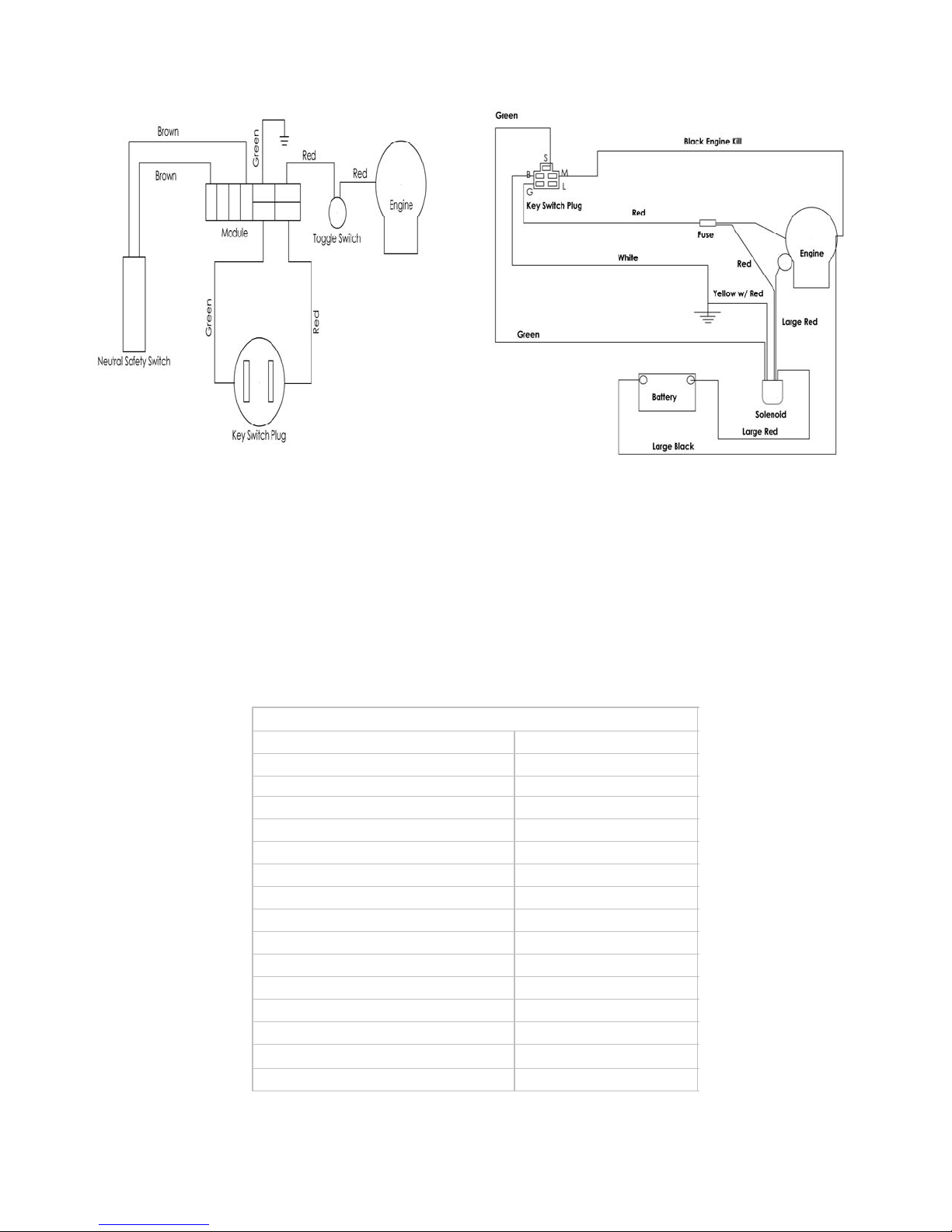

WIRING CONFIGURATIONS

FIGURE FOUR
SINGLE POINT HEIGHT ADJUST
SEE DETAILS
T-HANDLE OPTION SEE DETAIL
1
1
42
10
9
8
7
6
5
16
15
14
13
12
11
22
21
20
19
18
17
39
38
26
25
24
23
32
31
30
29
28
27
36
35
34
33
* = USE PAINT CODE:
C=RED,G=GREEN;S=SLIVER
EX: 4524RC; 4525G
37

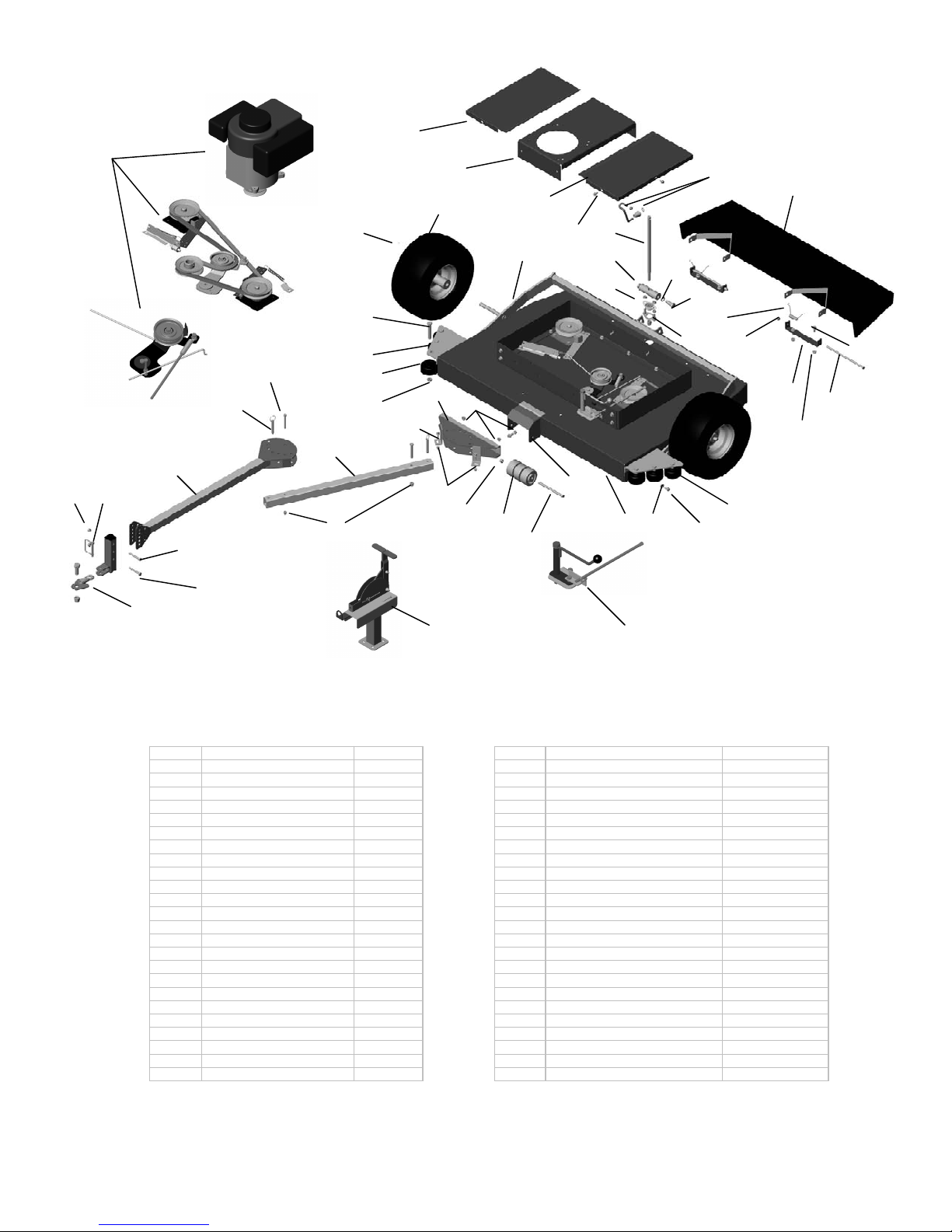

ITEM # DESCRIPTION PART #
1BELT COVER 4524*
2MOTOR BASE 4517*
31/4 BOLT NB114
4HEIGHT ADJUSTER H7N
KNOB H7K
5/16 PAL NUT NB276
5/16 PUSH NUT NB117
ARM ES214
4A HEIGHT ADJUST ROD 4006
5PIVOT BLOCK 4007TK
5A FLANGE BEARING 4005
61/2 BUSHING NB177
71/2 BOLT NB617
7A BEARING CAP 4036TK
8DISCHARGE CHUTE 4585TK
9TORSION SPRING 9100
10 5/16 NUT NB181
11 CHUTE MOUNT 6030TK
12 5/16 BOLT NB136
13 5/16 BOLT NB596
14 COTTER PIN NB126
15 TIRE/WHEEL F44157LV
16 AXLE ASSEMBLY 4040TK
17 1/2 BOLT NB588
ITEM # DESCRIPTION PART #
18 RIGHT ROLLER BRACKET 4016TK
19 ANTI-SCALP ROLLER 1/2" AS003
20 1/2 NUT NB121
21 5/16 BOLT NB596
22 HITCH 4525TK
23 5/16 NUT NB170
23A 5/16 BOLT NB596
24 3/8 NUT NB182
25 ANTI-SCALP ROLLER 3/8" AS001
26 3/8 BOLT NB575
27 HITCH TUBE 4583*
28 3/8 BOLT NB221
29 3/8 LOCK PIN NB520
30 FAN HITCH 4582*
31 3/8 NUT NB182
32 5/16 NUT NB181
33 SAFETY HITCH PIN H11
34 5/16 BOLT NB138
35 L HITCH H1TK
36 SWIVEL HITCH H10TK
BOLT/NUT NB145Z/NB561
37 ROLLER BRACKET 4018TK
38 DECK WELDMENT 4587*
39 LEFT ROLLER BRACKET 4015TK
23
23
4A3
5A
7A
23A
23

FIGURE FIVE
ENGINE SET-UP
40
42
43
44
41
48
47
4645
51
50
49
FIGURE SIX
55
54
52
53
58
57
56
61
60
55
62
63
64
59

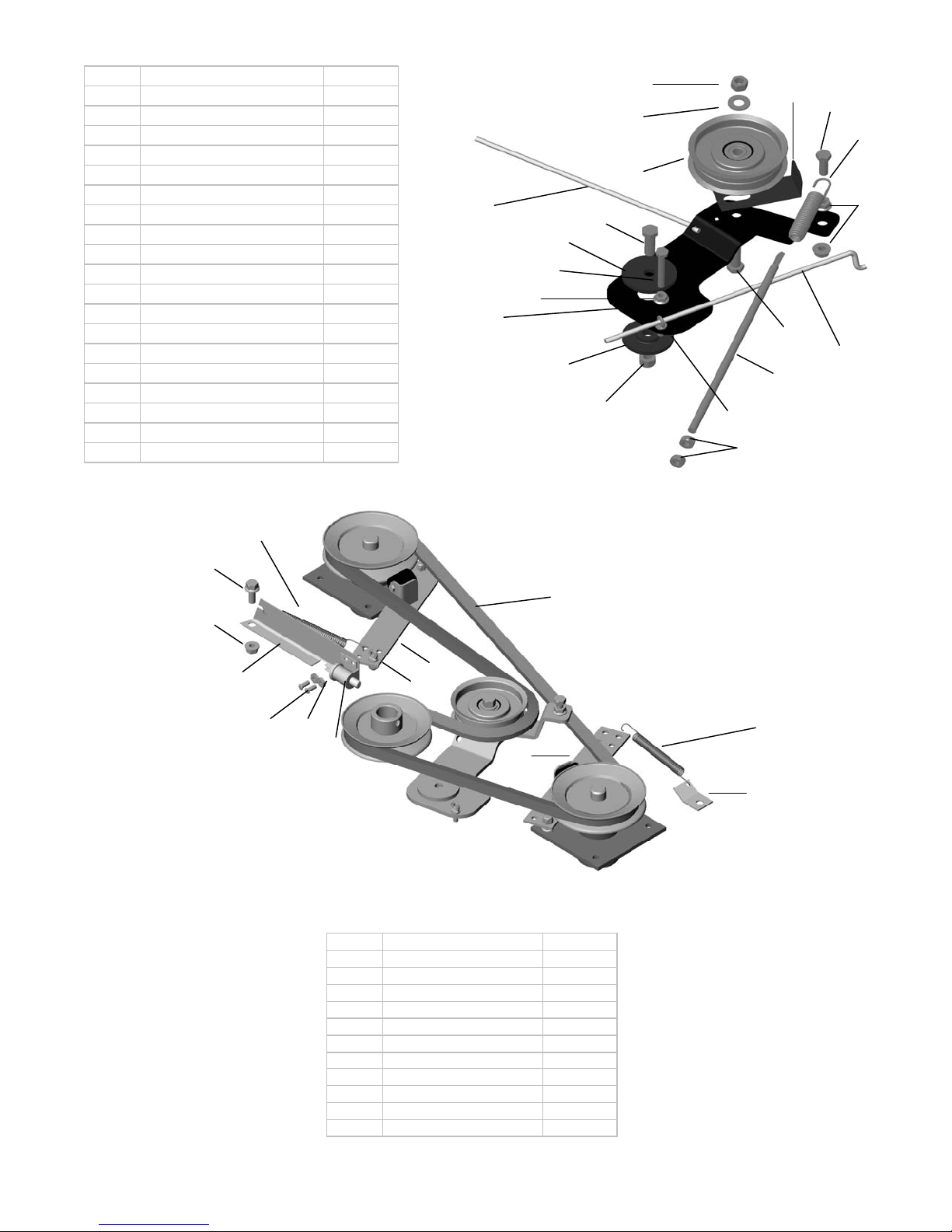

BLADE SET-UP
ITEM # DESCRIPTION PART #
40 ENGINE NOT AVAILABLE
41 5/16 BOLT NB253
42 5/16 NUT NB170
43 TOGGLE BRACKET 4483TK
44 SAFETY TETHER 6736
45 TOGGLE SWITCH 685SP
46 UPPER ENG. SPACER BB105S
47 1/4 X 1 KEY STOCK 9031
48 ENG. PULLEY BB105
49 LOWER ENG. SPACER BB105SL
50 BELLEVILLE WASHER 699
51 3/8 BOLT NB238N
OIL DRAIN VALVE & CAP AS122/AS123
MODULE & SCREW MOD1/NB137
ITEM # DESCRIPTION PART #
52 3/4 NUT NB175
53 UPPER BELLEVILLE AS155
54 BLADE PULLEY B4104
55 THIN WASHER NB179
56 BLADE DRIVER 9018
BEARING B98
4.25" SHAFT 9076
BEARING HOUSING B99TK
57 1/4 BOLT NB250
58 1/4 NUT NB180
59 22" BLADE 9005
60 BLADE MOUNT PLATE 9008
61 3/8 NUT NB216
62 3/8 BOLT NB238N
63 LOWER BELLEVILLE NB607
64 3/8 BOLT NB238

FIGURE SEVEN
65
70
68
66
67
74
73
72 69 76
75
71
77
78
79
80
83
84
82
81
86
85

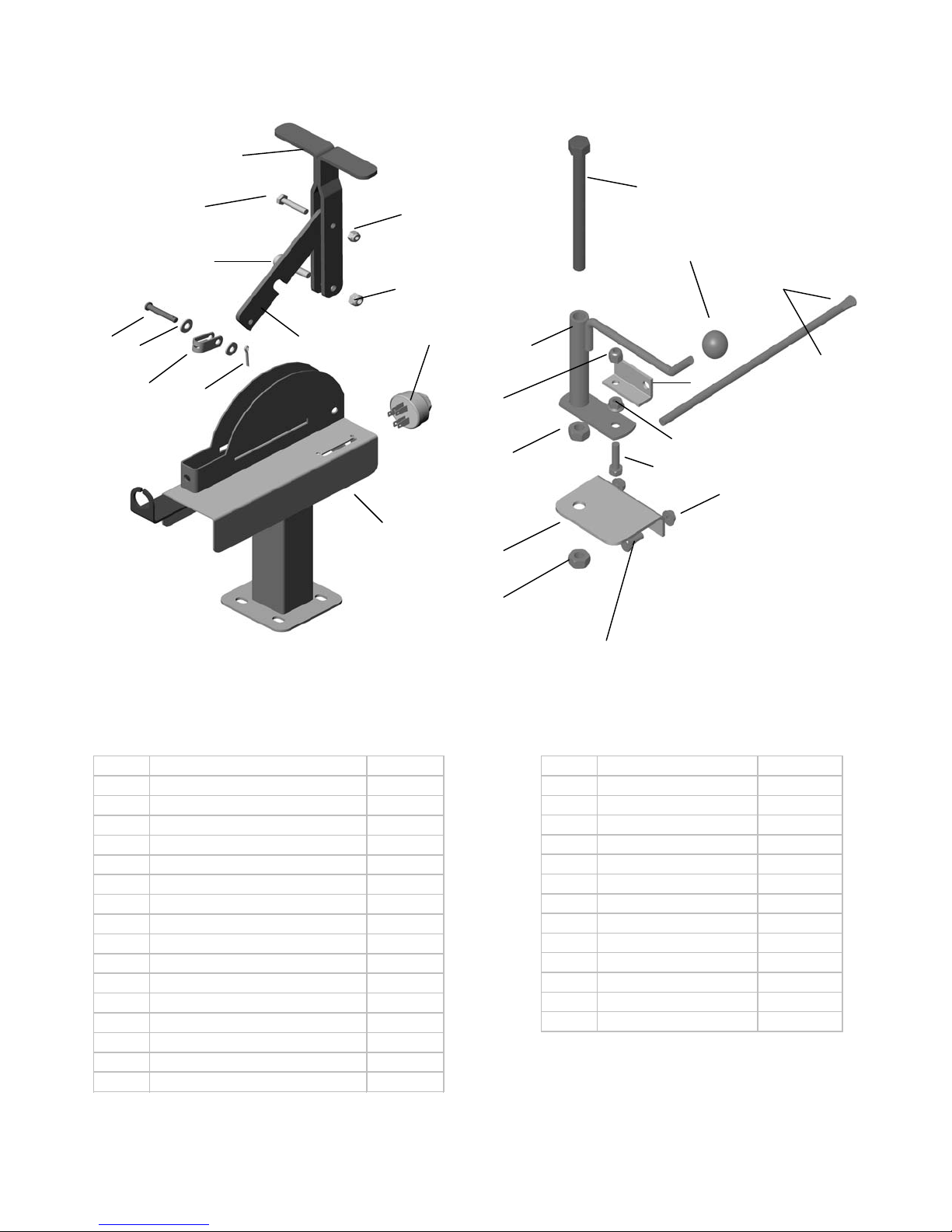

FIGURE EIGHT
T-HANDLE OPTION STANDARD ENGAGE
* = USE PAINT CODE:
C=RED,G=GREEN;S=SLIVER
EX: 4547C; 4578S
84
87
65 T-HANDLE LEVER 4462TK
66 COTTER PIN NB597
67 1/4 NUT NB180
68 WASHER NB274
69 ENGAGE LINK 4461TK
70 CABLE CLEVIS 9023MOD
71 5/16 NUT NB181
72 CLEVIS PIN NB518
73 1/4 BOLT NB560
74 5/16 TORX BOLT NB591
75 CONSOLE WELDMENT 4602TK
76 KEY SWITCH (RECOIL) KSM
KEY SWITCH (12 VOLT) KS12
T-HANDLE ACCESSORY KIT 4498
BLADE ENGAGE DECAL OD10
ON/OFF DECAL OD99
12 VOLT ON/OFF DECAL OD28
ITEM # DESCRIPTION PART #
77 ENGAGE STANDOFF 4547TK
78 5/16 Spade Bolt NB260
79 1/2 BOLT NB155
80 ENGAGE LEVER 4548TK
81 HANDLE KNOB B19BLACK
82 1/4 NUT NB524
83 1/4 BOLT NB250
84 1/2 NUT NB121
85 5/16 BOLT NB501
86 ENGAGE PIVOT 4578TK
87 5/16 NUT NB181
88 5/16 NUT NB170
ON/OFF DECAL OD10
SEE FIG.
NINE
88

FIGURE TEN
90 94
93
92
91
97
98
95
102
101
100
89
BELT/BRAKE CONFIGURATION
FIGURE NINE
TENSION ASSEMBLY
103
104
105
106
96
107
108
109
110
110
108
113
112
96
ITEM # DESCRIPTION PART #
107 Belt 74" 4220
108 SPRING T2SM
109 TENSION BRACKET 4593TK
110 BRAKE ASSY 4588TK
111 EYE BOLT V139EB
112 NEUTRAL SWITCH 3695
113 SWITCH BRACKET 4594TK
114 5/16 BOLT NB596
115 8-32 BOLT NB197
116 8-32 NUT NB201
117 5/16 NUT NB170
ITEM # DESCRIPTION PART #
89 3/8 NUT NB280
90 WASHER NB272
91 IDLER PULLEY B527
92 IDLER FINGER 4592
93 5/16 BOLT NB501
94 IDLER SPRING 4422
95 5/16 NUT NB170
96 BRAKE LINK 4532
97 3/8 BOLT NB107
98 5/16 SPADE BOLT NB260
99 EYE BOLT V139EB
99A 5/16-18 BOLT NB210Z
100 3/8 NUT NB182
101 IDLER BUSHING 6037
102 IDLER BRACKET 4530
103 1/4 NUT NB524
104 1/4 BOLT NB218
105 IDLER SPACER 6040
106 3/8 BOLT NB618
111
99
114
115 116
99A
117

ITEM # DESCRIPTION PART #
118 1/4-20 NYLOCK NB180
119 10-24 KEP NUT NB172
120 BRAKE PAD 9039
121 EYE BOLT V139EB
122 10-24 BOLT NB703
123 BRAKE ARM 4588TK
124 5/16 BOLT NB596
125 5/16 NUT NB170
119118
125
124
123
122
121
118
120

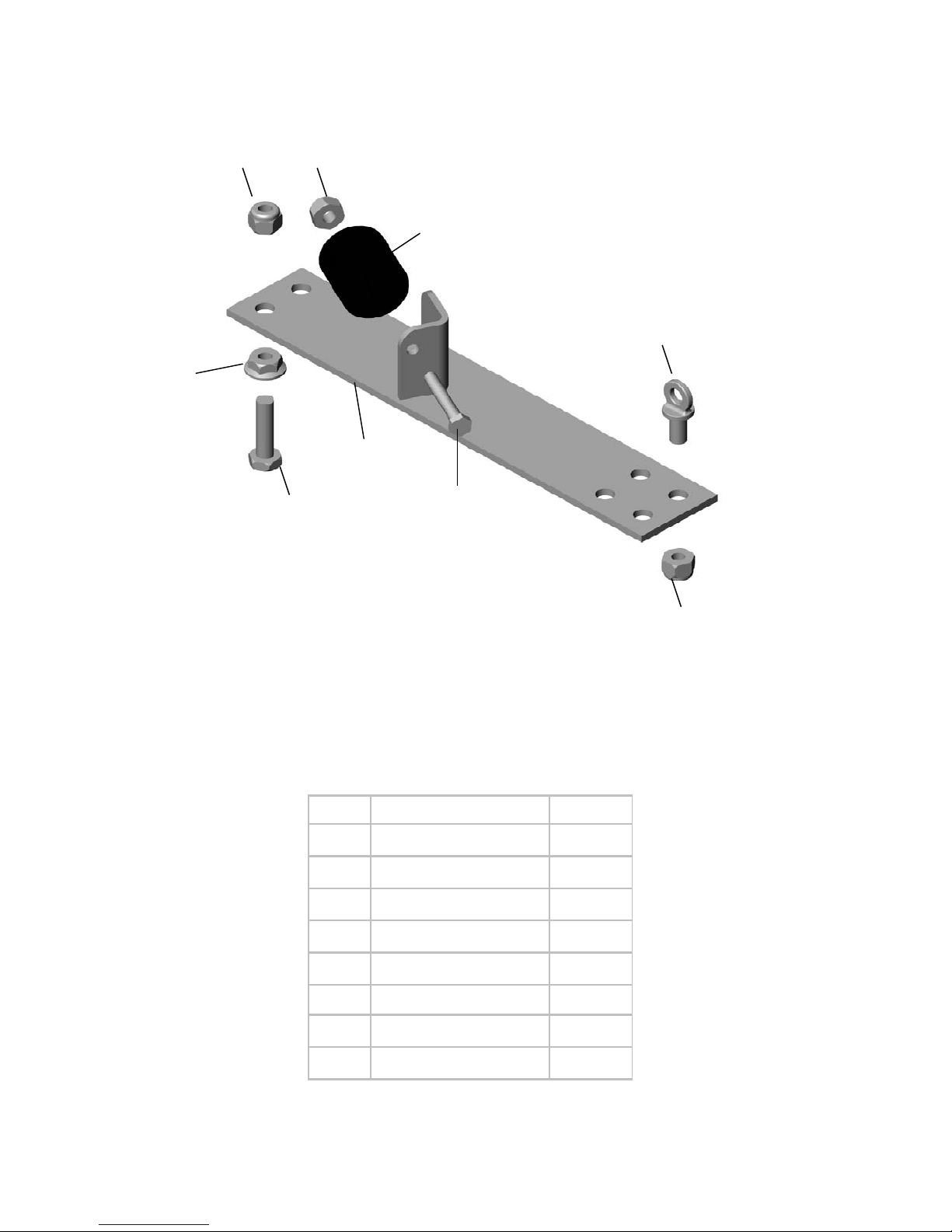

FIGURE ELEVEN
BRAKE CONFIGURATION
Note: Eye Bolt for left brake only.

OWNER’S
MANUAL
HOW TO ORDER
REPAIR PARTS:
44” FINISH CUT
TRAILMOWER
Each TrailMower has its own serial number. Each engine has
its own serial number. The serial number for the TrailMower
will be found on the right hand side of the drive belt housing.
The serial number for the engine will be found on the top of the
blower fan housing.
All TrailMower parts listed herein may be ordered directly
from Swisher Mower & Machine Co. Inc., your nearest
Swisher dealer, or from our website. www.swisherinc.com
All engine parts may be ordered from the nearest dealer of the
engine supplied with your mower.
WHEN ORDERING PARTS, PLEASE HAVE THE
FOLLOWING INFORMATION AVAILABLE:
* PRODUCT –T-44 FINISH CUT TRAILMOWER
* SERIAL NUMBER - _______________
* MODEL NUMBER - _______________
* ENGINE MODEL NUMBER - _______________
TYPE - _______________
* PART NUMBER
* PART DESCRIPTION
www.swisherinc.com
TELEPHONE - 1-800-222-8183
FAX - 1-660-747-8650
SWISHER MOWER & MACHINE CO. INC.
1602 CORPORATE DRIVE
WARRENSBURG, MO 64093
SWISHER MOWER & MACHINE CO. INC.
MODEL NO.
T11044
RK10544
T1144HSP
T8544SPB
T10544BSPB
T12544CHB
