SY Electronics Xcalibur 11U User manual

SY Electronics Ltd., 7 Worrall Street, Manchester, M5 4TH, United Kingdom
Tel: [phone] –Web: sy.uk
Xcalibur 11U
User Manual
Excalibur 11U Transmitter (HX150U-11-18G-T)
Excalibur 11U Receiver (HX150U-11-18G-R)
4K HDMI 2.0 WITH USB2.0 EXTENDER SET
150M @1080P OR 120M @4K
HDMI 2.0 (4K60 4:4:4), USB2.0, Auto Down-Scaler,
Auto HDCP control, bidirectional IR control

sy.uk 2V1.0
Thank you for purchasing this PRODUCT
This PRODUCT is designed with the professional AV installers in mind. The many extensive
features assist in system integration, validation, and maintenance.
Installation precautions
This product has special circuitry to protect it against moderate surges and static discharges.
However, to ensure reliable operation and long service life, it is important to take the
necessary precautions against any spikes, surges and static discharges.
Place the units away from heat sources and allow adequate ventilation.
Shielded cable and in particular cat6, cat6a or cat7 is highly recommended. As much as
possible, cables should be in one piece and routed away from any noisy sources, avoiding long
runs in close proximity to AC mains cables.
Do not connect the interconnecting Cat cable to any other device unless explicitly specified, as
permanent damage may occur.

V1.0 3sy.uk
This 18Gbps extender can extend HDMI 2.0 signals, USB 2.0 control, and bi-directional IR to a
maximum distance of 150m for 1080p or 120m for 4K60 4:4:4, using a single Cat6 cable.
Only one PSU is required at either the transmitter or the receiver as Power over Cable (PoC) is
supported in both directions via the Cat6 cable.
All USB devices up to USB 2.0 such as keyboard, mouse, audio, video, etc. are supported up to a
maximum data rate of 170Mbps.
Features
HDMI 2.0b –Supports up to 4K60 4:4:4 (18Gbps)
USB 2.0 –Supports up to USB 2.0, to 170 Mbps max.
Supports Bulk, Control, Interrupt, and Isochronous Transfers
150m for 1080p or 120m for 4K, using single Cat5e, 6, 6a, 7
HDCP 1.4 / 2.2 compliant
Auto HDCP control
Auto 4K 1080p Down-Scaler
EDID management
Bi-directional IR
Supports CEC pass-through
PoC –Requires only a single PSU at the Transmitter or Receiver

sy.uk 4V1.0
Connectors and Controls

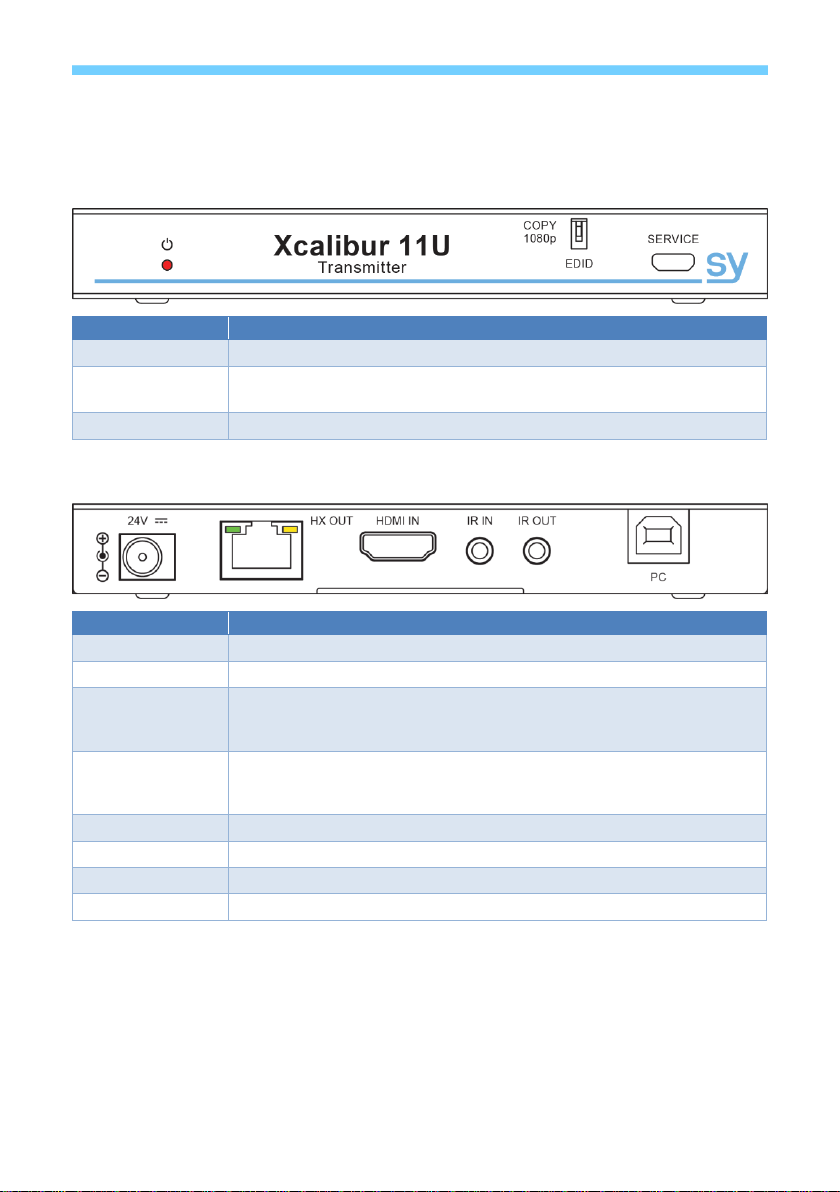

Transmitter
Front
Name
Description
Power LED
Lit –Transmitter powered
EDID Switch
COPY - Use display device EDID
1080p - Use default 1080p EDID
SERVICE
Micro USB for configuration or update
Rear
Name
Description
24V
24V DC Power input (2.1mm barrel jack)
HX OUT
RJ45 Cat6 cable output to the Xcalibur 11U Receiver
HX Green LED
Solid: Good Link
Flashing: Poor connection
Off:No link connection
HX Yellow LED
Solid: HDMI with HDCP present
Flashing: HDMI with no HDCP
Off:No HDMI signal present
HDMI IN
HDMI input from the source device
IR IN
Input for IR signal to the Receiver unit
IR OUT
IR signal output from the Receiver unit
PC
USB-B connection to the PC (host)

V1.0 5sy.uk
Receiver
Front
Name
Description
Power LED
Lit –Receiver powered
SERVICE
Micro USB for configuration or update
Rear
Name
Description
24V
24V DC Power input (2.1mm barrel jack)
HX in
RJ45 Cat6 cable input from the Xcalibur 11U Transmitter
HX Green LED
Solid: Good Link
Flashing: Poor connection
Off: No link connection
HX Yellow LED
Solid: HDMI with HDCP present
Flashing: HDMI with no HDCP
Off: No HDMI signal present
HDMI OUT
HDMI output to the display device
IR IN
Input for IR control to the Transmitter unit
IR OUT
IR control signal output from the Transmitter unit
USB 2.0 (2x)
USB-A connectors for Keyboard, mouse, camera, or other peripheral devices
Using this Product
1. Connect the video source to the Transmitter HDMI input.
2. Connect a USB cable from the Type B connector to the PC.
3. Connect the display to the Receiver HDMI Output.
4. Connect the required USB devices to the USB-A connectors on the Receiver unit.
5. Connect the Cat6 cable to the HX ports of the Xcalibur extenders.
6. Connect IR eye / emitter as required.
7. Connect the 24V DC PSU to the Transmitter or Receiver unit.

sy.uk 6V1.0
Auto Down-Scaler
Xcalibur-11U is equipped with intelligent Auto-scaler. With a 4K screen attached, it simply passes
all 4K HDMI signals; however, when connected to a 1080p display, all 4K signals are
automatically down-scaled to 1080p.
Auto HDCP
When the display unit can only handle HDCP 1.4, the Xcalibur-11U automatically will convert
HDCP 2.2 video signals to HDCP 1.4 format.
EDID Switch
The EDID switch on the transmitter has two modes:
Copy: Uses the EDID of the display attached to the receiver.
1080p: Sets 1080p60 with 2ch (stereo) audio as the default EDID.
IR Pass Through
Connect the IR Eye (IR detector) to the IR IN. Connect the IR Emitter (blaster) to the IR OUT of
the remote device. The IR signals are then passed through to the remote device and emitted.
The emitter connector can be a 3.5mm mono style, in which case the entire sleeve is the +ve
signal.
IR signals with carrier frequency in the range of 25-60 KHz can pass through.
Figure 1 - Xcalibur IR Eye
Figure 2 -Xcalibur IR Emitter
Figure 3 - IR Eye Connector Wiring
Figure 4 - IR Blaster Connector Wiring

V1.0 7sy.uk
Connection Example

sy.uk 8V1.0
Specifications
General
HDMI Resolutions
All HDMI and PC resolutions up to 4K2K 60Hz 4:4:4
HDMI Standard
Up to HDMI 2.0b
HDCP Compliance
HDCP 1.4 & HDCP 2.2
Colour Depth
8-bit, 10-bit ,12-bit for 1080p or 4K24/30
8-bit for 4K60
HDR
HDR, HDR10, HDR10+, Dolby Vision, HLG
USB Compliance
1.0, 1.1 and 2.0
USB Capability
Bulk Transfers, Control Transfers, Interrupt Transfers, and Isochronous
Transfers
USB Data Rate
170 Mbps minimum
HDMI Audio
L-PCM 2.0, 2.1, 5.1, 6.1, 7.1
Dolby Digital, Dolby TrueHD, Dolby Digital+ (DD+), DTS-ES, DTS HD Master,
DTS-HRA, DTS-X
Transmission Distance
150m @ 1080p, 120m @ 4K2K
IR IN, IR OUT
25-60 KHz carrier frequency
Power Supply
24V 1.0A
Power Consumption
13W Max (Transmitter 2.75W Receiver: 7.25)
Environmental
Operating Temperature
0 ~ 40°C (32 ~ 104°F)
Operating Humidity
20 ~ 90% RH (non-condensing)
Physical
Dimensions (WxDxH)
140 x 65 x 18 mm
Weight
Transmitter: 245g
Receiver: 250g
In the Box
1x SY-150U-T-18G Xcalibur 11U Transmitter
1x SY-150U-R-18G Xcalibur 11U Receiver
1x IR emitter cable
1x wideband IR receiver cable
4x mounting plates
8x screws for the mounting plates
1x 24V 1A locking PSU
1x User Manual

V1.0 9sy.uk
Safety Instructions
To ensure reliable operation of this product as well as protecting the safety of any person
using or handling these devices while powered, please observe the following instructions:
1. ONLY USE the power supply provided. If an alternate supply is required, check the
voltage, polarity and that it has sufficient power to supply the device it is connected to.
2. DO NOT operate this product outside the specified temperature and humidity range
given in the above specifications.
3. Ensure there is adequate ventilation as this product generates heat while operating.
4. Repair of this product should only be carried out by qualified professionals as this
product contains sensitive devices that may be damaged by any mistreatment.
5. Only use this product indoors and in a dry environment. DO NOT allow any liquids or
harmful chemicals to come into contact with this product.
After Sales Service
1. Should you experience any problems while using this product, firstly refer to the
Troubleshooting section in this manual and/or your local dealer before contacting SY
Technical Support.
2. When calling SY Technical Support, please provide the following information:
Full Product Name and Model Number
Product Serial Number
Details of the fault and any conditions under which the fault occurs.
3. This product has a two year standard warranty beginning from the date of purchase as
stated on the sales invoice. For full details please refer to our Terms and Conditions.
4. The SY Product warranty is automatically void under any of the following conditions:
The product is already outside of its warranty period
Damage to the product due to incorrect usage or storage
Damage caused by unauthorised repairs
Damage caused by mistreatment of the product
5. Please direct any questions or problems you may have to your local dealer before
contacting SY Electronics.
