Sylvania Roadsight Mirror User manual
Forward and Rear Dash Camera
Instruction Manual
Contents
1. Package Contents 5
2. Device Specications 6
3. Device Layout 12
4. Installing Micro SD Card 14
5. Mounting SYLVANIA Roadsight Mirror Dash Camera 15
6. Wiring Rear Camera 18
7. Wiring Back Up Camera - Option 1 19
8. Wiring Back Up Camera - Option 2 21
9. Placing Rear Camera 25
10. Toggle Camera Display From LED Display to Traditional Mirror 26
11. Main Camera Functions 27
12. Dash Camera Viewing Angle 28
13. Playback Menu 29
14. Video Folders 30
15. Video Player 32
16. Image Folder 33
17. Image Viewer 35
18. Menu Settings 36
19. Updating Firmware 41
20. Camera Information 42
3
Travel the road with assurance.
WARNING: The Dash Cam must not be tted in a position which obscures the
driver’s view of the road ahead. Depending on the country of use, recordings
made with this device may be subject to Data Protection Laws. Ensure these
are complied with. If the dash cam is to be used in a commercial environment
e.g. taxi or truck, then CCTV Regulations may apply. Playback of video which is
visible to the driver while the vehicle is in motion is prohibited in some countries.
Only use the supplied power adapter, otherwise damage may occur to the dash
cam. Take vehiclee when cleaning the dash cam lens and only use a suitable
lens cleaner and a soft cloth. Do NOT expose this product to rain, moisture or
water under any circumstances; doing so may result in the risk of electric shock
or re. Do NOT perform servicing other than that contained in the instruction
manual, unless you are qualied to do so. When installing in a vehicle, always
place the device securely against the windscreen and where possible conceal
the power cable under the vehicles interior trim. Make sure that the power cable
doesn’t interfere with the driver’s controls such as the steering wheel, pedals or
gear lever. Do NOT mount the dash cam in front of an airbag deployment area or
in a position to obscure any interior mirrors. Do NOT operate while driving and
only adjust settings or review recordings while not driving.
5
Travel the road with assurance.
A. SYLVANIA Roadsight Mirror Dash Camera
B. SYLVANIA Roadsight Mirror Rear Camera
C. SYLVANIA Roadsight Mirror Quick Start Guide
D. Rubber Mounting Straps (2X)
E. Adhesive Strip
F. Mounting Screws (2X)
G. USB Charging Cable
H. 32GB Micro SD Card
I. Trim Removal Tool
J. SYLVANIA Dash Camera Window Sticker (3X)
A
B
C E ID
J
G
F
1. Package Contents
H
6
Travel the road with assurance.
2. Device Specications
• 170° Ultra Wide Field of View
• Intelligent Software Detects Collision or Motion
• Continuous Loop Recording
• Auto Locks and Saves Collision Video
• Capture and Save Images Easily
• 10” 1080p Full Width IPS Touch Screen
• Image Assisted Reverse Parking
• IP67 Rated Waterproof Rear Camera
• Length: 257.76 mm / 10.15 in
• Width: 19.93 mm / 0.78 in
• Height: 32.37 mm / 1.27 in
• Weight: 318g
Technical Specications
Approximate Size & Weight
7
Travel the road with assurance.
170° Ultra Wide Field of View
Forward and rear camera record at HD 1080p quality with
170° Ultra Wide eld of view. Offering up to 340° eld of
view at 30 frames per second.
8
Travel the road with assurance.
Intelligent Software Detects Collision
or Motion
Whether you are inside or outside of your vehicle, our
intelligent collision software senses if the vehicle has
been bumped or hit and starts recording the incident. The
recorded collision video is saved and locked on the camera.
Intelligent motion detection software detects movement in
the environment around and starts recording. The recorded
motion video is saved and locked on the camera.
9
Travel the road with assurance.
Continuous Loop Recording
Auto Locks and Saves Collision Video
Recordings are automatically saved over one another.
No need to remove and empty micro SD card. Locked
footage is saved and cannot be overwritten.
In the event of a collision the dash camera will
automatically lock and save video. Go to the playback
menu to view saved collision video.
10
Travel the road with assurance.
10” 1080p Full Width IPS Touch Screen
Built with a high quality 10” 1080p touch screen to give
high resolution playback. The IPS screen also prevents
glare and reduces reection during the day.
Capture and Save Images Easily
Press the Take Photo button to quickly capture and save
the image on your dash camera. Saved photos can be
viewed in the playback menu under images.
11
Travel the road with assurance.
Image Assisted Reverse Parking
IP67 Rated Waterproof Rear Camera
Guidance lines when reversing your vehicle gives you a
better sense when objects are in the vehicle’s blind spot.
Helps to prevent accidents when reversing your vehicle.
Don’t worry about rain and snow affecting your rear
mounted camera. The waterproof design of the rear
camera prevents damage from the weather.
12
Travel the road with assurance.
A. 10” 1080p Full Width IPS Touch Screen
B. Conical Dash Camera for Field of View Adjustment
C. Mini USB Power Slot
D. Rear View Camera Aux Power Slot
E. Micro SD Card Slot
F. Power Button
G. System Speaker
H. Cushion Pads to Prevent Scratches to OEM Mirror
I. Rubber Mount Strap Brackets
J. Adjustable Dash Camera Position Slide
A
C D E
B
F
G
H H J
I
3. Device Layout
13
Travel the road with assurance.
K. Right Angle Bracket (Correct mounting position as
shown)
L. Bracket Feet for Mounting
M. Red Power Cable for Auto Switch to Rear Camera
N. 19.3’ Rear Camera Aux Power Cable
O. 11.7’ Camera Aux Power Cable with USB Port
P. Mini USB Power Cable
K
M
N
LO
P
14
Travel the road with assurance.

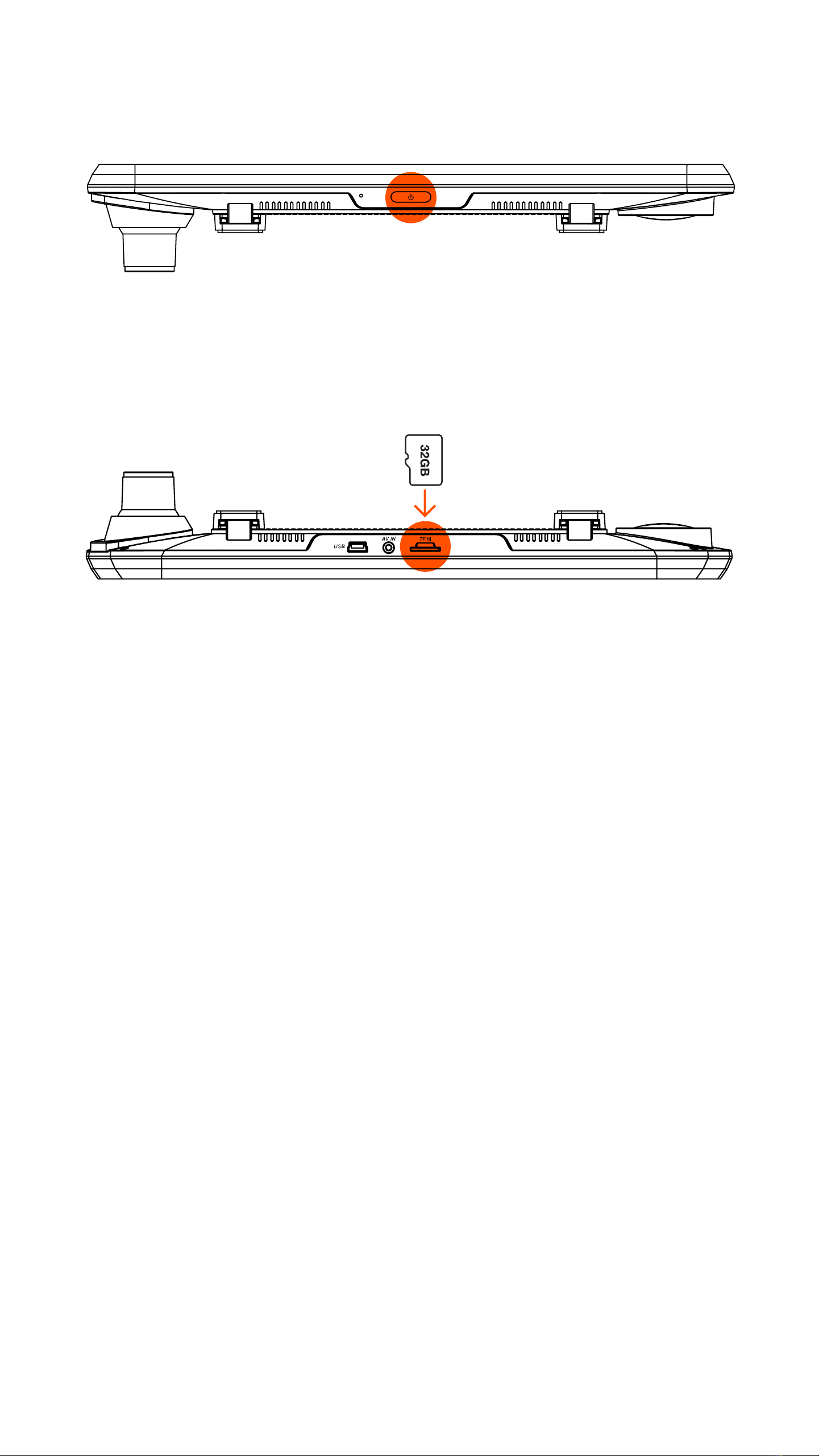

1. Before installing the 32GB micro SD card, conrm the
device is turned off.
WARNING: Do not apply excessive force when inserting a memory card to
avoid damage to the device. If necessary, use a thin pointed device to push
the card further. To remove the memory card, push the card until it clicks and
remove the card from the slot.
2. Insert included micro SD card into slot until it clicks
into place.
3. To remove micro SD card, press down slightly then
remove micro SD card from the slot.
4. Installing Micro SD Card
15
Travel the road with assurance.
The SYLVANIA Roadsight Mirror mounts over your
OEM rear view mirror. Use the Adjustable Dash Camera
Position Slide to extend dash camera fully out. Making
sure the dash camera does not interfere with the OEM
rear view mirror during install.
1. Attach included Rubber Mounting Straps (2x) to the
back of the mirror dash camera.
5. Mounting SYLVANIA Roadsight
Mirror Dash Camera
16
Travel the road with assurance.
2. Softly place the SYLVANIA Roadsight Mirror Dash
Camera onto the front of your OEM rear view mirror and
use the 2 Rubber Mounting Straps to hold it in place.
3. To power the device and charge the battery, only use
the included Mini USB Power Cable. Connect the Mini
USB Power Cable to the top of the mirror dash camera.
4. Use the included trim removal tool to tuck power cable
alongside of your vehicle. Removing A Pilar to tuck
wire inside is optional.
17
Travel the road with assurance.
5. Plug the Camera Aux Power Cable into the 12V power
socket.
6. When the vehicle’s engine starts, the device turns on
automatically.
18
Travel the road with assurance.
6. Wiring Rear Camera
Option 1:
No Splicing
Option 2:
Splice Into Back
Up Light
Back Up
Camera View w/
Finger Swipe
Yes Yes
Automatically
Switches
Display to Back
up View
No Yes
Back Up
Guidance Lines No Yes
Requires
Splicing into
Back Up Light
12V
No Yes
19
Travel the road with assurance.
7. Wiring Back Up Camera - Option 1
2. Using the included trim removal tool, to tuck rear
camera wire to the back of your vehicle. Removing A
Pilar to tuck wire inside is optional.
1. Connect Rear Camera Aux Power Cable to the top of
the SYLVANIA Roadsight Mirror dash camera to power
the rear camera.
20
Travel the road with assurance.
3. Leave red cable disconnected as it is not required.
4. With this option you will need to swipe the display
screen from left to right to toggle to back up view.
Guidance lines will not be available with this setup
option.
