Sylvania SLED5016A-B User manual

INSTRUCTION MANUAL
LED TV
SLED5016A-B
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device might not cause harmful interference, and
(2) this device must accept any interference received,
including interference that might cause undesired operation

Table of Contents
1
Caution

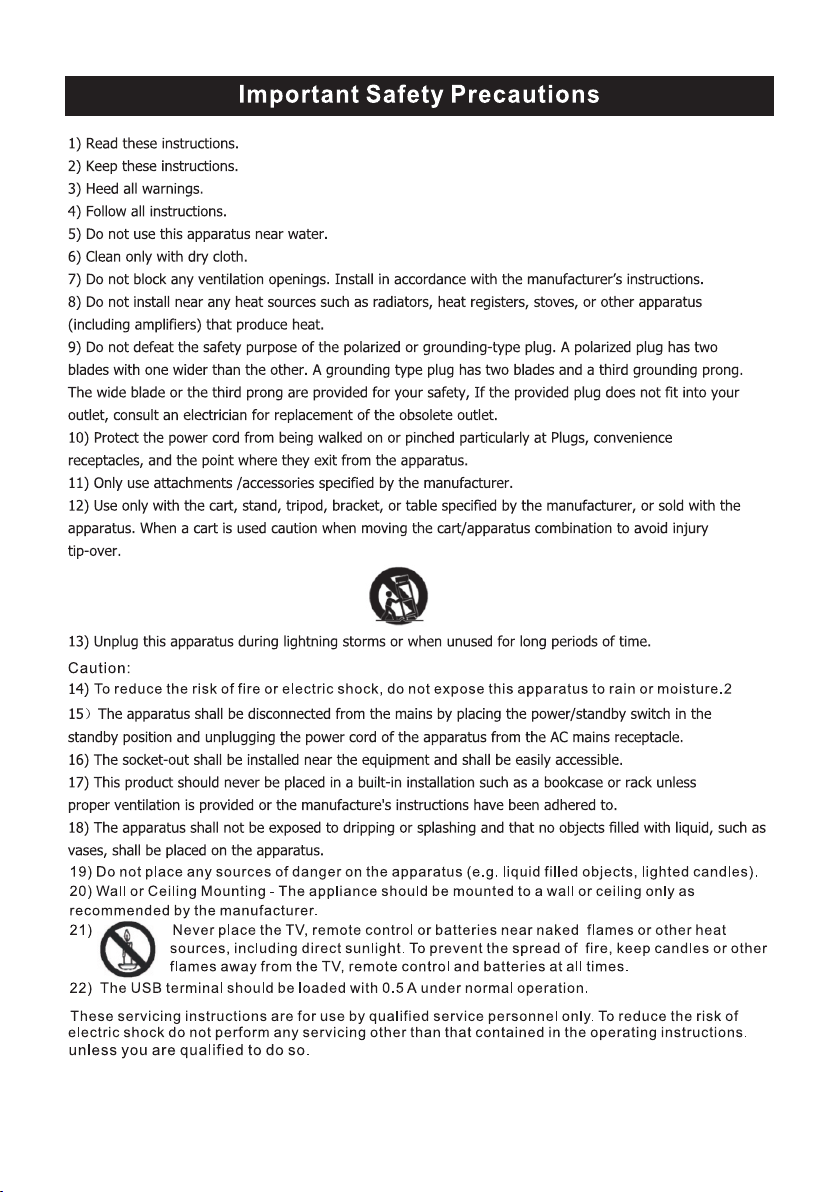

Important Safety Precautions
Top/Side panel diagram
Remote Controller
Battery Installation
Using the Remote Control

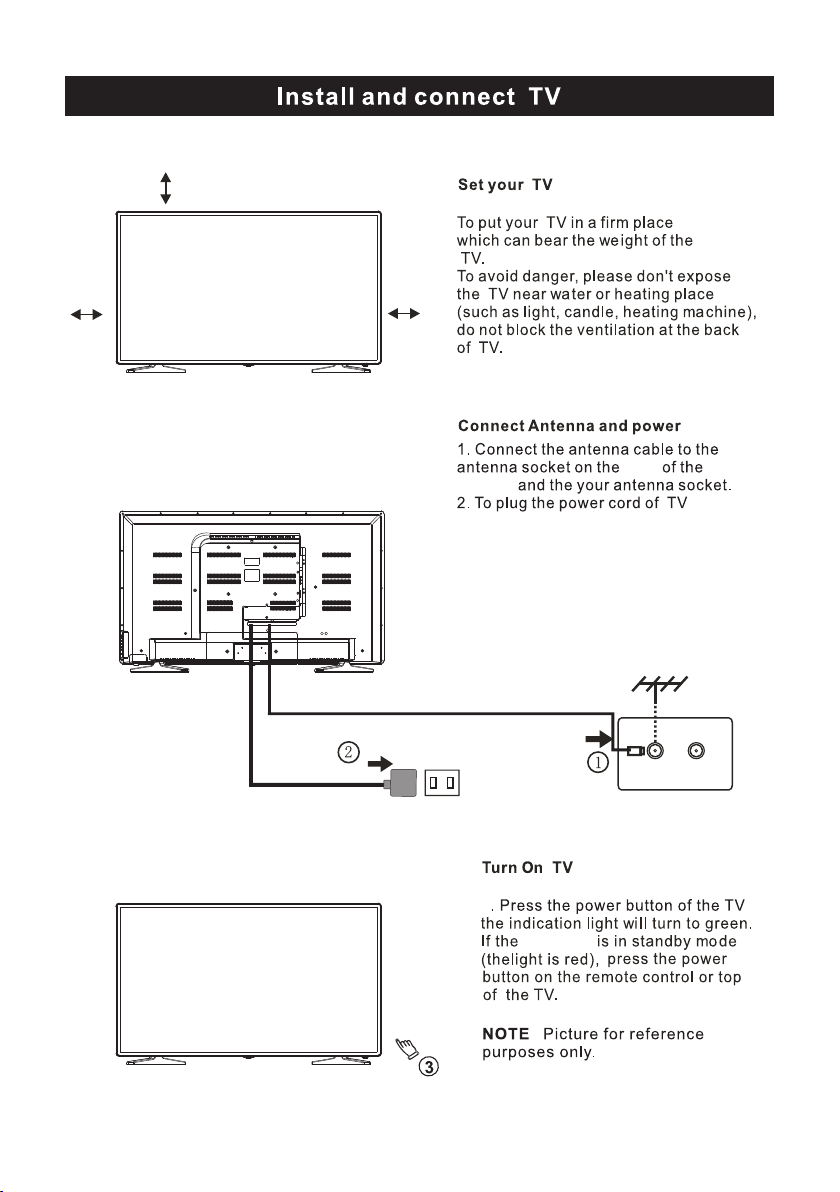

Install TV
Set your TV
Connect Antenna and power
Turn On TV
Help
2
3
4
6-7
8
9
12-13
15-31
34
35
TV Bracket assembly 5
Specifications
Setup Wizard
Wall Mount Installation
Main Menu Operation
Sound Menu
Time Menu
Setup Menu
Close Caption
Lock Menu
US Rating
TV
MPAA
Canada Rating
Hotel Menu
Channel Menu
15-17
17-18
19
20
21-23

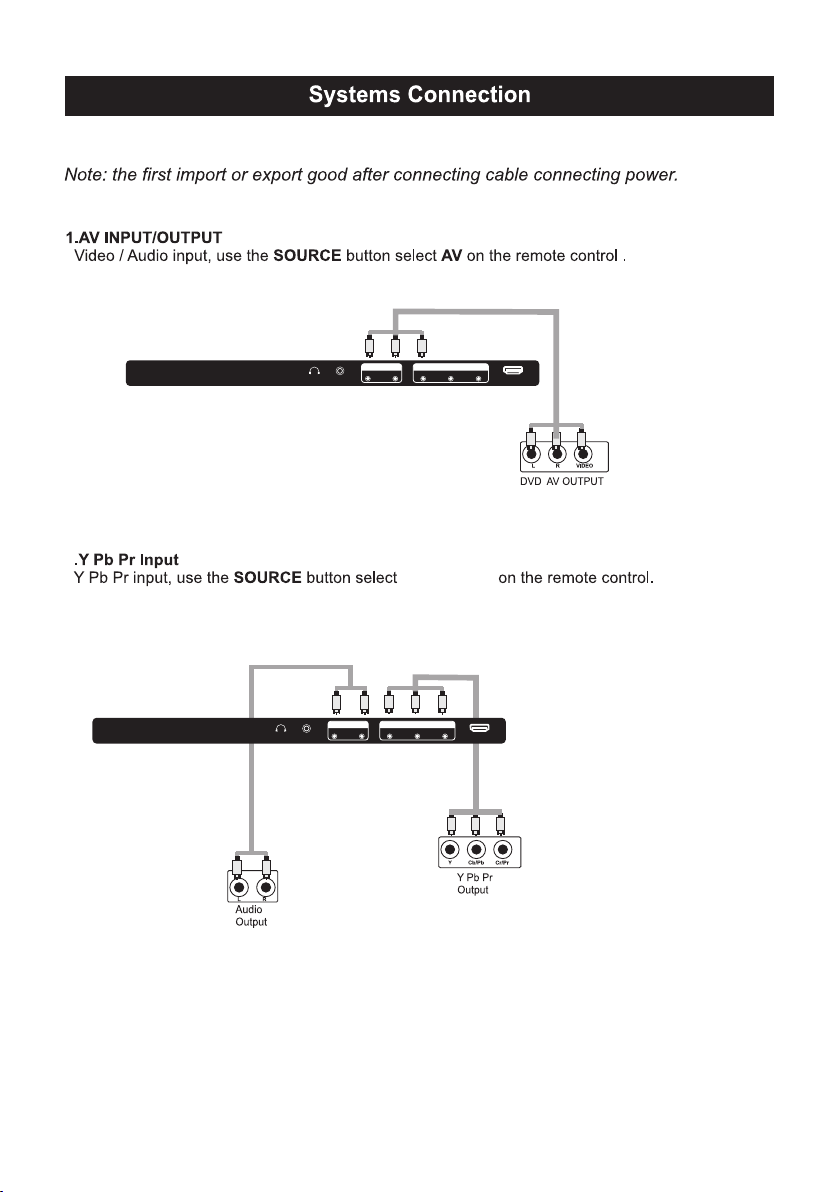

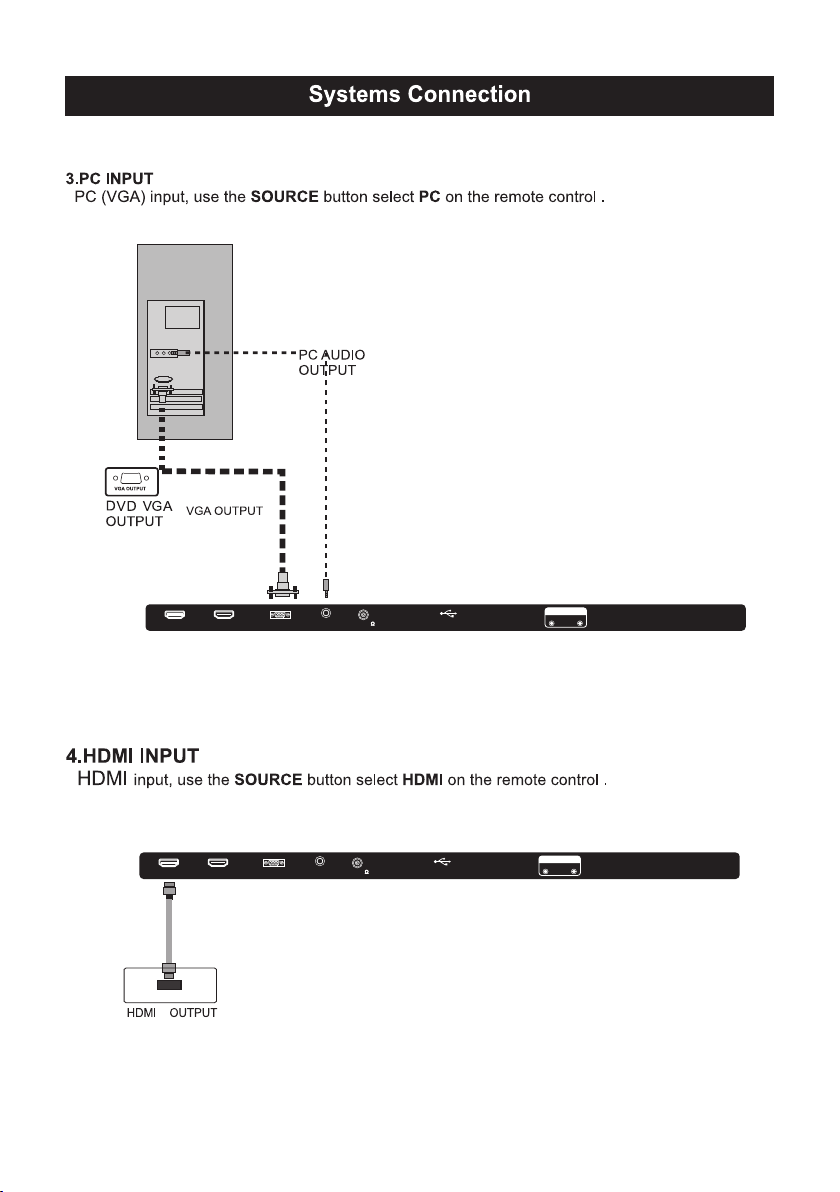

Systems Connection 10
14
Select Input Source
TV
24-25
26
26
27
27
28-29
30-31
PC 32-33
PC Menu

The lightening flash with arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of un-insulated "dangerous voltage"
within the products enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
Corr ect disposal of this Product
W aste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-of-life,
should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste
collection/recycling centre.
In the European Union there are separate collection systems for used electrical
and electronic products. Please help us to conserve the environment we live in!
Caution
2

3

4
8
4
3.95” x 3.95”
100 100

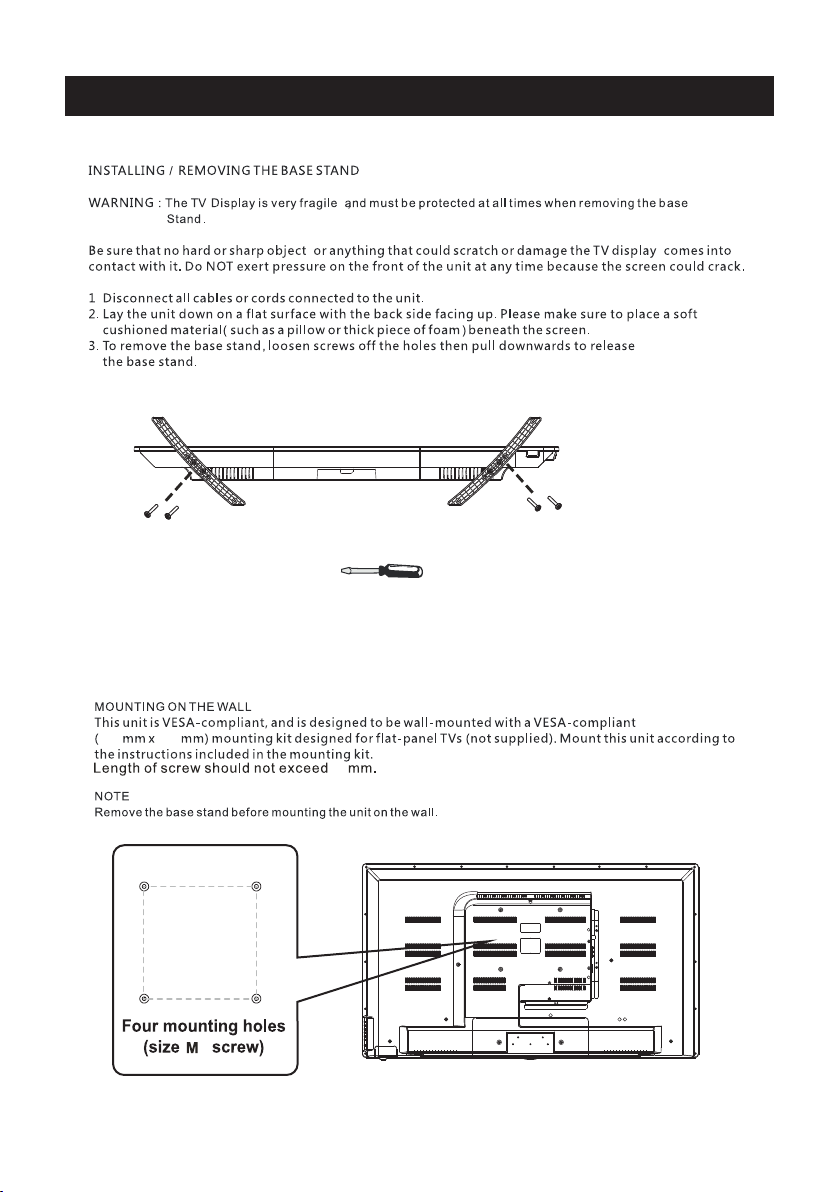

Wall Mount Installation
20cm
20cm

TV Bracket assembly
5
BM4x30(4PCS)
s

Indicator on(Red) Standby mode
Indicator on(Green) Power on mode
(IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby) LED Indicator: Press to turn on and off
VOL
The functions of the buttons on the are as follows:TV
CH+/-:When watching TV: select channels.
MENU:
1.Press Menu.
2.Press SOURCE to enter.
3.Use CH+/- to shift UP/DOWN.
4.Press SOURCE to confirm,then press VOL+/-to adjust.
5.Press SOURCE to confirm

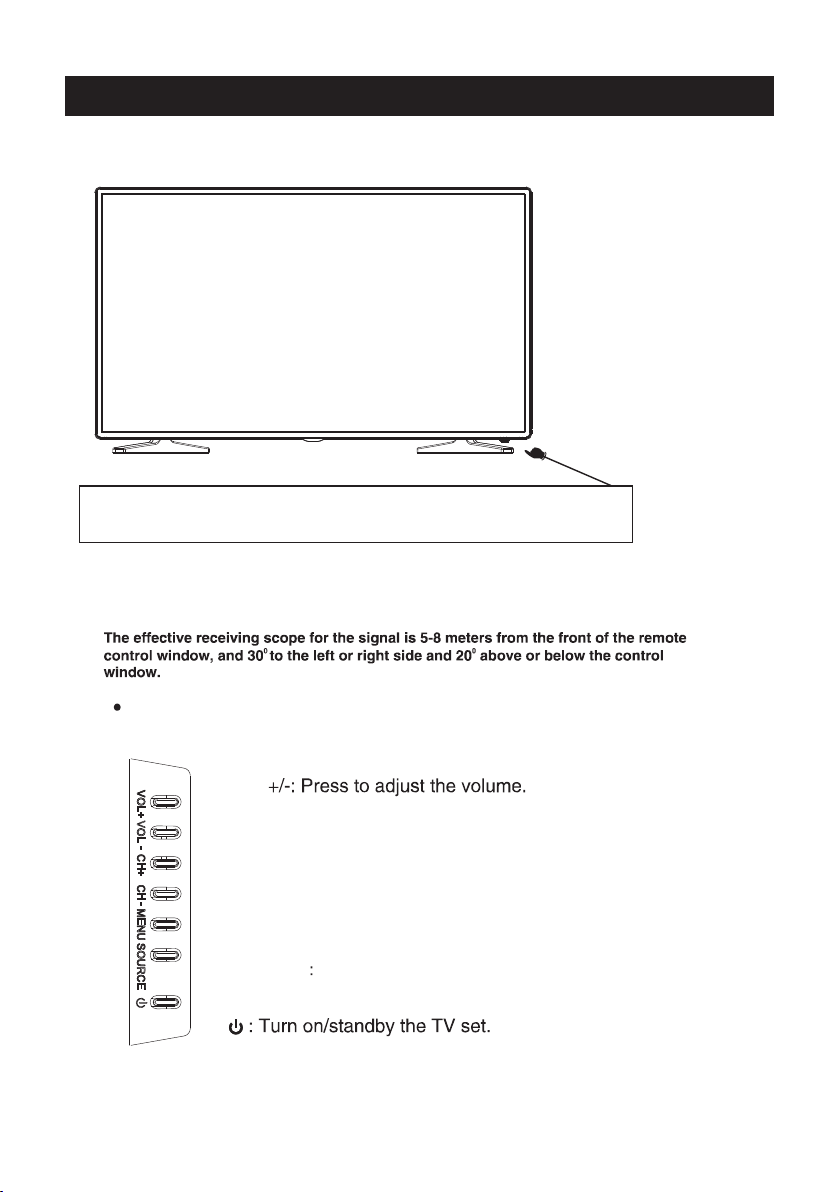

Top panel diagram
6
SOURCE External signal input selection and confirm the
item selected.

Side Panel Diagram
7
(Left Side)
(Back Side)
Connect to ANT or cable source
PC AUDIO IN PC audio input
VGA IN VGA signal from computer output
YPbPr Connect to the composite terminal of your DVD/VCR
ANT 75 Ω
EARPHONE
For Upgrade Use
AV INPUT
Earphone output
COAXIAL Digital Audio Output
Service Port
HDMI IN Connect to HDMI of DVD or other equipment
Name Function Description
AUDIO OUTPUT Right/Left Audio Output
PC AU DIO
INP UT
VGA
HDMI 2 HDMI 3 ANT 75
OUTP UT
RL
serv ic e port
EARPH ON E HD MI 1
AC 120 V~
60Hz
INPU T
VIDE O/ Y Pb Pr
INPU T
R
L
COA XI AL

Remote Controller
8
Universal remote code
This is the code for remote control of
SLED5016A-B,if you want to change to a
universal remote control,you can edit
this code into your universal remote control.
(1)Open the battery compartment cover
on the back side
(2)Insert two 1.5V batteries of AAA type
with correct polarity
(3)Close the battery compartment cover
on the back side
Universal Remote Control code:007F
(Universal Remote control is not included)
15
10
1.Power: Set your TV to power on or standby mode.
2.MUTE: Press to mute the sound. Press again or press VOL+
to unmute.
3.0-9: Press 0-9 to select a TV channel directly when you are
watching TV. The channel will change after a few seconds.
4.- : Press “-” to enter a program number for multiple program
channel, such as2-1etc.Return to the previous channel
viewed.
5. : Return to the previous channel viewed.
6.P.MODE: Press to cycle through the different picture settings.
7.SLEEP: Select the amount of time before TV turns off
automatically.
8.S.MODE: Press to cycle through the different sound settings.
9.MENU: Allows you to navigate the on-screen menus.
10.SOURCE: Press to cycle through the input source in following:
TV → AV → YPBPR→ HDMI1 → HDMI2 → HDMI3→PC
11.THUMBSTICK( / / / / ENTER):
Allows you to navigate the on-screen menus and adjust the
system settings to your preference.
12.EXIT: Exit from the menu or sub- menu and cancel the
function in progress (if possible).
13.DISPLAY: Press to display the source and channel’s
information.
14.MTS: Press to select the audio mode,you can select Stereo,
Mono,or SAP (second audio program).
15.V +/-: Press to increase or decrease the sound level.
16.CH+/-: Press to scan through or to select a channel.
17.AUTO: Adjusting the PC image rate automatically.
18.FAV: Set or cancel current channel to be a favourite channel.
19.FAV+: Down move Favourite program.
20.FAV-: Up move Favourite program.
21.CC: Press to display the closed caption.
22.ZOOM: Select display mode.

3
side
indicator
9
10cm
10cm 10cm
LED TV

2
10
Component
EAR PH ONE H DM I 1
AC 120V~
60Hz
INPU T
VIDEO/Y Pb Pr
INPU T
R
L
COA XI AL
EAR PH ONE H DM I 1
AC 120V~
60Hz
INPU T
VIDEO/Y Pb Pr
INPU T
R
L
COA XI AL

11
AC 12 0V~
60Hz
HDMI 1 HD MI2 HDM I3
COA XIA L
ser vi ce p ort
PC AU DIO
INP UT
VGA
HDMI 2 HDMI 3 ANT 75
OUTP UT
RL
servic e po rt
PC AU DIO
INP UT
VGA
HDMI 2 HDMI 3 ANT 75
OUTP UT
RL
servic e po rt

12
Setup Wizard
Connect an RF cable from the TV’s input called “RF-In” and to your TV Aerial socket.
Select Language
Press </ > button to select the language to be used for menus and message.
Press ▼ / ▲ button to select go to next step and press ENTER/ button to go.
Select Time
Press ▼ / ▲ button to select the time zone, daylight saving time and time format you want to.
Press </ > button on the remote control to adjust.
Press ▼ / ▲ button on the remote control to select go to next step and press ENTER/ button
to go.

13
Auto Scan
Press </ > button to select the antenna type.
Press ▼ / ▲ button to select go to next step and press ENTER/> button to start auto scan.
Setup Wizard

14
Select Input Source
Press INPUT button to display the input source list,
Press ▼ / ▲ or button to select the input
source you want to,
Press ENTER button to enter the input source,
Press EXIT button to quit.
INPUT
Main Menu
Press MENU to display the main menu or return to the previous menu or close the main menu.
Press </ > to highlight the desired menu icon, and press ENTER to select.
Source Select
TV
AV
Component
HDMI 1
PC
HDMI 2
HDMI 3

15
TV
Picture Menu
Pre ss
Pre ss
Pre ss
Pre ss
ENU to ente r th e main menu, Press button to select.
Pre ss to enter.
ENU again to exit or back to pare nt menu.
button to select among Picture Mode /B rightness/ Contra st / Color / Tint / Sharpness / Color
Temperatu re / Advanced Settings.
Pre ss to ente r.
Pre ss button to adjust.
ENU again or back to pare nt menu.
M</ >
ENTER / ▼
M
▼ / ▲
ENTER / ▼
</ >
M
【Pic tu re Mode】
Adjust picture mode to change pictu re appeara nce.
Pre ss button to select(S ta ndard / Dynamic / Soft / User).
【Brig htness】
Pre ss button to adjust.
【Contra st】
Pre ss button to adjust.
</ >
Adjust the visual perception outp ut of the entire pictu re , it will effe ct the iuminousness of th e picture.
</ >
Adjust the highlight inte nsity of the picture , but th e shadow of th e pictu re is invari able.
</ >
Note:The brightn ess,c ontra st, color, tint and sharp ness are only available in User mode,y ou can adjust as
you like.
Sta ndard Pro duces a highly defi ned image in a normally lit room.
Dynamic Pro duces a highly defined image in a brightly lit room.
Soft Pro duces a highly defined image in a soft lit room.
User Select to custo mize picture settings.
Main Menu Operation

16
TV
【Color】
【Tint】
Adjust the hue(R ed,G reen,Blue) of the pictu re .
Pre ss button to adjust.
【Sharpness】
Pre ss button to adjust.
【Color Tempera tu re】
【Advanced Settin gs】
Adjust advanced video featu re s to fine tune th e picture .
Pre ss butt on to enter .
【Aspect Ratio 】
Adjust how th e pictu re fi lls the screen.
【Noise Reductio n】
Set opti ons to reduce video noise.
Adjust the satura ti on of the color based on your own like.
</ >
</ >
Adjust the peaking in th e detail of the pictu re .
</ >
Increase or reduce warm color of the pictu re pers onally(re d),a nd the cool color pers onally(b lue) according
to your like.
> sub-menu.
Pre ss butt on to adjust.
Normal
Normal Auto mati cally adjust Aspect Ratio based on TV size and TV progra m.
Wide Use to watch wide screen(16:9) content.
Zoom Expands image to fill scre en. Top and butt on maybe cut off.
Cinema Stre tc hes image at edges but keeps a clear image in th e cente r.
Off Select to tu rn off video noise detecti on.
Low Dete ct and re duce low video noise.
Medium Dete ct and reduce modera te video noise.
High Detect and reduce enhanced video noise.
Auto Detect and re duce video noise automatically.
Increase the sex-l inked colors for the white .
Warm Increase the red color for the white .
Cool Increase the blue tone for the white .

17
TV
Sound Menu
Pre ss
Pre ss
Pre ss
Pre ss
ENU to ente r th e main menu, Press butt on to select.
Pre ss to enter.
ENU again to exit or back to parent menu.
button to select among /Sound Mode / Bass / Tre ble / Balance /M TS/ Audio Language
/Digita l Audio Outp ut/Surro und Sound/ AVL .
Pre ss to enter.
Pre ss button to adjust.
ENU again or back to pare nt menu.
M</ >
ENTER / ▼
M
▼ / ▲
ENTER / ▼
</ >
M
【HDMI Mode】
Only available in HDMI input.
【Dynamic Contra st】
Automatically adjust pictu re deta il and bri ghtn ess.
Pre ss butt on to select (Off/O n).
Pre ss button to select (Video/G raphic).
</ >
</ >

18
TV
【Sound Mode】
Select a sound mode to achieve ideal sound.
Pre ss button to select(S ta ndard / Music / Movie / Sports / User).</ >
Note:The bass and tre ble are only available in User mode,you can adjust as you like.
Sta ndard Pro duces a balanced sound in all enviro nments .
Music Preserves th e original sound. Good fo r musical programs.
Movie Enhances tre ble and bass fo r a ri ch sound experience.
Sports Enhances vocals fo r TV audio.
User Select to custo mize audio settings.
【Bass】
Adjust the bass effe ct.In creases or decre ases lower-p itched sounds.
Pre ss butt on to adjust.</ >
【Treble】
Adjust the tre ble effe ct. In cre ases or decreases high-p itched sounds.
Pre ss butt on to adjust.</ >
【Balance】
Adjust the balance between left and ri ght speakers to adapt to your liste ning position.
Pre ss butt on to adjust.</ >
【MTS】
It is only available in ATV. Configure s th e multi-tra ck sound.
Pre ss button to select(M ono/Ste re o/S AP).</ >
Mono Sets the sound to mono.
Ste reo Sets th e sound to stere o when ste re o is not available, the sound is auto matically switc hed
to mono.
SAP Sets th e sound to the second audio program.
【Audio Language】
. It is only available in DTV. Select the language supporte d by the chosen digital channel
Pre ss button to select(E nglish / / ).</ > Fre nch Spanish
【Dig ita l Audio Outp ut】
Send digita l audio to extern al audio syste m.
Pre ss button to select.</ >
PCM Select to outp ut audio in 2-channel ste reo.
Raw Original image coded date.
Off Set digita l audio output off.
【AVL】
Set the auto volume contro l.
Pre ss button to </ > select(O n / Off) .
NOTE:
Balance: This item can adjust the speaker’s output, it enables you to listen to best at your position.
AVL: This item uses for reducing the difference between channel and program’s
volume automatically.
it made the overall water to be even. This function will also reduce the fluctuation of the sound.
【Surround Sound】
Pre ss button to </ > select(O n / Off) .

19
TV
Time Menu
Pre ss
Pre ss
Pre ss
Pre ss
ENU to ente r th e main menu, Pre ss butt on to select.
Pre ss to enter.
ENU again to exit or back to pare nt menu.
button to select among Sleep Timer / Time Zone / Daylight Saving Time / Time Format / Auto
Clock / Clock.
Pre ss to enter.
Pre ss button to adjust.
ENU again or back to parent menu.
M</ >
ENTER / ▼
M
▼ / ▲
ENTER / ▼
</ >
M
Time Zone
Daylight Savin g Tim e
Time Format
Auto Clo ck
【Sle ep Tim er】
Set a timer for the TV to turn off auto mati cally.
Pre ss button to select(O ff / 5min/10min /1 5min/ 30min / 60min / 90min / 120min/1 80min/240min).
【 】
Select your time zone.
Pre ss button to select(E aste rn / Centra l / Mountain / Pacific / Alaska / Hawaii /S amoa/
Newfoundland / Atlantic).
【 】
Set the daylight saving time for your are a.
Pre ss button to select(O n / Off) .
【 】
Select your time format.
Pre ss button to select(1 2-hour / 24-h our).
【 】
It is only available in DTV.
Pre ss button to select(O n / Off) .
</ >
</ >
</ >
</ >
</ >
Use to synchronize the display automatically.
