USER’S MANUAL Note: The product and illustrations in this user's manual is only for explanation purposes and may vary depending on model.
S l ox
32" SMART RV TV
Model: RT32R3KECA

General Information
To avoid damaging the television set please observe the following safety instructions
during setup and use.
Before cleaning, disconnect the television set. Use only a soft
damp cloth or a special cleaning product for flat-screens.
Cleaning the television set
LED Display Too much pressure on the screen can damage the television set.
Heat/damp/humidity The television set should not be exposed to high temperatures
(radiators, open fire).
The television set should not be used in areas with high humidity.
If moved from a cool area to one with a higher temperature, the
television set should be left for at least an hour before plugging
it in. A rapid change of temperature can lead to the formation of
condensation in the television set itself. This can lead to damage
if the television set is in use.
Condensation
To prevent overheating of the television set the ventilation slots at
the rear should always be clear.
Air Circulation
It is important to ensure that no small objects or liquids enter the
television set. They can cause damage or even fire.
Small Objects
Take care to avoid crushing fingers or other objects when turning
the television set in any direction.
Use the television set only with the voltage indicated in the
specifications.
Ensure that there is easy access to the plug and that the television
set can always be disconnected from the electricity supply.
Do not disconnect the television set by pulling the power cable.
Always take hold of the plug. The power cable must not be kinked
or placed over sharp edges.
Crushing
Electric Supply
When moving the television set, hold only the casing.
Repairs and servicing must be undertaken only by authorised and
trained personnel.
Moving the Television Set
Repairs/Accessories
In accordance with the Batteries Regulation, batteries are to be
disposed of only in containers provided for this purpose.
In extreme weather (storms, lightning) and long inactivity periods (going on holiday)
disconnect the TV set from the mains. The mains plug is used to disconnect TV set from the
mains and therefore it must remain readily operable. If the TV set is not disconnected
electrically from the mains, the device will still draw power for all situations even if the TV is in
standby mode or switched off.
USER'S MANUAL
BEDIENUNGSANLEITUNG
MANUALE D’UTENTE
MANUEL DE L'UTILISATEUR
MANUAL DE USUARIO
English
Deutsch
Français
Italiano
Español
English

IMPORTANT - Please read these instructions fully before installing oroperating
WARNING: Never let people (including children) with reduced physical, sensory or
mental capabilities or lack of experience and / or knowledge use electrical devices
unsupervised.
For ventilation purposes, leave at least 5cm of free space around the TV.
The ventilation should not be impeded by covering or blocking the ventilation openings
with items, such as newspapers, table-cloths, curtains, etc.
The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on
the power cord. A damaged power cord/plug can cause fire or give you an electric shock.
Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never
touch the power cord/plug with wet hands as this could cause a short circuit or electric
shock. Never make a knot in the power cord or tie it with other cords. When damaged it
must be replaced, this should only be done by qualified personnel.
Do not expose the TV to dripping or splashing of liquids and do not place objects filled
with
liquids, such as vases, cups, etc. on or over the TV (e.g., on shelves above the unit).
Do not place open flames such as lit candles on the top of or near the TV.
Do not place any heat sources such as electric heaters, radiators, etc. near the TV set.
Do not place the TV on the floor and inclined surfaces.
To avoid danger of suffocation, keep plastic bags out of the reach of the babies, children
and domestic animals.
Do not dispose of the batteries in fire or with hazardous or flammable materials.
Warning: Batteries must not be exposed to excessive heat such as sunshine, fire or the like.
If you think batteries might have been swallowed or placed inside any part of the body,
seek immediate medical attention.
WALL MOUNTING WARNINGS
Read the instructions before mounting your TV.
Use the specified wall mounting screws and other accessories.
Tighten the wall mounting screws firmly to prevent the TV from fall.
Do not over-tighten the screws.
A television set may fall, causing serious personal injury or death. Many injuries, particularly
to children, can be avoided by taking simple precautions such, Educating children about the
dangers of climbing on furniture to reach the television set or its controls.
Accessories
Please make sure the following items are included with your TV.
If any items are missing, Please contact us.
Instructions Manual Warranty Card
Adapter
Car charger cable Base
Column bracket ScrewsRemote Control
“The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, HDMI
trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI
Licensing Administrator, Inc. in the United States and other countries." OR "The terms
HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI
Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc."
English
English
Euro Schuko plug power cord
or AUS plug power cord
or UK power cord

Content Specification
6.4 kg
RT32R3KECA
1920 X 1080
Product Dimensions
(Include base bracket)
32"
DC 12V 6A
50W
2 x10W
PAL/NTSC
DVB-T2-S2
48.25MHz‐863.25MHz
Video input Format
Note:
Design and specification modification maybe made at any time without prior notice,
all data and dimensions are approximations.
Hardware configuration
8G Byte
ARM Cortex-A55 quad core
Mali G31MP2
1.5G Byte
eMMC Flash
CPU
GPU
DDR SIZE
English
English
713.3 200.0 468.0 mm x x
1
INSTALLATION
OVERVIEW
REMOTE-CONTROL UNIT
General Description
2~3
4~5
7~8
SPECIFICATION 1
9
10~26
TROUBLESHOOTING 30~32
TV OPERATION
WARRANTY POLICY 33~34
SUPPORTINGSIGNALS 6
29
READ BEFORE USING APPS
27-28
DVD

InstallationInstallation
English
English
23
Base bracket guide
Instruction:
1.Place the TV unit on a flat and clean table.
2.Fix stand by 4 pcs screws via screw hole B and A.
3.Fix stand by 4 pcs screws via screw hole D and C.

USB1
EARPH ONE
OUT
USB2USB2 CI+
DVB-T2
DC 12V RL
OUT
12
COAXI AL
OUT
RJ45
Android DVB-S2
Digital Audio System
USB
Camcorder DVDPlayer PC(HDMI-output) Blu-ray disc player
Headset
Antenna feeder
Intellinet feeder
Overview
Overview
USB
CI+ module
English
English
45
DVB-S2 & CI+ will not be available in Australia
CI+ will not be available in New Zealand
SPEAKER
REMOTE CONTROL SENSOR
POWER INDICATOR
Green: In power on mode.
Red: In standby mode.
Toggles between all the available input
sources
MENU
Press to see an on-screen menu of your
TV's features.
CH+/-
Press to change channels.
In the on-screen menu, use the CH +/-
buttons as up/down arrow buttons.
VOL+/-
Press to increase or decrease the volume.
In the on-screen menu, use the VOL +/-
buttons as left/right arrow buttons.
POWER
Press POWER button to toggle between
normal and standby mode.
SOURCE
CH+
MENU
CH-
VOL+ VOL-
SOURCE POWER
1. RJ45
Ethernet connection.
2. COAXIAL OUT
Digital audio output.
3. L/R OUT
Connect to the audio output jacks on your amplifier/home theater.
4. HDMI1/2
Connecting for HDMI signal.
5. DVB-S2
Connected to external SATELLITE to receive.
6. DVB-T2
Connected to external antenna to receive the ATV/DTV program in ATV/DTV mode.
7. USB1/2
USB input.
8. EARPHONE OUT
Connecting for headphone.
9. CI+
Used to insert the CI+ card.

Supporting Signals
PRESET MODE (HDMI)
1
2
3
4
5
6
7
Resolution
640x480
720x480
720x576p
800x600
1280x720p
1920x1080i
1920x1080p
V.Freq.(Hz)
59.94
59.94
50
60
60
60
60
H.Freq.(KHz)
31.469
31.469
31.25
37.9
45
33.75
67.5
Remote-Control unit
1 2
4
7
8
11
12
15
18
3
5
6
9
13
10
14
16
19
17
20
22 24
23
21
S l ox
English
English
67

Remote-Control unit
General Description
Installing Batteries in the Remote Control
Antenna connection
Use a 75ohm - 300ohm converter
300ohm coaxial cable
Antenna feeder
ANT IN
75ohm coaxial cable
Antenna cable
Antennas with 300ohm flat twins Leads Antennas with 75ohm Round Leads
External Connection
Point the remote towards the remote
control sensor of the wireless TV and
use it within 7 meters.
Put the used batteries into the recyc-
ling bin since it can negatively affect
the environment.
NOTES:
• One loading of batteries will last for 1 year under normal use.
• If you do not intend to use the remote controller for a long period of time, remove them to avoid
damage due to leakage.
• The batteries (battery pack or batteries installed) shall not exposed to excessive heat such as
sunshine, fire or the like.
Antenna input impedance of this unit is 75ohm. VHF/UHF 75ohm coaxial cable can be connected to
the antenna jack directly, if the antenna cable is 300ohm parallel flat feeder cable, you need to use
the 300ohm/75ohm converter to connect the antenna cable to the antenna jack.
For details Please refer to the following drawing.
Installing Batteries
1Open the battery compartment
cover on the back side.
2Insert two 1.5V AAA size batteries in
correct polarity. Don´t mix old or used
batteries with new ones.
3Closed the cover.
Battery
Cover
2xsize AAA 1.5V
Battery
Cover
1. POWER: Turn the TV on and off.
2. : Search function.
3. Digital Buttons(0-9, -): Directly select channel with digital buttons.
4. SOURCE: Press to open the input source list.
5. NETFLIX: If network connects, press this key to view NETFLIX directly.
6. Google Play: If network connects, press this key to view Google Play directly.
7. YouTube: If network connects, press this key to view YouTube directly.
8. Prime Video: If network connects, press this key to view Prime Video directly.
9. HOME: Display the HOME page.
10. Arrow button ▲▼◄►: Use to select on-screen menu items and change menu values.
11. MENU: Display the main menu or exit the current menu.
12. OK: Confirms selection.
13. BACK: Return to the previous menu.
14. MUTE: Press this button to cut off the sound of the TV set temporarily, press again to
resume.
15. EXIT: Exit the menu.
16. VOL +/- : Press these buttons to adjust the volume.
17. COLOR BUTTONS: It's used in the APPS.
: Open/close in DVD mode.
D.MENU: Quick navigation during Teletext or setup settings / DVD: Video DVD
Menu button.
SETUP: DVD system setup.
D.DISP: Quick navigation during Teletext or setup settings / DVD: DVD Information
button.
18. CH∧/∨: Press these buttons to change channel upward or downward.
19. GUIDE: Select electronic program guide, in DTV mode, it will display all the information
of program in a week when pressing this button.
20. DIGITAL MEDIA PLAYER CONTROL BUTTON: Include backward, forward,
play/pause, stop in USB mode. In DTV mode, press ● button to record the TV program.
Please refer to relevant instructions in the section of multimedia player.
21. LIST: Press to display the channel list.
A-B: Press the A-B button once to set point A. Press the A-B button a second time to set
point B. After setting the program repeat playing from A to B. Pressing the A-B button a third
time will cancel the repeat.
22. TEXT: Press to select the teletext mode.
REPEAT: DVD: Repetition mode button.
23. AUDIO: Press to select mono, nicam, stereo for ATV channel, audio language for DTV
channel.
24. SUBT: Open or close subtitle.
TITLE: Press this button to return to the title of the disc.
English
English
8 9

TV Operation
Press ▲/▼ to select the system language and press OK to confirm the language.
INITIAL SETUP
The first time you turn on your TV, the setup wizard will guide you through setting up basic settings.
Please according to the Text Tip to First Time Setup.
Connect your Android phone to your TV, select "Continue" to continue the connection, and choose
"Skip" to skip this step.
Press ▲/▼ to select the wifi to connect, press OK and enter the password to confirm the connection is
successful.
By agreeing to automatically send diagnostic information to Google to improve discriminative power,
choose "YES" to accept.
English
English
10 11

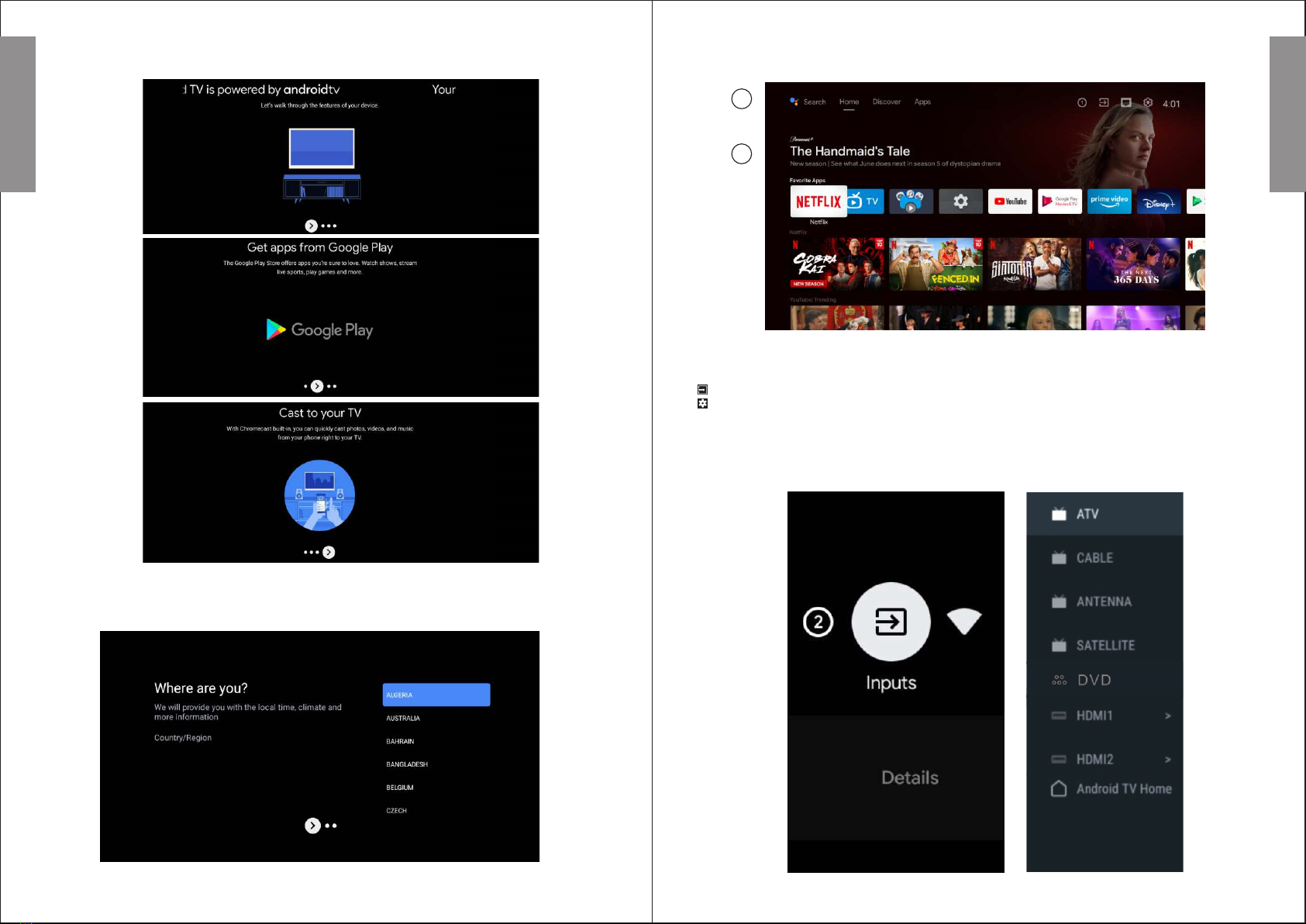

1. Your device is powered by Android TV and press the ► button to select the browsing feature.
2. You can get more apps from Google Play and press the ► button to go to the next screen.
3. Transfer photos and other content to the TV via the built-in chromecast, press OK to complete the
browsing.
Press ▲/▼ to select the country of your deviceand press OK to confirm.
HOME SCREEN
After completing the wizard Settings, you can watch TV and go to the home screen.
1. Open Google Assistant or start a text search.
2. Among the applications installed on the TV, the icons for the favourite applications are shown inside
here. (Favourite applications can be added/ deleted/changed its order by users.)
2
1
Inputs: Icon to select an input source.
Settings: Various settings can be configured here. For details on the settings, see the next explanation.
INPUT SOURCE
In the HOME interface, press ▲/▼/◄/► to select the "Inputs" icon, press OK to open the input source
list, then press up to highlight an input and press OK to switch.
English
English
12 13

Under live TV, press the SOURCE button to display the list of input sources. You can select the desired
source.
NAVIGATING THE ON-SCREEN MENU
1. In the HOME interface, press the ► key to select the icon of the circular settings menu, press OK to
confirm.
2. Press ▲/▼ button to select what you want set.
3. Press OK to enter setting.
Network
1 Press ▲/▼ button to select what you want set.
2. press OK button to adjust.
3. After finishing your adjustment, press OK button to save and return to the previous menu.
APPS
In this menu, you can set the APP permissions, and read the app lists.
1. Press ▲/▼ button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, press BACK button to return to the previous menu.
English
English
14 15

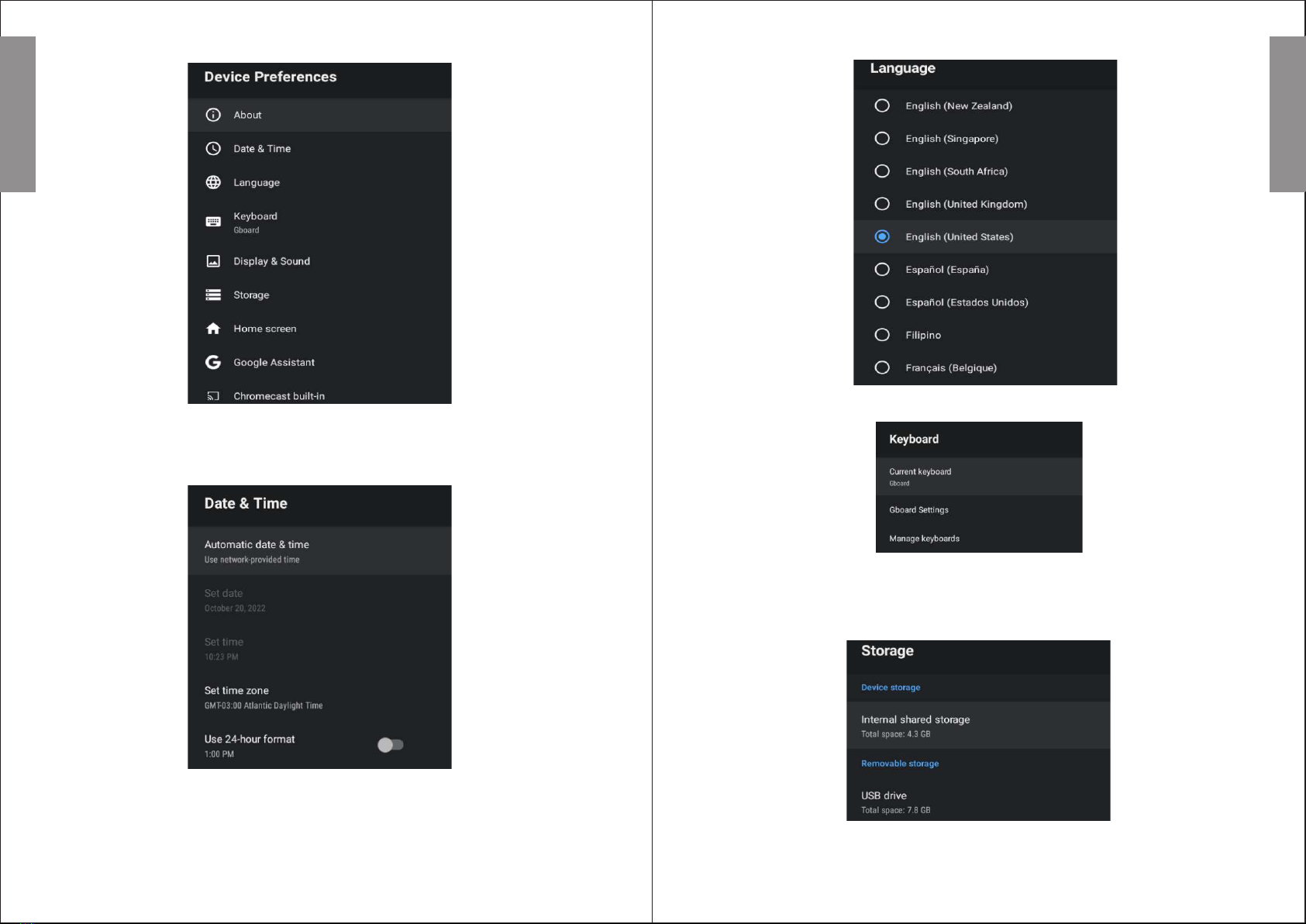

DEVICE PREFERENCES ABOUT
In this menu, you can read the information and settings of TV.
1. Press ▲/▼ button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, press BACK button to return to the previous menu.
DATE & TIME
Automatic date & time- Press ▲/▼ button to select the option then press OK button to enter the sub-
menu.(Optional: Use network-provided time, Off)
● Manually adjusting date & time settings will automaticall change the Automatic date & time to OFF.
Set date- Press ▲/▼ button to select the option then press OK button to enter the sub-menu.
Set time- Press ▲/▼ button to select the option then press OK button to enter the sub-menu.
Set time zone- Press ▲/▼ button to select the option then press OK button to enter the sub-menu.
Use 24-hour format-Press ▲/▼ button to select the option then press OK button to choose ON/OFF.
LANGUAGE
Language- Press ▲/▼ button to select the optionthen press button to enter the OK select language.
Current keyboard- Press ▲/▼ button to select the option then press OK button to enter the sub-menu.
Gboard Settings- Press ▲/▼ button to select the option then press OK button to enter the sub-menu.
Manage keyboards- Press ▲/▼ button to select the option then press OK button to enter the sub-
menu.
KEYBOARD
Internal shared storage- Press ▲/▼ button to select the option then press OK button to enter the sub-
menu.
Removable Storage- Press ▲/▼ button to select the option then press OK button to enter the sub-
menu.(Note: Show external devices if available)
English
English
16 17

HOME SCREEN
In this menu, you can set channels, apps, open source licenses.
1. Press ▲/▼ button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, press BACK button return to the previous menu.
GOOGLE
In this menu, you can set searchable apps, safe search filter, block offensive words, open
source licenses.
1. Press ▲/▼ button to select what you want set.
2. Press OK button to adjust.
3. After finishiing your adjustment, press BACK button return to the previous menu.
CHROMECAST BUILT-IN
In this menu, you can read the information and settings of Chromecast.
1. Press ▲/▼ button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, press BACK button return to the previous menu.
A-loa7wavVyCIP2x-HcL
English
English
18 19

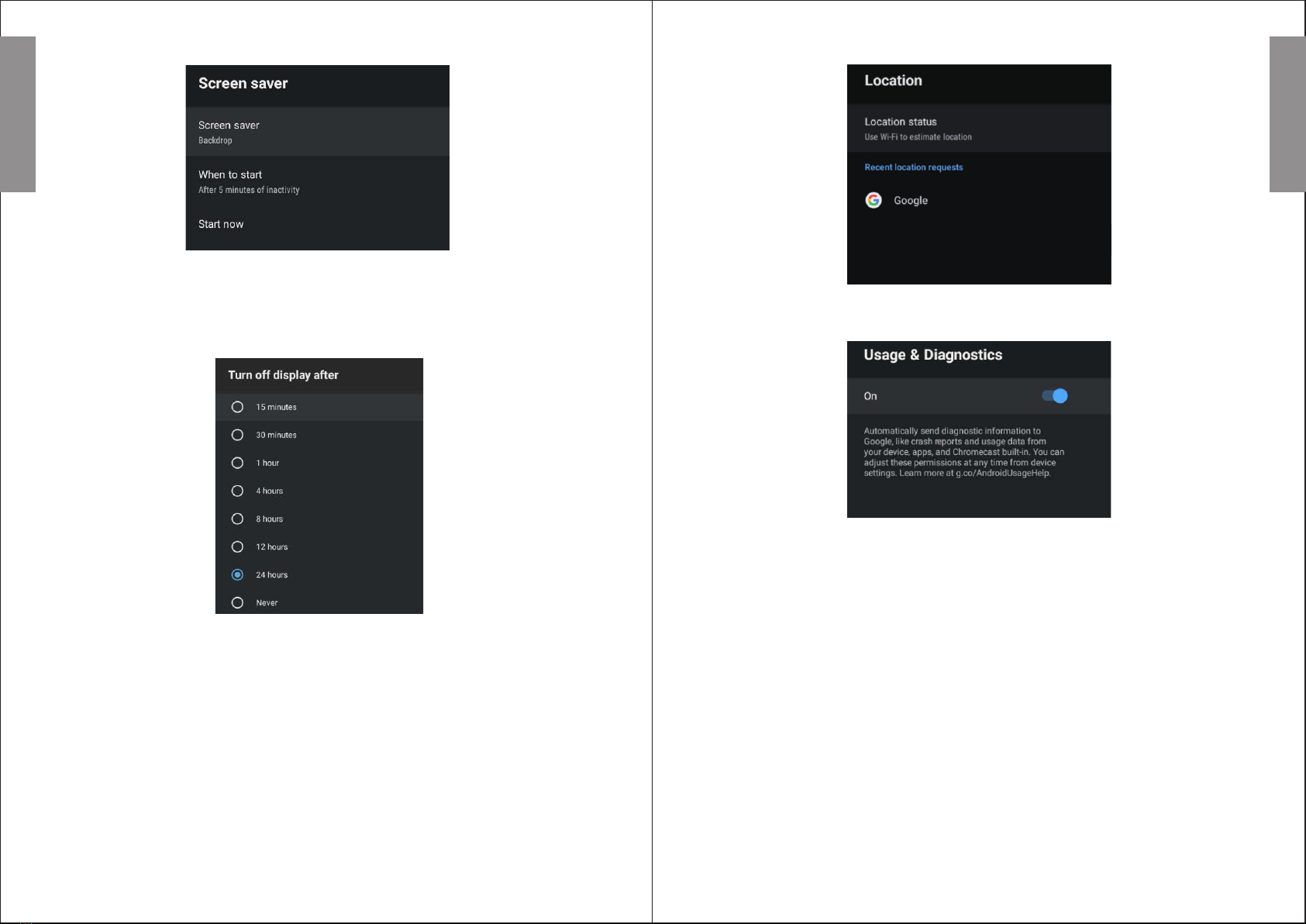

LOCATION
Location status- Press ▲/▼ button to select the option then press OK button to enter the sub-menu.
(Optional: Use Wi-Fi to estimate location, Off)
USAGE & DIAGNOSTICS
Usage & diagnostics- Press ▲/▼ button to select the option then press button OK to choose ON/OFF.
ENERGY SAVER
Turn off Display- Press ▲/▼ button to select the option then press OK button to enter the sub-menu.
(Options: 15 minutes, 30 minutes, ....24 hours, Never.)
Screen saver- Press ▲/▼ button to select the option then press OK button to enter the sub-
menu.(Optional: Turn screen off, Backdrop, Colors)
When to Start- Press ▲/▼ button to select the option then press OK button to enter the sub-menu.
(Optional: 5 minutes, 15 minutes, 30 minutes, 1 hour, 2 hours.)
Start now- Press ▲/▼ button to select the option then press OK button to enter screen saver.
SCREEN SAVER
English
English
English
20 21

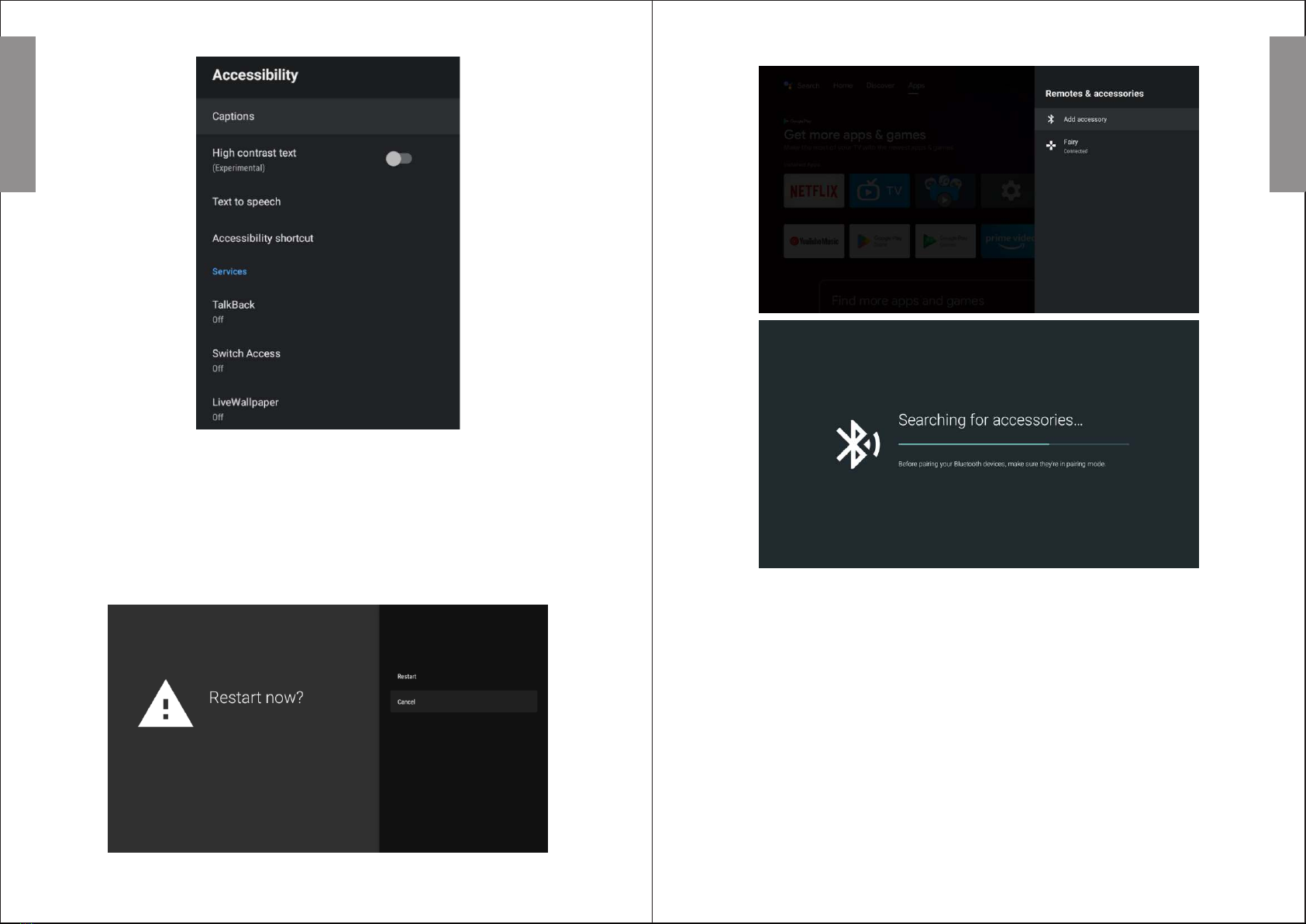

REMOTES & ACCESSORIES
Note: It is only available to the remote control with Bluetooth.
In this menu, you can pair Bluetooth devices.
1. Press “OK”and "Volume+" buttons for about 5 seconds.
2. When the LED starts to flash, release it. The remote controller will send the pairing signal to the TV
and display the information of the remote control on the right side of the screen.
3. Press the OK button to display the pairing. If the paired is displayed, the connection is successful.
4. Press BACK button return to the previous menu.
NOTE
The menu/function may be different depending on when you purchased the TV.
ACCESSIBILITY
Captions- Press ▲/▼ button to select the option then press OK button to enter the sub-menu.
High contrast text- Press ▲/▼ button to select the option then press OK button to choose ON/OFF.
Text to speech- Press ▲/▼ button to select the option then press OK button to enter the sub-menu.
Accessibility shortcut- Press ▲/▼ button to select the option then press OK button to choose
ON/OFF.
TalkBack- Press ▲/▼ button to select the option then press OK button to enter the sub-menu.
Switch Access- Press ▲/▼ button to select the option then press OK button to enter the sub-menu.
RESTART
Press OK button to enter the sub-menu.
Restart the TV.
English
English
22 23

Picture Mode- Press ▲/▼ button to select the option button to enter the sub-menu.(Optional:
Standard, Dynamic, Movie, Eye Comfort, Gentle, Vivid, Sport, Personal).
Brightness/Color Saturation/Hue/Contrast/Gamma/Black Level Sharpness- Press ▲/▼
button to select the option.
Press ◄ to decrease the parameter. Press ► to increase the parameter.
Gamma- Press ▲/▼ button to select the option.
Press ◄ to decrease the parameter.
Press ► to increase the parameter.
ECO
Press MENU key to the main menu, and select Picture.
Press button to ECO option and press OK to select the option.
ADD AND USE OF MEDIA PLAYER
1. In the HOME interface, select the + icon in the APP column to add the application, and click OK.
Press up and down to select the Media Player application, and click to add it OK to the HOME
interface.
2. Focus on the corresponding USB driver and press OK to display video, photo, audio files.
Press navigation button to select the file.
English
English
24 25

DVD
SOUND
Press MENU key to the main menu, and select Sound.
Sound Mode- Press OK to enter the sub-menu, press button to select option and press OK to
select the option.
Pure Sound- Press ▲/▼ button to select the option then press OK button to choose ON/OFF.
Surround- Press ▲/▼ button to select the option then press OK button to choose ON/OFF.
Sound Only- Press OK to enter the sub-menu, press OK button to select option.
Output Device- Press ▲/▼ to enter the sub-menu.
Audio Output Type- Press ▲/▼ to enter the sub-menu.
Advanced Settings- Press ▲/▼ to enter the sub-menu.
Press MENU key to the main menu, and select System.
Press ▲/▼ button to select option and press OK to select the option.
SYSTEM
English
English
26 27
SOURCE
Press the “SOURCE” button menu. The up and down direction keys can be selected, or Press
the left or right button to select the DVD, and press the Enter button to enter.
Press the DVD SETUP button to enter that function.
TV SYSTEM
Set the options: NTSC/PAL/AUTO.
POWER RESUME
Press the ENTER function on or off.
TV TYPE
Set the screen ratio options: PS(4:3 Pan Scan), Normal/PS(4:3 Letter Box), and Wide (16:9)
the default setting is wide.
PASSWORD
Enter “0000” to enter.
RATING
Disc Options.
DEFAULT
This option will return the DVD to its factory default settings.

Due to the product characteristics featured on the Apps store, as well as limitations in available
content, certain featured applications, and services may not be available on all devices or in all
territories. Some Apps featured may also require additional peripheral device or membership fees.
Services and content availability are subject to change without prior notice.
Manufacture takes no legal responsibility whatsoever for any interruption of App services caused by
the service provider for any reason.
An unstable Internet connection may cause delays or interruptions. In addition, applications may
terminate automatically depending on the network environment.
Applications services and updates may become unavailable.
Application content is subject to change by the services provider without prior notice.
Specific services may differ with the version of the application installed on the TV.
An application's functionally may change in future version of the application.
Depending on the third party service provider/s policies, certain applications may not support
multitasking.
The response to remote commands and the resulting on screen display may be delayed while a
webpage is loading.
The copy and paste operations are not supported.
The web browsing speed will differs with the network environment.
Depending on the types of video/audio codecs supported, it might not be possible to play certain
video and audio files while playing content.
Apps store have certain limitation, it consist many inbuilt apps for various needs of user but user
doesn't have facility to add other apps from any other media.
Read Before Using Apps
(*Terms & Conditions Apply)
English
English
28 29
OSD LANGUAGE
Set the OSD Language options.
AUDIO LANG
DVD language selection options.
SUBTITLE LANG
This player can display DVD subtitle languages if supported by the DVD disc. When playing
DVD’s you can hide the subtitle or choose any of them as the current subtitle language.
MENU LANG
Set the MENU Language options.
AUDIO OUT
Press the "ENTER" Key. The up and down direction keys can be used for selection.
KEY
Press the "ENTER" Key. The up and down direction keys can be used for selection.
DUAL MONO
Press the "ENTER" Key. The up and down direction keys can be used for selection.

Troubleshooting
If you have any problem, check the couter measures for each symptom listed below. The following
symptoms may have been, caused by inaporopriate adjustment rather than actual malfunction of the
unit. If the trouble pens sts, contact the Customer Care Centre, see back page for contact details.
No power
No picture
Good picture but no
sound
Good sound but abnormal
color or no picture
No response to remote control
Colored dots may be present
on the screen
Picture is breaking up
Please check the power cord plugged in and that the power outlet
works.
Unplug the power cord and plug it in after 60 seconds and restart
the TV.
Please check antenna connection.
Station may be experiencing problems, please tune to another
station.
Please adjust the settings of contrast and brightness.
Please increase the volume.
Please check TV is under mute mode, press MUTE button on the
remote control.
Please check sound settings.
If external devices are being used, check their volumes are not set
too low or turned off.
If using AVI or Component inputs, please make sure cables are
connected properly and not loose.
If using DVI to HDMI cable, a separate audio cable is required.
Make sure a headphone jack >s not connected.
Please check antenna connection and antenna condition. If using
Component input, please check Component connections, incorrect
or loose connections may cause colour problems or cause the
screen to be blank.
Batteries of remote control may have exhausted, if necessary,
please change the batteries.
Clean the remote control lens. The distance between
LED TV and remote control should be within 8m, within
recommended operating angle and path is free of obstructions.
Although the LED screen is made with high-preci sion technology
and 99.99% or mere of the pixels are effective, black dots may
appear or bright points of light (red. blue, or green) may appear
constantly on the LED screen. This is a structural property of the
LED screen and not a malfunction.
Keep the TV away from noisy electrical sources such as cars, hair
dryers, welders, and all optional equioment.
Electrical atmospheric interference such as local or distant ightning
storms may cause picture to break up.
When installing optional equipment, leave some space between
the optional equipment and the TV.
Check the antenna and connection.
Keep the antenna away from any power or inpuVoutput cables.
Symptoms Possible solutions USB not playing
Noise from speaker
TV turns off automatically
Symptoms Possible solutions
Check your area is covered by Digital Video Broadcasts.
Try re-tuning or manually tuning missing channels.
Check that you are using the correct antenna type.
Check if the channel has been blocked in the main menu
settings.
Please check connecting USB cable and power supply is
connected.
Hard drive has not been formatted. Please make sure USB disk is
compatible and the multimedia data formats are supported. Only
support FAT32 format for the USB disk.
Compression of video contents may cause distortion especially on
fast moving pictures such as sports and action movies.
Check cable connections, make sure a video cable is not
connected
to an audio input.
Low signal level may cause sound distortion.
Check if the Off Timer is set to On in the Setup menu.
Sleep Timer may have been enabled.
If there is no signal for about 10 minutes from an input, the TV will
turn off.
Check if the On Timer is set to On in the Setup menu.
Black bars on each side will be shown on HD channels when
displaying SD (4:3) contents.
Black bars on Top & Bottom will be shown on movies that have
aspect ratios different from your TV.
Adjust picture size option on your external device or TV to full
screen.
After Auto Tuning only
some channels are
available
Channel cannot be
selected
Picture is distorted,
macroblock, small block,
dots, pixelization, etc
Picture is not shown in
full screen
TV turns on
automatically
Never place a television set in an unstable location. A television set may fall, causing serious
personal injury or death. Many injuries, particularly to children, can be avoided by taking simple
precautions such as:
- Using cabinets or stands recommended by the manufacturer of the television set.
- Only using furniture that can safety support the television set.
- Ensuring the television set is not overhanging the edge of the supporting furniture.
- Not placing the television set on tall furniture (for example, cupboards or bookcases) without
anchoring both the furniture and the television set to a suitable support.
- Not placing the television set on cloth or other materials that may be located between the television
set and supporting furniture.
- Educating children about the dangers of climbing on furniture to reach the television set or its
controls
If your existing television set is being retained and relocated, the same considerations as above
should be applied.
The plug or appliance coupler is used as the disconnect device, the disconnect device shall remain
readily operable.
WARNING
English
English
30 31

Warranty
Thank you for purchasing this Sylvox product. We are glad to offer 12 months free warranty for you.
If you have any questions, please contact us via our after-sales email or website for assistance.
Customer Service Support:
Service Hotline-USA: [phone] (Monday-Friday,9:00AM-5:00PM EST)
(1)
1.
2.
3.
4.
5.
6.
7.
8.
(2)
(3)
(4)
(a)
(b)
(c)
(d)
(e)
( f )
Warranty Policy
When returning an item, please note the following:
Only items purchased directly from www.sylvoxtv.com and authorized resellers can be
returned, such as Amazon, Walmart, Newegg, Wayfair, Aliexpress, etc.
We will not accept any return requests for products purchased from unauthorized third-party
suppliers.
Customer must contact the original vendor with your order ID or purchase proof and the detail
of the product issue at Sylvox-Team to request a return/refund/repair/replace before returning
products. Sylvox will provide you with the shipping label in the mail.
Sylvox are responsible for all return shipping costs for quality problem.
If there is no reason to return the product after installation and use, Sylvox shall have the right
to charge restocking fees of 20% of the product value. (Only accept applications for no reason
return within 7 days after arrival, and freight costs are the responsibility of the customer)
Ensure that the item(s) you are returning is repackaged in the original condition with all the
documentation and accessories that came with it.
If the returned product is not in original packaging: artificial damage causes to affect the
second sale, such as its appearance being damaged, the lack of accessories, etc., we will
deduct the corresponding expenses according to the situation.
We will handle your request once getting your returning item.
How to return a product for a refund? (30 days money-back guarantee)
To return an item to Sylvox, Please contact the Sylvox-team to submit an after-sales
application, we will provide you with the shipping label in the mail.
Please include your original order number or order proof in the email and ensure that the item
is returned within 30 days. No refunds will be issued until the item is received in its original
packaging (with its documentation and accessories).
Refunds
Once we receive and verify the condition of your product, a refund is initiated. The way your
refund is processed depends on your original payment method.
For credit or debit cards, refunds will be back to the card-issuing bank within 7-10 business
days of receipt of the returned item. Please contact the card-issuing bank with questions
about when the credit will be posted to your account.
What does the warranty not cover?
The wrong way of use and improper repair by the user caused the failure or damage.
Failure or damage caused by transportation, moving, and falling after purchase.
Other unavoidable external factors cause failure and damage.
Improper use of the equipment caused by water or other solution of damage.
Failure caused by a lightning strike or other electric system reasons
Damage caused by using power supply other than specified voltage.
English
English
THE DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT WASTE
PRODUCTS ON THE PART OF FINAL USERS IN THE EUROPEAN UNION
This symbol on the product or on the container indicates that this product cannot be
eliminated with the general waste. The user is responsible for eliminating this kind of waste
by throwing them away at a "recycling point" specifically for electrical and electronic waste.
Selective collection and electrical equipment recycling contribute to preserve natural
resources and warrant waste recycling to protect environment and health. In order to receive
further information about electrical and electronic waste collecting and recycling, contact
your Local Council, the service of household waste or the establishment where the product
was acquired.
The crossed out "wheeled bin" symbol on the product reminds you of your obligation,
that when you dispose of the appliance, it must be separately collected.
32 33
After-sales email:
[e-mail]
[e-mail]
[e-mail]
Website:
www.sylvoxtv.eu
