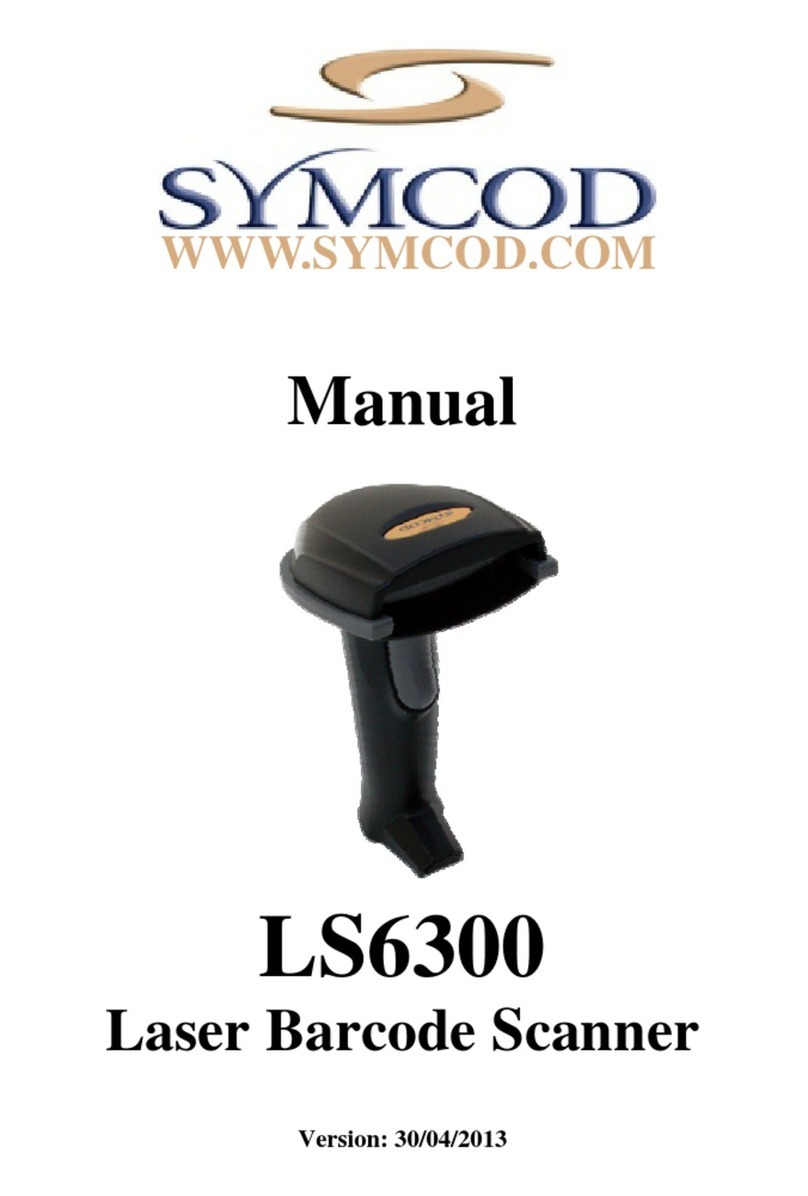

Symcod LS6300 User manual

Guide de démarrage rapide
1. Utiliser le câble requis selon l’interface choisie.
2. Brancher le câble sur le périphérique.
3. Lire le code « Default » code pour remettre la
configuration d’origine.
4. Aller à la section « OUTPUT MODE »
5. Configuration USB, scanner le code sous :
“OUTPUT MODE – KEYBOARD / USB”
6. Configuration RS-232, scanner le code sous :
“OUTPUT MODE – SERIAL RS232”
Quick Start Guide
1. Use the cable required for the selected interface
2. Connect the cable to the device
3. Scan the « Default » code to reset the scanner to the
factory configuration.
4. Go to « OUTPUT MODE » section
5. USB configuration, scan code under :
“OUTPUT MODE – KEYBOARD / USB”
6. RS-232 configuration, scan code under :
“OUTPUT MODE – SERIAL RS232”
OUTPUT MODE –
KEYBOARD / USB OUTPUT MODE – SERIAL RS232
OUTPUT
MODE
OUTPUT MODE – WAND
SINGLE SCAN READING
MODE SINGLE SCAN NO
TRIGGER
LASER TIMEOUT
–5 SECONDS LASER TIMEOUT –2 SECONDS
CODE 11 DOUBLE
CHECK - ENABLE DOUBLE CHECK CODE 11 DOUBLE CHECK - DISABLE
CODE 39 DOUBLE
CHECK ENABLE CODE 39 DOUBLE CHECK DISABLE
CODE 93 DOUBLE
CHECK - ENABLE CODE 93 DOUBLE CHECK - DISABLE
CODE 128 DOUBLE
CHECK – ENABLE CODE 128 DOUBLE CHECK -
I2OF5 DOUBLE
CHECK - ENABLE I2OF5 DOUBLE
CHECK - DISABLE
DOUBLE
CHECK
ID2OF5 DOUBLE
CHECK - ENABLE ID2OF5 DOUBLE CHECK - DISABLE
MSI DOUBLE
CHECK - ENABLE MSI DOUBLE CHECK - DISABLE
UPC/EAN DOUBLE
CHECK ENABLE UPC/EAN
DOUBLE CHECK
REVERSE IMAGE
– ENABLE IMAGE REVERSE IMAGE - DISABLE
SEND BAR CODE ID
- DISABLE CODE ID SEND BAR CODE ID – AS A PREFIX
SEND BAR CODE ID
- RESET SEND BAR CODE
ID – AS A SUFFIX
RS-232
USB
Default
LS6300 laser
WWW.SYMCOD.COM

Keyboard Language
DENMARK FINLAND
FRANCE GERMANY
ITALY LATIN AMERICA
NETHERLANDS NORWAY
POLAND SPAIN
SWITZERLAND
(FRENCH) SWITZERLAND
(GERMAN)
SWEDEN UNITED KINGDOM
UNIVERSAL UNITED STATES
Symbologies On/OFF-1
CODE 11 –
ENABLE CODE 11 CODE 11 – DISABLE
CODE 39 –
ENABLE CODE 39 CODE 39 – DISABLE
FULL ASCII –
ENABLE FULL ASCII – DISABLE
CODE 93 -ENABLE CODE 93 CODE 93 -DISABLE
CODE 128 -ENABLE CODE 128 CODE 128 - DISABLE
CODE 128 ISBT -
ENABLE CODE 128 ISBT - DISABLE
CODABAR –
ENABLE CODABAR CODABAR - DISABLE
Symbologies On/OFF-2
I2OF5 - ENABLE I2OF5 -
DISABLE
INTERLEAVED
2 OF 5
ID2OF5 - ENABLE ID2OF5 - DISABLE
INDUSTRIAL
2 OF 5
MSI - ENABLE MSI MSI - DISABLE
UPC-A ENABLE UPC/EAN UPC-A DISABLE
UPC-E ENABLE UPC-E DISABLE
EAN-13 ENABLE EAN-13 DISABLE
EAN-8 ENABLE EAN-8 DISABLE
BAR=1(HIGH) WAND BAR
LEVEL BAR=0(LOW)
090-01452 REV 13-01-16 A
