Synergy SYGS User manual

SYGS Operations Manual

Synergy SYGS
Graphical
Control Station
Operations Manual

CONTENTS
Introduction
Understanding Presets/Scenes and Channels/Zones
Overview Of The SYGS
Home Page
Settings
Timeouts
Options
Passwords
Setup
Access
Colors
Advanced
Basic Operation
Modifying Presets
Adjusting and including/excluding Channels
Duplicating Channel settings
Customization Options
Adding a custom logo
5
7
11
11
13 of the SYGS:
14
15
16
17
18
20
21
27 Operation
28
29
30
31
31

How Do I . . .
recall preset/saved light levels?
modify present/saved light levels?
adjust light levels?
identify the target locations?
identify the lights within a target location?
change target-location labels?
check the firmware version?
determine target locations being controlled?
determine target-location lights being controlled?
restore factory default programming?
check the firmware version?
Troubleshooting
For Advanced Users
SYGS Wiring
The A4 Network
Safety Information
Customer Service
Warranty
34
recall preset/saved light levels?
modify present/saved light levels?
adjust light levels?
identify the target locations?
identify the lights within a target location?
change target-location labels?
check the firmware version?
determine target locations being controlled?
determine target-location lights being controlled?
restore factory default programming?
check the firmware version?
36
37
37
37
38
38
39
CONTENTS

5
INTRODUCTION
This manual contains instructions needed to
configure your remote, wall-mounted Synergy
Graphical Control Station, or SYGS, and to modify
initial factory settings.
The SYGS is an architectural lighting-control station
that allows you to program and recall various light
levels. The available settings will allow your system to
meet a wide variety of applications.
The SYGS is operated by menus and buttons
displayed on an easy-to-use, touchscreen graphic
keypad. Using this keypad, you can control lighting
attributes (fade times, levels) of multiple targeted
lighting groups (called Presets or Scenes), by
adjusting multiple lighting circuits (called Channels
or Zones) within each targeted group.
The SYGS Graphical Control Station you have
purchased was engineered to provide years of
reliable operation for commercial applications.
If assistance beyond the scope of this manual is
required, contact Synergy Lighting Controls.
NOTE: Operational Requirement
The SYGS is dependent on the Synergy controller
to provide preset and channel functions. The SYGS
must be programmed through the Synergy controller
before it will provide any functionality. Please refer
to Synergy Config instructions for station setup
instructions.
34
recall preset/saved light levels?
modify present/saved light levels?
adjust light levels?
identify the target locations?
identify the lights within a target location?
change target-location labels?
check the firmware version?
determine target locations being controlled?
determine target-location lights being controlled?
restore factory default programming?
check the firmware version?
36
37
37
37
38
38
39

6
When the touchscreen is initially powered on, the
Logo screen will appear, showing the Synergy
Lighting Controls logo (Fig. 1).
Slide your finger firmly across the bottom area of
the screen to move to the Home Page of the SYGS
Graphical Control Station (Fig. 2).
NOTE: A pen or other stylus-like instrument will also
work; the SYGS is not temperature-sensitive.
Fig. 1
Swipe to unlock

7
Understanding Presets/Scenes and
Channels/Zones
Presets: Also identified as Scenes, Presets consist
of a set of lighting levels with an associated fade
time. PRESET buttons save and activate Preset
lighting scenes. To create a Preset (up to 16), set
the appropriate intensity for each of its selected
Channels (definition follows).
Channels: Also identified as Zones, Channels are
groups of specific circuits of lights prescribed to
each Preset according to common characteristics,
such as location or function. Arrow buttons on the
Channel screens raise or lower the intensity of the
associated lights.
Fade Time: Fade Time indicates how long it takes
the lights to adjust to the new intensity levels when
each Preset is selected.
Fig. 2

8
Fig. 3
The Home Page is the master control screen for
targeted lighting Presets/Scenes and their respective
Channels/Zones, beginning with Preset
1. IMPORTANT: For purposes of this manual, the
terms Presets and Channels will be used throughout.
To modify the terminology:
• Select SETTINGS, then OPTIONS to get to the
Options screen (Fig. 3).
• Toggle the KEYWORDS section using the < or >
buttons until you get the combination you prefer.
The options are:
Presets/Channels
Presets/Zones
Scenes/Channels
Scenes/Zones
To save your selection, tap the BACK button at the
lower right, then tap SAVE. You will be returned to
the SYGS Home Page. Tap CANCEL to return to the
Home Page without saving the settings (you will be
prompted to confirm this action).

9
OVERVIEW OF THE SYGS

11
Home Page Features
Top Button. This button is Preset button 1. This is
typically used as entry lighting.
Bottom Button. This master-control button turns
off all lights in all Channels. Note that on a station
configured with 0 channels, this button is Preset
button 2. If you wish to have it turn off the lights,
Preset 2 will need to be set as an off Preset.
Presets. Presets are the preset light levels and fade
times stored in the SYGS. The PRESETS button on
the SYGS Home Page (Fig. 2) changes the keypad
view to the initial Presets control screen (Fig. 5).
Each Presets screen provides four Presets at a time,
up to 16. Toggle through each set of four by using
the NEXT or PREV buttons, or by using the PAGE
1 button to return to the first set of Presets. From
Page 1, you can then return to the SYGS Home Page,
or by tapping CHANNELS you can move to the
Channels screen.
OVERVIEW OF THE SYGS
Fig. 2
Fig. 5

12
To create a Preset, select one of the 16 available
buttons. Select the MODIFY button. From here
you can begin selecting and programming levels
for multiple channels by selecting the ADJ LEVELS
button. When selections have been made, press the
“Return” button and then press the SAVE button.
To recall a Preset, simply press the pre-programmed
button for the lighting scene you wish to activate.

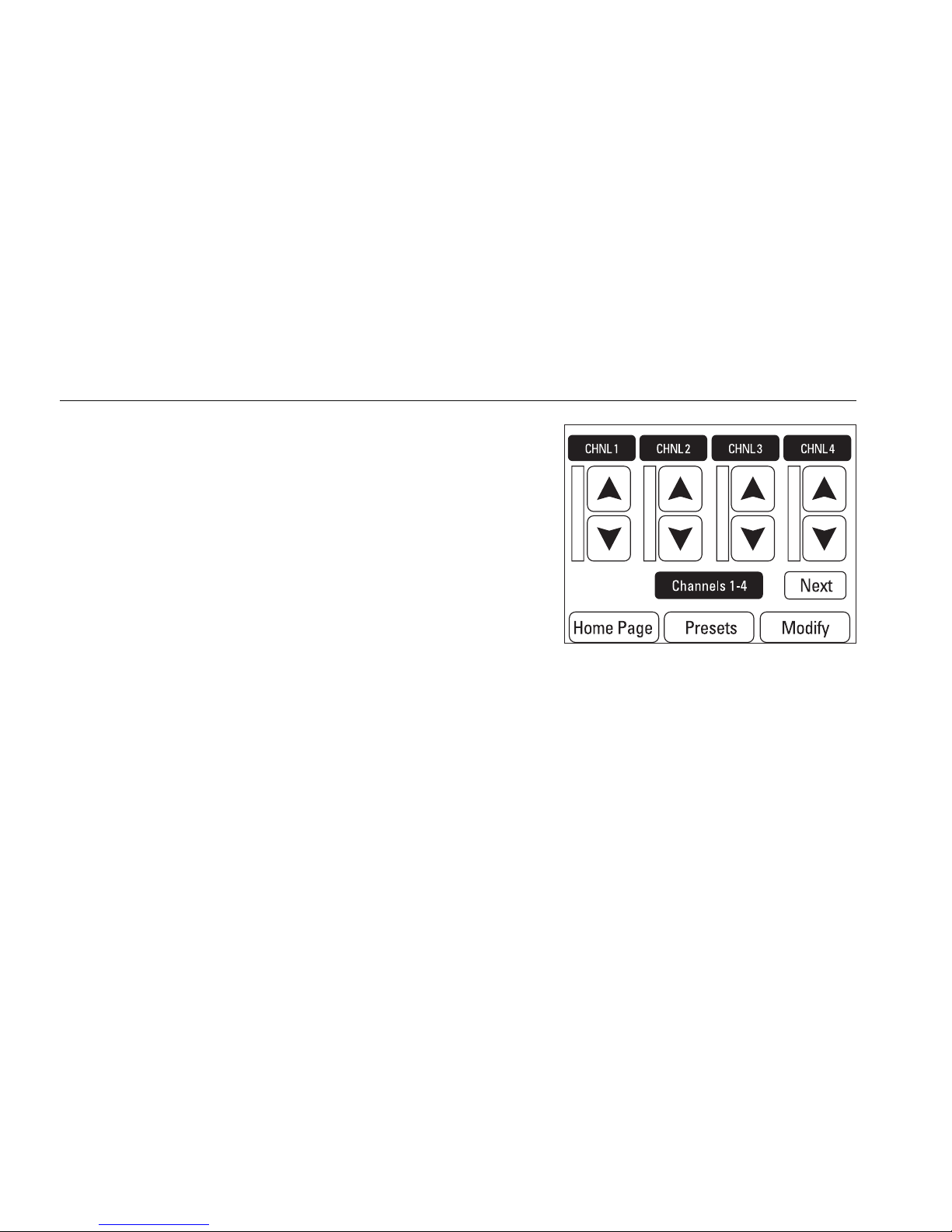

Channels. The CHANNELS button changes the
keypad view to the Channels controls screen (Fig.
6). Each Channels screen provides four Channels
at a time, up to 32. Page through each set of four
by using the NEXT or PREV buttons, or by using
the PAGE 1 button to return to the first page of
Channels. From Page 1, you can then return to the
SYGS Home Page, or by tapping PRESETS you can
move to the Presets screen.
Fig. 6

13
Settings. The SETTINGS button changes the keypad
view to the Settings control screen (Fig. 7). From this
screen, a wide variety of system preferences can be
edited. To save your selections, be sure to tap the
BACK button at the lower right and tap SAVE.
Fig. 7

14
SYGS Settings
NOTE: Features on the Settings screens must be
saved to take effect. After selecting your setting
preferences, tap the BACK button at the lower
right, then tap SAVE. You will be returned to the
SYGS Home Page. Tap CANCEL to return to the
Home Page without saving the settings (you will be
prompted to confirm this action).
Timeouts. NOTE: Timeouts on the SYGS screen are
sequential. Using the + or – buttons on the Timeouts
screen (Fig. 8), select the amount of time (5 to 45
seconds; 1 to 60 minutes) for the SYGS to perform
the following functions in order:
1. Screen: Automatically changes keypad view to
Logo Page.
2. Backlight Dim: Automatically dims keypad’s
backlight once on Logo Page.
3. Backlight Off: Automatically turns off the
keypad’s backlight once dimmed.
Fig. 8

15
Options. The Options screen (Fig. 3) allows you to
set the terminology for your use of the SYGS unit.
See Page 6 for more information. Also, the Options
screen gives you the ability to adjust the brightness
of the SYGS display (Fig. 3). Using the + or – buttons,
adjust the screen brightness level from 20% to 100%.
In addition, the Options screen allows you to place
an LED-like indicator on each of the Preset buttons
by placing an X in the blue box at the bottom left of
the screen. Indicator lights provide visual reference
to each Preset status.
Fig. 3

16
Passwords. This setting gives you options (Fig.
10) to set a 4-digit User Password a 4-digit Setup
Password, and a 4-digit Admin Password.
1. To enter passwords for each, tap the password-
field buttons to move to a set of touchscreen
keyboards, alpha or numeric.
2. Toggle between the alpha and numeric
keyboards (Fig. 11) using the lower, right-hand
buttons on each screen.
3. After entering your selected passwords, tap
the OK button to proceed or the CANCEL
button to cancel the action.
4. Tap the BACK button and SAVE your
selection(s).
NOTE: Carefully record and keep your password
in a secure location. Reset of station will not clear
user passwords.
Fig. 10
Fig. 11

17
Important: To initiate the password protections,
allow the SYGS to cycle through its Timeouts.
Passwords subsequently will be required to perform
tasks specific to each security level. The security
levels are as follows:
User Password:
• Locks out all functions (presets, channels,
modify presets, settings)
Settings Password:
• Locks out setting screen
• Optional lockout for Preset Modify function
Admin Password:
• Locks out ability to modify station address
• Locks out password screen

18
Access. The Access screen (Fig. 12) presents five
options for managing fundamental operations of the
SYGS. Tap the button beside each option to place
or remove an X from the buttons. An X appearing
indicates the function is active. NOTE: Setting
changes must be saved to take effect.
Swipe to Unlock:
Creates a moderate level of security by requiring
users to swipe firmly with a finger across the
bottom of the Logo screen to activate the SYGS.
In off mode, the SYGS is activated by touching
anywhere on the screen.
Timeout to Logo Screen:
Resets the SYGS to the Logo screen once the
Timeout settings are reached. In off mode, no
logo appears.
Home Page is Default:
Sets the Home Page as the screen default after
most commands. In off mode, the SYGS defaults
to the initial Presets control screen (Fig. 2).
Fig. 2
Fig. 12
