Thank you for purchasing this Haztec product. Before proceeding with installation, it is essential to
read and understand this instruction booklet.
▪This product must be installed by persons competent in vehicle electrical installations
▪Care should be taken to ensure that water ingress cannot occur through mounting or wiring
holes
▪Regularly inspect the product to confirm correct operation
▪DO NOT stare directly into the light it produces as permanent damage to the eyes may
result
▪Use only a mixture of soap and water to clean this product
▪DO NOT allow solvents, fuels, or acetone-based cleaners etc. to contact this product
Basic Operating Specifications:
Supply voltage range:
10-40VDC
Maximum current draw @ 12Vrms:
5-3604
5-3605
5-3606
5-3607
5-3608
5-3609
5-3610
3.46A
3.88A
4.72A
5.46A
6.26A
7.06A
7.8A
Maximum current draw @ 24Vrms:
1.62A
2.08A
2.72A
3.06A
3.46A
3.8A
4.26A
Fuse rating:
8A
8A
8A
10A
10A
15A
15A
LED power:
3W per LED
Operating temperature range:
-30 to +55OC
Cable length:
5m
Part No.
Length
Modules
Part No.
Length
Modules
5-3554
558mm
4
5-3558
1107mm
8
5-3555
697mm
5
5-3559
1246mm
9
5-3556
829mm
6
5-3560
1385mm
10
5-3557
968mm
7
▪Slimline warning bar
▪12/24VDC
▪4-10 LED modules
▪3W GEN3 LEDs
▪User selectable flash patterns
▪DIM function
▪Horizontal or vertical mount
▪Adjustable bracket
▪5-year warranty

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ [e-mail] ∙ www.haztec.uk
5-360X~3610-XX
Dual-Colour
LED Arrow/Warning Bar
M315.1.0 - 2 - March 2021
Connection Instructions:
Wire
Connect to
Function
Red
Positive [+] via switch & fuse
Main feed 1
Black
Permanent negative [-]
Earth / Ground
Blue
Positive [+] via switch
Pattern Select / DIM Mode (50% intensity)2
White
Positive [+]
Flash Pattern 1 (FP1)
Yellow
Positive [+]
Flash Pattern 2 (FP2)
Green
Positive [+]
Flash Pattern 3 (FP3)
Orange
Positive [+]
Flash Pattern 4 (FP4)
1 Arrowbar will activate when the red wire and one of the pattern wires are connected to
positive [+] at the same time
2 See ‘Setting Pattern Select / DIM Mode’
Setting Pattern Select / DIM Mode:
▪Connect the red and black wires as per connection instructions
▪Connect the yellow and orange wires together and then tap to positive [+] 3 times within
3 seconds
▪Zones 2~11 will flash 5 times in 2 seconds then turn off. The function of the blue wire has
now changed to Pattern Select
▪To change to function of the blue wire back to DIM Mode complete steps 1 & 2 above then;
▪All lamps will light for 2 seconds then turn off. The function of the blue wire has now
changed to DIM Mode
Selecting Flash Pattern:
▪Connect the red and black wires as per connection instructions
▪Connect either the white, green, yellow, or orange wires to positive [+]
▪Briefly tap the blue wire to positive [+]
➢<1 second to advance to the next flash pattern
➢1-3 seconds to return to the previous flash pattern
➢>3 seconds to reset to the first flash pattern of each FP wire

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ [e-mail] ∙ www.haztec.uk
5-360X~3610-XX
Dual-Colour
LED Arrow/Warning Bar
M315.1.0 - 3 - March 2021

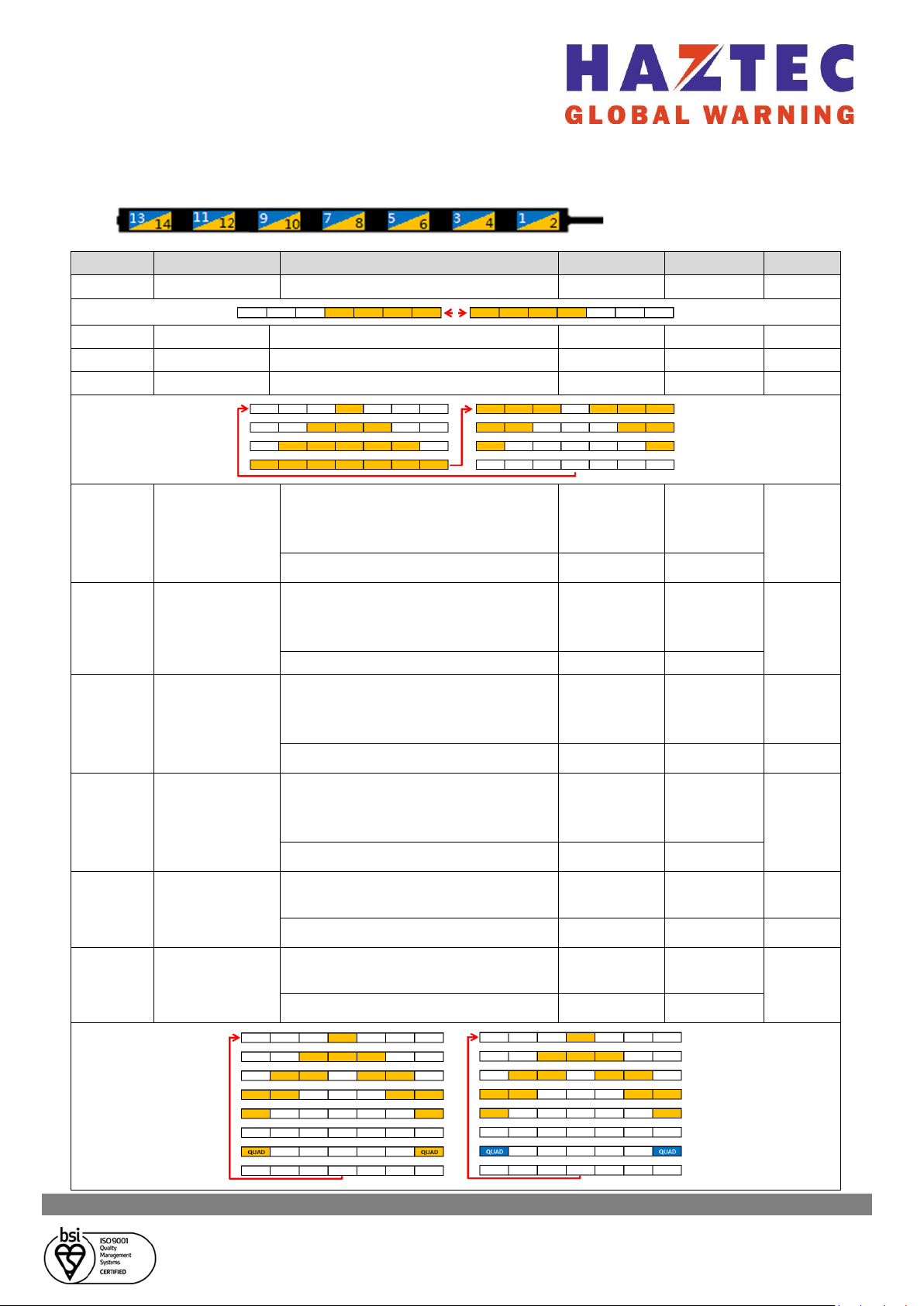

Flash Patterns:
▪5-3604 (4 modules)
Program
Sequence
Modules
Pattern
Frequency
Default
1
Alternating
[2,4] [6,8]
Quad
1.5Hz
FP1
2
Direct
[8] to [2]
To Right
-
FP2
3
Direct
[2] to [8]
To Left
-
FP3
4
Direct
[4] [6] to [2] [8]
Centre Out
-
FP4
5
Swing 
Flashing
[8] [8,6] [6,4] [4,2] [2]
off 
To Right
-
[2,8]
Quad
1.25Hz
6
Swing 
Flashing
[8] [8,6] [6,4] [4,2] [2]
off 
To Right
-
[1,7]
Quad
1.25Hz
7
Swing 
Flashing
[2] [2,4] [4,6] [6,8] [8]
off 
To Left
-
[2,8]
Quad
1.25Hz
8
Swing 
Flashing
[2] [2,4] [4,6] [6,8] [8]
off 
To Left
-
[1,7]
Quad
1.25Hz
9
Swing 
Flashing
[4,6] [2,4,6,8] [2,8] off 
Centre Out
-
[2,8]
Quad
1.25Hz
10
Swing 
Flashing
[4,6] [2,4,6,8] [2,8] off 
Centre Out
-
[1,7]
Quad
1.25Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ [e-mail] ∙ www.haztec.uk
5-360X~3610-XX
Dual-Colour
LED Arrow/Warning Bar
M315.1.0 - 4 - March 2021

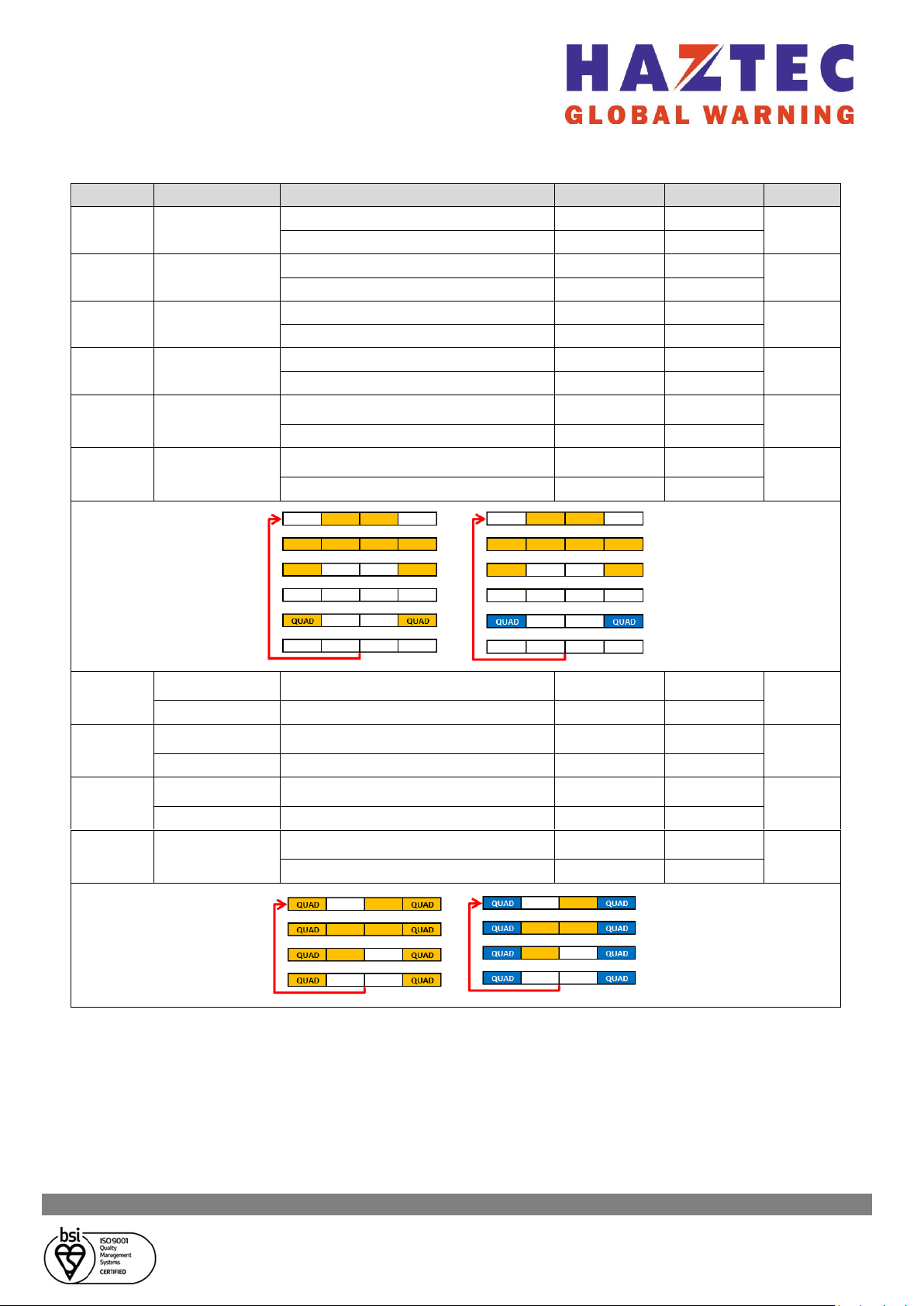

Program
Sequence
Modules
Pattern
Frequency
Default
11
Direct 
Flashing
[8] to [2] off 
To Right
-
[2,8]
Quad
1.25Hz
12
Direct 
Flashing
[8] to [2] off 
To Right
-
[1,7]
Quad
1.25Hz
13
Direct 
Flashing
[2] to [8] off 
To Left
-
[2,8]
Quad
1.25Hz
14
Direct 
Flashing
[2] to [8] off 
To Left
-
[1,7]
Quad
1.25Hz
15
Direct 
Flashing
[4] [6] to [2] [8] off 
Centre Out
-
[2,8]
Quad
1.25Hz
16
Direct 
Flashing
[4][6] to [2] [8] off 
Centre Out
-
[1,7]
Quad
1.25Hz
17
Direct
[6] to [4]
To Right
-
Simultaneous
[2,8]
Quad
2Hz
18
Direct
[4] to [6]
To Left
-
Simultaneous
[2,8]
Quad
2Hz
19
Direct
[6] to [4]
To Right
-
Simultaneous
[1,7]
Quad
2Hz
20
Direct
Simultaneous
[4] to [6]
To Left
-
[1,7]
Quad
2Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ [e-mail] ∙ www.haztec.uk
5-360X~3610-XX
Dual-Colour
LED Arrow/Warning Bar
M315.1.0 - 5 - March 2021

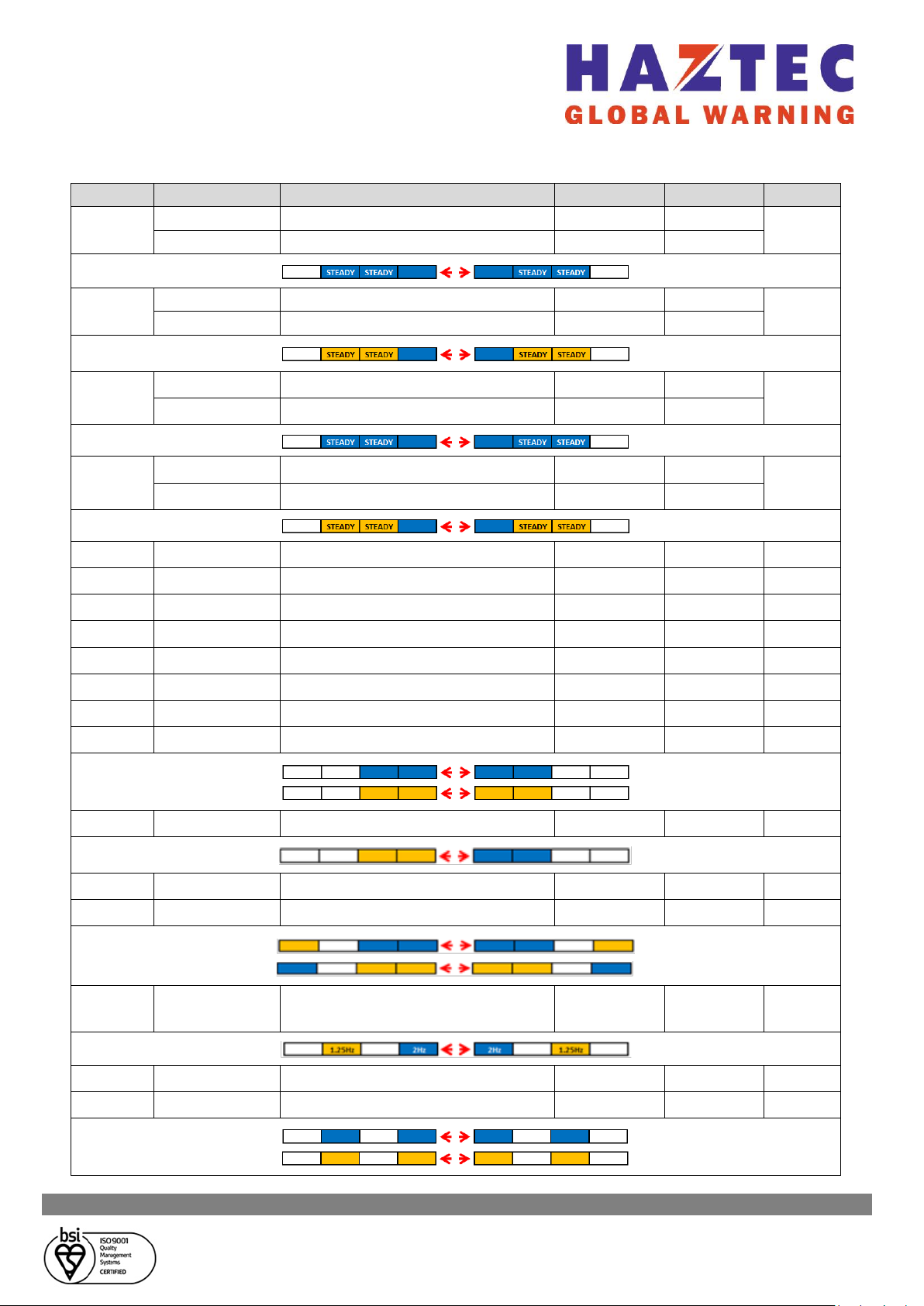

Program
Sequence
Modules
Pattern
Frequency
Default
21
Alternating
[1] [7]
Quad
2Hz
Steady
[3,5]
-
-
22
Alternating
[1] [7]
Quad
2Hz
Steady
[4,6]
-
-
23
Alternating
[1] [7]
Double
2Hz
Steady
[3,5]
-
-
24
Alternating
[1] [7]
Double
2Hz
Steady
[4,6]
-
-
25
Alternating
[1,3] [5,7]
Quad
1.25Hz
26
Alternating
[2,4] [6,8]
Quad
1.25Hz
27
Alternating
[1,3] [5,7]
Double
1.25Hz
28
Alternating
[2,4] [6,8]
Double
1.25Hz
29
Alternating
[1,3] [5,7]
Quad
2Hz
30
Alternating
[2,4] [6,8]
Quad
2Hz
31
Alternating
[1,3] [5,7]
Single
2Hz
32
Alternating
[2,4] [6,8]
Single
2Hz
33
Alternating
[2,4] [5,7]
Quad
2Hz
34
Alternating
[1,3,8] [2,5,7]
Double
2Hz
35
Alternating
[2,4,7] [1,6,8]
Double
2Hz
36
Alternating
[1,7] [6,4]
Double
2Hz /
1.25Hz
37
Alternating
[1,5] [3,7]
Quad
2Hz
38
Alternating
[2,6] [4,8]
Quad
2Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ [e-mail] ∙ www.haztec.uk
5-360X~3610-XX
Dual-Colour
LED Arrow/Warning Bar
M315.1.0 - 6 - March 2021
Program
Sequence
Modules
Pattern
Frequency
Default
39
Simultaneous
[1,3,5,7]
Quad
1.25hz
40
Simultaneous
[2,4,6,8]
Quad
1.25hz
41
Simultaneous
[1,3,5,7]
Double
1.25Hz
42
Simultaneous
[2,4,6,8]
Double
1.25Hz
43
Simultaneous
[1,3,5,7]
Quad
2Hz
44
Simultaneous
[2,4,6,8]
Quad
2Hz
45
Simultaneous
[1,3,5,7]
Double
2Hz
46
Simultaneous
[2,4,6,8]
Double
2Hz
47
Simultaneous
[1,7]
Double
2Hz
Steady
[3,5]
-
-
48
Simultaneous
[1,7]
Quad
2Hz
Steady
[3,5]
-
-
49
Swing
[1] [1,3] [3,5] [5,7] [7]
[5,7] [3,5] [1,3]
Single
1.5Hz
50
Swing
[2] [2,4] [4,6] [6,8] [8]
[6,8] [4,6] [2,4]
Single
1.5Hz
51
Alternating
[1,7] [4,6]
Quad
2Hz
52
Alternating
[1] [7]
Quad
2Hz
Steady
[4,6]
-
-
53
Simultaneous
[1,7]
Quad
2Hz
Steady
[4,6]
-
-

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ [e-mail] ∙ www.haztec.uk
5-360X~3610-XX
Dual-Colour
LED Arrow/Warning Bar
M315.1.0 - 7 - March 2021
Program
Sequence
Modules
Pattern
Frequency
Default
54
Alternating
[1] [7]
Double
2Hz
55
Alternating
[2] [8]
Double
2Hz
56
Simultaneous
[1,7]
Double
2Hz
57
Simultaneous
[2,8]
Double
2Hz
58
Swing
[8] [8,6] [6,4] [4,2] [2]
off
To Right
-
59
Swing
[2] [2,4] [4,6] [6,8] [8]
off
To Left
-
60
Swing
[4,6] [2,4,6,8] [2,8] off
Centre Out
-
61
Alternating
[3,7] [1,5] [4,8] [2,6]
Quad
1.25Hz
62
Alternating
[1,7] [3,5]
Quad
1.25Hz
63
Alternating
[2,8] [4,6]
Quad
1.25Hz
64
Alternating
[5,7] [1,3] [6,8] [2,4]
Quad
1.25Hz
65
Alternating
[1,3,5,7] [2,4,6,8]
Double
1.25Hz
66
Alternating
[1,3,5,7] [2,4,6,8]
Single
1.25Hz
67
Alternating
[1,4,5,8] [2,3,6,7]
Single
1.25Hz
68
Alternating
[1,3,6,8] [2,4,5,7]
Single
1.25Hz
69
Alternating
[1,3,6,8] [2,4,5,7]
Double
1.25Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ [e-mail] ∙ www.haztec.uk
5-360X~3610-XX
Dual-Colour
LED Arrow/Warning Bar
M315.1.0 - 8 - March 2021
▪5-3605 (5 modules)
Program
Sequence
Modules
Pattern
Frequency
Default
1
Alternating
[2,4,6] [6,8,10]
Quad
1.5Hz
FP1
2
Direct
[10] to [2]
To Right
-
FP2
3
Direct
[2] to [10]
To Left
-
FP3
4
Direct
[6] to [2] [10]
Centre Out
-
FP4
5
Swing 
Flashing
[10] [10,8] [8,6] [6,4] 
[4,2] [2] off 
To Right
-
[2,10]
Quad
1.25Hz
6
Swing 
Flashing
[10] [10,8] [8,6] [6,4] 
[4,2] [2] off 
To Right
-
[1,9]
Quad
1.25Hz
7
Swing 
Flashing
[2] [2,4] [4,6] [6,8] 
[8,10] [10] off 
To Left
-
[2,10]
Quad
1.25Hz
8
Swing 
Flashing
[2] [2,4] [4,6] [6,8] 
[8,10] [10] off 
To Left
-
[1,9]
Quad
1.25Hz
9
Swing 
Flashing
[6] [4,6,8] [2,4,8,10] 
[2,10] off 
Centre Out
-
[2,10]
Quad
1.25Hz
10
Swing 
Flashing
[6] [4,6,8] [2,4,8,10] 
[2,10] off 
Centre Out
-
[1,9]
Quad
1.25Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ [e-mail] ∙ www.haztec.uk
5-360X~3610-XX
Dual-Colour
LED Arrow/Warning Bar
M315.1.0 - 9 - March 2021
Program
Sequence
Modules
Pattern
Frequency
Default
11
Direct 
Flashing
[10] to [2] off 
To Right
-
[2,10]
Quad
1.25Hz
12
Direct 
Flashing
[10] to [2] off 
To Right
-
[1,9]
Quad
1.25Hz
13
Direct 
Flashing
[2] to [10] off 
To Left
-
[2,10]
Quad
1.25Hz
14
Direct 
Flashing
[2] to [10] off 
To Left
-
[1,9]
Quad
1.25Hz
15
Direct 
Flashing
[6] to [2] [10] off 
Centre Out
-
[2,10]
Quad
1.25Hz
16
Direct 
Flashing
[6] to [2] [10] off 
Centre Out
-
[1,9]
Quad
1.25Hz
17
Direct
[8] to [4]
To Right
-
Simultaneous
[2,10]
Quad
2Hz
18
Direct
[4] to [8]
To Left
-
Simultaneous
[2,10]
Quad
2Hz
19
Direct
[6] to [4] [8]
Centre Out
-
Simultaneous
[2,10]
Quad
2Hz
20
Direct
[8] to [4]
To Right
-
Simultaneous
[1,9]
Quad
2Hz
21
Direct
[4] to [8]
To Left
-
Simultaneous
[1,9]
Quad
2Hz
22
Direct
[6] to [4] [8]
Centre Out
-
Simultaneous
[1,9]
Quad
2Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ [e-mail] ∙ www.haztec.uk
5-360X~3610-XX
Dual-Colour
LED Arrow/Warning Bar
M315.1.0 - 10 - March 2021
Program
Sequence
Modules
Pattern
Frequency
Default
23
Alternating
[1,3] [7,9]
Quad
2Hz
Steady
[5]
-
-
24
Alternating
[1,3] [7,9]
Quad
2Hz
Steady
[6]
-
-
25
Alternating
[1,3] [7,9]
Double
2Hz
Steady
[5]
-
-
26
Alternating
[1,3] [7,9]
Double
2Hz
Steady
[6]
-
-
27
Alternating
[1,3,5] [5,7,9]
Quad
1.25Hz
28
Alternating
[2,4,6] [6,8,10]
Quad
1.25Hz
29
Alternating
[1,3,5] [5,7,9]
Double
1.25Hz
30
Alternating
[2,4,6] [6,8,10]
Double
1.25Hz
31
Alternating
[1,3,5] [5,7,9]
Quad
2Hz
32
Alternating
[2,4,6] [6,8,10]
Quad
2Hz
33
Alternating
[1,3,5] [5,7,9]
Single
2Hz
34
Alternating
[2,4,6] [6,8,10]
Single
2Hz
35
Alternating
[2,4,6] [5,7,9]
Quad
2Hz
36
Alternating
[1,3,5,10] [2,5,7,9]
Double
2Hz
37
Alternating
[2,4,6,9] [1,6,8,10]
Double
2Hz
38
Alternating
[1] [9]
Double
2Hz
[8] [4]
1.25Hz
39
Alternating
[1,5,9] [3,7]
Quad
2Hz
40
Alternating
[2,6,10] [4,8]
Quad
2Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ [e-mail] ∙ www.haztec.uk
5-360X~3610-XX
Dual-Colour
LED Arrow/Warning Bar
M315.1.0 - 11 - March 2021

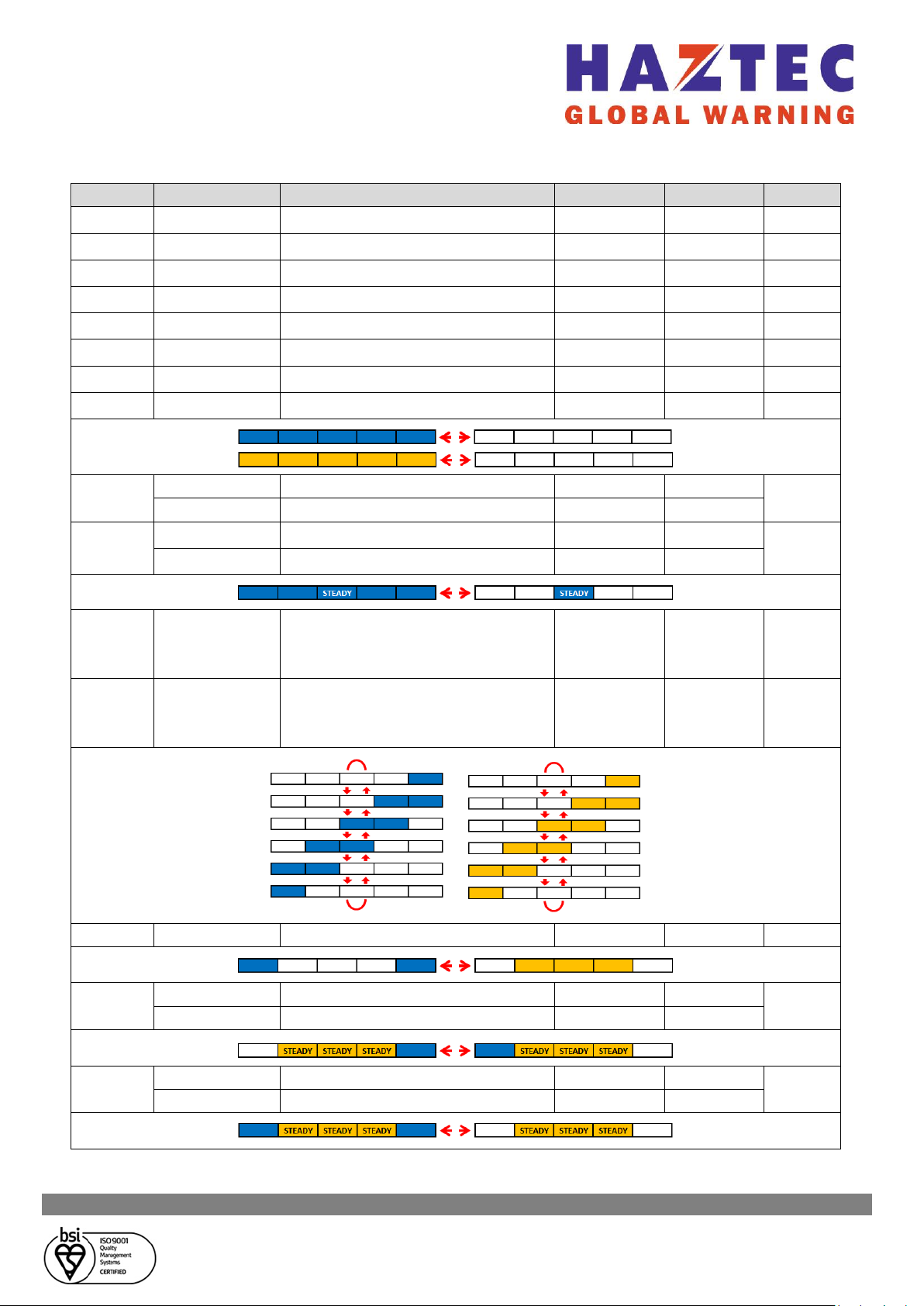

Program
Sequence
Modules
Pattern
Frequency
Default
41
Simultaneous
[1,3,5,7,9]
Quad
1.25hz
42
Simultaneous
[2,4,6,8,10]
Quad
1.25hz
43
Simultaneous
[1,3,5,7,9]
Double
1.25Hz
44
Simultaneous
[2,4,6,8,10]
Double
1.25Hz
45
Simultaneous
[1,3,5,7,9]
Quad
2Hz
46
Simultaneous
[2,4,6,8,10]
Quad
2Hz
47
Simultaneous
[1,3,5,7,9]
Double
2Hz
48
Simultaneous
[2,4,6,8,10]
Double
2Hz
49
Simultaneous
[1,3,7,9]
Double
2Hz
Steady
[5]
-
-
50
Simultaneous
[1,3,7,9]
Quad
2Hz
Steady
[5]
-
-
51
Swing
[1] [1,3] [3,5] [5,7] 
[7,9] [9] [7,9] [5,7] 
[3,5] [1,3]
Single
1.5Hz
52
Swing
[2] [2,4] [4,6] [6,8] 
[8,10] [10] [8,10] [6,8] 
[4,6] [2,4]
Single
1.5Hz
53
Alternating
[1,9] [4,6,8]
Quad
2Hz
54
Alternating
[1] [9]
Quad
2Hz
Steady
[4,6,8]
-
-
55
Simultaneous
[1,9]
Quad
2Hz
Steady
[4,6,8]
-
-

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ [e-mail] ∙ www.haztec.uk
5-360X~3610-XX
Dual-Colour
LED Arrow/Warning Bar
M315.1.0 - 12 - March 2021

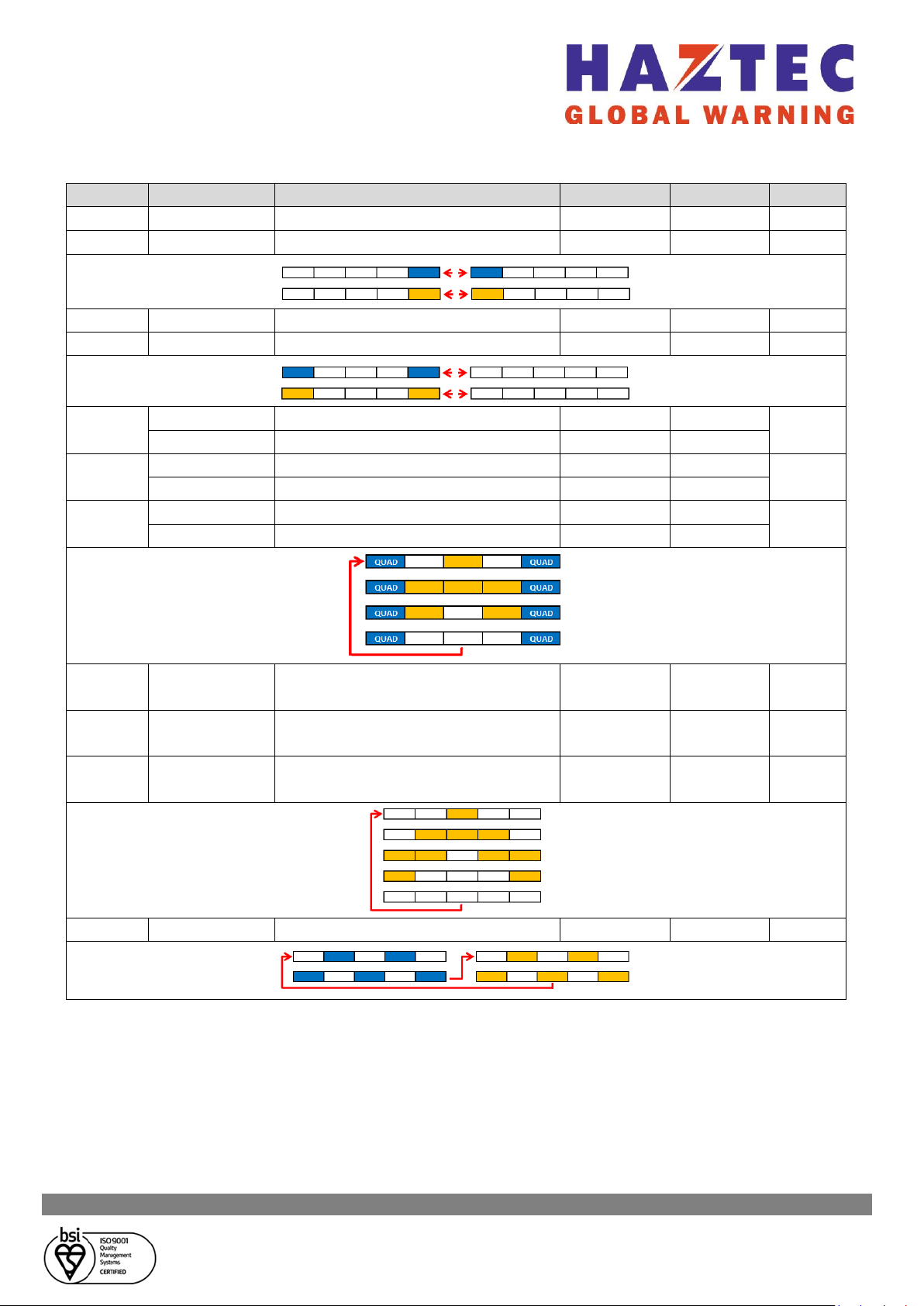

Program
Sequence
Modules
Pattern
Frequency
Default
56
Alternating
[1] [9]
Double
2Hz
57
Alternating
[2] [10]
Double
2Hz
58
Simultaneous
[1,9]
Double
2Hz
59
Simultaneous
[2,10]
Double
2Hz
60
Swing
[8] [8,6] [6,4] [4] off
To Right
-
Simultaneous
[1,9]
Quad
2Hz
61
Swing
[4] [4,6] [6,8] [8] off
To Left
-
Simultaneous
[1,9]
Quad
2Hz
62
Swing
[6] [4,6,8] [4,8] off
Centre Out
-
Simultaneous
[1,9]
Quad
2Hz
63
Swing
[10] [10,8] [8,6] [6,4] 
[4,2] [2] off
To Right
-
64
Swing
[2] [2,4] [4,6] [6,8] 
[8,10] [10] off
To Left
-
65
Swing
[6] [4,6,8] [2,4,8,10] [2,10]
off
Centre Out
-
66
Alternating
[3,7] [1,5,9] [4,8] [2,6,10]
Quad
1.25Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ [e-mail] ∙ www.haztec.uk
5-360X~3610-XX
Dual-Colour
LED Arrow/Warning Bar
M315.1.0 - 13 - March 2021

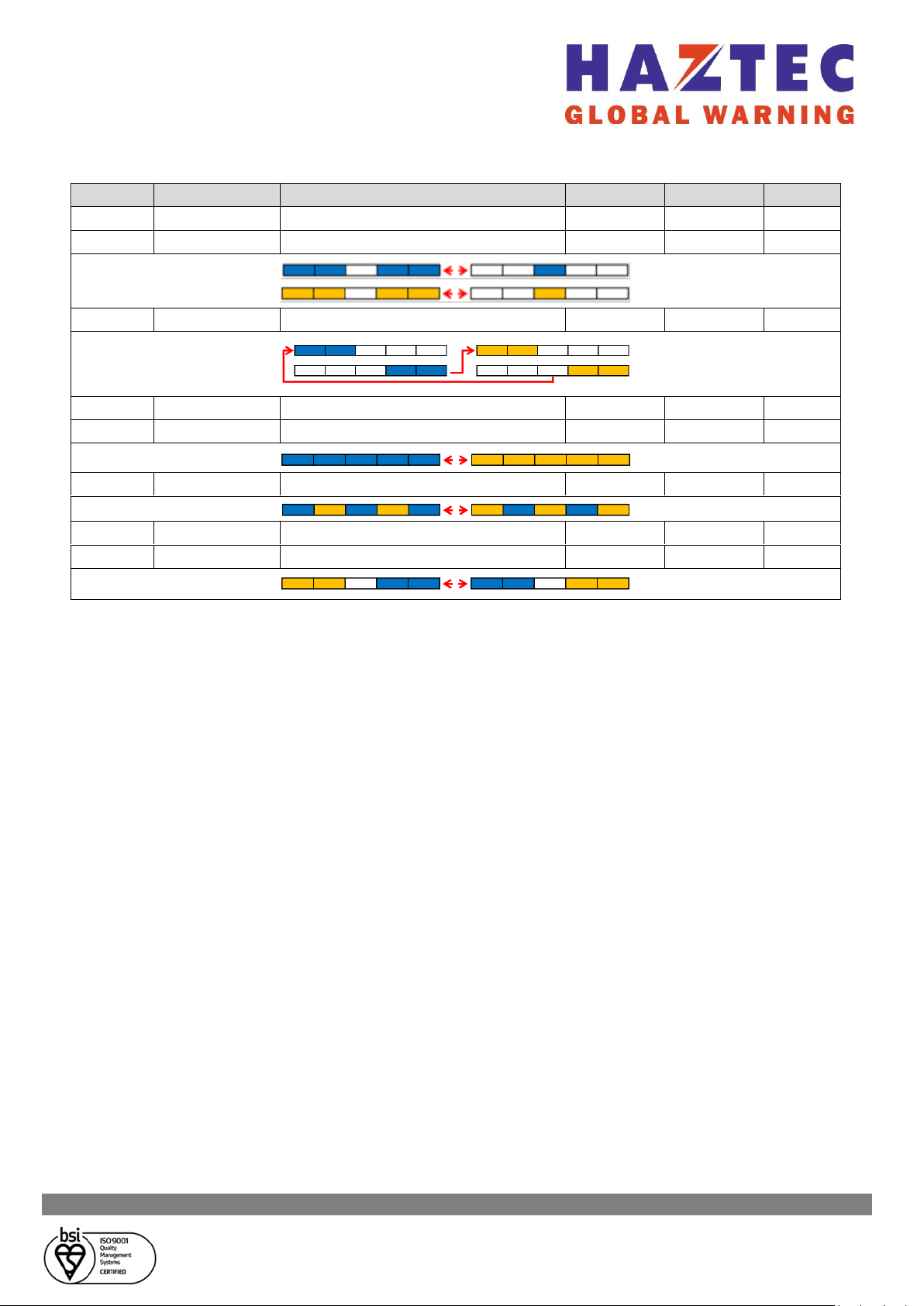

Program
Sequence
Modules
Pattern
Frequency
Default
67
Alternating
[1,3,7,9] [5]
Quad
1.25Hz
68
Alternating
[2,4,8,10] [6]
Quad
1.25Hz
69
Alternating
[7,9] [1,3] [8,10] [2,4]
Quad
70
Alternating
[1,3,5,7,9] [2,4,6,8,10]
Double
1.25Hz
71
Alternating
[1,3,5,7,9] [2,4,6,8,10]
Single
1.25Hz
72
Alternating
[1,4,5,8,9] [2,3,6,7,10]
Single
1.25Hz
73
Alternating
[1,3,8,10] [2,4,7,9]
Single
1.25Hz
74
Alternating
[1,3,8,10] [2,4,7,9]
Double
1.25Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ [e-mail] ∙ www.haztec.uk
5-360X~3610-XX
Dual-Colour
LED Arrow/Warning Bar
M315.1.0 - 14 - March 2021

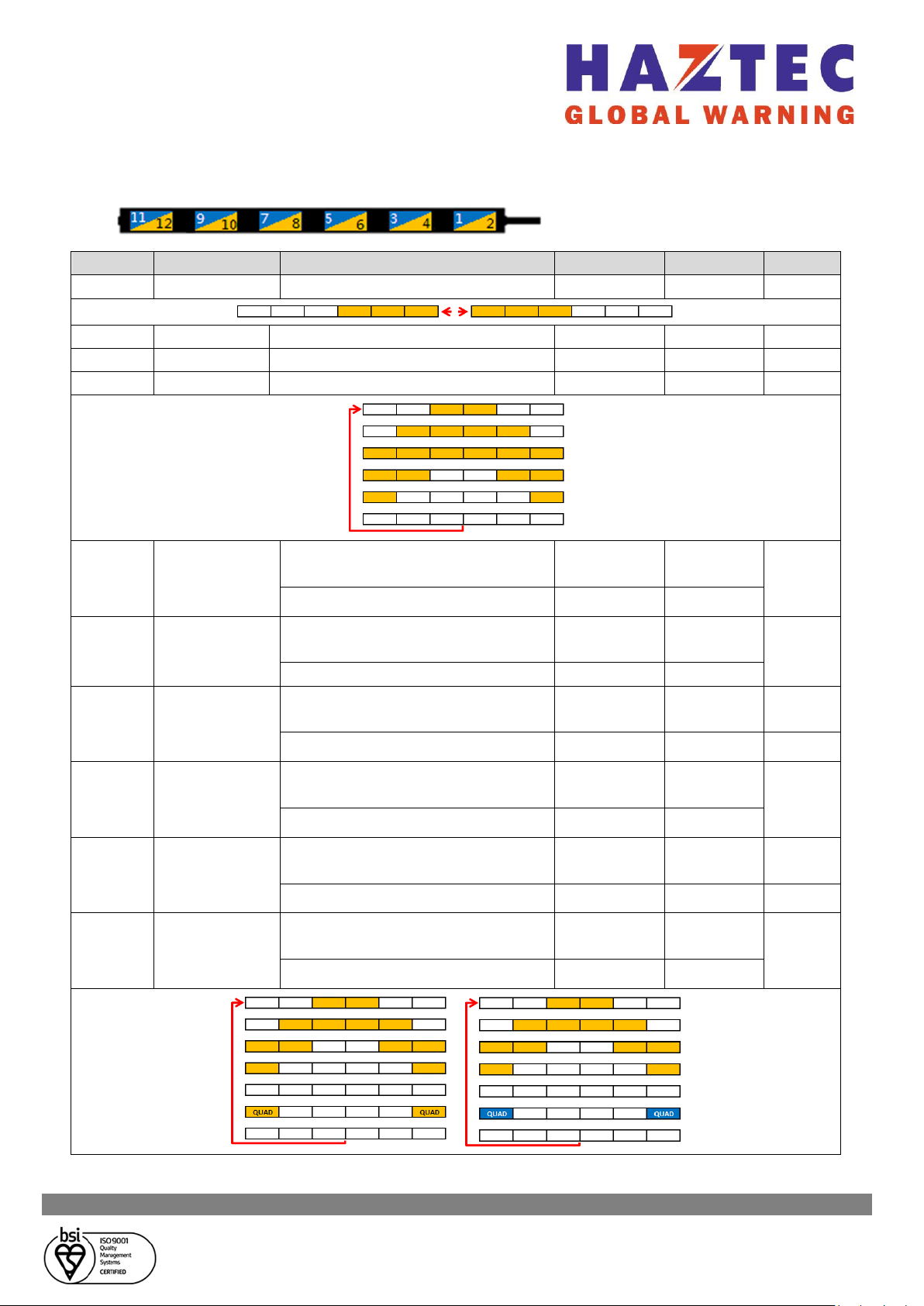

▪5-3606 (6 modules)
Program
Sequence
Modules
Pattern
Frequency
Default
1
Alternating
[2,4,6] [8,10,12]
Quad
1.5Hz
FP1
2
Direct
[12] to [2]
To Right
-
FP2
3
Direct
[2] to [12]
To Left
-
FP3
4
Direct
[6] [8] to [2] [12]
Centre Out
-
FP4
5
Swing 
Flashing
[12] [12,10] [10,8] [8,6]
[6,4] [4,2] [2] off 
To Right
-
[2,12]
Quad
1.25Hz
6
Swing 
Flashing
[12] [12,10] [10,8] [8,6]
[6,4] [4,2] [2] off 
To Right
-
[1,11]
Quad
1.25Hz
7
Swing 
Flashing
[2] [2,4] [4,6] [6,8] 
[8,10] [10,12] [12] off 
To Left
-
[2,12]
Quad
1.25Hz
8
Swing 
Flashing
[2] [2,4] [4,6] [6,8] 
[8,10] [10,12] [12] off 
To Left
-
[1,11]
Quad
1.25Hz
9
Swing 
Flashing
[6,8] [4,6,8,10] [2,4,10,12]
[2,12] off 
Centre Out
-
[2,12]
Quad
1.25Hz
10
Swing 
Flashing
[6,8] [4,6,8,10] [2,4,10,12]
[2,12] off 
Centre Out
-
[1,11]
Quad
1.25Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ [e-mail] ∙ www.haztec.uk
5-360X~3610-XX
Dual-Colour
LED Arrow/Warning Bar
M315.1.0 - 15 - March 2021
Program
Sequence
Modules
Pattern
Frequency
Default
11
Direct 
Flashing
[12] to [2] off 
To Right
-
[2,12]
Quad
1.25Hz
12
Direct 
Flashing
[12] to [2] off 
To Right
-
[1,11]
Quad
1.25Hz
13
Direct 
Flashing
[2] to [12] off 
To Left
-
[2,12]
Quad
1.25Hz
14
Direct 
Flashing
[2] to [12] off 
To Left
-
[1,11]
Quad
1.25Hz
15
Direct 
Flashing
[6] [8] to [2] [12] off 
Centre Out
-
[2,12]
Quad
1.25Hz
16
Direct 
Flashing
[6] [8] to [2] [12] off 
Centre Out
-
[1,11]
Quad
1.25Hz
17
Direct
[10] to [4]
To Right
-
Simultaneous
[2,12]
Quad
2Hz
18
Direct
[4] to [10]
To Left
-
Simultaneous
[2,12]
Quad
2Hz
19
Direct
[6] [8] to [4] [10]
Centre Out
-
Simultaneous
[2,12]
Quad
2Hz
20
Direct
[10] to [4]
To Right
-
Simultaneous
[1,11]
Quad
2Hz
21
Direct
[4] to [10]
To Left
-
Simultaneous
[1,11]
Quad
2Hz
22
Direct
[6] [8] to [4] [10]
Centre Out
-
Simultaneous
[1,11]
Quad
2Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ [e-mail] ∙ www.haztec.uk
5-360X~3610-XX
Dual-Colour
LED Arrow/Warning Bar
M315.1.0 - 16 - March 2021

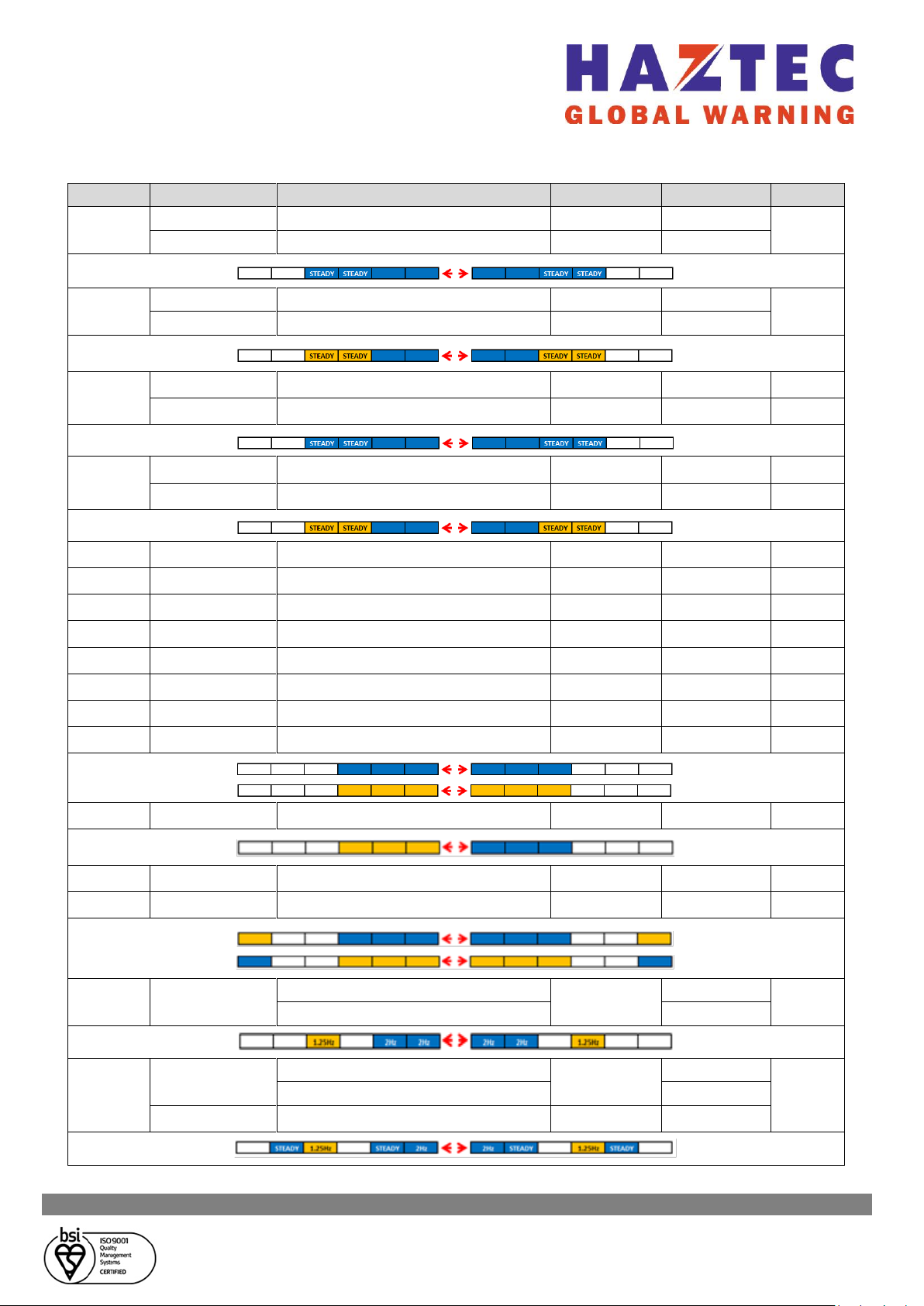

Program
Sequence
Modules
Pattern
Frequency
Default
23
Alternating
[1,3] [9,11]
Quad
2Hz
Steady
[5,7]
-
-
24
Alternating
[1,3] [9,11]
Quad
2Hz
Steady
[6,8]
-
-
25
Alternating
[1,3] [9,11]
Double
2Hz
Steady
[5,7]
-
-
26
Alternating
[1,3] [9,11]
Double
2Hz
Steady
[6,8]
-
-
27
Alternating
[1,3,5] [7,9,11]
Quad
1.25Hz
28
Alternating
[2,4,6] [8,10,12]
Quad
1.25Hz
29
Alternating
[1,3,5] [7,9,11]
Double
1.25Hz
30
Alternating
[2,4,6] [8,10,12]
Double
1.25Hz
31
Alternating
[1,3,5] [7,9,11]
Quad
2Hz
32
Alternating
[2,4,6] [8,10,12]
Quad
2Hz
33
Alternating
[1,3,5] [7,9,11]
Single
2Hz
34
Alternating
[2,4,6] [8,10,12]
Single
2Hz
35
Alternating
[2,4,6] [7,9,11]
Quad
2Hz
36
Alternating
[1,3,5,12] [2,7,9,11]
Double
2Hz
37
Alternating
[2,4,6,11] [1,8,10,12]
Double
2Hz
38
Alternating
[1,3] [9,11]
Double
2Hz
[8] [6]
1.25Hz
39
Alternating
[1] [11]
Double
2Hz
[8] [6]
1.25Hz
Steady
[3,9]
-
-

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ [e-mail] ∙ www.haztec.uk
5-360X~3610-XX
Dual-Colour
LED Arrow/Warning Bar
M315.1.0 - 17 - March 2021
Program
Sequence
Modules
Pattern
Frequency
Default
40
Alternating
[1,5,9] [3,7,11]
Quad
2Hz
41
Alternating
[2,6,10] [4,8,12]
Quad
2Hz
42
Simultaneous
[1,3,5,7,9,11]
Quad
1.25hz
43
Simultaneous
[2,4,6,8,10,12]
Quad
1.25hz
44
Simultaneous
[1,3,5,7,9,11]
Double
1.25Hz
45
Simultaneous
[2,4,6,8,10,12]
Double
1.25Hz
46
Simultaneous
[1,3,5,7,9,11]
Quad
2Hz
47
Simultaneous
[2,4,6,8,10,12]
Quad
2Hz
48
Simultaneous
[1,3,5,7,9,11]
Double
2Hz
49
Simultaneous
[2,4,6,8,10,12]
Double
2Hz
50
Simultaneous
[1,3,9,11]
Double
2Hz
Steady
[5,7]
-
-
51
Simultaneous
[1,3,9,11]
Quad
2Hz
Steady
[5,7]
-
-
52
Swing
[1] [1,3] [3,5] [5,7] [7,9]
[9,11] [11] [9,11] [7,9]
[5,7] [3,5] [1,3]
Single
1.5Hz
53
Swing
[2] [2,4] [4,6] [6,8] 
[8,10] [10,12] [12] [10,12]
[8,10] [6,8] [4,6] [2,4]
Single
1.5Hz
54
Alternating
[1,11] [4,6,8,10]
Quad
2Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ [e-mail] ∙ www.haztec.uk
5-360X~3610-XX
Dual-Colour
LED Arrow/Warning Bar
M315.1.0 - 18 - March 2021
Program
Sequence
Modules
Pattern
Frequency
Default
55
Alternating
[1] [11]
Quad
2Hz
Steady
[4,6,8,10]
-
-
56
Simultaneous
[1,11]
Quad
2Hz
Steady
[4,6,8,10]
-
-
57
Alternating
[1] [11]
Double
2Hz
58
Alternating
[2] [12]
Double
2Hz
59
Simultaneous
[1,11]
Double
2Hz
60
Simultaneous
[2,12]
Double
2Hz
61
Swing
[10] [10,8] [8,6] [6,4] [4] 
off
To Right
-
Simultaneous
[1,11]
Quad
2Hz
62
Swing
[4] [4,6] [6,8] [8,10] [10] 
off
To Left
-
Simultaneous
[1,11]
Quad
2Hz
63
Swing
[6,8] [4,6,8,10] [4,10] off
Centre Out
-
Simultaneous
[1,11]
Quad
2Hz
64
Swing
[12] [12,10] [10,8] [8,6] 
[6,4] [4,2] [2] off
To Right
-
65
Swing
[2] [2,4] [4,6] [6,8] [8,10]
[10,12] [12] off
To Left
-
66
Swing
[6,8] [4,6,8,10] [2,4,10,12] 
[2,12] off
Centre Out
-
67
Alternating
[3,7,11] [1,5,9] [4,8,12] 
[2,6,10]
Quad
1.25Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ [e-mail] ∙ www.haztec.uk
5-360X~3610-XX
Dual-Colour
LED Arrow/Warning Bar
M315.1.0 - 19 - March 2021

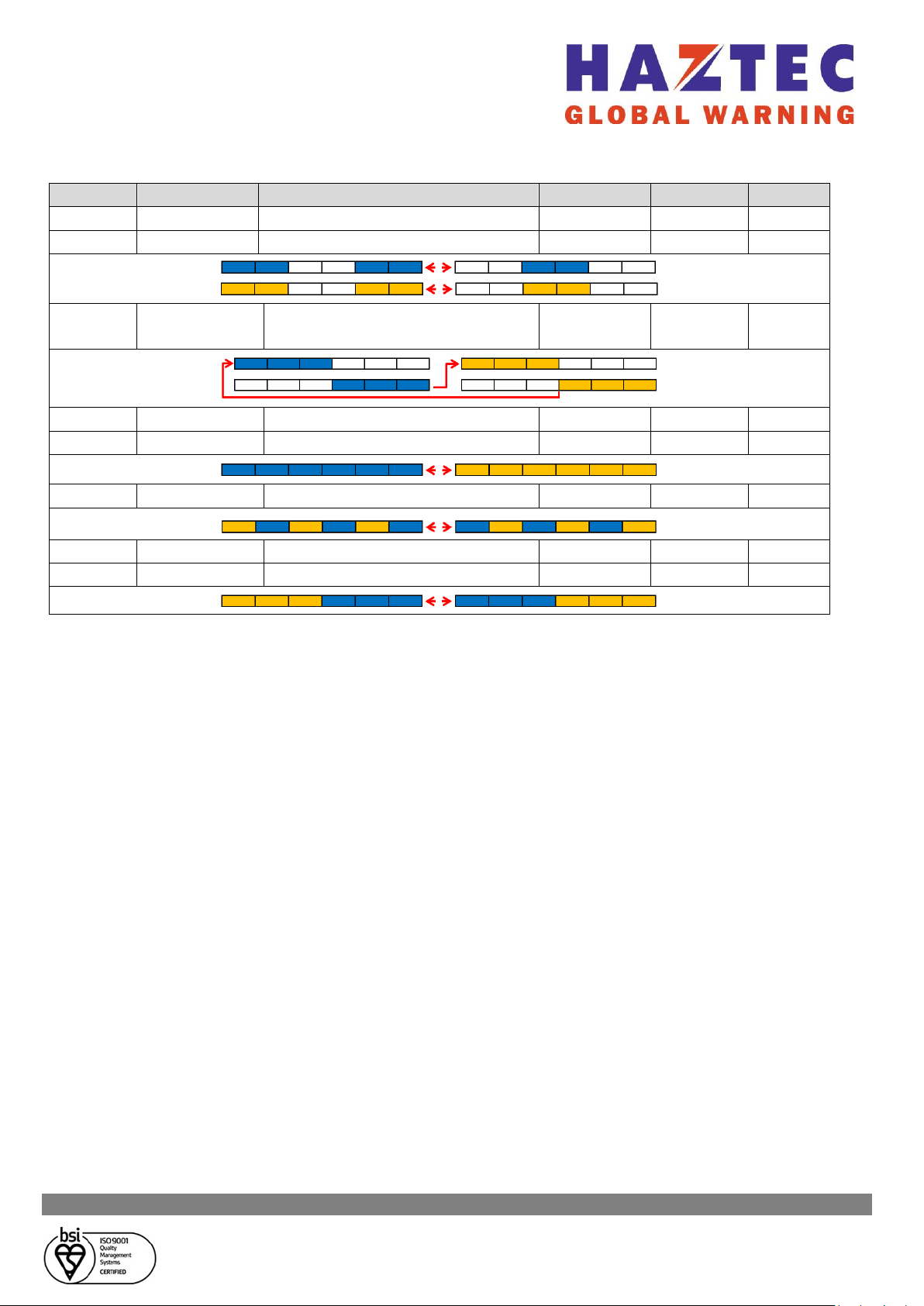

Program
Sequence
Modules
Pattern
Frequency
Default
68
Alternating
[1,3,9,11] [5,7]
Quad
1.25Hz
69
Alternating
[2,4,10,12] [6,8]
Quad
1.25Hz
70
Alternating
[7,9,11] [1,3,5] [8,10,12] 
[2,4,6]
Quad
1.25Hz
71
Alternating
[1,3,5,7,9,11] [2,4,6,8,10,12]
Double
1.25Hz
72
Alternating
[1,3,5,7,9,11] [2,4,6,8,10,12]
Single
1.25Hz
73
Alternating
[1,4,5,8,9,12] [2,3,6,7,10,11]
Single
1.25Hz
74
Alternating
[1,3,5,8,10,12] [2,4,6,7,9,11]
Single
1.25Hz
75
Alternating
[1,3,5,8,10,12] [2,4,6,7,9,11]
Double
1.25Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ [e-mail] ∙ www.haztec.uk
5-360X~3610-XX
Dual-Colour
LED Arrow/Warning Bar
M315.1.0 - 20 - March 2021
▪5-3607 (7 modules)
Program
Sequence
Modules
Pattern
Frequency
Default
1
Alternating
[2,4,6,8] [8,10,12,14]
Quad
1.5Hz
FP1
2
Direct
[14] to [2]
To Right
-
FP2
3
Direct
[2] to [14]
To Left
-
FP3
4
Direct
[8] to [2] [14]
Centre Out
-
FP4
5
Swing 
Flashing
[14] [14,12] [12,10] [10,8]
[8,6] [6,4] [4,2] [2] 
off 
To Right
-
[2,14]
Quad
1.25Hz
6
Swing 
Flashing
[14] [14,12] [12,10] [10,8]
[8,6] [6,4] [4,2] [2] 
off 
To Right
-
[1,13]
Quad
1.25Hz
7
Swing 
Flashing
[2] [2,4] [4,6] [6,8] 
[8,10] [10,12] [12,14] [14]
off 
To Left
-
[2,14]
Quad
1.25Hz
8
Swing 
Flashing
[2] [2,4] [4,6] [6,8] 
[8,10] [10,12] [12,14] [14]
off 
To Left
-
[1,13]
Quad
1.25Hz
9
Swing 
Flashing
[8] [6,8,10] [4,6,10,12] 
[2,4,12,14] [2,14] off 
Centre Out
-
[2,14]
Quad
1.25Hz
10
Swing 
Flashing
[8] [6,8,10] [4,6,10,12] 
[2,4,12,14] [2,14] off 
Centre Out
-
[1,13]
Quad
1.25Hz
