Light Sky SHARK450 User manual

SHARK450
Please read these user manual carefully before use!

1. Safety information..................................................................................................................2
2. Technical information.............................................................................................................4
3. Attachment and body size.......................................................................................................6
4. Installation and connecting.....................................................................................................7
5. Control panel.........................................................................................................................11
6. Menu setting..........................................................................................................................12
7. Channel function...................................................................................................................16
8. Circuit connecting diagram.................................................................................................19
9. Cleaning and maintenances..................................................................................................20
10. Troubeshooting....................................................................................................................20
11. Duty exonerative and copyright protection......................................................................22
Congratulations on choosing our company product! We thank you for your custom.
◆Please note that this product, as all the others in the rich my company range, has
been designed and made with total quality to ensure excellent performance and
best meet your expectations and requirements.
◆Carefully read this user manual in its entirety and keep it safe for future reference.
It is essential to know the information and comply with the instructions given in this
manual to ensure the fitting is installed, used and serviced correctly and safely.
◆My company disclaims all liability for damage to the fitting or to other property or
persons deriving from installation, use and maintenance that have not been carried
out in conformity with this user manual, which must always accompany the fitting.
◆My company reserves the right to modify the characteristics stated in this user
manual at any time and without prior notice.
Contents

■ Connection to mains supply
The double insulation between the LV power supply and the control conductor on the fixture.
SAFETY INFORMATION
2
■This lighting fixture is for professional use only - it is not for household use.
■ Installtion
Make sure all parts for fixing the projector are in a good state of repair.
Make sure the point of anchorage is stable before positioning the projector.
The safety chain must be prgperly hooked onto the fitting and secured to the framework.
When suspending the fixture, ensure that the supporting structure and all hardware used
can hold at least 10 times the weight of all the devices they support.
Ensure a minimum clearance of 0.5m around the cooling fans and ventilation.
Please do not install the fixture onto combustible surface.
Do not expose the front glass to sunlight or other strong light source from any angle.
Lenses can focus the sun's rays inside the fixture, creating a potential fire hazard.
■ Mounting surface and fire protection
Keep all combustible materials at least 1 m away from the fixture.
The fixture is intended for indoor and outdoor application.
Do not operate the fixture if the ambient temperature (Ta) exceeds 40℃
■ Protection against electrical shock
Connection must be made to a power supply system fitted with efficient earthing (Class I
appliance according to standard EN 60598-1).
It is,moreover, recommended to protect the supply lines of the projectors from indirect
contact and/or shorting to earth by using appropriately sized residual current devices.
Connection to the electricity mains must be carried out by a qualified electrical installer.
Check that the mains frequency and voltage correspond to those for which the projector is designed
as given on the electrical data label.
This label also gives the input power to which you need to refer to evaluate the maximum number
of fittings to connect to the electricity line, in order to avoid overloading.
Don’t use the power cable when the insulation is damaged.
It must be the manufacturer or distributor or the professional person to change the damaged power
cable in order to avoid any dangerous.
ta40℃
■ Maximum ambient temperature

The products referred to in this manual conform to the European Community Directives to which
they are subject:
Low Voltage 2014/35/EU
Electromagnetic Compatibility 2014/30/EU
Never look directly into the light source. You risk injury to your retina, which may induce blindness.
Do not stare directly into the light output.Never look at an exposed lamp while it is lit.
Protection optical radiation
Protection against explosion
The protection screen, lens or ultraviolet screen on the lamp can be damaged to the degree
of failure if visible damage, such as a crack or deep mark, should be replaced。
The tting mounts a high-pressure lamp that needs an external .
Immediately replace the lamp if damaged or deformed by heat.
The light source in this xture shall be replaced by the manufacturer or its service agent or
similar qualication.
Always disconnect from mains before replacing the lamp.
3
■ Temperature of the external surface
The maximum temperature that can be reached on the external surface of the fitting, in a thermally
steady state, is 100℃.
■ Maintenance
Before starting any maintenance work or cleaning the projector, cut off power from the mains supply.
After switching off, do not remove any parts of the fitting, to avoid getting burnt for at least 30 minutes.
After this time the likelihood of the lamp exploding is virtually nill.
The fitting is designed to hold in any splinters produced by a lamp exploding.
The lenses must be mounted and, if visibly Damaged, they have to be replaced with genuine spares.
■ Lamp
The product implementation standard：GB 7000.1-2015 GB7000.217-2008
When the luminaire projects an object, the minimum distance of the luminaire to
the ammable object is 12 meters.

● Power supplies available
- 100V~240V~ 50/60Hz 5A
● Power
- 650W PF0.985
● Lamp
- Brand：USHIO NSL450
- Lamp power：450W
- Colour temperature：6900K
- Average life：1500h
● Motors
- 15 ultra-quiet motors
● Inputs ：DMX512
● Channel ：17CH
● Color
- 14 colors + white
● Color mixing system
- CMY color System
● Static gobo wheel
- 11Gobo + 1 white + 3 animation range
Bi-direction flow water animation effect
● Prism
- 8 Prism+16 double Prism+multi combination effect
● Beam angle：1.8°
● Wash angle
- 6-45° independent Wash effect
● Focus and Lens
- High precision optical lens,linear adjustment
● Strobe
- Double lens strobe(0.5-9 times/second)
● Dimmer
- 0-100％ linear adjustment
● X/Y Travel 540°/240°：
● X/Y Resolution 2.11°/0.98°：
● X/Y Speed 2.7S/1.6S：
Lighting Size● ：509X320X742MM
Box Size● ：810X580X395MM
：34.5kg ，：39kg N.W G.W
● Flycase Size （1 sets）：
640X620X825MM
N.W：34.5kg ，G.W：69kg
● IP set
- Automatic chang battery,IP could be set without
electricity.
● Software upgrade
- Insert USB upgrade software.
● ：Display Menu
- The display panel adopts a 2.0-inch LCD12864 LCD
screen, which is used in both Chinese and English
languages to facilitate quick operation and browse
menus.
-Display board can record device’s using time , show
device’s temperature, channel data and software
version .
● Features
- Remote control lamp's swith function display light
and lamp's using time.automaticallay adjust cooling
fan's speed,Drop power when strobe lens.
●:IP66 IP RATE/IP
● Safety Devices
- BIPOlar circuit breaker with thermal protection.
- Automatic break in power supply in case of
overheating or failed operation of cooling system.
● Cooling
- Forced ventilation with axial fans.
●Structure
- Fully aluminum alloy Die-casting case, patent,
fashion, simple & laconic.
●The vertical direction of the use of hidden locking
device,convenient transportation and maintenance.
● CE Marking
- In conformity with the European Union Low Voltage
Directive 2014/35/EU and Electomagnetic compatibility
Directive 2014/30/EU.
4
TECHNICAL INFORMATION

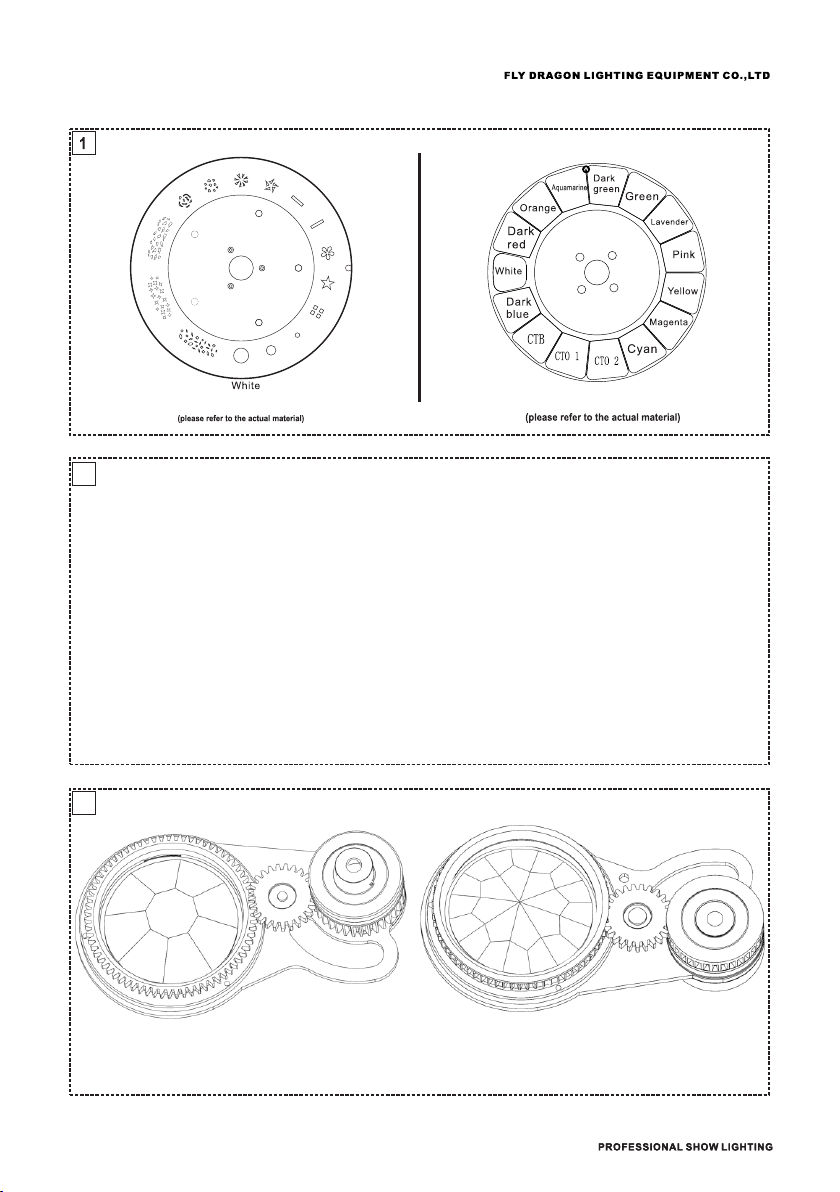

Static gobo wheel
5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
C M Y
1
11111
2
345
6
7
8
9
10
11
12
13
14
CMY color mixing system
Color wheel
Prism wheel 1 Prism wheel 2
2
3

6
01.03(3'5")1.7(5'6")2.04(6'8")0.34(1'1")0.68(2'3")1.36(4'6")2.73(8'11")
20(65'7")10(32'10")30(98'5")40(131'3")60(196'10")80(262'6")50(164')
0
4
2
0
2
Lux fc( )
0
131000(12175)
61500(5716) 33200(3086) 22400(2082)
525000(48792)
15200(1413)7500(697)
Lamp T o tal Output:24000 lume n s
Sta n dard(1.8°)
1.8°
4
distance,spot diameter and illumination diagram
Distance m(ft in)
Diameter m(ft in)
320 615
232
122
433
320
742
567
45
97
329
265
509
370
270
117
567

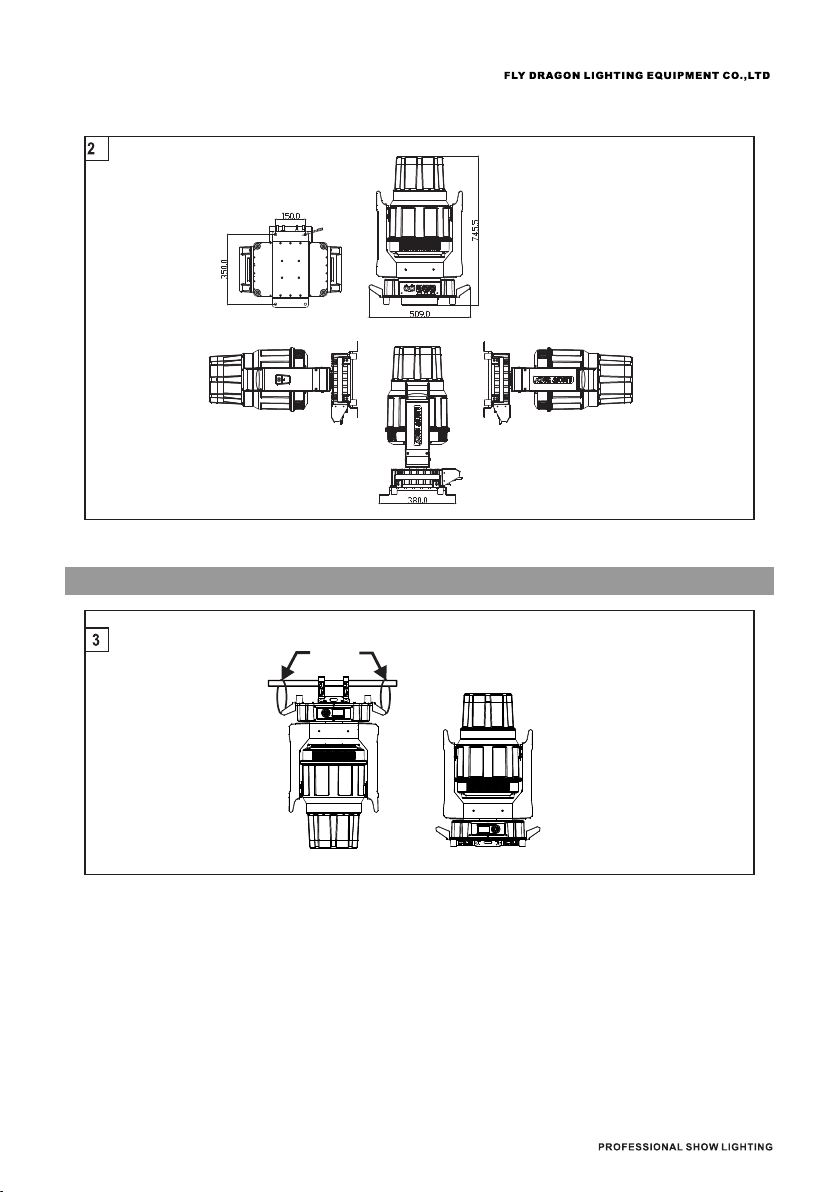

ATTACHMENT AND BODY SIZE
4

The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WARNING:with the exception of when the projector is positioned on the floor, the safety rope must be fitted.
This must be securely fixed to the support structure of the projector and then connected to the base handle.
7
Make sure all parts for fixing the projector are in a good state of repair.
Make sure the point of anchorage is stable before positioning the projector.
When suspending the fixture, ensure that the supporting structure and all hardware used can
hold at least 10 times the weight of all the devices they support.
INSTALLATION AND CONNECTING

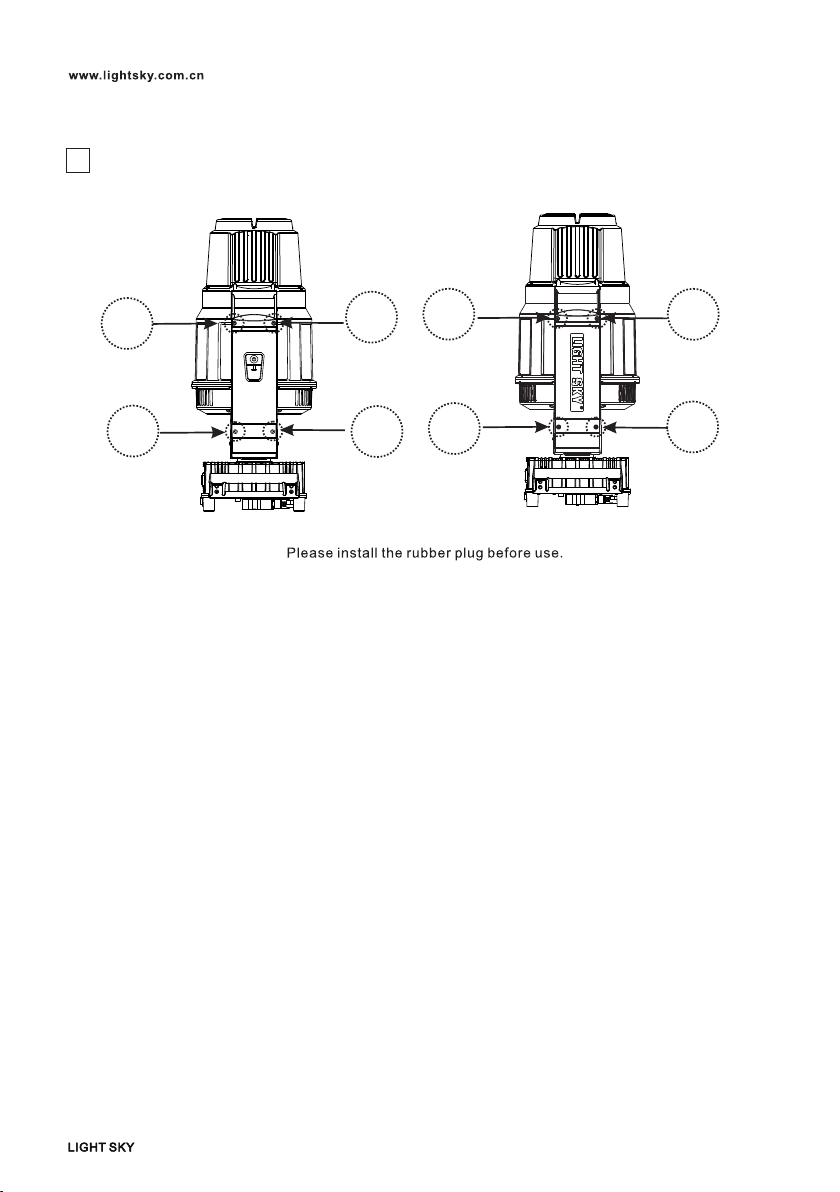

Installing the projector- Fig. 3
Sa fe ty rope
安全绳
-2

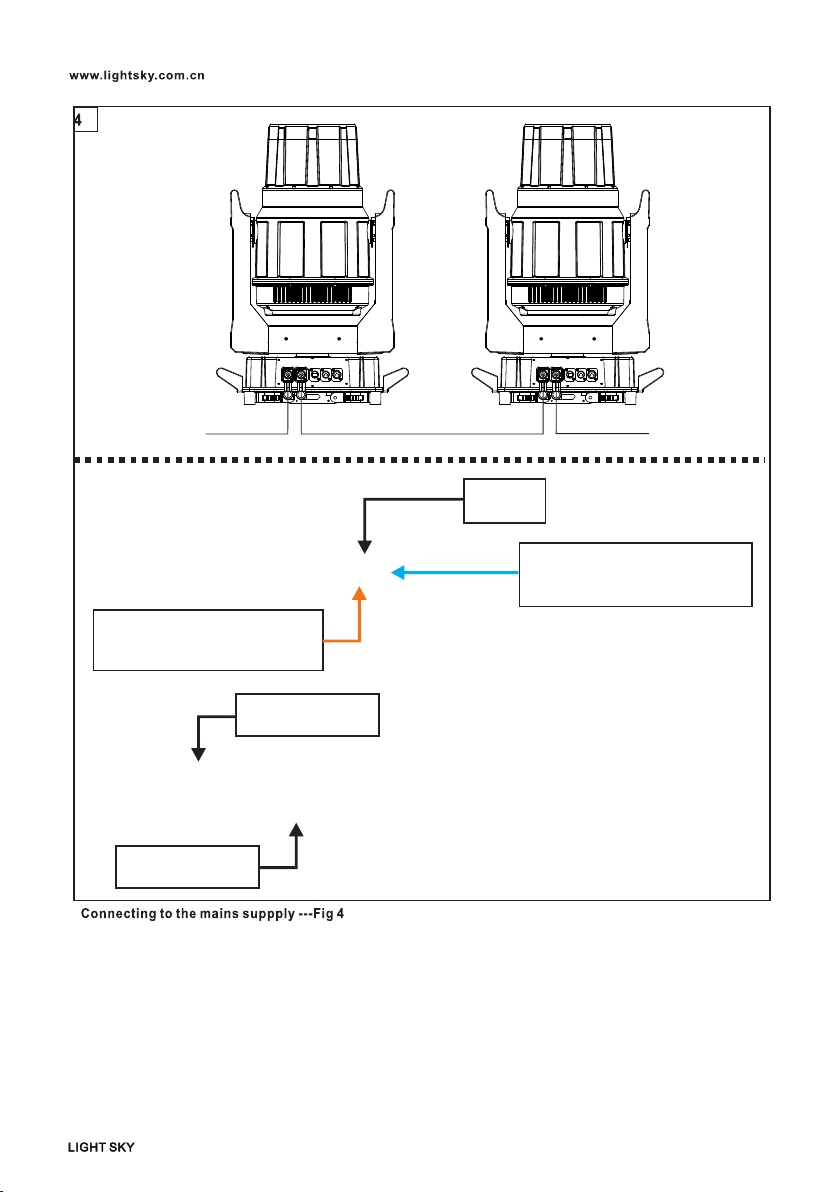

● After doing the above operation and making sure all the devices had been installed with
natural operate, press the power switch to check whether everything is working normally.
● Connection to the eiectricty mains must be carried out by a qualified electrical installer.
● The stage lighting power supply can not be more than 2pcs pre line.
8
power in power end
out in
The N terminal is connected
with the blue line.
Ground
The L terminal is connected
with the brown line.
Watertight seal ring
Watertight seal ring
●The stage lighting delivers a three-core waterproof plug.

9

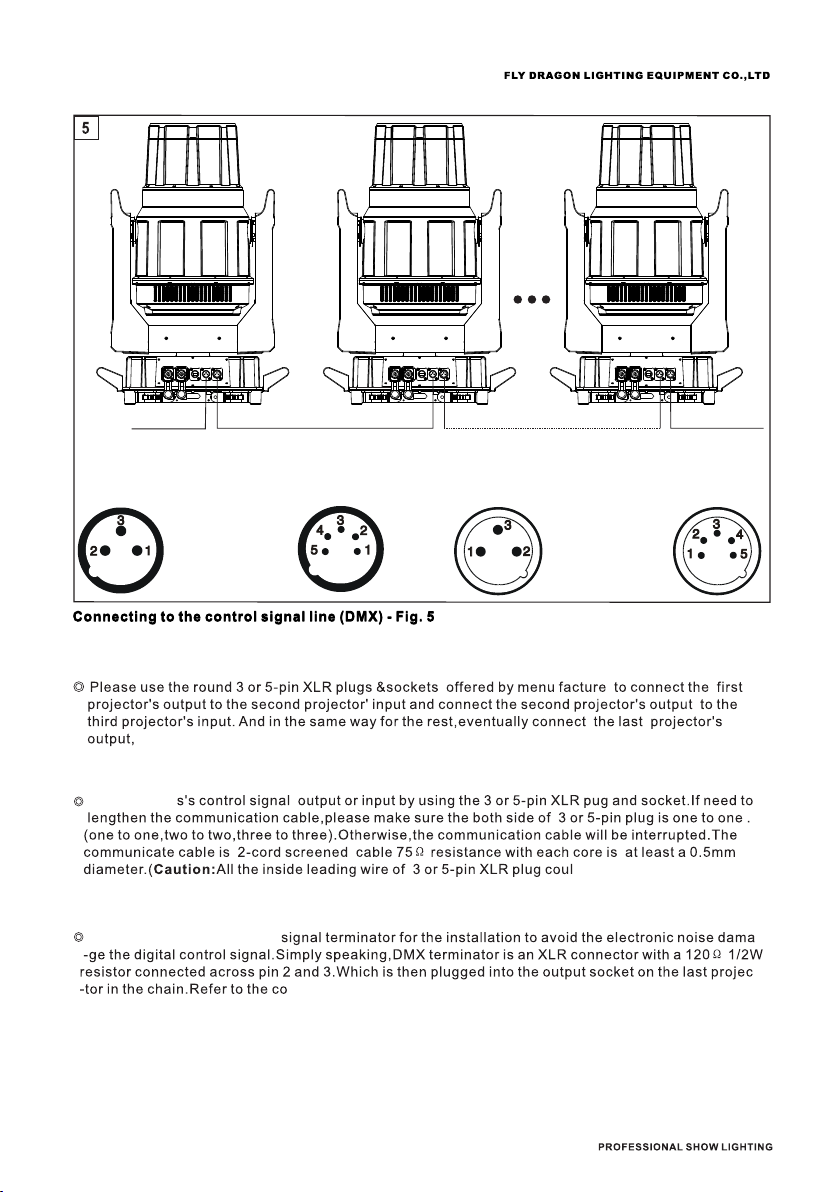

DMX - output
1 - Shield
2 - Signal (-)
- Signal (+)
- Not connected
- Not connected
3
1
2
3
DMX-input
- Shield
- Signal (-)
- Signal (+)
- Not connected
- Not connected
4
5
4
5
DMX512 in
out in out in signal end
The projector
all the projectors are together
dn’t touch each other or
plinth).
Recommend to use the DMX
nnection.

10
6

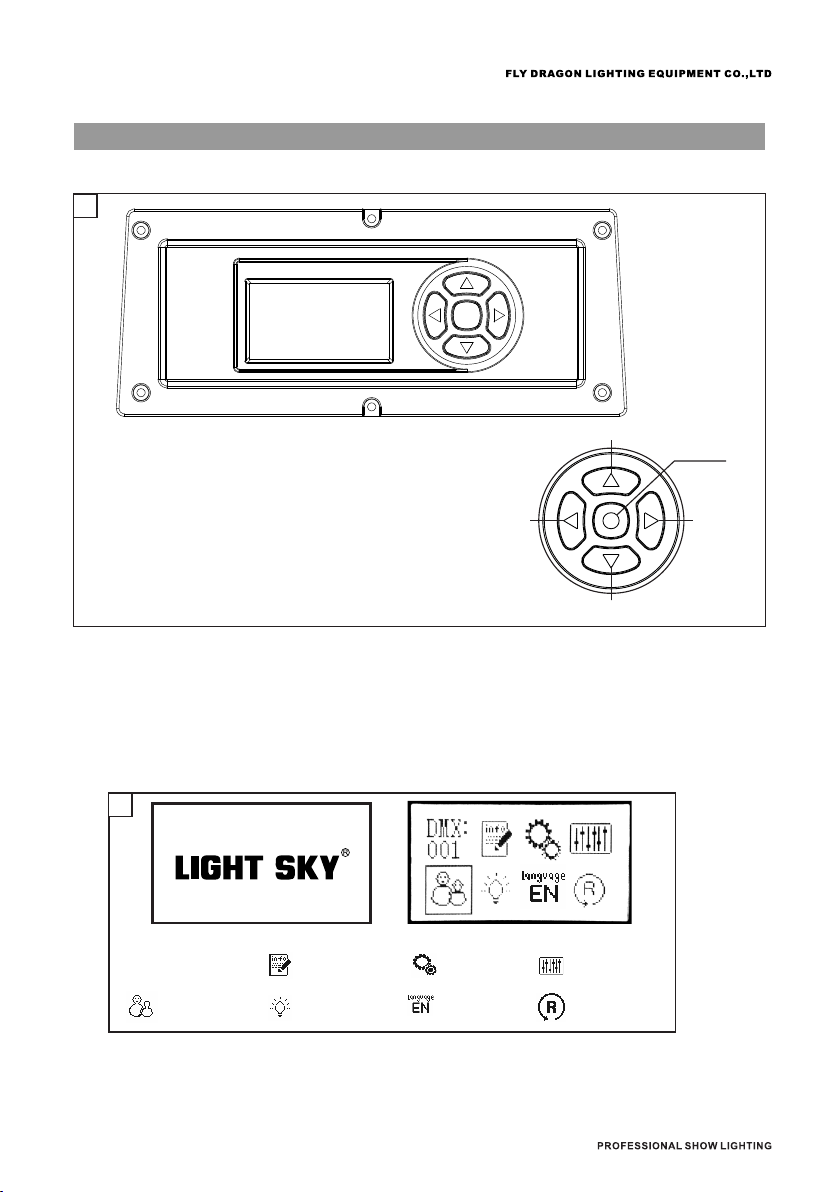

Display
Up arrowhead : page up
Down arrowhead : page down
Left arrowhead : reduce
Right arrowhead : increase
Enter : OK function
Exit : in the choice screen
DMX:
001 DMX Address Information Personal Manual control
Service Language Reversal
UP
DOWN
LEFT RIGHT
ENTER
CONTROL PANEL
● Press the switch.The projector starts resetting the effects.
At the same time,the following information scrolls on the display
（please refer to the actual material)
Lamp
8
11
7

Main menu Ⅰ men u Ⅱ menu Ⅲ menu
DMX Address Address:001-512
Fan s p eed/V o ltag
Information
DMX l i ve
Sys t em vers i on
Return(ESC)
2.F a n1:00 . 0 V
3.F a n2:00 . 0 V
8.Prism(** * )
9.PrismRota.(** * )
11. F rost(***)
12. F ocus(***)
13. P an(** * )
14. P an Fine ( ***)
15. T ilt(***)
16. T ilt Fin e (***)
17. F uncti o n(***)
XY Bo a rd:V* . **
12M B o ard:V * .**
Dis Board:V*.**
→
→
→→
→
Fan B o ard:V*.**
CMY B o ard:V * .**
10.PrismMacro (***)
7.Gobo (***)
4.Colour (***)
5.Shutter (***)
6.Dimmer (***)
1.Cyan (***)
2.Magenta (***)
3.Yellow (***)
4.L_Fan:0000 RPM
5.Fan1:0000 RPM
6.Fan2:0000 RPM
8.Fan4:0000 RPM
7.Fan3:0000 RPM
1.L_Fan:00.0V
12
Lamp hours
Total:****(h)
La mp o pe n:*** *( h)
Tem p eratu r e
RDM U I D
PVG_TEM:***.*
→
→
→
Board:***.*
MOT O R UID/U I D →
00000000000000000000000000000000000XY:FA IL
RDM UID 3888:00000000
→
Tot e l Time
Pow e r::** * *(h)
Lam p O N::** * *(h)

Display
English
Chi n ese
Rev e rsal No r mal
Rota.180
Bac k L ight
Ope n
Au to c lo se( 15 s)
Bac k light b l ink ON
OFF
Ret u rn(ES C )
Ret u rn(ES C )
Manual control
Main menu
Personal
→
→
Cha n nel con t rol
P/T i n vert
Ⅰ menu
→
→
→
Pan i n vert
Til t i nvert
Lan g uage
Ⅱ menu
→
→
→
→
→
OFF
OFF
ON
ON
Ⅲ menu
→
Aut o l amp on OFF
ON
→
→
1.Cyan (***)
2.Magenta (***)
3.Yellow (***)
4.Colour (***)
5.Shutter (***)
6.Dimmer (***)
7.Gobo (***)
8.Prism (***)
9.PrismROTA.(***)
10.PrismMacro (***)
11.Frost (***)
12.Focus (***)
13.Pan (***)
14.Pan Fine (***)
15.Tilt (***)
17.Function (***)
Return(ESC)
16.Tilt Fine (***)
Reset →
system reset
Pan/Tilt reset
Head motor reset
Return(ESC)
13

Main menu
Service
Calibration
Return(ESC)
Error list
Test
Ⅰ menu
→
→
Test effect
Test all
Return(ESC)
Ⅱ menu
→
→STEP ***
STEP ***
Ⅲ menu
→
Test P/T STEP ***
→
→
→
Clean error
→
Keep
Clean
Pan 000-255
Tilt 000-255
Dimmer1 000-255
Dimmer2 000-255
Focus 000-255
NC 000-255
Colour 000-255
Stat.Gobo 000-255
Prism1 000-255
Prism2 000-255
PrismRota. 000-255
Frost 000-255
Cyan 000-255
Magenta 000-255
Yellow 000-255
Return(ESC)
Defualt
Factory
Time clean
Developer
Firmware update
Manual Fan Vol
OFF
ON
14

On
Lamp
→
Off
English
Language
Chinese
Reversal Normal
Rota.180
→
→
Main menu Ⅰ menu Ⅱ menu Ⅲ menu
→
→
Standard mode
Fan m o de 3000-4000M
→
4000-5500M
Return(ESC)
→
Service
Fan Speed To Lamp
Factory
Return(ESC)
OFF
ON
15

CHANNEL FUNCTION(V1.0)
10-255 0-100 Cyan
20-255 0-100 Magenta
30-255 0-100 Yellow
4
Colour
0-4 0-1.56 White
5-8 1.96-3.14 White+Red
9-12 3.53-4.71 Red
13-17 5.10-6.67 Red+Orange
18-21 7.06-8.24 Orange
22-25 8.63-9.80 Orange+Aquamarine
26-29 10.2-11.4 Aquamarine
30-34 11.8-13.3 Aquamarine+Green
35-38 13.7-14.9 Green
39-42 15.3-16.5 Green+Light Green
43-46 16.9-18.0 Light Green
47-51 18.4-20.0 Light Green+Lavender
52-55 20.4-21.6 Lavender
56-59 22.0-23.1 Lavender+Pink
60-63 23.5-24.7 Pink
64-68 25.1-26.7 Pink+Yellow
69-72 27.0-28.2 Yellow
73-76 28.6-29.8 Yellow+Magenta
77-81 30.2-31.8 Magenta
82-85 32.2-33.3 Magenta+Cyan
86-89 33.7-34.9 Cyan
90-93 35.3-36.5 Cyan+CTO 260
94-98 36.9-38.4 CTO 260/CTO2
99-102 38.8-40.0 CTO 260+CTO 190/CTO2+CTO1
103-106 40.4-41.6 CTO 190/CTO1
107-110 42.0-43.1 CTO 190+CTB 8000/CTO1+CTB
111-115 43.5-45.1 CTB 8000/CTB
116-119 45.5-46.7 CTB 8000+Blue
120-123 47.1-48.2 Blue
124-127 48.6-49.8 Blue+White
128-191 50.2-74.9 CCW，Fast→Slow Rotation
192-255 75.3-100 CW，Slow→Fast Rotation
DMX Percentage
Function
Channel
16

Opening pulses in sequences from slow fast
Closing pulses in sequences from fast slow
158-207 62.0-81.2
208-212 81.6-83.1 Open
213-25183.5-98.4 Random Slow-Fast Strobe
99.8-100 Open
0-2550-100 Dimmer
7
Gobo
0-3 0-1.2 White
4-7 1.6-2.7 Gobo1
8-11 3.1-4.3 Gobo2
12-15 4.7-5.9 Gobo3
16-19 6.3-7.5 Gobo4
20-23 7.8-9.0 Gobo5
24-27 9.4-10.6 Gobo6
28-31 11.0-12.2 Gobo7
32-35 12.5-13.7 Gobo8
36-39 14.1-15.3 Gobo9
40-43 15.7-16.9 Gobo10
44-47 17.3-18.4 Gobo11
48-51 18.8-20.0 Gobo12
52-55 20.4-21.6 Gobo13
56-59 22.0-23.1 Gobo14
60-73 23.5-28.6 Gobo1 Shake Slow-Fast Speed
74-87 29.0-34.1 Gobo2 Shake Slow-Fast Speed
88-101 31.4-39.6 Gobo3 Shake Slow-Fast Speed
102-115 40.0-45.1 Gobo4 Shake Slow-Fast Speed
116-129 45.5-50.6 Gobo5 Shake Slow-Fast Speed
130-143 51.0-56.1 Gobo6 Shake Slow-Fast Speed
144-157 56.5-61.6 Gobo7 Shake Slow-Fast Speed
158-171 62.0-67.1 Gobo8 Shake Slow-Fast Speed
172-185 67.5-72.6 Gobo9 Shake Slow-Fast Speed
186-199 72.9-78.0 Gobo10 Shake Slow-Fast Speed
200-213 78.4-83.5 Gobo11 Shake Slow-Fast Speed
214-227 83.9-89.0 Gobo12 Shake Slow-Fast Speed
228-241 89.4-94.5 Gobo13 Shake Slow-Fast Speed
242-255 94.9-100 Gobo14 Shake Slow-Fast Speed
5
Strobe
0-30-1.2 Closed
4-1031.6-40.4 Slow-Fast Strobe
104-10740.8-42.0 Open
108-157 42.4-61.6
6
DMX
Percentage
Function
Channel
252-255
17

8
Prism
0-63 0-24.7 Unused Range
64-127 25-49.8 Prism1
128-191 50.2-74.9 Prism2
192-255 75.3-100 Prism1+Prism2
Prism Rotation
0 0 Unused Range
1-63 0.4-24.7 Angular linear regulation
Selection of three prism effects: setting prism (prism 1, prism 2 or prism 1+2) in channel 5;
964-127 25.1-49.8 CCW，Fast → Slow
128-191 50.2-74.9 CW，Slow → Fast
192-207 75.3-81.2 Slow → Fast,90°Rotating back and forth
208-223 81.6-87.5 Slow → Fast,180°Rotating back and forth
224-239 87.8-93.7 Slow → Fast,270°Rotating back and forth
240-255 94.1-100 Slow → Fast, 360°Rotating back and forth
10
Prism Macro
0-15 0-5.9 Unused Range
16-55 6.3-21.6 Fast → Slow,8 prism free switch
56-95 22.0-37.3 Fast → Slow ,16prism free switch
96-135 37.6-52. Fast → Slow,8 prism+16prism Simultaneous free switch
136-175 53.3-68. Fast → Slow，8 prism The selected+16prism free switch
176-215 69.0-84. Fast → Slow， 16 prism The selected+8prism free switch
216-255 84.7-100 Fast → Slow ，8 prism and 16prism Interlock switch
11 Frost
12 Focus
Pan
14 Pan Fine
15 TILT
16 TILT Fine
17
Function
0-25 0-9.8 Unused Range
26-30 10.2-11.8 Effects Reset
31-35 12.2-13.7 PAN/TITL Reset
36-40 14.4-15.7 Complete Reset
41-180 16.1-70.6 Unused Range
181-200 71.0-78.4 Lamp OFF
201-220 78.8-86.3 Unused Range
221-255 86.7-100 Lamp ON
0-255 0-100
0-255 0-100
13 0-255 0-100
0-255 0-100
0-255 0-100
0-255 0-100
DMX
Percentage
Function
Channel
18

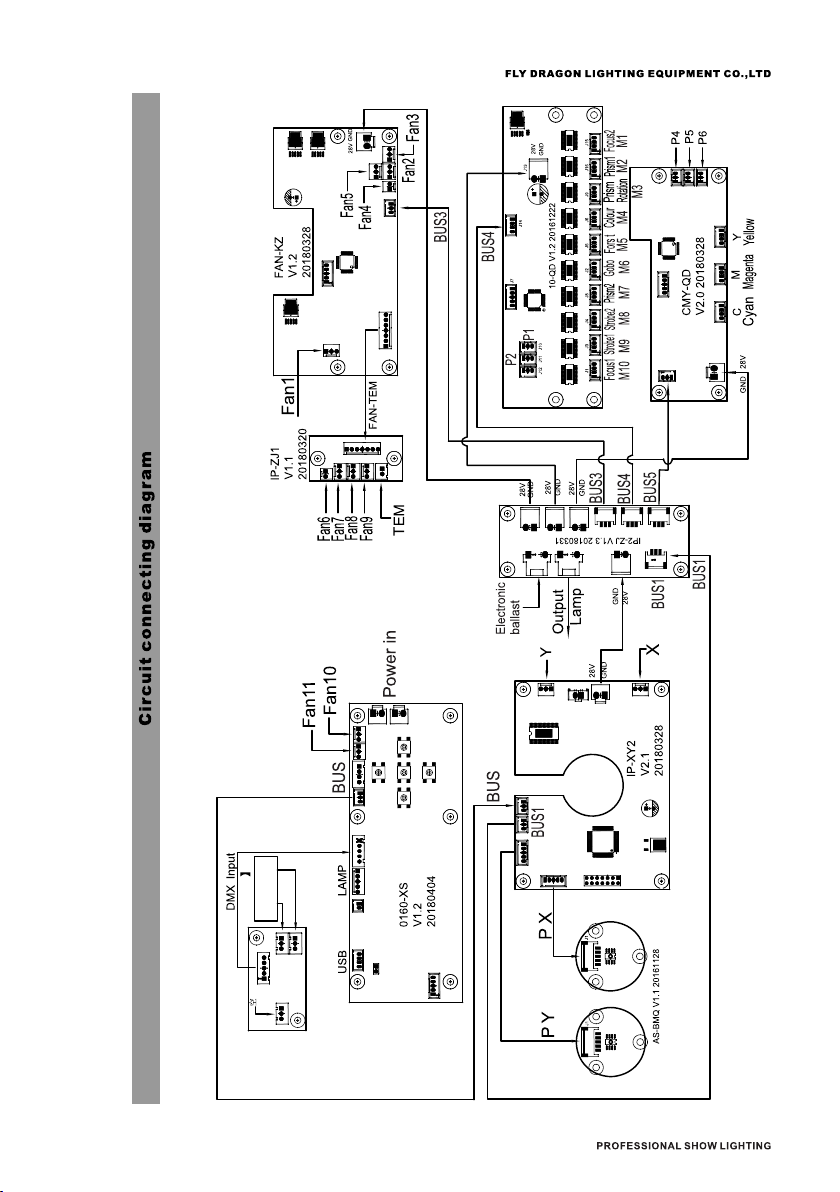

19
