SYNQ AUDIO RESEARCH SA Series User manual

Other languages can be downloaded from:
WWW.SYNQ-AUDIO.COM
ENGLISH
Operation Manual
Version: 1.0
JB LOGO MET
JUISTE SPACING
(enkel voor JBS !!!)
FOTO / TEKENING
TOEVOEGEN
DSPDSPDSP

ENGLISH OPERATION MANUAL
SYNQ®1/11 SA-10 / SA-12 / SA-15 / SA-B15
OPERATION MANUAL
Thank you for buying this SYNQ®product. To take full advantage of all possibilities, please read these
operating instructions very carefully.
FEATURES
•Professional active speaker cabinet for a wide range of different applications:
•CLUBS, BARS, ... : Incredible „hifi“ sound, even at high SPL.
•RENTAL: sturdy cabinets with versatile audio inputs.
•STAGE MONITOR: small size & clear voice with low acoustic feedback
•Bi-Amping “Pascal Audio” technology for maximum impact:
•SA-10: woofer 280W + tweeter 100W RMS-power
•SA-12: woofer 500W + tweeter 150W RMS-power
•SA-15: woofer 500W + tweeter 150W RMS-power
•SA-B15: woofer 1600W RMS-power
•DSP-controlled amplifier with different presets:
•Parametric EQs
•Limiter / compressors
•Active 2-way crossover with FIR filtering
•Factory presets for different applications
•Sophisticated amplifier temperature management
•Software and presets are upgradeable.
•Fully tuned 4-Band parametric EQ for perfect sound
•Perfect for both permanent installations and portable use (Rental, DJ, ...)
•Equipped with high power woofer & compression driver:
•SA-10: 10” woofer + 1” compression driver
•SA-12: 12” woofer + 1” compression driver
•SA-15:15” woofer + 1” compression driver
•SA-B15: 15” woofer
•Two mixable input channels:
•CH1: LINE level, balanced (XLR / Jack 6.3mm) & unbalanced (RCA / cinch)
•CH2: different levels:
•Balanced MIC (XLR / Jack 6.3mm)
•Balanced MIC with High pass filter
•Balanced LINE input (XLR / Jack 6.3mm)
•2 audio outputs:
•LINK OUTPUT for CH1
•MIXED OUTPUT: link to other speakers
•PowerCON in/out with separate power switch.
•6 Rigging points M6 for horizontal / vertical suspension.
•1st choice Baltic birch plywood with scratch free black textured Polyurea finishing
•Ingenious cabinet design allows for use as monitor without separate stands
•Heavy duty carrying handles with integrated 35mm stand adapter.
•Heavy duty rubber feet

ENGLISH OPERATION MANUAL
SYNQ®2/11 SA-10 / SA-12 / SA-15 / SA-B15
BEFORE USE
•Before you start using this unit, please check if there’s no transportation damage. Should there be any, do
not use the device and consult your dealer first.
•Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for
the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by
mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or
problems caused by disregarding this user manual.
•Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user
manual.
•To protect the environment, please try to recycle the packing material as much as possible.
Check the contents:
Check that the carton contains the following items:
•User manual
•SA-10, SA-12, SA-15 or SA-B15 speaker cabinet
•Power cord.
SAFETY INSTRUCTIONS:
•Even if the speaker cabinet is made of water-resistant material, the woofer and tweeter are not protected
against humidity and rain. Therefore, this speaker is intended for indoor use only, use of this product
outdoors, in humid conditions, voids all warranties.
•Always mount this speaker in safe and stable matter.
•Take special care when the cabinets are suspended. This is potentially dangerous and should only be
carried out by technicians who have knowledge of the techniques and regulations of rigging speakers!
•To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
•To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when
bringing it into a warm room after transport. Condensation sometimes prevents the unit from working at full
performance or may even cause damages.
•Don’t place metal objects or spill liquid inside the unit. No objects filled with liquids, such as vases, shall be
placed on this appliance. Electric shock or malfunction may result. If a foreign object enters the unit,
immediately disconnect the mains power.
•No naked flame sources, such as lighted candles, should be placed on the appliance.
•Don’t cover any ventilation openings as this may result in overheating.
•Prevent use in dusty environments and clean the unit regularly.
•Keep the unit away from children.
•Inexperienced persons should not operate this device.
•Maximum safe ambient temperature is 45°C. Don’t use this unit at higher ambient temperatures.
•Always unplug the unit when it is not used for a longer time or before you start servicing.
•The electrical installation should be carried out by qualified personal only, according to the regulations for
electrical and mechanical safety in your country.
•Check that the available voltage is not higher than the one stated on the rear panel of the unit.
CAUTION: To reduce the risk of electric shock, do not open. No user-
serviceable parts inside. Refer servicing to qualified service
personnel only.
The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use
or the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock.
The exclamation point within the equilateral triangle is intended to alert the user to the presence of
important operation and maintenance (servicing) instructions in the literature accompanying this
appliance.
This symbol means: indoor use only
This symbol means: Read instructions
This speaker can easily reproduce sound pressure levels (SPL) sufficient enough to cause
severe and permanent hearing damage. Always protect your ears when you are exposed
for a longer period to SPL in excess of 85dB!

ENGLISH OPERATION MANUAL
SYNQ®3/11 SA-10 / SA-12 / SA-15 / SA-B15
•The socket inlet shall remain operable for disconnection from the mains.
•The power cord should always be in perfect condition. Switch the unit immediately off when the power cord
is squashed or damaged. It must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
•Never let the power-cord come into contact with other cables!
•When the power switch is in OFF position, this unit is not completely disconnected from the mains!
•This appliance must be earthed to in order comply with safety regulations.
•In order to prevent electric shock, do not open. There are no user serviceable parts inside.
•Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same
type and electrical specifications!
•In the event of serious operating problems, stop using the appliance and contact your dealer immediately.
•Please use the original packing when the device is to be transported.
•Due to safety reasons, it is prohibited to make unauthorized modifications to the unit.
FUNCTIONS AMPLIFIER
This is a combined user manual for SA-10, SA-12, SA-15 and SA-B15. The control panel of the SA-15 is
shown, please note that some of the controls/inputs are not are not available on the SA-B15 subwoofer.
1. CH2 INPUT: This input accepts both balanced and
unbalanced microphones or line input. The SA-B15
only accepts line level signals. You can use both ¼”
jack and male 3pin-XLR connectors.
Attention: To prevent damage to the tweeters of
your speaker cabinet, please set the gain CH2 to
zero before you connect the input. Once connected
you can turn the level up to the desired level.
2. CH2 MIC/LINE LED: indicates which audio source
is selected. The choice is made in the setup menu:
•MIC: (LED on) a microphone can be
connected.
•MIC +HPF: (LED blinking) a microphone
can be connected. The 120Hz, 12dB/oct
HPF filter provides better voice clarity.
•LINE: (LED off) a line level signal can be
connected.
Remark: this option is not available on the SA-B15.
3. CH2 GAIN: Used to set the input level of the
microphone / line input (1).
4. CH1 INPUT: balanced / unbalanced line only input.
5. CH1 GAIN: Used to set the input level of the line
input (4).
6. LINE INPUT: This input is the same as CH1 INPUT
(4) but accepts “RCA / cinch” unbalanced line level
audio signals like for example: CD-player, tuner,
MP3-player, ...
Attention: although the cinch input is stereo, the
signal will be converted to mono inside the speaker.
7. LINK OUT CH1: This balanced output (3pin-XLR)
makes it possible to connect several speaker cabinets together, the line output is NOT influenced by the
settings for the master level.
8. MIX OUT: This balanced output (3pin-XLR) contains the mixed signal of both CH1 and CH2 inputs.
9. ROTARY KNOB: Used to control and set the different functions of the amplifier, see next chapter.
•Press the rotary knob to enter the SETUP menu
•Turn the rotary knob to select the desired menu item and press to select
•Select menu item [←BACK] to return to higher level or quit the setup menu.
10. DISPLAY: Indicates the current working mode and helps navigation of the setup menu.
11. STATUS LED: indicates that the amplifier is switched on and displays the status:
•RED: not ready, overload or protect mode.
•GREEN: normal working mode, no issues.
•BLUE: in program mode, ready to receive a software update.

ENGLISH OPERATION MANUAL
SYNQ®4/11 SA-10 / SA-12 / SA-15 / SA-B15
12. SIG/CLIP LED: is green when a signal is present and red when the amplifier is clipping (close to
distortion). While the LED turns red you are working on the limits of the amplifier, limiters are activated.
13. USB INPUT: used to update the software and presets in the amplifier. The update procedure is explained
in the instructions that come with the software update.
14. MAINS INPUT: Mains input with a blue Neutrik PowerCON®input socket, connect the supplied power
cord here.
15. MAINS OUTPUT: Mains output with a grey Neutrik PowerCON®output socket. Used to connect / daisy
chain the power of extra speaker cabinets. The output is limited to 10A @ 230Vac.
16. POWER SWITCH: Used to switch the internal amplifier on/off. The Status led (11) is lit while the cabinet
is switched on.
SETUP MENU SA-10 / SA-12 / SA-15
Used to make al settings of the internal DSP-processor.
PRESETS
•FOH LIVE: most commonly used
option for all-around use.
•FOH HPF: use this preset when the
speaker is for example used with an
extra subwoofer. A 100Hz, 24dB/oct
Butterworth filter will cut off all
frequencies below 100Hz.
•MONITOR: optimizes the use of the
speaker while used as a monitor on
stage.
•SPEECH: optimizes the clarity and
voice quality in speeches.
Note: all presets can be adapted to your
own taste using the parametric
equalizers.
INPUT 2
This input can be used to connect
different audio sources. See point 2 in
the previous chapter for full
understanding.
PARAM EQ
Each preset can be further optimized by
using these 4 parametric equalizers. At
any moment you can enable/disable the
EQs. You can also reset all values to
their factory defaults by selecting the RESET-option and press the rotary knob during 5 seconds.
SETTINGS
The different LEDs can be dimmed or even turned off when needed.
ABOUT
Used to check the current hardware and software versions.
BACK ←
Used to return to a higher menu of standard display.

ENGLISH OPERATION MANUAL
SYNQ®5/11 SA-10 / SA-12 / SA-15 / SA-B15
SETUP MENU SA-B15
Used to make al settings of the internal DSP-processor.
PRESETS
•STANDARD: most commonly used
option for all-around use.
•DEEP: lower cutoff frequency for
applications where deeper bass
response is needed. (Use with
precaution)
SETTINGS
The different LEDs can be dimmed or
even turned off when needed.
ABOUT
Used to check the current hardware and software versions.
BACK ←
Used to return to a higher menu of standard display.
SOME CONNECTION EXAMPLES
These are just some examples; many more connections are possible!
FULL RANGE
•Connect the included power cord to the PowerCON input (14)
•In the setup menu (9):
•PRESETS: FOH LIVE
•INPUT2: LINE (preferable, not mandatory)
•PARAM EQ: leave unchanged or adapt the EQs as you like.
•Connect the output of the mixing desk to CH1 (4)
•Increase the volume of CH1 (5) to the desired level, leave CH2 (3)
closed.
FULL RANGE + MICROPHONE
•Connect the included power cord to the PowerCON input (14)
•In the setup menu (9):
•PRESETS: FOH LIVE
•INPUT2: MIC or MIC+HPF for clearer voice.
•PARAM EQ: leave unchanged or adapt the EQs as you like.
•Connect the output of the mixing desk to CH1 (4)
•Connect the microphone to CH2 (1)
•Increase the gain of CH1 (5) to the desired level.
•Increase the gain of CH2 (3) to the desired level.

ENGLISH OPERATION MANUAL
SYNQ®6/11 SA-10 / SA-12 / SA-15 / SA-B15
COMBINATION WITH SUBWOOFER
TOP SPEAKER (SA10 * SA12 * SA15)
•Connect the included power cord to the PowerCON input
(14) or connect the Power output (15) of the subwoofer to
the power input (14) of the SA-10/12/15.
•In the setup menu (9):
•PRESETS: FOH HPF
•PARAM EQ: leave unchanged or adapt the EQs as
you like.
•Connect the LINK OUT (7) of the subwoofer to CH1 (4)
•Increase the volume of CH1 (5) to the desired level, leave
CH2 (3) closed.
SUBWOOFER (SA-B15)
•Connect the included power cord to the PowerCON input
(14)
•In the setup menu (9):
•PRESETS: STANDARD or DEEP
•Connect the LINK OUT (7) to CH1 (4) of the top cabinet.
•Increase the volume of CH1 (5) to the desired level, leave
CH2 (3) closed.
PS: to get good results, please make sure to make the right
balance between the CH1 gains of both TOP and SUB
cabinets.
2 CABINETS LINKED IN FULL RANGE (MIC IS NOT LINKED)
The microphone is only audible on the 1st cabinet.
FIRST CABINET
•Connect the included power cord to the PowerCON
input (14)
•In the setup menu (9):
•PRESETS: FOH LIVE
•INPUT2: MIC or MIC+HPF for clearer voice.
•PARAM EQ: leave unchanged or adapt the EQs as
you like.
•Connect the output of the mixing desk to CH1 (4)
•Connect the microphone to CH2 (1)
•Connect the LINK OUT (7) to CH1 (4) of the next
cabinet.
•Increase the gain of CH1 (5) to the desired level.
•Increase the gain of CH2 (3) to the desired level.
LINKED CABINET(S)
•Connect the included power cord to the PowerCON
input (14)
•In the setup menu (9):
•PRESETS: FOH LIVE
•INPUT2: LINE (preferable, not mandatory)
•PARAM EQ: leave unchanged or adapt the EQs as you like.
•Connect the LINK OUT (7) of the previous to CH1 (4)
•Increase the gain of CH1 (5) to the desired level.

ENGLISH OPERATION MANUAL
SYNQ®7/11 SA-10 / SA-12 / SA-15 / SA-B15
2 CABINETS LINKED IN FULL RANGE (MIC IS LINKED)
The microphone is audible on ALL cabinets.
FIRST CABINET
•Connect the included power cord to the PowerCON
input (14)
•In the setup menu (9):
•PRESETS: FOH LIVE
•INPUT2: MIC or MIC+HPF for clearer voice.
•PARAM EQ: leave unchanged or adapt the EQs as
you like.
•Connect the output of the mixing desk to CH1 (4)
•Connect the microphone to CH2 (1)
•Connect the MIX OUT (8) to CH1 (4) of the next cabinet.
•Increase the gain of CH1 (5) to the desired level.
•Increase the gain of CH2 (3) to the desired level.
LINKED CABINET(S)
•Connect the included power cord to the PowerCON
input (14)
•In the setup menu (9):
•PRESETS: FOH LIVE
•INPUT2: LINE
•PARAM EQ: leave unchanged or adapt the EQs as you like.
•Connect the MIX OUT (8) of the first cabinet to CH1 (4)
(for the next cabinets: Connect the LINK OUT (7) of the previous to CH1 (4) )
•Increase the gain of CH1 (5) to the desired level.

ENGLISH OPERATION MANUAL
SYNQ®8/11 SA-10 / SA-12 / SA-15 / SA-B15
RIGGING
•Important: The installation must be carried out by qualified service personal only. Improper
installation can result in serious injuries and/or damage to property. Overhead rigging requires
extensive experience! Working load limits should be respected, certified installation materials
should be used, the installed device should be inspected regularly for safety.
•Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging.
•The cabinet should be installed out of reach of people and outside areas where persons may walk by or be
seated.
•Make sure that the installation area can hold a minimum point load of 10times the cabinet’s weight.
•Always use certified cable or chains that can hold 12 times the weight of the cabinet.
•The cabinet should be well fixed; a free-swinging mounting is dangerous and may
not be considered!
•The operator has to make sure that the safety-relating and machine-technical
installations are approved by an expert before using them for the first time. The
installations should be inspected every year by a skilled person to be sure that
safety is still optimal.
•Always take special care when the cabinets are suspended. This is potentially
dangerous and should only be carried out by technicians who have perfect
knowledge of the techniques and regulations of rigging speakers!
•The eyebolts used to suspend the speakers must be made to support heavy
weights: SWL > 70kg. (SWL changes with the lifting angle, see drawing)
SUSPENSION 1 CABINET IN VERTICAL POSITION
The cabinet is suspended using the 3 fixing points on the top of the cabinet.
•Use an “allen key” to remove the 3 installed flat-head screws
•Insert the M6 eyebolts (not included) directly in the three M6-holes on the top panel:
make sure the eye bolts are tightly fixed.
•Use strong and certified steel cables or chains, that are adapted for the weight of the
speakers!
•Fix 2 cables/chains symmetrically to the 2 eyebolts on the front of the cabinet to hold
the weight.
•The 3rd eyebolt on the back is used to tilt the speaker cabinet in the right position:
make sure that you can adjust the length of this cable easily.
SUSPENSION 2 (OR MORE) CABINETS IN VERTICAL POSITION
•Use the exact same method as suspending 1 cabinet vertical position but make
sure that the horizontal angle between the cabinets corresponds to the
horizontal dispersion of the cabinets (in this case 90°)
SUSPENSION A CABINET IN HORIZONTAL POSITION
•The cabinet is suspended using 2 fixing points on the top + 2 fixing points on the bottom of the cabinet (see
drawing)
•Use an “allen key” to remove the 4 installed flat-head screws
•Insert the M6 eyebolts (not included) directly in the four M6-holes: make
sure the eye bolts are tightly fixed.
•Use strong and certified steel cables or chains, that are adapted for the
weight of the speakers!
•Fix 2 cables/chains symmetrically to the 2 eyebolts on the back of the
cabinet to hold the weight.
•The 2 eyebolts on the front are used to tilt the speaker cabinet in the right
position.
PS: make sure that the weight is evenly distributed across the cables fixed
to the top and bottom of the cabinet.

ENGLISH OPERATION MANUAL
SYNQ®9/11 SA-10 / SA-12 / SA-15 / SA-B15
SPECIFICATIONS
This device carries the prescribed CE marking. It was tested for this purpose in a specialized CE lab and fully
complies with all currently valid European and national standards. The corresponding CE conformity
declarations can be found on the product page of this product on our website.
MODEL
SA-10
SA-12
SA-15
SA-B15
Amplifier MID/HF unit
100Wrms
150Wrms
150Wrms
NA
Amplifier LF unit
280Wrms
500Wrms
500Wrms
1600Wrms
Tweeter
1”
1”
1”
NA
Woofer
10”
12”
15”
15”
Dispersion (HxV)
90° x 40°
90° x 40°
90° x 40°
omnidirectional
Max SPL @1m
127 dB
129 dB
131 dB
130 dB
Freq. Resp. (+/-3dB)
60 –20.000Hz
45 –20.000Hz
40 –20.000Hz
30-150Hz
Freq. Resp. (+/-6dB)
50 –25.000Hz
41 –25.000Hz
46 –25.000Hz
29-150Hz
THD (1kHz / 1W)
0,10%
0,10%
0,10%
-
Input Sensitivity line
1V
1V
1V
1V
Input Sensitivity micro
15mV
15mV
15mV
15mV
Input impedance
20 kohm
20 kohm
20 kohm
20 kohm
EQ
4 parametric EQ’s
4 parametric EQ’s
4 parametric EQ’s
4 parametric EQ’s
Input CH1
Bal/unbal XLR/Jack
Bal/unbal XLR/Jack
Bal/unbal XLR/Jack
Bal/unbal XLR/Jack
Input CH2
Bal/unbal XLR 3pin
Bal/unbal XLR 3pin
Bal/unbal XLR 3pin
Bal/unbal XLR 3pin
Link output CH1
Bal/unbal XLR 3pin
Bal/unbal XLR 3pin
Bal/unbal XLR 3pin
Bal/unbal XLR 3pin
Power input
100-240Vac 50/60Hz
100-240Vac 50/60Hz
100-240Vac 50/60Hz
100-240Vac 50/60Hz
Power consumption
0,75A @ 100Vac
1,5A @ 100Vac
1,5A @ 100Vac
5,5A @ 100Vac
0,35A @ 240Vac
0,75A @ 240Vac
0,75A @ 240Vac
2,3A @ 240Vac
Internal FUSE (20x5mm)
T 2,5A 250V
T 4A 250V
T 4A 250V
T 10A 250V
(“H”-type: high breaking
capacity)
(“H”-type: high breaking
capacity)
(“H”-type: high breaking
capacity)
(“H”-type: high breaking
capacity)
Flying points
6x M6
6x M6
6x M6
none
Dimensions HxWxD (mm)
530x315x321
653x371x370
690x430x430
430x780x620
Weight (kg)
15
20
25
40
All information is subject to change without prior notice.
You can download the latest version of this user manual on our website: www.synq-audio.com

ENGLISH OPERATION MANUAL
SYNQ®10/11 SA-10 / SA-12 / SA-15 / SA-B15

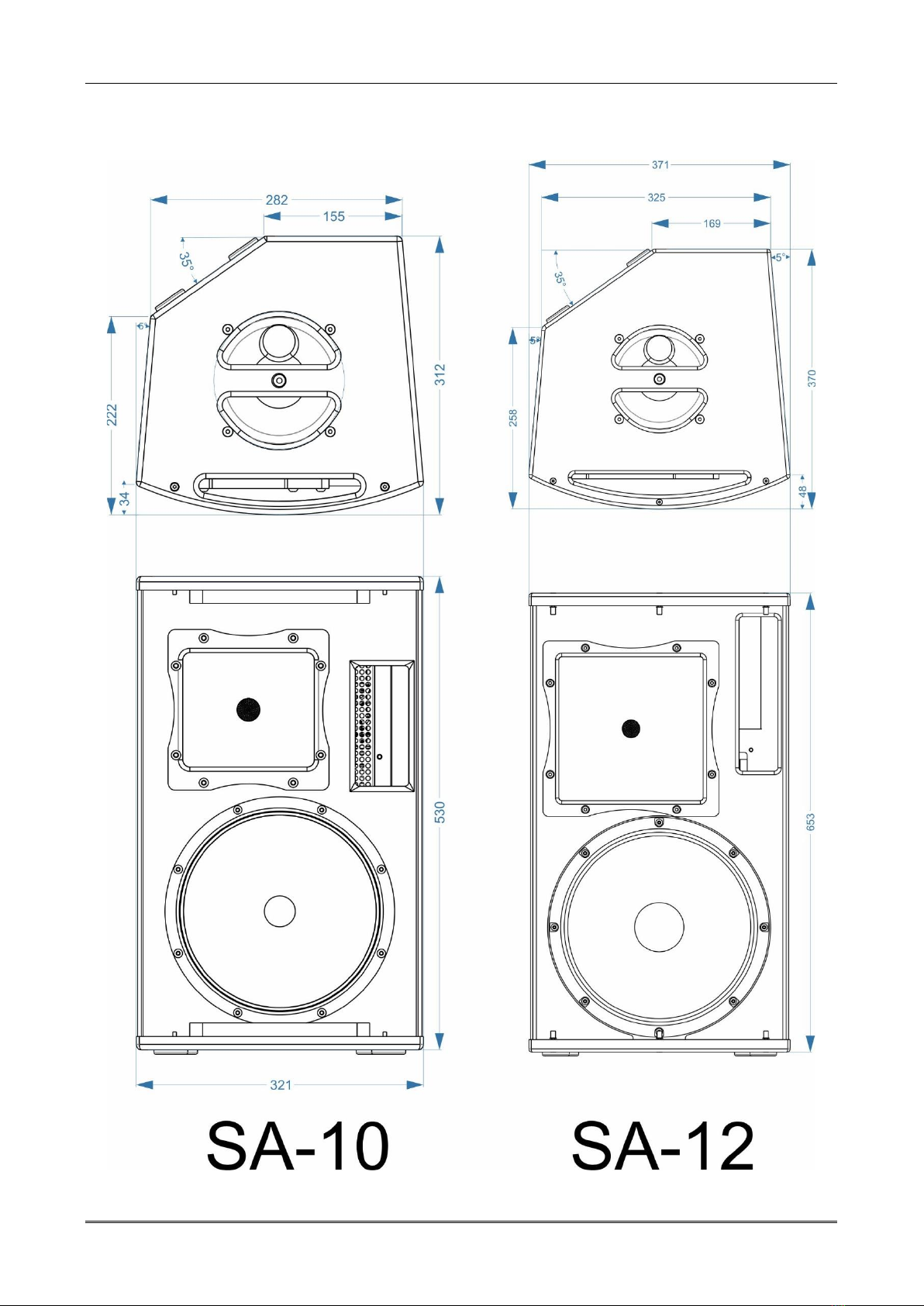

DIMENSIONS

ENGLISH OPERATION MANUAL
SYNQ®11/11 SA-10 / SA-12 / SA-15 / SA-B15
DIMENSIONS

WWW.SYNQ-AUDIO.COM
Copyright © 2023 by BEGLEC NV
‘t Hofveld 2C ~ B1702 Groot-Bijgaarden ~ Belgium
Reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited.
MAILING LIST
EN: Subscribe today to our mailing list for the latest product news!
FR: Inscrivez-vous à notre liste de distribution si vous souhaitez suivre l'actualité de nos produits!
NL: Abonneer je vandaag nog op onze mailinglijst en ontvang ons laatste product nieuws!
DE: Abonnieren Sie unseren Newsletter und erhalten Sie aktuelle Produktinformationen!
ES: Suscríbete hoy a nuestra lista de correo para recibir las últimas noticias!
PT: Inscreva-se hoje na nossa mailing list para estar a par das últimas notícias!
