System Cleaners S1 User manual

Version 7 (03.2022. EN)
MANUAL
S1

Version 7 (03.2022. EN) (S1)
Page 2 of 28
General
For safety during installation and later use it is very important that installation, operating and maintenance
instructions are carefully followed.
You are requested to keep this instruction manual at a location where it will be available at all times, and it should be
submitted to the person who is responsible for this product. In the event that the instruction manual is lost, you are
welcome to order a new one from your dealer.
If any doubt should arise with regard to the content of these instructions, please contact the distributor.
Proper use
System Cleaners’ system is exclusively designed to transport and pressure-increase of water to satellite stations. All
other forms of application or use not within the scope of the above are considered to be improper and inconsistent
with the requirements and regulations, and may lead to hazardous situations.
System Cleaners A/S cannot be held liable for consequential damage resulting from improper use of the equipment.
Proper use includes the following:
•The instructions, regulations and recommendations concerning the system stated in the instruction manual
•Observance of the specified inspection and maintenance intervals
•Correct maintenance of good operating condition of the system
•Observance of the specified environmental and operating conditions
Proper use also includes observance of all information that is stated in this instruction manual. This applies in
particular to the specified safety instructions.
Liability
Each user must handle and use the system in a responsible manner.
It is therefore of great importance that this instruction manual is available to the sanitation employee concerned at all
times.
Safety
The design of the system complies with generally accepted technical regulations and provisions concerning the working
environment and accident prevention. Despite this, risks can occur during use that can lead to physical inconvenience
for the user or a third party or have an impact on the machine or other equipment.
The system must therefore be in prime technical condition before use and may only be used in accordance with its
purpose and with strict observance of the safety requirements and operating instructions. In particular, malfunctions
and irregularities that can affect safety must be remedied immediately.
Warranty
Please refer to the General Terms and Conditions applicable at any time.
Disposal
Please be aware of the following applicable provisions: the equipment must be disposed of according to its nature and
applicable requirements, e.g. electrical scrap, synthetic material, stainless steel, brass, etc.
Labelling
The system is equipped with a type plate containing technical data.
The type plate is located on a fixed part of the system.

Version 7 (03.2022. EN) (S1)
Page 3 of 28
Declaration of conformity
We declare that this product is in conformity with the following directives:
2006/42/EC Directive on Machinery
Brian Lund Jensen
Solution and Development Manager

Version 7 (03.2022. EN) (S1)
Page 4 of 28
DESCRIPTION
Satellite
A satellite is connected to pressurized water, a number of chemicals and, depending on the model, compressed air.
Using a satellite it is possible for one operator to rinse, foam or disinfect (depending on model).
Pos.
Description
1
Inlet water
2
Air unit
3
Non-return valve
4
Air regulator
5
Dosing valve chemical
6
Suction tube chemical
7
Outlet
8
Function selector
9
Strainer

Version 7 (03.2022. EN) (S1)
Page 5 of 28
INSTALLATION
Storage
The machine must not be exposed to frost unless it has been emptied of water (frost protected). Even brief periods of
exposure to frost may cause damage to the equipment.
Store the equipment in a frost-free room in the original packing.
Installation
Place the equipment in a frost-free room, well protected from the sun and place it on a hard surface.
Make sure that, in the event of failing non-return valves in the air and water supply, there are suitable back-flow
preventers fitted.
Local regulations may require installation of a back-flow protecting device to prevent compressed air or chemicals
getting into the water supply.
Piping
The piping should be made from materials suitable for the media in the pipes, the maximum pressure and
temperature.
It is the fitter’s responsibility to ensure that the piping including all armatures conform to local regulations.
The installation must be performed such that forces from pipes etc. are not transferred to the equipment during and
after fitting, as this may result in leaks or damage the equipment.
Select a pipe size so that the flow velocity in the pipe is up to 3 meters/second (10 feet/second). This gives a normally
accepted pressure loss and low noise from the flow.
In order to facilitate maintenance of the equipment, it is recommended to fit a shut-off valve in the pipelines
immediately at the connections for water.
Pipe supports
Always use pipe supports designed for the pipe size and material and maximum working pressure and temperature.

Version 7 (03.2022. EN) (S1)
Page 6 of 28

Version 7 (03.2022. EN) (S1)
Page 7 of 28
COMMISSIONING
Flushing
Pipes etc. must be flushed efficiently before connecting the unit.
Before commencing operation on the unit or following repair work, the unit must be flushed thoroughly to remove any
impurities or foreign bodies.
Disinfection
Local specifications may require disinfection of the wetted parts like internals of pipes and pumps before use to avoid
contamination of newly cleaned surfaces.
Dosing
Adjust the dosing according to the chemical supplier’s recommendations.
Always calibrate and, if required, document the dosing on a regular basis.
Air
Adjust the air pressure until a satisfactory foam quality is achieved.
Note that good foam quality depends on the mixture of water, chemical and air and getting a perfect result requires
some adjustments of the mixing ratios.
OPERATION
Safety
It is recommended that suitable working clothes be worn. For protection against certain types of detergents, always
use protective goggles, respiratory protective equipment and rubber gloves.
It is recommended that non-slip footwear be worn since the floor can be slippery due to the presence of water and
foam.
This system may only be operated, maintained and –not least - repaired by persons who are familiar with the system
and properly trained to carry out the job concerned.
It is the customer’s responsibility that these installation and operating instructions are supplemented by in-house
instructions concerning inspection and reporting, industrial management, personnel training, etc.
Do not carry out any work if you are unsure of the consequences or are insufficiently skilled to carry it out. If in doubt,
you should contact your superior or your agent in advance.
Never direct the water jet at other persons.
Never direct the water jet at electrical installations.
Check that couplings “lock” when hoses and nozzles are fitted. If possible, practise this procedure before operation.
Always relieve the pressure in the rinsing hose by opening the low-pressure gun or valve after the water supply has
been shut off before dismantling the couplings and removing the hose.
During operation of the system, ensure that the low-pressure gun/valve is closed before releasing the handle.
When the low-pressure gun or valve is opened, the water jet will result in a certain amount of counter-pressure.
Therefore make sure that you hold the handle firmly and have a firm foothold.
System Cleaners low-pressure systems may only be used in conjunction with soaps and chemicals that are approved
for cleaning within the food or transport industries.
Soaps and chemicals that are classified as highly corrosive, toxic or which pose a health risk to humans or animals
may not be used.
The system must not be used together with solvents or volatile liquids that pose a health risk or are inflammable.

Version 7 (03.2022. EN) (S1)
Page 8 of 28
In the event that the system is used with non-approved soaps, chemicals or solvents, System Cleaners A/S disclaims
all liability.
If in doubt, please contact your soap or chemical supplier and read the supplier manual.
In the event that you use the system with chemicals that require mandatory labelling, or if the water temperature
exceeds 50°C, a low-pressure gun with an automatic closing device must be used.
In the event that you use the system without a gun with an automatic closing device together with chemicals that
require mandatory labelling, or water with a temperature that exceeds 50°C, System Cleaners A/S disclaims all
liability.
Pressure relief
After use shut the isolating valves over the equipment and relieve air and water pressure in hoses etc.
Flush injector system
After each use flush the injector system with warm water to avoid clogging of the injector.
MAINTENANCE
Water filter
Depending on the mains water quality it may be necessary to clean the water filter on a regular basis to prevent the
pump from stopping.
Water non-return valve
Water non-return valves are critical wear parts and should be replaced yearly.
Air filter
Depending on the quality of the compressed air it may be necessary to empty condensation collected in the air filter
bowl on a regular basis.

Version 7 (03.2022. EN) (S1)
Page 9 of 28
Injector system
The injector system consists of foot strainer, dosing valve, non-return valve and injector.
Chemical residues compromises the function of the injector and flushing with warm water after each use is required to
maintain trouble free operation.
Depending on the water quality it may be necessary to de-scale the water side of the injector on a regular basis
following the chemical supplier’s guidelines.
Pos
Number
Description
Material
1
97-100342
Allen key 6mm
Steel

Version 7 (03.2022. EN) (S1)
Page 10 of 28
TROUBLE SHOOTING
Fault
Cause
Remedy
No water or insufficient water at the
nozzle when rinsing
Function selector is in closed
position
Turn the function selector switch to the
desired function
Insufficient water supply to the unit
Make sure that the water supply is as
described in the technical specifications
Valve at the end of the hose not
open
Open valve
The unit does not suck up detergent
Function selector is not in the
correct position
Turn function selector switch to desired
function
Suction filter or chemical restrictor
are blocked by chemical residue
Clean suction filter or chemical
restrictor
Water pressure is too low
Make sure water supply is as
described in the technical specifications
Suction filter is above the fluid level
in chemical container
Position the suction filter below fluid level
Poor foam quality
Chemical product is not a foaming
product
Change to a foaming chemical
Incorrect dosing
Adjust the dosing according to chemical
supplier’s specifications
Suction filter or chemical restrictor
are blocked by chemical residue
Clean the suction filter or chemical
restrictor
Water pressure is too low
Make sure that the water supply is as
described in the technical specifications
Air pressure too low
Increase air pressure
Non-original foam nozzle fitted
Replace with original white foam nozzle

Version 7 (03.2022. EN) (S1)
Page 11 of 28

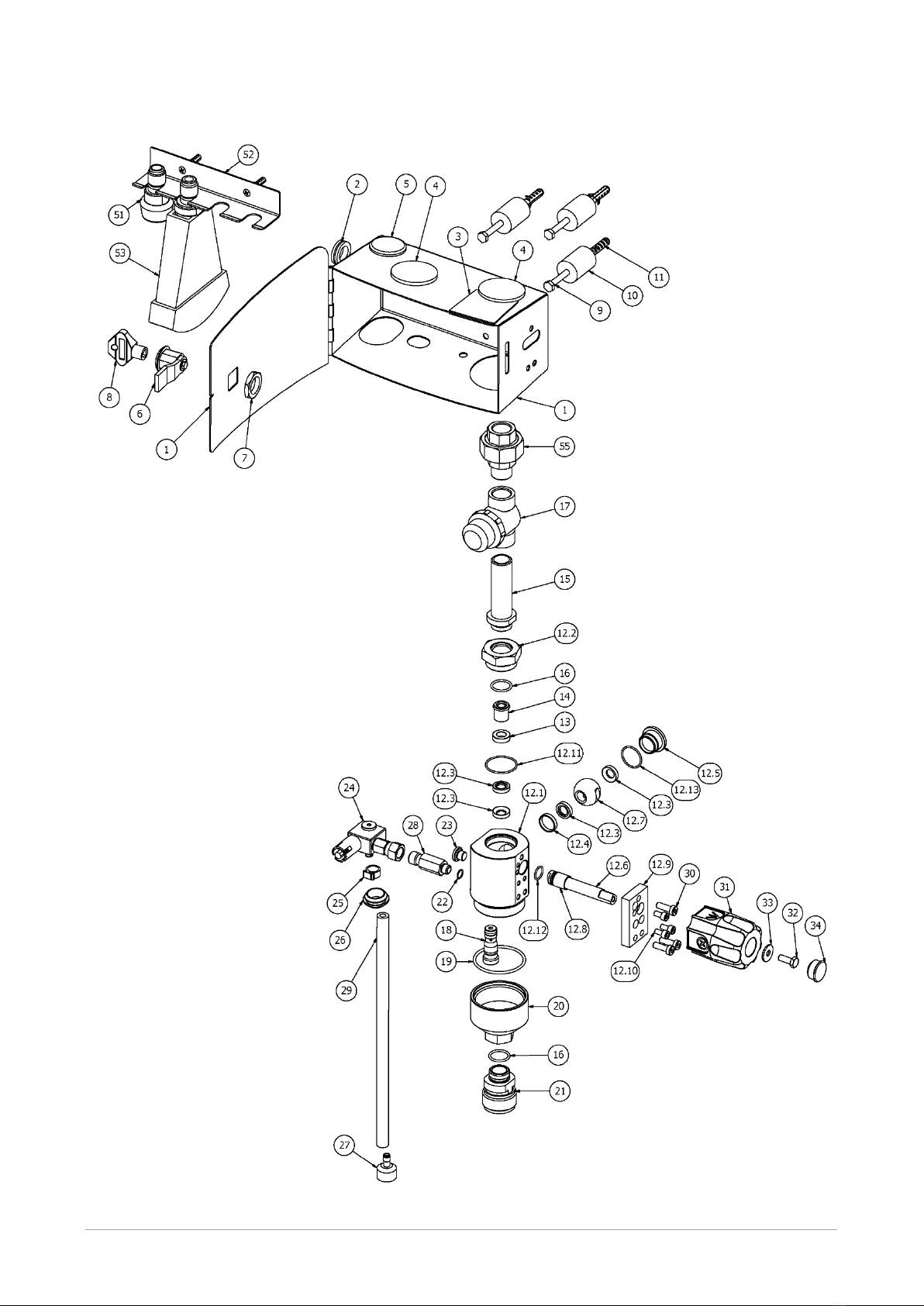

SPARE PARTS
S1 F (air)
NPT
NPT
3-10 bar

Version 7 (03.2022. EN) (S1)
Page 12 of 28
Pos
Number
Description
Material
Version
1
46-500220
Housing S1
AISI 304
All
3
04-000002
Cover
AISI 304
All
4
04-000006
Lead-in ø42 black
PVC
All
6
72-000011
Lock WITHOUT handle
AISI 304/Plastic
All
7
72-000030
Nut for lock
Nylon
All
8
72-100010
Key for housing
Plastic
All
9
08-100610
Coach screw M6x80mm
A2
All
10
04-000177
Spacer ø6/ø25x35 black
PVC-U
All
11
08-900008
Rawlplugs S 8
PVC
All
12
20-001000
Valve block
-
All
12.1
20-001010
Valve housing
AISI 316
All
12.2
20-001020
Seal backing 01
AISI 303
All
12.3
20-001050
Ball seal
PTFE with 25% carbon fiber
All
12.4
20-001040
Seal backing 03
AISI 303
All
12.5
20-001030
Seal backing 02
AISI 303
All
12.6
20-001060
Spindle for ball
AISI 303
All
12.7
20-001070
Ball
AISI 316
All
12.8
20-001080
Guide for spindle
PTFE with 25% carbon fiber
All
12.9
20-001090
Holder for spindle guide
POM/black
All
12.10
08-800505
Cheese-head screw M5x10
A2
All
12.11
17-020008
O-ring 30x1,5 EPDM 70 sh
EPDM
All
12.12
17-020007
O-ring 12x1,5 EPDM 70 sh
EPDM
All
12.13
17-020006
O-ring 22x1,5 EPDM 70 sh
EPDM
All
13
04-000193
Washer ø18/ø10,4x5
PTFE
All
14
20-200170
Non-return valve DN 10
Plastic/EPDM
All
15
25-000720
Inlet pipe 1/2" BSP
AISI 304
All
16
17-020080
O-ring 18x2 70 shore
EPDM
All
17
20-500061
Strainer 1/2" brass 300 µm
Nickel-plated brass
3-10 bar
18
27-000213
Injection cartridge ø2,3 PSU
PSU/EPDM
3-8 bar
18
27-000201
Injection cartridge ø1,5 PSU
PSU/EPDM
10-40 bar
19
17-020009
O-ring 48,9x2,62 EPDM 70 sh
EPDM
All
20
20-001100
Outlet valve housing
AISI 303
All
21
30-000053
Coupling, outlet 1/2" SS
AISI 303
All
22
173-000010
O-ring 8x1 for hose
EPDM
All
24
20-400056
Dosing valve concentrated S1
AISI 316/Viton
All
25
15-300012
Hose clip for 1/4"
PVC
All
26
04-000081
Diaphragm nipple
EPDM
All
27
27-300040
Suction filter ø6,5
AISI 316
All
28
16-110016
Adapter dosing valve
AISI 316
All
29
55-200023
Suction hose 1/4"x1500 white
PVC
All
30
08-100026
Allen screw M6x18 CH RF
A2
All
31
20-302010
Handle
ABS
All
32
08-200606
Set screw M6x16
A2
All
33
08-300602
Disc washer ø6
A2
All
34
010-200200
Plastic plug ø23xø20mm
Nylon
All
38
20-200025
Non-return valve air 1/4"
-
All
44
20-300040
Regulator with filter
Plastic
All
45
55-110040
Air hose ø6mm black
PA12
All
46
17-000012
Gasket 1/4"
PA12
All
47
15-100060
Hexagon nipple 1/4"
Nickel-plated brass
All
48
15-000010
Adapter ø8x1/4" NPT SS
AISI 304
NPT
49
15-000011
Air fitting 1/4"x8 elbow
Nickel-plated brass/Plastic
All
50
20-000050
Ball valve 1/4"
Nickel-plated brass
All
51
53-010401
Rinse nozzle System MS10/40
-
3-10 bar
51
53-015301
Rinse nozzle System 15/30 BR
-
10-40 bar
52
57-000050
Nozzle holder
-
All
54
53-502000
Foam nozzle System 50/200 BR
-
All
55
15-800033
Union 1/2" with packing, NPT
AISI 316/PTFE
NPT
57
15-010166
Air fitting elbow ø1,5
Nickel-plated brass/Plastic
All
58
15-010071
Air fitting 1/4"x6
Nickel-plated brass/Plastic
All
59
55-110080
Air hose ø4mm black
PA12
All
60
17-000020
O-ring 8x1,25
NBR
All

Version 7 (03.2022. EN) (S1)
Page 13 of 28
S1 F (no air)
NPT
3-10 bar

Version 7 (03.2022. EN) (S1)
Page 14 of 28
Pos
Number
Description
Material
Version
1
46-500220
Housing S1
AISI 304
All
2
04-000005
Lead-in ø20 black
PVC
All
3
04-000002
Cover
AISI 304
All
4
04-000006
Lead-in ø42 black
PVC
All
5
04-000223
Blind plug ø32,5 black
Plastic
All
6
72-000011
Lock WITHOUT handle
AISI 304/Plastic
All
7
72-000030
Nut for lock
Nylon
All
8
72-100010
Key for housing
Plastic
All
9
08-100610
Coach screw M6x80mm
A2
All
10
04-000177
Spacer ø6/ø25x35 black
PVC-U
All
11
08-900008
Rawlplugs S 8
PVC
All
12
20-001000
Valve block
-
All
12.1
20-001010
Valve housing
AISI 316
All
12.2
20-001020
Seal backing 01
AISI 303
All
12.3
20-001050
Ball seal
PTFE with 25% carbon fiber
All
12.4
20-001040
Seal backing 03
AISI 303
All
12.5
20-001030
Seal backing 02
AISI 303
All
12.6
20-001060
Spindle for ball
AISI 303
All
12.7
20-001070
Ball
AISI 316
All
12.8
20-001080
Guide for spindle
PTFE with 25% carbon fiber
All
12.9
20-001090
Holder for spindle guide
POM/black
All
12.10
08-800505
Cheese-head screw M5x10
A2
All
12.11
17-020008
O-ring 30x1,5 EPDM 70 sh
EPDM
All
12.12
17-020007
O-ring 12x1,5 EPDM 70 sh
EPDM
All
12.13
17-020006
O-ring 22x1,5 EPDM 70 sh
EPDM
All
13
04-000193
Washer ø18/ø10,4x5
PTFE
All
14
20-200170
Non-return valve DN 10
Plastic/EPDM
All
15
25-000720
Inlet pipe 1/2" BSP
AISI 304
All
16
17-020080
O-ring 18x2 70 shore
EPDM
All
17
20-500061
Strainer 1/2" brass 300 µm
Nickel-plated brass
3-10 bar
18
27-000217
Injection cartridge ø2,5 PSU
PSU/EPDM
3-6 bar
18
27-000201
Injection cartridge ø1,5 PSU
PSU/EPDM
10-40 bar
19
17-020009
O-ring 48,9x2,62 EPDM 70 sh
EPDM
All
20
20-001100
Outlet valve housing
AISI 303
All
21
30-000053
Coupling, outlet 1/2" SS
AISI 303
All
22
173-000010
O-ring 8x1 for hose
EPDM
All
23
16-501804
Plug 1/8"
Nickel-plated brass
All
24
20-400056
Dosing valve concentrated S1
AISI 316/Viton
All
25
15-300012
Hose clip for 1/4"
PVC
All
26
04-000081
Diaphragm nipple
EPDM
All
27
27-300040
Suction filter ø6,5
AISI 316
All
28
16-110016
Adapter dosing valve
AISI 316
All
29
55-200023
Suction hose 1/4"x1500 white
PVC
All
30
08-100026
Allen screw M6x18 CH RF
A2
All
31
20-302010
Handle
ABS
All
32
08-200606
Set screw M6x16
A2
All
33
08-300602
Disc washer ø6
A2
All
34
010-200200
Plastic plug ø23xø20mm
Nylon
All
51
53-010401
Rinse nozzle System MS10/40
-
3-10 bar
51
53-015301
Rinse nozzle System 15/30 BR
-
10-40 bar
52
57-000050
Nozzle holder
-
All
53
57-200060
Foam booster with SC coupling
-
All
55
15-800033
Union 1/2" with packing, NPT
AISI 316/PTFE
NPT

Version 7 (03.2022. EN) (S1)
Page 15 of 28
S1 PF
NPT
3-10 bar
3-10 bar
NPT
NPT

Version 7 (03.2022. EN) (S1)
Page 16 of 28
Pos
Number
Description
Material
Version
1
46-500220
Housing S1
AISI 304
All
2
04-000005
Lead-in ø20 black
PVC
All
3
04-000006
Lead-in ø42 black
PVC
All
4
72-000011
Lock WITHOUT handle
AISI 304/Plastic
All
5
72-000030
Nut for lock
Nylon
All
6
72-100010
Key for housing
Plastic
All
7
08-100610
Coach screw M6x80mm
A2
All
8
04-000177
Spacer ø6/ø25x35 black
PVC-U
All
9
08-900008
Rawlplugs S 8
PVC
All
10
20-001001
Valve block PF
-
All
10.1
20-001011
Valve housing S1 PF
AISI 316
All
10.2
20-001020
Seal backing 01
AISI 303
All
10.3
20-001050
Ball seal
PTFE with 25% carbon fiber
All
10.4
20-001040
Seal backing 03
AISI 303
All
10.5
20-001030
Seal backing 02
AISI 303
All
10.6
20-001060
Spindle for ball
AISI 303
All
10.7
20-001070
Ball
AISI 316
All
10.8
20-001080
Guide for spindle
PTFE with 25% carbon fiber
All
10.9
20-001090
Holder for spindle guide
POM/black
All
10.10
08-800505
Cheese-head screw M5x10
A2
All
10.11
17-020008
O-ring 30x1,5 EPDM 70 sh
EPDM
All
10.12
17-020007
O-ring 12x1,5 EPDM 70 sh
EPDM
All
10.13
17-020006
O-ring 22x1,5 EPDM 70 sh
EPDM
All
11
04-000193
Washer ø18/ø10,4x5
PTFE
All
12
20-200170
Non-return valve DN 10
Plastic/EPDM
All
13
25-000720
Inlet pipe 1/2" BSP
AISI 304
All
14
17-020080
O-ring 18x2 70 shore
EPDM
All
15
20-500061
Strainer 1/2" brass 300 µm
Nickel-plated brass
3-10 bar
16
17-020009
O-ring 48,9x2,62 EPDM 70 sh
EPDM
All
17
20-001100
Outlet valve housing
AISI 303
All
18
30-000053
Coupling, outlet 1/2" SS
AISI 303
All
19
173-000010
O-ring 8x1 for hose
EPDM
All
20
16-110016
Adapter dosing valve
AISI 316
All
21
08-100026
Allen screw M6x18 CH RF
A2
All
22
20-302030
Handle
ABS
PF
23
08-200606
Set screw M6x16
A2
All
24
08-300602
Disc washer ø6
A2
All
25
010-200200
Plastic plug ø23xø20mm
Nylon
All
29
20-200025
Non-return valve air 1/4"
-
All
35
20-300040
Regulator with filter
Plastic
All
37
17-000012
Gasket 1/4"
PA12
All
38
15-100060
Hexagon nipple 1/4"
Nickel-plated brass
All
39
15-000010
Adapter ø8x1/4" NPT SS
AISI 304
NPT
40
15-000011
Air fitting 1/4"x8 elbow
Nickel-plated brass/Plastic
All
41
20-000050
Ball valve 1/4"
Nickel-plated brass
All
42
15-800032
Union 1/2" with packing, e/i
AISI 316/PTFE
All
43
15-510123
Nipple pipe 1/2"x25mm
AISI 316
3-10 bar
44
20-000220
Ball valve 1/2" (blue)
AISI 316
All
45
57-000050
Nozzle holder
-
All
46
53-502000
Foam nozzle System 50/200 BR
-
All
47
046-000630
Tailstock screw M6x30mm
A2
All
48
20-400055
Dosing valve pre-diluted
AISI 316/Viton
All
49
17-000153
O-ring 6,07x1,78
Viton
All
50
04-000002
Cover
AISI 304
All
51
15-800033
Union 1/2" with packing, NPT
AISI 316/PTFE
NPT
52
53-010401
Rinse nozzle System MS10/40
-
3-10 bar
52
53-015301
Rinse nozzle System 15/30 BR
-
10-40 bar
53
25-000790
Inlet pipe S1 PF
AISI 304
All
54
15-800070
Union 1/4" with packing, e/i
AISI 316/PTFE
All
55
20-000242
Ball valve 1/4" SS (white)
AISI 316
All
56
15-100014
Hexagon nipple 1/4" BSPP/NPT
AISI 316
NPT
57
16-500009
Plug M16
AISI 316
All
58
17-020055
O-ring 10x2 70 shore
EPDM
All
59
15-010166
Air fitting elbow ø1,5
Nickel-plated brass/Plastic
All
60
17-000020
O-ring 8x1,25
NBR
All
61
15-010071
Air fitting 1/4"x6
Nickel-plated brass/Plastic
All
62
55-110040
Air hose ø6mm black
PA12
All
63
55-110080
Air hose ø4mm black
PA12
All

Version 7 (03.2022. EN) (S1)
Page 17 of 28
S1 F (trolley with cabinet)
3-10 bar

Version 7 (03.2022. EN) (S1)
Page 18 of 28
Pos
Number
Description
Material
Version
1
46-500220
Housing S1
AISI 304
All
2
04-000002
Cover
AISI 304
All
3
04-000006
Lead-in ø42 black
PVC
All
4
72-000011
Lock WITHOUT handle
AISI 304/Plastic
All
5
72-000030
Nut for lock
Nylon
All
6
72-100010
Key for housing
Plastic
All
7
20-001000
Valve block
-
All
7.1
20-001010
Valve housing
AISI 316
All
7.2
20-001020
Seal backing 01
AISI 303
All
7.3
20-001050
Ball seal
PTFE with 25% carbon fiber
All
7.4
20-001040
Seal backing 03
AISI 303
All
7.5
20-001030
Seal backing 02
AISI 303
All
7.6
20-001060
Spindle for ball
AISI 303
All
7.7
20-001070
Ball
AISI 316
All
7.8
20-001080
Guide for spindle
PTFE with 25% carbon fiber
All
7.9
20-001090
Holder for spindle guide
POM/black
All
7.10
08-800505
Cheese-head screw M5x10
A2
All
7.11
17-020008
O-ring 30x1,5 EPDM 70 sh
EPDM
All
7.12
17-020007
O-ring 12x1,5 EPDM 70 sh
EPDM
All
7.13
17-020006
O-ring 22x1,5 EPDM 70 sh
EPDM
All
8
04-000193
Washer ø18/ø10,4x5
PTFE
All
9
20-200170
Non-return valve DN 10
Plastic/EPDM
All
10
25-000720
Inlet pipe 1/2" BSP
AISI 304
All
11
17-020080
O-ring 18x2 70 shore
EPDM
All
12
20-500060
Strainer 1/2" brass 300 µm (E/I)
Nickel-plated brass
3-10 bar
13
27-000213
Injection cartridge ø2,3 PSU
PSU/EPDM
3-8 bar
13
27-000201
Injection cartridge ø1,5 PSU
PSU/EPDM
10-40 bar
14
17-020009
O-ring 48,9x2,62 EPDM 70 sh
EPDM
All
15
20-001100
Outlet valve housing
AISI 303
All
16
30-000053
Coupling, outlet 1/2" SS
AISI 303
All
17
173-000010
O-ring 8x1 for hose
EPDM
All
18
20-400056
Dosing valve concentrated S1
AISI 316/Viton
All
19
15-300012
Hose clip for 1/4"
PVC
All
20
04-000081
Diaphragm nipple
EPDM
All
21
27-300040
Suction filter ø6,5
AISI 316
All
22
16-110016
Adapter dosing valve
AISI 316
All
23
55-200023
Suction hose 1/4"x1500 white
PVC
All
24
08-100026
Allen screw M6x18 CH RF
A2
All
25
20-302010
Handle
ABS
All
26
08-200606
Set screw M6x16
A2
All
27
08-300602
Disc washer ø6
A2
All
28
010-200200
Plastic plug ø23xø20mm
Nylon
All
32
20-200025
Non-return valve air 1/4"
-
All
38
20-300040
Regulator with filter
Plastic
All
40
17-000012
Gasket 1/4"
PA12
All
41
15-100060
Hexagon nipple 1/4"
Nickel-plated brass
All
42
20-000050
Ball valve 1/4"
Nickel-plated brass
All
43
53-010401
Rinse nozzle System MS10/40
-
3-10 bar
43
53-015301
Rinse nozzle System 15/30 BR
-
10-40 bar
44
53-502000
Foam nozzle System 50/200 BR
-
All
45
15-600061
Elbow 1/4" 90° E/I
Nickel-plated brass
All
46
30-400040
Air nipple, 1/4" outs.thr.
Chrome-plated brass
All
47
30-000010
Female coupling 1/2", internal
AISI 303
All
48
30-000070
Insert 1/2" external thread
16-2-XH
All
49
15-600070
Elbow 1/2" 90° I/I
AISI 316
All
51
48-100082
Trolley for S1 with Cabinet
-
All
52
16-600070
Pin, hair cotter SS
AISI 316
All
53
48-100079
Partition for cannister holder
-
All
54
49-000013
Wheel ø200x50mm
Rubber/Plastic
All
55
49-300040
Wheel bolt ø15
-
All
56
08-200001
Bolt M6x50 6kt RFA2
A2
All
57
04-000177
Spacer ø6/ø25x35 black
PVC-U
All
58
08-000602
Lock nut M6
A2
All
59
04-000092
Plastic knob ø25mm
White PP
All
71
15-010166
Air fitting elbow ø1,5
Nickel-plated brass/Plastic
All
72
55-110040
Air hose ø6mm black
PA12
All
73
15-010071
Air fitting 1/4"x6
Nickel-plated brass/Plastic
All
74
17-000020
O-ring 8x1,25
NBR
All
75
55-110080
Air hose ø4mm black
PA12
All

Version 7 (03.2022. EN) (S1)
Page 19 of 28
S1 F no air (trolley without cabinet)
3-10 bar

Version 7 (03.2022. EN) (S1)
Page 20 of 28
Pos
Number
Description
Material
Version
1
48-100082
Trolley for S1 with Cabinet
-
All
2
20-001000
Valve block
-
All
2.1
20-001010
Valve housing
AISI 316
All
2.2
20-001020
Seal backing 01
AISI 303
All
2.3
20-001050
Ball seal
PTFE with 25% carbon fiber
All
2.4
20-001040
Seal backing 03
AISI 303
All
2.5
20-001030
Seal backing 02
AISI 303
All
2.6
20-001060
Spindle for ball
AISI 303
All
2.7
20-001070
Ball
AISI 316
All
2.8
20-001080
Guide for spindle
PTFE with 25% carbon fiber
All
2.9
20-001090
Holder for spindle guide
POM/black
All
2.10
08-800505
Cheese-head screw M5x10
A2
All
2.11
17-020008
O-ring 30x1,5 EPDM 70 sh
EPDM
All
2.12
17-020007
O-ring 12x1,5 EPDM 70 sh
EPDM
All
2.13
17-020006
O-ring 22x1,5 EPDM 70 sh
EPDM
All
3
04-000193
Washer ø18/ø10,4x5
PTFE
All
4
20-200170
Non-return valve DN 10
Plastic/EPDM
All
5
17-020080
O-ring 18x2 70 shore
EPDM
All
6
20-500060
Strainer 1/2" brass 300 µm (E/I)
Nickel-plated brass
3-10 bar
7
27-000217
Injection cartridge ø2,5 PSU
PSU/EPDM
3-6 bar
7
27-000201
Injection cartridge ø1,5 PSU
PSU/EPDM
10-40 bar
8
17-020009
O-ring 48,9x2,62 EPDM 70 sh
EPDM
All
9
20-001100
Outlet valve housing
AISI 303
All
10
30-000053
Coupling, outlet 1/2" SS
AISI 303
All
11
16-501804
Plug 1/8"
Nickel-plated brass
All
12
15-300012
Hose clip for 1/4"
PVC
All
13
04-000081
Diaphragm nipple
EPDM
All
14
27-300040
Suction filter ø6,5
AISI 316
All
15
08-100026
Allen screw M6x18 CH RF
A2
All
16
20-302020
Handle
ABS
All
17
08-200606
Set screw M6x16
A2
All
18
08-300602
Disc washer ø6
A2
All
19
010-200200
Plastic plug ø23xø20mm
Nylon
All
20
49-000013
Wheel ø200x50mm
Rubber/Plastic
All
21
49-300040
Wheel bolt ø15
-
All
22
04-000092
Plastic knob ø25mm
White PP
All
23
48-100079
Partition for cannister holder
-
All
24
16-600070
Pin, hair cotter SS
AISI 316
All
25
53-010401
Rinse nozzle System MS10/40
-
3-10 bar
25
53-015301
Rinse nozzle System 15/30 BR
-
10-40 bar
26
30-000070
Insert 1/2" external thread
16-2-XH
All
27
15-600070
Elbow 1/2" 90° I/I
AISI 316
All
29
57-200060
Foam booster with SC coupling
-
All
30
52-160300
Disinfection nozzle KS60/30
-
All
31
55-200004
Suction hose 1/4"x800mm white
PVC
All
32
182-900010-01
Spring 0.25x4.1x6.3x5V SS
AISI 316
All
33
182-900010-02
Ball ø5
AISI 316
All
34
173-000010
O-ring 8x1 for hose
EPDM
All
35
182-000180-01
Hose nipple 1/8"
AISI 316
All
36
17-020040
O-ring 4x1 70 sh
EPDM
All
37
294-100000
Set of chemical limiter (7)
PVC
All
Table of contents
