Systium Technologies 730 User manual

SySTIUM®TECHNOLOGIES MotherBoard ReadySM System • MODEL 730
Copyright © 2013, SySTIUM® Technologies, LLC
PN: 91321-01 Rev01
1
USER QUICK START GUIDE 350W version
NOTE
The cord must be less than 14.8 feet (4.5 meters) long and, for
use in Europe, be created with <HAR> (harmonized) or VDE
certified cordage.
The connector at the product end must be an IEC 320, sheet
C13, female connector (or the equivalent EN 60 320 connector).
The AC plug end must be terminated in a grounding-type male
plug designed for use in your region. The plug ends must be
labeled or marked to indicate they have been certified by an
agency acceptable in your region.
The cord must be rated for use at the AC voltage available, with
a current rating that is at least 125% of the current rating of the
product.
In some cases, the power cord supplied with this system may not
be compatible with the AC wall outlet in your region. If this is
true, you must obtain a suitable power cord that meets the
following criteria:
Do not attempt to modify or use the supplied AC power cord if it
is not the exact type required.
Warning
Power Cord Replacement
The power supply voltage standby circuit is active when the
computer is turned off. Ensure that the computer is disconnected
from its power source and from all telecommunications links,
networks, or modem lines whenever the chassis cover is removed.
Do not operate the computer with the cover removed.
Warning
Check that the power cord supplied is designed and approved for
power connections. If you are unsure of the power cords
suitability, check with the safety approval agency in your region of
the world. If the power cable supplied is not suitable please
review the instructions in the section “Power Cord Replacement”.
Before connecting the power cord to the system make sure the
power supply is set for the correct voltage operating range for
your region. Refer to the enclosed diagram of the specific Model
730 and motherboard combination for the location and
instructions for setting the computer system’s operating voltage
setting.
All of the external peripheral cables are designed such that the
connector can only be inserted in one orientation. Check the
orientation of the connector if the cable will not connect easily.
Connect the peripherals (Keyboard, Mouse, Video, etc.) required
for correct operation of the computer system. Refer to the
enclosed diagram of the specific Model 730 and motherboard
combination for the location and function of the various peripheral
connectors on the system. If you are unsure what model of
motherboard is installed, then locate the diagram that matches
the system. The function of the connectors is standard for
different motherboards.
Product Safety Warnings
CAUTION
TO PREVENT ACCESS TO HIGH ELECTRICAL
ENERGY PARTS, DO NOT REMOVE THE TOP
COVER.
WARNING
Ensure that the computer is disconnected from its power source
and from all telecommunications links, networks, or modem lines
whenever the chassis cover is removed. Do not operate the
computer with the cover removed.
AVERTISSEMENT
Assurez vous que le système soit débranché de son alimentation
ainsi que de toutes les liaisons de télécomunication, des réseaux,
et des lignes de modem avant d’enlever le capot. Ne pas utiliser
le système quand le capot est enlevé.
WARNUNG
Das System darf weder an eine Stromquelle angeschlossen sein
noch eine Verbindung mit einer Telekommunikationseinrichtung,
einem Netzwerk oder einer Modem-Leitung haben, wenn die
Gehäuseabdeckung entfernt wird. Nehmen Sie das System nicht
ohne die Abdeckung in Betrieb.
AVVERTENZA
Prima di rimuovere il coperchio del telaio, assicurarsi che il
sistema sia scollegato dall’alimentazione, da tutti i collegamenti
di comunicazione, reti o linee di modem. Non avviare il sistema
senza aver prima messo a posto il coperchio.
ADVERTENCIAS
Asegúrese de que cada vez que se quite la cubierta del chasis, el
sistema haya sido desconectado de la red de alimentación y de
todos lo enlaces de telecomunicaciones, de red y de líneas de
módem. No ponga en funcionamiento el sistema mientras la
cubierta esté quitada.
Connect the Peripheral & Power Cables

SySTIUM®TECHNOLOGIES MotherBoard ReadySM System • MODEL 730
Copyright © 2013, SySTIUM® Technologies, LLC
PN: 91321-01 Rev01
2
Turning on the Computer
Your computer is supplied with an advanced power supply that
allows the operating system to control the operation. The front
power switch is used primarily to turn the system on. The power
switch can also be used to turn off the computer before the
operating system is completely loaded. Once the operating
system is completely loaded and the computer is operational the
computer should only be turned off using the operating system.
Pressing the power switch on the front panel turns on the
computer. Figure 1 shows the location of the power
switch.
Power-on Self-Test
Each time you turn on the Computer, the power-on self-test
(POST) runs automatically and checks the system motherboard,
CPU module, memory, keyboard, and most installed peripheral
devices.
NOTE
If the system halts before POST completes running and emits a beep
code indicating a fatal system error or displays a POST failure
message on the monitor, contact your service representative or
supplier for assistance.
The POST will also display the message “Press <F2> key if you
want to run SETUP.” You have about five seconds to press <F2>
to enter setup before the boot process will continue.
The computer will then start the operating system. Please refer
to the documentation supplied with the operating system for
further information on operating the computer.
Shutting off Your Computer
Your computer is equipped with a power supply that supports
the “Soft-OFF” feature of operating systems that support the
ACPI 1.0 or APM standard 1.1 or higher. The “Soft-OFF” feature
allows the operating system to turn off the power supply
automatically once it is ready to shut down the system.
Please refer to the manual supplied with you operating system
to determine how to shut down your computer.
NOTE
It is possible to turn the computer off using the front panel switch
while the computer has the operating system loaded and is
operational. Pushing in the power switch and holding the switch in
until the computer shuts off. Release the switch.
Caution
Doing this may result in a loss of data and corruption of the
computer operating system or application. The computer should
only be shut off using the front power switch when the operating
system becomes unavailable for shutting off the computer.
Warning
Your computer is never totally powered off unless the computer
is disconnected from the ac outlet. Never open the computer
without removing the AC power cord from the AC inlet.

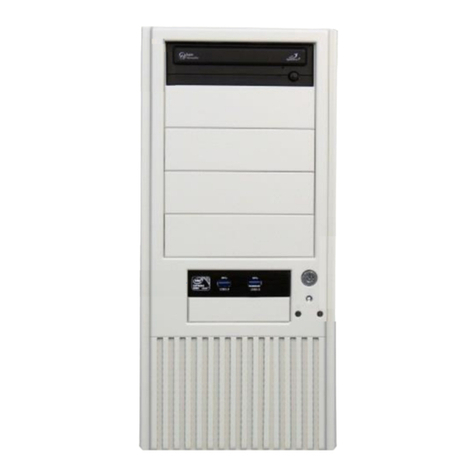

Front Panel Controls
The front panel for your computer contains the controls and
activity indicators used for daily operation. Your computer was
designed to place any peripherals that require daily access in a
convenient location at the front of the computer. Model 730
require the front access door to be opened to obtain access to
the front panel controls. Refer to the correct figure for the Model
of system being used.
A. Power control switch. Press and release to turn on the
computer. Once the operating system is completely loaded and
the computer is operational the computer should only be turned
off using the operating system.
It is possible to turn the computer off using the front panel
switch while the computer has the operating system loaded
and is operational. Push in the power switch and hold the
switch in until the computer shuts off. Release the switch.
B. Bay for 5.25-inch devices, shown with CD-ROM drive installed.
C. Power on/off. LED is green when the computer is on. When
the computer is in a powered off state the LED is not on.
D. USB Connectors
E. Hard disk light. Turns on when the computer reads or
writes data to a hard disk.
F. Reset switch

SySTIUM®TECHNOLOGIES MotherBoard ReadySM System • MODEL 730
Copyright © 2013, SySTIUM® Technologies, LLC
PN: 91321-01 Rev01
3

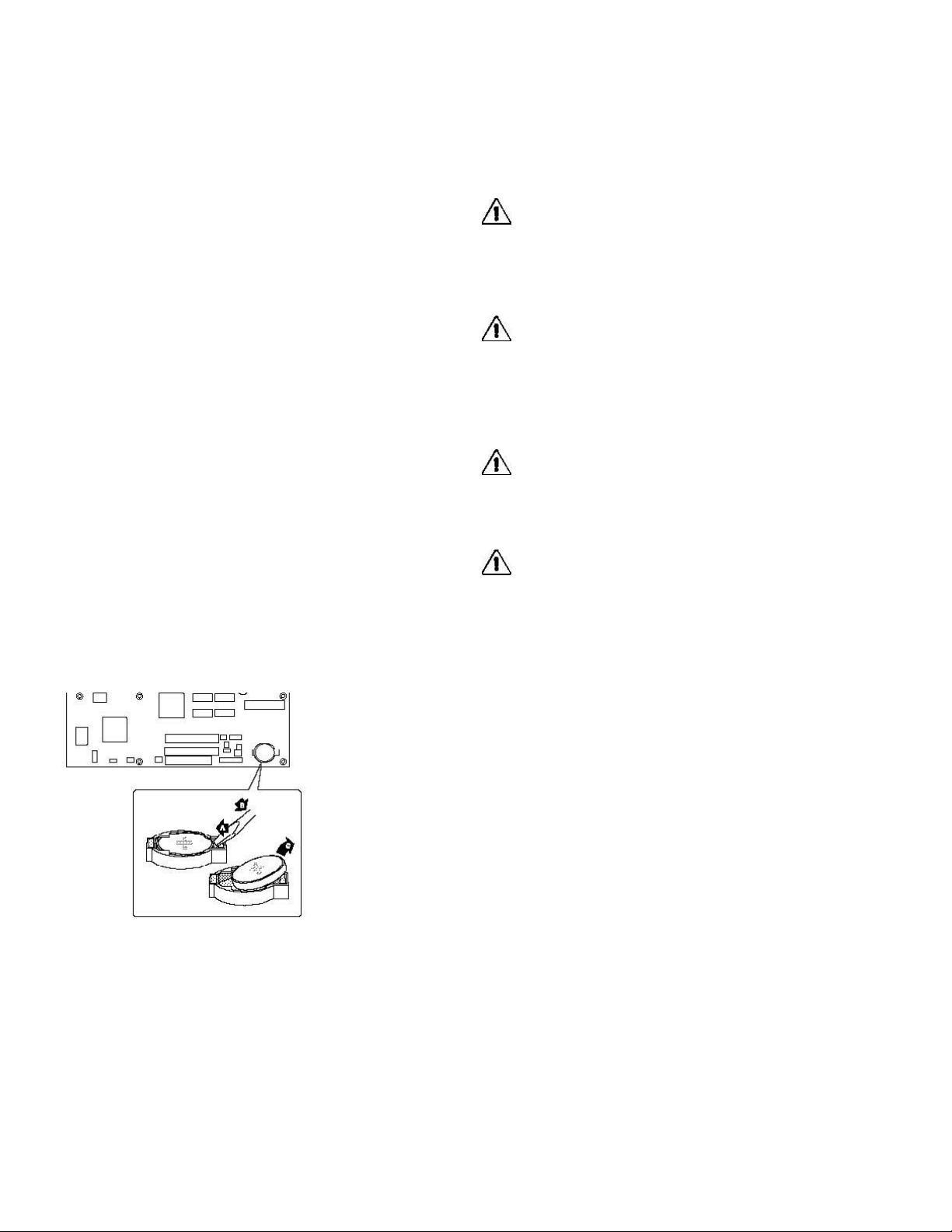

BATTERY REPLACEMENT INSTRUCTIONS
HOW TO REPLACE THE BATTERY
When your computer is turned off, a lithium battery keeps the
time-of-day clock and the values in CMOS RAM current. Figure
B.1 shows the location of the battery.
The battery should last about seven years. When the battery
begins to die, it loses voltage; when the voltage drops below a
certain level, the Setup program settings stored in CMOS RAM
(for example, the date and time) might not be accurate. Replace
the battery with an equivalent one.
TO REPLACE THE BATTERY, FOLLOW THESE STEPS:
1. Turn off all peripheral devices connected to the computer.
Turn off the computer. Disconnect the power cord.
2. Remove the computer cover. Locate the battery on
the motherboard (see Figure B.1).
3. With a medium flat-bladed screwdriver, gently pry the
battery free from its socket.
Note the orientation of the “+” and “-” on the battery.
4. Install the new battery in the socket, orienting the “+” and
“-” correctly.
5. Replace the computer
cover.
FIGURE B.1
NOTE
Do not expose batteries to excessive heat or fire. Keep all batteries
away from children. Spent batteries must be disposed of at an
approved recycling or disposal facility or in accordance with federal,
state, provincial, municipal or local environmental control
requirements. The customer agrees to abide by such disposal
requirements as may exist in their jurisdiction and to indemnify
SySTIUM® Technologies for any failure to do so.
WARNING
Danger of explosion if the battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by
the equipment manufacturer. Discard used batteries according to
manufacturer’s instructions.
ATTENTION
Il y a danger d’explosion s’il y a remplacement incorrect de la
batterie. Remplacer uniquement avec une batterie du méme type
ou d’un type recommandé par le constructeur. Mettre au rébut
les batteries usagées conformément aux instructions du
fabricant.
ADVARSEL!
Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering.
Udskiftning må kun ske med batteri af samme fabrikat og type.
Levér det brugte batteri tilbage til leverandøren.
ADVARSEL
Lithiumbatteri - Eksplosjonsfare. Ved utskifting benyttes kun
batteri som anbefalt av apparatfabrikanten. Brukt batteri
returneres apparatleverandøren.
VARNING
Explosionsfara vid felaktigt batteribyte. Använd samma
batterityp eller en ekvivalent typ som rekommenderas av
apparattillverkaren. Kassera använt batteri enligt fabrikantens
instruktion.
VAROITUS
Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda
paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin.
Hävitä käjtetty paristo valmistajan ohjeiden mukaisesti.

SySTIUM®TECHNOLOGIES MotherBoard ReadySM System • MODEL 730
Copyright © 2013, SySTIUM® Technologies, LLC
PN: 91321-01 Rev01
4
Radio Frequency Interference Notice
(USA)
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the grantee of
this device could void the user's authority to operate the equipment. The
customer is responsible for ensuring compliance of the modified product.
Only peripherals (computer input/output devices, terminals, printers, etc.)
that comply with FCC class B limits may be attached to this computer
product. Operation with noncompliant peripherals is likely to result in
interference to radio and TV reception.
All cables used to connect to peripherals must be shielded and grounded.
Operation with cables, connected to peripherals that are not shielded and
grounded may result in interference to radio and TV reception.
Manufacturer: SySTIUM® Technologies, LLC
New Hope, MN
763-537-3600
Contact: Customer Support
NOTE
If a Class A device is installed within this system, then the system is to
be considered a Class A system. In this configuration, operation of this
equipment in a residential area is likely to cause harmful interference.
Radio Frequency Interference
Notice (CDN)
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Declaration of the Manufacturer or
Importer
This system is compliant with Low Voltage Directive 2006/95/EC using the
standard IEC60950-1 according to EN 60950-
1:2006/A11:2009/A1:2010/A12:2011.
This system is compliant with EU directive 2004/108/EC using the
standards EN 55022:2010 and EN 55024:2010.
SAFETY COMPLIANCE
UL 60950-1 Second Edition; CSA60950-1-07 Second Edition
Amendment 1:2011 Information Technology Equipment - Safety - Part
1: General Requirements
EN 60950- 1:2006/A11:2009/A1:2010/A12:2011
The Standard for Safety of Information Technology Equipment
including Electrical Business Equipment (European Union) “EN
60950 compliance”
IEC 60950-1:2005 (2nd Edition); Am 1:2009
The Standard for Safety of Information Technology Equipment
including Electrical Business Equipment (International)
EMC COMPLIANCE
FCC Class B Title 47 of the Code of Federal Regulations, Parts 2 & 15,
Subpart B, pertaining to unintentional radiators. (USA) “EMI regulations”
“FCC compliance”
CISPR 22: 2009 +A1:2010
Limits and methods of measurement of Radio Interference Characteristics
of Information Technology Equipment (International) “CISPR 22
compliance”
EN 55022:2010
Limits and methods of measurement of Radio Interference
Characteristics of Information Technology Equipment (Europe)
“EN 55022 compliance”
EN 55024:2010 ITE Immunity Standard; Currently compliance is
determined via testing to EN61000-4 -2, -3, 4, 6, 8,11, 61000-3-2, 3.
ICES-003:2012, Issue 4 Interference-Causing Equipment Standard, Digital
Apparatus. (Canada)
Disclaimer Statement
SystiumTechnologies makes no warranty of any kind with regard to this
material, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose. SystiumTechnologies
assumes no responsibility for any errors that may appear in this document.
SystiumTechnologies makes no commitment to update nor to keep current
the information contained in this document. No part of this document may
be copied or reproduced in any form or by any means without prior written
consent of Systium Technologies.
† Third-party brands and trademarks are the property of their respective
owners.
PRODUCT REGULATORY COMPLIANCE

SySTIUM® TECHNOLOGIES MOTHERBOARD READY SM SYSTEM • MODEL 730

Copyright © 2009, Systium®Technologies, LLC
PN: 91323-00

SERIAL NETWORK
MOUSE PORT
RADISYS JD/QZ35Q INSTALLATION DIAGRAM
Check the Input Voltage Setting
The Model 730-Radisys JD35Q/QZ35Q configuration is supplied with a 350 watt power supply. The power supply is designed
to be connected to an IT power system and will automatically detect and adjust to the following input voltages:
115V AC or 230V AC
Connecting the Computer
Using the diagram on this page connect the required peripheral cables and power cord to the system.
