SYV design Rundit 14126 User manual

LED INGROUND LIGHT
INSTRUCTION
一. Basic Parameter：
1. Source type: LED
2. Protection Grade(IP):IP67
3. Rated Voltage:AC220V
4. Appliance Grade: Class I
5. Dimension: see figure 1
Diameter(mm)
Power（W）
N.W.(kg)
Ø260
40W
5.50
Figure 1 LED Dimension
二.Observe the following dos and don'ts
1. Install in the IP 67 environment or beneath the IP67.
2. Prohibit punching any position of lamps
3. Please turn off the power and contact the dealer for problems in connection or
other abnormal cases.
4. Installed by the qualified electrician holding a certificate.
5. Prohibit operating the lamps beyond the voltage scope as nation stipulated
6. Don’t make the external power cable exposed during wring.
三. Installation Instructions
1. According to figure2, laying 20cm or much deeper water-seepage sand
in the mounting hole before installing the buried barrel.
Figure 2 Diagram of laying the sand
!Warning:
Confirm the correct connection method,
incorrect connection can lead to improper work,
and even damage.
If install wrong, it may fall off.
Refer to installation instruction for installing.
Rundit
14126

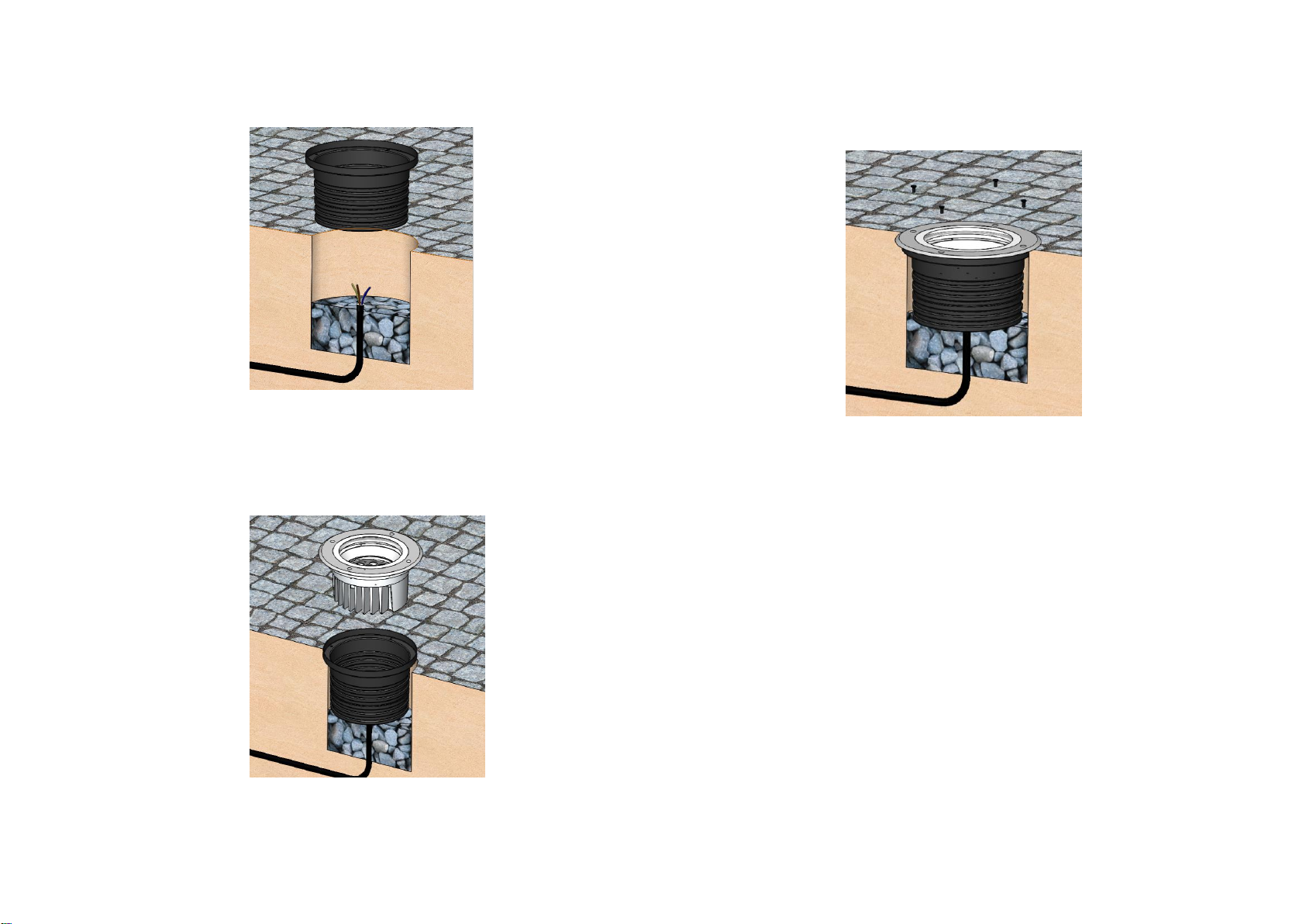

2. According to figure 3, install the buried barrel
Figure 3 Diagram of installing the buried barrel
3. According to figure 4, install the lamp body of LED inground light
Figure 4 Diagram of installing lamp body
4. According to figure 5, fix the buried barrel and lamp body by screws
Figure 5 Diagram of fixing the LED inground light
5. Notes
The buried barrel must get reliable connection with the lamp body, any
screws in the lamps should not be arbitrarily loosed. There is no special requirement
on the installation depth.
6. Step of installation
1). To ensure that the lamp will not soak in the water for long time, lay the
water-seepage sand before installation. ( Figure 2 )
2). Fix the buried barrel with lamp body. ( Figure 5 )
3). The LED Inground Light is AC100~240V. Brown-Live wire, Bule-Neutral
wire, Yellow-Earth wire. Please connect the cables right and accurately to keep the
lamp working regularly.
