SZComark CJ-TF Series User manual

Shenzhen Comark Technology Co., Ltd Innovation Quality Service
1 2 3
Encoder TTL/HTL
Fiber Optic Converter
Shenzhen Comark Technology Co.,Ltd.
Tel: [phone]
Fax: [phone]
Post: 518054
Add: Rm412, 4th floor, 2nd Building, Zhongxing
Industrial Zone, Chuangye Rd, Nanshan District,
Shenzhen
518054, P.R.C
Website: http://www.comark.cn/
Introduction:
CJ-TF series TTL/HTL fiber optic converter transmit
TTL/HTL signal through the optical fiber with long distant
transmission. Due to the use of optical fiber communication,
its can solve the electromagnetic interference, ground loop
interference and the lightning damage, greatly improve the
data communication reliability, security and confidentiality.
Its can be widely used in various industrial control, process
control and traffic control occasions, especially suitable for
oil, ports, electricity, transportation, mining and energy
industries.
Product parameters
Signal Interfaces
z5 industrial-grade terminals (space between 5.08mm
with flange)
zTTL(5V TTL): H＞2.5v, L＜0.5V, not over 500Khz,
rise/fall time=100ns
zHTL（24V HTL）: H>7.5v，L<1.0V, not over 500Khz，
rise time=200ns, fall time=100ns
zTerminal Resistance: Our device without terminal
resistance, please decide whether the external
connection required.
Optical interfaces
zWavelength: MM: 850nm, 1310nm; SM: 1310nm,
1550nm;
zOptical type: MM: 50/125um, 62.5/125um, 100/140um;
SM: 8.3/125um, 9/125um, 10/125um;
zTransmission Distance: MM: 2KM; SM: 20KM, faster
distance optional;
zOptical Connector: ST, SC, FC optional, ST is
standard connector
zOptical power & Sensitivity: SM≥(-1～-5)dBm，MM≥
（-5～-9）dBm，Sensitivity≤-16dBm
zError rate：≤10-9
Power supply and protection
Power supply: Dual redundant power supply input,
DC(18～36V), Typical DC24V, input current＞100Ma,
consumption transmitter<3W receiver<1.5W , adopts
5cores 5.08mm industrial terminal connector;
Mechanical Features
zDimension (L*W*H): 136mm×104mm×46mm
zShell: IP30 protection
zInstallation: 35mm DIN rail
zNet weight: 800g
Working Environment
zWorking Temperature: 10℃~70℃，optional wide
temperature（-40℃~85℃）
zStorage Temperature: -40℃~85℃
zHumidity: 5%~95%(no condensing)
Warranty
zWarranty period: 1 year

Shenzhen Comark Technology Co., Ltd Innovation Quality Service
4 5 6

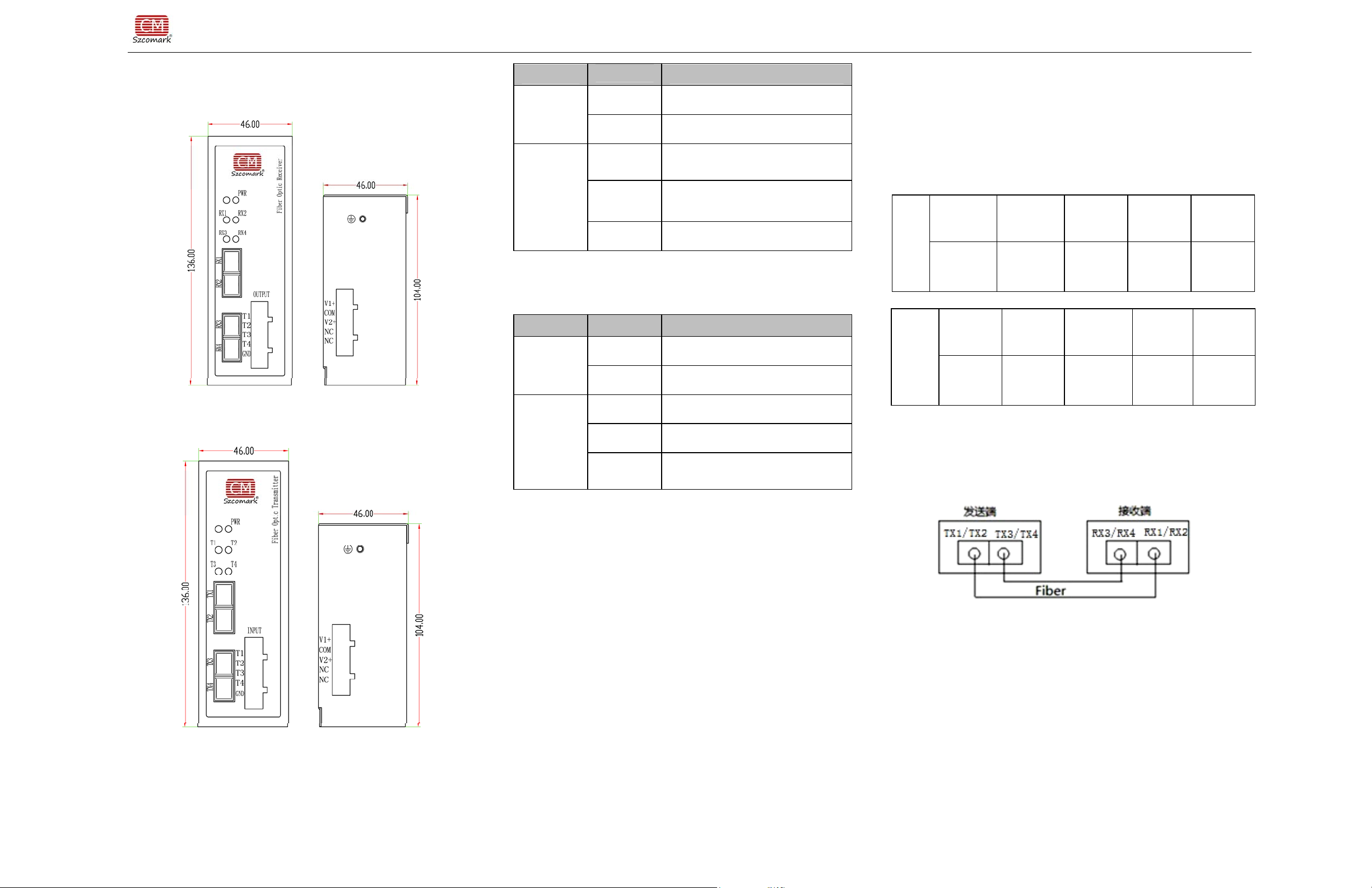

Appearance
Transmitter
Receiver
Indicators
LED Status Description
Off No power supply or failure
PWR
On Power is on
Blinking TTL/HTL high and low level
transformation
Off TTL/HTL receiving low level
T1-4
On TTL/HTL receiving high level
Transmitter
LED Status Description
Off No power supply or failure
PWR
On Power is on
Off Receiving optical signals
On No receiving optical signal
RX1-4
Blinking Optical signal alternate
changing
Receiver
Terminal Resistor
Resistor is to eliminate the effect of the signal reflected in
communication cable, as needed in the two end nodes of
the cable connection. Generally in high-speed
long-distance transmission, need to add the appropriate
terminal resistance at the two end of the cable, and let the
transmission line impedance matching. The terminal
resistance value in ohms (120-250), commonly associated
with transmission wire used.
Connection Method
1. Signal cable wiring methods: Encoder TTL /HTL optical
fiber converter is five-terminal; TTL/HTL electrical signal
input connected from the transmitting the pin T1/ T2 / T3 /
T4, signal by electrical transform to optical and send to the
receiving end equipment. TTL/HTL electrical signal restore
output at the receiving end T1 / T2 / T3 / T4. Feet T5 is
TTL/HTL electrical signal reference ground GND.
2. This equipment is belong to optical fiber transmission
products, the sending signal and receiving signal based on
optical definition. Please note that the transmitter receives
TTL/HTL electrical signals, after optical fiber transmission,
and the receiving end to restore the need of TTL/HTL
electrical signals.
Transmitting End: INPUT
T1 T2 T3 T4 GND
Tra
ns
mit T1
signal
receive
T2
signal
receive
T3
signal
receive
T4
signal
receive
Ground
wire
Receiving End: OUTPUT
T1 T2 T3 T4 GND
Rece
ive T1
signal
output
T2
signal
output
T3
signal
output
T4
signal
output
Ground
wire
1. Optical Connection: Fiber must be direct connection, that
is, TX end connect to the RX end. The encoder TTL/HTL
signal optical fiber converter must be used in pairs. As
shown in the figure below:
2. Power supply connection methods: This device support
dual power supply redundancy input, V1+, V2+ respectively
connect to the positive power supply (DC18 ~ 36 v), COM
connect to the negative power supply (dual power sharing).
Work can also pick up one of these power supplies. As
shown in the figure below:

Shenzhen Comark Technology Co., Ltd Innovation Quality Service
7 8 9
DIN Rail Mounting
Using 35 mm standard DIN rail installation, in
most industrial applications are very convenient and the
installation steps are as follows:
Step 1: Check whether have the DIN rail installation tool
accessories (this product has been installed accessories).
Step 2: Check whether the DIN rail is fixed, is there a
suitable location to install this product?
Step 3: Connect the product accessories card DIN rail seat
upper card into the DIN rail (upper with spring support), and
then will connect the lower part of the card into the DIN rail
(upper card into a little, and put forth your strength with
balance of equipment get stuck into the bottom).
Step 4: The DIN rail clip into the DIN rail, then check and
confirm the product firmly into the DIN rail.
Fault indicator and troubleshooting
Fault
phenomenon Treatment Measure
PWR off
Check whether the power supply is
meet the requirements, the power
supply terminal wiring is correct.
Package List
Using encoder TTL/HTL signal optical fiber converter at the
first time, please check the attachment packing is complete
or not? The package List as follows:
Encoder TTL/HTL signal optical fiber converter 1 pair
(with industrial terminal for power supply connection)
User manual 1 piece
Warranty card 1 piece
Precautions
Please configure DC18~36V industrial standard power
supply, typical voltage at 24V. Two power supplies
sharing the negative pole. Please use 0.75 mm2or
above high-quality copper
Optical port is not used, it must be with a fiber optic cap,
it will avoid polluted.
Do not look straight equipment optical fiber output port,
in order to avoid the laser damage eyes.
This equipment is belong to the precision of
communications equipment, please keep the ground
work of the equipment. Grounding device is a special
grounding screw on the side panel, when installation
should use the special earth lead, the earth lead must
be 2.5 mm2,, the resistance under 5 ohms.
The transmitting end of T1 / T2 / T3 / T4 lamp
corresponding optical interface TX1 / TX2 / TX3 / TX4,
with five-digit industrial input terminals in T1 / T2 / T3 /
T4 as well.
The receiving end of RX1 / RX2 / RX3 / RX4 indicator
corresponding optical interface RX1 / RX2 / RX3 / RX4,
with five-digit industrial input terminals in T1 / T2 / T3 /
T4 as well.
The transmitting end of the TX1 / TX2 / TX3 / TX4 RX1
and the receiving end /RX2 / RX3 / RX4 corresponding
connection as much as possible.
Applied Range
Electric Power System, Transportation, Energy Monitoring
and Industrial Control, etc.
Products List
Item No. Description and Specifications
CJ-TF22
TTL Fiber Optic Converter, support 2 ways
TTL signal, 0-500K speed rate, MM dual
fibers ST connector, DC24V redundant
power supply.
CJ-TF44
Encoder TTL Fiber Optic Converter, support
4 ways TTL signals, 0-500K speed rate, MM
dual fibers ST connector, DC24V redundant
power supply.
CJ-TF220
HTL Fiber Optic Converter, support 2 ways
HTL signal, 0-500K speed rate, MM dual
fibers ST connector, DC24V redundant
power supply.
CJ-TF440
Encoder HTL Fiber Optic Converter, support
4 ways HTL signals, 0-500K speed rate, MM
dual fibers ST connector, DC24V redundant
power supply.
Remark: Default connector is ST connector. FC, SC and
faster distance customized.
