Tabor Electronics 9260 User manual
User Manual
Model 9260
Dual Channel/Differential
Power Amplifier
Publication No. 041210
Rev 1.0
Tabor Electronics Ltd.
Tabor Electronics Ltd.
P.O. Box 404, Tel Hanan Israel 20302
Tel: +972-4-821-3393, FAX: +972-4-821-3388
PUBLICATION DATE: March 1, 2016
Copyright 2003 by Tabor Electronics Ltd. Printed in Israel. All rights reserved. This book or parts thereof may
not be reproduced in any form without written permission of the publisher.
WARRANTY STATEMENT
Products sold by Tabor Electronics Ltd. are warranted to be free from defects in workmanship or materials.
Tabor Electronics Ltd. will, at its option, either repair or replace any hardware products which prove to be de-
fective during the warranty period. You are a valued customer. Our mission is to make any necessary repairs
in a reliable and timely manner.
Duration of Warranty
The warranty period for this Tabor Electronics Ltd. hardware is three years, except software and firmware
products designed for use with Tabor Electronics Ltd. Hardware is warranted not to fail to execute its pro-
gramming instructions due to defect in materials or workmanship for a period of ninety (90) days from the date
of delivery to the initial end user.
Return of Product
Authorization is required from Tabor Electronics before you send us your product for service or calibration.
Call your nearest Tabor Electronics support facility. A list is located on the last page of this manual. If you are
unsure where to call, contact Tabor Electronics Ltd. Tel Hanan, Israel at 972-4-821-3393 or via fax at 972-4-
821-3388. We can be reached at: [email protected]l
Limitation of Warranty
Tabor Electronics Ltd. shall be released from all obligations under this warranty in the event repairs or modifi-
cations are made by persons other than authorized Tabor Electronics service personnel or without the written
consent of Tabor Electronics.
Tabor Electronics Ltd. expressly disclaims any liability to its customers, dealers and representatives and to
users of its product, and to any other person or persons, for special or consequential damages of any kind and
from any cause whatsoever arising out of or in any way connected with the manufacture, sale, handling, re-
pair, maintenance, replacement or use of said products.
Representations and warranties made by any person including dealers and representatives of Tabor Electron-
ics Ltd., which are inconsistent or in conflict with the terms of this warranty (including but not limited to the limi-
tations of the liability of Tabor Electronics Ltd. as set forth above), shall not be binding upon Tabor Electronics
Ltd. unless reduced to writing and approved by an officer of Tabor Electronics Ltd.
This document may contain flaws, omissions or typesetting errors. No warranty is granted nor liability as-
sumed in relation thereto. The information contained herein is periodically updated and changes will be incor-
porated into subsequent editions. If you have encountered an error, please notify us at sup-
Except as stated above, Tabor Electronics Ltd. makes no warranty, express or implied (either in fact or by op-
eration of law), statutory or otherwise; and except to the extent stated above, Tabor Electronics Ltd. shall have
no liability under any warranty, express or implied (either in fact or by operation of law), statutory or otherwise.
PROPRIETARY NOTICE
This document and the technical data herein disclosed, are proprietary to Tabor Electronics, and shall not, without ex-
press written permission of Tabor Electronics, be used, in whole or in part to solicit quotations from a competitive source
or used for manufacture by anyone other than Tabor Electronics. The information herein has been developed at private
expense, and may only be used for operation and maintenance reference purposes or for purposes of engineering eval-
uation and incorporation into technical specifications and other documents, which specify procurement of products from
Tabor Electronics.
FOR YOUR SAFETY
Before undertaking any troubleshooting, maintenance or exploratory procedure, read care-
fully the WARNINGS and CAUTION notices.
This equipment contains voltage hazardous
to human life and safety, and is capable of
inflicting personal injury.
If this instrument is to be powered from the AC line (mains) through an auto-
transformer, ensure the common connector is connected to the neutral (earth
pole) of the power supply.
Before operating the unit, ensure the conductor (green wire) is connected to
the ground (earth) conductor of the power outlet. Do not use a two-conductor
extension cord or a three-prong/two-prong adapter. This will defeat the pro-
tective feature of the third conductor in the power cord.
Maintenance and calibration procedures sometimes call for operation of the
unit with power applied and protective covers removed. Read the procedures
and heed warnings to avoid “live” circuit points.
Before operating this instrument:
1. Ensure the proper fuse is in place for the power source to operate.
2. Ensure all other devices connected to or in proximity to this instrument are properly
grounded or connected to the protective third-wire earth ground.
If the instrument:
- fails to operate satisfactorily
- shows visible damage
- has been stored under unfavorable conditions
- has sustained stress
Do not operate until, performance is checked by qualified personnel.
DECLARATION OF CONFORMITY
We: Tabor Electronics Ltd.
9 Hatasia Street, Tel Hanan
ISRAEL 36888
declare, that the 45MHz 34Vp-p Dual / Differential Channel Signal Amplifier
Model 9260
meet the intent of Directive 89/336/EEC for Electromagnetic Compatibility and the
requirements of the Low Voltage Directive 73/23/EEC amended by 93/68/EEC.
Compliance was demonstrated to the following specifications as listed in the official
Journal of the European Communities:
Safety:
IEC/EN 61010-1 2nd Edition:2001+ C1, C2
EMC:
EN 50081-1 Emissions:
EN 55022 - Radiated, Class B
EN 55022 - Conducted, Class B
EN 50082-1 Immunity:
IEC 801-2 (1991) - Electrostatic Discharge
IEC 801-3 / ENV50140 (1993) - RF Radiated
IEC 801-4 (1991) - Fast Transients
The tests were performed on a typical configuration.
Table of Contents
Chapter 1 - PORTRAYAL
What’s in This Chapter ............................................................................................................................ 1-1
Introduction.............................................................................................................................................. 1-1
9260 Feature Highlights .......................................................................................................................... 1-2
Conventions Used in this Manual............................................................................................................ 1-2
Functional................................................................................................................................................ 1-3
Description............................................................................................................................................... 1-3
Configuration Options.............................................................................................................................. 1-3
Specifications .......................................................................................................................................... 1-4
Front Panel.............................................................................................................................................. 1-4
Connectors .............................................................................................................................................. 1-4
Front Panel.............................................................................................................................................. 1-6
Indicators................................................................................................................................................. 1-6
Rear Panel Parts and Connectors........................................................................................................... 1-6
Operating................................................................................................................................................. 1-8
Instructions .............................................................................................................................................. 1-8
Chapter 2 - INSTALLATION
Installation Overview ............................................................................................................................... 2-1
Unpacking and Initial Inspection.............................................................................................................. 2-1
Safety Precautions .................................................................................................................................. 2-1
Performance Checks............................................................................................................................... 2-3
Operating Environment............................................................................................................................ 2-4
Power Requirements............................................................................................................................... 2-4
Grounding Requirements ........................................................................................................................ 2-5
Long Term Storage or Repackaging for Shipment ................................................................................. 2-5
Preparation for Use ................................................................................................................................. 2-6
Installation................................................................................................................................................ 2-6
Factory Configuration of the 9260 Settings............................................................................................. 2-6
Field Configuration of the 9260 Settings ................................................................................................. 2-7
ii
Chapter 3 - MAINTENANCE, PERFORMANCE CHECKS and ADJUSTMENTS
What’s in This Chapter.............................................................................................................................3-1
Disassembly Instructions .........................................................................................................................3-1
Special Handling of Static Sensitive Devices ..........................................................................................3-2
Cleaning...................................................................................................................................................3-3
Repair and Replacement .........................................................................................................................3-3
Performance Checks................................................................................................................................3-4
Environmental Conditions........................................................................................................................3-4
Recommended Test Equipment ..............................................................................................................3-4
Gain Accuracy Tests................................................................................................................................3-5
Amplifier Bandwidth .................................................................................................................................3-6
Amplitude Accuracy .................................................................................................................................3-6
Amplifier Pulse Response........................................................................................................................3-7
Pulse Response Checks..........................................................................................................................3-7
Auxiliary Input...........................................................................................................................................3-8
Auxiliary Offset Checks............................................................................................................................3-8
Auxiliary Input Checks..............................................................................................................................3-9
Adjustment Procedures..........................................................................................................................3-10
Amplifier Gain Adjustments....................................................................................................................3-10
Gain Adjustments...................................................................................................................................3-10
Pulse Response Adjustments................................................................................................................3-11
Pulse Adjustments .................................................................................................................................3-11
Appendix A - SPECIFICATIONS ................................................................................................................. A-1
iii
List of Figures
1-1, The Model 9260 ............................................................................................................................... 1-3

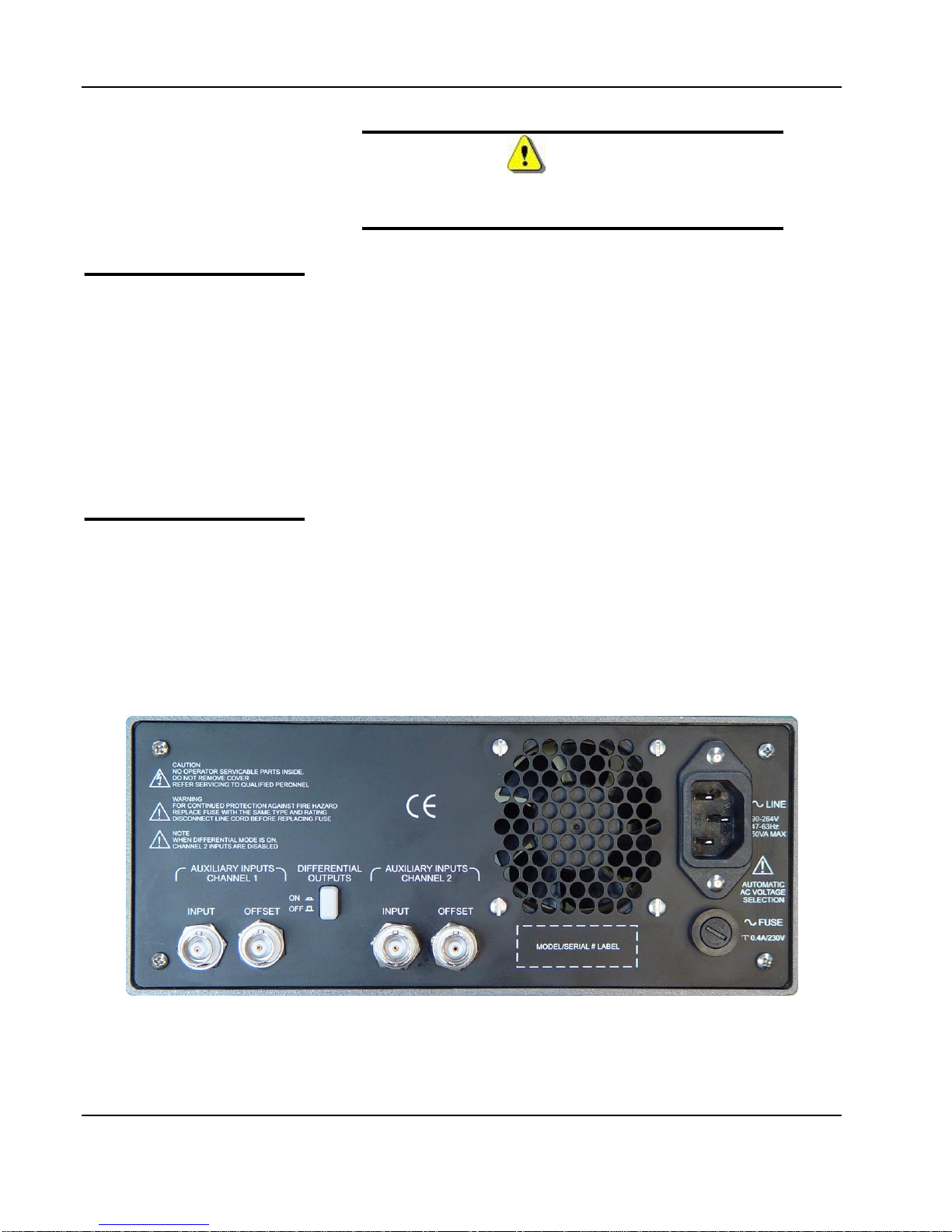

1-2, The 9260 Rear Panel....................................................................................................................... 1-6
2-1, Field Modification of Channel 1 Input Impedance............................................................................ 2-7
List of Tables
2-1, Input Impedance Jumpers................................................................................................................ 2-7
2-2, Input coupling Jumpers.................................................................................................................... 2-8
2-3, Output coupling Jumpers ................................................................................................................. 2-8
3-1, Recommended Test Equipment....................................................................................................... 3-5
3-2, Gain Accuracy Tests........................................................................................................................ 3-6
3-3, Output Bandwidth Tests................................................................................................................... 3-7
3-4, Square Wave Characteristics........................................................................................................... 3-8
3-5, Square Wave Characteristics........................................................................................................... 3-9
iv
This page intentionally left blank
Chapter 1
PORTRAYAL
What’s in This
Chapter
This chapter contains general and functional description of the
Model 9260 dual/differential wideband power amplifier. It also
describes the front and rear panel connectors and its operational
modes. It also and provides description of all features available with
the instrument.
Introduction
The Model 9260, as shown in Figure 1-1, is a bench-top, 2U, half
19” rack size, fully metal case dual channel amplifier. The
instrument can be configured to be used as two, single-ended and
independent channels, or as a one input with two differential
outputs.
The inputs to the amplifiers be configured to match different source
impedances such as 50 , 75 , or 1 M. The output is driven
from a 0 source.
There are three inputs for each channel:
1. Main input. This input is located on the front panel and is
normally used for signal inputs.
2. Auxiliary input. This input is located on the rear panel and can
be used as a summing input.
3. DC Offset input. This input is also located on the rear panel and
can be used for offsetting the signal level within the specified
output level window.
The outputs are located on the front panel. There are two outputs,
one for each channel. When the 9260 is configured as two
separate amplifiers, the outputs generate amplified signals within
the range of 34 Vp-p.
Note
The output of the 9260 tends to oscillate if left open. The same may
occur if the signal is applied to a high impedance source.
The bandwidth of the amplifier is around 30 MHz for large signals.
Small signal bandwidth can reach 45 MHz.
The 9260 can be configured as a differential amplifier. In this case,
the channel 2 input is disabled and channel 1 input is amplified and
User Manual 9260
1-2 Portrayal
distributed differentially to both outputs. In this case, channel 1
output generates in-phase signal while channel 2 outputs an
inverted signal that has exactly 180phase offset to the normal
output. Full amplitude and bandwidth is preserved when the 9260
operates in differential mode. Using the differential mode, the 9260
does not sacrifice accuracy, nor does it sacrifice bandwidth.
The 9260 has two additional inputs for each channel allowing
summation of two signals and providing an external control of DC
level offset. These inputs are accessible from the rear panel only.
9260 Feature
Highlights
Bench-top, all metal case
Large signal bandwidth to 30 MHz
Small signal bandwidth to 45 MHz
High amplitude to 34Vp-p (high impedance)
Peak current to 1A
Continuous output power to 10 W
Low distortion
Conventions
Used in this
Manual
The following symbols may appear in this manual:
Note
A Note contains information relating to the use of this product
TIP
A Tip contains information relating to the performance of this product
Caution
A Caution contains information that should be followed to avoid personal
damage to the instrument or the equipment connected to it.
Warning
A Warning alerts you to a potential hazard. Failure to adhere to the
statement in a WARNING message could result in personal injury.
User Manual 9260
Portrayal 1-3
Figure 1-1, The Model 9260
Functional
Description
Detailed functional description of the features, operation and
options available with the 9260 is given in the following paragraphs.
The wideband amplifier can be ordered with different configurations
such as input impedance, gain, etc. Therefore read the following
description carefully and make sure your amplifier is configured
correctly for your application before you connect the cables to your
circuits.
Configuration
Options
The Model 9260 must be ordered from the factory already
configured for your application. This manual has no schematics and
no instructions how to modify the amplifier for other configurations
as any configuration change, without full engineering supervision,
may affect the performance of the amplifier. Below, you’ll find a list
of optional configurations for the amplifier:
Basic Configuration –defines if the 9260 will operate as two
single-ended and independent amplifiers, or as single input with
differential outputs.
Input Impedance –determines the matching source impedance at
the input connectors. Three options are available: 50, 75and
1M. Input impedance can be configured for the front panel main
inputs and for the rear panel auxiliary inputs.
Gain –specifies gain magnitude of the input signal. Factory default
setting is 10. Custom gain can also be specified. Note that some
characteristics of the output section may change for gain setting
above 10.
User Manual 9260
1-4 Portrayal
As explained above, all options must be specified at the time of
your purchase and the 9260 is supplied fully configured.
Reconfiguration of fielded instruments can be done by qualified and
trained persons only.
Specifications
Instrument specifications are listed in Appendix A. These
specifications are the performance standards or limits against
which the instrument is tested. Specifications apply under the
following conditions: output terminated into load impedance, after
30 minutes of warm up time, and within a temperature range of
20C to 30C. Specifications outside of the temperature range are
degraded by 0.1% per C.
Front Panel
Connectors
The 9260 has 4 BNC connectors on its front panel, two for each
channel. Two are marked INPUT and the other two are marked
OUTPUT. These connectors are described below.
Channel 1 Input
The input connector accepts signals within the range of DC to over
35 MHz and amplifies them by a fixed gain. The gain is normally
x10 however, this number may be different if you ordered the
amplifier with different gain setting. Input impedance is factory pre-
conditioned and has one of the following values: 50, or 1M.
1Minput impedance can be used for low frequency signals (up to
100kHz) however, higher frequencies require 50termination at
the input of the amplifier to eliminate standing waves and
reflections in the input cable, which can cause excessive ringing
and aberrations at the output.
The amplifier input cannot tolerate high voltage on its 50
resistance. Therefore, before applying the cable to the input
connector, make sure your signal will not exceed input rating, as
specified in Appendix A of this manual.
Note
Channel 1 Input only is used when the Model 9260
is configured to operate in differential mode.
User Manual 9260
Portrayal 1-5
Channel 2 Input
This input connector accepts signals within the range of DC to over
35 MHz and amplifies them by a fixed gain. The gain is normally
x10 however, this number may be different if you ordered the
amplifier with different gain setting. Input impedance is factory pre-
conditioned and has one of the following values: 50, or 1M.
1Minput impedance can be used for low frequency signals (up to
100kHz) however, higher frequencies require 50termination at
the input of the amplifier to eliminate standing waves and
reflections in the input cable, which can cause excessive ringing
and aberrations at the output.
The amplifier input cannot tolerate high voltage on its 50
resistance. Therefore, before applying the cable to the input
connector, make sure your signal will not exceed input rating, as
specified in Appendix A of this manual.
Note
Channel 2 Input is disabled when the 9260 is
configured to operate in differential output mode.
Channel 1 Output
The channel 1 output connector outputs amplified signals. When
the 9260 is configured as two separate amplifiers, this output
connector generates amplified signals that are applied to the
channel 1 input connector. If the instrument is configured for
differential output, this channel generates normal, non-inverted
signals while the other output connector generates the inverted
signal at 180phase offset.
Gain at this output is fixed at 10 (or another gain factor that was
specified at the time of your purchase). Output source impedance
is 0.
WARNING
Applying the output signal on inductive or
capacitive loads may damage the amplifier.
Channel 2 Output
The channel 2 output connector outputs amplified signals. When
the 9260 is configured as two separate amplifiers, this output
generates amplified signals that are applied to the channel 2 input
connector. If the instrument is configured for differential output, this
channel generates an inverted signal at 180phase offset while
channel 1 output generates the normal, non-inverted.
Gain at this output is fixed at 10 (or another gain factor that was
specified at the time of your purchase). Output source impedance
is 0.
User Manual 9260
1-6 Portrayal
WARNING
Applying the output signal on inductive or
capacitive loads may damage the amplifier.
Front Panel
Indicators
The 9260 has 2 indicators on its front panel. The POWER LED will
light as soon as you press the switch to power up the 9260. An
illuminated power light designates power is applied to the
instrument and you should expect to have signal at its output
connector(s).
An LED at the center of the front panel is marked Differential ON.
When this light is on, channel 2 input is disabled and signal applied
to the channel 1 input is routed to both channel 1 and channel 2
outputs, except the signal is now differential. The differential mode
is selected with a rear panel switch.
Rear Panel Parts
and Connectors
The rear panel is rarely used for normal operation however, there
are some connections you must do before you can operate the
amplifier for example, connecting the mains power to the
instrument. There are other connectors and parts on the rear panel;
These are discussed in the following paragraphs. Refer to Figure 1-
2 throughout the following description.
Figure 1-2, The 9260 Rear Panel
User Manual 9260
Portrayal 1-7
Line Receptacle and
Fuse
Power is connected to the 9260 through the line receptacle. The
amplifier accepts any voltage from 80 to 265Vac and there is no
need to select the voltage range between different countries.
Instructions how to connect the line cord and how to replace the
line fuse is given in Chapter 2. If a fuse blows, make sure you
replace it with the same type and rating to avoid possible damage
to the product from unsuitable fuse value.
Auxiliary Inputs
Channel 1
There are two Channel 1 auxiliary inputs on the rear panel marked
INPUT and OFFSET.
The INPUT connector can be used as summing input to the front
panel signal. It also can be used as the main input if connectors are
available on the back only. However, the output is always from the
front panel connectors. Observe the input limitations as specified in
Appendix A to avoid damage to the amplifier circuit.
The OFFSET connector is used for dc signals only. Use this input
to offset your signal to any direction, positive or negative however,
always observe the positive and negative rail limitations as
specified in Appendix A to avoid damaging the amplifier circuits.
With normal configuration, this input is used for driving the front
panel output for channel 1 only. When the 9260 is configured for
differential outputs, channel 2 auxiliary inputs are disabled and only
channel 1 signal is amplified.
Auxiliary Inputs
Channel 2
There are two Channel 2 auxiliary inputs on the rear panel marked
INPUT and OFFSET.
The INPUT connector can be used as summing input to the front
panel signal. It also can be used as the main input if connectors are
available on the back only. However, the output is always from the
front panel connectors. Observe the input limitations as specified in
Appendix A to avoid damage to the amplifier circuit.
The OFFSET connector is used for dc signals only. Use this input
to offset your signal to any direction, positive or negative however,
always observe the positive and negative rail limitations as
specified in Appendix A to avoid damaging the amplifier circuits.
With normal configuration, this input is used for driving the front
panel output for channel 2 only. When the 9260 is configured for
differential outputs, these inputs are disabled and only channel 1
signal is amplified.
User Manual 9260
1-8 Portrayal
Differential Outputs
Switch
The Differential Outputs switch has two actions. In normal mode, it
separates between the two channels so each channel can be used
separately. In Differential Mode, this switch disables channel 2
inputs and converts the internal circuits to output differential
signals. Channel 1 is used for outputting the normal output and
channel 2 is used for outputting the inverted signal. When this
switch is depressed, the front panel led illuminates, designating that
the differential mode has been selected.
Grounding
Considerations
Understanding how to connect your ground path could be critical to
preserving the integrity of your output signal. If you are using a
single-ended output then it will probably be safe for you to connect
the circuit ground to case ground. Always bear in mind the following
warning:
WARNING
Input and output grounds are tied together to case
ground and therefore, it is absolutely forbidden to
connect the output ground to a different level than
the input ground. Failure to adhere to this
limitation may damage the 9260 and the
surrounding equipment connected to its I/O
connectors.
Operating
Instructions
Being a passive device, there are no controls, nor computer
programming required to operate the Model 9260. The following
procedure is recommended for proper operation of the power
amplifier:
1. Make sure your box is configured for input and output
impedance and gain
2. Follow the installation instructions given in Chapter 2 of this
manual
3. Connect the output terminal to your load
4. Connect the input terminal to your source
5. Turn on power to your 9260
WARNING
There is no switch control to turn 9260
amplification on and off and therefore, the
amplifier is active immediately after you power it
up. Always make sure your load is protected from
inadvertent power up conditions before you turn
on your 9260.
Chapter 2
CONFIGURING the INSTRUMENT
Installation
Overview
This chapter contains information and instructions necessary to
prepare the Model 9260 for operation. Details are provided for initial
inspection, grounding safety requirements, repackaging instructions
for storage or shipment, installation information and Ethernet address
configuration.
Unpacking and
Initial Inspection
Unpacking and handling of the generator requires normal precautions
and procedures applicable to handling of sensitive electronic
equipment. The contents of all shipping containers should be checked
for included accessories and certified against the packing slip to
determine that the shipment is complete.
Safety
Precautions
The following safety precautions should be observed before using
this product. Although some instruments and accessories would
normally be used with non-hazardous voltages, there are situations
where hazardous conditions may be present.
CAUTION
This product is intended for use by qualified persons
who recognize shock hazards and are familiar with the
safety precautions required to avoid possible injury.
Read the operating information carefully before using
the product.
Exercise extreme caution when a shock hazard is present. Lethal
voltage may be present on power cables, connector jacks, or test
fixtures. The American National Standard Institute (ANSI) states that a
shock hazard exists when voltage levels greater than 30V RMS,
42.4V peak or 60 VDC are present.
User Manual 9260
2-2 Portrayal
WARNING
For maximum safety, do not touch the product, test ca-
bles, or any other instrument parts while power is ap-
plied to the circuit under test. ALWAYS remove power
from the entire test system before connecting cables or
jumpers, installing or removing cards from the comput-
er, or making internal changes such as changing the
module address.
Do not touch any object that could provide a current
path to the common side of the circuit under test or
power line (earth) ground. Always keep your hands dry
while handling the instrument.
When using test fixtures, keep the lid closed while power is applied to
the device under test. Carefully read the Safety Precautions
instructions that are supplied with your test fixtures.
Before performing any maintenance, disconnect the line cord and all
test cables. Only qualified service personnel should perform
maintenance.
Performance
Checks
The instrument has been inspected for mechanical and electrical
performance before shipment from the factory. It is free of physical
defects and in perfect electrical order. Check the instrument for
damage in transit and perform the electrical procedures outlined in the
section entitled Unpacking and Initial Inspection.
User Manual 9260
Portrayal 2-3
Operating
Environment
The 9260 is intended for operation on the bench or inside a rack of
instruments. It is intended for indoor use only and should be
operated in a clean, dry environment with an ambient temperature
within the range of 0 °C to 50 °C.
WARNING
The 9260 must not be operated in explosive, dusty, or
wet atmospheres. Avoid installation of the module
close to strong magnetic fields.
The design of the 9260 has been verified to conform to EN 61010-1
2nd addition safety standard per the following limits: Installation
(Overvoltage) Category I (Measuring terminals) Pollution Degree 2.
Installation (Overvoltage) Category I refers to signal level, which is
applicable for equipment measuring terminals that are connected to
source circuits in which measures are taken to limit transient
voltages to an appropriately low level.
Pollution Degree 2 refers to an operating environment where
normally only dry non-conductive pollution occurs. Occasionally a
temporary conductivity caused by condensation must be expected.
Power
Requirements
The amplifier may be operated from a wide range of mains voltage 90
to 264Vac. Voltage selection is automatic and does not require switch
setting. The instrument operates over the power mains frequency
range of 48 to 63Hz. Always verify that the operating power mains
voltage is the same as that specified on the rear panel.
The 9260 should be operated from a power source with its neutral at
or near ground (earth potential). The instrument is not intended for
operation from two phases of a multi-phase ac system or across the
legs of a single-phase, three-wire ac power system. Crest factor (ratio
of peak voltage to rms.) should be typically within the range of 1.3 to
1.6 at 10% of the nominal rms. mains voltage.
User Manual 9260
2-4 Portrayal
Grounding
Requirements
To ensure the safety of operating personnel, the U.S. O.S.H.A.
(Occupational Safety and Health) requirement and good engineering
practice mandate that the instrument panel and enclosure be “earth”
grounded. Although BNC housings are isolated from the front panel,
the metal part is connected to earth ground.
WARNING
Do not attempt to float the output from ground as it may
damage the Model 9260 and your equipment.
WARNING
Input and output grounds are tied together and there-
fore, it is absolutely forbidden to connect the output
ground to a different level than the input ground. Failure
to adhere to this limitation may damage the 9260 and the
surrounding equipment connected to its I/O connectors.
Long Term Storage
or Repackaging for
Shipment
If the instrument is to be stored for a long period of time or shipped to
a service center, proceed as directed below. If repacking procedures
are not clear to you or, if you have questions, contact your nearest
Tabor Electronics Representative, or the Tabor Electronics Customer
Service Department.
1. Repack the instrument using the wrappings, packing material
and accessories originally shipped with the unit. If the original
container is not available, purchase replacement materials.
2. Be sure the carton is well sealed with strong tape or metal
straps.
3. Mark the carton with the model and serial number. If it is to
be shipped, show sending and return address on two sides of
the box.
NOTE
If the instrument is to be shipped to Tabor Electronics
for calibration or repair, attach a tag to the instrument
identifying the owner. Note the problem, symptoms, and
service or repair desired. Record the model and serial
number of the instrument. Show the RMA (Returned Ma-
terials Authorization) order as well as the date and
method of shipment. ALWAYS OBTAIN AN RMA
NUMBER FROM THE FACTORY BEFORE SHIPPING THE
9260 TO TABOR ELECTRONICS.
Table of contents
Other Tabor Electronics Amplifier manuals
