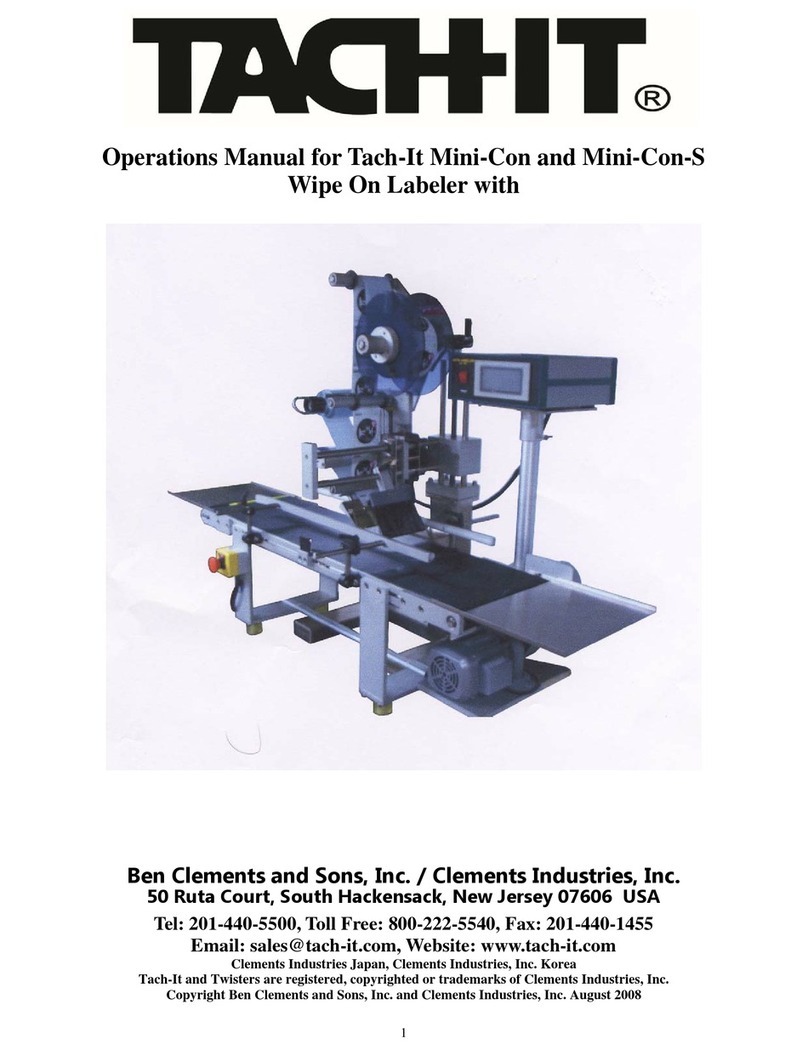

Tach-It Mini-Con User manual

1
Operations Manual for Tach-It Mini-Con Wipe On Labeler on Stand
Ben Clements and Sons, Inc. / Clements Industries, Inc.
50 Ruta Court, South Hackensack, New Jersey 07606 USA
Tel: [phone], Toll Free: 800-222-5540, Fax: [phone]
Email: [email protected], Website: www.tach-it.com
Clements Industries Japan, Clements Industries, Inc. Korea
Tach-It and Twisters are registered, copyrighted or trademarks of Clements Industries, Inc.
Copyright Ben Clements and Sons, Inc. and Clements Industries, Inc. August 2008

2
TABLE OF CONTENTS:
Section #1 Caution:————————————————————————————--Page 3
Section #2 Specifications:——————————————————————————-Page 3
Section #3 Set Up of the Machine:————–-——————————————————Page 4
Section #4 Loading of the Labels:———————————————————————Page 5
Section #5 Operation of the Touch Panel Controller:————————————————Page 7
Section #6 Operation of the Tach-It Mini-Con Labeler:———————————————Page 9
Section #7 Adjustment to the Sensitivity of the Stop Sensor:————————————–-Page 10
Section #8 Trouble Shooting:————————————————————————---Page 10
Section #9 Parts Identification:————————————————————————-Page 12

3
SECTION #1 CAUTION:
 Before operating the machine, read the complete operator manual.
 Never have the power on this machine plugged into the power supply when any of the covers
of the machine have been removed.
 Install and operate this machine only on a flat, level and dry surface.
 Use only the manufacturers specified electrical power input with this machine.
 Always keep hands, clothing, jewelry, and hair away from all moving parts of this machine including the
Conveyor belt.
 Do not operate this machine with any of the protective covers removed or opened.
 Do not operate this machine without the pressure sensitive labels in their proper feeding position.
 Keep this machine clean and dry at all times.
 Do not use the machine in an area where flammables, explosive materials or fumes are present.
 Any modification to the machine makes the warranty null and void.
 Service on this machine should only be performed by factory trained authorized service personnel.
 Never use this machine for other than its intended applications. Use of the machine on unintended
applications can cause harm to the operator, the machine, and the product. Please contact the manufacturer if
there are any questions to whether this machine can be used for a particular application.
SECTION #2 SPECIFICATIONS:
Electric Power: 115 VAC
Machine Length: 27” (686mm)
Machine Width: 24” (610mm)
Machine Height: Adjustable
Label Size Maximum: 5.1” (130mm) Wide x 11” (280mm) Long
Label Size Minimum: .40” (10mm) Wide x .75” (20mm) Long
Label Speed Maximum: 59.1 Ft (18 meters) per minute
Label Speed Minimum 46 Ft (14 meters) per minute

4
SECTION #3 SET UPOFTHE MACHINE:
Please Identify, confirm and check each of the below main components of the Mini-Con Labeller.
 Main Label Head
 Controller
 Adjustable Height Stand
1) If necessary, attach the label head to the stand using the enclosed allen screws and nuts. Nuts are inserted into
the channel of the metal extrusion and turned perpendicular. Also, attach Control Box and Label Roll Holder.
2) To set up the machine, place the item to be labeled onto the conveyor belt and put it in the position relevant to
the Label Dispensing Plate (A-6) on figure 4 on page 5 of this manual. The Label Dispensing Plate (A-6) can
be moved across the width of the Conveyor by loosening the Black Knobs (A-4) and sliding the entire Main
Label Head to the desired position relevant to the Conveyor and than tightening the Black Knobs (A-4).
3) The Start Sensor and Reflector must be mounted to the conveyor. As there are many different types of conveyor,
this step will be dependent on the actual conveyor used. The Start Sensor needs to be mounted on the same side
of the conveyor as the Label Head and should be mounted slightly before the product would go underneath the
Label Dispensing Plate (A-6) reflector must be exactly opposite and centered to the Start Sensor.
4) Locate the Adjustable Height Handles which are on the vertical uprights of the stand. This adjustment is used to
put the Label Dispensing Plate at the correct height relative to the product to be labeled. If at this point it is be-
low the height of the product, turn the handles and raise the Label Head so that it is about 1” above the product.
Tighten the Adjustable Height Handles. Put the product directly below the Label Dispensing Plate (A-6) and
loosen the Adjustable Height Handles and lower the Label Head until it is from 0.5mm to 1mm above the prod-
uct. See Figure 2 on the following page for details. Tighten the Label Head using the Adjustable Height Han-
dles. After the above is completed, move the package to the right of the Label Head and adjust the brush so that
it lightly touches the top of the package.
5) The machine is now ready for the product and the next step will instruct on how to load the pressure sensitive
labels onto the machine.
Figure #1
Control Box
Label Head
Adjustable Height Handles
Locking Casters
Label Roll

5
Figure #2
SECTION #4 LOADING OF LABELS:
Note: In order to ensure consistent label placement unto the product,
during the Label Loading process, the labels must be straight and the same
distant from the body of the Main Label Head throughout the entire Label
Feeding Path. Many of the Rollers that are along the Label Feed Path
have Spring Collars which should be used to assist in keeping the labels
straight.
See Figure 3
1) Locate the Label-Hanger Inside (A-1-1) and the Label Hanger Outside (A-1-2) The difference between the 2 is
that the Label Hander Inside (A-1-1) uses a Set Screw to lock it into place while the Label Hanger Outside (A-1-
2) uses an adjustable Black Knob.
2) Keeping in mind the note above and Figure #4, secure the label Hanger Inside onto the shaft and tighten with an
allen screw. Put the roll of labels unto the shaft so that the labels feed off the bottom of the roll as per Figure 4
Figure #3
Figure #4
A-10 Tension Roller
Label Path
Figure #4

6
SECTION #4 LOADING OF LABELS CONTINUED:
3) Verifying that the labels are feeding off the bottom of the roll, take the leading edge of the labels and bring it
over A-10 Tension Roller and then in between Roller #3 and the Urethane Wiper. There is a thumb screw that
will allow the Urethane Wiper to swivel out of the way, but once the labels are past this point, replace the
Urethane Wiper to its original position.
4) Continue feeding the leading edge of the labels to the Stop Sensor (A-3) and in between the 2 halves of the
sensor. This sensor will read the gap in between the labels and determine when the feed portion of the cycle
should stop.
5) Feed the leading edge of the labels behind roller #4 on Figure #4 and then under the Urethane Wiper and around
the Dispensing Plate A-6. At this point pull off about 18 inches of the labels from the roll and feed it around the
Dispensing Plate so that 0.5mm to 1mm of a label is beyond the edge of the Dispensing Plate per Figure 5.
6) Making sure that the Black Handle located between the Press Rollers #5 and #6 on Figure #4, is in the open
position, bring the leading edge of the labels up and over the purple neoprene roller #5 into the space between
rollers #5 and #6 and then under roller #6.
7) Continue feeding the labels around #7 as per Figure #4 and then using the U-Clip secure the labels to the
Re-winder (A-9).
8) At this point, locate the Stop Sensor (A-3) and note that the Stop Sensor is mounted to a rail which allows for the
height of the Stop Sensor to be Adjusted. Loosening the screw, adjust the height of the Stop Sensor so that the
gap in the label is located in the middle of the Stop Sensor per Figure #6.
9) At this point, put the Black Handle located between Rollers #5 and #6 to the closed position.
10)The machine is now fed and ready for use.
Figure #5
Figure #6

7
SECTION #5 OPERATION OFTHE TOUCH PANELCONTROLLER:
The Touch Panel Controller (B) for the Tach-It Mini-Con allows for full control of all functions of the labeller.
Please note that if at any time the screen of the Touch Panel Controller turns Red, there has been an error with the
labeller and it must be resolved prior to resuming work. Easy to use, the Touch Screen Controller requires only a
finger to work or change any settings. Simply touch the desired box to set up the machine and use the arrow located
next to the screen name to return to the previous screen. See Figure #7.
Figure #7
Home Screen: The Home Screen is what is shown when the labeller is first turned on, or when operating the
machine. Through the Home Screen, you can make the necessary settings with the labeller for your specific applica-
tion. Figure #8 Shows the Home Screen and a description of each of the functions is as follows:
Figure #8
 Counting—Shows the # of Units that have been Labeled
 Target—If using the Target Counter Function, it shows the number of desired products to be labeled.
 2 Label—If highlighted it shows that you are set up to put 2 labels to each product put through the machine.
 Hot_P—If highlighted it shows that the machine has an optional Hot Stamp Printer installed and that the
Touch Panel Controller has been set to work with the Hot Stamp Printer.
 Target—If highlighted this shows that the Target Counter Feature is enabled.
 Labeller—This leads to a sub menu that allows for control of the Start Delay, 2 Label Delay and Motor Speed.
 Option—This leads to s sub menu that allows for the enabling and disabling of the Hot Printer, Target Counter,
Conveyor Mode and 1 or 2 label mode.
 Skip—This is a function not used in the Mini-Con labeller.
 Stop—This switches between the Stop and Run mode of the labeller.
Labeller Sub-Menu: The Labeller Sub Menu allows for control of the Start Delay, 2 Label Delay and the Motor
Speed. Please note that the Start Delay, the 2 Label Delay and the Motor Speed will affect the location of the label
onto the product. The Start Delay is the amount of time the labeller delays from then the product is sensed by the
Start Sensor (A-7) to when the label is applied. The 2 Label Delay is used if you have enabled the 2 Label func-
tion on the Option Screen (explained next page) and you have 2 labels on 1 web and this sets the delay between
the 1st label and the 2nd label. The Motor Speed is the speed of the conveyor. The Start Delay, 2 Label Delay (if
enabled) and the Motor Speed work in combination of ensure consistent and proper label placement. Please note
that some trial and error with these settings will be required during initial set up to get proper label placement.
Please see Figure #9 on the next page.

8
SECTION #5 OPERATION OFTHE TOUCH PANELCONTROLLER CONTINUED:
Figure #9
Using the Labeller Sub Menu:
1) From the Home Screen touch where is says Labeller and Figure #9 will appear.
2) To change the value of either the Start Delay or 2 Label Delay, touch the box which will be showing the present
set value. A Numeric Keyboard will be displayed. Input the new desired value and hit the Enter Key in the low-
er right hand corner of the display to save the new value and to return to the Labeller Sub Menu Screen.
3) To change the value of the Motor Speed touch the box below Motor Speed which will be displaying the present
set value. Another screen will come up as shown in Figure #10 below. This screen will show you the present
value. To Change this, touch the box next to Setting Value and a Numeric Keyboard will be displayed. Input
the new desired value and hit the Enter Key in the lower right hand corner of the display to save the new value
and to return to the Motor Speed Screen. The Present Value and the Setting Value will now be the same. At this
time you can press test to view the new speed. To return to the Labeller Sub Menu hit the arrow to the left of
Motor Speed in the upper left hand corner.
Please note that the Start Delay and the Motor Speed will determine the placement of the label onto the
product. This will require some trial and error to get it perfect. Once set, the label placement will be con-
sistent. Suggestion: Do not immediately try to increase the Motor Speed believing it will increase production.
This is incorrect and will only cause variations in label placement.
Figure #10
Using the Option Sub Menu:
1) From the Home Screen touch the Options Box and it will bring you to the Option Sub Menu.
2) To use the Option Sub Menu, simply touch the box next to the desired Option that is to be turned on or off.
Example, to turn on the Target Counter, touch the On box to the right of the word Target. If you desire 2 Label
operation, touch the 2 Label Button at the bottom right of the screen. To change to 1 Label, simply touch the 1
Label box.
3) See Figure #11 for a view of the Option Sub Menu.

9
SECTION #5 OPERATION OFTHE TOUCH PANELCONTROLLER CONTINUED:
Figure #11
To Set the Target Counter:
1) To set the Target Counter, first turn the option on by going to the Option Sub Menu per the previous instructions
and touching the On box.
2) From the Home Screen, touch the box next to the word Target and an Numeric Keyboard will be displayed.
Input the desired number of packages to be labeled and touch the Enter button on the bottom right of the Numer-
ic Keyboard.
3) Begin to label the packages. When the pre-set Target count is completed, the screen on the Touch Panel
Controller will turn Red and no more packages will be labeled.
SECTION #6 OPERATION OFTHE TACH-IT MINI-CON LABELER:
1) Place the Mini-Con Labeller on a flat dry work surface near the proper voltage electric outlet.
2) Set up the Mini-Con Labeller and load the labels into the Labeller per the instructions in Sections 3 & 4 of this
manual.
3) Plug the Labeller into the proper voltage electric outlet using the enclosed electric power cord which will go into
the IEC connection located on the rear of the Touch Panel Controller.
4) Turn the Power On by using the rocker switch located on the front of the Touch Panel Controller. If the Convey-
or does not begin to move, locate the Emergency Shut Off Button on the front of the Conveyor and pull it out.
5) Complete the set up described in Section #5 of this manual to utilize the options desired and to make sure that
label placement is where needed. If this is not correct, refer to Section #5 of this manual and make the necessary
changes.
6) Place a test product to be labeled onto the Conveyor and it should move forward and pass underneath the Main
Label Head where a label should be dispensed onto the product and the product should continue to the end of the
Conveyor. If the placement of the label is not correct, review Section #5 of this manual and make the necessary
changes to the Start Delay and Motor Speed of the labeller and retry until proper placement is achieved. If the
label is dispensed in the proper place, but not wiped down, use an allen screw and adjust the brush located to the
right of the dispensing plate. This brush should have light contact with the top of the package as it moves along
the conveyor. If the labels do not feed properly check Section #4 of this manual and confirm that the labels are
properly loaded and that the Urethane Wiper or the Urethane over the dispensing plate is not causing to much
tension to the label. If the label is not dispensing, tension made need to be added to the Urethane Wiper or the
Urethane above the dispensing plate. If the labels continue to run and more than 1 label is fed, see Section #7 on
the following page for instructions on adjusting the sensitivity of the Stop Sensor.

10
SECTION #6 OPERATION OFTHE TACH-IT MINI-CON LABELER CONTINUED:
7) If any adjustments need to made to the labeller, make the necessary adjustments.
8) The labeller is now ready for use.
SECTION #7 ADJUSTMENT TO THE SENSITIVITY OFTHE STOP SENSOR (A-3):
The Stop Sensor (A-3) used on this machine is designed to read the gap (die cut) between the labels. If the labels
continue to run, it may be necessary to change the sensitivity of the Stop Sensor. Instructions for this are as follows:
The LED signal strength indicator (yellow) lights continuously when there is optimum light reception. If it does not
light, too little light is received: Increase the sensitivity using the “+” key.
Checking object detection:
Place object in light beam; the LED signal strength indicator
(yellow) must switch off. If it remains lit, reduce the
sensitivity on the “–” key until it switches off. The LED
signal strength indicator (yellow) must light again after the
object has been removed. If this is not the case, correct the
sensitivity using the “+” key until the switching threshold is set correctly.
Note—the sensitivity can be automatically set by holding the “-” button on the sensor until the LED blinks.
Move the gap between the labels up and down through the slot and the Sensor will automatically adjust for
the gap.
PROBLEM REMEDY
Adjust the label position by using the Start Delay. See
Section #5 an example is as follows:
Adjust the label position by using the Start Delay. See
Section #5 an example is as follows:
Labeller Motor Speed is faster than the conveyor speed.
Adjust the labeller speed down. See Section #5 and as an
example see the following.
The Label is not consistently placed onto the product. 1) Make sure that the Black Handle between the Press-
ing Rollers is in the closed position. See Section #4.
2) Check that both the Urethane Wiper and the Urethane
above the Dispensing Plate are not causing too much
tension on the label or are not too loose where the
label is not separating properly.
3) The Stop Sensor is not adjusted properly. See Sec-
tion #4
SECTION #8 TROUBLE SHOOTING:
Label is positioned more to the front of
the package than desired. 10 20
Label is positioned more to the back of
the package than desired. 30 20
Label is positioned properly, but it is
folded. 1600 1500

11
SECTION #8 TROUBLE SHOOTING CONTINUED:
PROBLEM REMEDY
Labels are not feeding or dispensing. Check the loading of the labels. See Section #4.
The labels continue to feed after the package has past the
Start Sensor (A-7) The Stop Sensor (A-3) may need to be adjusted. See Section #7.
The Touch Panel Controller turns Red 1) There is an error in the system. Follow the instruc-
tions in the manual to check everything and then try
again.
2) The Target Counter has reached the desired number
of packages to be labeled.
The label is not securely placed onto the package Adjust the height of the brush that is to the right side of
the dispensing plate.
The package is not traveling consistently on the
Conveyor or is being stopped along it’s path of travel. Adjust the Product Rails—See Section #3 and / or adjust the height of the brush that is to the right side of the
dispensing plate.

12
SECTION #9 PARTS LIST:
