Tadiran Domestic Pool Type Technical Manual TCAC-RTSM-20150203
1
Tadiran Domestic Pool Type
Heat Pump Water Heater
Technical Manual
Applicable Model:
LRSJ-60/NYN1
LRSJ-80/NYN1
LRSJ-120/NYN1
LRSJ-140/NYN1
Tadiran reserves the right to discontinue or change specification or designs at any time without
notices and without incurring obligations.

TCAC-RTSM-20150203 Tadiran Domestic Pool Type Technical Manual
Content
1. General Information ........................................................................... 3
1.1 Measurements................................................................................................................3
1.2 External appearance ......................................................................................................3
1.3 Nomenclature .................................................................................................................3
2. Specification & performance ............................................................ 4
2.1 Features ..........................................................................................................................4
2.2 Refrigerant circuit ..........................................................................................................5
2.3 Unit outlook ....................................................................................................................5
2.4 Specifications ................................................................................................................6
2.5 Performance diagram ....................................................................................................8
2.6 Wiring diagram ............................................................................................................. 16
2.7 Installation .................................................................................................................... 18
2.8 Trial run ........................................................................................................................ 26
2.9 Maintenance ................................................................................................................. 26
2.10 Trouble shooting ........................................................................................................ 27
2.11 Function ...................................................................................................................... 29
2.12 Wire controller ........................................................................................................... 30
2.13 Spot check ................................................................................................................. 33
2.14 Accessories ................................................................................................................ 33
2.15 Resistance characteristic of temperature sensor ................................................... 34

Tadiran Domestic Pool Type Technical Manual TCAC-RTSM-20150203
3
1. General Information
1.1 Measurements
Model Net/Gross weight (kg) Dimension (mm, W×H×D) Power Supply
LRSJ-60/NYN1 64/73 1015×705×385 220-240V~, 50Hz, 1Ph
LRSJ-80/NYN1 66/75 1015×705×385 220-240V~, 50Hz, 1Ph
LRSJ-120/NYN1 75/85 1050×855×315 220-240V~, 50Hz, 1Ph
LRSJ-140/NYN1 75/85 1050×855×315 220-240V~, 50Hz, 1Ph
1.2 External appearance
1.3 Nomenclature
L RSJ - 60 / N Y N1
Refrigerant Type N1:R410A
Available for Pool
Water Cycle without Water Pump
Heating Capacity (Unit: ×100)
Tadiran Heat Pump Water Heater
Unit with Cooling Function

TCAC-RTSM-20150203 Tadiran Domestic Pool Type Technical Manual
2. Specification & performance
2.1 Features
 Titanium-tube heat exchanger
1. Titanium-tube heat exchanger has exceptional corrosion resistance, perfect anti-fouling
performance, high temperature resistance and microbe resistance.
2. High energy efficiency.
Titanium-tube heat exchanger LCD display
 Safety
1. Realize isolation between water and electricity. No electric shock problem.
2. No fuel tubes and storage, no potential danger from oil leakage, fire, explosion etc.
 Environmental protection
Environment friendly refrigerant R410A is used.
No discharge of poisonous gas. No pollution to atmosphere and environment
 Easy operation and automatic control
The system can be controlled simply through the wired controller.
Machine running parameter and the state can be checked quickly from the LCD display.
 Automatic start-up and shutdown, automatic defrosting. Save you much extra operation.
 Convenient installation and maintenance
The quadrate type can be easily installed in a corner of the verandah even if it’s very narrow.
 All-the-weather running
Within the temperature range from -7 to 38℃, it will not be affected by night, overcast sky, rain and
snow.

Tadiran Domestic Pool Type Technical Manual TCAC-RTSM-20150203
5
2.2 Refrigerant circuit
 Compressor: Compressors are supplied by GMCC. PA145G1C-4FT1 is used in LRSJ-60/NYN1;
PA200X2CS-4KU1 is used in LRSJ-80/NYN1; PA290X3CS-4MU1 is used in LRSJ-120/NYN1;
PA330X3CS-4MU1 is used in LRSJ-140/NYN1.
 Evaporator: Copper tube and aluminum fin type heat exchanger.
 Titanium-tube heat exchanger: Titanium-tube heat exchanger is use for heat exchange between
refrigerant and water.
 Fan: Axial fan with two speeds. The motor is supplied by Welling.
 High Pressure Switch: When the discharge pressure of compressor is 4.4Mpa or higher, the
protection switch will be triggered, and if the discharge pressure is down to 3.2MPa, the protection
switch will be recovered.
2.3 Unit outlook

TCAC-RTSM-20150203 Tadiran Domestic Pool Type Technical Manual
2.4 Specifications
Model LRSJ-60/NYN1 LRSJ-80/NYN1 LRSJ-120/NYN1 LRSJ-140/NYN1
Power supply Ph, V, Hz 1, 220-240~, 50
Water outlet
Temperature
Heating mode ℃ 20℃～35℃, default 28℃
Cooling mode ℃ 10℃～30℃, default 28℃
Water
heating
Capacity kW 6.00 8.00 12.00 14.00
Input kW 1.150 1.518 2.400 2.550
Outdoor
ambient Temp.
℃ -7～38 -7～38 -7～38 -7～38
COP kW/kW 5.22 5.27 5.00 5.49
Water
cooling
Capacity kW 4.00 5.80 8.40 10.35
Input kW 1.25 1.50 2.40 2.90
Outdoor
ambient Temp.
℃ 15～43 15～43 15～43 15～43
EER kW/kW 3.20 3.87 3.50 3.57
Max. current A 6.3 8.0 13.7 16.0
Max. power kW 1.45 1.90 3.30 3.50
Main unit
Dimension
(W×H×D) mm 1015×705×385 1015×705×385 1050×855×315 1050×855×315
Packing
(W×H×D) mm 1095×840×445 1095×840×445 1160×980×410 1160×980×410
Net/gross weight kg 64/73 66/75 75/85 75/85
Outdoor noise level dB(A) 58 58 58 58
Refrigerant type/quantity kg R410a/1.0 R410a/1.25 R410a/1.6 R410a/1.85
Refrigerant design pressure MPa 4.4/2.6 4.4/2.6 4.4/2.6 4.4/2.6
Water side heat exchanger Titanium-tube heat exchanger
Throttling type Capillary
Compressor
Model PA145G1C-4FT1 PA200X2CS-4KU1 PA290X3CS-4MU1 PA330X3CS-4MU1
Type Rotary Rotary Rotary Rotary
Brand GMCC GMCC GMCC GMCC
Capacity kW 3.580 4.920 7.180 8.150
Input kW 1.240 1.670 2.430 2.760
Rated current
(RLA) A 5.82 7.81 11.40 13.10
Locked rotor
Amp (LRA) A 26.7 34.5 61 63
Thermal
protector
Internal Internal
(UP3QE0391-T39)
Internal
(UP14SE5145)
Internal
(UP14SE5145)
Capacitor 35μF/440-450V 50μF/440-450V 50μF/440-450V 55μF/450V
Refrigerant oil ml 400 750 950 1100

Tadiran Domestic Pool Type Technical Manual TCAC-RTSM-20150203
7
Fan motor
Model YDK85-6 YDK85-6 YDK75-6H-1 YDK75-6H-1
Brand Welling Welling Welling Welling
Input W 160/85 160/85 168/146 168/146
Speed r/min 835/470 835/470 877/749 877/749
Insulation
class
B B B B
Safe class IPX4 IPX4 IPX4 IPX4
Locked rotor
Amp(LRA) A 1.15 1.15 1.414 1.414
Capacitor 5μF/450V 5μF/450V 5μF/450V 5μF/450V
Evaporator
coil
Number of
rows
2 2 2 2
Tube pitch(a)
× row pitch(b) mm 22×19 22×19 22×19 22×19
Fin spacing mm 1.6 1.6 1.6 1.6
Fin type Hydrophilic aluminum
Tube dia. mm ø7.94
Type Inner groove copper tube
Coil L × H mm 820×660 820×660 766×792 766×792
Number of
circuits
5 5 8 8
Water
pipeline
Water inlet pipe Φ50 Φ50 Φ50 Φ50
Water outlet pipe Φ50 Φ50 Φ50 Φ50
Water circulating pipe Φ25 Φ25 Φ25 Φ25
Max.
pressure MPa 0.4 0.4 0.4 0.4
The volume
flow of water
Min. value m3/h 0.8 0.8 1.5 1.5
Max. value m3/h 20 20 20 20
Controller KJRH-90B/E
Loading
Quantity 20'/40'/40H Pcs 52/108/162 52/108/162 56/116/116 56/116/116
Notes:
1. The test conditions:
Water Heating:outdoor temperature 24/19℃(DB/WB), inlet water temperature 27℃,outlet water temperature 29℃
Water Cooling: outdoor temperature 35/24℃(DB/WB), inlet water temperature 27℃, water flow volumn have been
defined.
2. The noise of this unit is tested in semi-noisedamping lab as per Q/MDNT 005-2009 national requirments, which
error value is about ±3dB(A).
3. The specification may be changed for product improvement, please refer to the nameplate.

TCAC-RTSM-20150203 Tadiran Domestic Pool Type Technical Manual
2.5 Performance diagram
2.5.1 Unit capacity and energy efficiency diagram in heating mode
Model: LRSJ-60/NYN1
Notes:
The test conditions: inlet water temperature is 27℃, outlet water temperature is 29℃.

Tadiran Domestic Pool Type Technical Manual TCAC-RTSM-20150203
9
Model: LRSJ-80/NYN1
Notes:
The test conditions: inlet water temperature is 27℃, outlet water temperature is 29℃.

TCAC-RTSM-20150203 Tadiran Domestic Pool Type Technical Manual
Model: LRSJ-120/NYN1
Notes:
The test conditions: inlet water temperature is 27℃,outlet water temperature is 29℃.

Tadiran Domestic Pool Type Technical Manual TCAC-RTSM-20150203
11
Model: LRSJ-140/NYN1
Notes:
The test conditions: inlet water temperature is 27℃,outlet water temperature is 29℃.

TCAC-RTSM-20150203 Tadiran Domestic Pool Type Technical Manual

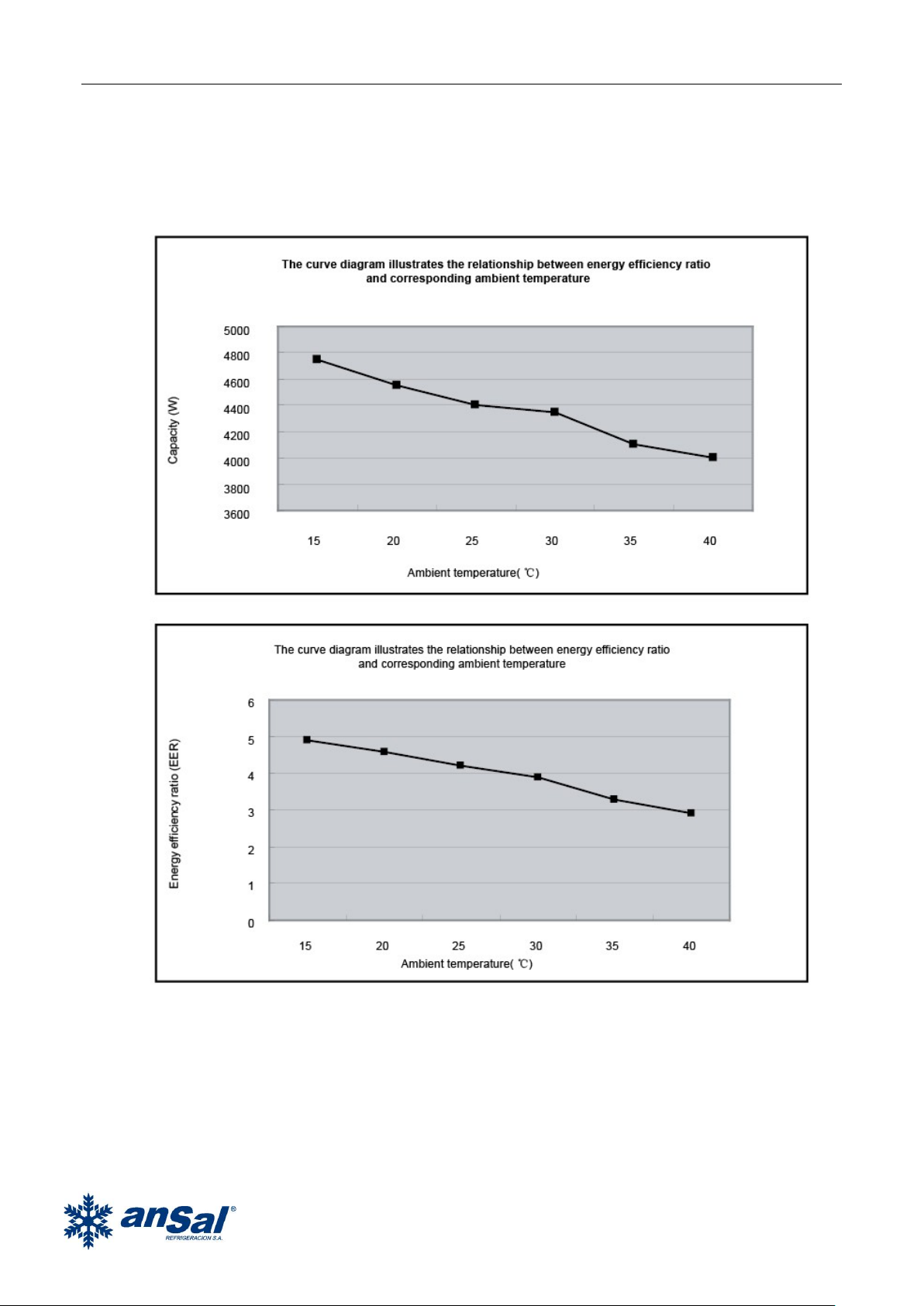

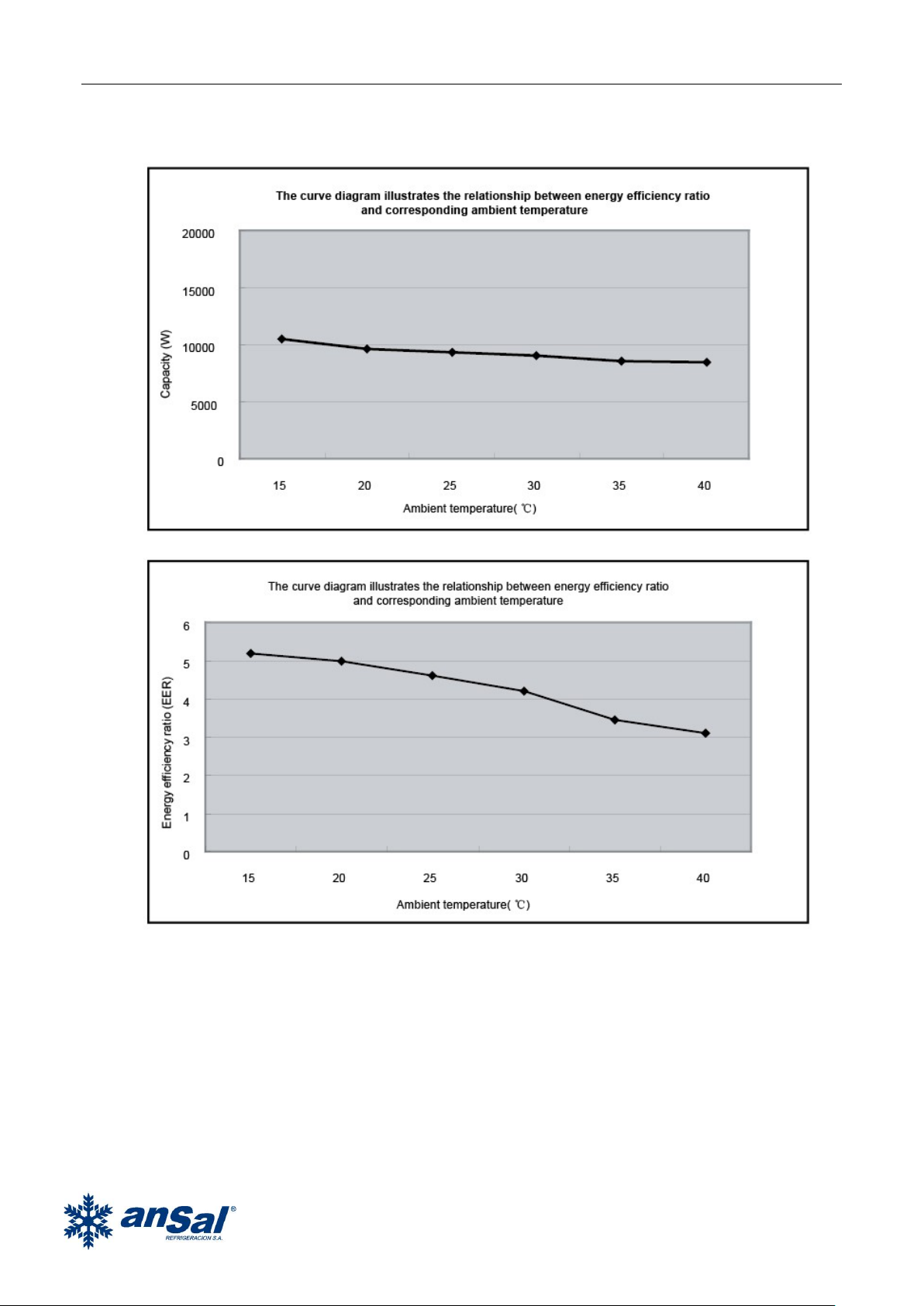

2.5.2 Unit capacity and energy efficiency diagram in cooling mode
Model: LRSJ-60/NYN1
Notes:
The test conditions: inlet water temperature is 27℃, water flow volume is 2.6m3/h.

Tadiran Domestic Pool Type Technical Manual TCAC-RTSM-20150203
13
Model: LRSJ-80/NYN1
Notes:
The test conditions: inlet water temperature is 27℃, water flow volume is 3.5m3/h.

TCAC-RTSM-20150203 Tadiran Domestic Pool Type Technical Manual
Model: LRSJ-120/NYN1
Notes:
The test conditions: inlet water temperature is 27℃, water flow volume is 5.0m3/h.

Tadiran Domestic Pool Type Technical Manual TCAC-RTSM-20150203
15
Model: LRSJ-140/NYN1
Notes:
The test conditions: inlet water temperature is 27℃, water flow volume is5.8m3/h.

TCAC-RTSM-20150203 Tadiran Domestic Pool Type Technical Manual
2.6 Wiring diagram
Model: LRSJ-60/NYN1& LRSJ-80/NYN1

Tadiran Domestic Pool Type Technical Manual TCAC-RTSM-20150203
17
Model: LRSJ-120/NYN1& LRSJ-140/NYN1

TCAC-RTSM-20150203 Tadiran Domestic Pool Type Technical Manual
2.7 Installation
2.7.1 Transport
 Choose the correct way of conveying the equipment.
 Try to transport the equipment with the original package.
 The main unit should be put down gently during transportation, and main unit should not be
leaned more than 45 degree.
 Guard boards should be applied to avoid scratching and deforming of the unit surface.
2.7.2 Main unit installation
Location of outdoor installation
 After move onto installing site, please confirm the main unit is placed in horizontal.
 Do not install the heat pump close to inflammable gas source.
 Do not install the heat pump close to a road or path to protect the appliance against mud
splashing.
 Avoid places that are subject to strong winds, in particular if the wind blows against the
appliance’s air outlet.
 Ensure enough space for installation and maintenance.
 A distance of no less than 200mm should be preserved between the bottom of the outdoor
unit and the ground or bracket for the installation of the duct pipe.
 If the unit installed in an underground chamber, an indoor room or other hermetic place, pay
attention to where surrounding air, as well as which air exhaust and air circulating system.
For every signal unit, which circulating air volume shall no less than 2400m3/h.

Tadiran Domestic Pool Type Technical Manual TCAC-RTSM-20150203
19
Space of foot screw bolts (unit: mm)
Model A B C D E F
LRSJ-60/NYN1
LRSJ-80/NYN1 610 390 170 1015 385 705
LRSJ-120/NYN1
LRSJ-140/NYN1 590 333 165 1050 315 855

TCAC-RTSM-20150203 Tadiran Domestic Pool Type Technical Manual
2.7.3 Water system piping
Pipe installation notes
 During installation of pipe connection, make sure no dust or other impurities is intruded into
the pipeline system.
 Water inlet and outlet pipes can be installed as long as the heat pump water heater has been
fixed.
 Thermal insulation materials should be employed to seal up water outlet and inlet pipes.
 The water inlet and outlet pipeline cannot be installed until the water heater is fixed well.
 Before operation, please confirm that the specifications of connective pipes are correct, and
thermal insulation layer have been wrapped on pipes. It requires that all pipes have been
sealed up, and no water leakage has been detected.
Connecting diagram for the swimming pool water heater
No. Name Connective pipe specification
a Water outlet of main unit PVCΦ50
b Water inlet of main unit PVCΦ50
c Drain connector PVCΦ25
Hydraulic connections
 Connect the appliance’s PVC Φ50 hose water inlet and outlet (according to label
instructions) to the renewable fittings provided with the heat pump.
 Connection is established with a by-pass on the pool filtration circuit after the filter and before
the water treatment device.
