TAG MCLAREN AUDIO DVD32R User manual

contents |01
02 controls
04 welcome
07 key features
10 regional coding
11 getting started
13 connecting
17 door mechanism
19 controlling the DVD32R
23 the first time setup (setup wizard)
25 display configuration
26 playing a DVD (CD)
31 special functions
34 TAGtronic Communications Bus
36 test patterns
45 Progressive Scan Module PSM192 (option)
49 software upgrades
52 running in and warming up
53 care and maintenance
55 programming the remote
61 technical data
64 acknowledgements
dvd player DVD32R
6596W
version v3.7x 09/02
GRR00876.03-DVD32R UM v3.7.qxd 8/28/02 2:14 PM Page 1

controls
03
controls
02
time display
skip
search
+
+
–
–
FUNCTION
video
PAL
kHz
1. 3.
2.
standby
open/close
play
pause
stop
4. 6. 7. 8.5.
angle
subtitle
audio
status
OUTIN
BUS
REMOTE
IN
OUT
serial number
this product complies
with 21 CFR §1010
made in United Kingdom
CLASS 1
LASER PRODUCT
DVI OUTPUT OPTION
DIGITAL O
COMPONENT VIDEO
PROGRESSIVE SCAN OPTION
CAUTION
RISK OF ELECTRIC SHOCKRISK OF ELECTRIC SHOCK
DO NOT OPENDO NOT OPEN
Double insulated: When servicing, use only
identical replacement parts.
OPTION
(G) (B) (R)
YPBPR YPRPB
IN-S
COMPOSITE
OUT-1
IN-C
S-VIDEO
220-240V
~50-60Hz
Fuse: T1A L250V
OUT-2
CAUTION - VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN
DO NOT STARE INTO BEAM OR VIEW WITH OPTICAL
10.
9. 14.
23.18.
17. 20.19. 22.21.
12.11. 13.
ANALOG AUDIO
OPTION
OUTPUT T2LINK
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IN OUT
21
SURR.LEFT
SURR.RIGHT
CENTRE
SUB
LEFT
RIGHT
T2LINK
3
AND INTERLOCKS DEFEATED.
INSTRUMENTS
15.
24.
16.
01 power/standby LED
02 function buttons
03 display
04 function buttons
05 standby & disc control buttons
06 remote control active LED
07 remote control window
08 power button
09 fuse carrier
10 remote relay sockets
11 composite video, identical to 19 if no PSM192 is installed -
otherwise composite input to the PSM192
12 S-Video, identical to 20 if no PSM192 is installed -
otherwise S-Video input to the PSM192
13 DVI output socket, when PSM192 fitted
14 unused at present
15 TAGtronic LINK sockets
16 unused at present
17 AC supply socket
18 TAGtronic Communications Bus
19 composite video output
20 S-Video output
21 component video, identical to 22 if no PSM192 is installed
- otherwise progressive scan output of the PSM192
22 component video output
23 unused at present
24 digital audio outputs
DVD32R shown with
PSM192 option installed
GRR00876.03-DVD32R UM v3.7.qxd 28/8/02 12:39 pm Page 2

04
TAG McLaren Audio exists with one aim
in mind: to produce the very best audio and
audio-visual equipment.
Like many people, I often have my best
ideas when relaxing to a piece of music or
watching a movie. For years, knowing the
technical capabilities of TAG McLaren, I
have nurtured the ambition to push music
and movie reproduction to the absolute limit
without compromising ease of use; that’s
why we formed TAG McLaren Audio.
At the core of our development team
are highly experienced engineers whose
heritage of award-winning hi-fi and world-
beating electronic control systems is envied
by many and equalled by few.
welcome to
Dr. Udo Zucker
Chief Executive Officer
TAG McLaren Audio
Pushing technological
boundaries; TAG McLaren’s
F1 electronics
welcome
GRR00876.03-DVD32R UM v3.7.qxd 8/28/02 2:14 PM Page 4

05
There are many immediate spin-offs into
audio from our expertise in automotive
electronics, mechanical engineering and
the material science of Formula One motor
racing: multi-layer printed circuits, fast
digital signal processing, electronic noise
suppression, radio frequency technology
and software expertise to name but a few,
all prerequisites of an outstanding audio
product.
TAG McLaren’s aim is sonic perfection
combined with aesthetic delight and solid
build quality – a rare combination in hi-fi
but one which TAG McLaren Audio is
already delivering.
Dr Udo Zucker
welcome
‘home cinema experience’
GRR00876.03-DVD32R UM v3.7.qxd 8/28/02 2:14 PM Page 5

The DVD32R is a high performance video source that
supports a wide range of video outputs, making it the
perfect choice for home cinema installations. The DVD32R
is an ideal partner to the range of TAG McLaren Audio
AV processors but also complements many other high-
performance audio-visual processors.
welcome
06
Thank you for purchasing the TAG McLaren Audio
dvd transport DVD32R
GRR00876.03-DVD32R UM v3.7.qxd 8/28/02 2:14 PM Page 6

performance
and formats
upgrade paths
07
key features
There are many outstanding features included in this high-
performance DVD player DVD32R. Within this manual we focus on
the operation of the DVD32R. If you want to know more about the
technical background, which led to this outstanding player, then
please refer to our in-depth technical documentation which can be
found in the DVD32R product section at our website
www.tagmclaren.com.
• Europe’s first THXTM Ultra-approved DVD player for NTSC and PAL
• Compatible with DVD-Video and CD music (8 and 12 cm)
• Native support of PAL and NTSC video formats
• Composite, S-Video and Component outputs
• Very-low jitter clock re-times the SPDIF audio data, resulting in very
high quality signal timing of the digital audio data
• The TAGtronic Synchronisation Link T2L allows the DVD32R to
synchronise its master clock to the clock within a TAG McLaren
Audio AV processor which has this feature, resulting in a very-low
noise, ultra-low jitter reference right next to the audio output
DACs. The result is a crisper, cleaner and much more controlled
sound. This is a world first for a DVD player!
• Optional Progressive Scan Module PSM192 for progressively
scanned analog and digital video outputs from DVDs and external
Composite and S-Video sources
• Operating software upgrades for download via the Internet and
installation via the Enhanced TAGtronic Communications Bus
GRR00876.03-DVD32R UM v3.7.qxd 8/28/02 2:14 PM Page 7

08
key features
• Heavy, mass loaded, suspended DVD mechanism to minimise the effects of external
vibration on the rotating disc
• DVD mechanism for optimum performance when playing DVDs and CDs
• Mediamatics/National Semiconductor’s 32 bit RISC processor for best audio and video
quality
• Powerful 16-bit microcontroller
• Stable multi-frequency internal clocks
• Round-core transformer
• 12 independent power supplies
• Premium-grade audio components
• Broadcast-quality video components
• Two Composite and two S-Video outputs(1)
• Two multi-standard Component video outputs, one using RCA phono and one BNC(2)
connectors for best picture quality
• Three digital audio outputs (two coaxial SPDIF and one optical)
• TAGtronic Synchronisation Link T2L, input and output for daisychaining
• Enhanced TAGtronic Communications Bus, input and output for daisychaining
• digital video output (DVI 1.0) if Progressive Scan Option is fitted
• Fully remote controlled
• setup wizard lets you forget printed user manuals
• Learning backlit remote
• User configurable auto-standby function
• TAGtronic Communications Bus for inter-product communication and firmware upgrades
key uilding
locks
inputs and
outputs
ease of use
1. One Composite and one S-Video connector become inputs to the Progressive Scan Module PSM192 when this
option is fitted, for details see page 14
2. The BNC connectors carry the analog progressively scanned output from PSM192 when this option is fitted, for
details see page 14
GRR00876.03-DVD32R UM v3.7.qxd 8/28/02 2:14 PM Page 8

09
key features
• Mixed technology construction, leaded and surface mount for optimum
results
• Multi-layer printed circuit board for best signal to noise ratio
• Vibration damping of chassis panels for best sound and picture quality
• SorbothaneTM mounting feet for best vibration isolation
The TAGtronic Communications Bus allows for ‘near perfect’ system
integration with other products equipped with this advanced interface.
construction
Enhanced TAGtronic
Communications
Bus support
GRR00876.03-DVD32R UM v3.7.qxd 8/28/02 2:14 PM Page 9

10
regional coding
regional coding Regional coding has been defined by the developers of the DVD
standard (the licensors) to protect the sequential patterns of
distribution for the motion picture producers’ copyrighted works.
In line with these copy protection laws, your DVD32R has been
configured for one of six regions (1 to 6), dependent upon the
country of destination.
The region of your DVD32R is clearly shown on the packaging
beside the mains operating voltage and frequency, and can also
be obtained from the information screen via the setup menu.
Simply press menu, then 5and a screen similar to the one shown
below will appear:
player information
_____________________________________________
model : DVD32R
serial number : DVD-......
region code : 2
software version : V3.70/S58
In the example above, the DVD32R is set to region code 2.
Press menu to resume normal operation.
GRR00876.03-DVD32R UM v3.7.qxd 8/28/02 2:14 PM Page 10

11
getting started
efore you start
We know that you are keen to get your DVD32R working. This
section describes the connections required to make your DVD32R
fully functional and have you viewing your favourite movies as
quickly as possible. Refer to page 2 for diagrams to help you find
your way around your DVD32R(1).
Make sure that all components of your audio-visual system are
disconnected from the AC supply whenever you change any
connections.

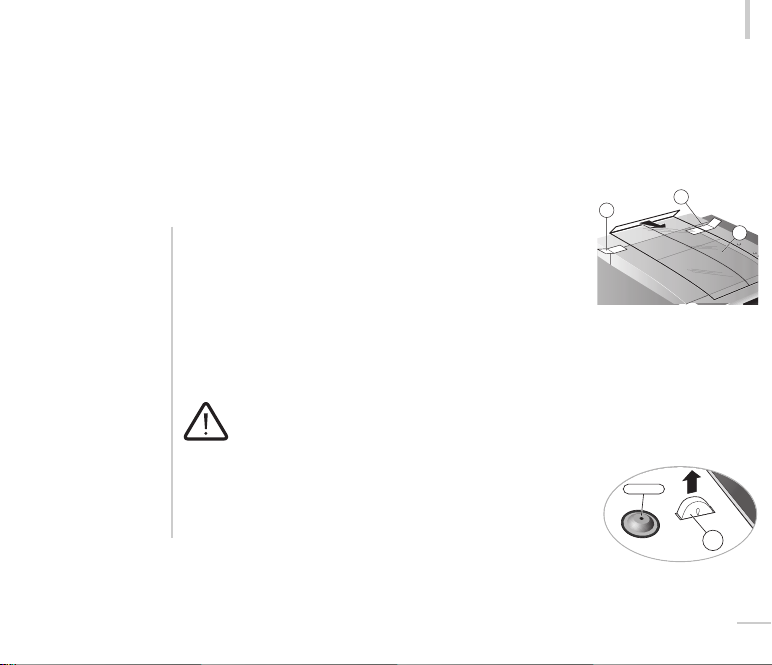

After removing the DVD32R from its packing, most carefully
remove the tape (A) and the protective film (B) from its cover.
Carefully open the drawer by hand to remove the transport
protection inside the drawer.
Older DVD32Rs use a different packing method
to the one described here. For details contact our
[email protected].
On units with a silver hub, a piece of transport foam (C) is fitted.
First very, very carefully pull the transport foam (C), if fitted, from
the laser assembly. Make sure you don’t apply force to the laser
whilst pulling the foam out. Do not touch the laser optics!
1. Throughout the instruction manual, bold print indicates the lettering that you will find
on the panels of your DVD32R and the remote
AA
B
silver hub
C
