tagarno ZAP STAND User manual

VERSION: 1.0 | FIRMWARE 5.8 | 2023-01-01
CONTENTS
1. INTENDED USE 2
2. WARNINGS 2
3. LASER POINTER WARNING 2
4. YOU HAVE RECEIVED 3
5. ASSEMBLING - ZAP STAND OR ZAP STAND UPGRADE KIT 4
6. ASSEMBLING - ZAP WITH Ø76 ADAPTER KIT 7
7. CONNECTING 10
8. OPERATION 12
9. TECHNICAL SPECIFICATIONS 15
10. PC REQUIREMENTS 17
11. MAINTENANCE 18
12. WARRANTY 18
13. ERGONOMICAL RECOMMENDATIONS 18
14. DECLARATION OF CONFORMITY 19
15. COMPLIANCE STATEMENTS 20
MANUAL | TAGARNO ZAP STAND
Go to tagarno.com/productmanuals to nd manuals and tutorial videos.

2
1. Read the manual before you use the product
2. Use the product only as specied, or the protection supplied by the product can
be compromised
3. Do not position the equipment so that it is difcult to operate the disconnecting
device (appliance inlet of external power supply, equipment input connector)
4. If fluids are spilled on the product, turn the system off immediately by pulling the power
supply out of the electrical outlet
5. In case of re close to the microscope, please turn off and disconnect the system
6. Avoid subjecting the lens to sharp or hard objects
7. Please do not connect the microscope, if visible damages appear
8. Do not dismantle any parts of the microscope, except where noted in the manual
9. Never disassemble or clean internal optical surfaces
10. Use only the power supply provided from TAGARNO
11. Always turn off the system before unplugging, when possible
WARNINGS
The product is a digital magnifying system consisting of a camera unit, PCBs, mechanical
parts and a power supply. The product is intended for marketing worldwide and is designed for
manual visual inspection.
INTENDED USE
Read all safety information before you use the product.
Please pay attention when you see a warning label on the product.
This product is for indoor use only.
You must not discard this electrical/electronic product in domestic household waste.
Please dispose at your local recycling centre.
This product is equipped with a red laser pointer to enable easy alignment of the camera and areas of interest during the inspection process.
This product is a Class 2 laser product that complies with IEC60825-1 international standard for lasers.
These labels appear visible on the product:CAUTION
Follow these safety instructions when using the product.
• Never look directly into the laser aperture
• Do not point towards anyone deliberately
• Leave the laser on only when necessary
• Always turn off power during service and maintenance
• Service may only be performed by trained personnel
appointed by TAGARNO
This label is placed near the laser aperture
The label below is placed on the camera head
1. INTENDED USE
2. WARNINGS
3. LASER POINTER WARNING

3
Get started
Get started
4
7

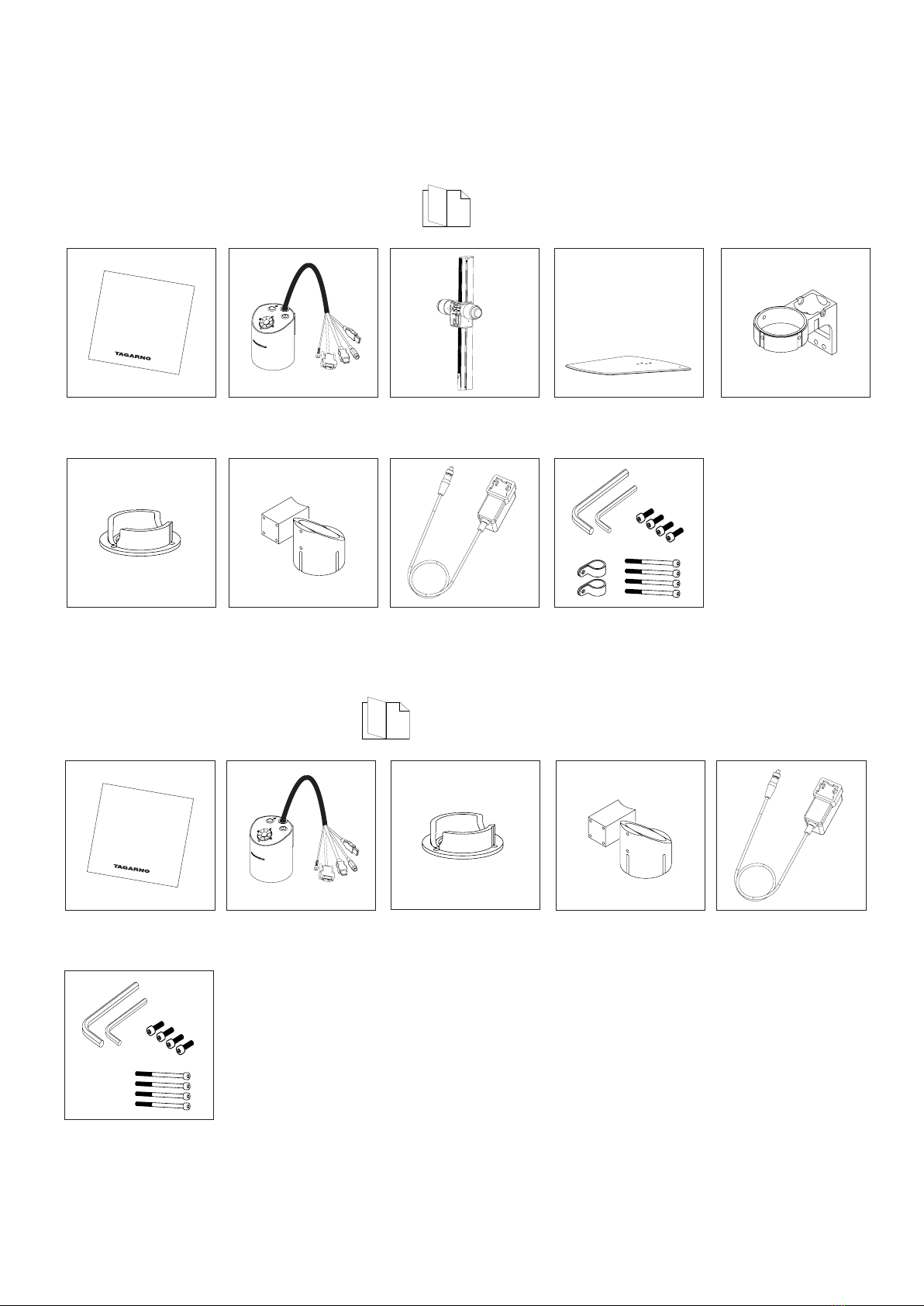

4. YOU HAVE RECEIVED
Various screws, hex keys
and P clips
Power supply
Rod Base Camera mount
Camera head with lens,
lens ring and cables
Smart guide
Camera adapter ring Extension block and
cylinder
Various screws and hex
keys
Power supply
Camera head with lens,
lens ring and cables
Smart guide Camera adapter ring Extension block and
cylinder
• ZAP STAND / ZAP STAND UPGRADE KIT
• ZAP WITH Ø76 ADAPTER KIT

4
5. ASSEMBLING - ZAP STAND OR ZAP STAND UPGRADE KIT
ASSEMBLING | ZAP STAND OR ZAP STAND UPGRADE KIT (1/3)
If you have a ZAP camera head already mounted on a flexarm,
start by disassembling it by following the ZAP FLEX and ZAP
INLINE manual.
Then, assemble the base and rod with four M5x16 countersunk
screws (bag 1) and place the assembled stand on a sturdy table.
Attach the camera mount to the rod with the three M4x12 screws
(bag 1).
OPTION 1: WITH EXTENDED CAMERA ARM

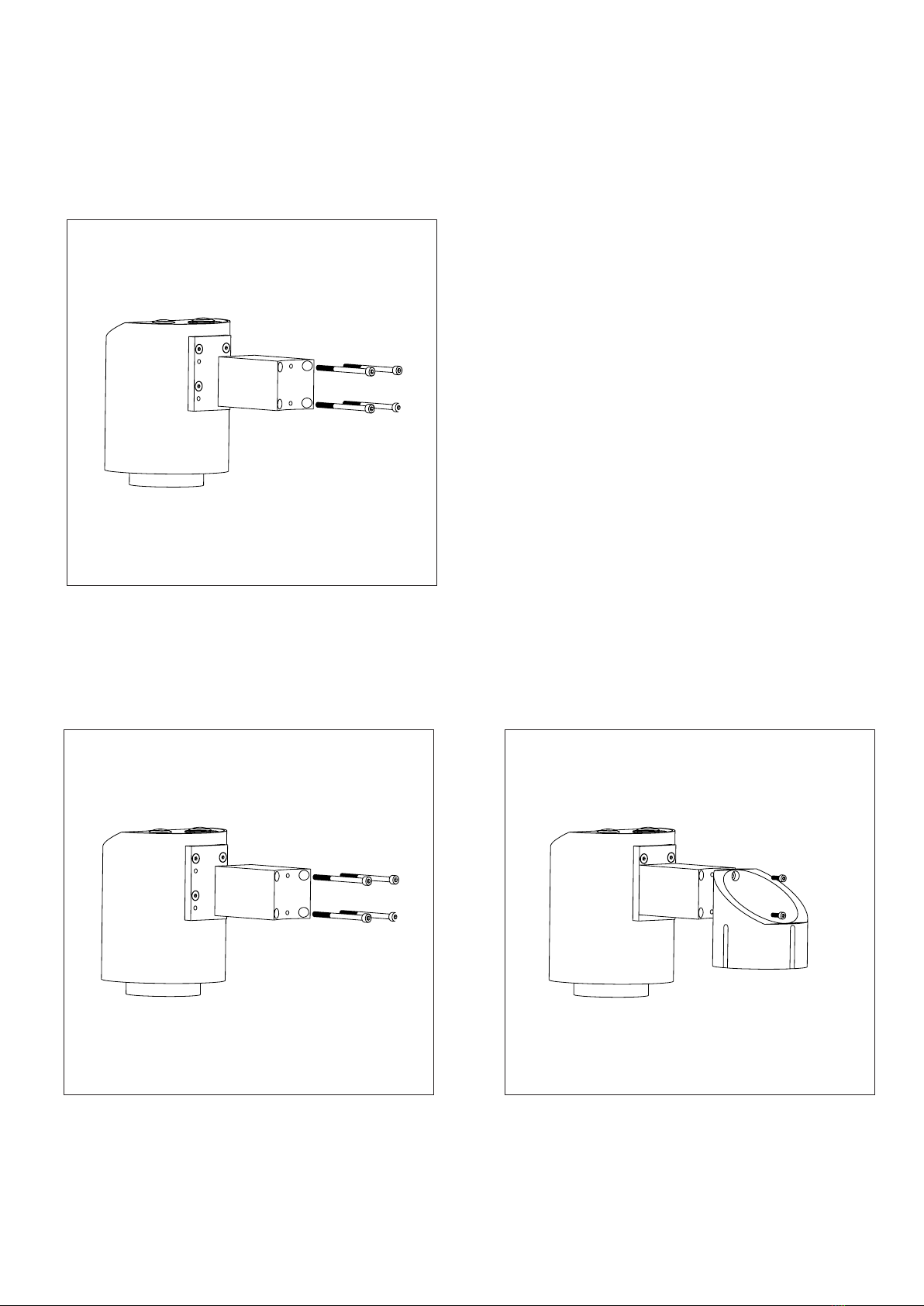

Mount the extension block on the camera head by using the four
M4x60 screws (bag 2).
Mount the extension cylinder to the extension block with the two
M4x10 screws (bag 2).

5
ASSEMBLING | ZAP STAND OR ZAP STAND UPGRADE KIT (2/3)
Secure the cable bundle with the two P clips (bag 3). If you’re using
a US model, make sure to unmount lens protection cap when using
this microscope.
Place the extended camera arm with mounted camera in the
camera mount and tighten the front and side nger screws (bag
3).
OPTION 2: WITH CAMERA DIRECTLY IN CAMERA HOLDER

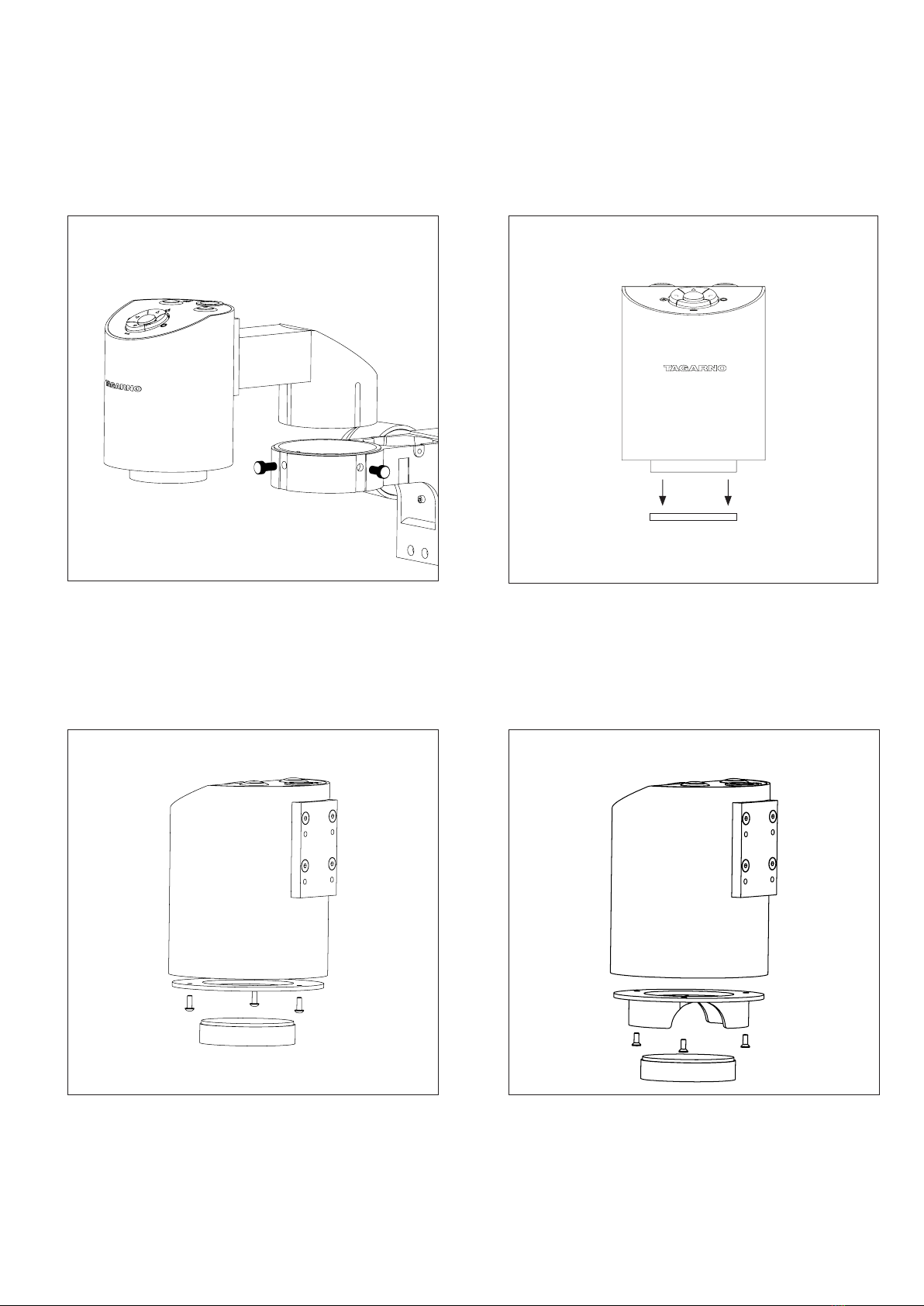

Unscrew the lens with your hands and remove the lens ring by
unscrewing the three M3x6 screws.
Screw the camera adapter ring on the camera with the three
countersunk M3x10 screws (bag 4). For correct assembly, the
laser label on the adapter ring must be placed next to the laser
itself.
Then, rescrew the lens on the camera.

6
Place the camera in the camera mount before tightening the front
nger screw (bag 3).
Secure the cable bundle with the two P clips (bag 3). If you’re using
a US model, make sure to unmount lens protection cap when using
this microscope.
ASSEMBLING | ZAP STAND OR ZAP STAND UPGRADE KIT (3/3)

7
ASSEMBLING | ZAP WITH Ø76 ADAPTER KIT (1/3)
Start by removing the microscope head form your current setup,
using the manufacturer’s manual.
6. ASSEMBLING - ZAP WITH Ø76 ADAPTER KIT
OPTION 1: WITH EXTENDED CAMERA ARM
Then, mount the extension block on the camera head by using the
four M4x60 screws (bag 1).
Mount the extension cylinder to the extension block with the two
M4x10 screws (bag 1).

8
Unscrew the lens with your hands and remove the lens ring by
unscrewing the three M3x6 screws.
Screw the camera adapter ring on the camera with the three
countersunk M3x10 screws (bag 3). For correct assembly, the
laser label on the adapter ring must be placed next to the laser
itself.
Then, rescrew the lens on the camera.
ASSEMBLING | ZAP WITH Ø76 ADAPTER KIT (2/3)
OPTION 2: CAMERA DIRECTLY IN HOLDER
Place the extended camera arm with mounted camera in the
camera mount and tighten the front and side nger screws (bag
2).
IMPORTANT! Laser beam attenuator. Unmount lens protection cap
when using this microscope.

9
ASSEMBLING | ZAP WITH Ø76 ADAPTER KIT (3/3)
Place the extended camera arm with mounted camera in the
camera mount and tighten the front and side nger screws (bag
2).
IMPORTANT! Laser beam attenuator. Unmount lens protection cap
when using this microscope.

10
3. 4. 5.1. 2.
Wire Description Type Connect to Cable length Specication
1Output HDMI Type A Monitor 2700mm HDMI out 720p50, 720p60, 1080p25, 1080p30, 1080p50, 1080p60
2USB 3.0 output USB 3.0 Type A Computer 2700mm USB 3.0 Device, Self-powered
3Control box or
foot switch
D-SUB 9-Pin
Female
Control box or
foot switch
3000mm Output: 3.3V 330µA
Use only control boxes supplied by TAGARNO
4Power supply
(DC)
DC Jack Power socket 3000mm Input: 12V 0.5A
Use only the power supply provided by TAGARNO:
Brand/Model: Mean Well/GEM18I12
Protection class II
Input: 100-240V 0.45-0.2A, 50/60Hz
Overvoltage category ll
Output: 12V 1.5A Max
5ESD Ring Terminal
Connector
ESD Grounding
point
3000mm ESD Grounding point
Connect HDMI cable (1), USB 3.0 cable (2), control box or foot
switch (3), power supply (4) and ESD - Electro Static Discharge (5).
WARNING! Do not use force when inserting the cable plugs.
Connect HDMI cable from the microscope to a monitor.
WARNING! Do not connect the HDMI cable to a PC.
* Note: If you’re using the foot switch, connect the cable to the foot switch and then connect the footswitch and control box.
CONNECTING (1/2)
7. CONNECTING

11
CONNECTING (2/2)
Connect the microscope to the XKEY Control box.
Note: If you’re using the foot switch, connect the cable to the foot
switch and then connect the footswitch and control box.
Connect the power supply cable to the power supply battery and
then to a electrical outlet.
Connect grounding cable to grounding point, to ensure ESD of the
microscope.
Connect USB 3.0 cable from the microscope to a PC.

12
Short push switches between Iris, Gain and Preset mode.
Increase Iris/Gain or switch between zoom preset 1, 2 or 3.
Decrease Iris/Gain or switch between zoom preset 1, 2 or 3.
To change and save a zoom preset, use zoom buttons to
select a zoom level and simultaneously press left/right
buttons. OSD will show STORED: PRE(X)
Hold for 3 sec. to use auto exposure mode
RESET TO FACTORY SETTINGS
Follow this procedure to change back to factory setting 1080P60.
1. Turn the microscope off
2. Press and hold the center button down while turning the power on
3. Keep holding the center button down for 25 seconds
4. Release the center button and turn the power off
5. Turn the power back on and the microscope is set to factory
setting 1080P60
Turn off/on
Laser on/off (WARNING! Laser radiation when turned on)
Zoom in
Zoom out
Push both plus and minus to change from auto focus to
manual focus. You can now adjust the focus manually by
using the plus/minus buttons
If you wish to focus on something close
If you wish to focus on something further away
XKEY Control box for TAGARNO functions.
Do only connect equipment distributed by TAGARNO.
Control buttons for TAGARNO functions.
Do only connect equipment distributed by TAGARNO.
XKEY CONTROL BOXCAMERA HEAD
8. OPERATION
OPERATION (1/3)

13
FOOT SWITCH
When in magnication mode:
Zoom in
Zoom out
Change mode:
Push both plus and minus to change from auto focus to
manual focus. You can now adjust the focus manually by
using the plus/minus buttons
When in focus mode:
If you wish to focus on something close
If you wish to focus on something further away
Foot switch for TAGARNO functions.
OPERATION (2/3)

14
1. Open the OSD menu
To open the TAGARNO On Screen Display Menu, press and hold the
center button for approximately 5 seconds.
2. Choose lens
Set the current close-up lens by using the left/right arrows on the
CONTROL BOX XKEY. On a TAGARNO FULL HD system, the choice
naturally is between LENS +2, +3, +4, +5 or +10. LENS +4 is factory
default. Continue using the down arrow.
3. Choose monitor width
Press the center button to set up the width of the monitor. You need
to measure the horizontal width of the monitor panel on your monitor,
Select one digit at a time by using the left/right arrows and adjust the
digits with the up/down arrows. Switch between millimeters and inches
via the up/down buttons. Monitor 24” FHD is factory default. To store
change in settings press the center button.
4. Set start magnication
Select which magnication level you need your system to use as start
up level. Press the center button and select one digit at a time in the
bottom of the page, by using the left/right arrows and adjust the digits
with the up/down arrows. By pressing the center button one more time,
you have selected the values chosen. Press the down arrow to choose
format.
When turning on your FULL HD system, you are informed of the
given units, serial number (SN), version and resolution.
ON SCREEN DISPLAY (OSD)
5. Choose format
You have the option to switch between different video formats, 1080p
60fps being the highest quality. Select the required format by pressing
the center button, and use arrow keys left/right to select between 6
different formats.
6. Select OSD presets
You need to choose between respectively ALWAYS ON, OFF or
TIMEOUT using the left/right arrows in order to have the OSD Menu
displayed continuously, never or for 3 seconds at the time.
Continue by pressing the down arrow.
7. Color boost
The OSD menu gives you the possibility to choose between two color
settings; Color boost on or off, by using the left/right arrows. Which
setting chosen, is a matter of individual preferences and the object
projected on screen. Continue by pressing the down arrow.
8. Flip picture
In the menu you have the possibility to rotate the screen image 180
degrees, or choose the standard view by using the left/right arrows.
Choose between the two views by pressing the left/right buttons.
Continue by pressing the down arrow.
9. White balance
Choose between these settings: AUTO and POWER UP by using the
left/right arrows. In AUTO mode the white balance is continuously
adjusted to achieve the best color reproduction. In POWER UP mode
the white balance calibration is performed only once when the system
is turned on. In this mode it’s important that a white sheet of paper
is visible in the eld of view when the microscope is switched on.
Continue by pressing the down arrow.
10. Save presets
To save your presets and exit the menu, press the center button and
thereby return to the image displayed on the monitor, using your
recently saved presets.
If you have changed the various formats, your FULL HD system needs
to be restarted. This will be indicated in the bottom if needed.
OPERATION (3/3)

15
9. TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS (1/2)
WITH EXTENDED CAMERA ARM WITH CAMERA DIRECTLY IN MOUNT
Dimensions (HxWxD) 515 mm x 280 mm x 430 mm
20.28” x 11.02’’ x 16.93’’
515 mm x 280 mm x 280mm
20.28” x 11.02’’ x 11.02’’
Working depth, max 275 mm / 10.83” 120 mm / 4.72”
REGARDLESS OF SETUP
Weight 7.3 kg / 16.1 lbs
Work height 460 mm / 18.11’’
Camera resolution FHD 1080p, 1920x1080p at 59,94/50/29,97/25Hz
HD 720p, 1280x720p at 59,94/50Hz
Camera zoom 30x optical
Autofocus Yes
Auto Monitor Detect No
Power requirements Line voltage 100 - 240V 10%
Line frequency 50/60Hz
AC current consumption (typ.) 70mA/100V 30mA/240V
DC current consumption (typ.) 0.5A/12V
Environmental conditions Temperature Storage -5 to 60oC / 23 to 140oF
Operation 5 to 40oC / 41 to 104oF
Humidity range Storage 20 to 90% RH non-condensing
Operation 20 to 80% RH non-condensing
Altitude 0 to 2000m / 0 to 6500ft above sea level
Pollution degree 2
W
H
ZAP STAND and ZAP STAND Upgrade kit
with Extended camera arm
ZAP STAND and ZAP STAND Upgrade kit with
camera directly in mount
D
W
H
D

16
TECHNICAL SPECIFICATIONS (2/2)
LENS Lens to object distance Magnication on 24" monitor Work depth
+3 333 mm/13.22” 1.3x - 40.1x 590-740 mm/ 23.23-29.13’’
+4 (Included) 250 mm/9.84” 1.7x - 53x 630-760 mm/ 24.80-29.92’’
+5 200 mm/7.87” 2.2x - 66x 640-760 mm/ 25.20-29.92’’
+10 (Plan - 1x) 78 mm/3.07” 4.3x - 133x 635 mm/ 25’’
RECOMMENDED MONITOR FORMAT
Panel format 16:9 (Widescreen)
How to link HDMI input
Response time 2 ms
Signal format FHD 1920x1080
ACCESSORIES
Lens +3, +4, +5 and +10 (Plan - 1x) TAGARNO Ring light White** XY table
Magnetic lens ring* TAGARNO Ring light IR** Glass table
XKEY Control Box TAGARNO Ring light UV** Cleaning kit
Foot switch Backlight kit Circular tilting table
FHD monitors per request Coaxial light
FIELD OF VIEW MAXIMUM MINIMUM
Lens X-Direction Y-Direction X-Direction Y-Direction
+3 409 mm / 16.10’’ 230.10 mm / 9.06’’ 13.40 mm / 0.53’’ 7,54 mm / 0,02’’
+4 290 mm / 11.42’’ 163.10 mm / 6.42’’ 10.50 mm / 0.41‘‘ 5,91 mm / 0,02’’
+5 245 mm / 9.65’’ 137.80 mm / 5.43’’ 8 mm / 0.32’’ 4,50 mm / 0.18’’
+10 (Plan - 1x) 87 mm / 3.42’’ 48.94 mm / 1.93’’ 4 mm / 0.16’’ 2,25 mm / 0.089’’
* Magnetic lens rings are only compatible with ZAP when the camera is mounted with the extension kit.
** TAGARNO Ringlights can’t be mounted on ZAP on lens +3, +4 and +5 when the camera is placed directly in the camera mount

17
FULL HD 1080P @ 59,94/50HZ
OS Desktop Laptop
Windows 7, 8 or 10 (with DirectX 11)
Memory 8GB
CPU Intel® Core™ i5 or i7 @2.4GHz,
(4th generation named 4xxx
or newer)
CPU: Intel® Core™ i5 or i7
@2.4GHz (4th generation
named 4xxx or newer)
Hard Disc Space 1GB required (SSD type recommended)
Connections USB 3.0 xHCI host controller (Intel chipset recommended)
Integrated Graphics Intel® HD Graphics 4000 Intel® HD Graphics 4400
Dedicated graphics card AMD Radeon™, HD 7xxx
Series with 2GB RAM
nVidia GeForce GT 740M
with 2GB RAM
Monitor resolution 1920x1080 (recommended)
FULL HD 1080P @ 29,97/25HZ AND HD 720P @ 59,94/50/30/25HZ
OS Desktop Laptop
Windows 7, 8 or 10 (with DirectX 11)
Memory 4GB
CPU Intel® Core™ [email protected] or
[email protected], (4th generation
named 4xxx or newer)
Intel® Core™ i3 @ 3.2GHz,
(4th generation named 4xxx
or newer)
Hard Disc Space 1GB required (SSD type recommended)
Connections USB 3.0 xHCI host controller (Intel chipset recommended)
Integrated Graphics Intel® HD Graphics
Dedicated graphics card AMD Radeon™, 1GB ram nVidia GeForce GT 1GB RAM
Monitor resolution 1920x1080 (recommended)
SOFTWARE RECOMMENDED
Windows 7 Youcam 7
Windows 8 Windows 8 Camera App
Windows 10 Windows 10 Camera App
10. PC REQUIREMENTS

18
• Store and use the product in a dry, clean and ventilated room.
• Do not place the product in direct sunlight, next to a radiator/heater or some place where
the system may be subjected to liquids.
• All plugs are designed to be used in one way only. Therefore, you should never use force
when you connect the system.
• Remember to disconnect all elements if you intend to move the product.
• If you move the product from a cold to a hot room, you must wait at least an hour before you
turn it on, to avoid short circuits due to condensation.
• Remove the cables by pulling the plug itself - never by pulling the cable.
• If the product needs repair, never do it yourself, contact your distributor.
• When cleaning the product, please turn off the system and wait untill the system has
cooled off.
• Clean the product with a damp cloth. Never use strong cleaning agents or chemicals
- these may damage the microscope.
• Clean the lens regularly with isopropyl alcohol and a microber cloth or with the TAGARNO
cleaning kit.
Warranty terms for the product shall be as follows:
TAGARNO warrants that the product will correspond with the specication at the time of
delivery and will be free from defects in material and workmanship for a period of 24 months
(2 years) from date of invoice from Supplier.
This warranty covers:
a. The replacement of defective parts.
b. All labour costs to exchange defective parts in product.
c. Complete functions test of product before return to end user’s site.
d. Return transport costs of product from TAGARNO to end user’s site.
The warranty only applies if the product is packed, shipped, stored, handled and maintained
correctly.
Failures due to improper packing and transport are not covered.
Failures due to drops and sudden blows are not covered.
Failures due to storage and handling in extreme high or low temperatures are not covered.
Failures due to storage or handling in extreme high humidity are not covered.
Please be careful when carrying the product from one place to another.
Please do not lift the microscope by grabbing the camera arm.
Values marked with X varies from product to product and are replaced by specic numbers and letters.
All TAGARNO products are marked with a product label. Products sold in the US also have a FDA approval label (right):
11. MAINTENANCE
12. WARRANTY
13. ERGONOMICAL RECOMMENDATIONS

19
TAGARNO A/S
Finlandsvej 2
8700 Horsens
Denmark
[phone]
[email protected]
www.tagarno.com
PRODUCT
MODEL
ART Inspection camera unit
MANUFACTURER
NAME TAGARNO A/S
ADRESS Finlandsvej 2
ZIPCODE/CITY 8700 Horsens
COUNTRY Denmark
PHONE [phone]
DESCRIPTION
TAGARNO A/S hereby declares that the product listed above, consisting of a camera unit
and a 12V power supply, is in compliance with the following European directives:
2006/25/EU
2014/30/EU
2014/35/EU
By conforming to the following harmonized standards:
IEC 60825-1:2014
EN 61326-1:2013
IEC 61010-1:2010
THE DECLARATION IS ISSUED BY
MANUFACTURER TAGARNO A/S
Class 2
Class B / Basic Electromagnetic Environment
IECEE CB Scheme Ref. Certif. No. NO104184
Articial Optical Radiation
Electromagnetic Compatibility
Low Voltage Directive
TAGARNO FHD ZAP | Type no.: 690800 (U.S) / 690600 (Rest of world)
14. DECLARATION OF CONFORMITY

20
15. COMPLIANCE STATEMENTS
FCC COMPLIANCE STATEMENT (UNITED STATES)
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
INDUSTRY CANADA COMPLIANCE STATEMENT
CAN ICES-3 (B)/NMB-3(B)
This Class B digital apparatus meets the requirements of the Canadian Interference-
Causing Equipment Regulations.
Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur
le Matériel Brouilleur du Canada.
