Tahoe TI9000LXU Parts list manual

- 1 -

- 2 -
Contents
1. Safety Point forAttention......................................................................................................................................................................................1
2. Parts & Subassemblies ..........................................................................................................................................................................................2
3. Check-ups before Operation.................................................................................................................................................................................3
4. Starting of generator..............................................................................................................................................................................................6
5. Usage of Generator................................................................................................................................................................................................9
6. Stopping of generator ..........................................................................................................................................................................................12
7. Maintenance .........................................................................................................................................................................................................13
8. Storage...................................................................................................................................................................................................................16
9. Troubleshooting....................................................................................................................................................................................................17
10. Technical data.....................................................................................................................................................................................................19
11. Battery Unit ........................................................................................................................................................................................................20
12. Wheel Unit..........................................................................................................................................................................................................23
13.Automatically Gasoline Generator Manual.....................................................................................................................................................27

- 1 -
1. Safety Point forAttention
1) Do not use it indoors 2) Do not open it in wet 3) Do not connect it to the line for house
Environment appliance
4) keep flammables 1m 5) Do not overfill to cause over-
Min. away from it flowing while fueling
6) Do not smoke while fueling 7)Stop the engine on fueling

- 2 -
2．
．．
．Parts & Subassemblies
1) Fuel indicator 9)Starting handle
2)Fuel tank up 10)Fuel filter cup
3)AC socket 11)Fuel valve
4)AC breaker 12)Air filter
5)Voltmeter 13)Choke handle
6)Machine oil plug gap 14)Exhaust silencer
7)Engine switch 15) Spark plug
8)Discharging bolt 16)Grounding terminal

- 3 -
3．
．．
．Check-ups before Operation
·
··
·Scope of temperature the genertor set is appli-
Cable for.-15
55
5℃
℃℃
℃ to 40
to 40 to 40
to 40℃
℃℃
℃.
..
.
·
··
·Scope of humidity the generator is applicable
For Not over 95%.
·
··
·The generator will output the rated power when
Running in areas within 1000m above the sea level but
Lower power than that in areas higher than 1000m above
The sea level.
1. Level of machine oil
Caution: Remember that check-ups must be carried
Out on an even ground with the engine stopped.
A. Insert the oil plug gage into the machine oil filling
H
HH
Hole without turning and check the oil level.
ole without turning and check the oil level.ole without turning and check the oil level.
ole without turning and check the oil level.
B. When the oil level is too lower,refill the machine with
machine
Oil but not over the upper limit mark.
Recommended machine oil:
Machine oil Class SE or SF of API of SAE10W-30
Corresponding to Class SG
C. Remount the machine oil plug gage securely.

- 4 -
2 ．
．．
．Level of fuel
A. Check the fuel level on the fuel indicator
B. If the fuel level is too low,serew off the fuel tank cap fill it with
Fuel to the shoulder of the filter.
Waring: Do not overfill to avoid fuel overflowing.
C. Remount the cap
3.Air filter
A. Remove the filter cover.
B. Check the filter elemebt to make sure it is clean and intact.

- 5 -
C．
．．
．It is dirty ,take out the element for cleaning
·
··
·Wash it in solvent
·
··
·Squeeze dry
·
··
·Drop some drips of machine oil into it.
·
··
·Squeeze it dry again.
D. Remount the filter element and put it on filter cover.
4.Battery
Check to make sure that the electrolyte levelin every call is
Between the upper and lower limit lines.
1) Upper limit line
2) Lower limit line

- 6 -
4．
．．

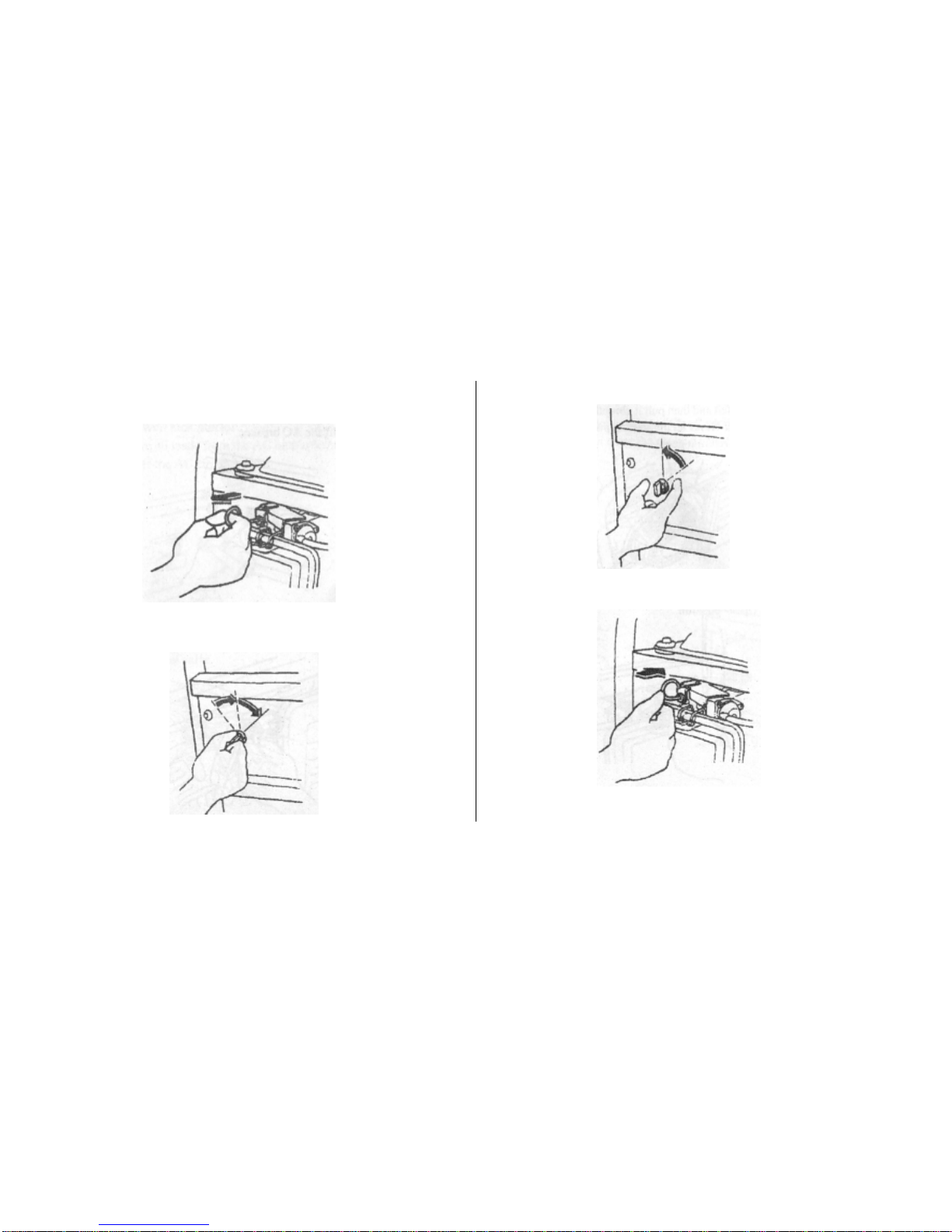

．Starting of generator
Starting with kick starter
1. Remove all loads from theAC output terminal.
2. Turn off theAC circuit breaker.
3. Open the fuel valve
4. Turn the choke handle to “CLOSE” positioon
Caution: DO not close the choke when starting a hot engine.
5.Turn on the engine switch.

- 7 -
6．
．．
．Gently hold the starting pull handle till some resistance is felt
and then
Pull it abruptly.
Waring: Never let the starting pull handle retract suddenly
but return it gently.
7. When the engine is warmed up,set the choke handle to
“Open” position

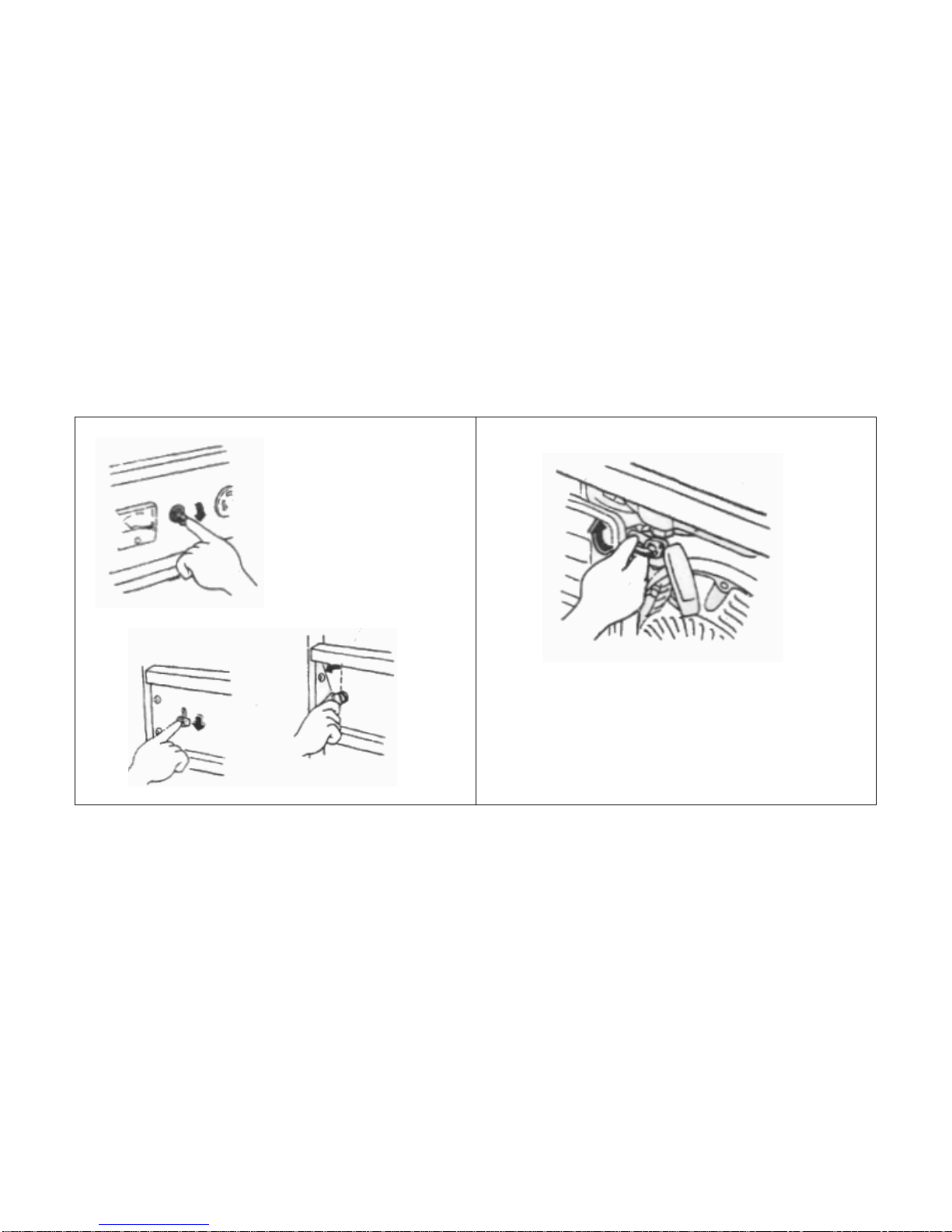

Electric start
1. Remove all loads from the output terminal
2. Turn of theAC breaker.
3. Open the fuel valve.

- 8 -
4．
．．
．Set the choke handle to “Close” position
Caution: Do not close the choke when starting a hot engine
5: Turn on the electronic start switch.
6. Release the electric start.
7: When the engine is warmed up,set the cloke handle to “Open”
position

- 9 -
5. Usage of Generator
To keep the generator in optimal con-
Dition mechanically and electrically the
Following points shall be observed.
Warning: The generator has to be
Ground for fear that any mistake would
Be made electrically.
The total power of electric load shall
not exceed the rated power of the generator.
Electric appliances: motor driven de-
Vices esp.produce large current on starting.
The following table is for reference to be ma-
De when the devices.
Lised below are connected to the generator.

- 10 -
· Generator can’t work over load.It should be no more than
80%
Of rated power with load for long run.
· For 3-phase model, each load should be equal, even the
difference
Can not be over 30%,otherwise,the generator will be broken easily.
· Cable connected generator and load should conform to
national
Standard(4A/mm2)
When two or more loads are to be connected to the
generator,they shall be connected from the one requiring larger
current to that requiring a small one.
Note:
· If the generator is to be wired for house power supply, wiring
Shall be carried out by an electrician.
· Check to make sure that the wiring is correct. A wrong wiring
will cause damage to the generator and even a fire.
OK
Forbidden

- 11 -
OK
Use of AC
1. Starting the engine.
2. Ensuring that the voltmete indictes voltage.
3. Connecting devices.
4: Connecting the AC breaker
Note: Over current will automatically turn off the AC breaker.
When that is turned off,the generator shall be restarted with load
reduced a few minutes thereafter.

- 12 -
6．
．．
．Stopping of generator
1.Turn off the AC breaker.
2. Turn off the engine switch
3. Remove all loads.
4. Close the fuel valve.
Note:When an emergent stop of the engine is needed,turn the
generator switch to “OFF” position.

- 13 -
7.
Mainte
nance

- 14 -
1．
．．
．Replacing machine oil
1. Open the filling hole.
2. Remove the oil discharging bolt and drain off the used
oil
3. Remount the oil discharging bolt tightly.
4. Fill the machine with fresh oil and check the oil level. Its
machine oil capacity is 1.1L
5. Remount the oil plug gage.
2. Spark plug
1. Remove the spark plug cap.
2.Remove the spark plug.
3. Remove carbon deposit.
4. Check the spark plug gap
Model of standard spark plug:
BP5ES,BPR5ES(NGK),W16ERP-U,W16ERP-U
(DENSO) F7RTC

- 15 -
5．
．．
．Remount the spark plug and its cap
3. Fuel filtering cup
1. Close the fuel valve
2. Remove the setting cup and straining screen.
3. Clean the cup and screen.
4. Remount the cup and screen

- 16 -
8．
．．
．Storage
1. Drain off fuel from the fuel tank.
2. Clean and then remount the straining screen and setting
Cup.
3. Drain of fuel from
The carburetor.
4. Screw off the machine oil plug gage&discharging
bolt and then drain off oil.
5. Remount the dis-
Charging bolt tightly,fill
The machine with fresh
Machine oil to the upper
Limit mark and then re-
Mount the gage.
6. Gently pull the start pull handle till
some resistance is felt.
.
7. Place the generator in a
Clean area

- 17 -
9．
．．
．Troubleshooting
The engine can not start:

- 18 -
There is no Voltage? Check the circuit protector.
Check the spark plug
