OWNER’S MANUAL
KINBRACE
FLAT PANEL ELECTRIC FIREPLACE HEATER
SKU-EFWTJ42AI2
120V AC; 60 HZ; MAXIMUM POWER 1500 WATTS
ALL ELECTRIC. NO WOOD OR CHARCOAL. NO GAS. NO VENTING REQUIRED.
Wall Mounted
Using the wall bracket kit.
Freestanding
Using the foot bracket kit.
WARNING
CAUTION
NOTICE
Read and understand this entire owner’s manual, including all safety information, before plugging in
or using this product. Failure to do so could result in fire, electric shock, or serious personal injury.
Keep this owner’s manual in a safe place for future reference. If you sell or give this product away,
make sure this manual accompanies this product.
Pictures within this owner’s manual are for reference only. Please refer to the actual product for
appearance.
CHTEFWTJ42AI2-v2020
In Wall
Using the in wall screws.

2
IMPORTANT SAFETY INSTRUCTIONS!
WARNING
•
•
•
•
•
•
•
•
•
•
•
•
•NEVER use this heater in bathrooms, laundry rooms, or any other location where the
heater could fall into a bathtub or pool, become damp, or come in contact with water.
•AVOID FIRE! Regularly inspect all air vents to make sure they are free from dust, lint,
or other blockage. Unplug the unit and clean with a vacuum ONLY. DO NOT rinse or get wet.
•
•
•
2
Read these instructions carefully before using this heater!
This heater is hot when the heat mode is in use. To avoid burns, DO NOT let bare skin touch hot
surface. If provided, always use handles when moving this heater. Keep combustible materials,
such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the
front of the heater, and keep them away from the sides and rear.
EXTREME CAUTION is necessary when any electric heater is used.
NEVER operate this heater with a damaged cord or plug or after the heater malfunctions,
has been dropped or damaged in any manner. Discard heater, or call a certified technician
for examination and or/repair.
NEVER run the power cord under carpeting. DO NOT cover powder cord with throw rugs,
runners, or similar coverings. DO NOT route power cord under furniture or appliances. Arrange
power cord away from any traffic area, and where it will not be tripped over.
Connect to properly grounded power outlets ONLY.
NEVER insert or allow foreign objects to enter any ventilation or exhaust opening,
as this may cause electric shock, fire, or damage the heater.
To prevent a possible fire, DO NOT block air intakes or exhaust in any manner.
Doing so could cause a fire. DO NOT place the heater near soft surface, such as curtains or
bedding, where openings may become blocked.
The heater contains hot and arcing or sparking parts inside. DO NOT use it in areas where
gasoline, paint, or flammable liquids are used or stored.
Use this heater only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock, or injury to persons.
ALWAYS plug the heater directly into a wall outlet. NEVER use the heater with an extension
cord or relocatable power board (outlet/power strip).
NEVER place the heater near bedding or curtains because objects such as pillows or blankets
can fall off the bed and be ignited by the heater.
NEVER hang this unit on a wall directly below an electric outlet.
NEVER permanently install in a recessed area of the wall. This may result in
blocked air flow, overheating, or fire.
NEVER use a wall mount bracket from another manufacturer.

3
WARNING
•For residential use only! NOT for commercial use! Any commercial or public use of this
heater voids all warranties , and could cause injury.
•This product is not intended to be a primary heat source. It is for supplemental heat only.
•INDOOR use only! NEVER use this heater outdoors! Doing so may result in electric shock!
•
•NEVER modify this heater. Doing so could result in personal injury or property damage.
Modification of this fireplace completely voids all warranties.
•ALWAYS turn this heater off before unplugging it from the outlet.
•ALWAYS disconnect this unit from the power supply before performing any assembly
or cleaning, or before relocating the product.
•NEVER leave this heater unattended. ALWAYS unplug this heater when not in use.
•ALWAYS store this heater in a dry location. NEVER use the product if it has become wet.
•Place the heater near a wall outlet so an extension cord is not needed.
•
•NEVER plug this heater into an outlet that is old,cracked, or has any loose wires or
connections. Plugging this heater into a faulty outlet could result in electric arcing within
the outlet that could cause the outlet to overheat or catch fire.
•ALWAYS check your heater cord and plug connections with each use!
i) Make sure the plug fits tight in the outlet! Faulty wall outlet connections or loose plugs
can cause the outlet to overheat.
ii) Heaters draw more current than small appliances. Overheating may occur even if it has
not occurred with the use of other appliances.
iii) During use check frequently
to see if the plug outlet or faceplate is HOT!
iv) If the outlet or faceplate is HOT, discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlets.

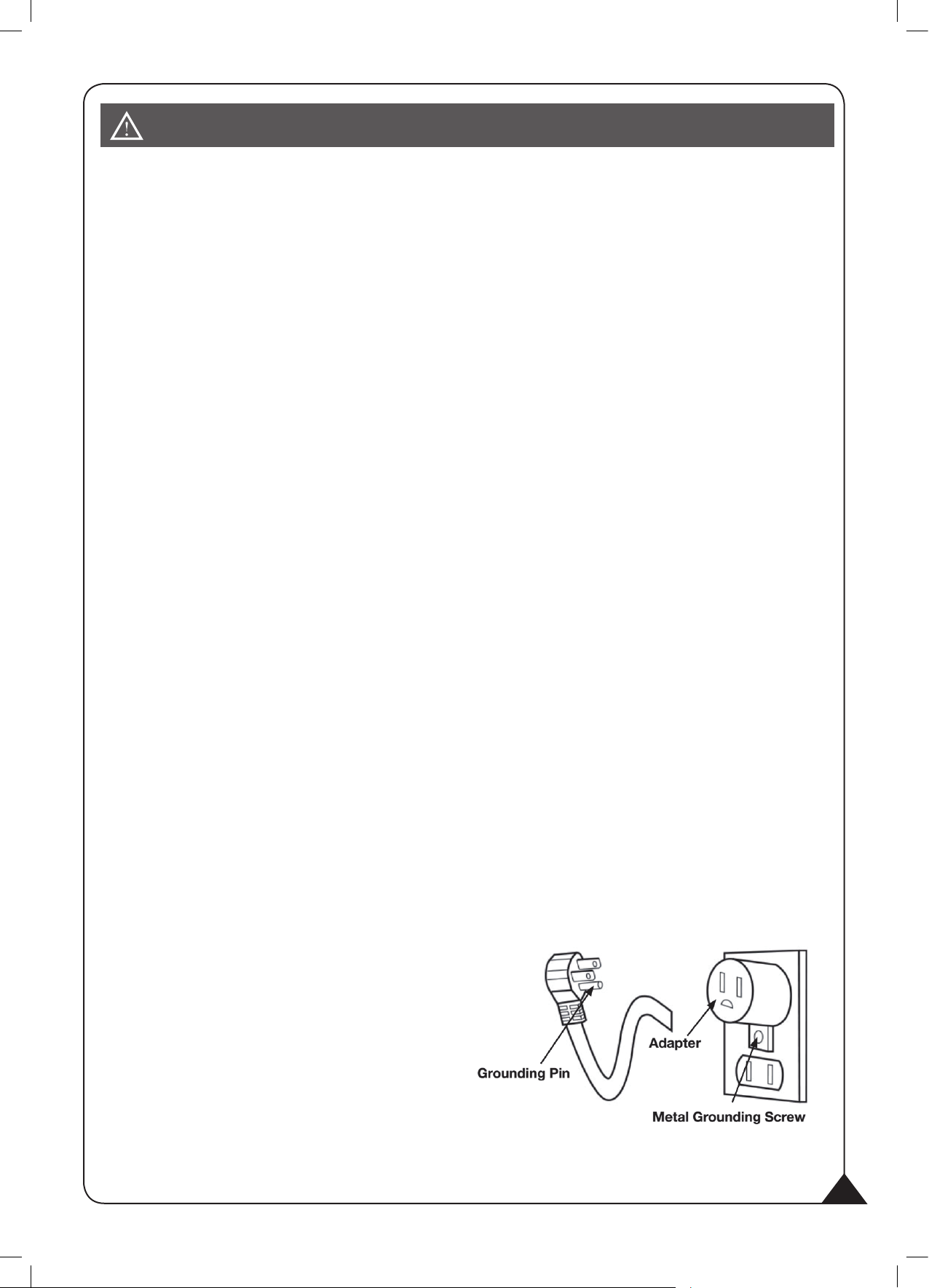

•The power cord supplied with the heater has
three prongs: two flat blades (live and neutral)
and one round pin (ground). If a 3-slot
is not available, an adapter MUST be used.
The adapter MUST be properly grounded
to the outlet box (see figure at right).
[NOTE: Adapter NOT INCLUDED.]
ONLY use this heater on a 120V AC 15-Amp grounded circuit.NEVER overload the circuit. If this
heater trips the circuit breaker, unplug all other appliances on the same circuit before the next use.
Avoid plugging other appliances into the same circuit as this heater.
3
Risk of electric shock! DO NOT REMOVE THE COVER! NO user-serviceable parts inside!
outlet

PREPARATION

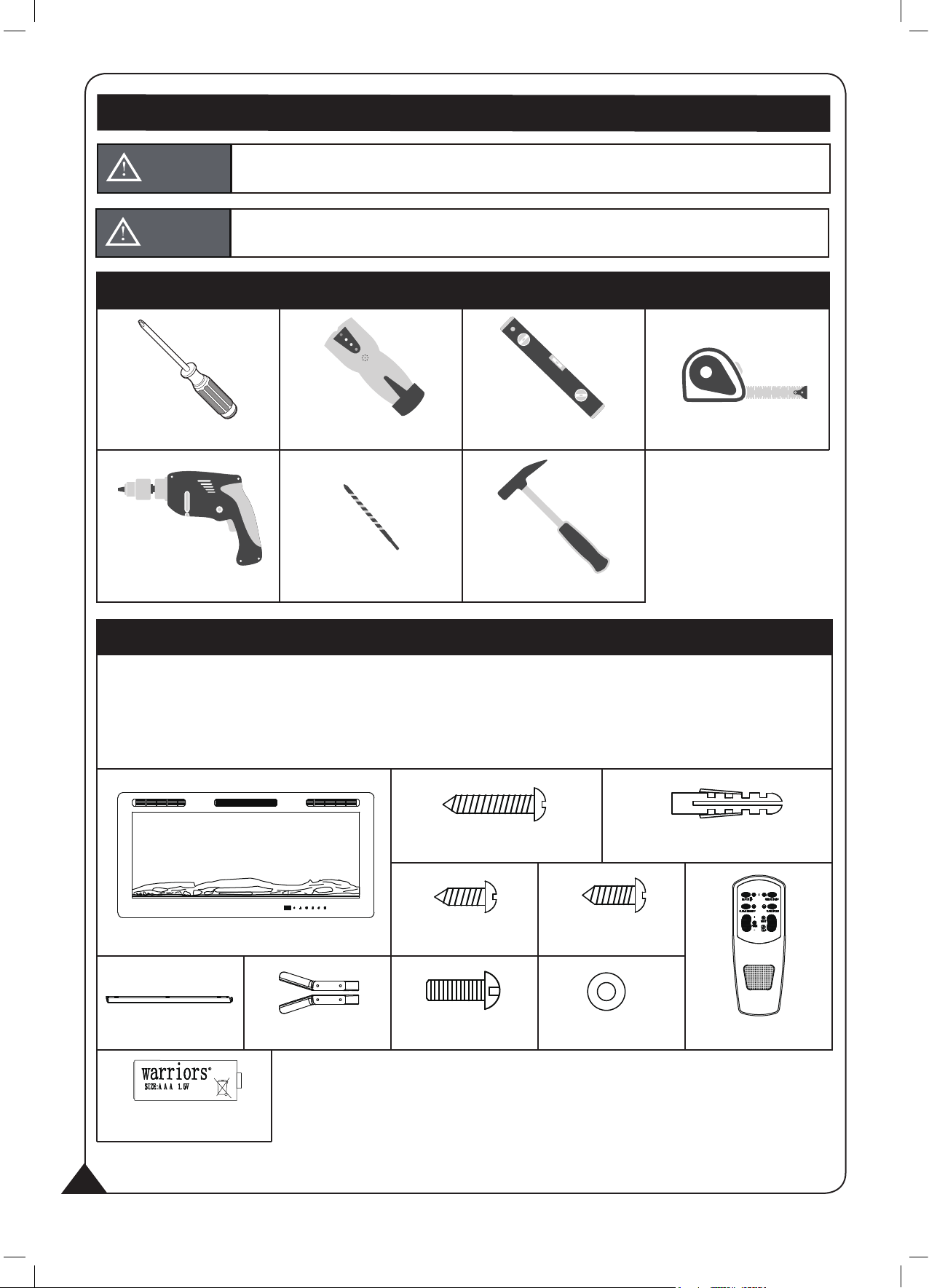

TOOLS NEEDED(NOT INCLUDED)
Phillips Screwdriver
Electric Drill
Stud Finder
1/4" Wood Drill Bit
Level Tape Measure
Hammer
PARTS AND HARDWARE
3 x ST5x35mm Wood Screws 3 x Drywall Anchors
1 x Remote Control
2 x 4TS x8mm Metal
Screws
4 x M6x16mm Bolts
Fireplace
1 x Wall Bracket 2 x Foot Brackets 5 x M6 Metal Washers
ABC
DEF
GHIJ
K
4
1. Remove all parts and hardware from the carton and place them on a clean, soft
and dry surface.
2. Compare the contents with the parts list to make sure nothing is missing.
3. Dispose of all packaging materials properly.
4. Please recycle whenever possible.

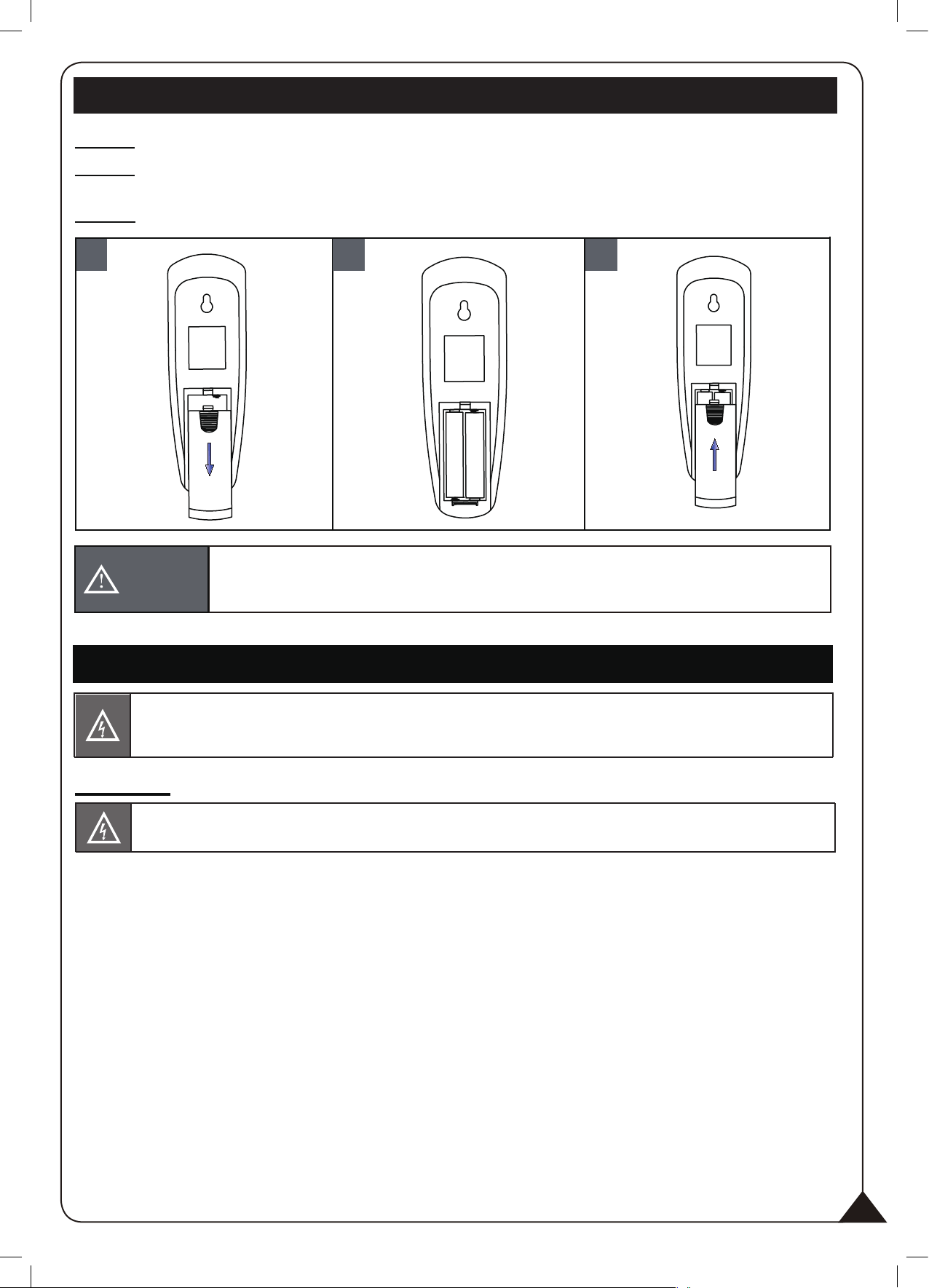

2 x AAA batteries
NOTICE
This product includes GLASS! ALWAYS use extreme caution when handling
glass. Failure to do so could result in personal injury or property damage.
NOTICE
Make sure all parts are dry, and the power cord and plug are not damaged.
See IMPORTANT SAFETY INFORMATION on pages 2 and 3.
4 x 4TS 21x mm Metal
Screws

WALL MOUNTED INSTALLATION OPTION

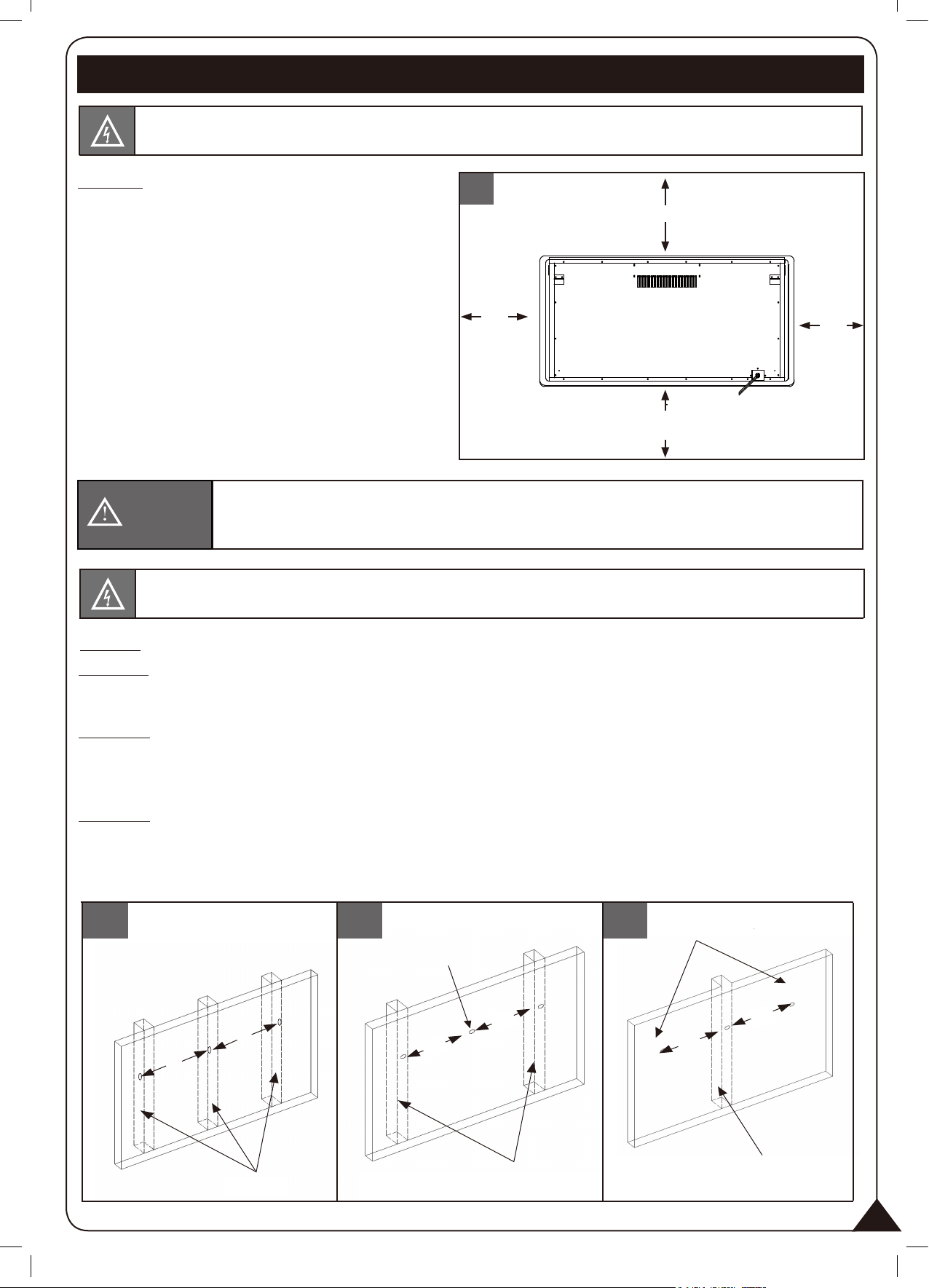

STEP 1: Find a suitable safe location.
Minimum clearance
on each side: 20".
Minimum clearance below:
20". (Wall mount only).
Minimum clearance above:
39.5".
Minimum clearance from the front:
36".
Choose a location near a power
outlet so an extension cord is not
required.
DO NOT position the unit directly
below a power outlet.
The Drywall Anchors(C) included with this fireplace are for use ONLY with a wood
framed wall covered in drywall (sheet rock). For concrete walls, cinder blocks, or
other wall types, consult a professional for the best attachment methods.
NOTICE
Minimum 39.5"
Minimum 20"
(Wall mount only)
1
STEP 2: Locate your available wall studs using an electronic stud finder.
STEP 2a: If you have three studs available, mark the centre of the middle stud and drill a single hole using
a ¼” drill bit, then mark and drill a single hole into the center of each of the other two studs (each
hole should be 16” apart from the other). Take care to ensure the three holes are level.
STEP 2b: If you have two studs available, drill a single hole in each stud using a ¼” drill bit. Drill a third and
final hole between the two stud holes (check measure that the center hole is 8” apart from the
.leveleraseloheerhtehterusneoteracekaT.)selohowtrehto
With a hammer gently tap one Drywall Anchor(C) into the center hole between the two stud holes.
2a 2b 2c
8"
13.4
"
8"
13.4
"
16
"
16
"
One Stud
Drywall Anchors x 1
Drywall Anchors x 2
STEP 2c: If you have only one stud available, mark the center of that stud and drill a single hole using a ¼”
drill bit, then drill a single hole 13.4” either side of the center hole. Take care to ensure the three
holes are level.
With a hammer gently tap two Drywall Anchors(C) into the holes either side of the stud hole.
20"
5
ALWAYS make sure the fireplace heater is unplugged before beginning assembly!
NEVER move or clean the heater, while it is plugged in.
ALWAYS unplug this fireplace heater before assembly,cleaning,or relocating.
Failure to do so could result in electric shock,fire,or personal injury.
Two Studs
Three Studs
20"

6
STEP 3:
3Two Studs One Stud
Wood Screws(B)
Metal Washers(J) Metal Washers(J)
Wood Screws(B)

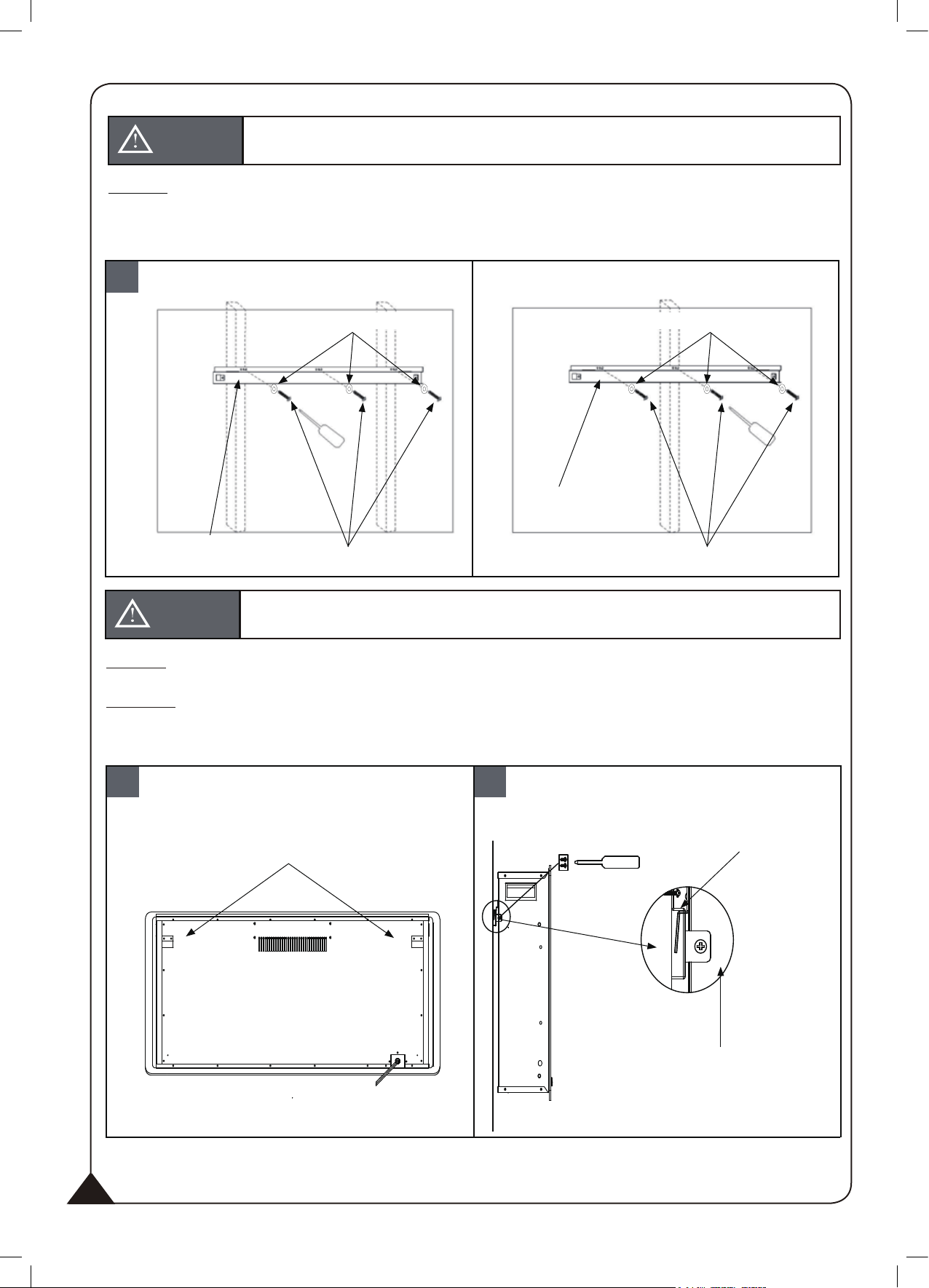

Align the holes in the Wall Bracket(G) with the pilot holes and Drywall Anchors(C).
Thread three Wood Screws(B) and Metal Washers (J) through the holes in the wall
bracket and directly into the wall studs and Drywall Anchors(C). Make sure the Wall
Bracket(G) is level. Tighten all screws securely with a screwdriver.
STEP 4: With the help of a capable adult, lift the Fireplace(A) and align the two hooks on the back
of the fireplace with the slots on the Wall Bracket(G). Carefully set the hooks into the slots.
STEP 4a: Secure the fireplace to the Wall Bracket(G) with two ST4x8mm Metal Screws(D), one on
each side. Thread the Metal Screws(D) through the fireplace and into the Wall Bracket(G)
side tabs. Tighten both screws with a screwdriver.
5
4a4
Hooks Wall Bracket(G)
Fireplace(A)
Side View
of Fireplace(A)
Back of Fireplace(A)
ST4x8
Metal Screws(D)
mm
6
NOTICE
AVIOID INJURY and DAMAGE! Wood Screws(B) should be screwed directly
into wall studs when possible.
NOTICE
WE RECOMMEND THAT TWO CAPABLE ADULTS PERFORM THIS
PROCEDURE.
Wall Bracket(G)
Wall Bracket(G)
6

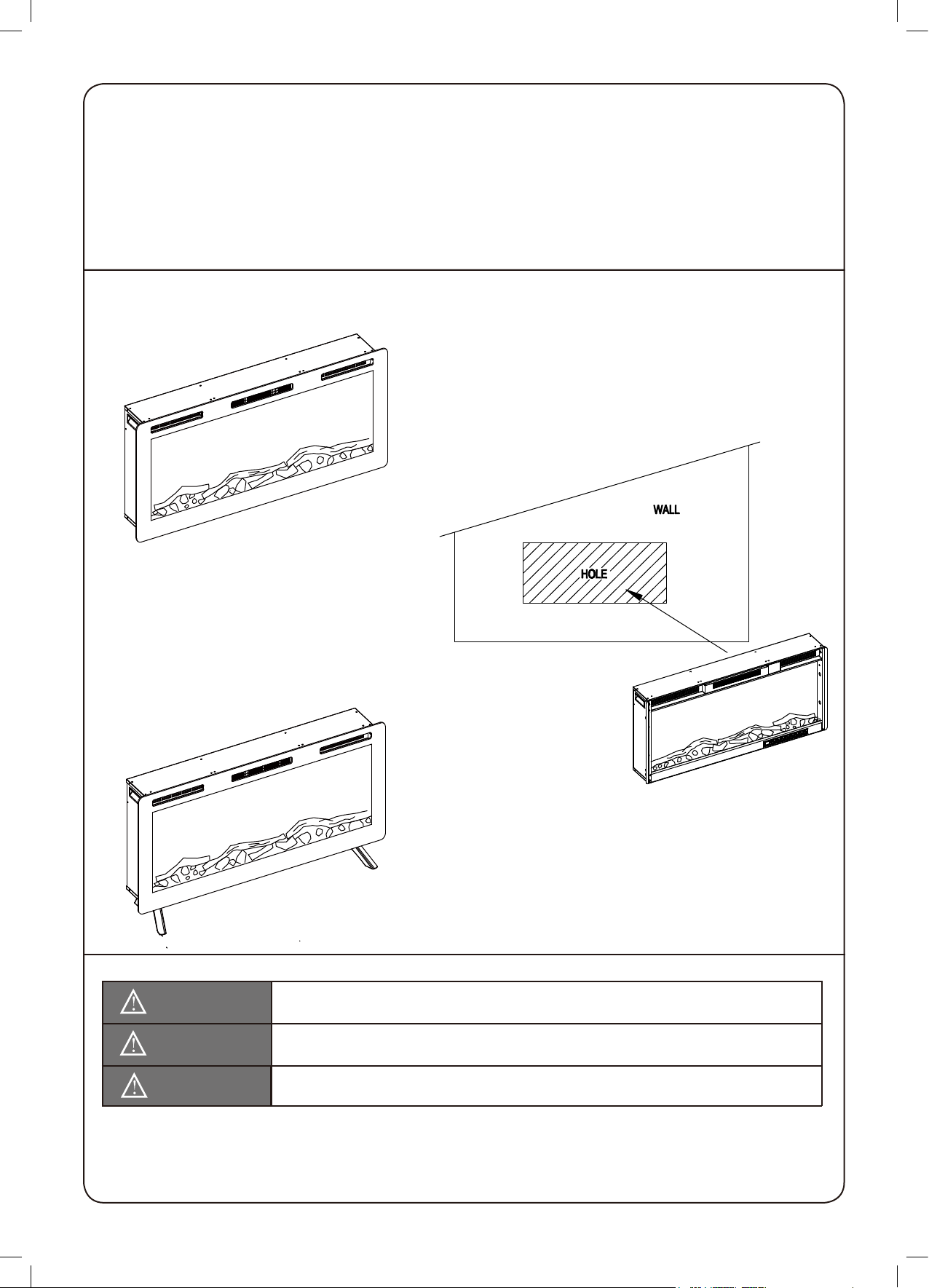

IN WALL INSTALLATION OPTION

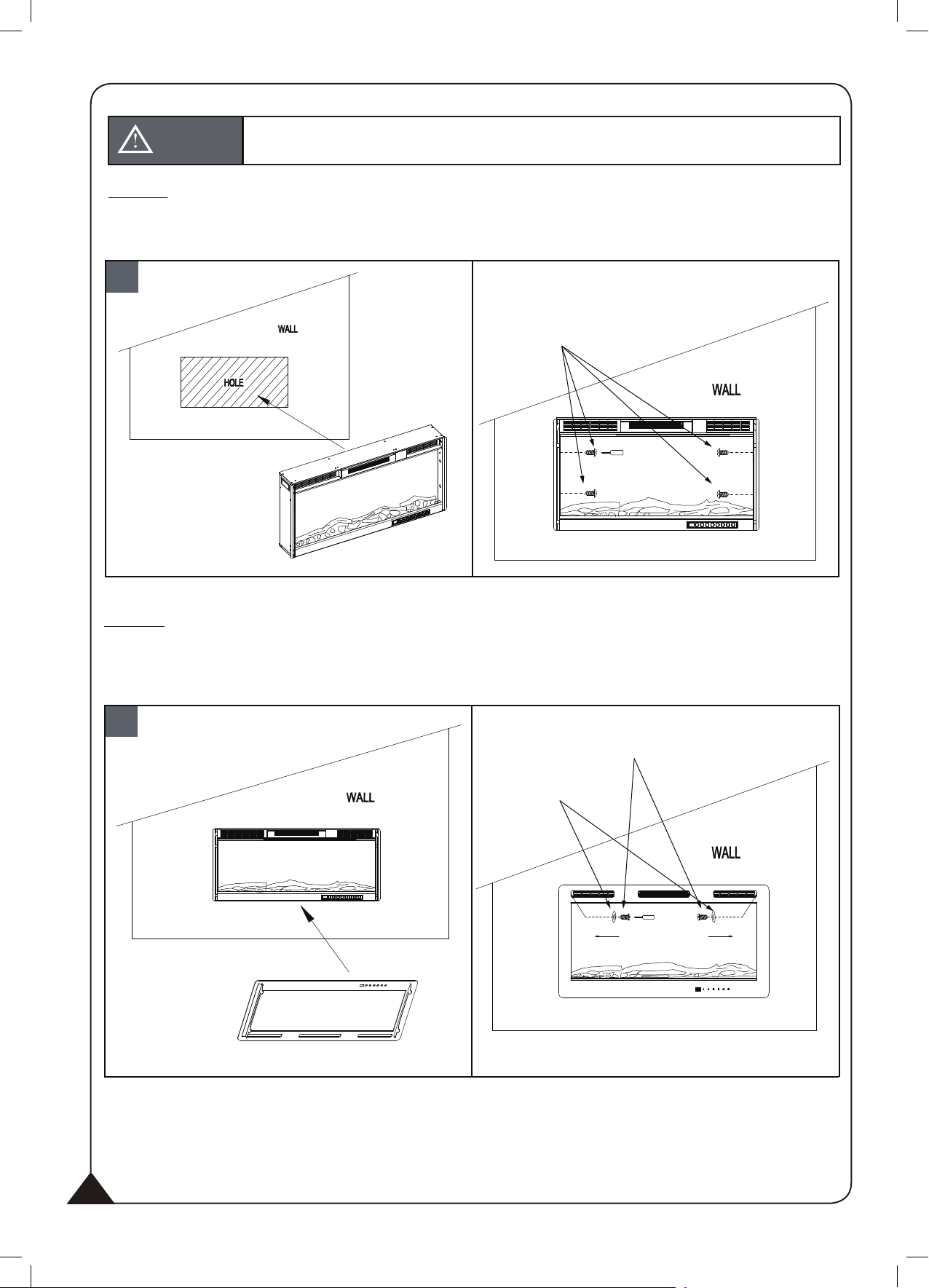

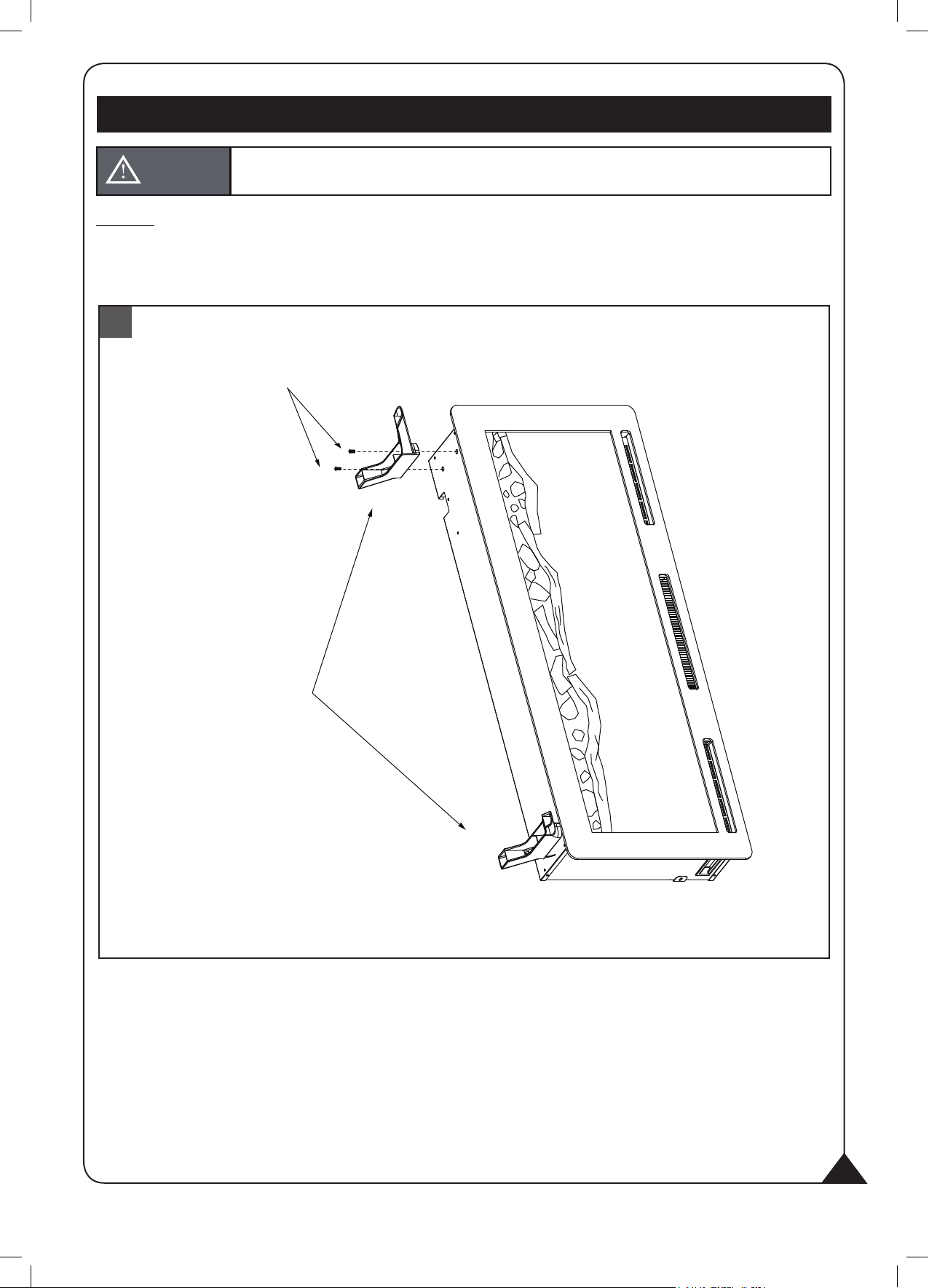

STEP 1:
1
37
NOTICE
WE RECOMMEND THAT TWO CAPABLE ADULTS PERFORM THIS
PROCEDURE.
With the help of a capable adult carefully remove the metal screws and washers
located at each of the side air intakes with a screwdriver. Carefully remove the front
glass panel.
lateMmmx12ST4
Screws(E)
M6 Metal Washers(J)

6
STEP 2:
2
With the help of a capable adult, set the Fireplace(A) into the prepared wall cavity.
Thread four ST4x12mm Metal Screws(E) through the holes in the side panelsand then
into the timber framed wall battens. Tighten all screws securely with a screwdriver.

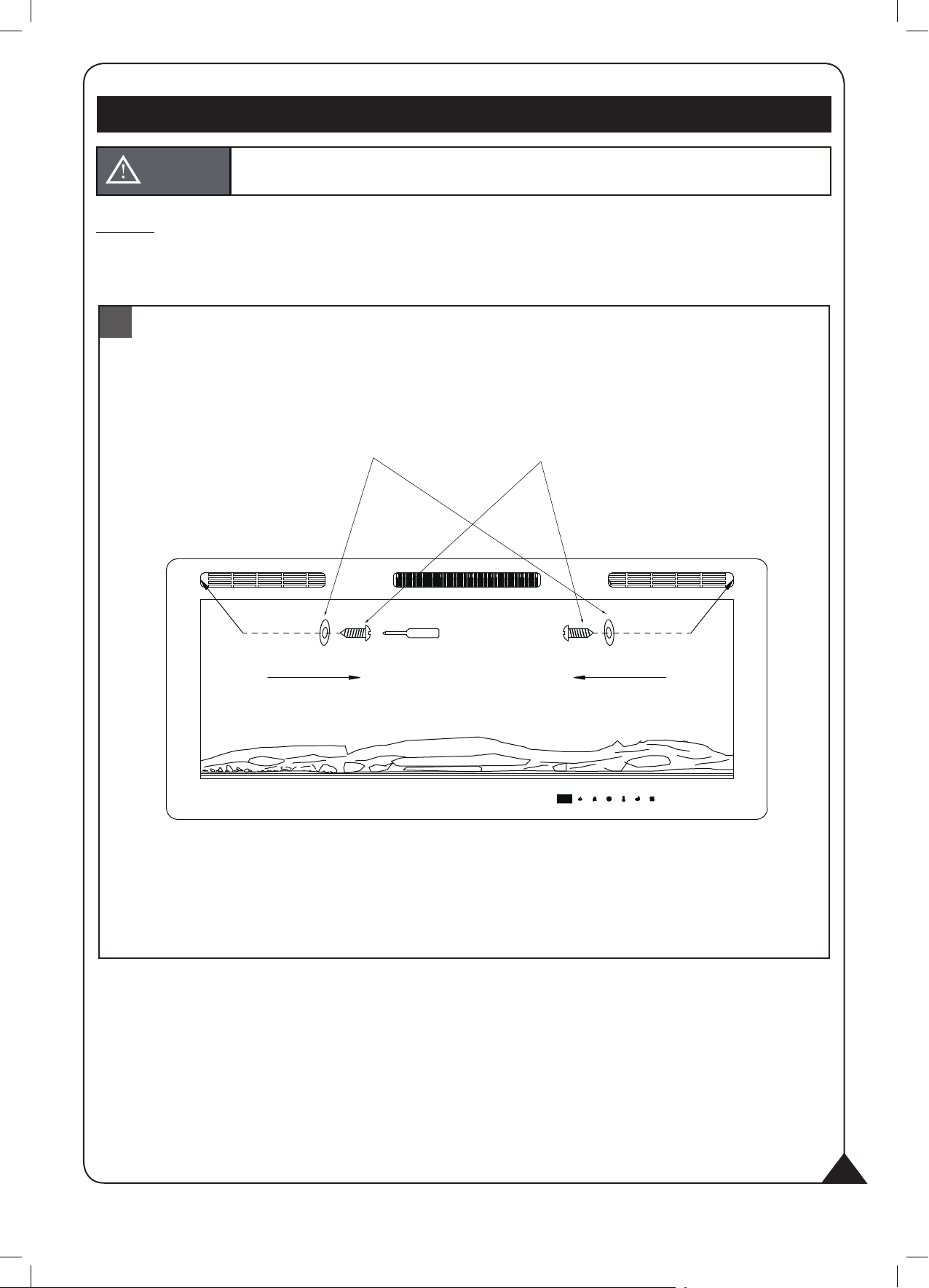

STEP 3: Refit the front glass panel to the fireplace and secure using the two washers and screws
one on each side. Tighten both screws with a screwdriver.
5
3
6
NOTICE
8
lateMmmx12ST4
Screws(E)
lateMmmx12ST4
Screws(E)
M6 Metal Washers(J)
WE RECOMMEND THAT TWO CAPABLE ADULTS PERFORM THIS
PROCEDURE.

INSTALLATION FOR FREESTANDING OPTION
STEP 1:
1
Foot Brackets(H)
M6x16mm Bolts(I)
39
NOTICE
WE RECOMMEND THAT TWO CAPABLE ADULTS PERFORM THIS
PROCEDURE.
With the help of a capable adult, carefully lay the fireplace on a protected work surface
with the back facing down . Secure one Foot Bracket(H)to the bottom of the fireplace with
two M6x16mm Bolts(I). Tighten each screw securely with a screwdriver. Repeat Step 1
using remaining Foot Bracket(H)and two M6x16mm Bolts(I).

OPERATION
POWER
Make sure the ON/OFF switch, located on the front touch panel, is in the OFF position. Plug the power
cord into a 120 Volt 15 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages
2 and 3). Make sure the outlet is in good condition and that the plug is not loose. NEVER exceed
the maximum amperage for the circuit. DO NOT plug other appliances into the same circuit.

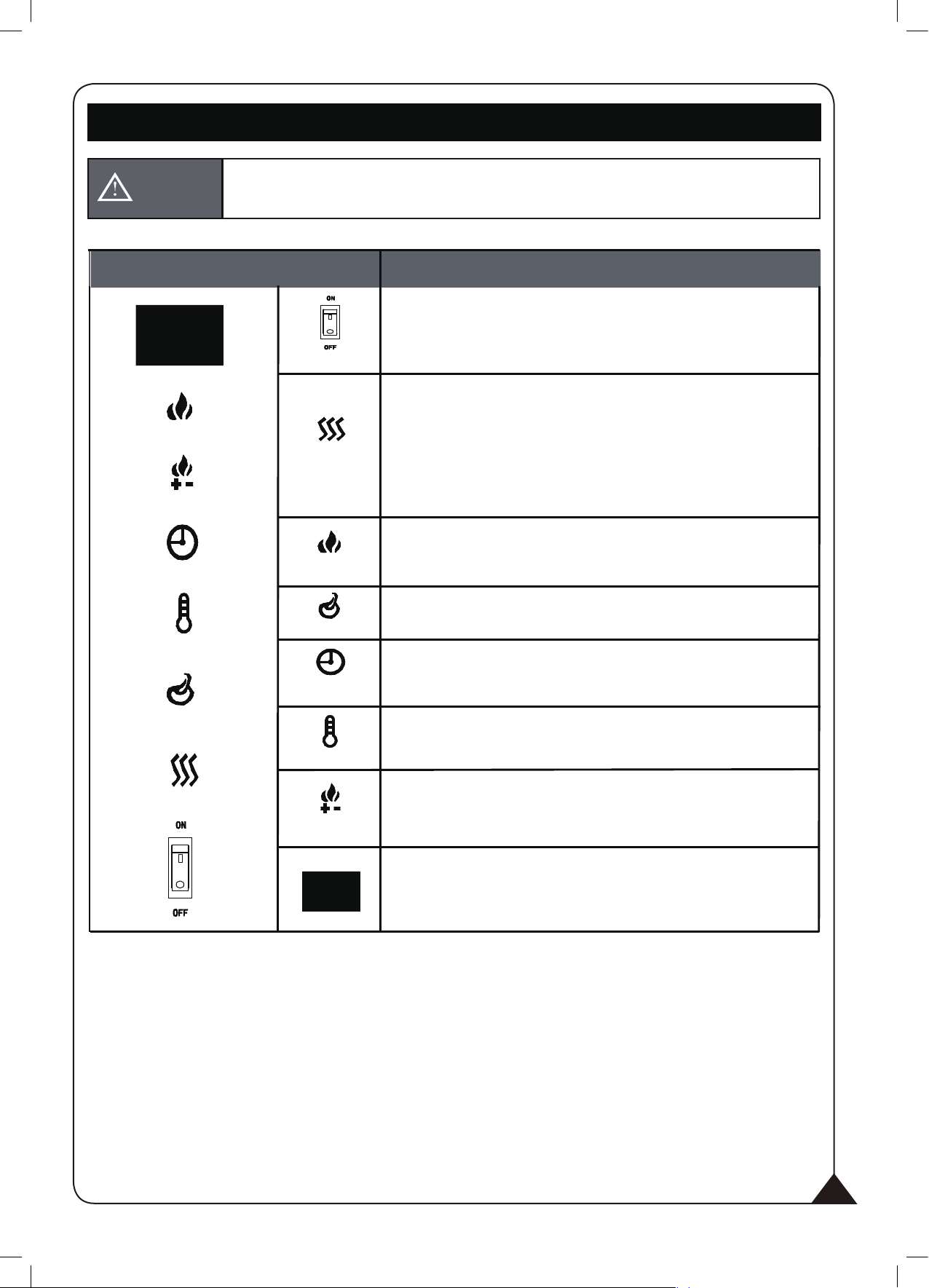

METHODS OF OPERATION
This electric fireplace can be operated by the CONTROL PANEL, located on the front touch panel of
the fireplace (see figure below), or by the battery-powered REMOTE CONTROL. Before operating,
please review the IMPORTANT SAFETY INFORMATION on Pages 2 and 3,
TEMPERATURE LIMITING CONTROL - AUTO SHUT OFF
This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe
temperature (239°F / 115°C), the heater will automatically turn OFF.

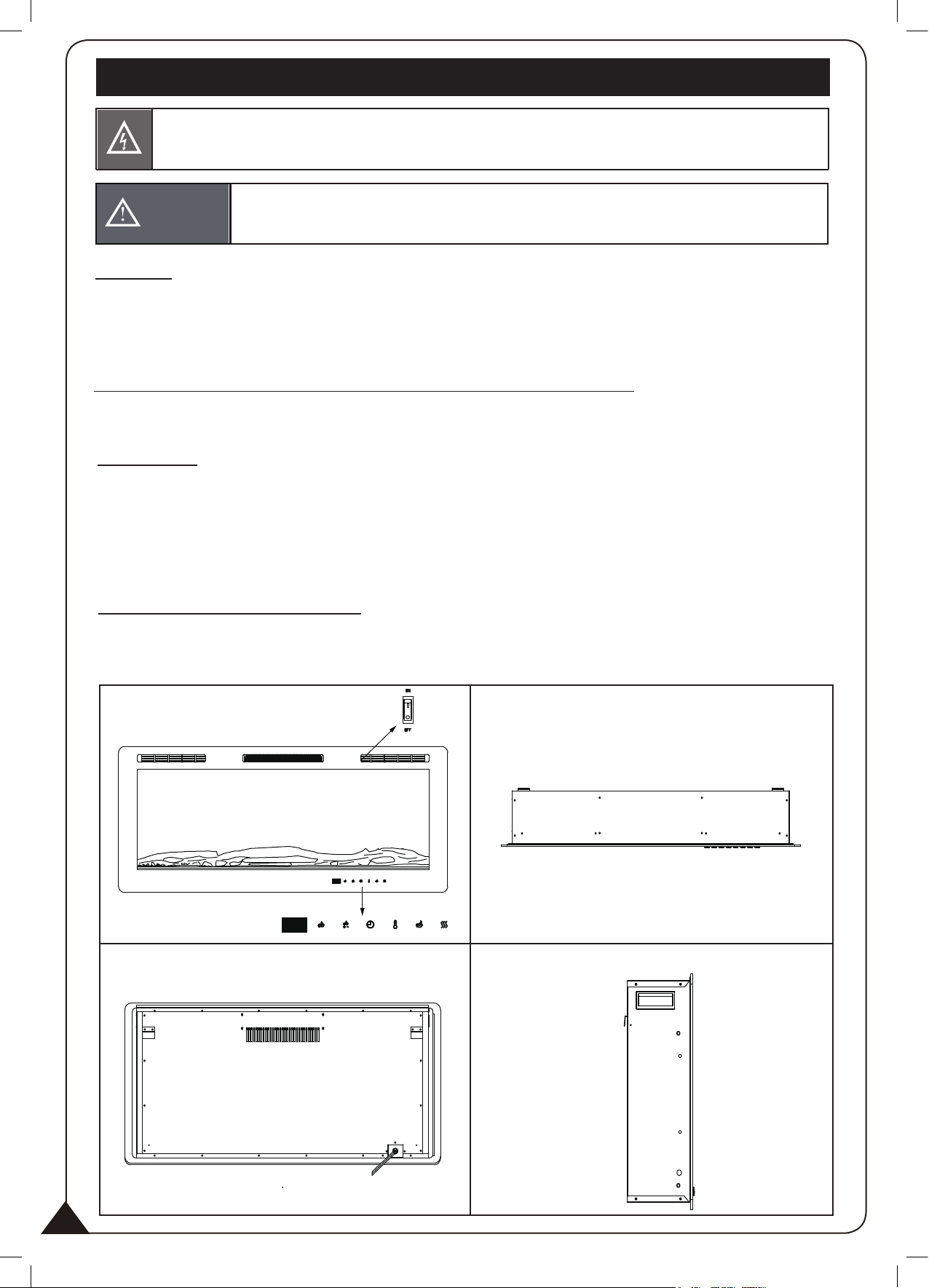

Front View
Back View
Top View
Left Side View
6
10
Read and understand this entire owner’s manual, including all safety information, before
plugging in or using this product. Failure to do so could result in electric shock, fire, serious
injury, or death.
NOTICE
This heater is not intended to be a primary heat source. It is designed to provide
supplemental heat, and should not be left running to continuously for more than
eight hours.
Unplug the power cord from the outlet.
Turn the ON/OFF switch on the CONTROL PANEL to OFF.
Wait 15 minutes. Inspect the fireplace to make sure no vents are blocked, or clogged with dust or lint.
If they are, use a vacuum to clean the vent areas. With the POWER switch in the OFF position, plug
the power cord back into the outlet and turn the power switch on. If the heater switches off again,
UNPLUG THE HEATER RIGHT AWAY! Have the outlets, wiring, and breaker box inspected by a
TO RESET
professional. Make necessary repairs before using the heater again.
and follow all warnings.

CONTROL PANEL FUNCTIONS
311
NOTICE
When this heat function is used for the first time, a slight odor may be present.
This is normal and should not occur again unless the heater is not used for an
extended period of time.
TOUCH PANEL BUTTONS FUNCTION
POWER ON/OFF
HEATER
FLAME ON/OFF
FLAME
+-
TIMER
FLAME SPEED
Press ON to turn the power ON.
Press OFF to turn the power OFF.
Touch once, for 750W(LOW HEAT).
Touch again, for 1500W (HIGH HEAT).
Touch again , heater turns OFF.
Note:The fan will continue to blow for ashort period
of time to allow the heater tocool down, the fan then
shuts off.
Touch once to turn the flame ON. This button must be
ON for Flame (+/-) button to work .
Touch again to turn the flame OFF.
Touch Flame (+/-) to increase or decrease the flame
brightness. 3 options.
Note: ONLY works when flame button is ON.
Touch Timer to increase/decrease timer setting by ½ or
1hour increments. Maximum timer setting is 8 hours
Indicator light will illuminate.
Touch Flame Speed Button to desired flame speed.
5 options.
NOTE: Main power switch on the front panel must be
ON for the remote to work.
TEMP
Touch TEMP(+/-) . nwodropuerutarepmetehttsujdaot
.)°C13-°C02(°F88dna°F86neewtebtesebnacerutarepmeT
Touch anywhere within the digital display area to
activate the touchscreen.

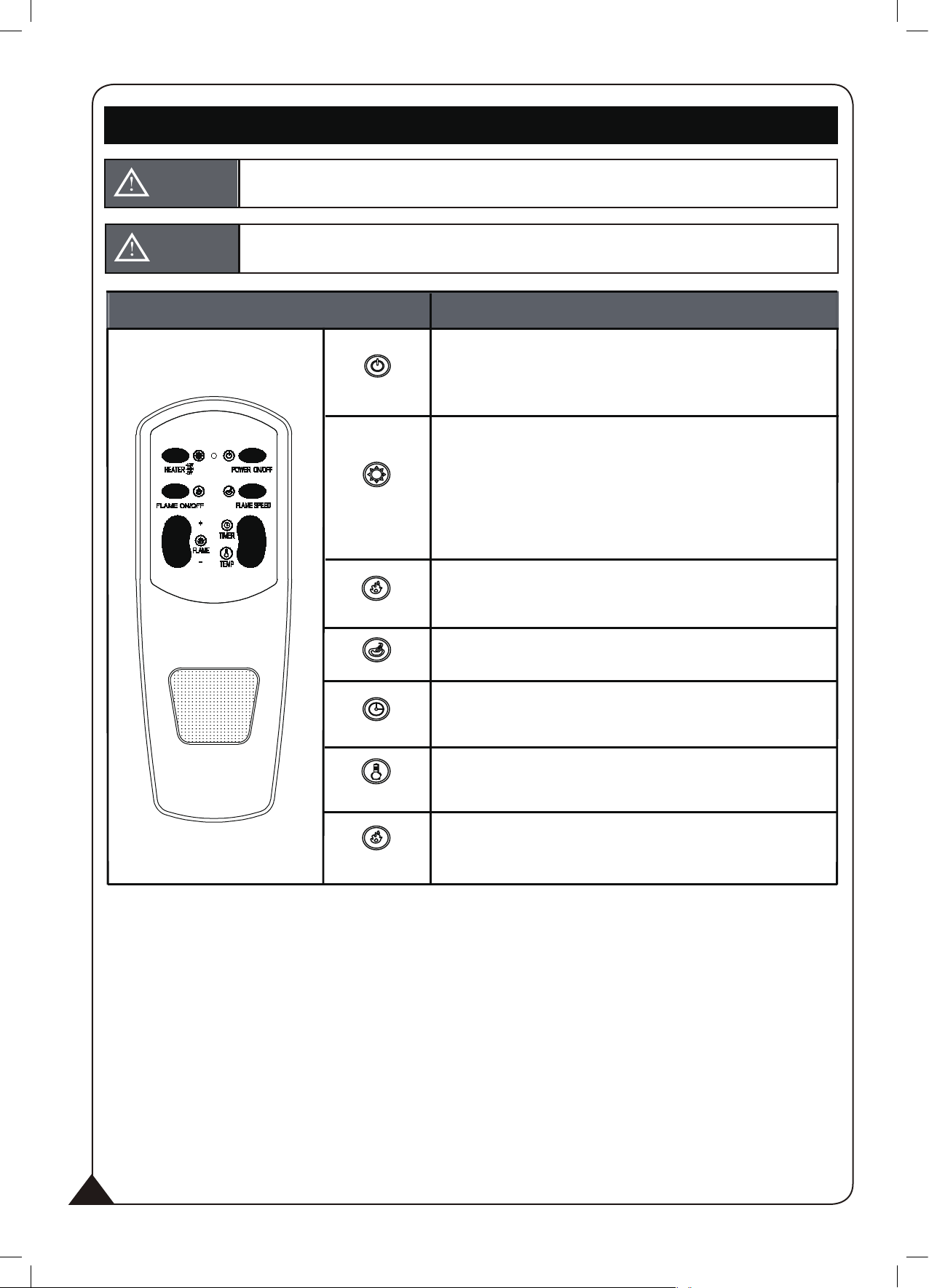

REMOTE CONTROL FUNCTIONS
6
12
NOTICE
THE MAIN POWER SWITCH ON THE FIREPLACE CONTROL PANEL
MUST BE IN THE ON POSITION TO OPERATE REMOTE CONTROL.
NOTICE
DO NOT press the buttons too quickly. Give the unit time to respond to each
command.
REMOTE CONTROL BUTTONS FUNCTION
POWER ON/OFF
HEATER
FLAME ON/OFF
FLAME
+-
TIMER
FLAME SPEED
Press once to turn the power ON.
Press again to turn the power OFF.
- LOW
- HIGH
- OFF
Press the Heat Button once for 750W (LOW HEAT).
Press the Heat Button again for 1,500W (HIGH HEAT).
Press the Heat Button again, heater turns OFF.
Note:The fan will continue to blow for a short period of
time to allow the heater to cool down, the fan then shuts
off.
Press once to turn the flame ON.This button must
be ON for Flame (+/-) button to work.
Press again to turn the flame OFF.
Press Flame (+/-) Button to increase or decrease
the flame brightness. 3 options.
Note: ONLY works when flame button is ON.
Press Timer to increase/decrease timer setting by 1
hour increments. Maximum timer setting is 8 hours
Indicator light will illuminate.
Press Flame Speed Button to desired flame speed.
5 options.
NOTE: Main power switch on the control panel must
be ON for the remote to work.
TEMP
Press TEMP(+/-) to adjust the temperature up or down.
Temperature can be set between 68F°and 88F° (20C° - 31° )

REMOTE CONTROL BATTERY INSTALLATION
CARE AND MAINTENANCE
Cleaning
Metal:
Buff using a soft cloth, slightly dampened with a citrus oil-based product.
DO NOT use brass polish or household cleaners as these products will damage the metal trim.

Glass:
Use a good quality glass cleaner and dry thoroughly with a paper towel or lint-free cloth.
NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Vents:
Use a vacuum or duster to remove dust and dirt from the heater and vent areas.
Clean the exterior of the fireplace with a slightly damp cloth or duster.






313
STEP 1: Push down gently and slide back to remove the Remote Control(F) battery compartment cover.
STEP 2: Insert the 2 AAA Batteries(K) into the battery compartment, ensuring the polarity (+/-)
matches the terminals as indicated in the battery compartment.
STEP 3: Replace the battery compartment cover.
1
+
+ -
-
23
NOTICE
To avoid long term battery leakage and possible damage to the remote-
control unit we recommend removal of the batteries during long periods of
storage or non-use.
ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning,
performing maintenance, or moving this fireplace. Failure to do so could result in electric
shock, fire, or personal injury.
NEVER immerse in water or spray with water. Doing so could result in electric shock,fire,
or personal injury.

14
Maintenance

Electrical and Moving Parts:
Storage:


Risk of electric shock! DO NOT OPEN any panels other than the bulb replacement
plate! No user-serviceable parts inside!
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock,fire,or personal injury.
The fan motors are lubricated at the factory and will not require lubrication for the life of the product.
Electrical components are integrated in the fireplace and are not serviceable by the consumer.
Store heater in a clean dry place when not in use.
WARNING
No servicing should be performed by the consumer. DO NOT repair or
service the unit yourself. For service, call a certified electrician.

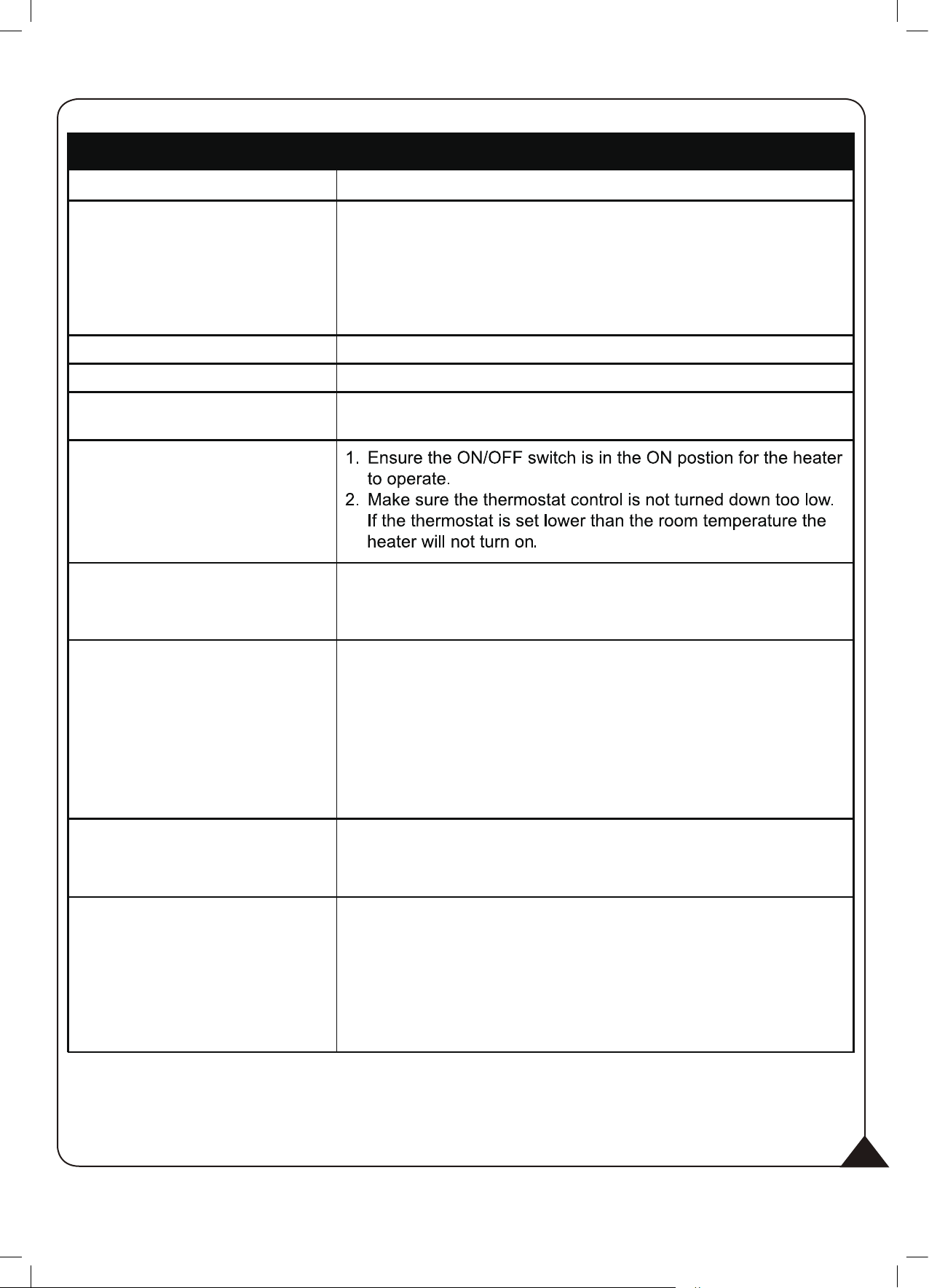

TROUBLESHOOTING GUIDE
PROBLEM SOLUTION
There is no power to the unit.
1. Make sure the power cord is plugged into a working 120V
AC electrical outlet.
2. Check for a tripped circuit breaker, or a blown fuse.
3. If the unit had been working, but then turned off by itself, the
temperature limiting control must be reset. Please see
instructions on Page 10.
The control panel doesn’t work. Make sure the ON/OFF switch on the control panel is turned on.
The flame effect does not work. Make sure the ON/OFF switch on the control panel is turned on.
The flame effect does not turn
off when I press the flame button. The flame effect stays on until the ON/OFF switch is turned off.
The heater does not work.
Hot air does not blow when the
heater is first turned on. The fans blow cool air before the heating elements turn on, and
after they turn off, to prevent overheating. This is normal.
The remote control does not
work.
1. Make sure the battery is properly installed, and the plastic
tab is removed.
2. Make sure the ON/OFF switch on the control panel is turned
on. The remote control will not work unless the ON/OFF
switch on the control panel is turned on.
3. Don’t press the remote control buttons too quickly. Give the
unit time to respond to your commands.
The power cord, or the outlet
faceplate, is hot.
Turn the heater off immediately. Wait for the cord to cool and
unplug the heater. See the warnings on Page for possible
causes. Call an electrician to examine your home’s wiring.
The thermostat (TEMP button)
does not work.
1. Make sure the heater is turned on. The thermostat will not
work unless the heater is turned on.
2. Make sure the thermostat is not set too low. If the thermostat
is set lower than room temperature, the heater will turn off.
3. If the thermostat was overridden by the heater button, press
the temp button to restart the thermostat.
3
6
15

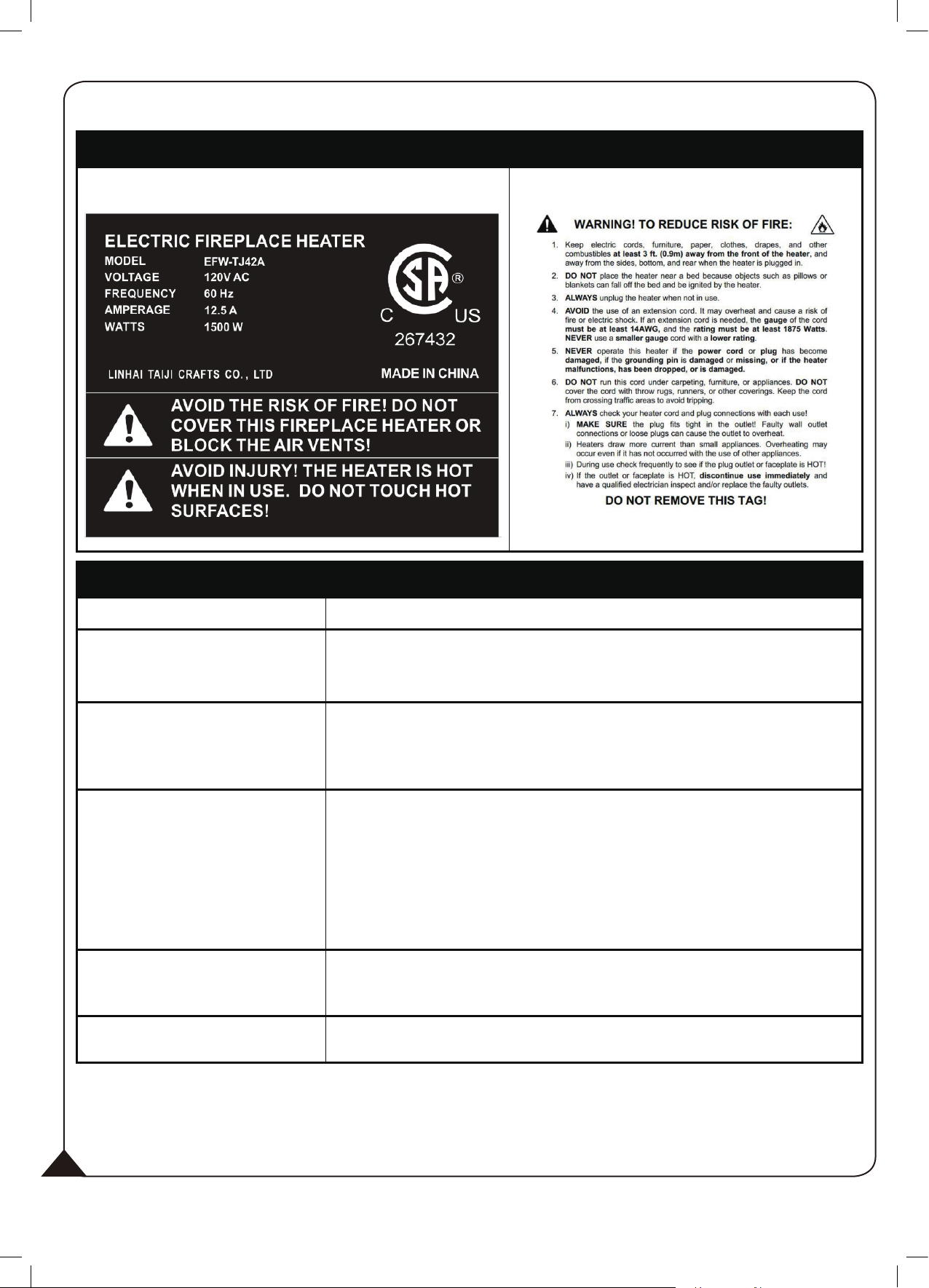

CSA RATING LABEL & POWER CORD LABEL
CSA Rating Label Power Cord Warning Label
FAQ - FREQUENTLY ASKED QUESTIONS
Question Answer
Can I leave the heater
running overnight?
No. This heater is not intended to be a primary heat source. It is
designed to provide supplemental heat, and should not be left
running continuously for more than eight hours.
Is the fireplace safe to use on
carpet?
Yes. However, please note the warnings on Pages 2 and 3 about
the safe placement of the heater. The vents must NEVER be
blocked, and must always be kept clear.
How much does it cost each
month to run the heater?
Example: 1500 Watts equals 1.5 Kilowatt Hours (KWH). Contact
your utility to find out the cost per KWH. Then, use this formula: 1.5
x ($0.00/KWH) = $0.00 per hour. For example: If the utility charges
$0.20 per KWH, then the cost is 1.5 x $0.20 = $0.30 per hour. If
you run the heater 5 hours per day, the cost will be 5 x $0.30 =
$1.50/day. 30 days x $1.50 = $45.00/month.
Should the motor be loud
when the heater is running?
Can I get replacement parts
for my electric heater?
Some user serviceable parts can be replaced. Please
contact our Customer Support Team to check availability.
No. The flame effect motors and heater blowers are not silent, but
they should not be loud.
3
16

LIMITED LIABILITY
This product is not intended to be used as a primary heat source. Read and understand all assembly and operating
instructions, and all safety information and warnings before use.
in contract, in tort, or on any other basis, for any indirect, special, punitive, exemplary, consequential, or incidental
loss, cost, or damage arising out of or in connection with the sale, maintenance, use, or inability to use this product,
agents be liable for any direct losses, costs, or damages that exceed the purchase price of the product. Some states
do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion
may not apply to the purchaser.
