Owner’s Manual
Foot Pump
ModelNumber
W-2037 RatedPressure 65 psi

2
3
Save these instructions. For your safety,
read,understand,and follow theinformation
provided with and on this foot pump. The
owner and operator of this equipment
shall have an understanding of this foot
pump and safe operating procedures be-
fore attempting to use. The owner and
operator shall be aware that use of this
product may require special skills and
knowledge. Instructions and safety infor-
mation shall be conveyed in the opera-
tor's native language before use of this
foot pump is authorized. If any doubt ex-
ists as to the safe and proper use of this
foot pump, remove from service immedi-
ately.Inspect before eachuse.Donotuse
ifbroken, bent,cracked, or damaged parts
(includinglabels) are noted. Anyfootpump
that appears damaged in any way, oper-
ates abnormally or is missing parts, shall
be removed from service immediately. It
is recommended that an annual inspec-
tion be done by qualified personnel. La-
bels and Owner's Manuals are available
from manufacturer.
OPERATION
Attach air chuck onto the valve stem/
adapter by lifting the quick connect thumb
latchon top of theairchuck. Lock airchuck
onto the valve stem/adapter by lowering
the quick connect thumb latch back to its
original position. Pump the foot pump by
stepping on the black foot pad. Do not ex-
ceed maximum air pressure.
MAINTENANCE
Periodicallyinspect thefoot pump. Ensure
that all parts move freely. Inspect the air
hose for cracking and abrasions.
Ocassionaly add a drop of motor oil to the
pump piston.
Cleaning
Periodically inspect the foot pump for
signs of rust or corrosion. If any rust spots
arefound,sandtheaffectedareaandcover
with a suitable utility paint. Clean as
needed and wipe with an oily cloth.
Storage
When not in use, store with pump piston
fullyretracted and footpedal latched. Store
indoors, do not expose to moisture or heat
radiation.
Note: No replacement parts are available
for this product other than the Product La-
bel and Owners Manual.

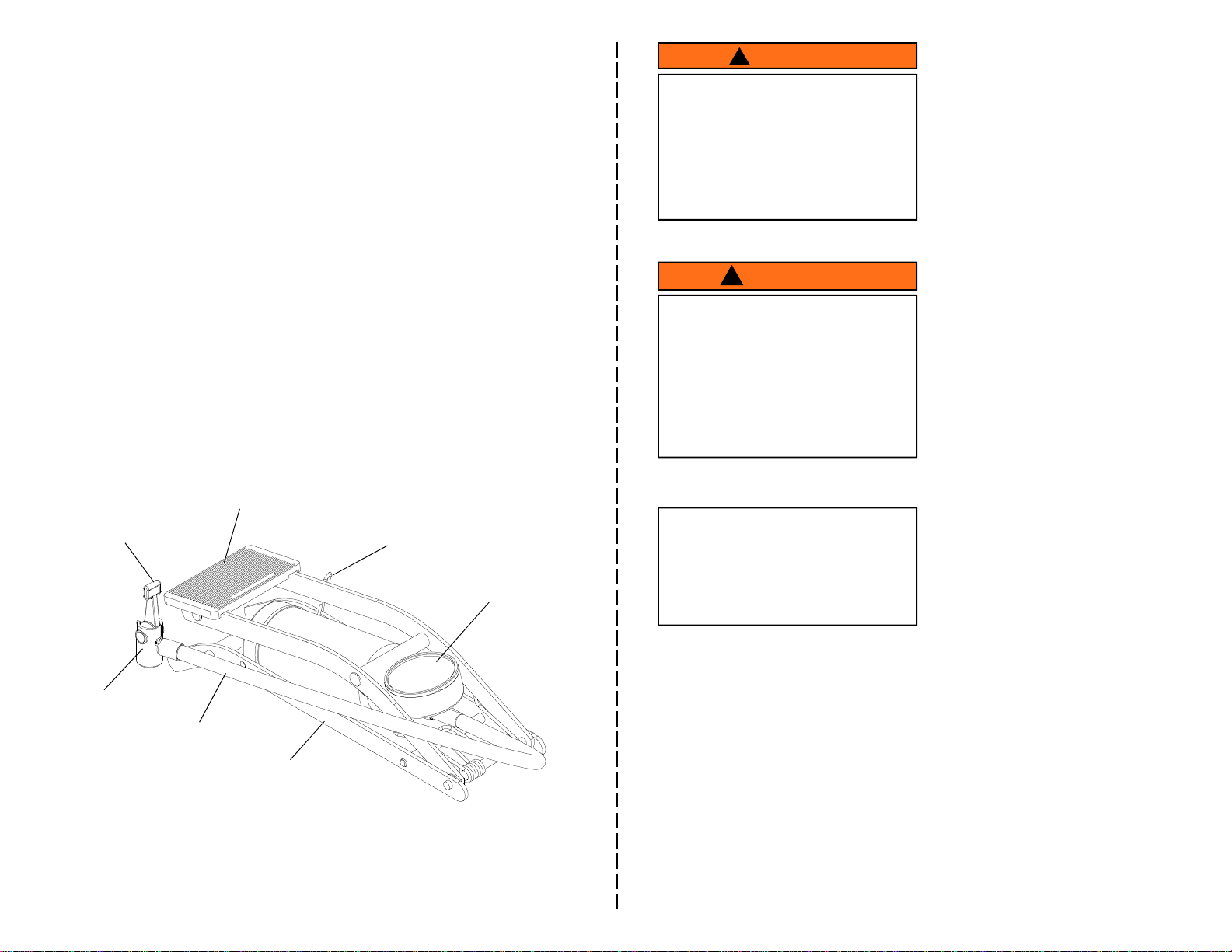

Figure 1 - Typical Foot Pump Nomenclature
PRODUCTDESCRIPTION
TailGate Tools Foot Pump is designed to
deliver air pressures of up to 65 psi. Al-
ways reference the Product Label and
Owner's Manual to establish rated capac-
ity. Intended use: Your Foot Pump is de-
signed to deliver a supply of compressed
air for use in inflating tires, sport balls or
other inflatables. Check with your inflat-
able product’s owner's manual for proper
inflation pressures.
BEFOREUSE
1. Verify that the product and the applica-
tion are compatible, if in doubt call Cus-
tomer Support @ [phone].
2. Before using this product, read the
owner's manual completely and famil-
iarizeyourself thoroughlywith the prod-
uct, its components and recognize the
hazards associated with its use.
Study, understand, and follow all in-
structions provided with and on this
device. Never exceed recommended
pressure at any time. Always wear
safety glasses when using this equip-
ment. Failure to heed these markings
may result in personal injury and/or
property damage.
• Leer, comprender, y seguir las
instrucciónes antes de utilizar el
aparato.
• El manual de instrucciónes y la
información de seguridad deben estar
comunicado en lengua del operador
antes del uso.
• No seguir estas indicaciónes puede
causar daños personales o materiales.
ATENCIÓN
!
! SAFETY MESSAGE !
Watch for and avoid pinch points while
pumping foot pump. No alterations
shall be made to this device. Only at-
tachments and/or adapters supplied by
the manufacturer shall be used.
!
WARNING
foot pedal
quick connect
thumb latch
hose
air chuck
base
foot pedal latch
air pressure gauge
