1About these instructions
1.1 Purpose
The purpose of these Assembly Instructions is to provide users with all the necessary information they need for the proper
and safe assembly of the linear transfer system into a complete machine.
1.2 Contact information
TAKTOMAT GmbH
Rudolf-Diesel-Straße 14
86554 Pöttmes
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
Internet: http://www.taktomat.de/
1.3 Product designation
Linear transfer system LFA
  
Type
Design
Chain link centre distance [mm]
Designation

-

-

-

-

-
 Code
Direction
Drive unit position
A = outside, I = inside, O = top, U = bottom
Drive unit side
L = left, R = right
Cycle time [s]
Feed rate [mm]
Centre distance [mm]
Assembly instructions

About these instructions
Version 1.0
Linear transfer system LFA
5 / 39
1.4 Symbols
The following symbols are used in these instructions:
Instructions and directions
Requirements for performing an instruction are indicated by a check mark.
The action steps to be executed are numbered.
The results of individual action steps are indicated by a black arrow. The overall result of an instruction is marked by a white
arrow in a black circle.
Example
Requirement
1. Instruction (step 1)
2. Instruction (step 2)
Result or response of system to step 2
3. Instruction (step 3)
Overall result of the instruction
Enumerations
Enumerations in no strict order are indicated as follows:
•Property A
oDetail 1
oDetail 2
•Property B
oDetail 1
oDetail 2
Assembly instructions

Safety
6 / 39
Linear transfer system LFA
Version 1.0
2Safety
2.1 Safety instructions
General safety instructions
•Read through these instructions completely
•Observe the information and instructions in these instructions
•Keep unauthorized persons away from the working area
•Work on electrical systems may only be carried out by qualified electricians
•Keep the instructions in a safe place and make them available to all employees
•Observe the documentation of the supplier components
2.2 Warnings
2.2.1 Structure of the warnings
All the warnings in these instructions have the following structure:
Fig. 1: Structure of the warnings
1 Hazard-specific symbol 2 Hazard symbol
3 Signal word 4 Type and source of danger
5 Possible consequences of non-observance 6 Procedure for hazard prevention
4
5
6
123
Assembly instructions

Safety
Version 1.0
Linear transfer system LFA
7 / 39
2.2.2 Meanings of the signal words and symbols
The following signal words are used in this document:
Signal word Meaning
DANGER Indicates a hazardous situation which will result in death or serious injury.
WARNING Indicates a potentially hazardous situation which may result in death or serious injury.
CAUTION Indicates a potentially hazardous situation which may result in minor or moderate injury.
NOTICE Indicates a potentially hazardous situation which may result in property and environmental
damage.
The following symbols for dangers, warnings, requirements and prohibitions are used in this document:
Do not carry metal parts or clocks
No access with cardiac pacemaker or implanted defibrillators
No access with metallic implants
General warning sign
Warning: Electrical voltage
Warning: Magnetic field
Warning: Suspended load
Assembly instructions

Safety
8 / 39
Linear transfer system LFA
Version 1.0
Wear head protection
Wear eye protection
Wear foot protection
Wear hand protection
2.3 Requirements for personnel
The activities described in these instructions may only be performed by qualified personnel.
Qualified personnel are persons who are able to carry out the work assigned to them due to their technical training, knowledge
and experience. They are familiar with the relevant standards and regulations and are able to recognize potential hazards on
their own.
2.4 Personal protective equipment
Personal protective equipment is used to protect personnel from impairments to safety and health during work. Personnel
must wear the personal protective equipment when performing all of the activities described in these instructions. The
required personal protective equipment is indicated in the different chapters of these instructions.
Assembly instructions

Safety
Version 1.0
Linear transfer system LFA
9 / 39
2.5 Requirements for incorporation into a complete machine
The linear transfer system is an incomplete machine. Operation of the linear transfer system is only permitted in a complete,
CE-compliant machine or system.
The manufacturer of the complete machine or system is responsible for integrating the linear transfer system into the system
in such a way that completely safe operation is guaranteed.
•During operation, it is prohibited to remain in the immediate vicinity of the linear transfer system. Staying in the vicinity
of the linear transfer system is only permitted within the scope of control activities, maintenance or servicing work by
specially trained personnel.
•Maintenance work must be carried out in accordance with the maintenance schedule and the operating instructions.
•All activities at the linear transfer system may only be performed by trained qualified personnel.
Assembly instructions

Product description
10 / 39
Linear transfer system LFA
Version 1.0
3Product description
3.1 Intended use
The linear transfer system is designed for incorporation in a complete machine or a complete system. The linear transfer
system is used to transport workpiece carriers from one processing station to another processing station in the correct
position.
All applications deviating from this intended use are not permitted.
•Modifications to the linear transfer system must be approved by TAKTOMAT
•The linear transfer system may only be operated within the defined operating parameters
•The specified load on the chain links must not be exceeded
•It is not permitted to use the linear transfer system in ex-classified rooms
3.2 Technical data
3.2.1 Operating conditions
Application range in closed rooms
Temperature range [°C] +15 to +30
Relative humidity [%] 40 to 60
Media do not expose to aggressive media
3.2.2 Storage conditions
Application range in closed rooms
Temperature range [°C] -22 to +50
Relative humidity [%] 40 to 70
Media do not expose to aggressive media
Storage period > 6 months provide additional corrosion protection
Assembly instructions

Product description
Version 1.0
Linear transfer system LFA
11 / 39
3.2.3 Dimensions
Fig. 2: Dimensional drawing, main dimensions of the linear transfer system
Main dimensions of the linear transfer system, chain link (CL)
Pos. Designation Unit LFA080 LFA100 LFA125 LFA150
a Chain link centre
distance
[mm] 80 100 125 150
b Bore spacing
workpiece carrier
(WC) fastening
[mm] 37 55 80 85
e Chain link width [mm] 50 50 50 80
f H7 fitting bore
diameter
[mm] 6 (2x) 6 (2x) 6 (2x) 8 (2x)
g Thread, WC fastening [mm] M6 (2x) M6 (4x) M6 (4x) M8 (4x)
h Bore spacing, WC
fastening
[mm] 33 30 30 60
Assembly instructions

Product description
12 / 39
Linear transfer system LFA
Version 1.0
Main dimensions of the linear transfer system LFA - LFA S frame
Pos. Designation Unit LFA080 LFA100 LFA125 LFA150
A Centre distance [mm] see drawing see drawing see drawing see drawing
B Length [mm] see drawing see drawing see drawing see drawing
F Profile system [mm] Profile 8 80x40 Profile 8 80x80 Profile 8 80x80 Profile 8 80x80
G Total length [mm] see drawing see drawing see drawing see drawing
K Width of linear
transfer system
[mm] 130 130 130 170
M Intermediate plate
spacing
[mm] see drawing see drawing see drawing see drawing
N Media feed-through
spacing
[mm] 39 11.3 76.6 122
P Thread mount bore
spacing
[mm] 90 135 190 200
Q Thread attachment
point
[mm] M16 M16 M16 M20
V Thread mount bore
spacing
[mm] 50 50 60 80
W Thread mount [mm] M8 (4x) M8 (4x) M8 (4x) M12 (4x)
3.2.4 Space required
The space required depends on the dimensions of the linear transfer system.
•Provide a clearance of approx. 1 m2in the area of the drive unit for maintenance and service activities.
•Provide a clearance of approx. 1 m2in the area of the deflection unit for setting the chain tension.
Assembly instructions

Product description
Version 1.0
Linear transfer system LFA
13 / 39
3.3 Product overview
Fig. 3: Linear transfer system LFA without drive unit
Fig. 4: Linear transfer system LFA with direct drive unit TQMSI
Fig. 5: Linear transfer system driven by rotary indexing table type RT - TT
1 Speed sensor 2 Aluminium profile frame
3 Intermediate plate 4 Complete drive unit / direct drive unit TQMSI
5 Rotary indexing table 6 Endless chain
4
6
123
4
6
5
23
Assembly instructions

Product description
14 / 39
Linear transfer system LFA
Version 1.0
3.4 Overload protection (optional)
An optional safety clutch can be installed to protect the linear transfer system in overload situations. This safety clutch
separates the rotary indexing table from the linear transfer system in the event of an overload, thereby preventing major
damage to the system.

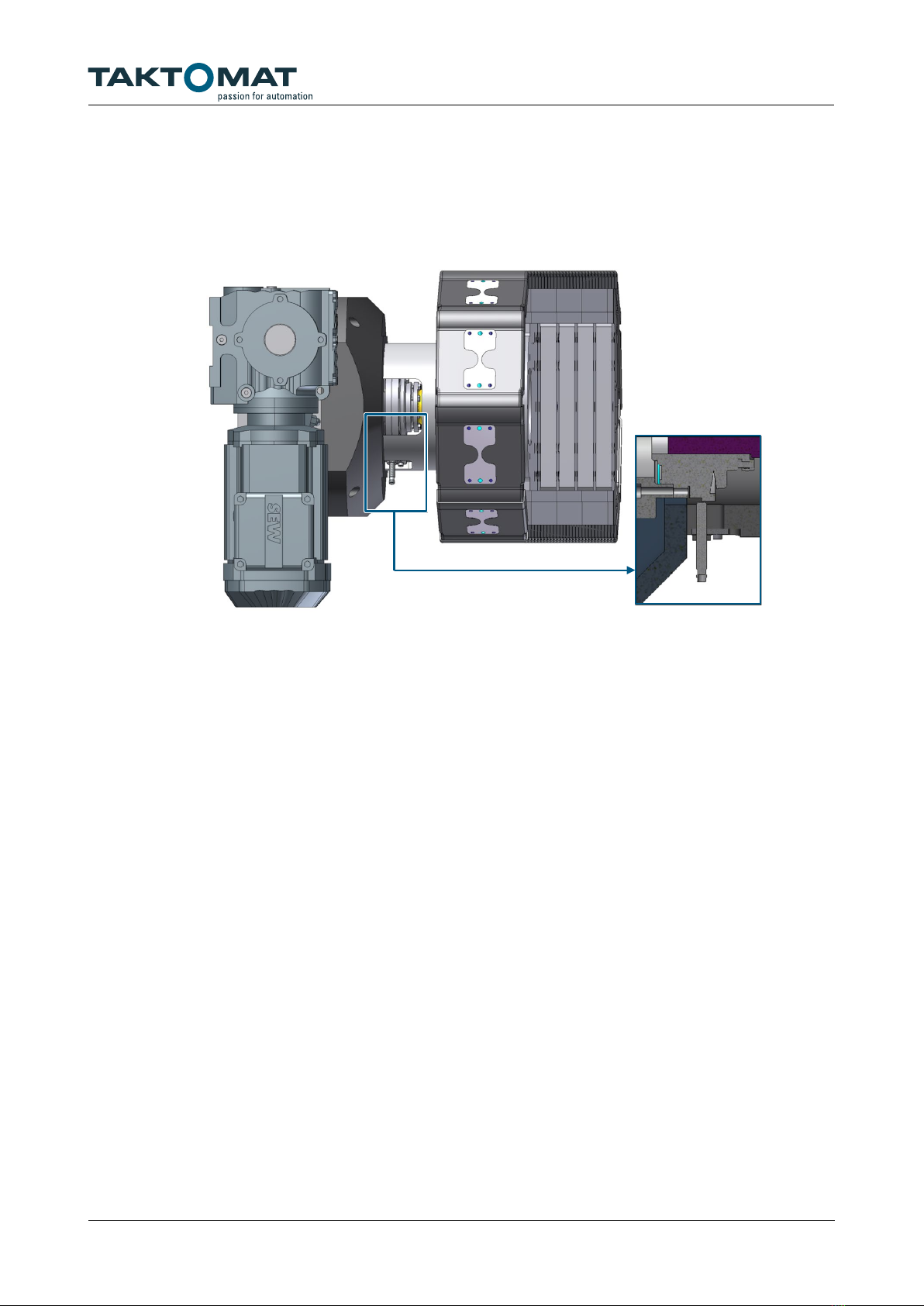

Fig. 6: Overview of the safety clutch
A limit switch is installed to monitor the clutch. The limit switch is mounted on a sensor holder which is attached to the
connecting piece (see Figure: Overview of the safety clutch).
The limit switch is set and sealed by TAKTOMAT. To monitor the controller, the signal from the limit switch can be processed
directly by a controller. When the clutch is engaged, the LED of the limit switch lights up. In the event of an overload situation,
the LED goes out.
Assembly instructions

Transport
Version 1.0
Linear transfer system LFA
15 / 39
4Transport
Required personal protective equipment
WARNING
Tipping or falling loads
Suspended loads can tip or fall down. This can cause serious or fatal injuries to persons.
•Do not step under suspended loads
•Keep unauthorized persons out of the danger zone
•Observe the weight and centre of gravity
•Only use suitable, approved and undamaged load handling attachments
NOTICE
Damage to components
Improper transport may cause material damage to the linear transfer system
•Carry out transport carefully and observe the symbols on the packaging
•Align the lifting eyes in the direction of the load
•Follow the operating instructions for the lifting gear
Check the delivery immediately on receipt for completeness and transport damage.
In the event of externally visible transport damage, observe the following:
•Do not accept the delivery or accept it only with reservations
•Note the extent of the damage on the transport documents or on the transport delivery note
•Report material damage to the manufacturer immediately
Assembly instructions

Transport
16 / 39
Linear transfer system LFA
Version 1.0
4.1 Types of transport
The linear transfer system is packed and transported horizontally or vertically according to the planned installation position
at the customer site.
4.1.1 Vertical transport
The linear transfer system is transported vertically using transport feet. The number of transport feet and slings depends on
the centre distance A of the linear transfer system (see table below).
Attach the slings at the attachment points as shown below and make sure they are functioning properly.
Only transport with industrial trucks at the marked pick-up points.
Fig. 7: Linear transfer system in vertical position with slings
1 Slings (e.g. chains, straps) 2 Linear transfer system
3 Wooden frame 4 Transport foot
Fig. 8: Specification of inclination angle and pick-up points for industrial trucks
1
44 43
2
Assembly instructions

Transport
Version 1.0
Linear transfer system LFA
17 / 39
Recommended slings for vertical transport
Type Centre distance [mm] Number of attachment points
LFA; LFA S < 3000 4
LFA; LFA S > 3000-6000 ≥ 6
LFA; LFA S > 6000 ≥ 8
4.1.2 Horizontal transport
The linear transfer system is transported horizontally using slings. The number of slings depends on the centre distance A of
the linear transfer system (see table below).
Attach the slings at the attachment points as shown below and make sure they are functioning properly.
Only transport with industrial trucks at the marked pick-up points (see figure below).
Fig. 9: Linear transfer system with slings
1 Linear transfer system 2 Sling (see table for thread)
3 Slings (e.g. chains, straps, attachment eyes,
eyebolts)
4 Wooden frame
3
1
4
2
Assembly instructions

Transport
18 / 39
Linear transfer system LFA
Version 1.0
Fig. 10: Specification of inclination angle and pick-up points for industrial trucks
Recommended slings for horizontal transport
Type Centre distance [mm] Number of attachment
points
Slinging
equipment
Bolt size
LFA080 -
LFA080S
< 3000 2 VLBG 1.5 t M16
LFA080 -
LFA080S
> 3000-6000 ≥ 4 VLBG 1.5 t M16
LFA080 -
LFA080S
> 6000 ≥ 8 VLBG 1.5 t M16
LFA100 -
LFA100S
< 3000 2 VLBG 1.5 t M16
LFA100 -
LFA100S
> 3000-6000 ≥ 4 VLBG 1.5 t M16
LFA100 -
LFA100S
> 6000 ≥8 VLBG 1.5 t M16
LFA125 -
LFA125S
< 3000 2 VLBG 1.5 t M16
LFA125 -
LFA125S
> 3000-6000 ≥ 4 VLBG 1.5 t M16
LFA125 -
LFA125S
> 6000 ≥8 VLBG 1.5 t M16
LFA150 -
LFA150S
< 3000 2 VLBG 2.5 t M20
LFA150 -
LFA150S
> 3000-6000 ≥ 4 VLBG 2.5 t M20
LFA150 -
LFA150S
> 6000 ≥8 VLBG 2.5 t M20
Assembly instructions

Assembly
Version 1.0
Linear transfer system LFA
19 / 39
5Assembly
Required personal protective equipment
DANGER
Electric shock
Touching live parts poses an immediate danger to life
•Work on electrical systems may only be carried out by qualified electricians
•Before starting work, disconnect the system, secure it against being switched on again and
make sure that no voltage is present
5.1 Installation position of the linear transfer system
NOTICE
The installation and mounting positions are specified according to the project planning.
They may not be changed without consulting TAKTOMAT
•Only install the linear transfer system in the specified position
One of the installation positions listed below is specified during project planning. The linear transfer system must be installed
in the specified installation position.
Fig. 11: Installation positions of the linear transfer system
1 Vertical installation position 2 Horizontal installation position
1
2
Assembly instructions

Assembly
20 / 39
Linear transfer system LFA
Version 1.0
5.2 Mounting position of the drive unit
5.2.1 Mounting positions of the vertical linear transfer system
With vertical linear transfer systems, the drive unit is mounted on either the left or the right side. The viewing direction for
defining the installation position is from the deflection side towards the drive unit.
Fig. 12: Mounting positions of the vertical linear transfer system
1 Mounting position L (left) 2 Viewing direction
3 Mounting position R (right)
In addition, the drive unit is mounted in one of the mounting positions shown below.
Fig. 13: Mounting positions of the vertical linear transfer system
4 Mounting position O (top) 5 Mounting position I (inside)
6 Mounting position U (bottom) 7 Mounting position A (outside)
1
2
3
4
5
6
7
Assembly instructions
