Talon Tools AKA004 User manual

1
GENERAL SAFETY RULES GB
WARNING! When using gas tools, basic safety precautions, including the following, should always be followed to reduce
the risk of serious personal injury and/or damage to the unit.
Read all these instructions before operating this product and save these instructions.
WARNING • PLEASE READ
For your own safety please read this manual before attempting to operate your new unit. Failure to follow instructions
can result in serious personal injury. Spend a few moments to familiarize yourself with your trimmer before each use.
MODEL NO. AKA004
SAFETY
OPERATION
MAINTENANCE
Cultivator Attachment
USER MANUAL
Meaning of symbols marked on the product
Read the user manual before using the machine
Wear safety goggles to protect your eyes
Wear ear protector to protect against noise
Wear gloves to protect your hands
Wear safety boots to protect against electric shock
Stop the motor and allow the tines to stop before installing or
removing tines, or before cleaning or performing any mainte-
nance. Keep hands and feet away from rotating tines.
Wear dust mask to protect against dust
Keep all bystanders, especially children and pets, at
least 50 feet (15m) from the operating area
Do not operate unit without proper attachments and guards in place.
READ YOUR USER MANUAL AND ALL SUPPLE-
MENTS (IF ANY ENCLOSED) THOROUGHLY BEFORE
OPERATING YOUR UNIT.
1. Wear close fitting, tough work clothing that will
provide protection, such as long slacks or trousers,
safety work shoes, heavy duty work gloves, hard hat,
a safety face shield, or safety glasses for eye protec-
tion and a good grade of ear plugs or other sound
barriers for hearing protection.
2. Store in a safe place. Open fuel cap slowly to release
any pressure which may have formed in fuel tank. To
prevent a fire hazard, move at least 10 feet (3 meters)
from fuelling area before starting.
3. Turn unit off before setting it down.
4. Always hold unit firmly with both hands, the
thumb and fingers encircling the handles.
5. Keep all screws and fasteners tight. Never operate
your equipment when it is improperly adjusted or not
completely and securely assembled.
6. Keep handles dry, clean and free of fuel mixture.
7. Keep stringhead as close to ground as practical.
Avoid hitting small objects with stringhead. When cut-
ting on a slope, stand below stringhead. NEVER cut
or trim on a hill or slope, etc. if there is the slightest
chance of slipping, sliding or losing firm footing.
8. Check area you will be trimming for debris that
may be struck or thrown during operation.
9. Keep all parts of your body and clothing away
from stringhead when starting or running engine.
Before starting engine, make sure stringhead will not
come in contact with any obstacle.
10. Stop engine before examining cutting line.
11. Store equipment away from possible flammable
materials, such as gas-powered water heaters,
clothes dryers, or oil-fired furnaces, portable
heaters, etc.
12. Always keep the debris shield, stringhead, and
engine free of debris build-up.
13. Operation of equipment should always be restricted
to mature and properly instructed individuals.
WARNING: Gasoline is highly flammable, and its vapours
can explode if ignited. Take the following precautions:
1. Store fuel only in containers specifically designed and
approved for the storage of such materials.
2. Always stop the engine and allow it to cool before fill-
ing the fuel tank. Never remove the cap of the fuel
tank, or add fuel, when the engine is hot. Never oper-
ate the unit without the fuel cap securely in place.
Loosen the fuel tank cap slowly to relieve any pressure
in the tank.
3. Mix and add fuel in clean, well-ventilated area out-
doors where there are no sparks or flames. Slowly
remove the fuel cap only after stopping engine. Do not
smoke while fuelling or mixing fuel. Wipe up any spilled
fuel from the unit immediately.
4. Avoid creating a source of ignition for spilled fuel. Do
not start the engine until fuel vapours dissipate.
5. Move the unit at least 10 feet (3m) from the fuelling
source and site before starting the engine. Do not
smoke, keep sparks and open flames from the area
while adding fuel or operating the unit.
6. Never start or run the unit inside a closed room or
building. Breathing exhaust fumes can kill. Operate
this unit only in a well ventilated area outdoors.
1. WARNING: To reduce the risk of electrical shock, use
only extension cords approved for outdoor use.
2. CORDS SETS: Make sure your cord set is in good
condition. When using a cord set, be sure to use a cord
that is heavy enough to carry the current that your unit
will draw. An undersized cord set will cause a drop in
line voltage resulting in loss of power and overheating.
See the operator’s manual for the unit that will power
this attachment for the recommended cord size.
3. Inspect all extension cords and the unit power connec-
tion periodically. Look closely for deterioration, cuts or
cracks in the insulation. Also inspect the connections
for damage. Replace the cords if any defects or dam-
age appear.
WARNING: Keep children, bystanders, and
animals 50 feet (15 meters) away. If
approached stop unit immediately.
SAFETY WARNINGS FOR GAS CULTIVATORS
SAFETY WARNINGS FOR ELECTRIC CULTIVATOR
6096-A00401

3
GB
2
GB
1. Tine Guard
2. Tines
3. Gear Box
4. Shaft
GENERAL IDENTIFICATION
4
1
2
3
SPECIFICATIONS
Blade Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .210mm
Weight with motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9.2 Kg
•DRIVE SHAFT

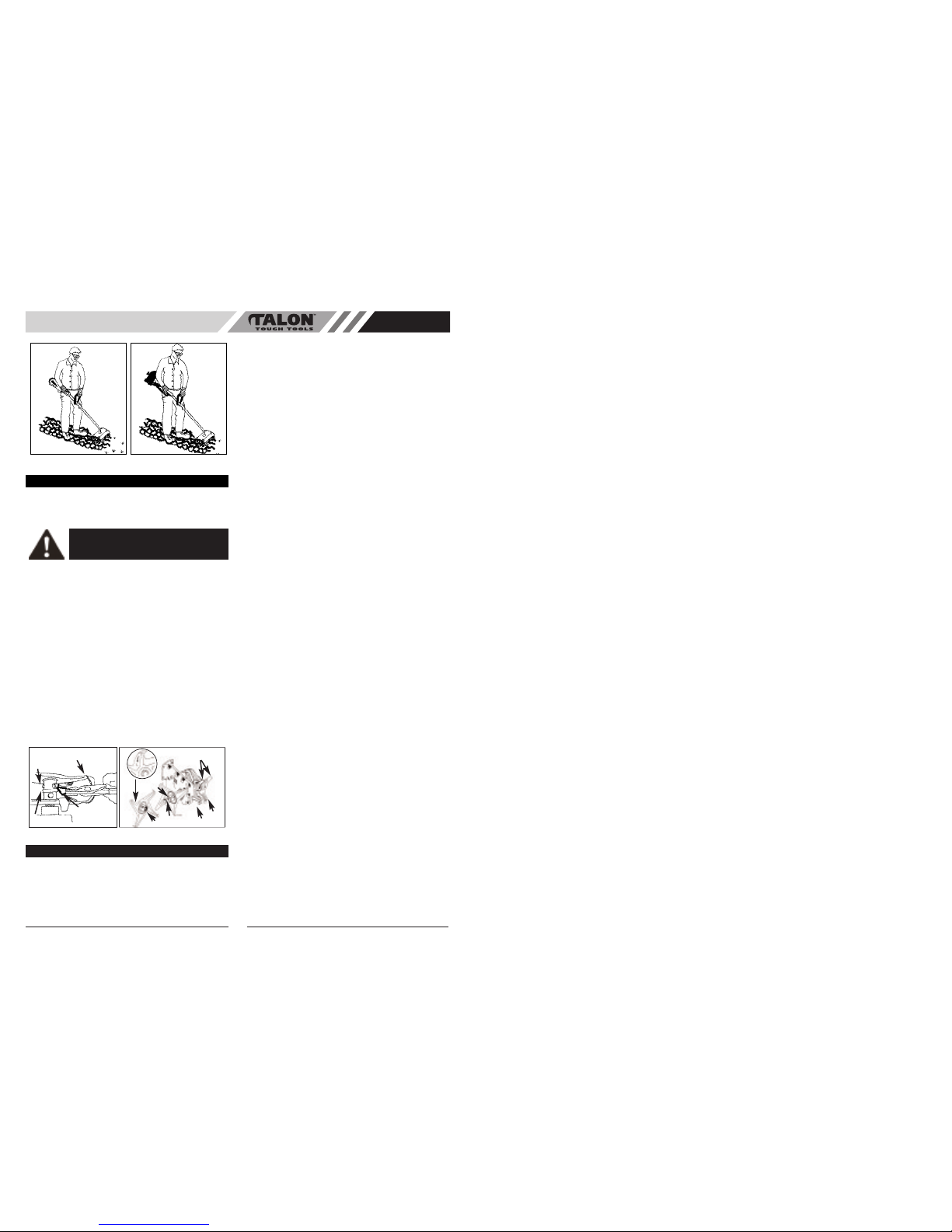

Installing the lower shaft
1. Remove the hanger from the lower shaft (A). Press
the release lever (B) while pushing the lower shaft into
the tool-link couping. (Fig. 1A)
2. Locate and lock the release lever into the primary hole
(C) in the shaft. (Fig. 1A)
3. Tighten the knob (D) securely clockwise before using
the unit. (Fig. 1B)
1. Move the cultivator to the work area prior to starting
the engine/motor.
2. Start the unit.
3. With the engine running and the tines off the ground,
depress the throttle control to increase the engine
speed.
4. Holding both of the shaft and handle grips firmly, slow-
ly lower the cultivator until the tines make contact with
the ground. (See Fig. 2)
5. As cultivating action begins, pull back on the cultivator
so that the tines can penetrate the ground.
6. Once the ground has been broken, continue at a mod-
erate pace until you are familiar with the controls and
the handing of the cultivator.
ASSEMBLY INSTRUCTIONS
CAUTION: Make sure the release lever is
locked in the primary hole and knob is securely
tightened before operating this unit.
B
A
Fig. 1A Fig. 1B
C
D
CAUTION: All attachments are designed to
be used in the primary hole unless otherwise
indicated in the specific attachment’s opera-
tor’s manual. If the incorrect hole is used, it
could result in injury, or damage to the unit.
OPERATING INSTRUCTIONS
WARNING: Dress properly to reduce the risk of
injury when operating this unit. Do not wear
loose clothing or jewellery. Wear eye and
ear/hearing protection. Wear heavy, long pants,
boots and gloves. Do not wear short pants, san-
dals or go barefoot.
WARNING: To prevent serious personal injury,
use extreme caution when reversing or pulling
the unit towards you.
4. Do not use the unit in the rain.
5. Do not handle the plug or unit with wet hands or
standing on any wet surfaces.
6. Do not leave the unit plugged in when not in use,
changing attachments or while being serviced.
1. Keep children and pets away.
2. Wear safety glasses or goggles and ear/hearing pro-
tection when operating this unit. Wear a face or dust
mask if the operation is dusty.
3. Wear heavy, long pants, boots and gloves. Do not
wear loose clothing, jewellery, short pants, sandals or
go barefoot. Secure hair above shoulder level.
4. Use the unit only in daylight or good artificial light.
5. Use the right tool. Only use this tool for the purpose
intended.
6. Do not force unit. It will do the job better and with less
likelihood of injury at a rate for which it was designed.
7. Use extreme caution when reversing or pulling the
unit towards you.
8. Do not overreach, take extra care when working on
steep slopes or inclines. Always keep proper footing
and balance.
9. Always hold the unit with both hands when operating.
Keep a firm grip on both the front and rear handle or
grips.
10. Keep hands, face, and feet at a distance from all
moving parts. Do not touch or try to stop the tines
when they are rotating. Do not operate without
guards in place.
11. Do not operate the engine faster than the speed
needed to do the job. Do not run the engine at high
speed when not in use.
12. Always stop the engine/motor when operation is
delayed or when walking from one location the anoth-
er.
13. Stop the engine/motor for maintenance, repair, to
install or remove the tines. The unit must be stopped
and the tines no longer turning to avoid injury.
14. The tines become very sharp from use. Always wear
heavy gloves when handling, removing, installing or
cleaning the tines.
15. If you strike or become entangled with a foreign
object, stop the engine/motor immediately and check
for damage. Have damage repaired before attempt-
ing further operations.
16. Stop the unit IMMEDIATELY if you feel excessive
vibration. Vibration is a sign of trouble. Inspect thor-
oughly for loose nuts, bolts or damage before contin-
uing. Repair or replace affected parts as necessary.
17. Stop and switch the unit to off for maintenance,
repair, or for changing attachment or other attach-
ments.
18. Keep unit clean of vegetation and other materials
which may become lodged between the tines and
gearbox or guard.
19. Use only genuine Talon replacement parts and
accessories for this unit. These are available from
you authorized service dealer. Use of any non Talon
parts or accessories could lead to serious injury to
the user, or damage to the unit, and void your war-
ranty.
1. Do not operate this unit when tired, ill, or under the
influence of alcohol, drugs, or medication.
2. All guards and safety attachments must be installed
properly before operating the unit.
3. Inspect the unit before use. Ensure the tines are
installed correctly and secure.
4. Clear the area to be cultivated before each use.
Remove all objects such as rocks, broken glass, nails,
wire, or string which can be thrown or become entan-
gled in the cultivator attachment.
5. Keep the area of operation clear of all persons, partic
ularly small persons, and pets.
6. Allow the unit to cool before storing or transporting. Be
sure to secure the unit while transporting.
7. Store the unit in a locked up or high and dry place to
prevent unauthorized use or damage, out of the reach
of children.
8. Clean the tines with a a strong brush or clamp cloth.
Wipe the tines with a light machine oil to prevent rust.
9. Never douse or squirt the unit with water or any other
liquid. Keep handles dry, clean and free from debris.
Clean after each use, see cleaning and storage
instructions.
10. Keep these instructions. Refer to them often and use
them to instruct other users. If you loan someone this
unit, also loan them these instructions.
WHILE OPERATING
OTHER SAFETY RULES

GB
4
• TINE REMOVAL AND REPLACEMENT
All 4 tines should be replaced at the same time because
they will wear evenly through normal use. Work on one
side at a time.
1. Unplug the power cord before cleaning or performing
maintenance or removing or installing tine.
2. Remove the clevis pin clips (A) and clevis pins (B).
(See Fig. 3A)
3. Remove the tines (C) and felt cushions (D) from the
shaft (E). (See Fig. 3B)
4. Clean and oil the shaft.
5. The tines are stamped with the letter “R” or “L” to iden-
tified their position on each side of the gearbox when
facing the front of the unit.
6. Replace the tines (C) and felt cushions (D) onto the
shaft with the hubs on the tines facing each other.
7. Ensure the tips on tines are allgned in the same direc-
tion with each other before reinstalling the clevis pins
and pin clips.
8. Repeat this procedure on the opposite side.
NOTE:When installed correctly, there will be an “R” and
“L” tine on each side of the gearbox and the tips on the
tines line up in the same direction. It is important that the
tines are installed correctly.
1. Keep machine, attachments and accessories, including
where appropriate the battery, in safe working condi-
tion. If appropriate, remove the battery to protect it from
frost and properly charge it if necessary.
2. Check shear bolts, engine mounting bolts and other
bolts at frequent intervals for proper tightness to be
sure the equipment is in safe working condition.
3. Inside a building store the machine away from ignition
sources. Allow the engine to cool before storing in any
enclosure.
4. Always refer to the user Manual instructions for impor-
tant details if the cultivator is to be stored for an extend-
ed period.
5. Do not attempt to repair the machine unless you have
the proper tools, and instructions for disassembly and
repair of the machine.
Fig. 2A Fig. 2B
MAINTENANCE INSTRUCTIONS
WARNING: To prevent serious personal injury,
always wear heavy gloves when handling the
tines.
B
A
Fig. 3A Fig. 3B
C
R
L
L
D
D
Allgn Tips
Shaft
MAINTENANCE AND STORAGE
