tams elektronik 70-09030-01 User manual
tams elektronik
Manual
Transformer 50 VA-16 V
Item-no. 70-09030-01
Transformer 52 VA-12/18 V
Item-no. 70-09021-01
tams elektronik
n n n
tams elektronik
nglish Transformers 50 VA-16 V and 52 VA-12/18 V
Table of contents
1. Getting started............................................................................3
2. Safety instructions.......................................................................4
3. Assembly, connection and commissioning.....................................5
4. Operation...................................................................................7
5. Transformer 50 VA-16 V: Technical specifications..........................8
6. Transformer 52 VA-12/18 V: Technical specifications.....................9
7. Guarantee bond........................................................................10
8. U declaration of conformity......................................................11
9. Declarations conforming to the W directive...........................11
© 08/2020 Tams lektronik GmbH
All rights reserved. No part of this publication may be reproduced or
transmitted in any form or by any means, electronic or mechanical,
including photocopying, without prior permission in writing from Tams
lektronik GmbH.
Subject to technical modification.
Page 2
tams elektronik
!
Transformers 50 VA-16 V and 52 VA-12/18 V nglish
1. Getting started
Scope of delivery
Transformer with permanently mounted mains cable with uro flat
plug
Manual
Intended use
The transformers 50 VA-16 V und 52 VA-12/18 V are designed to be
operated according to the instructions in this manual with model
railways and in model building. Any other use is inappropriate and
invalidates any guarantees.
The transformers are not intended to be installed by children under 14
years of age.
Reading, understanding and following the instructions in this manual
are mandatory for the user.
Please note:
Non-observance of the manual may cause damage to your
transformer. There is also a risk of short circuit, fire or electric shock!
Danger to life!
Page 3
tams elektronik
nglish Transformers 50 VA-16 V and 52 VA-12/18 V
2. Safety instructions
No conversions and repair attempts!
Do not make any conversions or changes to your transformer. Do not
open or disassemble it. Do not replace a damaged mains cable, in
which case dispose of the transformer.
Protect from moisture!
The transformer must not become damp or wet. Therefore, use it only
in closed and dry rooms.
Protect it from external damage!
Do not expose the transformer to strong vibrations, strong mechanical
stress or direct intensive sunlight.
Make sure that the mains cable is not crushed or damaged by sharp-
edged objects.
If the housing or the insulation of the mains cable is damaged, do not
continue to use the transformer.
Protect from overheating!
nsure that the transformer is able to release the heat generated
during operation to the ambient air. Therefore, never cover or install it.
Otherwise the transformer may overheat.
Protect it from falling down!
Always place the transformer on a stable surface. The transformer can
be damaged even if it is dropped from a low height. There is also a risk
of injury due to its heavy weight.
Connect it correctly!
The transformer is only approved for connection to an AC voltage of
230 V/AC, 50 Hz. Never try to operate the device at a different voltage.
Observe the further instructions in Section 4 "Installation, connection
and commissioning".
Page 4
tams elektronik
!
Transformers 50 VA-16 V and 52 VA-12/18 V nglish
3. Assembly, connection and commissioning
Special note for transformer 5 VA-16 V:
The transformer 50 VA - 16 V is not a toy transformer!
It does not meet the requirements for transformers for
toys according to DIN N 61558-2-7. Therefore do not use
this transformer in areas where children are unattended.
Installation
Place the transformer in such a way that it is secured against falling
down and the heat generated during operation can be dissipated to the
ambient air. The base plate of the transformer has holes to
accommodate fastening screws. Never screw screws directly into the
housing of the transformer!
Connecting the loads
When connecting the supply lines to the loads, make sure that the line
cross section is sufficient. Overloading the connecting cables can cause
overheating and fire hazard!
The terminals on the transformer are intended for connecting the
consumers. Press the pushbutton on the terminal and insert the
stripped connecting cable into the opening.
nsure that the maximum total current / total power is not exceeded,
otherwise the transformer will be overloaded.
Transformer
50 VA-16 V
Transformer
52 VA-12-18 V
Output-
voltage 16 V Terminals 0 / 12 V: 12 V
Terminals 0 / 18 V: 18 V
Max. total current 3,125 A 2,9 A
Max. total power 50 VA 52 VA
Page 5
tams elektronik
nglish Transformers 50 VA-16 V and 52 VA-12/18 V
Do not connect in series or parallel!
Never connect the outputs of several transformers in parallel or in
series. This can cause short circuits and dangerous voltages.
Make sure (e.g. in the event of subsequent modifications) that you do
not inadvertently connect supply lines to loads to the outputs of two (or
more) transformers.
Not like this!
Because the power of one transformer is not sufficient, in the example
shown the booster is supplied by two transformers connected in
parallel. This connection is not recommended!
Wiring errors, which can result from ignorance or accident, carry
considerable risks. There is a danger that the recovery of the input
voltage could result in a dangerous touch voltage. For toy transformers
(e.g. transformer 52 VA-12-18 V) this danger is reduced by an
integrated regenerative protection. Safety transformers that are not toy
transformers (e.g. transformer 50 VA-16 V) do not have this feedback
protection!
Parallel connection of transformers:
Danger to life through electric shock!
Page 6
tams elektronik
Transformers 50 VA-16 V and 52 VA-12/18 V nglish
Connection to the power supply and commissioning
Insert the mains plug directly into a properly installed and fused safety
socket that is supplied with 230 V/AC, 50 Hz (10/16 A). The
transformer then immediately supplies the output voltage.
Do not use a ballast unit, dimmer or similar for the connection.
After the formation of condensation water, wait until the condensation
has evaporated before starting up. This can take several hours.
4. Operation
The transformer has a thermal protection switch that automatically
switches off the unit in case of overload or overheating. The
transformer can only be put back into operation after
it has cooled down completely (duration at least 30 minutes) and
the mains plug has been disconnected from the mains supply.
liminate the cause of the overload or overheating before restarting the
transformer.
Page 7
tams elektronik
nglish Transformers 50 VA-16 V and 52 VA-12/18 V

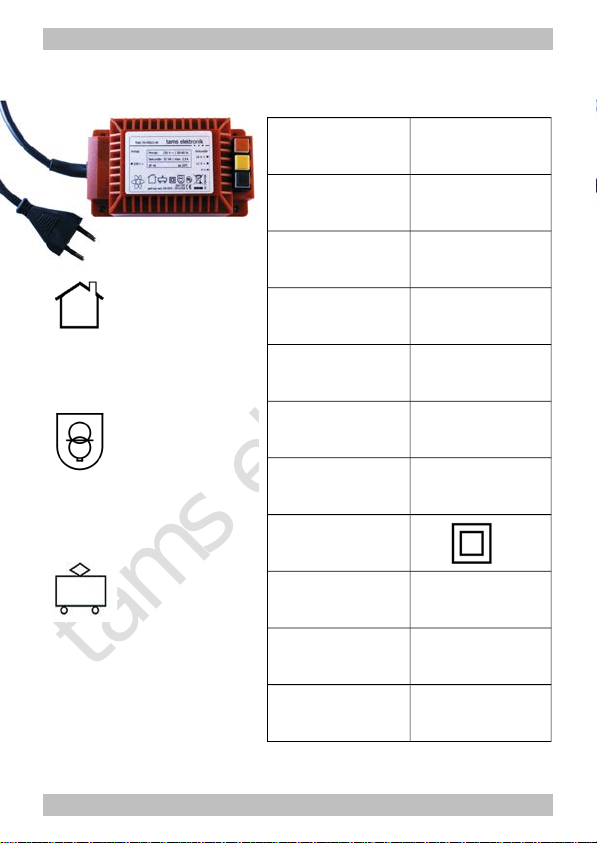

5. Transformer 50 VA-16 V: Technical specifications
For use in closed rooms.
Safety transformer
according to N-61558.
Short circuit proof.
Does not meet the
requirements of DIN N
62115 " lectrical toys -
Safety" and is therefore not
intended to be connected
by children under 14 years
of age!
Page 8
Total power max. 50 VA
Input voltage 230 V
Frequency 50 – 60 Hz
Output voltage 16 V AC
Output current Max. 3.125 A
Insulation class Ta 40 °C/
Temperature
switch 110 °C
Protection class II
Protected to IP40
Dimensions
(length x width x height)
approx.
100 x 60 x 62 mm
Weight approx. 1,150 g
(cable included)
tams elektronik
Transformers 50 VA-16 V and 52 VA-12/18 V nglish
6. Transformer 52 VA-12/18 V: Technical specifications
For use in closed rooms.
Safety transformer
according to N-61558.
Short circuit proof.
Meets the requirements of
DIN N 62115 " lectrical
toys - Safety".
Page 9
Total power max. 52 VA
Input voltage 230 V
Frequency 50 – 60 Hz
Output voltage 0 / 12 / 18 V AC
Output current Max. 2.9 A
Insulation class Ta 40 °C/
Temperature
switch 110 °C
Protection class II
Protected to IP40
Dimensions
(length x width x height)
approx.
130 x 70 x 50 mm
Weight Approx. 1,270 g
(cable included)
tams elektronik
nglish Transformers 50 VA-16 V and 52 VA-12/18 V
7. Guarantee bond
For this product, we voluntarily grant a 2-year warranty from the date
of purchase of the first customer, but for a maximum of 3 years after
the end of serial production of the product. The first customer is the
consumer who first purchased the product from us, a dealer or any
other natural or legal person who resells or installs the product in the
course of their independent professional activity. The guarantee exists
in addition to the statutory warranty claims to which the consumer is
entitled against the seller.
The scope of the guarantee includes the free repair of defects that can
be proven to be due to faulty material processed by us or to
manufacturing defects. We guarantee the adherence to the technical
data in case of prescribed commissioning and operation.
We reserve the right to repair, rectify, replace or refund the purchase
price. Further claims are excluded. Claims for compensation for
consequential damage or from product liability exist only in accordance
with the statutory provisions.
A prerequisite for the effectiveness of this guarantee is the observance
of the instructions. Furthermore, the warranty claim expires in the
following cases:
in case of repair attempts on the device,
in the event of damage caused by the intervention of third parties,
in case of incorrect operation or damage due to negligent handling or
misuse.
Please do not send defective devices to us carriage forward. In case of
warranty we will refund the regular shipping costs. In case of repairs
not covered by the warranty, you will have to bear the costs for return
shipment.
Page 10
tams elektronik
Transformers 50 VA-16 V and 52 VA-12/18 V nglish
8. U declaration of conformity
This product conforms with the C-directives mentioned below
and is therefore C certified.
2014/35/ U on electrical equipment (low voltage directive). Underlying
standards: N 61558-1 and 61558-2-6.
2011/65/ U on the restriction of the use of certain hazardous
substances in electrical and electronic equipment (RoHS), amended by
Directives ( U) 2015/863 and 2017/2102. Underlying standard: N
50581.
2004/108/ C on electromagnetic compatibility. Underlying standards:
N 55014-1 and N 61000-6-3.
The 52 VA-12/18 V transformer also meets the requirements of the U
Directive 2009/48/ C on toys. Underlying standard: N 61558-2-7.
9. Declarations conforming to the W directive
This product conforms with the C-directive 2012/19/ G on
waste electrical and electronic equipment (W ).
Don´t dispose of this product in the house refuse, bring it to the next
recycling bay.
Page 11
