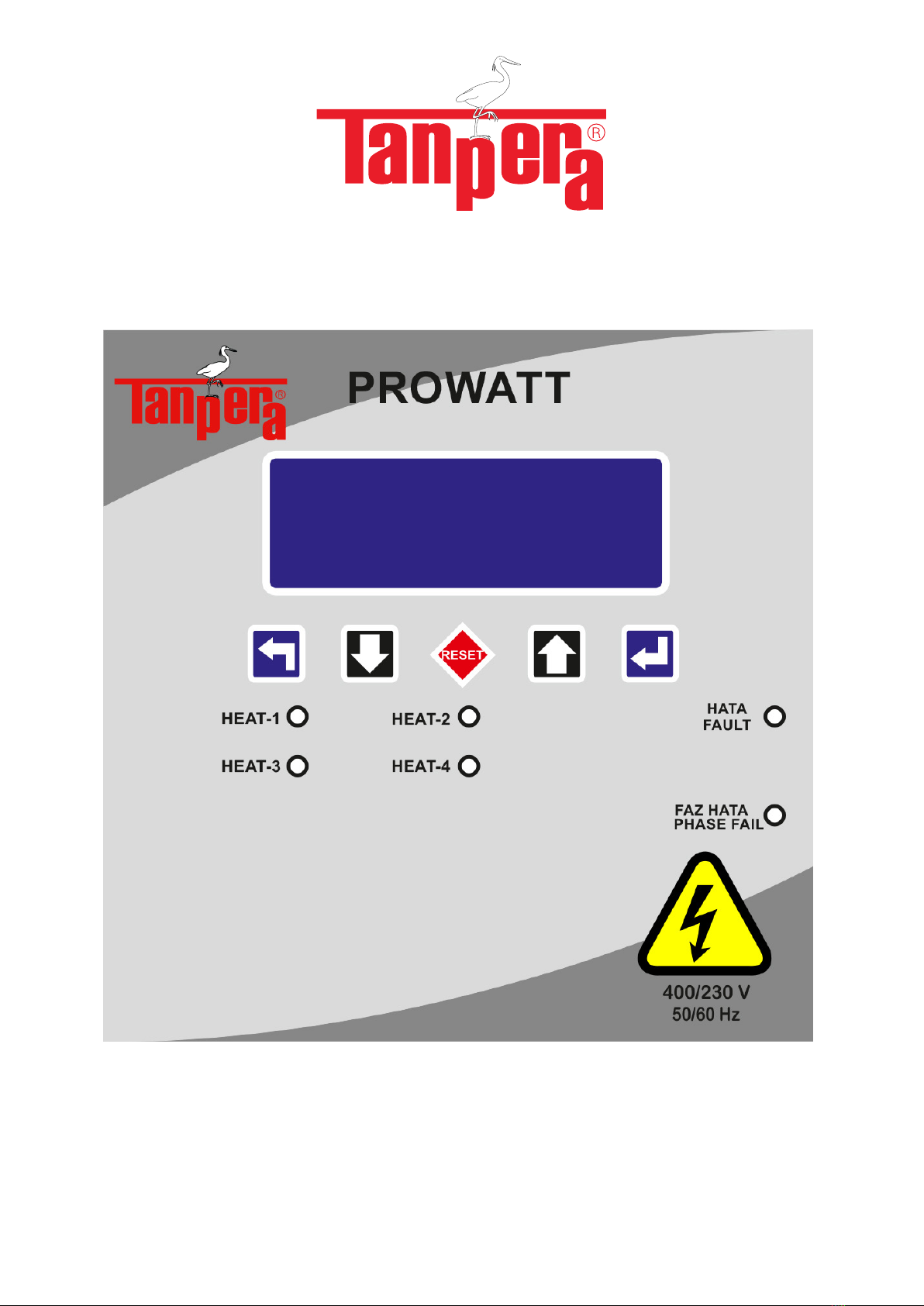

Tanpera PROWATT User manual

ELECTRICAL WATER HEATER PANEL USER MANUAL
www.tanpera.com
Lcd Screen Control Panels

YOU SHOULD READ THE INFORMATION IN THIS MANUAL CAREFULLY
TO GET THE BEST EFFICIENT USE OF OUR CONTROL PANELS.
THIS MANUAL IS A RELIABLE SOURCE THAT CAN HELP YOU SOLVE ALL
YOUR PROBLEMS RELATED TO CONTROL PANELS..
THIS USER MANUAL :
Will help you use the control panels safely and accurately.
• Includes commissioning, installaon and maintenance of control panels.
• Explains the transportaon, storage and warranty condions of the control panels.
• Read the user manual before operang your control panel.
• Observe the safety informaon in parcular.
• All operaons on the control panel must only be carried out by authorized persons in accordance
with the informaon in the user manual.
• No warranty is granted for repairs or alteraons carried out by unauthorized persons.
The user manual should be close to the control panel and easily visible and accessible.
1 We reserve the right to make changes in technical informaon.

1. PLEASE PRESERVE THIS DOCUMENT.
This symbol is used to alert the user to “personal hazard.”
This symbol is used to alert the user to “dangerous voltage ”.
1. Be sure to read the user manual before operang the panel.
2. Follow the instrucons in the user manual.
3. Pay aenon to the front panel on the control panel. The front panel may break when impacted.
4. Do not install the panel directly where water can be absorbed. Do not pour water and any liquid
into the panel cabinet. In case the panel is touched by water, cut o the electricity from the main
fuse/switch and contact the authorized person or instuons.
5. Do not operate the panel if any foreign objects get inside the panel cabinet. This may result in
electric shock or damage to the panel. Have the panel checked by authorized personnel.
6. To prevent re occurence, keep ammable liquids and materials or pure ame away from the
panel.
7. The electrical connecon of the panel must be connected to the main switch socket located
inside the panel as shown in this manual. Failure to do so may result in serious injury or death from
electric shock.
8. If the power cord is damaged, it must be replaced by a new one suitable to the original by an
authorized provider.
9. Do not use damaged or torn cables in the electrical connecons. Do not place heavy objects on
the power cord and do not damage or operate on the power cord. Cables can be damaged and
cause re or electric shock. In such cases, please contact the authorized person or instuons.
10. See praccal troubleshoong in case of a fault and call for service if necessary. Never aempt to
repair your panel yourself.
11. Do not dispose of your panel with general household waste. Comply with local laws and
regulaons for disposal
Failure to follow the safety instrucons will void the warranty condions..
We reserve the right to make changes in technical informaon. 2

3 We reserve the right to make changes in technical informaon.
As long as installaon, commissioning and service are carried out by authorized personnel, your
panel does not pose any safety risks.
2. Warnings about situaons that may be harmful to human or environmental health:
• It may cause burns, electric shock or death.
• Disconnect electrical connecons before any work on the panel.
• Make sure the panel is ground-connected.
• Loosening of the electrical connecons may result in electrical leakage and injury.
- The methods for starng and stopping the panel are described in the manual.
- During the re-commissioning of the panel, the secons that have been processed must be
monitored.
- Cauon should be taken against water leakage and splashes in the panel, and if possible,
a “leakage current relay” should be installed.
- All electrical cables must be connected to the panel using a protecve sheath.
3. Unacceptable Acons:
Design changes / modicaons to the control panel must only be made with the permission of
the manufacturer. If other parts are used on the control panels, the manufacturer shall not be
liable for the consequences of the changes.
4. Special Safety Equipment and Recommendaons on the Panel:
It may cause electric shock and death.
Improper intervenon in the control panel may cause damage to it.
In the control panel, there are protecon panels made of insulang plexiglass material which are
designed as an outline to protect the electronic card from external factors.
The panels must not be removed by unauthorized persons and no intervenon should happen to
the electronic card.
5. Informaon on Ecient Use of Energy Savings:
The control panel you have purchased does not consume energy by itself, but pumps and motors
are energy consuming products for their intended use.
Proper use; extremely important for personal reasons and naonal economy.
Resistance suitable to the control panel should be used.
All electrical connecons are made correctly and in accordance with the instrucons; thus, loss
and leakage electricity could be prevented.

We reserve the right to make changes in technical informaon. 4
6. Lifeme:
The service life of the product as determined and announced by the Ministry of Industry
(the period of having spare parts necessary for the device to perform its funcons) is 10 years.
7. TRANSPORT / STORAGE / INSTALLATION
7.1. Transport:
Handle the control panels carefully and prevent them from falling. The control panels are
shipped in a cardboard box suitable for their size. Do not remove the control panels from the
cardboard box during transportaon.
7.2. Carriage and Shipping:
Necessary precauons should be taken to ensure that the panel is not damaged during shipping
and is not aected by bad weather condions.
It should be checked that the panel received corresponds to the model ordered and that there is
no damage during transportaon.
If there is damage or a missing part/defect in the panel. damage assessment report should be
made to the transport company along with a wrien report to our company.
7.3. Storage:
If the control panel is not to be installed immediately; Do not store in humid environments.
Do not place weight on control boards. Keep control panels where rain and water cannot enter
them.
It should be noted that the panels may be damaged if the instrucons are not
followed during installaon..
If the instrucons are not followed during installaon, it should be noted that
serious injury and death may result from electric shock.
The control panel must be installed in such a way that no load is placed on it.
When mounng the control panel, it must be mounted to the nuts on the rear side with the
appropriate screw.
The panel must not be drilled with another screw behind the panel. This could damage the
electronic card.
The electrical connecon of the control panel must only be carried out by authorized persons
while taking the necessary safety precauons.

8. OPERATING
The electrical connecons of the control panel should be checked.
It should be checked that that the control panel cover is closed.
It should be checked that the electrical energy is not interrupted and the phases are complete.
Control panel sengs should be made according to the resistance to be used.
You can nd the appropriate sengs for the panel you are using in the sengs entry menu.
9. MAINTENANCE
9.1. Monthly Maintenance:
Cut o electrical power before starng maintenance.
The control panel’s electrical connecons should be checked for loosening.
The control panel grounding line must be checked. Check that there is no discoloraon in the
electrical cables due to wear, puncture or heang.
10. GENERAL INFORMATION
The control panel that you have purchased is designed based on a microcontroller.
All control operaons on the panel are done electronically and stored.
The electronic board inside the control panel is manufactured with high technology SMD material.
An SMD led lamp and LCD display with minimum energy consumpon are used as indicators.
5 We reserve the right to make changes in technical informaon.

Press SET buon to enter the authorized seng menu.
CONTROL FRONT PANEL INTRODUCTION AND USAGE
1 : 4X20 Blue LCD Screen.
2 : The up arrow key allows you to change the page on the main screen and move up in the menu.
3 : The reset buon is used to reset errors and silence the buzzer..
4 : The down arrow key allows moving down the menu.
5 : Set buon is used to enter the menu and save the changes made in the menu.
6 : The ESC key allows you to return to the previous menu and exit the current menu.
7 :1. Lights when the heater is switched on.
8 :2. Lights when the heater is switched on.
9 : Lights when there is an error in the system.
10:3. Lights when the heater is switched on.
11:4. Lights when the heater is switched on.
12: Lights when there is a phase fault in the system.
We reserve the right to make changes in technical informaon. 6

SETTING ENTRY MENU
Temperature Sengs
Set Value : 50°C
Hist Value : 05°C
Max Value : 65°C
In the Sengs menu, SET buon is pressed to acvate the Temperature Sengs. Set Value starts
ashing and its temperature value is entered with up / down buons and saved by pressing SET
buon. If the inserted value is above the set temperature, the outputs are automacally switched
o. Hist Value temperature starts to ash. With the help of Up / Down keys, the desired value is
entered and it is saved by pressing SET buon. Max value starts to ash. Max temperature value is
entered with the help of Up / Down keys. Then Press SET buon to save.
In this menu, past events are displayed on the screen with the date and me of occurrence.
The last 20 events are displayed, press the up arrow to view the next event.
This menu is used to restore the factory sengs.
This menu is used to access the device memory with the authorized password.
PAST EVENTS
27.04.2014 15:38
1- Lower Voltage
FACTORY SETTINGS
ENTER THE PASSWORD
This menu is used to select acve and passive devices connected to the device accessible with the
authorized password.
EQUIPMENT SETTINGS
7 We reserve the right to make changes in technical informaon.

Voltage Sengs
Upper Voltage =
Lower Voltage =
Press the SET buon once to enter the sengs. Authorized Password screen is displayed and the
password is enetered with the help of Up / Down keys. The Voltage Sengs menu appears.
To change the voltage sengs, press SET buon and upper voltage will start illuminang and
the value can be changed with the up / down keys. Aer the change is completed, SET buon is
pressed and the value is stored. The lower voltage will start to illuminate.
If you do not want to change the voltage sengs, press the Up arrow key to select Current
Sengs and press the SET key.
When the current sengs text is displayed, if you want to see or change the values, press SET
buon to enter the menu and the above screen is displayed. Upper current text starts ashing.
Enter desired value with Up / Down arrow and press SET buon. The lower current set starts to
ash, the same operaon is done for the lower current seng and saved by pressing the SET
buon.
Aer the current sengs are completed, press ESC key to go back to the menu and press the Up
arrow key to reach the Temperature Sengs menu and press the SET key.
Current Sengs
Upper current =
Lower current =
We reserve the right to make changes in technical informaon. 8

Parameters and descripons in the Time Sengs menu;
Voltage Hist: Factory set to 5V, no change required.
Voltage On Time: This is the voltage switch-on me seng. It is the waing me for automac
reset when the measured voltage values are again within the desired limits whenever the system
is in fault condion due to voltage error.
Voltage O Time: This is the voltage faulty switch-on me seng. It is the waing me to switch
o when the measured voltage values are out of the set values. It is necessary to prevent the
motor from switching o frequently in case of instantaneous uctuaons.
Inrush Time: Inrush current me seng. The current cannot be compared with the current set
values during the set period/me.
Temperature Time: When the measured temperature values exceed the set temperature values,
it waits for the me set here and then goes into error status.
Temperature Hist: The system that has failed due to high temperature must fall down to the set
degree for a system restart.
Current Delay: Current fault trip me seng. When the upper or lower current exceeds the set
value, the motor stop me seng is set in seconds.
Vibraon Time: If the measured vibraon value is above the set vibraon value, it waits for the set
me here.
Switching: This is the seng for liming the number of switches. It is the seng of liming the
number of mes the motor starts and goes out in 1 hour.
To change the voltage hysteresis value, SET buon should be pressed. Voltage hist starts to ash
and the value next to it can be changed with up / down keys. Aer the change is completed, press
SET buon to save the value to memory. The up / down buons are used to nd the parameter
we want to change and the parameter is highlighted. Press SET buon and the text starts to ash,
this value can be changed.
Time Sengs
Voltage hist =
9 We reserve the right to make changes in technical informaon.

Press SET buon in working me menu. If pressed, the operang mes are displayed
Press SET buon in the date sengs menu to enter the menu and the above screen is displayed.
First of all, the day starts ashing and the day is adjusted with the Up/Down key and stored by
pressing the SET key. The month starts ashing and the month is set and the SET buon is pressed,
then the year starts ashing and the year is set Here, the last right-hand digit starts ashing, which
allows to select the day of the week. Set the correct day from 7 days a week according to Monday
as 1, and so forth, then press the SET buon. Aer the date seng is nished, the hour seng
starts to ash and by seng the hour with the Up / Down keys. Press the SET buon and the
minutes start ashing. Aer seng the minutes, our date seng has been nished.
Press the SET buon once to enter the language selecon menu and select the desired language
and press the SET buon.
Working Time
P.1 = 0003:25
Date Sengs
Date = 27.04.2014 7
Hour = 18:15
Language Selecon
Türkçe
English
We reserve the right to make changes in technical informaon. 10

11 We reserve the right to make changes in technical informaon.
CONNECTION DIAGRAM

PLATE HEAT EXCHANGERS
STORAGE WATER HEATERS WITH INDIRECT PIPE COIL
ELECTRIC STORAGE WATER HEATERS
DOMESTIC HOT WATER STORAGE TANKS
PACKAGE TYPE DOMESTIC HOT WATER SYSTEMS
BUFFER TANKS
EXPANSION TANKS
DEAERATORS – DIRT SEPERATORS
HYDROLIC SEPERATORS
The great white heron can stand for a long me in the cold water as it can perform
an eecve heat exchange between the blood coming from the heart at 40°C and
the blood returning from the feet at 1°C.
