Taramp's T 0302 User manual

The installation of this product must be made by a qualified professional.
CAR SOUND MIXER
MULTICOLOR

01
Index
Term of warranty
Technical assistance
Phones: [phone] / [phone]
For international support, check on our website:
E-mail: [email protected]
www.taramps.com.br/en/rede-de-assistencias-tecnicas or contact direct the factory support:
•Warranty card is not properly filled or torn;
•Defects caused by accessories, modifications or features attached to the product;
•Costs involving uninstallation, reinstallation of equipment as well as shipment to the factory;
•Damaged products by improper installation, water infiltration, violation by unauthorized individuals;
TARAMPS, located on Abilio Daguano Street 274, Res. Manoel Martins – Alfredo Marcondes, SP - Brazil,
ZIP CODE 19180-000, guarantees this product against any defects on terms of project, making,
assembling, and/or with solidarity, due to project vices which cause it improper or inadequate to its
original use within 12 months from the date of purchase. In case of defect during the warranty period,
TARAMPS responsibility is limited to the repairing or substitution of the device of its own making.
This warranty excludes:
•The product with damage from falling, bumps or nature related problems (flooding, lightning, etc.);
•Cases in which the product is not used in adequate conditions;
•Damage of any kind, due to problems in the product, as well as losses caused by discontinued use of the
product.
•Tamper or torn warranty seal;
04 • Product Overview
• Controls
• Outputs
• Inputs
03 • Presentation
• Important recommendations
06 • Functions
05 • Connections
01 • Term of Warranty
• Technical assistance
• Safety
• Safety requirements
02 • Introduction
09 • Audio effects table
• Connection examples - 2
11 • Installation
12 • Installation
13 • Technical features
• Standby effects table
10• Installation
• On/Off
• Player control
08 • RGB effects
• Long distance control
• Power and activation
07 • Functions
• Connection examples - 1

02
Safety requirements
Introduction
Taramps reserves the right to modify the contents of this document at any time without prior notice and
does not have the obligation to apply the changes in units which were previously produced.
- Avoid running wires over or through sharp edges. Use rubber or plastic grommets to protect
any wires routed through car's body.
- The installation of this product must be done by a qualified professional.
- Never install the product in places exposed to dust, humidity and water. Pay attention to
install it far from fuel tank, fuel lines, heat sources and other parts of vehicle.
To ensure proper use, please read through this manual before using the car sound mixer. It is
specially important that you know the CAUTIONS contained here.
- Use the correct tools for installing this product.
- This product is for use with 12V batteries. Always check the voltage before installing.
- Be sure to install protection fuse or a circuit braker near to battery. Follow the ampere rating
as indicated here in this manual. Use of improper fuse or circuit breaker could result in
overheat, smoke, damage to product, injury or burns.
- Automotive sound systems may produce high sound pressure levels. Avoid continuous
exposure to levels over 85dB to prevent permanent hearing loss.
As you read this manual, pay attention to the safety symbols.
Safety
This symbol with “CAUTION” is intended to alert the user to the presence of
important instructions. Failure to heed the instructions will result in risk of injury
to user or product damage.
CAUTION
Read this manual before installing the product. In case of questions contact our technical
support: [phone] or www.taramps.com.br.
At the end of its lifespan, this product must not be disposed of in household waste.
Look for an electronic equipment collection or recycling center for proper disposal.
Declaration of Conformity
Hereby, Taramps Electronics Ltda declares that the product
T 0302 PLAYER MULTICOLOR complies with the Directive
2014/30/EU, according with the following harmonized
standard:
-EN 50498:2010
The full text of the EU Declaration of Conformity is available at
the Product Page on Internet.
TARAMPS ELECTRONICS LTDA
Alfredo Marcondes - SP
Brazil
Electromagnetic compatibility (EMC) -
Product family standard for aftermarket
electronic equipment in vehicles

- 4 EQ controls HIGH, MID HIGH. MID LOW and LOW with ±15dB boost/attenuation.
- Gain for adjusting the input signal level.
The 2 outputs have great amplitude and can deliver up to +18dBu or 6.3Vac of distortion-free
signal.
- Level for output control.
All 3 inputs have independent controls for:
The Player accepts USB DRIVE up to 64GB size, containing MP3 and WMA audio les until
320Kbps bit rate (high quality). Its Bluetooth has the 4.0 version and operates under
SBC/A2DP protocol.
It has a 4-band equalizer that allows you to increase or decrease specic ranges of bass, mid-
bass, mid-high and treble, allowing professional control in any situation. Its outputs with
timed MUTE avoid undesirable noises (Pops) when turned on or off, dispensing with the
sequencing of activations, facilitating installation.
CHANNELS 2 and 3 feature shared L+R type RCA inputs with an RTS connector for greater
connection exibility.
With a total of 72 variable lighting effects, causing a different visual effect for the user. See
pages 08 and 09.
The mixer was designed for sound systems allowing the T 0302 PLAYER MULTICOLOR
mixing of several types of audio signals with high delity, ensuring the original dynamics of
the sound. It has a convenient MP3/WMA player, Bluetooth and FM built-in with long range
remote control.
The T 0302 FX MULTICOLOR features 3 input channels, CHANNEL 1 is balanced with two
shared connections, one XLR and one RTS. This is a high-sensitivity, wide-gain input, which
allows the use of a Microphone or LINE IN.
The sound mixer must be fixed in an easily accessible and
ventilated place. It is not recommended to install the
product on the sides of speakers, as vibrations can
damage their internal components.
In order to avoid noise captation, use good quality
shielded signal cables and connectors.
2 - Borne on the battery negative.
As protection, a fuse must be installed close to the positive
pole of the battery (2A fuse). check for more details on
pag. 16 of this manual. For the REMOTE connection, use
0.5 mm² wire.
1- Borne on the battery positive
Use the P4 adapter with terminal that comes with the
product to connect the power wires to the vehicle's 12V
battery. Use 1.5mm² gauge wires for both the positive and
negative wires. Screw the wires according to the following
instruction:

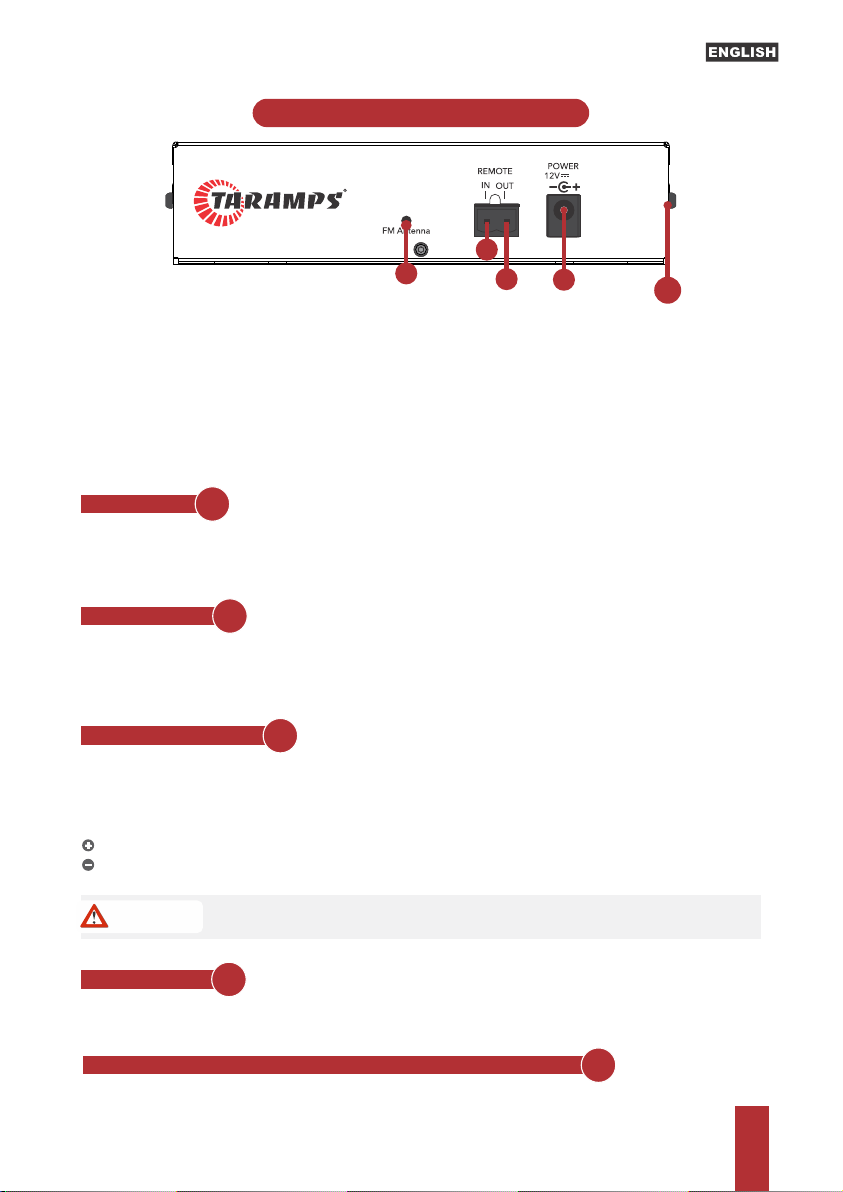

Presentation
Important recommendations
it is recommended to install a 2 Amperes fuse on the positive supply terminal.
Check power polarity and recommended gauge.
CAUTION
03
RGB EFFECTS
► USB
SD MP3
MHz
88 88
:

04
On this page you have an overview of the T 0302 PLAYER MULTICOLOR sound mixer, you will better
understand the commands on the next page. To be able to use all the product commands, carefully read
all the commands below.
Install the mixer in an easily accessible place and, if fixing is necessary, use the 4 screwing holes to avoid
possible vibrations.
Product overview
Long Range
Antenna
1A
RGB EFFECTS
► USB
SD MP3
MHz
88 88
:
Screwing holes
Screwing holes

05
Connections
OUT - Outputs
It features an RCA connector in parallel with a connector for TRS. This output mixes all input
signals, including L and R.
This output features a phase inversion button and independent level control, but it also
responds to the MAIN LEVEL control.
AUX OUT
MAIN OUT
This output mixes all input channels, including R and L.
It features an RCA connector in parallel with a connector for TRS.
Unbalanced inputs Inputs for RCA or (TRS 1/4”) connector. They allow you to receive signals
from several types of sound gear such as CD/DVD/MP3-player, audio processors, etc... ... The
LINE 6 input shares the same controls as the built-in PLAYER, with the signals being
downmixed on the input.h high level outputs.
1
LINE
MIC / LINE 1
32
Balanced inputs for XLR (Canon) and TRS connectors. ATTENTION: these inputs DO NOT
HAVE PHANTON POWER.
IN - Inputs
Input for USB Drive: USB input for USB DRIVE connection. This input accepts Mp3 and WMA
files up to 320Kbps (high quality).
USB
Audio output for headphones. Use headphones with P10 standard. This output only plays
audio from the built-in PLAYER in stereo.
It is not possible to listen to channels 1, 2, and 3 through this output.
HEADPHONES

06

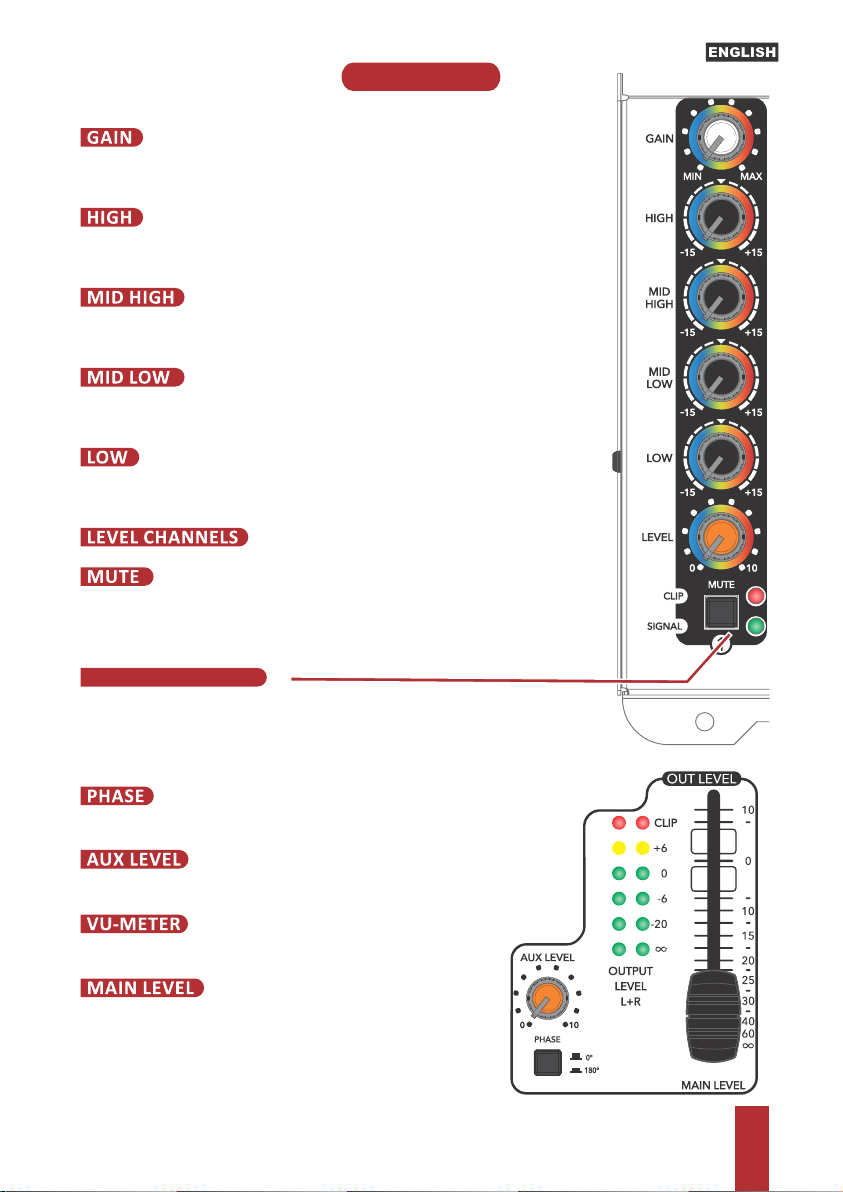

Functions Controls
Adjusts the input signal level. It must be used in case of input
saturation, signaled by the CLIP LEDs.
Increases or reduces treble by up to ±15dB
Increases or reduces mid-high by up to ±15dB
Increases or reduces mid-low by up to ±15dB
Increases or reduces Low by up to ±15dB
Adjusts the audio level of the channel (channel 1,
2 or 3) that will be mixed at the outputs.
Mutes the channel mixing at the outputs. It is useful for quick channel
cutting without changing the gain settings. When activated, the red CLIP
LED will light regardless of the input signal level.
Green LED indicates that the channel is receiving signal at its input.
Red LED shows channel input saturation or MUTE button pressed.
LED INDICATORS
Indicates the level of the output signal.
Controls the signal level at the outputs.
Inverts the signal phase of the AUX OUT channel by 180°
Adjusts the audio output level at AUX OUT

07
PLAYER
FM - MP3 - BLUETOOTH
VOL.
MODE
LONG
RANGE
► USB
SD MP3
MHz
88 88
:

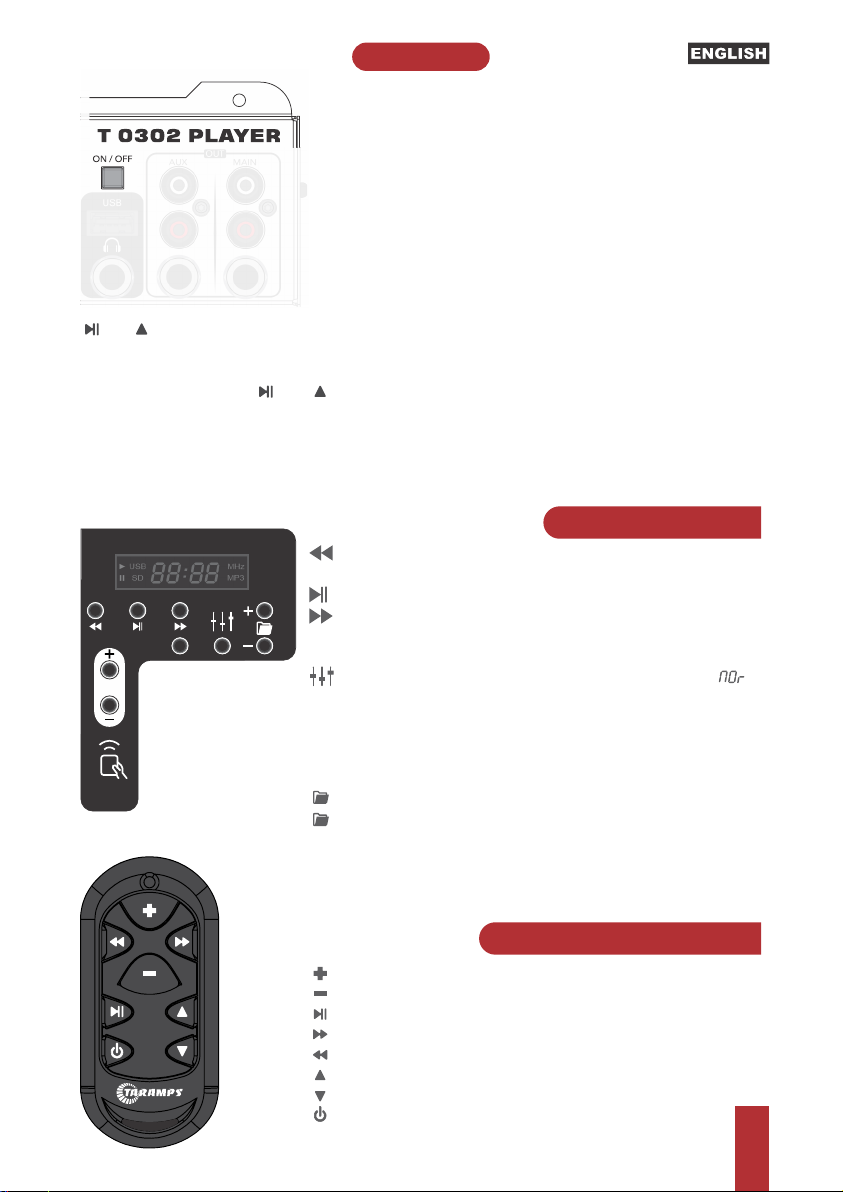

On / Off
Functions
Player control
stops/continues playback of the current track.
back to the previous folder.
increases the volume of the player.
Long press: Turn off the device.
skips to the previous track.
skips to the next track.
advances to the next folder.
Short press: turns on the device / changes PLAYER function.
reduces the volume of the player.
___skips to the next track. Long press, skips forward in the
currently playing track.
Long press: Turns off only the player, leaving other functions
active.
Vol-: Decreases the volume of the player.
Folder+: Advances to the next folder.
EQ.: Changes the preset equalization. It has 5 modes, is
equal FLAT or NATURAL equalization.
Vol+: Increases the player's volume.
___ goes back to the beginning of the track. Double tap, skip to
prev iou s tr ack . Lo ng p ress, re winds playi ng t rack .
___stops/continues playback of the current track.
Folder-: Goes back to the previous folder. The root directory is
usually the F001 folder.
MODE: Short press: Changes the playback function between
Bluetooth, USB and FM.
Long range control
4- On the long-distance control, press the synchronism keys
__ and simultaneously until the ON/OFF key goes off (check if the long-distance control is
compatible*).
All TLC3000 and Connect Control manufactured from 03/2014 to today's date are compatible with
Player tables.
* The T 0302 PLAYER MULTICOLOR only works with a TARAMPS long-distance control operating at a
frequency of 433.5MHz, FSK modulation with its own encryption.
5- If it doesn't go off, bring the long-distance control closer to the T 0302 PLAYER MULTICOLOR with
the synchronization keys and pressed until the synchronization is done and the ON/OFF key
goes off.
To sync a new remote, follow the instructions:
1- Make sure the T 0302 PLAYER MULTICOLOR is working.
2- With the T 0302 PLAYER MULTICOLOR OFF, press and hold the
ON/OFF key for 10 seconds.
3- The key will alternately flash blue and red, indicating the
synchronization mode between the mixer and the long-distance
remote control.
ON/OFF: Turns the T 0302 PLAYER MULTICOLOR on or off. When
the mixer is on, this key lights up in blue. This key is also used to
synchronize the long-distance remote control, allowing the use
of up to 3 controls simultaneously.

vertical back and forth with white background and dots alternating colors
vertical fill in red
turns off all RGB effect LEDs
changes the automatic effect randomly
rainbow effect with wave animation
horizontal lines falling and accumulating, changes colors automatically
fixed color: orange
fixed color: faint white
blue background with white pimball animation
palette per function: white gain / eq. green / eco red / level orange
fixed color: cyan
fixed color: yellow
fixed color: red
red background with white pimball animation
rainbow background with pimball (arcade) animation in white
fixed color: green
fixed color: medium white
matrix effect
palette per function: white gain / eq. blue / eco red / level orange
strobe effect in white
purple background with white pimball animation
green background with white pimball animation
palette per function: red gain / eq. purple / eco green / level blue
yellow background with white pimball animation
giroflex effect
fixed color: blue
fixed color: pink
fixed color: pink + red
fixed color: strong white
palette per function: white gain / eq. purple / eco green / level orange
cyan background with white pimball animation
fixed color: green + cyan
fixed color: purple
palette per function: white gain / eq. cyan / eco red / level orange
The T 0302 PLAYER MULTICOLOR sound mixer has several lighting effects that can be chosen by
the user. There are two operating modes that alternate depending on the state of the table:
STANDBY MODE: activated when there is no audio output for 10 seconds. At this moment, the RGB
EFFECTS button will set the lighting effect to standby mode.
AUDIO MODE: activated when there is an audio signal output from the table. At this
moment, the RGB EFFECTS button will configure the lighting effect for audio mode.
NOTE: VU-METER effects are only available in AUDIO MODE. This effect works with the
output audio level and serves only as a lighting effect. For greater output level accuracy, use the LED
VU-METER next to MAIN LEVEL.
RGB EFFECTS
STANDBY EFFECTS TABLE
08
0
6
8
14
9
17
19
2
10
27
29
1
4
11
3
5
7
12
13
15
16
18
20
21
22
23
24
25
26
28
30
32
33
31

green background with white pimball animation
yellow background with white pimball animation
cyan background with white pimball animation
red background with white pimball animation
purple background with pimball (arcade) animation in white
rainbow background with pimball (arcade) animation in white
blue background with white pimball animation
vu-meter: green background, scale from green to red
turns off all RGB effect LEDs
VU-meter: purple background, green/yellow/red scale.
muda o efeito automático aleatoriamente
vu-meter: green background, scale from blue to green
vu-meter: white background, range from green to purple
vu-meter: blue background, scale from blue to red
vu-meter: green background, scale from green to red
rainbow effects with wave animation
vertical back and forth with white background and dots alternating colors.
vertical fill in red.
giroflex effect
strobe effect in white
efeito matrix
fixed color: orange
fixed color: green
fixed color: green + cyan
fixed color: cyan
fixed color: blue
fixed color: red
fixed color: yellow
horizontal lines falling and accumulating, changes colors automatically.
fixed color: faint white
fixed color: purple
fixed color: medium white
palette per function: white gain / eq. cyan / eco red / level orange
fixed color: pink + red
palette per function: red gain / eq. purple / eco green / level blue
fixed color: strong white
palette per function: white gain / eq. blue / eco red / level orange
fixed color: pink
palette per function: white gain / eq. purple / eco green / level orange
palette per function: white gain / eq. green / eco red / level orange
AUDIO EFFECTS TABLE
1
2
3
4
5
6
0
7
8
10
9
11
12
15
16
13
17
18
19
14
37
25
23
26
29
27
34
35
32
31
28
30
39
24
20
36
21
22
33
38
09

Power and activation
Installation
The T 0302 PLAYER MULTICOLOR was designed to be used in car audio systems with a 12V battery, but it
can also be used with an external 12V plug adapter with a current of at least 2A, which must be purchased
separately (in this case, the consumer should pay attention to the adapter plug that should be standard
P4-2mm) . It has an ON/OFF button that eliminates the REMOTE IN connections.
The REMOTE OUT connection can be used for powering amplifiers and is timed to minimize transients
when turning the system on and off.
It can automatically turn on and off by remote activation using the REMOTE IN connection. To do so, keep
the ON/OFF key off (unpressed).
Connection that turns on or off automatically from a remote cable from a CD/DVD player. Use 0.5 mm²
cable.
Note: if the ON/OFF button is pressed, the device will not turn off by remote activation.
REMOTE IN 01
Output for activating other devices. It can be used to turn on amplifiers or other equipment as long as
they have a remote input. This output is current limited and not suitable for currents greater than 100mA.
Use 0.5 mm² or higher gauge cables.
REMOTE OUT 02
Standard P4 /12V 2mm power connector. Use the TERMINAL/P4 adapter that comes with the product or a
12V adapter source (adapter source doens't come with the product).
Use a 0.75mm² cable for the connections and use a 2A fuse on the positive wire as close as possible to
the battery, following the marking on the TERMINAL/P4 adapter:
to the battery's 12V positive terminal.
to the battery’s negative terminal
12V POWER SUPPLY 03
it is recommended to install a 2 Amperes fuse on the positive supply terminal.
Check power polarity and recommended gauge.
CAUTION
Long Range
Antenna
1A
01
02 03
04 05
Indoor wire antenna for FM radio reception. Position the wire antenna in order to achieve the
best FM reception.
FM ANTENNA 04
Keep the antenna taut for better reception. Do not cut or connect to earth or power supply as this may
damage the device.
ANTENA DO CONTROLE REMOTO DE LONGA DISTÂNCIA 05
10

RGB EFFECTS
► USB
SD MP3
MHz
88 88
:
Microphone

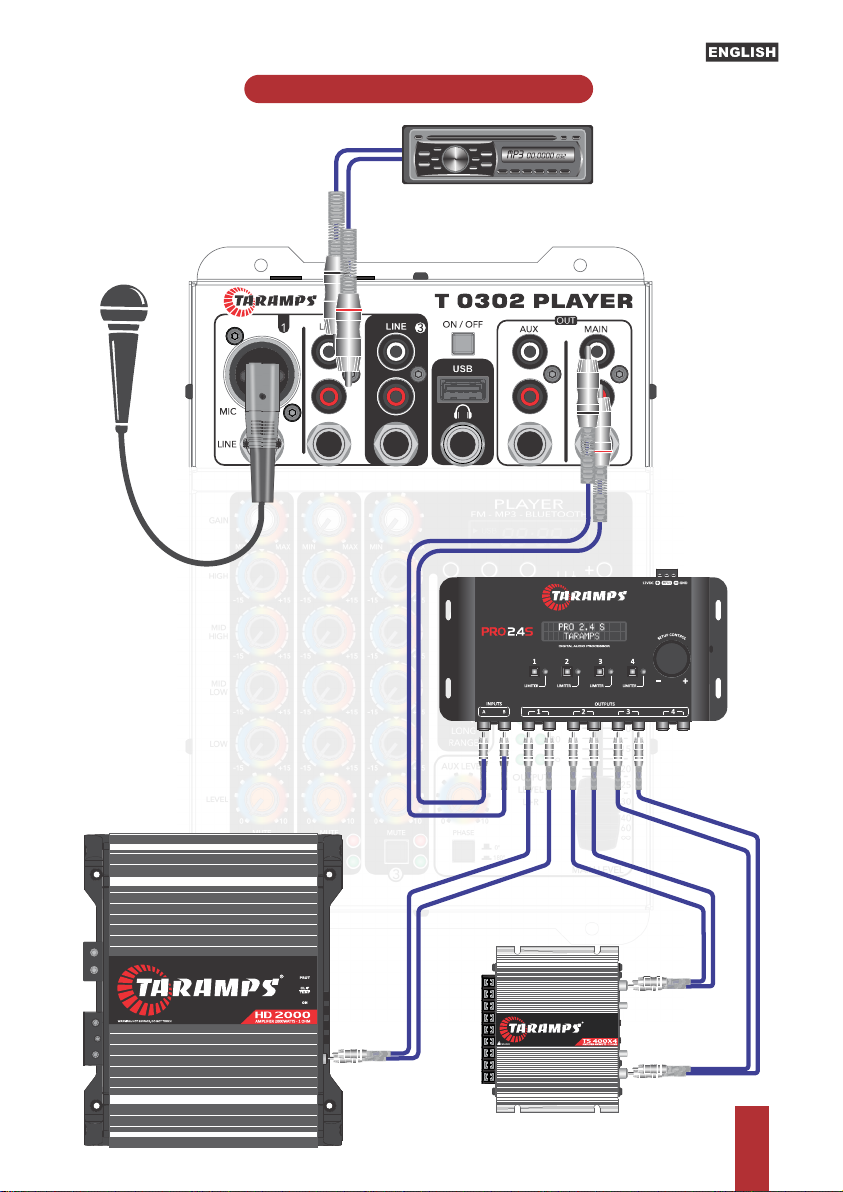

Connection examples - 1
Installation
Amplifier 1
Amplifier 2
Acessory
Illustrative Images
Head unit
11

RGB EFFECTS
► USB
SD MP3
MHz
88 88
:
Microphone
Connection examples - 2
Installation
Sound system 1Sound system 1
Illustrative Images
Head unit
12

Audio format:
Channels 2/3 input sensitivity:
Maximum bitrate:
Max outputs level:
Dimensions (WxHxD):
Bluetooth version:
Channel 1and 2 input sensitivity:
4 EQ bands per channel:
Channel 1 input impedance:
Output impedance:
Frequency Response (-3dB):
Signal to Noise Ratio (SNR):
FM:
Channels 2/3 input impedance:
Remote Control:
Total Harmonic Distortion:
Max Consumption*:
EQ mode:
Remote Input (REM Connector):
Remote Output (REM Connector):
Weight:
Power Voltage (POWER):
4.0 SBC / A2DP
2Hz ~ 76Khz
Line (TRS) Min: 620mV ~ Max 7.6mV
Mic (XLR): Unbalanced 4K Ohms
Mid High ±15dB (2.5KHz)
<0,009% (T.H.D.)
Line (TRS/RCA) Min: 2.55V ~ Max: 60mV
Balanced 8K Ohms
Mic (XLR) Min: 500mV ~ Max 7mV
Mid Low ±15dB (300Hz)
Low ±15dB (80Hz)
112dB
High ±15dB (12KHz)
Line (TRS): Unbalanced 8.5K Ohms
Balanced 17K Ohms
Line (TRS): unbalanced 10K Ohms
Line (RCA): unbalanced 10K Ohms
MP3 / WMA
320Kbps
87.5MHz to 108MHz
POP, ROCK, JAZZ, COUNTRY, FLAT
433.5MHz 10dBm
Main Out (P10/RCA): 47R
Aux Out (P10/RCA): 47R
Main Out (P10/RCA): 18 dBu/6.3Vac
Aux Out (P10/RCA): 18 dBu/6.3Vac
9 ~ 16 Vdc
1A
9 ~ 16 Vdc
148 x 42 x 220mm (5.83"x1.65"x8.66")
0.76Kg (1.67lb)
100 mA
Technical features
Taramps reserves the right to modify the content of this manual without prior notice and
without any obligation to apply the modications to previously produced units. 13
* The consumption of the T 0302 PLAYER MULTICOLOR may vary according to the effect used.

MN_019965_R00
Manufactured by:
TARAMPS ELECTRONICS LTDA
TAX ID: 11.273.485/0001-03
Street: João Silvério, 121 • Res. Manoel Martins
Alfredo Marcondes - SP
Made in Brazil
