TC Electronic NOVA Drive NDR-I User manual

NOVA Drive
NDR-1
USER’S MANUAL

INTRODUCTION
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
SETUP EXAMPLES
NOVA Drive & Amp . . . . . . . . . . . . . . . . . . . . . . . . . .6
NOVA Drive & G-System . . . . . . . . . . . . . . . . . . . . . .7
NOVA Drive & G-Switch . . . . . . . . . . . . . . . . . . . . . . .8
NOVA Drive in a MIDI Setup . . . . . . . . . . . . . . . . . . .9
OPERATION
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Switches and Knobs . . . . . . . . . . . . . . . . . . . . . . . . .11
NOVA Drive and G-Switch . . . . . . . . . . . . . . . . . . . .16
TABLE OF CONTENTS
3
EN
MISCELLANEOUS
Setting the MIDI Channel of NOVA Drive . . . . . . . .18
Bypass Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Preset and Banks . . . . . . . . . . . . . . . . . . . . . . . . . . .19
NOVA Drive and G-System . . . . . . . . . . . . . . . . . . .21
NOVA Drive in a MIDI Setup . . . . . . . . . . . . . . . . . .22
MIDI Controllable Parameters . . . . . . . . . . . . . . . . .23
APPENDIX
Technical Specifications . . . . . . . . . . . . . . . . . . . . . .24
Additional Information . . . . . . . . . . . . . . . . . . . . . . .25
TC Electronic, Sindalsvej 34, DK-8240 Risskov – [email protected] Manual revision 1.0 – SW – V 1.0
Prod. No: E60510711
English Version

4
Introduction
Guitarists everywhere – start your engines, because
your tone is about to take a new turn! Introducing
NOVA Drive, TC Electronic’s new dual engine, digitally
controllable, true bypass overdrive/distortion pedal,
featuring the awesome analogue drive circuit ported
from the acclaimed TC NOVA System.
NOVA Drive brings you the great sounding analog
circuits from NOVA System, with all the digital control
that modern guitarists demand. The result: a classic
“old-school” sound that will send shivers down your
spine and paint a wide grin on your face at every riff,
lick and face-melter, along with digital control options
that enable you to integrate NOVA Drive into your set-
up and tailor the sound with total precision, giving you
more control, more confidence, and ultimately a better
performance. Finally, you have a platform to create,
store and recall all the distorted and overdriven sounds
you could ever need: NOVA Drive.
Features
Programmable All-analog Drive Circuit
Most guitar players know that analog circuits sound far
superior to digital ones – but the control options that
the digital domain brings are just too convenient to
ignore. NOVA Drive brings you the best of both worlds.
True Bypass
The true bypass design of NOVA Drive makes sure the
pedal won’t mess with your tone when you don’t want
it to. You can also select a high-quality buffered
bypass.
Extensive Routing Options
The extensive routing options of NOVA Drive allow for
a wide tonal palette – and a chance to let your aural
imagination run wild! Route the guitar signal through
the engines in any desired order. And even when the
results should be unexpected, they will always sound
great and enhance your music.
INTRODUCTION

INTRODUCTION
5
EN
Programmable Control
From stomp box to bank mode to full MIDI control:
NOVA Drive ensures that you can program, store and
recall your favorite sounds quickly and without effort.
Integration with G-System
Connect NOVA Drive with G-System and get real-time
control of NOVA Drive’s parameters directly from
G-System.

6
SETUP EXAMPLE: NOVA DRIVE & AMP
This is a basic setup with a NOVA Drive
and a combo.
• Connect your guitar to NOVA Drive’s
input.
• Connect NOVA Drive’s output to the
guitar amp’s input.
• Set the routing and the switch mode.
• Adjust levels.
Read on to explore other configurations and
their advantages.

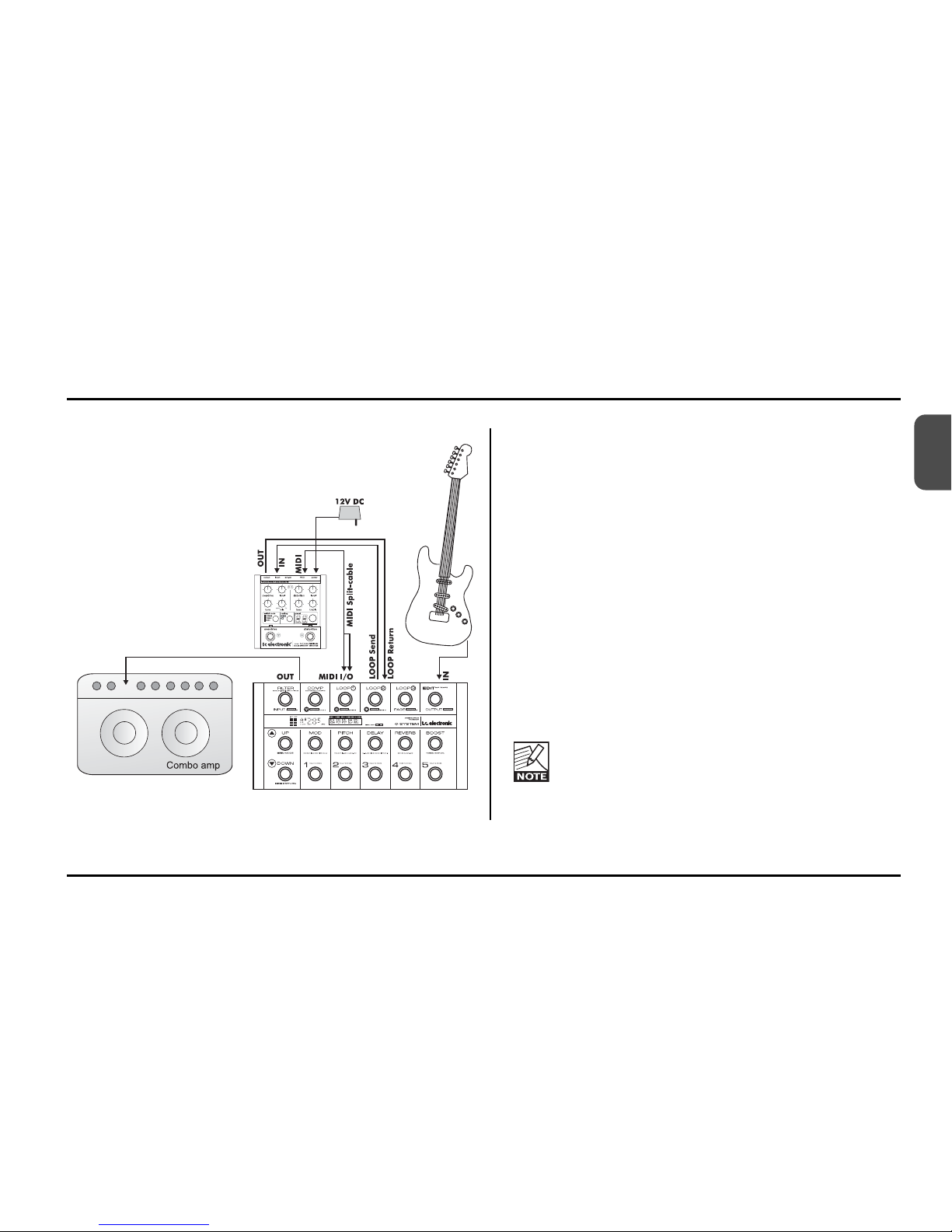

SETUP EXAMPLE: NOVA DRIVE & G-SYSTEM
7
EN
Combine NOVA Drive with a TC Electronic G-
System. The seamless integration of both units
provides you with new sonic possibilities.
• Start by making all connections according to the
illustration.
Please note that this setup requires an optional
MIDI split cable from TC Electronic.
• NOVA Drive appears in G-System’s menu.
You can now change NOVA Drive’s parameters
directly from G-System.
• Press G-System’s EDIT button and use the PAGE
encoder to select NOVA Drive parameters.
• When you store a preset on a G-System connected
to a NOVA Drive, the current NOVA Drive settings
are automatically stored as well.
NOVA Drive presets and settings are always
stored in NOVA Drive.
For further instructions on setting up G-System, please refer to the G-
System manual.

SETUP EXAMPLE: NOVA DRIVE & G-SWITCH
8
Expanding NOVA Drive with a G-Switch
By connecting the optional G-Switch from TC
Electronic to the EXT. SW. input on NOVA Drive,
you extend the pedal with three switches.
• Use a TRS/TRS (stereo-jack) cable to connect
G-Switch to NOVA Drive’s EXT. SW. input.
As soon as it is connected, NOVA Drive detects G-
Switch, and you can use it in the various switch
modes as described in the chapter “NOVA Drive
and G-Switch”.
Example:
With G-Switch connected and Bank Mode active,
you can select banks A to F using the UP/DOWN
switches on NOVA Drive. You can then choose
one of the three presets in that bank using G-
Switch.

9
EN

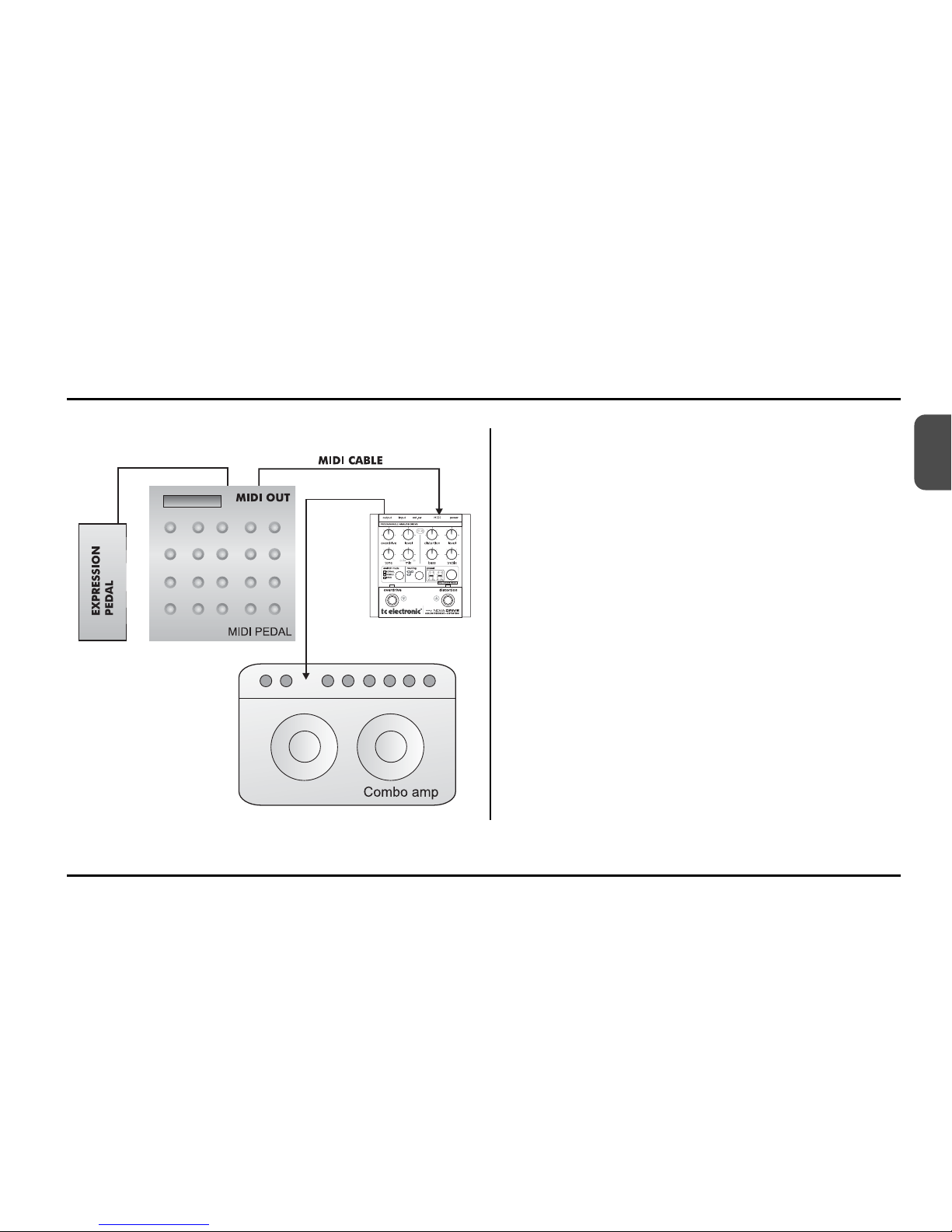

SETUP EXAMPLE: NOVA DRIVE IN A MIDI SETUP
This is a simple MIDI setup, showing how NOVA
Drive perfectly integrates in setups where a MIDI
pedal is used as main controller. An expression
pedal is connected to the MIDI pedal and can be
used to control NOVA Drive’s various parameters.

10

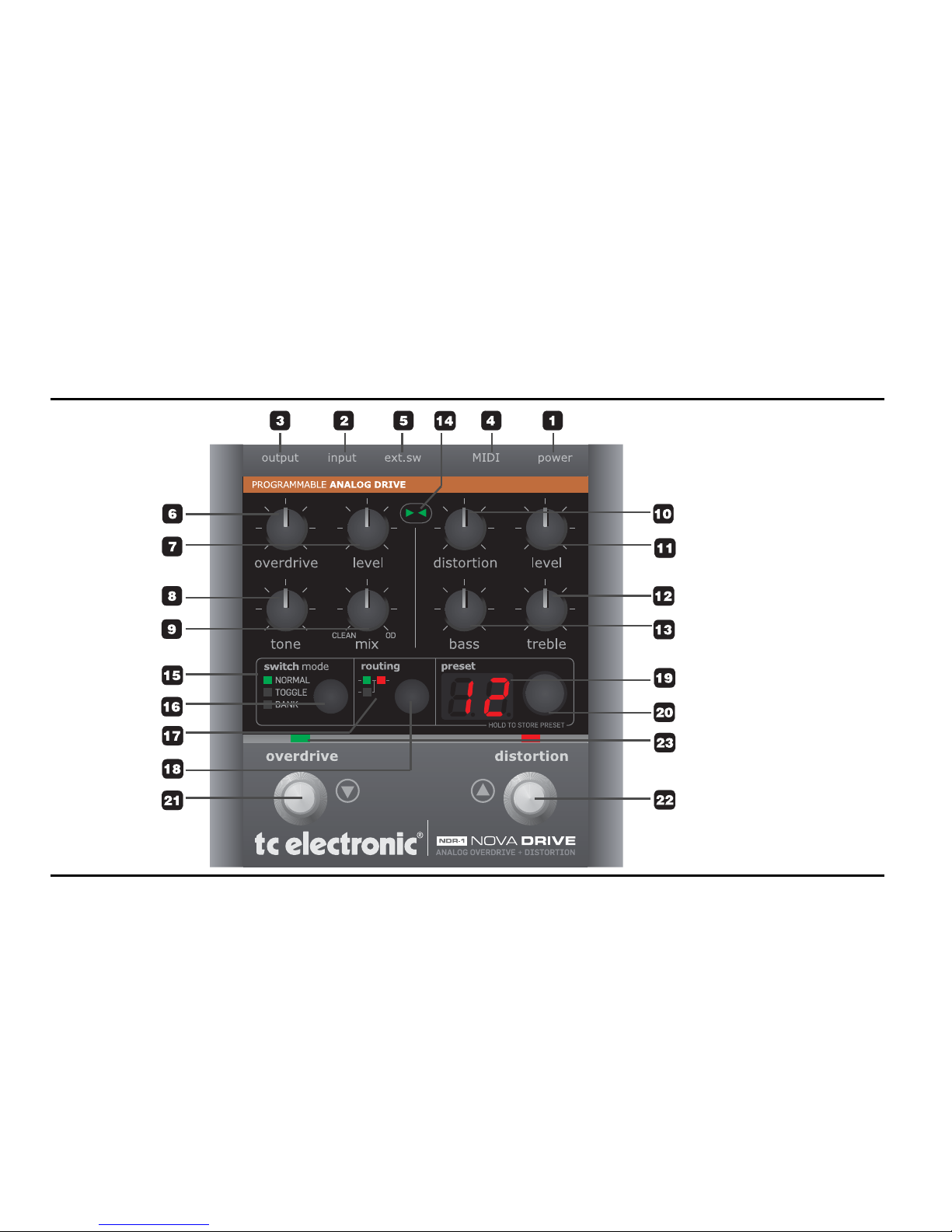

OVERVIEW

11
EN
Connections
1 - Power
NOVA Drive requires 12V DC / 300 mA. Use the power
supply provided in the product box or a power supply
with identical specifications.
2 - Input
1/4" mono jack connector for signal input.
3 - Output
1/4" mono jack connector for signal output.
4 - MIDI
MIDI in/out on a single 5-pin DIN jack for external
control, e.g. from TC’s G-System.
5 - External Switch
For extended control using G-Switch by TC Electronic.
Please read the manual chapter “NOVA Drive & G-
Switch” for further information.
Switches and Knobs
6 – OVERDRIVE Knob
This knob controls the amount of overdrive for the
overdrive section.
7 – LEVEL Knob
Use this knob to control the level of NOVA Drive’s
overdrive section.
8 – TONE Knob
Use this knob to shape the overdrive section’s tone.
Turn the TONE knob to the left for a darker sound and
to the right for a brighter sound.
9 – MIX Knob
With this knob, you can set a mix between the clean
signal and the processed (“driven”) signal. When set
correctly, this will sound as if you played over both a
clean amp and a drive amp simultaneously – a trick
often used in studio recordings for more punch and
transparency. We find it works best with single-coil
pickups for blues/rock.
OPERATION

10 – DISTORTION Knob
This knob controls the amount of distortion applied in
the distortion section of NOVA Drive.
11 – LEVEL Knob
Use this knob to control the level of NOVA Drive’s
distortion section.
12 – TREBLE Knob
This knob controls the high-end frequencies for the
distortion section. Turn it clockwise to increase treble
and counterclockwise to reduce it.
13 – BASS Knob
This knob controls the low-end frequencies for the
distortion section. Turn it clockwise to increase bass
and counterclockwise to reduce.
14 – >< LED Arrows
NOVA Drive is 100% analog, but the sound circuits are
digitally controlled. When you switch to a new preset,
the recalled values are most likely not the same as the
values represented by the current knob positions.
As soon as you start turning a knob, one of the “><”
arrow LEDs will indicate which way this knob should be
turned to locate the position corresponding to the
current value. The closer you are to the correct
position, the faster the arrow LEDs will blink.
When the knob is in the position that matches the
stored value, both arrow LEDs will be lit for a short
while.
15/16 – SWITCH MODE Button and LEDs
The two big foot switches on NOVA Drive can operate
in three different modes. Press the SWITCH MODE
button to alternate between these modes. The LEDs to
the left of the button indicate whether you are in
Normal, Toggle or Bank Mode.
Normal Mode
In this mode, the two sections of NOVA Drive operate
like two completely separate pedals that are connected

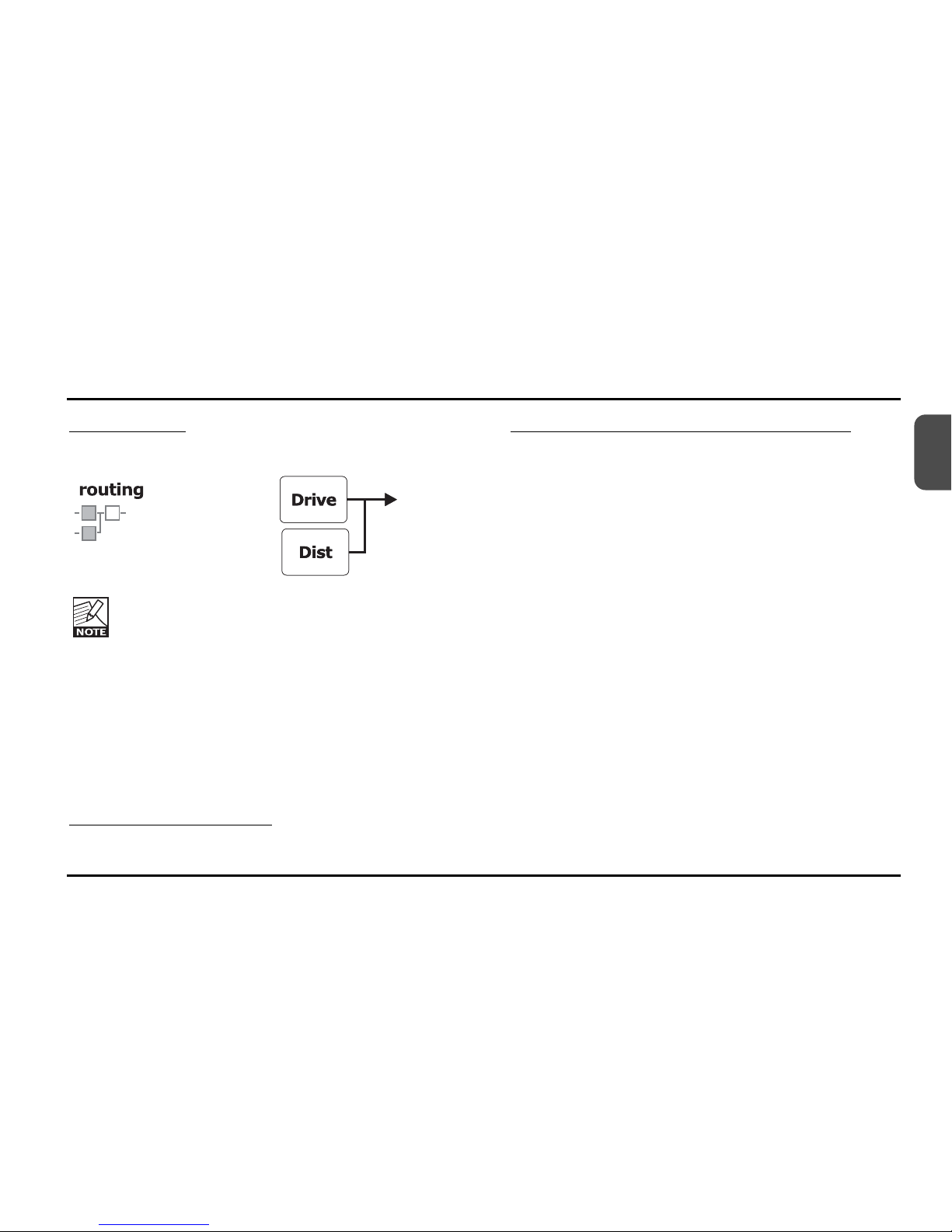

according to the selected routing. Please refer to the
section “ROUTING Mode Button and LEDs” on page
14 for further information on routings.
Press the OVERDRIVE and DISTORTION switches to
12
OPERATION

13
EN
turn the respective section on or off.
Yes, both sections can be active at the same time! This
is excellent if you e.g. use a medium distortion setting
for rhythm parts and – on top of that – want to kick in
the overdrive section to drive the distortion input even
further for sparkling leads.
Toggle Mode
This is the mode to select if you know that you don’t
want to use both sections of NOVA Drive at the same
time. It allows you to toggle between the two sections
(overdrive and distortion) by tapping the OVERDRIVE
or the DISTORTION switch.
Example:
• You start with NOVA Drive in Bypass Mode.
• Press the DISTORTION switch to activate
distortion.
• Press the OVERDRIVE switch. The distortion
effect is switched off, and the overdrive effect is
activated.
• To bypass NOVA Drive completely, press the
switch corresponding to the currently active effect.
Bank Mode (with no G-Switch connected)
In Bank Mode, you can use NOVA Drive’s PRESET
encoder to select one of 9 banks (A to I), with each
bank holing two presets. In this mode, you use the
OVERDRIVE and DISTORTION switches to switch
between presets 1 and 2 within each bank.
Example:
• Select bank “A” using the PRESET encoder.
• Press the OVERDRIVE switch. You’ll see that the
display shows “A1”, meaning: Bank A, Preset #1
has been selected.
• Now press the DISTORTION switch. The display
will show “A2” for Bank A, Preset #2.
• To bypass NOVA Drive completely, press the
switch representing the currently selected preset –
in this example, switch #2 (the DISTORTION
switch).
• The display now shows ”A” – indicating that you
are still in bank A, but no preset is selected.
Manual Mode
Manual Mode is a 100% “What you see is what you
OPERATION

get” mode (WYSIWYG). In this mode, NOVA Drive can
be used just like two independent pedals, and the
positions of all knobs always represent the respective
values.
To access Manual Mode:
• Select Normal or Toggle Mode (as described on
the previous page).
• Turn the PRESET encoder counter-clockwise until
the display shows:
Manual Mode is a WYSIWYG mode – but of
course, you can still store the current settings in
any of the 18 preset locations following the
standard store procedure: Press and hold the
PRESET encoder to enter Store Mode, select a
preset location and press the encoder once
more to finalize the store procedure (see also
“20 – PRESET Encoder / Store Button” on the
following page).
14
OPERATION
17/18 – ROUTING Mode Button and LEDs
NOVA Drive allows you to choose between three
different signal routings. A routing defines how the
signal runs through the unit. To switch between
routings, press the ROUTING switch.
Serial Routing (a):
The signal is going through the overdrive section first
and then to the distortion section. This is ideal if you
e.g. use the overdrive section to push the distortion
section (as many guitar players do with a boost pedal).
Serial Routing (b):
The signal is going through the distortion section first
and then to the overdrive section.

15
EN
Parallel Routing:
The signal is processed in parallel by the two sections,
and they do not influence each other.
The selected routing is stored as part of each
preset.
19 – PRESET Number Display
NOVA Drive has 18 preset locations. The number of
the currently recalled preset is displayed in the 2x7-
segment display.
20 – PRESET Encoder / Store Button
This is a two-function button: Use it to select and store
presets.
To select and recall a preset: Simply turn the knob to
browse and select presets.
To store the current settings at a preset location:
First press and hold the encoder for two seconds to
activate the store function. If you just want to store the
preset at the current location, simply release the button
again. If you want to store the preset at a different
location, keep the encoder pressed and turn it to select
the new location, then release it.
21 – OVERDRIVE Switch
Use this switch either for switching NOVA Drive’s
overdrive section on/off (in Normal and Toggle Mode)
or for selecting the previous preset bank (in Bank
Mode).
22 – DISTORTION Switch
Use this switch either for switching NOVA Drive’s
distortion section on/off (in Normal and Toggle Mode)
or for selecting the next preset bank (in Bank Mode).
23 – STATUS LEDs
These LEDs indicate the status (on/off) for the two
sections of NOVA Drive.
OPERATION

16
By connecting the optional G-Switch from TC
Electronic to the EXT. SW. input on NOVA Drive, you
extend the pedal with three switches. As soon as it is
connected, NOVA Drive detects G-Switch, and you can
use it in the various switch modes as described below.
Please note that with a G-Switch connected, you have
simultaneous access to three presets. Therefore, in
this setup, the presets are not organized in nine banks
with two presets each, but rather in six preset banks
with three presets each. These banks are called A, B,
C, D, E, F. Accordingly, the second preset in Bank A is
displayed as A2.
Normal Mode
• Use the two switches on NOVA Drive as on/off
switches for overdrive and distortion.
• Use the three switches on G-Switch to select one
of the three presets in the currently selected preset
bank.
• Use the PRESET encoder to select the preset
bank covered by G-Switch (A1/A2/A3; B1/B2/B3;
C1/C2/C3 etc.)
Toggle Mode
• Use the two switches on NOVA Drive as toggles
for overdrive and distortion.
• Use the three switches on G-Switch to select one
of the three presets in the currently selected preset
bank.
• Use the PRESET encoder to select the preset
NOVA DRIVE & G-SWITCH

17
EN
NOVA DRIVE & G-SWITCH
bank covered by G-Switch (A1/A2/A3; B1/B2/B3;
C1/C2/C3 etc.)
Bank Mode
• Use the two switches on NOVA Drive to switch to
the previous or the next preset bank.
• Use the three switches on G-Switch to select one of
the three presets in the currently selected preset
bank.
Active or Bypassed
To activate one of the three presets in a bank, you
simply press one of the three switches. The NOVA
Drive display indicates the current bank and preset as
shown above.
To bypass NOVA Drive when G-Switch is used, simply
press the switch on G-Switch corresponding to the
currently used preset. This is the same as having three
regular drive pedals (per bank).
Example – Normal Mode:
• Set NOVA Drive to Normal Mode using the
SWITCH MODE button.
• Select a preset bank/range using the PRESET
encoder. E.g. select 1.
• Press switch 2 on G-Switch. The display now
indicates “2”, and ( provided that either distortion,
overdrive or both sections are active in this preset)
the OVERDRIVE and/or the DISTORTION LEDs
will be lit.
Preset # OD - active OD - inactive
• Now press switch 2 on G-Switch again. You’ll see
the section LED(s) turn off, as you have now
bypassed NOVA Drive.
Even when an effect section is bypassed, its
settings are stored as part of a preset.

18
MISCELLANEOUS
Setting the MIDI Channel
To set the MIDI channel on NOVA Drive:
• Press and hold the MODE switch for three
seconds.
Bypass Modes
As explained earlier, NOVA Drive is a true analog
design effect with digital parameter control. This allows
for selecting between two different bypass modes: Hard
Bypass Mode (“true bypass“) and Buffered Bypass
Mode. To select between these modes, press and hold
the ROUTING Mode button for three seconds. Once
the display shows “Hb” or “bb”, you can set the bypass
mode using the PRESET encoder.
Which Bypass Mode should you use?
Many sound aficionados discuss this topic with
religious fervor, and there is no definite answer. True
bypass equals removing the pedal from the board, so
in theory, this would be the natural choice, ensuring the
best signal quality. However, if no other component on
you pedal board buffers the signal and you use long
cables after the pedal board, you may experience a
significant loss of signal. This is even more likely when
you are using passive single coil pick-ups. The best
advice is to try out both bypass modes and let your
ears decide.
Depending on the equipment connected to NOVA
Drive, you may hear a click when switching NOVA
Drive in/out in True Bypass Mode.
Hard Bypass (Hb) – True Bypass
In the sought-after True Bypass
Mode, the input signal is going
directly to the output when in Bypass
Mode.This is the default setting for
NOVA Drive.
Buffered Bypass (bb)
In Buffered Bypass Mode, NOVA
Drive can drive long cables placed
after the pedal perfectly with no signal
loss.

19
EN
All in all, NOVA Drive holds 18 presets. Depending on which switch mode you have selected and whether
NOVA Drive is used in conjunction with a G-Switch or G-System, these 18 presets are organized and
controlled in the following way.
PRESETS & BANKS
SW 1 SW 2 ENCODER
NORMAL MODE OVERDRIVE
On/Off
DISTORTION
On/Off
PRESET SELECT
1-18
TOGGLE MODE Toggle to OVERDRIVE
or bypass
Toggle to DISTORTION
or bypass
PRESET SELECT
1-18
BANK MODE Preset 1 Bank A
3 Bank B
--
17 Bank I
Preset 2 Bank A
4 Bank B
--
18 Bank I
BANK SELECT
9 banks of two presets,
labeled A to I
NO G-SWITCH

PRESETS & BANKS
20
SW 1 SW 2 ENCODER G-SWITCH
NORMAL
MODE
OVERDRIVE
On/Off
DISTORTION
On/Off
PRESET RANGE
1-3, 4-6, 7-9, etc.
PRESET SELECT
1-3, 4-6, 7-9, etc.
TOGGLE
MODE
Toggle to
OVERDRIVE
Toggle to
DIST
PRESET RANGE
1-3, 4-6, 7-9, etc.
PRESET SELECT
1-3, 4-6, 7-9, etc.
BANK
MODE
BANK DOWN
6 banks of three
presets available.
A-F
BANK UP
6 banks of three
presets available.
A-F
BANK SELECT
6 banks of three
A to F
PRESET SELECT
1-3, 4-6, 7-9, etc.
WITH G-SWITCH
