Product Overview
The TDK RF Solutions TRI-150R tripod is designed
specifically for mounting antennas and video
cameras in EMC test environments. The tripod is
constructed of durable, non-conductive, commer-
cial grade fiberglass and plastic that provide the
necessary stability while allowing for portability.
The tripod mast easily adjusts from 100 cm to 150
cm in height, and supports equipment up to 45 kg.
The sturdy, fixed-length fiberglass legs feature
adjustable foot pads to accommodate uneven
floor surfaces. The legs fold inward for storage or
transportation between test sites.
The tripod also features an integrated level to
allow quick and accurate positioning.
The TRI-150R is available with a variety of antenna
and video camera mount adapters to meet your
requirements.
Application
Antenna or video camera mounting
Features
1/4 - 20 screw mount adapter (standard)
Supports up to 45 kg (100 lbs.)
Integrated level for accurate positioning
Custom antenna mount adapters available
Custom video camera mount adapters
available
The TDK RF Solutions TRI-150R Tripod is
specifically designed for EMC test environ-
ments and can support up to 45 kg.

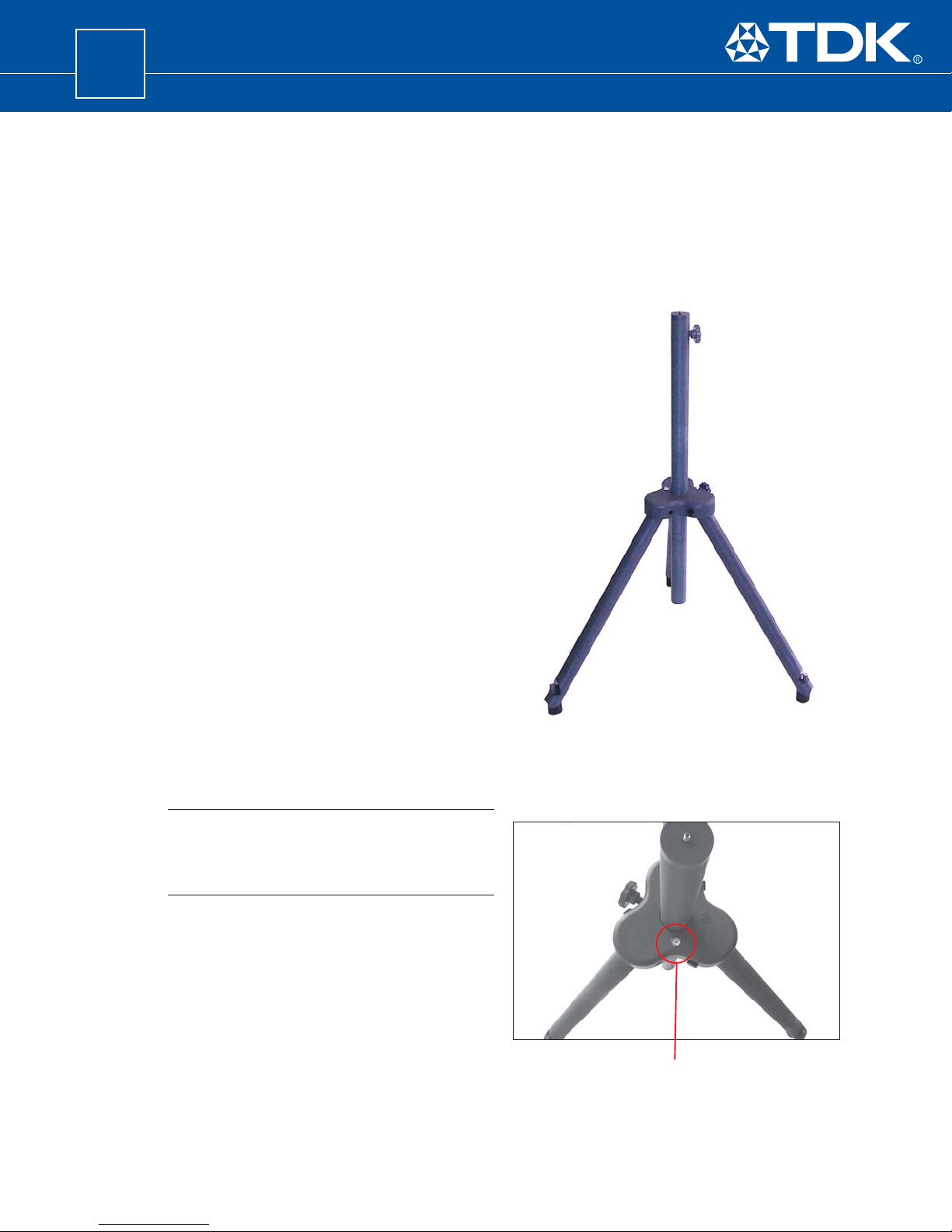

TRI-150R Adjustable Tripod
The TDK TRI-150R’s built-in level and indepen-
dently adjustable feet simplify positioning on
uneven surfaces.

P
PRODUCTS
To learn more about TDK RF Solutions’ wide range of innovative products and services visit www.tdkrfsolutions.com
©Copyright 2004 TDK RF Solutions Inc. All rights reserved. Specifications subject to change without notice.
Ordering Information
Product: Tripod
Model Number: TRI-150R
Warranty: 1 year
DSTRI150R072604
To place an order or to learn more about the
TDK RF Solutions products that best meet your
needs, contact your TDK sales representative:
TDK RF Solutions Inc.
1101 Cypress Creek Rd.
Cedar Park, Texas 78613 USA
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
World Wide Web: www.tdkrfsolutions.com
TDK Electronics Europe
TDK House, Queensway 5 - 7
RH1 1YB, Redhill, Surrey
United Kingdom
Phone: [phone]
Fax: [phone]
TRI-150R Adjustable Tripod
www.tdkrfsolutions.com
TOTALIRF EXPERTISETM
STS
SYSTEMS TEST SERVICES
P
PRODUCTS
SW
SOFTWARE
C
CHAMBERS
Mechanical Specifications
Dimensions:
Extended Height: 150 cm (59 in.)
Collapsed Height: 100 cm (39.4 in.)
Base Diameter: 100 cm (39.4 in.)
Weight: 11 kg (24 lbs.)
Construction: Fiberglass and plastic
Finish: Preventive water
absorption seal
