TDK DAPS-01 User manual

Data Sheet
1101 Cypress Creek Road Cedar Park, Texas 78613, USA 1-512-258-9478 FAX [phone]
P
PRODUCTS
Product Overview

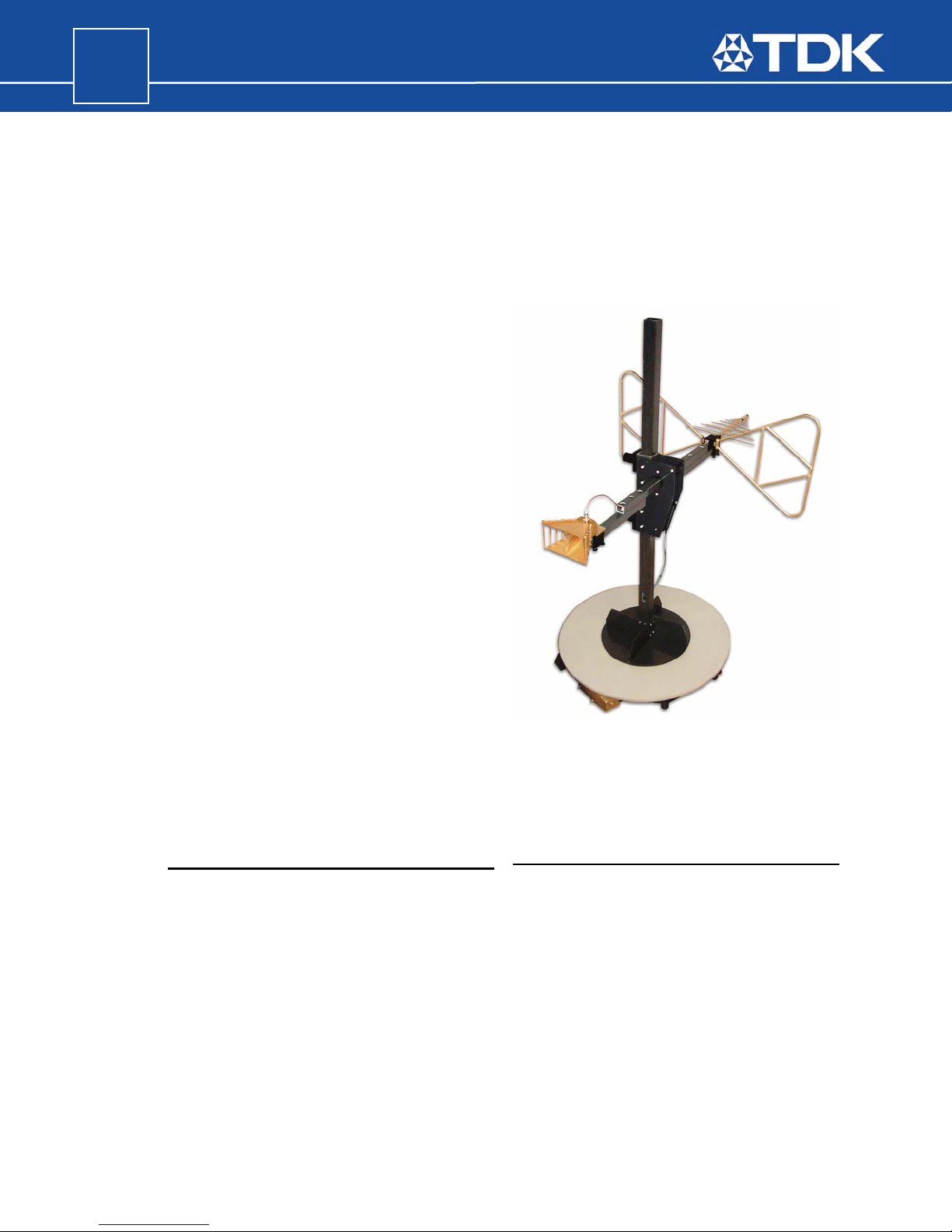

The TDK DAPS-01 Dual Antenna Positioning Sys-
tem consists of a dual antenna mast with integrated
turntable and SI-300 system interface. The DAPS-
01 is specifically designed for remote positioning
of two antennas, both in the horizontal and vertical
planes, during EMC testing. The DAPS-01 simpli-
fies testing by allowing the user to test continuously
across two antenna bandwidths without interrup-
tion.
Remote Control The DAPS-01 is remotely con-
trolled by the TDK SI-300 system interface unit. A
single independent control unit is used to handle
the turn axis and the polarization sense.
Fiber Optic Link Remote control of the position-
ing system is achieved by use of fiber optic links,
eliminating a potential interference source and
distance limitations.
Custom Dimensions The dimensions of the posi-
tioning system mast and turntable are dependent
on the customer’s required illumination area. Di-
mensions are limited only by the maximum length
of cable that is used.
Applications
 Compatible with the TDK SI-300 system inter-
face
 Fiber optic interface
 Custom dimensions to meet customer require-
ments
 Shielded remote modules for use in high field
environments
 Universal linear power supply
Features
 Remote independent vertical and horizontal
polarization
The TDK DAPS-01 Dual Antenna Positioning
System is designed to simply testing by ena-
bling remote positioning of two antennas in
EMC test environments.
DAPS-01 Dual Antenna Positioning System

Copyright © TDK RF Solutions Inc. All rights reserved. Specifications subject to change without notice.
P
PRODUCTS
S
SYSTEMS
C
CHAMBERS
P
PRODUCTS
SW
SOFTWARE
TS
TEST SERVICES
TOTALIRF EXPERTISE™
www.tdkrfsolutions.com
To learn more about TDK’s wide range of innovative test products, solutions and services visit www.tdkrfsolutions.com
DAPS-01 Dual Antenna Positioning System
System Components
 Dual Antenna Mast with Integrated Turntable
 SI-300 System Interface
 One set of fiber optic cables
Mechanical Specifications
Dimensions: 2.16 m H x 1.65 m D
(85” x 65”)
Adjustable Height: 1 - 2 m (39” - 79”)
Polarization: Automatic horizontal
and vertical polarization
Cross-Boom Loading: 20 kg (44 lbs.)
Mast Weight: 30 kg (67 lbs.)
Turntable Weight: 35 kg (77 lbs.)
Construction: Non-conductive fiber-
glass and ABS plastic
Electrical Specifications
Voltage: 115/230
Amp: 4/3A
Hertz: 50/60 Hz
Phase: 1φ
Source Air: Regulated to 20 psi
Ordering Information
Product: Dual Antenna Position-
ing System
Model Number: DAPS-01
Warranty: 1 year limited
To place an order or to learn more about the
TDK products that best meet your needs, con-
tact your TDK sales representative:
TDK RF Solutions Inc.
1101 Cypress Creek Rd.
Cedar Park, Texas 78613 USA
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
World Wide Web: www.tdkrfsolutions.com
Rev. 2011-08-02
