TDK EFG-03 User manual

Data Sheet
1101 Cypress Creek Road Cedar Park, Texas 78613, USA 1-512-258-9478 FAX [phone]
P
PRODUCTS
Product Overview
Performance The TDK EFG-03 is an E-field gener-
ator designed to produce controlled, high intensity
electric fields over the frequency range of 10 kHz
to 100 MHz. The EFG-03 generates a minimum of
500 V/m between the elements. Its capability to
handle high input power and its low VSWR makes
the EFG-03 a powerful and effective E-field gener-
ator.
High Input Power The EFG-03 utilizes an exter-
nal load that permits the field generator to handle
input power up to 3500 Watts (continuous) with-
out the use of forced air or water cooling. This
makes the EFG-03 ideal for immunity test applica-
tions which require high input power, high intensity
fields in a compact design.
Robust Design The EFG-03 features an extremely
robust transformer design which greatly improves
the low frequency response.
Complete Positioning Control The EFG-03’s
integrated mast provides complete manual control
of height, tilt, and polarization. The EFG-03’s posi-
tioning gimbal allows manual control of tilt to ±
10° and provides full 360° rotation of the EFG-03
with indexing at 0° and 90° for quick and easy
polarization changes. A locking pin secures the
mounting arm in position. The EFG-03’s mast, base,
and mounting arm are constructed of heavy-duty
square fiberglass tubing with a protective water
seal. The mast features four locking swivel casters
for safety and ease of movement.
Features
 10kHz – 100 MHz operating range
 High intensity field generator
 Generates greater than 500 V/m
 Low VSWR
 Adjustable height for optimizing performance

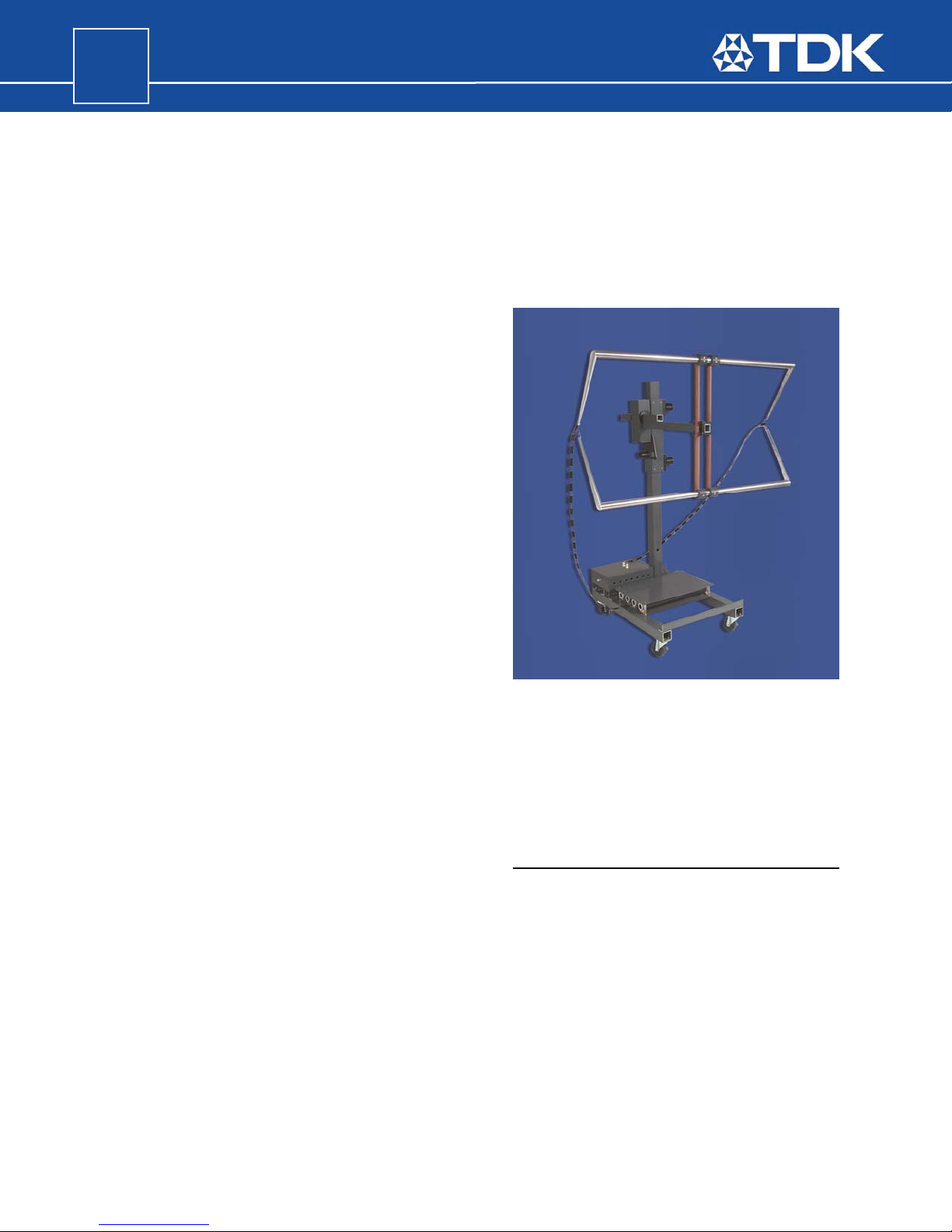

The TDK EFG-03 E-Field Generator generates
controlled, high intensity fields over the operat-
ing range of 10 kHz to 100 MHz.
EFG-03 E-Field Generator

Copyright © TDK RF Solutions Inc. All rights reserved. Specifications subject to change without notice.
P
PRODUCTS
S
SYSTEMS
C
CHAMBERS
P
PRODUCTS
SW
SOFTWARE
TS
TEST SERVICES
TOTALIRF EXPERTISE™
www.tdkrfsolutions.com
To learn more about TDK’s wide range of innovative test products, solutions and services visit www.tdkrfsolutions.com
EFG-03 E-Field Generator
Mechanical Specifications
Element Dimensions: 87 cm x 155 cm
(34” H x 61“ W)
Height Adjustment: 122 cm (4’)
(87 cm to 209 cm)
(34” to 83”)
Other heights available
Weight: 68 kg (150 lbs.)
Input Connector: Special high voltage SC
connector (other con-
nector types available)
Cooling: Not Required
Electrical Specifications
Input Power: 3.5 kW
Operation Frequency
Range: 10 kHz – 100 MHz
Input Impedance: 50 ohms
Ordering Information
Product: E-Field Generator
Model Number: EFG-03
Warranty: 1 year
To place an order or to learn more about the
TDK products that best meet your needs, con-
tact your TDK sales representative:
TDK RF Solutions Inc.
1101 Cypress Creek Rd.
Cedar Park, Texas 78613 USA
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
World Wide Web: www.tdkrfsolutions.com
Rev. 2011-08-02
