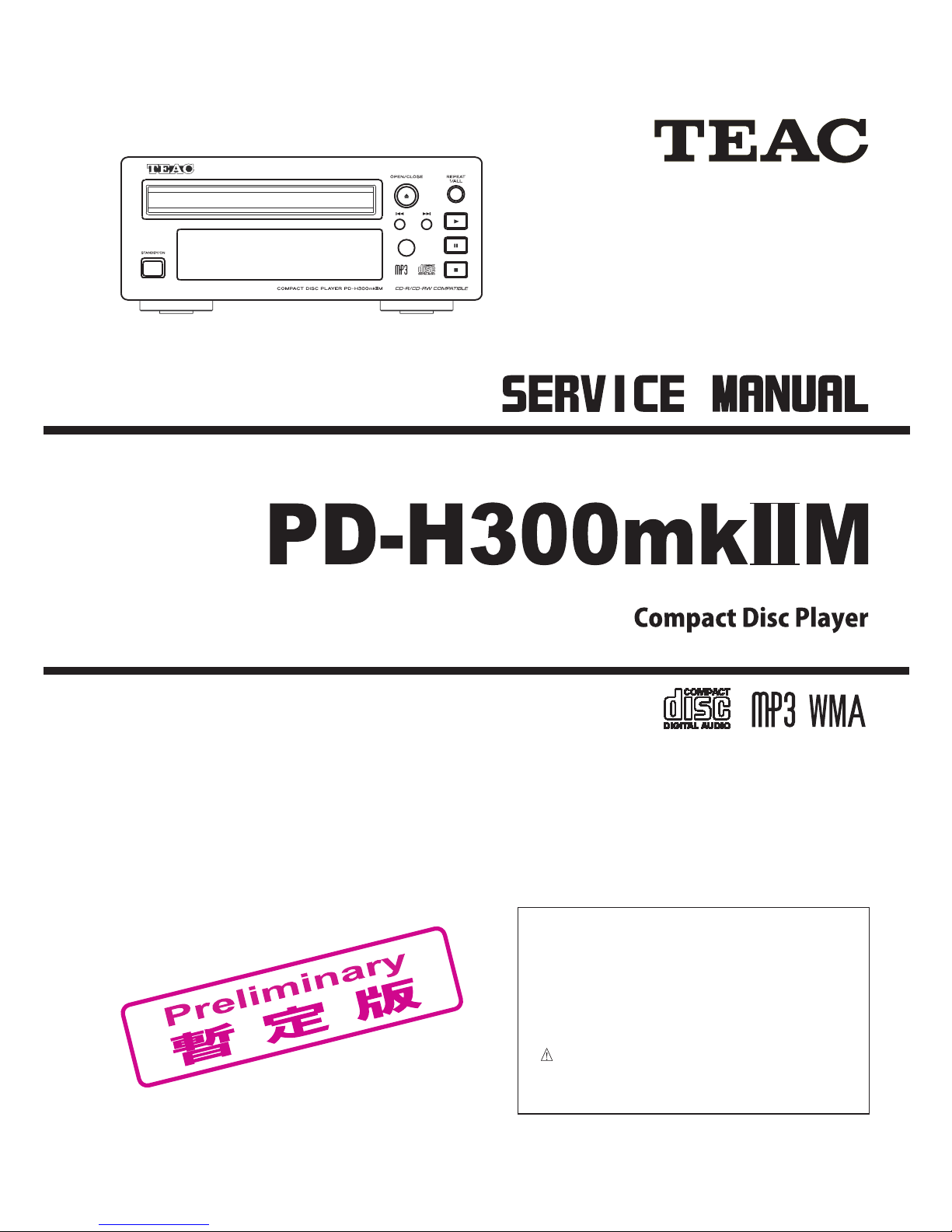

Teac PD-H300mkIIM User manual

Effective : Sep. 2005
NOTES
●
PC boards shown are viewed from parts side.
●
The parts with no reference number or no parts number in the
exploded views are not supplied.
●
As regards the resistors and capacitors, refer to the circuit diagrams
contained in this manual.
●
Parts marked with this sign are safety critical components. They
must be replaced with identical components - refer to the appropriate
parts list and ensure exact replacement.
CONTENTS
1 SPECIFICATIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・2
3 EXPLODED VIEWS AND PARTS LIST 7
4 PC BOARDS AND PARTS LIST 9
5 INCLUDED ACCESSORIES 13
・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
PD-H300mkⅡM : EUR
2 IC SPECIFICATIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・3

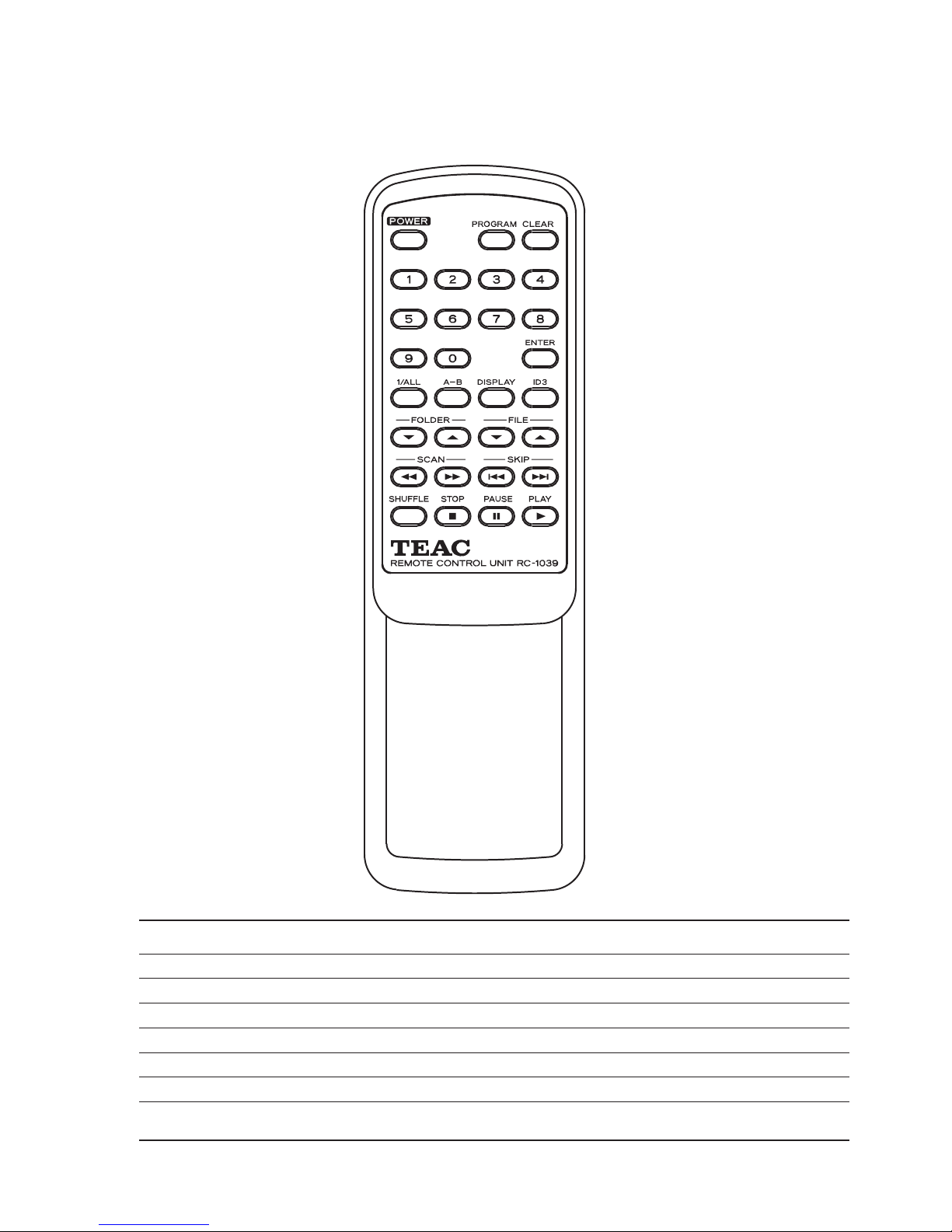

6 REMOTE CONTROL LAYOUT 13
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
7 SCHEMATIC DIAGRAMS 14
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・

1 SPECIFICATIONS
－2－
PD-H300mkⅡM
CD Player
Pickup . . . . . . . . . . . . . . . . . . . . . 3-beam, semiconductor laser
Frequency Response . . . . . . . . . . . . . . . . . 20 Hz - 20 kHz ±2dB
Total Harmonic Distortion . . . . . . . . . . . . . Less than 0.02 % (1 kHz)
Signal-to-Noise Ratio (S/N) . . . . . . . . . . . . More than 90 dB (IHF-A)
Outputs . . . . . . . . . . . . . . . . . . . . . . . . . Analog: RCA x 1set
Digital: TOS OPTICAL
Input/Output . . . . . . . . . . . . . .Remote control connection x 2(RCA)
Output level . . . . . . . . . . . . . . . . . . . . . . . Analog: 2.0 Vrms
Playable Disc . . . . . . . . . . . . . . . . . . . . . . .CD-DA/CD-R/CD-RW
Playable format . . . . . . . . . . . . . . . . . . . . . . . .CD-DA/MP3/WMA
General
Power Requirement . . . . . . . . . . . . . . . . . . . . . AC 230 V, 50 Hz
Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 W
Dimensions (W x H x D) . . . . . . . . . . . . . . . . . . 215 x 93 x 305 mm
Weight (Net) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.8 kg
Operating temperature . . . . . . . . . . . . . . . . . . . . +5°C - +35°C
Operating humidity . . . . . . . . . . . . . . . 5% to 85% (no condensation)
Storage temperature . . . . . . . . . . . . . . . . . . . . –20°C - +55°C
Note:
・This unit can play MP3 files with sampling frequency 44.1 kHz or 48 kHz,
bit-rate 320 kbps or less.
・This unit can play WMA files with sampling frequency 44.1kHz, bit-rate
192 kbps or less.
• Design and specifications are subject to change without notice.
• Weight and dimensions are approximate.
• Illustrations may differ slightly from production models.
Standard Accessory
RCA cable x 1
Remote control connection cord (RCA) x 1
Remote control unit (RC-1039) x 1
Batteries (AA) x 2
Owner’s manual x 1
Warranty card x 1

2 IC SPECIFICATIONS
－3－
PD-H300mkⅡM
W AIT/WKUP5/P5.0
WKUP6/WDOUT/P5.1
SIN/WKUP2/P5.2
WDIN/SOUT/P5.3
TXCLK/CLKOUT/P5.4
RXCL0/WKUP7/P5.5
DCD/WKUP8/P5.6
WKUP9/RTS/P5.7
WKUP4/P4.4
EXTRG/STOUT/P4.5
SDA/P4.6
WKUP1/SCL/P4.7
SS /P3.4
MISO/P3.5
MOSI/P3.6
SCK/WKUP0/P3.7
1W
S
0
WH
T
ESE
R
T
U
O
CS
O
N
IC
SO
VD
D
VS
S
3
1PUK
W/
51
NI
A
/
7
.7P
21P
UKW
/41N
IA
/6.7
P
11PUKW/3
1
NI
A/5.7
P
3
P
U
K
W/
21NIA/
4
.7
P
11NIA/3.7P
01NIA/2.7P
9
N
IA/
1.7P
8NIA/
0
.
7
P/FA_KC
VA S
S
VA DD
N.C
P6.5/WKUP10/INTCLK
P6.4/NMI
P6.3/INT3/INT5
P6.2/INT2/INT4
P6.0/INT0/INT1/CLOCK2/8
P0.7(/AIN7***)
P0.6(/AIN6***)
P0.5(/AIN5***)
P0.4(/AIN4***)
P0.3(/AIN3***)
P0.2(/AIN2***)
P0.1(/AIN1***)
P0.0(/AIN0***)
Reserved*
Reserved*
*d
ev
res
eR
0.
2
P
/
0
A
PNI
T
1.
2
P
/
0
B
PNI
T
2.2P/0A
T
U
OT
3
.2
P
/
0
B
T
U
O
T
4
.
2
P/1
A
P
N
I
T
5.
2
P
/
1
B
P
NIT
6.2
P
/1
A
TUOT
7
.2P/
1
B
T
UOT
VS
S
VD
D
VGER
V** T
S
E
T
0
.1P
)
/
***0APM
C
O/
*
**
0APAC
I(
1
.1P
)
/
*
*
*1APM
C
O/
*
*
*1APAC
I
(
2
.1P
)
/
*
*
*
0BPAC
I
/
*
*
*1
BPAC
I
(
64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
17 18 19 20 21 22 23 24 29 30 31 3225 26 27 28
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
ST92F124R9
17 18 19 20 21 22 23 24 29 30 31 3225 26 27 28

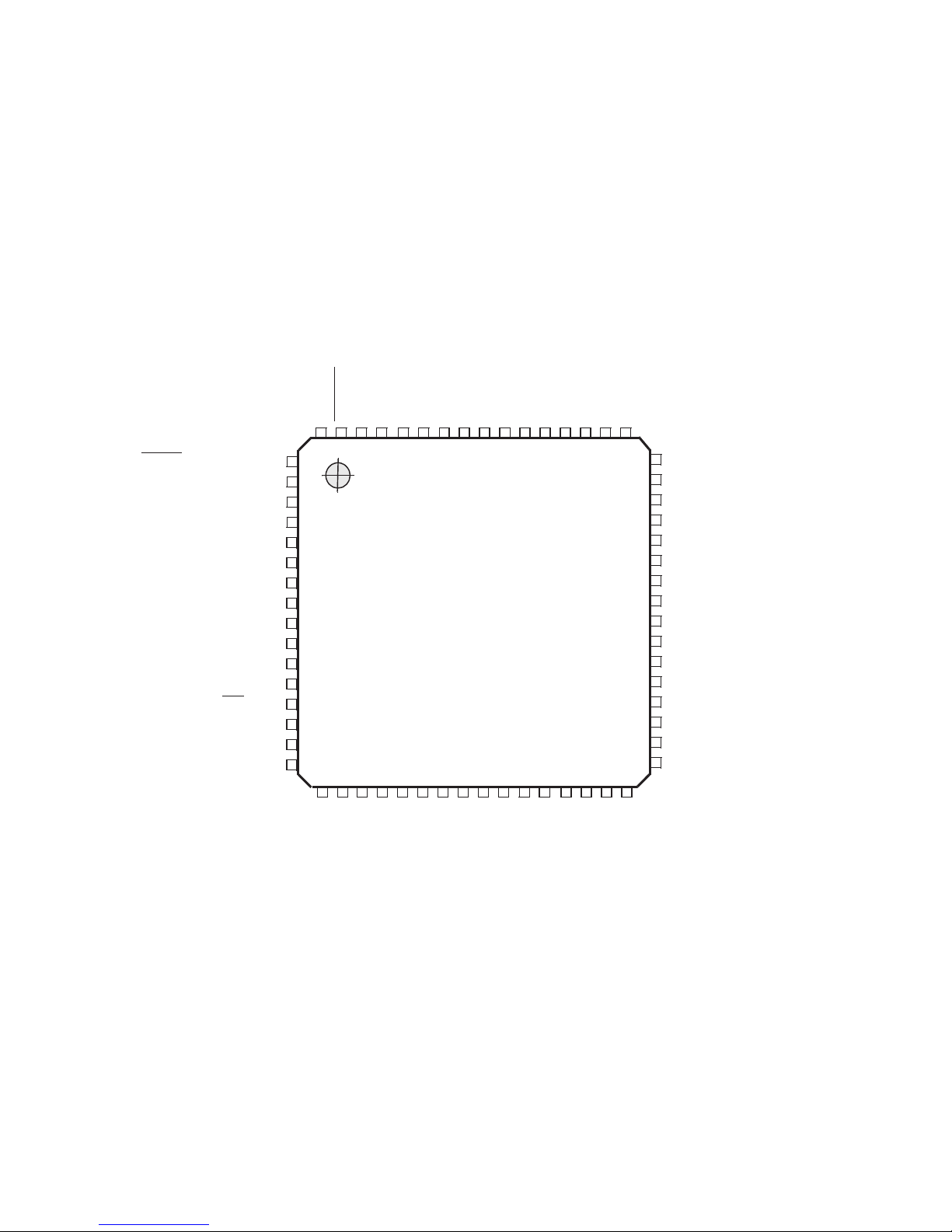

HOST MICROCOMPUTER:ST92F124R9

－4－
PD-H300mkⅡM
HOST MICROCOMPUTER:ST92F124R9
ST92F124R9: Architectural Block Diagram
256 bytes
Register File
RAM
2 Kbytes
ST9 CORE
8/16 bits
CPU
Interrupt
Management
SUB Y
RO
MEM
RCCU
S
U
B
R
ET
S
I
G
ER
WATCHDOG
NMI
MISO
MOSI
SCK
SS
ST. TIMER SPI
SDA
SCL
I
2C BUS
SCI M
FLASH
64 Kbytes
TXCLK
RXCLK
SIN
DCD
SOUT
CLKOUT
RTS
WDOUT
HW0SW1
STOUT
Fully
Prog.
I/Os
P0[7:0]
P1[2:0]
P2[7:0]
P3[7:4]
P4[7:4]
P5[7:0]
P6[5:2,0]
P7[7:0]
MF TIMER 0
TINPA0
TOUTA0
TINPB0
TOUTB0
TINPA1
TOUTA1
TINPB1
TOUTB1
INT[5:0]
WKUP[13:0]
MF TIMER 1
E3 TM
1 Kbyte
OSCIN
OSCOUT
RESET
CLOCK2/8
INTCLK
CK_AF
ADC
AV DD
AV SS
AIN[15:8]
EXTRG
VREG VOLTAGE
REGULATOR
The alternate functions (Italic characters) are mapped on Port 0, Port 1, Port2, Port3, Port4, Port5, Port6
and Port7.
ICAPA0
OCMPA0
ICAPB0
ICAPA1
OCMPA1
ICAPB1
EF TIMER 1
EF TIMER 0

－5－
PD-H300mkⅡM
CD Block System:TC94A54MFG

－6－
PD-H300mkⅡM

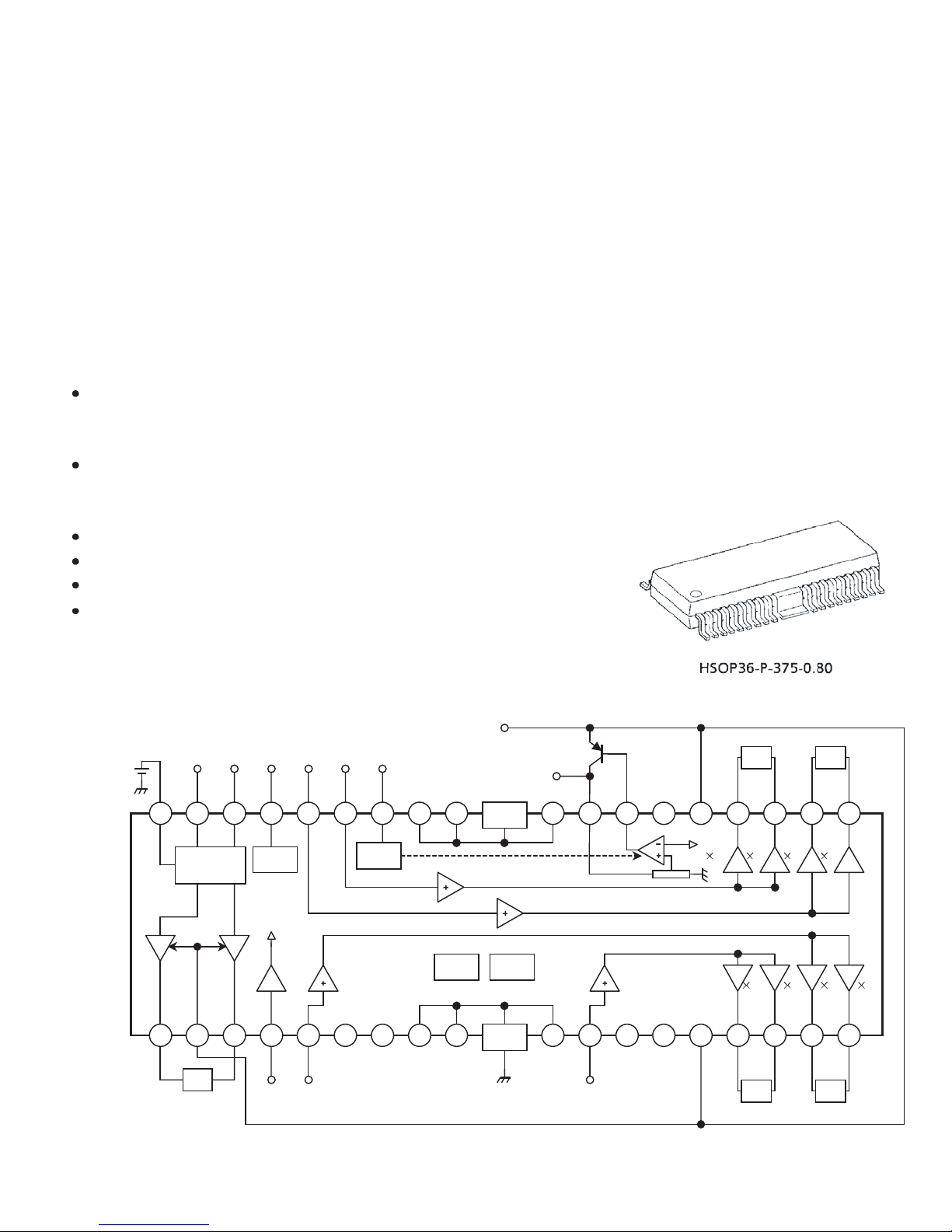

Power Driver IC for CD Player: TA2125AF
Featuers
Block Diagram
24
6 7 12 131 2
RL5
36
V
R
35 34 33 32 31 30
Control
Logic
3
STBY STBY
RIN FIN
4ch
Driver
STB IN3 IN4 REG
STB
29 2728 FIN
V
CC
26 25
REG OUT N.C.
23 22 21
3 3 3 3
20 19
4
VCIN IN1
5
N.C. N.C.
3 3 3 3
15 16 17 18
IN2
N.C. N.C.
11 148 9 FIN 10
GND
Iref TSD
RL4 RL3
RL2 RL1
TA2125AF is power driver IC developed for CD players.
This IC have built-in 4 channel BTL power amplifiers and 1
channel H-Bridge driver.
Which drives focus-coil and tracking coil for 3-beam pick-up head,
disc motor, feed motor and loading motor.
4 channel BTL linear drivers
High output power: Vout = 5.1 Vp-p (VCC = 8 V, RL = 8 Ω)
Stand-by switch for BTL drivers
1 channel H-Bridge: VCE (H) + VCE (L) = 1.3 V (VR = VM = 8 V,
IO = 200 mA)
Logic control (forward, revers, brake, stand-by)
Punch through current restriction diode for H-bridge
5 V regulator reference amp (with external output Tr.)
Thermal shut down protection
Operating supply voltage range: VCC = 5.0-9.0 V

3. PD-H300mkIIM EXPLODED VIEW
7
PD-H300mkⅡM

－8－
EXPLODED VIEW LIST
1 CKM2A073ZC35 FRONT PANEL(AL)
2 CGL1A133 LED INDICATOR
3 CGW2A217M7ZG5 SUB PANEL
4 CBT1A493MBC22 CPS KNOB
5 CBT1A495M7G5 STANDBY CAP
6 CBT1A483 STANDBY KNOB
7 CBT1A385M7XG5 OPEN CLOSE KNOB
8 CBT1A494M7WG5 OPERATION KNOB
9 COP11851C FRONT PCB
10 CGU1A154Y FIP WINDOW
11 CGR1A350M7G5 TRAY ORNAMENT
12 KGB1A047Z BADGE
13 CUA2A158 BOTTOM CHASSIS
14 CKL2A055H45 FOOT
15 KHG1A05DY FOOT CUSHION
16 CHE1A023 PCB SUPPORT
17 KHG1A135 RUBBER, SUPPORT
18 CMH1A074 MECHA SUPPORT
19 CJDKSL2130CCM MECHANISM
20 COP11851C MAIN PCB
21 PCB(TRANS)
22 PCB(INOUT)
23 CKF2A154Z REAR PANEL
24 KHR1A02B AC CORD BUSHING
25 CJA2B043ZA AC CORD
26 CKC1B089S35 TOP CABINET
27 CGU1A261A8 SENSOR WINDOW
28 CHG1A054 CUSHION
29 CHG1A157 CUSHION
30 IC PCB
S1 CTB3+10G SCREW
S2 CTS3+8JFC SCREW
S3 CTS3+10G SCREW
S4 CTW3+8J SCREW
S5 CTB4+6FFC SCREW
S6 CTB3+8JFC SCREW
S7 CTW3+16G SCREW
S8 CHD5A009 SCREW
S9 CTB3+8JFZ SCREW
S10 CTB3+6J SCREW
(PD-H300mkIIM)
PD-H300mkⅡM

9
4 PC BOARDS AND PARTS LIST
PD-H300mkⅡM

- 10 -
PD-H300mkⅡM

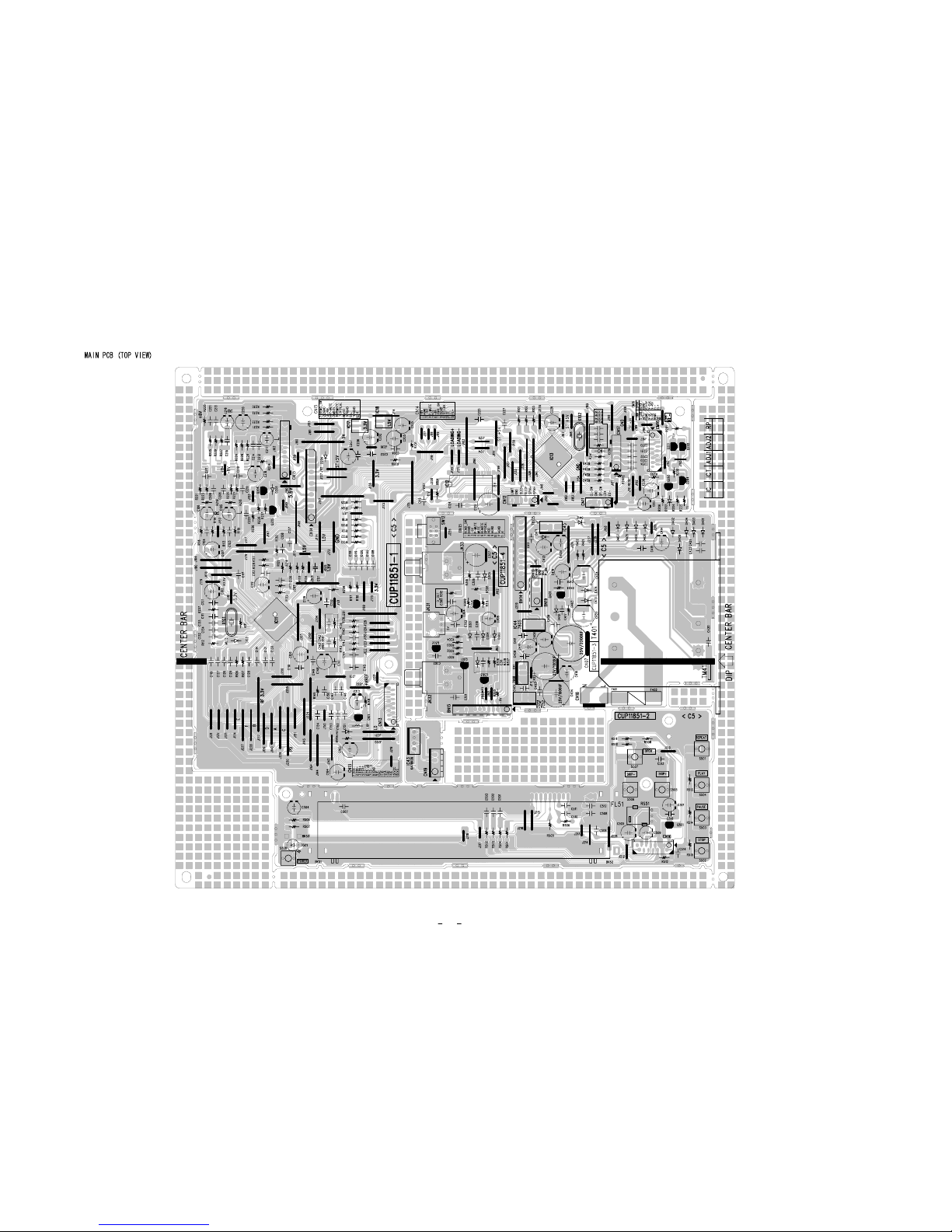

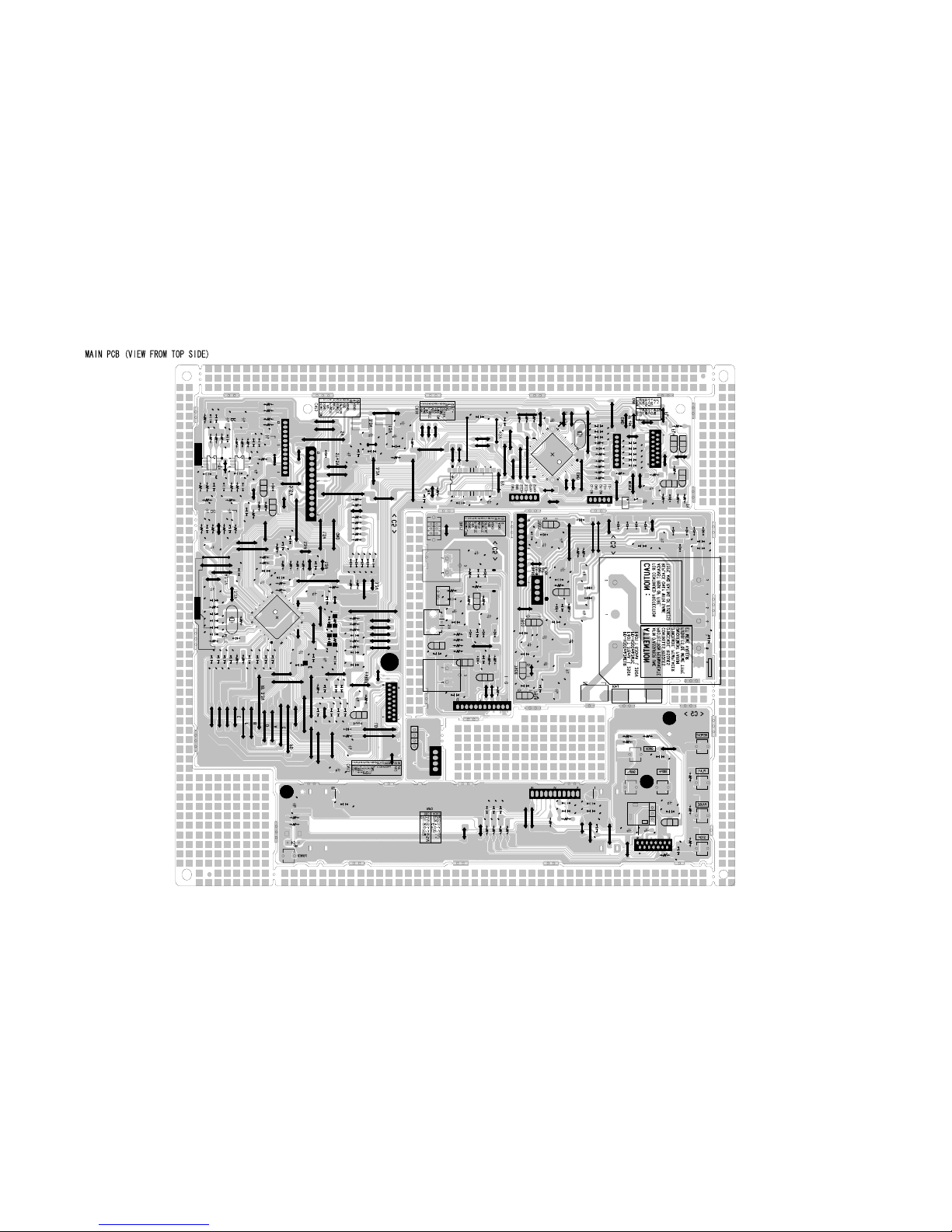

MAIN PCB ASSY (1/4) MAIN PCB ASSY (2/4)
－11－
COP11851B MAIN+FRONT PCB ASS'Y(PD-H300MK2M)
CUP11851Z PCB, MAIN+FRONT
C165,207 CCEA1AH101T CAP, ELECT
C123,164,226 CCEA1CH101T CAP, ELECT
235,408,410,
412
C218 CCEA1CH220T CAP, ELECT
C125,307 CCEA1CH221T CAP, ELECT
C102,109,112 CCEA1CH470T CAP, ELECT
112,139,148
202,205,304
C423,424 CCEA1CH471T CAP, ELECT
C505 CCEA1CKS101T CAP, ELECT
C220,236 CCEA1EH101T CAP, ELECT
C216-217,223 CCEA1HH100T CAP, ELECT
C416 CCEA1HH101T CAP, ELECT
C107-419 CCEA1HH220T CAP, ELECT
C405 CCEA1HH470T CAP, ELECT
C105-106,308 CCEA1HH4R7T CAP, ELECT
C509,517 CCEA1HKS100T CAP, ELECT
C504 CCEA1HKS1R0T CAP, ELECT
C414 CCEA1JH470TS CAP, ELECT
C212-213 HCBS1C152MXT CAP, CERAMIC
C103-104,138 HCBS1C222MXT CAP, CERAMIC
301-302
C146,208-209 HCBS1C472MXT CAP, CERAMIC
C222,230-234 HCBS1H101KBT CAP, CERAMIC
C108-111,137 HCBS1H103ZFT CAP, CERAMIC
113-117,121,
122,142,143,
145,219,221,
224
C101-110,124, HCBS1H104ZFT CAP, CERAMIC
132,136,141,
147,149,151,
153,203-204
206,225,303,
306,310-311,
401,403,406,
409,411,413
C415,417-418, HCBS1H104ZFT CAP, CERAMIC
420-422,506
507-508,512
513-514,518
C118-120,133 HCBS1H120JCT CAP, CERAMIC
134-135,305
C228-229 HCBS1H150JCT CAP, CERAMIC
C140,152 HCBS1H153KBT CAP, CERAMIC
C210-211 HCBS1H181KBT CAP, CERAMIC
C214-215 HCBS1H271KBT CAP, CERAMIC
C130-131 HCBS1H333ZFT CAP, CERAMIC
C144,501-503 HCBS1H470JT CAP, CERAMIC
C510-511 HCBS1H470JT CAP, CERAMIC
C128-129 HCBS1H471KBT CAP, CERAMIC
C126-127 HCBS1H473ZFT CAP, CERAMIC
C227 HCBS1H561KBT CAP, CERAMIC
C154 HCBS1H680JT CAP, CERAMIC
C150 HCBS1H681KBT CAP, CERAMIC
D101-102,204, HVD1SS133MT DIODE
205-206,301,
302-304,306, HVD1SS133MT DIODE
411
D202 HVDMTZJ5.1BT DIODE, ZENER
D305 HVDMTZJ9.1BT DIODE, ZENER
D501 HVD342YCTB7T089 L.E.D, YELLOW
D401-409,413, KVD1N4003SRT DIODE
414
D410 HVDMTZJ30BT DIODE, ZENER
D412 HVDMTZJ6.2BT DIODE, ZENER
F401-402 KJCFC5S HOLDER, FUSE
L101 HLQ02C100KT COIL, AXAIL
Q101,304 HVTKTA1266YT T.R
Q201 HVTKTC3203YT T.R
Q202 HVTKSC2316YT T.R
Q203 HVTKSA1175YT T.R
Q204 HVTKSC2785YT T.R
Q205,303 HVTKRA104MT T.R
Q206,501 HVTKRC107MT T.R
Q301-302 HVTKTD1302T T.R
Q401 HVTKSA916YT T.R
R101-103 CRD20TJ183T RES, CARBON
R104 CRD20TJ471T RES, CARBON
R107 CRD20TJ682T RES, CARBON
R108,311,506 CRD20TJ332T RES, CARBON
R111 CRD20TJ105T RES, CARBON
R112,127-129, CRD20TJ104T RES, CARBON
131-134
R113-114 CRD20TJ271T RES, CARBON
R115-116,202, CRD20TJ103T RES, CARBON
206,240,508,
512
R130,234-235, CRD20TJ221T RES, CARBON
310,502-504
R139 CRD20TJ154T RES, CARBON
R140-149,207- CRD20TJ1R0T RES, CARBON
209,214
R141,145,236 CRD20TJ223T RES, CARBON
R142,228-229 CRD20TJ153T RES, CARBON
R143,230-231, CRD20TJ473T RES, CARBON
237,404
R144 CRD20TJ683T RES, CARBON
R148,239,312 CRD20TJ100T RES, CARBON
R201,203 CRD20TJ222T RES, CARBON
R204 CRD20TJ101T RES, CARBON
R205,232,233, CRD20TJ102T RES, CARBON
238,306,401,
402,501,505,
511,515
R218-221 CRD20TJ392T RES, CARBON
R222-223,226- CRD20TJ822T RES, CARBON
227
R224-225 CRD20TJ123T RES, CARBON
R241-245 CRD20TJ470T RES, CARBON
R301,304,307- CRD20TJ472T RES, CARBON
308
R302-303,309 CRD20TJ474T RES, CARBON
R117-125,138, CRD20TJ562T RES, CARBON
251
R305 CRD20TJ224T RES, CARBON
R403 CRD20TJ122T RES, CARBON
PD-H300mkⅡM

MAIN PCB ASSY (3/4) MAIN PCB ASSY (4/4)
－12－
R507 CRD20TJ151T RES, CARBON
R510-514 CRD20TJ152T RES, CARBON
R509-513 CRD20TJ182T RES, CARBON
S501-508 CST1A012ZT SW, TACT
C8ESM800 FLUX
H2K31161 SOLDER, WIRE
H2K50301 SOLDER, BAR
K4FH300 TAPE, PROTECTIVE
K4FM073 TAPE, BOTH SIDE
BK51-52 CMD1A209 BRACKET, FLT
BK53 CMD1A376 SUPPORT, LED
BN14 CWB1C912160BM WIRE ASS'Y
BN15 CWZPDH300MKBN15 WIRE ASS'Y (L,R-SHIELD)
BN19 CWB1C904100BM WIRE ASS'Y
CM16 CJP15GA117ZY WAFER, CARD CABLE
CN11 CJP05GA19ZY WAFER, STRAIGHT, 5PIN
CN12 CJP06GA19ZY WAFER, STRAIGHT, 6PIN
CN13 CJP16GA117ZY WAFER
CN14 CJP12GA01ZY WAFER
CN15 CJP12GA19ZY WAFER
CN16 CJP15GA117ZY WAFER, CARD CABLE
CN17 CJP07GA19ZY WAFER, STRAIGHT, 7PIN
CN18 CJP02KA060ZY WAFER
CN19 CJP04GB03ZY WAFER
C402,404 CCEA1EH102E CAP, ELECT
C407 CCEA1EH222E CAP, ELECT
FL51 HFLHCA16SM11T F.I.P, DVD RECODER
IC11 HVITC94A54MFG01 I.C, DIGITAL SERVO(CD/MP3/WMA)
IC12 HVITA2125AF I.C, MOTOR DRIVER
IC13 HVIST92F124R9T6 I.C, MCU (FLASH 64K , TQFP64)
IC14-15 HVINJM2068MDTE1 I.C, OP AMP
IC16 HVIRH5VT28C I.C, RESET
IC17 HVILM1117S-3V3 I.C, REGULATOR (3.3V)
IC18 HVILM1117S-1V5 I.C, L.D.O REGULATOR 1.5V FIXED
IC41-42 HVIKA7908A I.C
IC43 HVIKA78R08 I.C,REGULATOR
IC44-45 HVIMC7805C I.C,REGULATOR
JK31 HJSTOTX177L MODULE, OPTICAL(TX)
JK32 CJJ4N031Z JACK, BOARD
JK33 CJJ4N032Z JACK, BOARD
RS51 KRVHIMF802H3-2 REMOTE CONTROL UNIT
SW12 KSS2B016Z SWITCH, SLIDE
TM41 CMC1A111 PLATE, EARTH
T401 CLT5M021YE TRNAS, POWER(EUR)
X101 HOX16934A120C CRYSTAL
X102 HOX04000E150C CRYSTAL, 4MHZ
PD-H300mkⅡM
5 INCLUDED ACCESSORIES
INCLUDED ACCESSORIES
CARTPDH300MK2M REMOCON RC-1039
CJS4M016Z CORD, PIN (1WAY) 1-WAY / RCA Black
CJS4N001Y CORD, PIN 2-WAY / RCA Red/White
CQX1A1067Z INSTRUCTION MANUAL 9A10356300 E/F/S
CQX1A1068Z INSTRUCTION MANUAL 9A10356400 G/I/NL
CQX1A645X WARRANTY CARD
HABAAM1.5V BATTERY AA(R6) x2
