Teac DM-3200 User manual

DM-3200 SONAR
DM-3200 DAW Control
Mackie Control emulation for SONAR 4.x
Version 1.11
DM-3200 SONAR
1/8

DM-3200 SONAR
1. Summary............................................................................................................................................................3
2. Setting up the DM-3200.....................................................................................................................................3
2.1 Enabling MIDI devices in SONAR................................................................................................................3
2.2 Adding a Control Surface...............................................................................................................................3
2.3 Configuration.................................................................................................................................................4
3. LCD screen ........................................................................................................................................................6
4. Channel Strip......................................................................................................................................................6
4.1 SEL key limitation..........................................................................................................................................6
5. Top panel buttons...............................................................................................................................................7
5.1 Pan .................................................................................................................................................................7
5.2 Flip.................................................................................................................................................................7
5.3 Aux.................................................................................................................................................................7
6. Transport............................................................................................................................................................8
6.1 F1-8................................................................................................................................................................8
DM-3200 SONAR
2/8

DM-3200 SONAR
1. Summary
This manual describes using the DM-3200’s control surface features with SONAR 4.x.
2. Setting up the DM-3200
At the DM-3200’s REMOTE > EXT.CTRL screen, add two MC for SOANR devices.
Similarly, add one MC for SONAR device in the REMOTE > MACHINE. CTRL screen. It is
necessary to check the TRA radio button here in order to control SONAR’s transport functions.
2.1 Enabling MIDI devices in SONAR

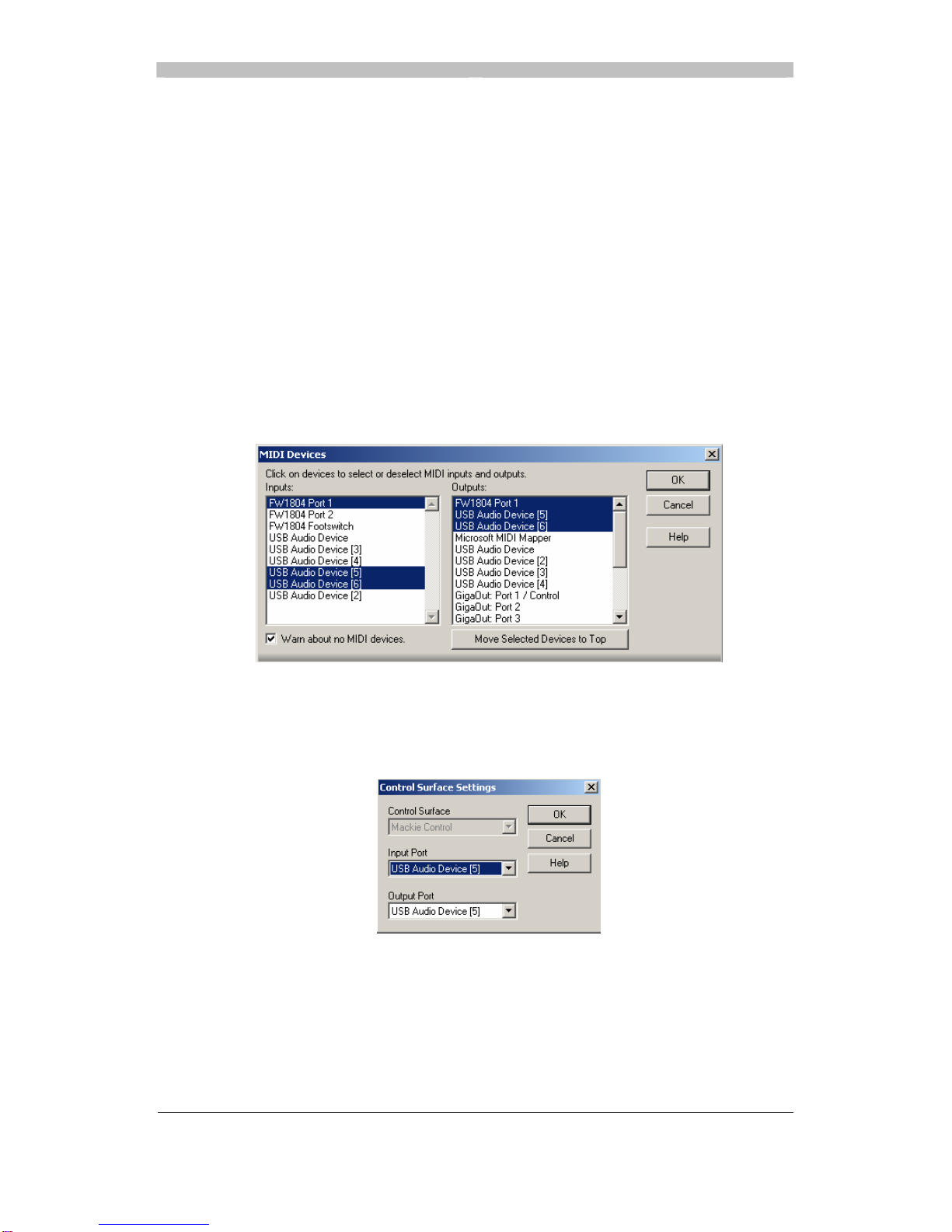

Click SONAR Options > MIDI Devices and the MIDI devices window opens.
Select USB audio device for Inputs and Outputs and select USB devices [5]&[6].
Click OK and close the window.
2.2 Adding a Control Surface
Click Options > Control Surfaces and the Control Surfaces window opens.
Click the Add new control surface icon and select Mackie Control for Control Surface and USB audio
device [5] for Input/Output port, and then click OK.
Similarly, click the Add new control surface icon and select Mackie Control XT for Control Surface and
USB audio device [6] for Input/Output port, and then click OK.
Close Control Surfaces window.
DM-3200 SONAR
3/8

DM-3200 SONAR
2.3 Configuration
SONAR must be configured so that the channel groups 1-8 and 9-16 are recognized.
Click Tools > Mackie Control and the Mackie Control window opens.
Click the Configure Layout button.
The Configure Layout button changes to Press Again When Done. The first line in the Mackie
Control display section in the DM-3200 LCD screen reads "Use VPot 1 to assign channel numbers"
and "1-8" is displayed on the 2nd line as control target tracks.
DM-3200 SONAR
4/8

DM-3200 SONAR

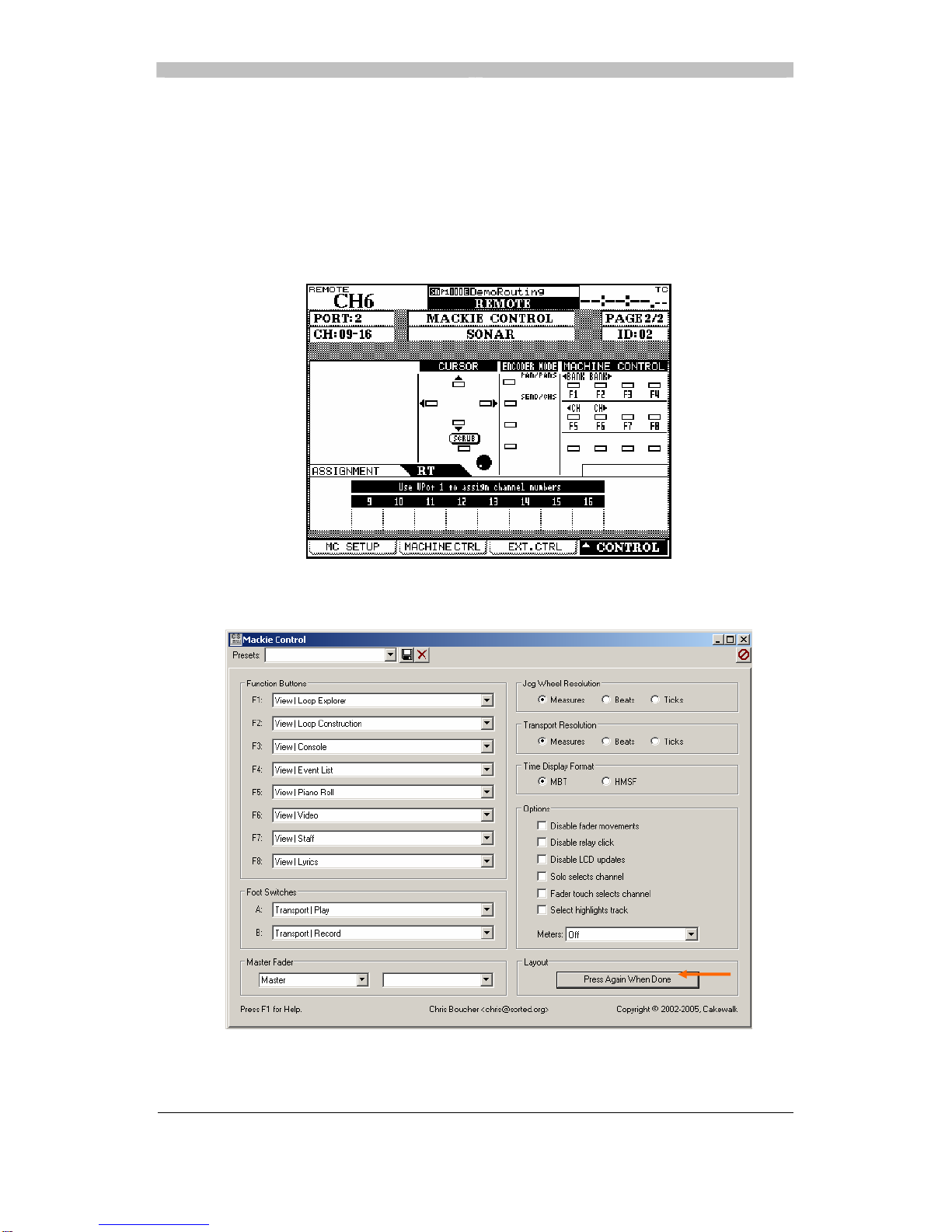

Check to see that CH:01-08 is displayed in the upper left and select Track1-8 with Vpot1 (CH1 LED
Ring Encoder).
Touch any fader on channels 9-16 and the CH:09-16 screen is displayed in the upper left and select
Track9-16 with Vpot1 (CH9 LED Ring Encoder).
Click the Press Again When Done button in SONAR and close the window.
The setup has been completed.
DM-3200 SONAR
5/8

DM-3200 SONAR
3. LCD screen
The SONAR-ready Mackie Control screen looks like this:
4. Channel Strip
The table below provides an overview of the channel strip-related SONAR-ready functions.
DM-3200 Modifier SONAR function Note
Ring encoder Encoder Controls operations such as Pan and Aux send.
Ring LED Ring LED Turns on the LED according to data sent by
SONAR in response to Ring encoder operation.
Select Rec Rec ready Arms tracks (making them ready for recording).
The REC LED turns on for the armed tracks.
Solo Solo Switches the track solo on and off.
The SOLO LED turns on when a track is soloed.
Mute Mute Switches the track mute between on and off.
The MUTE LED turns on when a track is muted.
Track fader touch Track fader touch Sends out a touch-sense Track fader message.
Track fader Track fader Controls the Track fader.
Master fader touch Master fader
touch Sends out a touch-sense Master track message.
Master fader Master fader Controls the Master fader.
4.1 SEL key limitation
With SONAR, the SEL key is not available for selecting tracks. Switching between channel groups 1-8
and 9-16 is possible on the DM-3200 LCD screen.
DM-3200 SONAR
6/8

DM-3200 SONAR
5. Top panel buttons
The table below provides an overview of the top panel buttons-related SONAR-ready functions.
DM-3200 Modifier SONAR function Note
Pan Pan Sets parameters to be controlled by the Ring
encoder. See Section 5.1 below.
Aux Sends Sets parameters to be controlled by the Ring
encoder. See Section 5.2 below.
Flip Flip Flips between a parameter value assigned to a
track's Ring encoder and a fader level. See
Section 5.3 below.
Arrow up Arrow up
Arrow down Arrow down
Arrow left Arrow left
Arrow right Arrow right
Data wheel
Scrub Scrub Shifts the data wheel to the Scrub mode.
The SCRUB switch is displayed inverted in Scrub
mode.
LCD character LCD display Causes data coming from DAW to be displayed in
the LCD display section.
5.1 Pan
SONAR’s specific implementation of the Pan command is as follows:
•First Press: LCD shows “NP” and channel encoders control Pan.
•Second Press: LCD shows “N.P” and channel encoders control Pan on encoder #1 while encoders #2
& higher control Aux Sends.
•Third Press: Back to Pan operation.
5.2 Flip
SONAR’s specific implementation of the Flip command is as follows:
•First Press: Faders & encoders control the same parameter
•Second Press: Faders control the selected parameter and the encoders control channel level.
•Third Press: Back to normal operation.
5.3 Aux
SONAR’s specific implementation of theAux (Sends) command is as follows:
•First Press: LCD shows “ES” and channel encodersAux 1.
•Second Press: LCD shows “E.S” and channel encoders Aux Enable/Disable, Level, Pan, and Pre/Post
for all Aux Sends on the selected channel.
•Third Press: Back to Aux 1 operation.
DM-3200 SONAR
7/8

DM-3200 SONAR

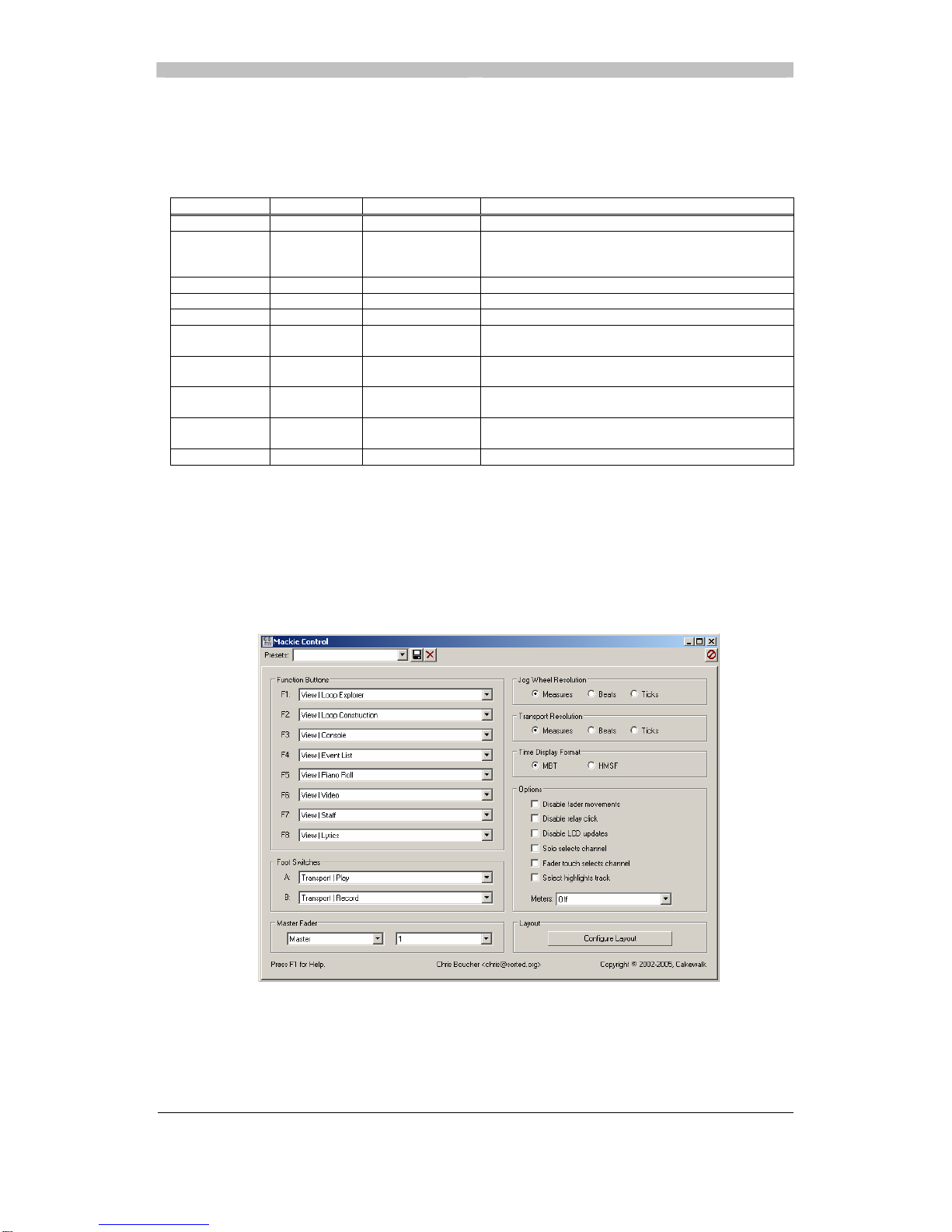

6. Transport
The table below provides an overview of the transport-related SONAR-ready functions.
DM-3200 Modifier SONAR function Note
Rewind Rewind Activates the Rewind and Slow rewind functions.
Fast forward Fast forward
Activates the Fast Forward and Slow fast forward
functions.
Stop Stop Activates the Stop function.
Play Play Activates the Play function.
Record Record Activates the Record function.
<BANK < BANK Moves control target tracks leftwards in groups of
16 tracks.
BANK> BANK> Moves control target tracks rightwards in groups of
16 tracks.
<LOCATE <CHANNEL Moves control target tracks leftwards track by one
track.
LOCATE> CHANNEL> Moves control target tracks rightwards track by one
track.
F1-8 CTRL F1-8 Controls functions assigned to the F1-8 keys.
6.1 F1-8
Holding down CTRL and pressing the F1-8 keys allows you to use functions assigned to the SONAR's
F-8 keys.
Click SONAR Tools > Mackie Control and the Mackie Control screen opens where you can configure
function keys 1-8.
SONAR setup screen
