Teac DM-3200 User manual

DM-3200 Pro Tools
DM-3200 DAW Control
HUI emulation for Pro Tools
Version 1.11
DM-3200 Pro Tools
1/8

DM-3200 Pro Tools
1. Summary................................................................................................................................................................3
1.1 Setting up the DM-3200.................................................................................................................................3
1.2 Setting up Pro Tools.......................................................................................................................................3
2. LCD Screen............................................................................................................................................................4
2.1 Switching between Ch1-8 and 9-16 screens...................................................................................................4
3. Channel strips.........................................................................................................................................................5
3.1 Encoder..........................................................................................................................................................5
3.2 Ring LED 15-dot display ...............................................................................................................................5
3.3 Rec function...................................................................................................................................................6
3.4 Solo and Mute keys........................................................................................................................................6
3.5 Fader touch, Fader..........................................................................................................................................6
3.5.1 Stereo fader operation.............................................................................................................................6
4. Top panel Buttons ..................................................................................................................................................6
4.1 LCD................................................................................................................................................................7
5. Transport................................................................................................................................................................8
DM-3200 Pro Tools
2/8

DM-3200 Pro Tools
1. Summary
This manual describes how to operate the DM-3200’s HUI emulation with Pro Tools (Pro Tools 6.9.2
tested).
1.1 Setting up the DM-3200
At the DM-3200’s REMOTE > EXT.CTRL screen, add two “HUI Emulate” devices.
Similarly, add one “HUI Emulate” device in the REMOTE > MACHINE. CTRL screen. It is necessary
to check the TRAradio button here in order to control the transport functions of Pro Tools.
1.2 Setting up Pro Tools

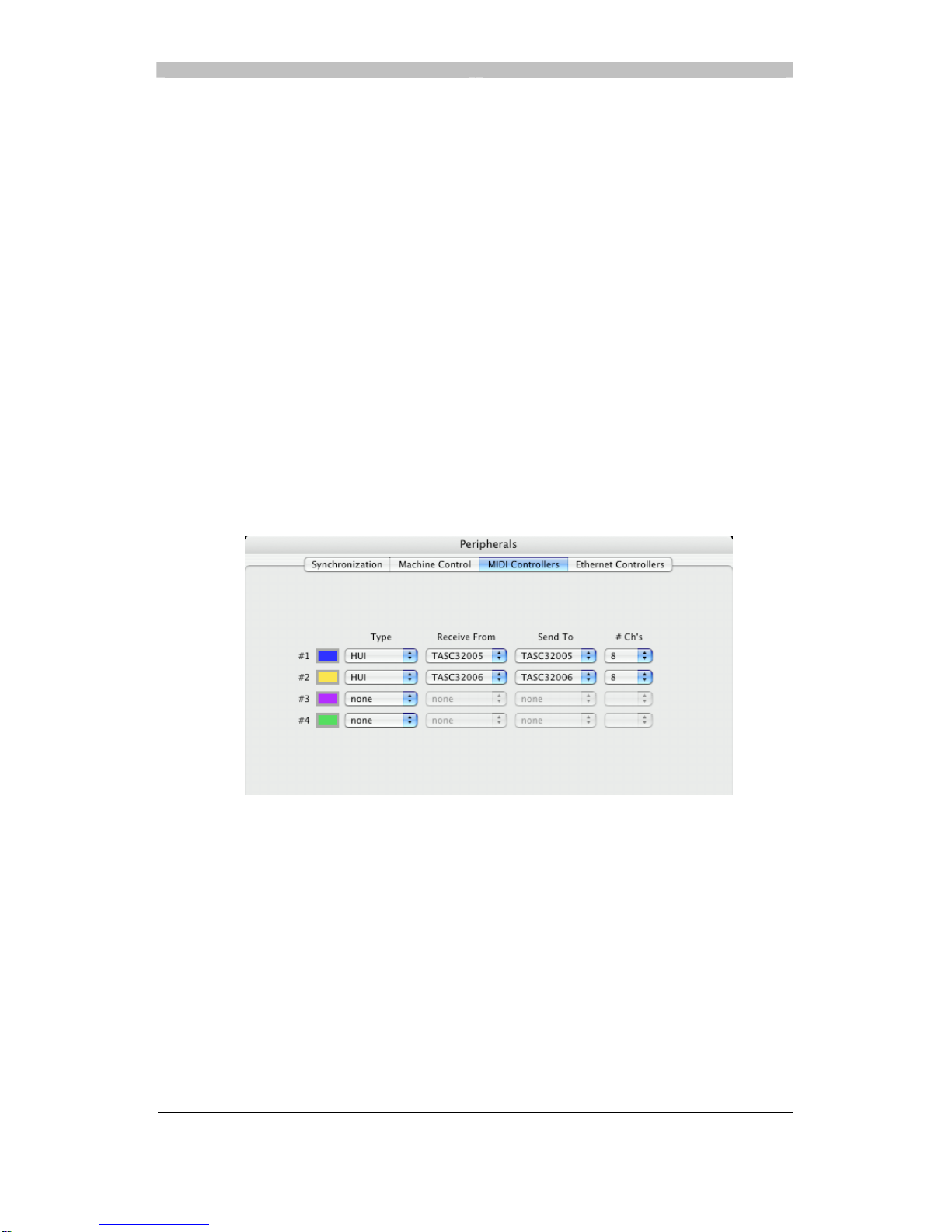

From the Setups menu in Pro Tools, select Peripherals and click on the MIDI Controllers tab.
Select a HUI device for #1 and #2. Assign the MIDI Receive and Send of #1 to the DM-3200’s Port 5.
Similarly, assign the MIDI Receive and Send of #2 to the DM-3200’s Port 6. It should look like the
screen below.
Note that if this is not properly assigned, or if it is assigned then the DM-3200 is disconnected, Pro
Tools will present warning dialogs about not being able to find the HUI device.
DM-3200 Pro Tools
3/8

DM-3200 Pro Tools
2. LCD Screen

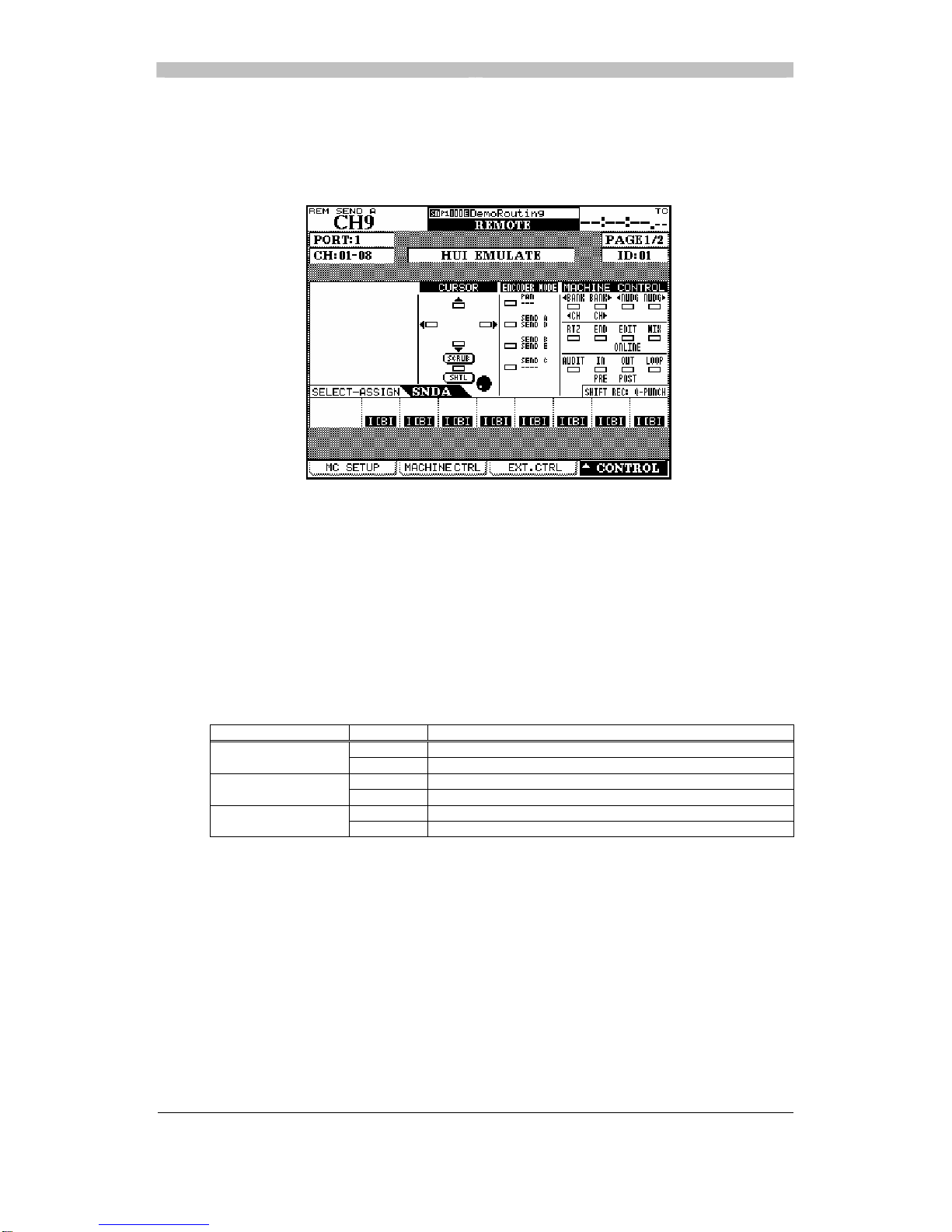

The HUI Emulate LCD screen looks like this:
2.1 Switching between Ch1-8 and 9-16 screens
The HUI emulate screen is switched on a 8-channel basis. Switching between the channels 1-8 and
9-16 are made as follows:
-Switching at the REMOTE screen
Select the target channel's HUI emulate screen using CONTROL under the Pull-up menu.
-Switching using parameters
By operating the following parameters, the screen is switched to show the target channel
screen.
Parameter Channel Note
SEL key Ch1-8 Ch1-8 screen displayed
Ch9-16 Ch9-16screen displayed
SOLO/MUTE key *1 Ch1-8 Ch1-8 screen displayed
Ch9-16 Ch9-16screen displayed
Fader touch Ch1-8 Ch1-8 screen displayed
Ch9-16 Ch9-16screen displayed
* 1 Can be switched only when the "CH SOLO Key Auto MODULE Return" is check marked on
the OPTION > PREFERENCE screen.
DM-3200 Pro Tools
4/8

DM-3200 Pro Tools
3. Channel strips
The control target parameters as follows:
DM-3200 Pro Tools
function Note
Ring Encoder Encoder Controls operations such as Pan and Aux Send
Ring LED Ring LED Turns on the LED according to data sent by Pro Tools in
response to Ring encoder operation.
Rec function LED Rec/Ready
LED Displays each track's record status
Solo Solo Switches Solo on and off for each track.
Mute Mute Switches Mute on and off for each track.
Track fader touch Fader touch Sends fader touch message to Pro Tools
Track fader Fader move Performs Fader control.
Master fader touch --- N/A as there is no Master module in the HUI.protocol
Master fader --- N/A as there is no Master module in the HUI protocol.
3.1 Encoders
Target control parameters are selected using Top panel Encoder mode. By operating the encoder on
the mixer, target parameters of Pro Tools can be controlled.
Also, information on the target channels is displayed on the LCD screen.
Information displayed here comes in messages sent by Pro Tools.
Target parameters, etc displayed
Target channels, etc. displayed
3.2 Ring LED 15-dot display
While the Ring LED of the DM-3200 is made up of an array of 15 dots, HUI uses a 12-dot system.
Relationships between the two are as shown below:
DM-3200
Ring LED
HUI V pot LED
DM-3200
Ring LED
HUI V pot LED
Information displayed here comes in messages sent by Pro Tools.
DM-3200 Pro Tools
5/8

DM-3200 Pro Tools
3.3 Rec function
This is controlled by holding the REC key while pressing the SEL key on/off on an individual module.
The LEDs turn on or off depending on messages sent by Pro Tools.
3.4 Solo and Mute keys
These are controlled by switching the keys on/off on the individual channels.
The LEDs turn on or off depending on messages sent by Pro Tools.
3.5 Fader touch, Fader
Touching the fader on the individual channels sends touch information to DAW. Also, moving the
faders control the DAW track faders.
HUI does not respond to the master fader touch and move since it has no master fader.
3.5.1 Stereo fader operation
Selecting Remote Layer the stereo fader on the mixer moves down to the minimum position.
When Remote Layer is selected and the stereo fader is operated, the fader itself moves but does not
control any parameters or audio.
4. Top panel Buttons
Control target parameters are as follows:
Category DM-3200 Pro Tools
function Note
Encoder
mode Flip Flip Exchanges the control targets of the faders and encoders.
Pan Pan Switches the encoder control targets to PAN.
Send A-E Send A-E Switches the encoder targets to SendA-E.
Global Shift Shift/Add Acts as an auxiliary key to be used in combination
with other keys.
CTRL CTRL/Clutch Acts as an auxiliary key to be used in combination
with other keys.
Around LCD Arrow up Up Acts as a HUI upward arrow key.
Arrow down Down Acts as a HUI downward arrow key.
Arrow Left Left Acts as a HUI leftward arrow key.
Arrow right Right Acts as a HUI rightward arrow key.
Jog/Shuttle Scrub Switches the HUI scrub mode on/off.
Shift +
Jog/Shuttle Shuttle Switches the HUI shuttle mode on/off.
Data wheel Data wheel Acts as a HUI data wheel.
LCD - Display Displays character data received from HUI.
DM-3200 Pro Tools
6/8

DM-3200 Pro Tools
4.1 LCD
Control target parameters are displayed in the Select assign section.
The name of each channel, information on grouping, Input/Output sources, etc, are displayed in the
Channel Name section.
Those displays depend on the response from DAW.
The corresponding key assignments are also displayed as a guide and are not operative.
DM-3200 Pro Tools
7/8

DM-3200 Pro Tools
5. Transport
Control target parameters are as follows:
DM-3200 Pro Tools function Note
Transport keys Transport Controls the transport: Rewind, Fast Forward, Stop,
Play, and Record.
Shift + Record Quick Punch Enables Quick punch mode.
< Bank, Bank > < Bank, Bank > Moves the control target module left- or rightwards
over 8 channels
Shift + <Bank / Bank
> < Channel / Channel > Moves the control target module left- or rightwards over one channel.
< Nudge, Nudge > +, - Moves on to the next region or back to the previous
one.
<< Locate, Locate
>> RTZ, END Locates to the beginning or end of a song.
F7 Online Switches Online on/off.
RHSL Audition Enables Audition mode.
In In Sets Quick punch-in point (on the fly only).
Shift + In Pre Sets Preroll time (on the fly only).
Out Out Sets Quick punch-out point (on the fly only).
Shift + Out Post Sets Postroll time (on the fly only).
Repeat Loop Sets Playback Loop.
5.1 Recording
Hold REC and press PLAY to enable/disable recording in Pro Tools. When recording is enabled,
press PLAY to record on all record-enabled tracks. While recording, pressing PLAY will perform a
punch out of record and leave the Pro Tools transport running.
