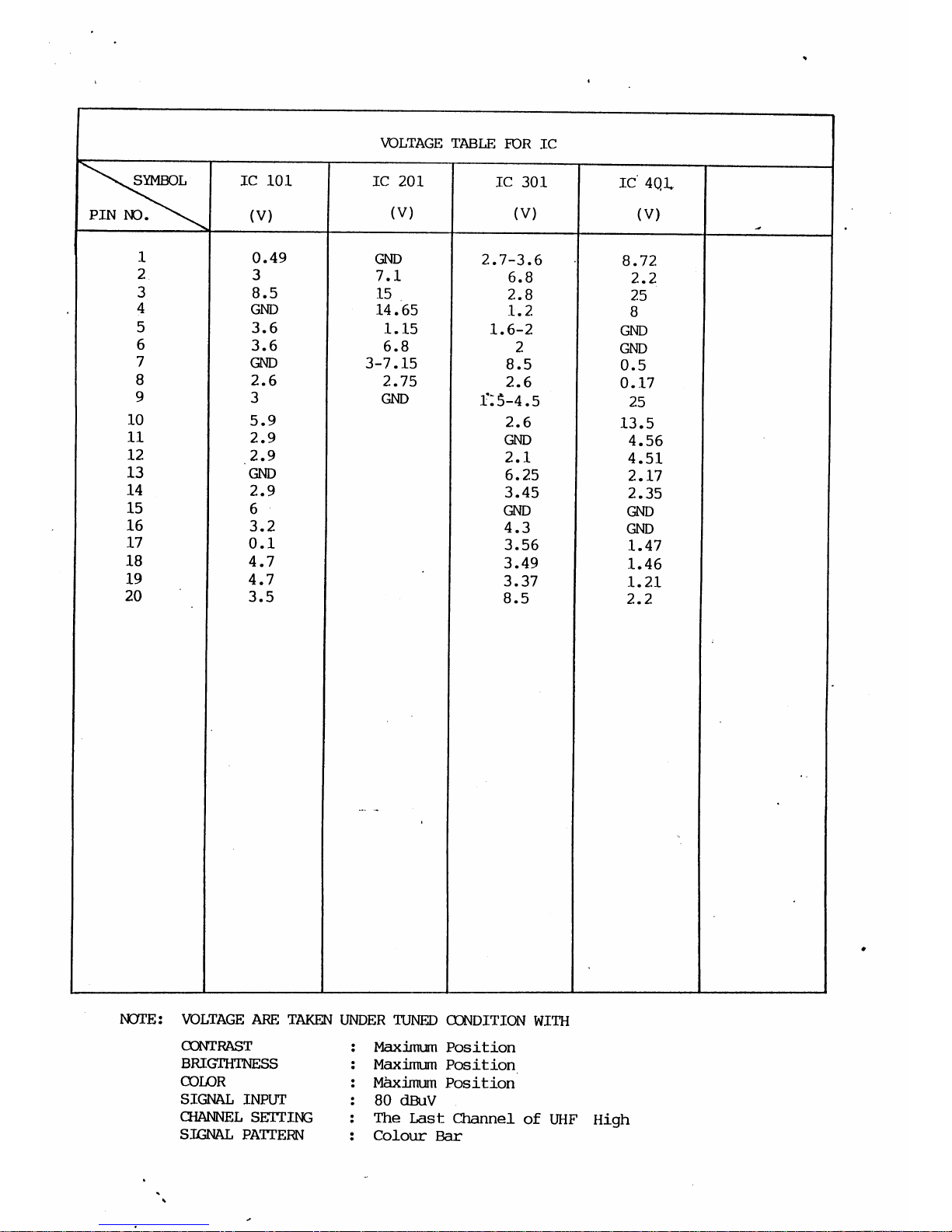

Teac GT-9313 User manual

MODEL NO: CT-M341MKII
SYSTEM: PAL/BG/AVIN M.GRAY{8403C} 240V SAA 47P
PART NUMBER DESCRIPTION QTY.
1/17
155-921304-00-13 HANDSET ASS'Y FOR R/C:9213 SGS IC 47P.
CAB:TEAC DESIGN 9213 CT-M341MKII RC-616
180-9313T0-28-22 NON-COMMON PART ASS'Y PAL/BG W/AV IN RCA
JACK {SGS IC} 47 PROG.
180-9313T0-28-CP COMMON PART ASS'Y (PAL/BG W/AV IN)
NEW SGS 3 CHIP IC "FOR TEAC"

MODEL NO: CT-M341MKII
SYSTEM: PAL/BG/AVIN M.GRAY{8403C} 240V SAA 47P
PART NUMBER DESCRIPTION QTY.
2/17
155-921304-00-13 HANDSET ASS'Y FOR R/C:9213 SGS IC 47P.
CAB:TEAC DESIGN 9213 CT-M341MKII RC-616
107-800455-46 455K HZ RESONATOR "KYOCERA" 1
X701
113-100005-17 CARBON FILM RESISTOR 10 OHM 1/16W +-5% 1
R701
113-103005-17 CARBON FILM RESISTOR 10K OHM 1/16W +-5% 1
R703
113-229005-17 CARBON FILM RESISTOR 2.2 OHM 1/16W +-5% 1
R702
113-330005-17 CARBON FILM RESISTOR 33 OHM 1/16W +-5% 1
R704
123-101350-60 CERAMIC CAP. 100 PF 50V +-10% (SL TYPE) "SMART 2
GOOD"
C702,703
127-476042-03 ELECT. CAP. 47 MFD 16V +-20% 1
C701
130-134148-01 SILICON DIODE IN4148 2
D701,702
130-600101-00 INFRARED EMITTER EL-1L1 KODENSHI 1
LED 701

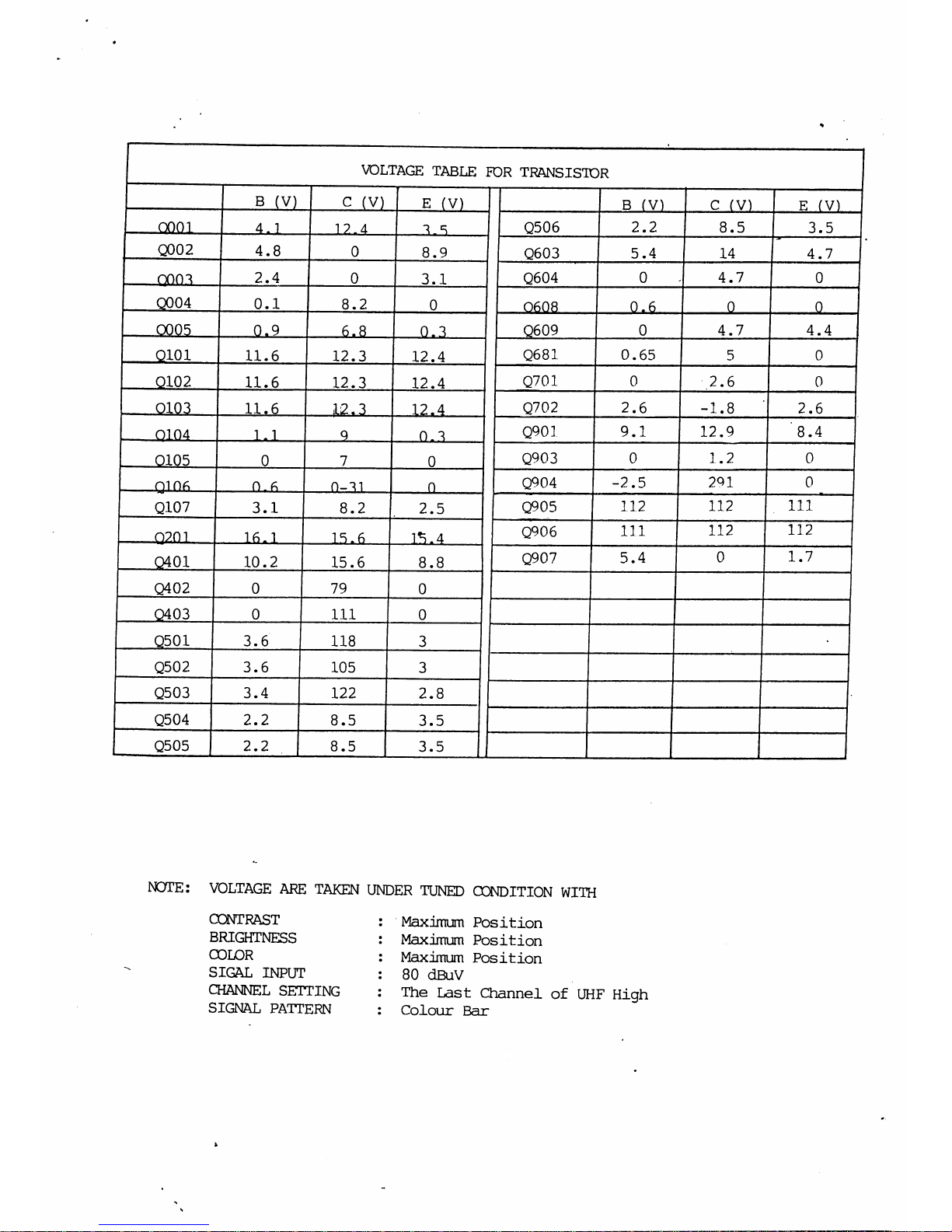

131-210719-29 TRANSISTOR 2SA719R/S MATSUSHITA 1
Q702
131-230945-00 TRANSISTOR 2SC945 NEC 1
Q701

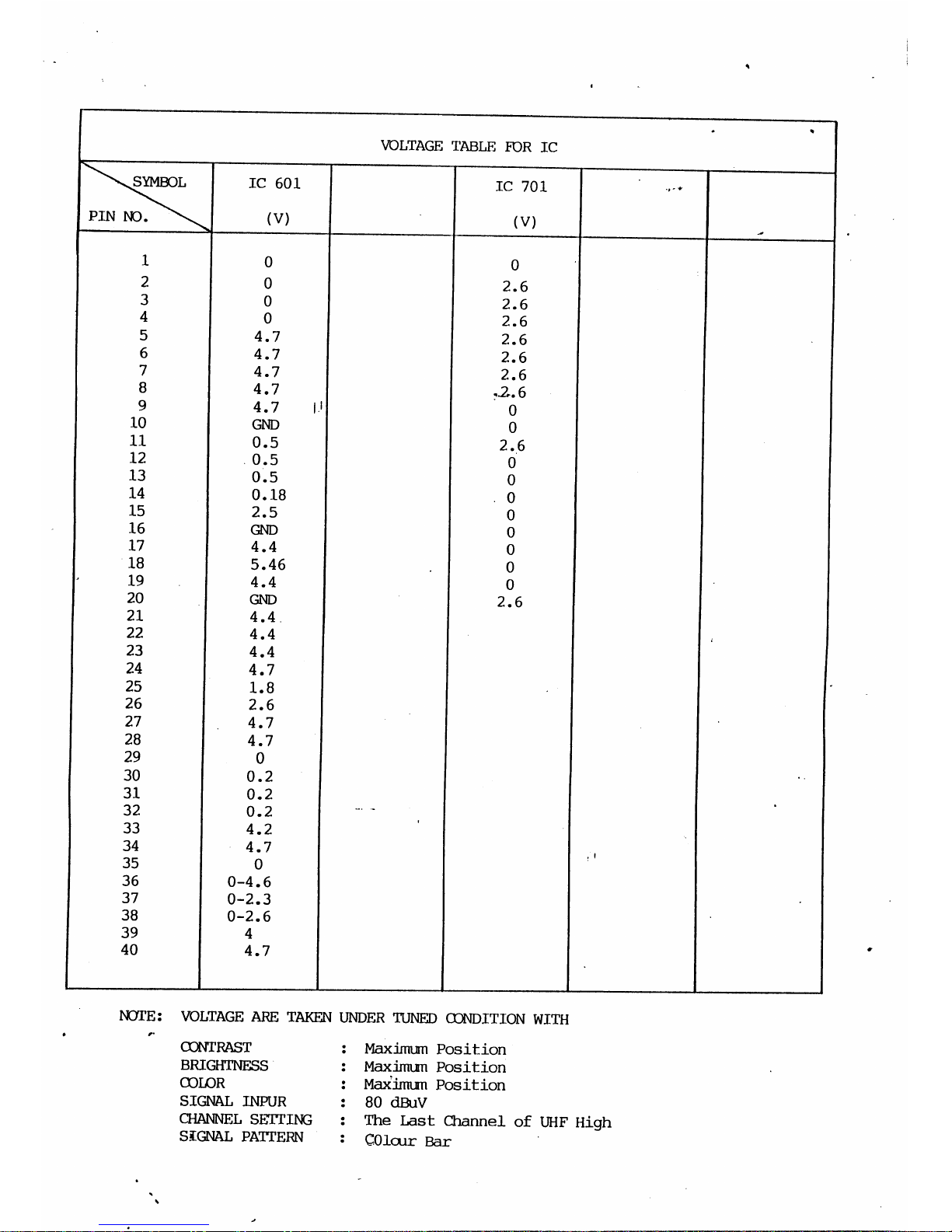

133-830041-31 IC M3004LAB1 (SGS) 1
IC701
172-626010-42 UL 1007 TOP COAT WIRE AWG 26 100MM RED 10 X 10MM 1
FOR REMOTE P.C.B. `+' TO BATTERY CONTACT PLATE `+'
172-626012-40 UL 1007 TOP COAT WIRE AWG 26 120MM BLACK 10 X 10 1
MM
FOR REMOTE P.C.B. `-' TO BATTERY CONTACT PLATE `-'
172-726000-99 BARE WIRE 54MM 0
W701,702
190-921306-02 REMOTE P.C.B. 1
514-260410-00 SELF-TAPPING SCREW 2.6 X 10 B/T (HARDEN) {BLACK} 1
CAB. MTG.
774-931301-00 BATTERY SPRING (+-) 1
774-931302-00 BATTERY SPRING (+) 1
774-931303-00 BATTERY SPRING (-) 1
810-041104-13 POLYBAG 4" X 11" X 0.04MM W/RE-CYCLING MARK 1
FOR HANDSET
849-921302-00 CONTACT RUBBER KEY PAD (24 KEYS) 1
892-921302-04 DIAL KEY PLATE - ENG STD (24 KEYS) "47 PROG." 1
910-921301-01 BATTERY DOOR (3A) 1
964-921301-01 SENSOR LENS 1
900-921311-73 HANDSET TOP CAB. - TEAC DESIGN 9213 (CT-M341MKII 1
RC-616)
900-921341-73 HANDSET TOP CAB. - TEAC DESIGN 9213 (CT-M341MKII 0
RC-616)
902-921311-01 HANDSET BOTTOM CAB. - BLACK MOULDED (3A) 1
902-921341-01 HANDSET BOTTOM CAB. - BLACK MOULDED (3A) 0

MODEL NO: CT-M341MKII
SYSTEM: PAL/BG/AVIN M.GRAY{8403C} 240V SAA 47P
PART NUMBER DESCRIPTION QTY.
3/17
180-9313T0-28-22 NON-COMMON PART ASS'Y PAL/BG W/AVACK {SGS IC} 47
PROG.
002-114022-40 14" CRT #37SX110Y22-DC05A S/H CAI HONG 1
003-131414-02 TUNER (OSCAR ) UVE33-W14 MITSUMI (HIGH JACK) 1
TUNER
107-738900-07 SAW FILTER TOSHIBA (F1044PS) 1
SA101
160-102255-27 PIN CONNECTOR 2 PINS PLUG STRAIGHT (UL) (S.H.S) 1
CN202
162-110010-00 ANTENNA MATCHING TRANSFORMER (300 OHM TO 75 OHM) 1
166-162030-00 SPEAKER 3" 2W 16 OHM "TCL" 1
171-550084-D0 84" AC LINE CORD W/SAA APP. 10A 250V 1
172-726000-99 BARE WIRE 54MM 0
W158,104
179-105000-00 UL PVC TUBE 5mm DIA 0
400MM FOR CN202
186-624500-11 HI-WATT SUPER HEAVY DUTY 1.5V 0% MERCURY 3A ER03X 2
ALUM.CASE
191-201017-07 2 PIN SOCKET ASS'Y L=460MM (PIN 1 RED, PIN 2 1
BLACK)
CN202 `1' TO SPK. `+', `2' TO SPK. `-'
191-400042-07 4 PINS SOCKET ASS'Y AWG 20 420 MM 1
514-400408-10 SELF-TAPPING SCREW 4 X 8 B/T (HARDEN) 2
FOR SWIVEL STAND
515-303408-10 SELF-TAPPING SCREW 3 X 8 W/B/T (HARDEN) 1
FOR FRONT CAB. TO FRONT PANEL
610-931301-53 GIFT BOX - TEAC (A) DESIGN (CT-M341MKII) 1
663-230458-98 SERIAL NO.LABEL - OC:GT-458/98 0
663-230464-98 SERIAL NO.LABEL - OC:GT-464/98 0
663-230517-98 SERIAL NO.LABEL - OC:GT-517/98 2
1PC STUCK ON RATING LABEL, 1PC STUCK ON CARTON
669-881301-4N RATING LABEL - TEAC (A) DESIGN {CT-M341MKII} 1
{220V}
670-931300-1B INSTRUCTION MANUAL - TEAC (C) DESIGN {CT-M341MKII} 1
{47P.}
678-931301-16 CB NUMBER LABEL {I} - TEAC DESIGN (CT-M341TXT) 2
LARGE SIZE
2PC STUCK ON EACH CTN
678-931306-07 SCREEN STICKER - TEAC DSEIGN (CT-M341MKII) 1
TO TOP RIGHT OF THE SCREEN
678-931314-05 EASY TUNE CARD (B) - TEAC (B) DESIGN 1
678-931315-07 TOTAL CARE LAEBL - TEAC (B) DESIGN 1
1PC STUCK ON BACK CABINET
690-942039-02 WARRANTY CARD -TEAC (C) DESIGN 1
693-931301-08 EAN CODE LABEL - 9313060007775 1
737-154510-00 METAL WASHER 2
FOR SWIVEL STAND
782-721952-10 DOUBLE ROD ANTENNA 5 SECTIONS 850MM "TIMPOLAR" 1
800-931305-00 POLYFOAM (1) 1
800-931306-00 POLYFOAM (2) 1
800-931307-00 POLYFORM (3) 1
800-931308-00 POLYFOAM (4) 1

MODEL NO: CT-M341MKII
SYSTEM: PAL/BG/AVIN M.GRAY{8403C} 240V SAA 47P
PART NUMBER DESCRIPTION QTY.
4/17
810-052204-14 POLYBAG 5" X 22" X 0.04MM W/RE-CYCLING MARK {P/O 1
MAT}
FOR AC LINE CORD
810-091504-13 POLYBAG 9" X 15" X 0.04MM W/ RE-CYCLING P.E.MARK 1
FOR I/MANUAL
810-303004-61 POLYBAG 30"X30"X0.04MM W/PUNCH TEAC DESIGN 1
(CT-M341 TXT)
FOR UNIT
826-221505-00 FOAM SHEET 22" X 15" X 0.5MM 1
FOR UNIT
830-931301-02 STAND RUBBER FOOT (GREY) 4
FOR SWIVEL STAND
884-881303-01 JACK PLATE - W/AV IN/WHITE SS 1
884-931314-02 PRESET PLATE - TEAC DEISGN 1
889-931302-00 COVER PLATE (PAL) 1
889-931304-00 COVER PLATE - W/O BAND SW. AND TACT SW. HOLE 1
FOR REAR CAB.
900-931301-10 FRONT CABINET (A) - METALLIC GREY (8403C) SPRAYED 1
902-931306-U5 REAR CAB.-METALLIC GREY{8403C} W/SINGLE SPEAKER 1
{HIPS UL94V0}
917-931301-00 REMOTE LENS (A-A) TRANSLUCENT RED 1
919-931302-33 P/DOOR-TEAC DESIGN CT-M341MKII METALLIC GREY 1
{8403C}
930-931302-14 FRONT PANEL (A-B) (PAL) - TEAC DESIGN METALLIC 1
GREY (8403C)
959-931301-04 SWIBEL STAND - ABS METALLIC GREY {8403C} 1
986-931301-06 NAME PLATE - TEAC DESIGN 1
991-931301-05 POWER KNOB (A-A) - METALLIC GREY {8403C} 1

MODEL NO: CT-M341MKII
SYSTEM: PAL/BG/AVIN M.GRAY{8403C} 240V SAA 47P
PART NUMBER DESCRIPTION QTY.
5/17
180-9313T0-28-CP COMMON PART ASS'Y (PAL/BG W/AV IN)
NEW SGS 3 CHIP IC "FOR TEAC"
001-214189-05 FLYBACK TRANSFORMER 154-189H GOLDSTAR "FOR CAIHONG 1
CRT"
T402
008-550151-05 DEGAUSSING COIL 40T (W/FIVE LAYERS OF TAPE) 1
L903

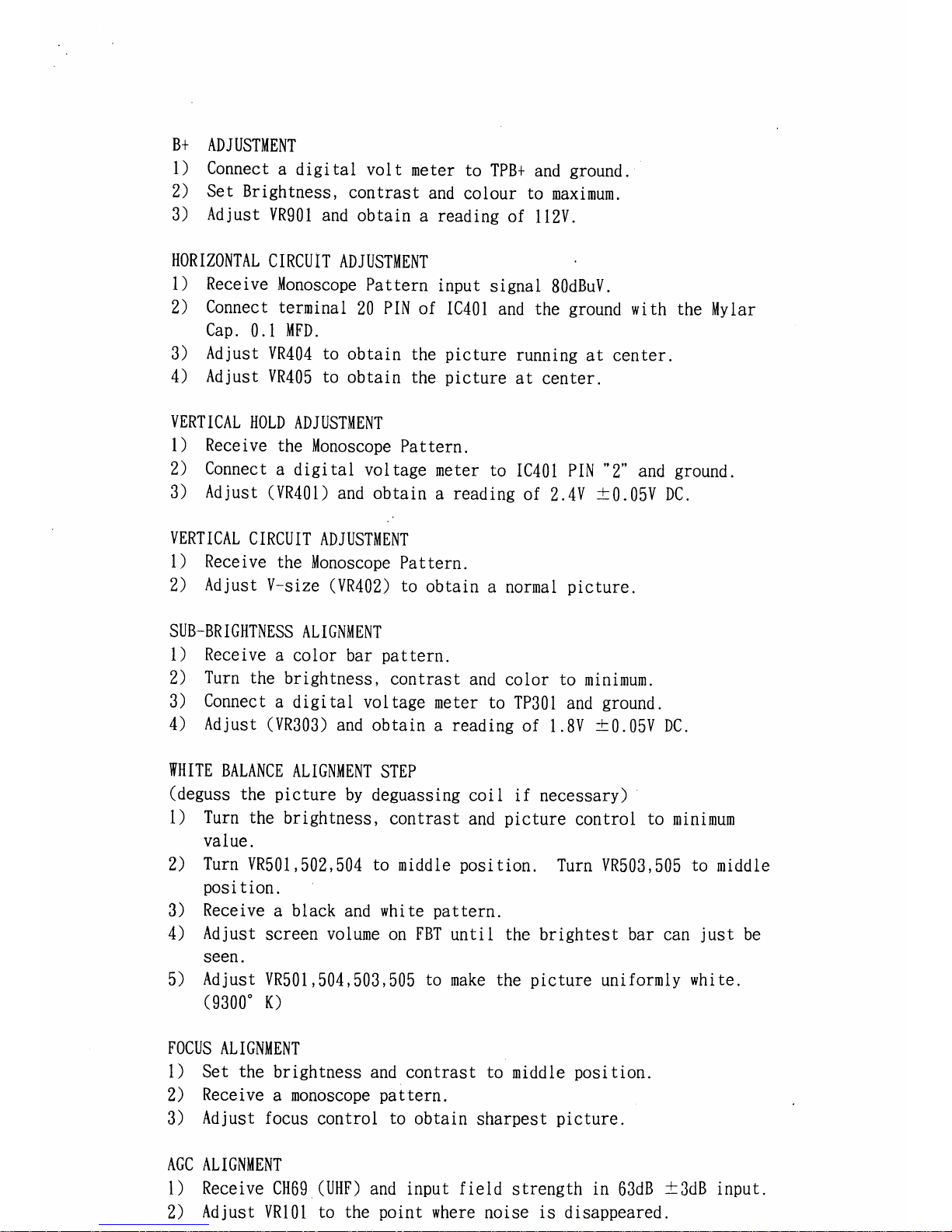

012-102340-06 SEMI-FIXED RESISTOR EVND8AA 03B13 1KB 1
VR901
012-103340-06 SEMI-FIXED RESISTOR EVND8AA 03B14 10KB 2
VR101,404
012-201340-06 SEMI-FIXED RESISTOR EVND8AA 03B22 200B 1
VR405
012-202340-06 SEMI-FIXED RESISTOR EVND8AA 03B23 2KB 1
VR302
012-204340-06 SEMI-FIXED RESISTOR EVND8AA 03B25 200KB 1
VR401
012-301330-06 SEMI-FIXED RESISTOR EVND2AA 03B32 300B 2
VR503,505
012-501340-06 SEMI-FIXED RESISTOR EVND 8AA 03B52 500B 1
VR402
012-502330-06 SEMI-FIXED RESISTOR EVND2AA 03B53 5KB 3
VR501,502,504
012-502340-06 SEMI-FIXED RESISTOR EVND8AA 03B53 5KB 1
VR307
012-503340-06 SEMI-FIXED RESISTOR EVND8AA 03B54 50KB 1
VR303
013-100004-00 GLASS DELAY LINE ENF-650A11-0 WEI HAW 1
DLY302
013-200005-00 Y-DELAY LINE YBL50F18X 1
DLY301
101-191009-96 HORIZONTAL DRIVE TRANSFORMER (R1009) 1
T401
101-288820-95 LINE FILTER 70MH 1
L901
101-414214-94 SWITCHING POWER TRANSFORMER HL4025B (HIGHLIGHT) 1
T901

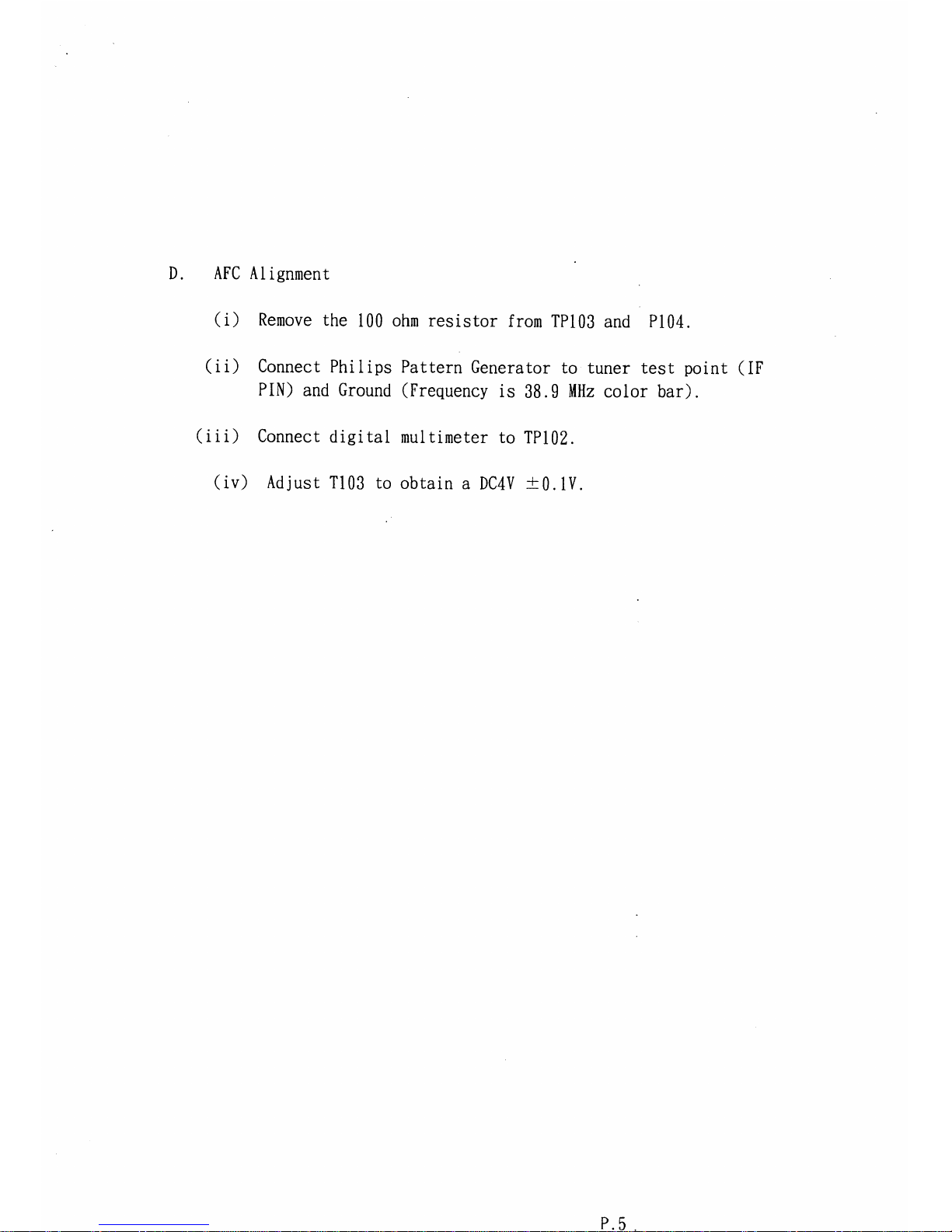

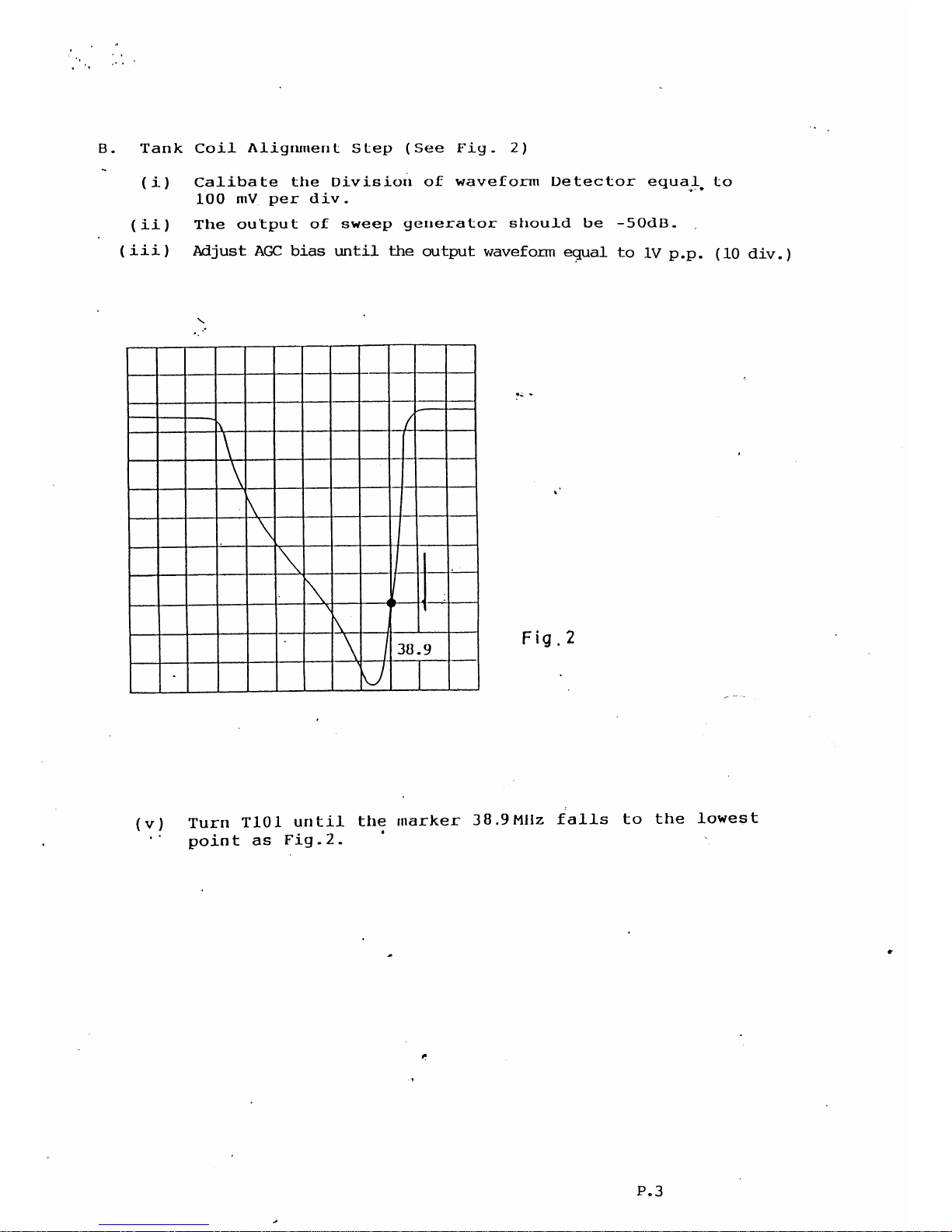

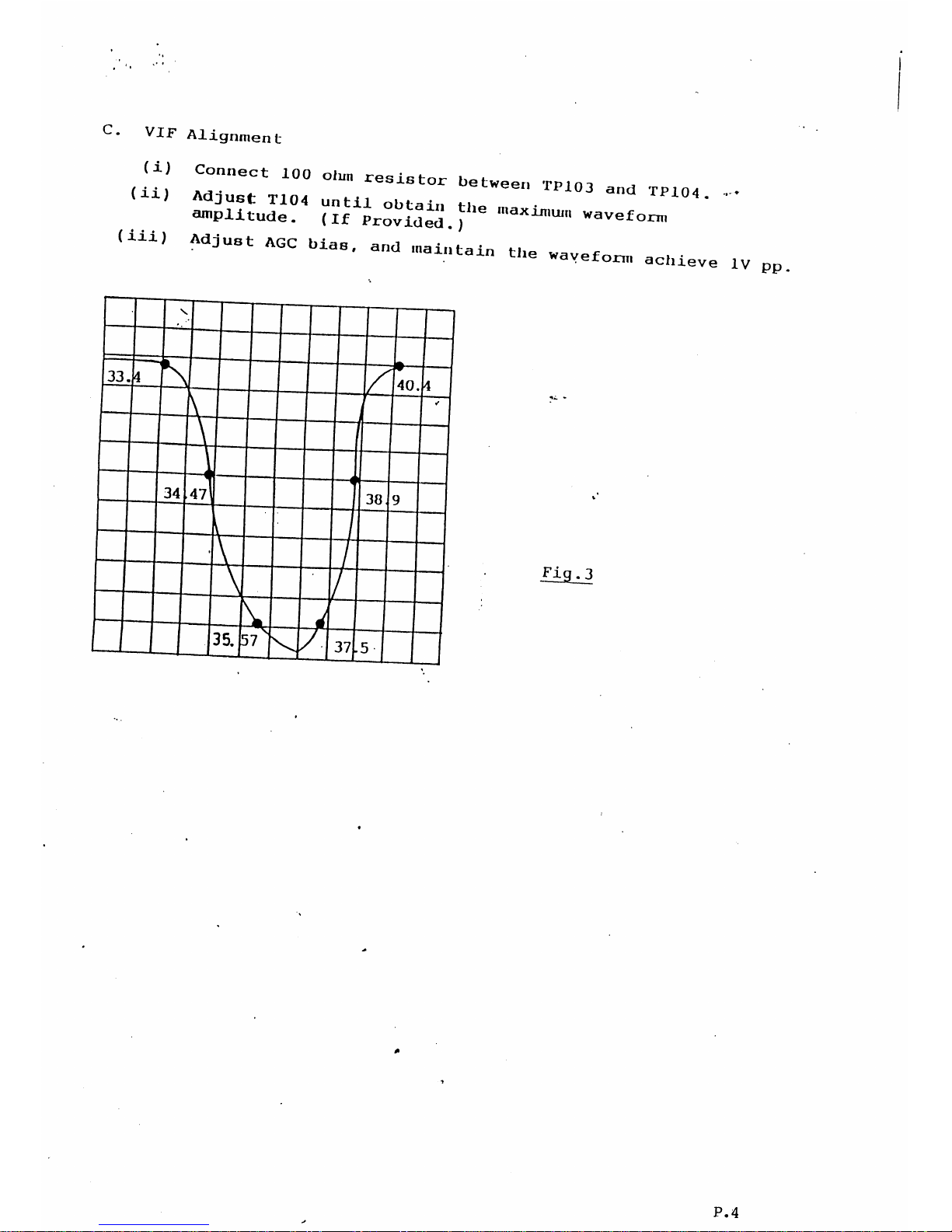

102-370600-02 TANK COIL / AFC COIL COILS 707851 2
T103,101

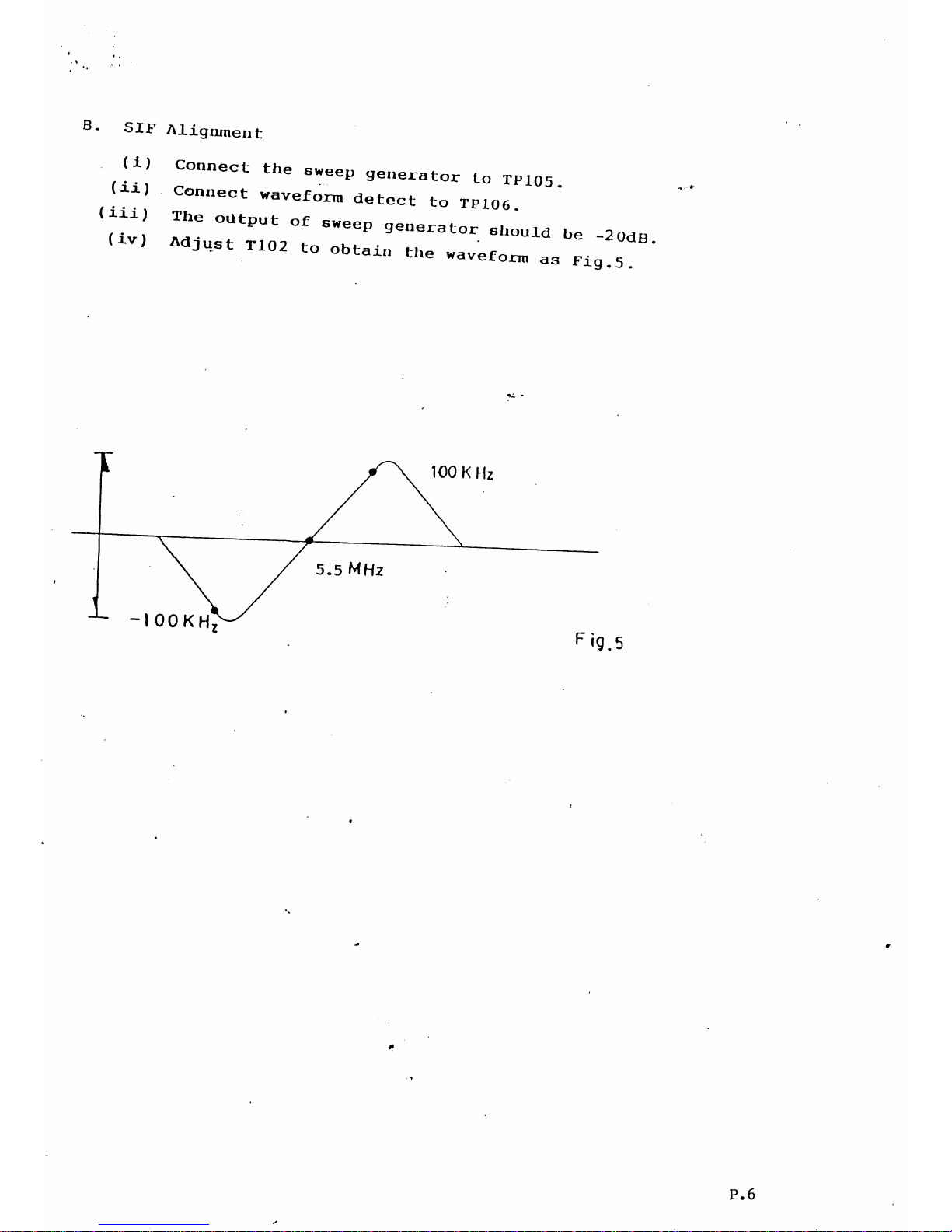

102-670100-02 SOUND IF COILS 707532 1
T102
102-770200-02 SECAM COLOR PAL DELAY LINE MATCHING COILS 707850 1
T301
105-100103-08 FIXED INDUCTOR COIL 10 UH +-10% AXIAL 1
L105
105-101103-08 FIXED INDUCTIVE COIL 100UH +-10% (WITTIS) 1
L501
105-109103-08 FIXED INDUCTIVE COIL 1.0UH +-10% (WITTIS) 2
L102,109
105-150102-06 LINEARITY COIL 15UH FOR 29" RCA CRT 1
L402
105-150103-08 FIXED INDUCTOR COIL 15 UH +-5% AXIAL 2
L401,104

MODEL NO: CT-M341MKII
SYSTEM: PAL/BG/AVIN M.GRAY{8403C} 240V SAA 47P
PART NUMBER DESCRIPTION QTY.
6/17
105-180103-08 FIXED INDUCTIVE COIL 18 UH 1
L302
105-201106-02 CHOKE COIL 200UH 10% CH9012- 201K (ELEC PRODUCT) 1
L903
105-270103-08 FIXED INDUCTIVE COIL 27UH 1
L601
105-689103-08 FIXED INDUCTOR COIL 6.8 UH +-10% AXIAL 1
L301
105-828103-08 FIXED INDUCTIVE COIL 0.82 UH +-10% AXIAL 1
L101
107-105500-66 SOUND TRAP CERAMIC FILTER 5.5MHZ WEI HAW 1
CF102
107-305500-16 SOUND BYPASS CERAMIC FILTER 5.5MHZ WEI HAW 1
CF101
107-808000-66 RESONATOR 8MHZ 1
X601
113-101105-17 CARBON FILM RESISTOR 100 OHM 1/4W +-5% 4
R314,316,318,438
113-101205-12 CARBON FILM RESISTOR 100 OHM 1/2W +-5% 1
R649
113-102105-17 CARBON FILM RESISTOR 1K OHM 1/4W +-5% 0
R140,134,114,432,669,326,004,006,009,329
113-102305-75 METAL OXIDE FILM RESISTOR 1K OHM 1W +-5% 1
R411
113-103105-17 CARBON FILM RESISTOR 10K OHM 1/4W +-5% 9
R418,908,204,650,309,129,130,122,622
113-103105-17 CARBON FILM RESISTOR 10K OHM 1/4W +-5% 0
R104,120,118,640,617,005,013,010,012,108
113-103105-17 CARBON FILM RESISTOR 10K OHM 1/4W +-5% 3
R109,110,623
113-104105-17 CARBON FILM RESISTOR 100K OHM 1/4W +-5% 7
R422,642,634,119,681,682,CF103
113-104205-12 CARBON FILM RESISTOR 100K OHM 1/2W +-5% 1
R923
113-104305-75 METAL OXIDE FILM RESISTOR 100K OHM 1W +-5% 1
R921
113-109205-12 CARBON FILM RESISTOR 1 OHM 1/2W +-5% 1
R410
113-120305-75 METAL OXIDE FILM RESISTOR 12 OHM 1W +-5% 1
R911
113-120405-75 METAL OXIDE FILM RESISTOR 12 OHM 2W +-5% 1
R920
113-120505-75 METAL OXIDE FILM RESISTOR 12 OHM 3W +-5% 1
R414
113-121105-17 CARBON FILM RESISTOR 120 OHM 1/4W +-5% 1
R648
113-122105-17 CARBON FILM RESISTOR 1.2K OHM 1/4W +-5% 3
R407,665,303
113-123105-17 CARBON FILM RESISTOR 12K OHM 1/4W +-5% 4
R436,441,327,306
113-124105-17 CARBON FILM RESISTOR 120K OHM 1/4W +-5% 1
R451

MODEL NO: CT-M341MKII
SYSTEM: PAL/BG/AVIN M.GRAY{8403C} 240V SAA 47P
PART NUMBER DESCRIPTION QTY.
7/17
113-129405-42 FUSING RESISTOR 1.2 OHM 2W +-5% 1
R501
113-151105-17 CARBON FILM RESISTOR 150 OHM 1/4W +-5% 4
R307,116,017,001
113-152105-17 CARBON FILM RESISTOR 1.5K OHM 1/4W +-5% 3
R419,310,304
113-153105-17 CARBON FILM RESISTOR 15K OHM 1/4W +-5% 4
R302,014,320,321
113-153405-75 METAL OXIDE FILM RESISTOR 15K OHM 2W +-5% 3
R510,511,505
113-182105-17 CARBON FILM RESISTOR 1.8K OHM 1/4W +-5% 3
R907,312,126
113-183105-17 CARBON FILM RESISTOR 18K OHM 1/4W +-5% 2
R657,313
113-184105-17 CARBON FILM RESISTOR 180K OHM 1/4W +-5% 2
R618,658
113-184205-12 CARBON FILM RESISTOR 180K OHM 1/2W +-5% 1
R415
113-202105-17 CARBON FILM RESISTOR 2K OHM 1/4W +-5% 1
R328
113-202605-75 METAL OXIDE FILM RESISTOR 2K OHM 5W +-5% 1
R413
113-203105-17 CARBON FILM RESISTOR 20K OHM 1/4W +-5% 1
R325
113-221105-17 CARBON FILM RESISTOR 220 OHM 1/4W +-5% 3
R423,117,666
113-221205-12 CARBON FILM RESISTOR 220 OHM 1/2W +-5% 1
R406
113-222105-17 CARBON FILM RESISTOR 2.2K OHM 1/4W +-5% 8
R206,513,509,507,514,515,516,008
113-222205-12 CARBON FILM RESISTOR 2.2K OHM 1/2W +-5% 1
R405
113-223105-17 CARBON FILM RESISTOR 22K OHM 1/4W +-5% 2
R435,137
113-224105-17 CARBON FILM RESISTOR 220K OHM 1/4W +-5% 3
R207,408,107
113-225105-17 CARBON FILM RESISTOR 2.2M OHM 1/4W +-5% 1
R324
113-229105-17 CARBON FILM RESISTOR 2.2 OHM 1/4W +-5% 2
R208,404
113-229405-75 METAL OXIDE FILM RESISTOR 2.2 OHM 2W +-5% 2
R902,201
113-270105-17 CARBON FILM RESISTOR 27 OHM 1/4W +-5% 1
R115
113-270405-75 METAL OXIDE FILM RESISTOR 27 OHM 2W +-5% 1
R912
113-272105-17 CARBON FILM RESISTOR 2.7K OHM 1/4W +-5% 8
R319,317,315,426,662,663,664,638
113-272205-12 CARBON FILM RESISTOR 2.7K OHM 1/2W +-5% 5
R922,412,503,502,504
113-273101-67 METAL FILM RESISTOR 27K OHM 1/4W +-1% 1
R151
