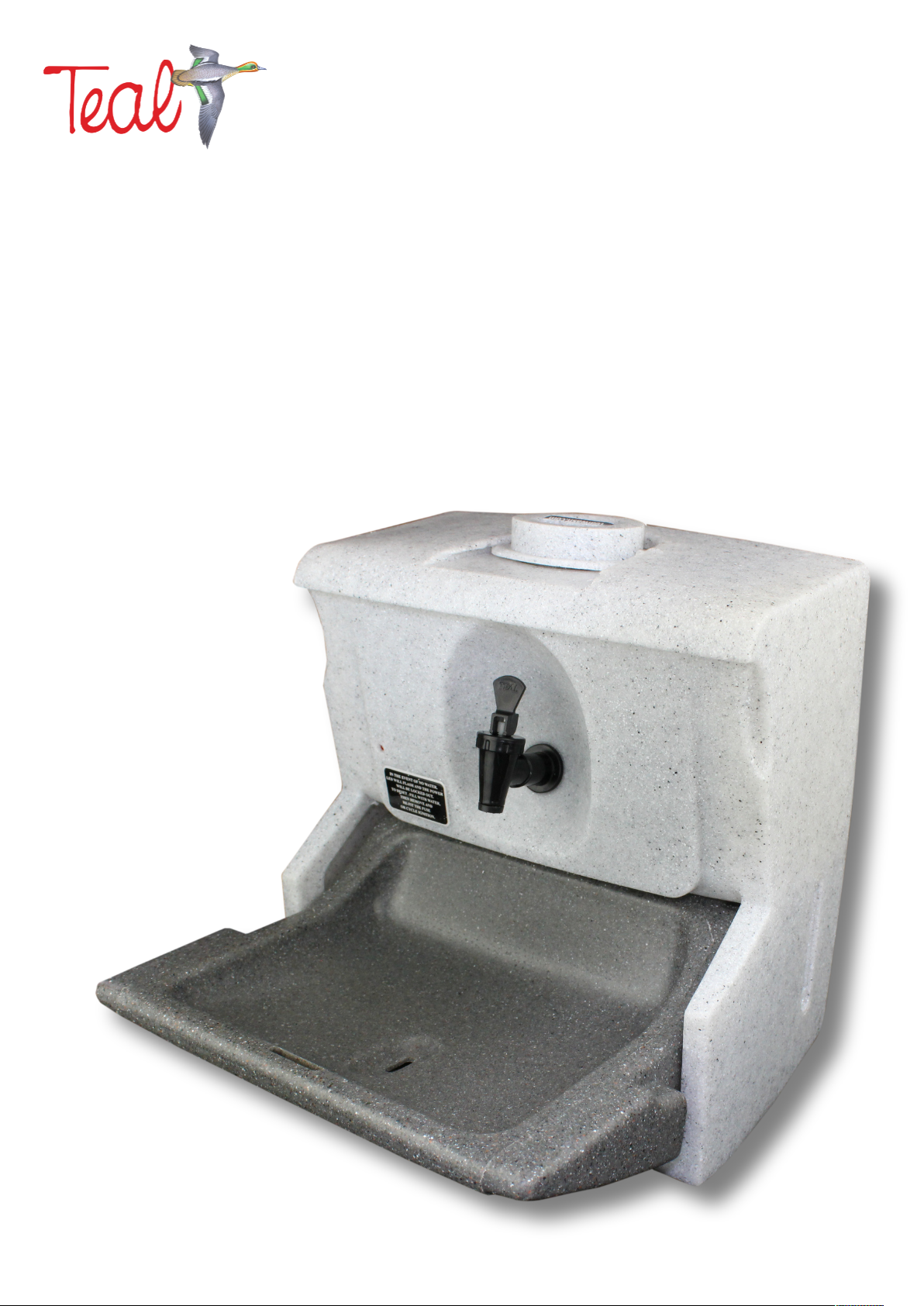

Teal Handeman 12V User manual

The Handeman 12V and 24V
for motor vehicles
Installation and operating instructions
E11 Approval No: 10R-055528, Extension No: 01
VCA registration nu ber: ECV480456
HM 12V/24V 11_2021
Manufactured by:
Teal Patents Limited
Unit 2, Waterloo Avenue
Chelmsley Wood Industrial Estate
irmingham 37 6QQ
Telephone: [phone]
Email: [email protected]

IMPORTANT SAFET INSTRUCTIONS
Before using this appliance, read all instructions
and familiarise yourself with the operation of the
unit
1. This appliance can be used by children aged fro
eight (8) years and above, persons with reduced
physical, sensory or ental capabilities, or persons
with lack of experience and knowledge only if they
have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Cleaning and user
aintenance shall not be ade by children without
supervision.
2. Children should be supervised to ensure that they
do not play with the appliance.
3. The unit should only be used in accordance with
these instructions. Do not carry out any
aintenance other than is shown in these
instructions or as advised by Teal Patents service
support.
4. Do not connect the electrical ele ents with wet
hands.
5. Do not use with a da aged cable or connector. If
the supply cable is da aged, it ust be replaced by
the anufacturer, its service agent or si ilarly
qualied persons, in order to avoid a hazard.
6. If the appliance is not working as it should, has been
dropped, da aged or sub erged in water do not
use. Contact the seller or Teal Patents.
7. Do not dis antle the unit or atte pt to repair the
unit.
8. This equip ent is for heating water for
handwashing only. It is not designed for washing of
crockery or other ite s.
9. Water dispensed is not suitable for drinking.
10. Water is dispensed at a te perature of 38 - 40˚C.
11. The appliance ust be connected to a otor
vehicle power supply.
12. Do not stretch the cable and beware of sharp
corners which ay da age the cable.
13. Unit ust be ounted on the vehicle using suitable
ttings.
14. Unit should be positioned where it does not
obstruct access to key ele ents of the otor
vehicle. Please check di ensions on page 4.
15. Unit ust only be lled with clean cold water.
16. Do not overll – only ll to the neck of the tank.
17. The unit should not be operated without water.
18. Waste water is re oved by taking out the bowl and
tipping the water fro the water drainage slot.
19. This unit must not be subjected to a high pressure
water jet.
20. Any spillages should be cleaned-up as soon as
possible to avoid slipping hazards.
21. Waste water should be disposed of to a foul drain.
22. Keep unit away fro direct heat sources.
23. Do not place in a hot area of ore than 70˚C.
24. Do not alter the unit in any way this will invalidate
the warranty and ay ake it unsafe to operate.
Box contents
Before installing the unit check that all parts are
present and undamaged.
In the event of any shortages or da aged ite s contact
the retailer within one onth of receipt.
Do not atte pt to use substitute parts except as stated
in these instructions.
Contents consist of:
•1 Hande an unit with electrical connecting cable
•Fuse 15A for 24V (blue)
20A for 12V (yellow)
•1 ttings pack consisting of:
•4 ounting screws
•4 nuts
•4 washers
•1 ounting bracket (plastic)
•1 connector block 30A.

Parts identication
Filler cap
Disclaimer
Teal Patents has a policy of
continual improvement in
product quality and design
The company reserves the right to
change the specication of its
models at any time
BowlDrainage holeRe ovable
drainage plug
Water disposal slot
Water disposal slot
Water tank
Power cable
Mounting
holes
Mounting
bracket
Rear of unit
Top of unit
Rear of bowl
2 way tap
Indicator light

Specications
The Handeman
12V/180W (red label)
12V/90W (purple label)
24V/250W (blue label)
12V installation details.
‘Smart’ charging vehicles
Euro6 compliant or hybrid vehicles.
12V installation details.
Non ‘smart’ charging
/ traditional vehicles.
Smart voltage sensing
S art charging aybe referred to as ‘battery
anage ent syste ’, ‘s art alternator’ or other si ilar
ter s.
In these syste s, when driving the vehicle alternator is
periodically disconnected fro the battery to increase
econo y.
Your Teal sink will have 3 wires connected.
•12V + Red. To vehicle battery or auxiliary battery.
•0V - Black. To vehicle battery negative.
•White signal wire (W.W.). When the W.W. receives a
positive signal, the sink will switch on.
The ost co on connection for the W.W. is at the
ignition fuse, though alternative connection points ay
be used. Do not connect the W.W. to other vehicle
syste s that ight have alternate power e.g. alar s as
the Teal sink ay not switch o.
The unit will switch o (regardless of W.W. voltage) when
less than 11.9 volts are detected, thus preserving the
battery’s integrity.
Consult the vehicle handbook as to how to connect the
Red/Black wires to the battery as direct connection to the
battery ter inals can defeat the ‘battery anage ent
syste ’ – if tted.
Voltage sensing
In these syste s the alternator will charge the battery
whenever the engine is running.
Your Teal sink will have 2 wires connected.
•12V + Red. To vehicle battery or auxiliary battery.
•0V - Black. To vehicle battery negative.
The White signal wire is unused.
The unit will switch on when it detects a voltage above
13.8 volts and switch o below 12.8 volts.
Consult the vehicle handbook as to how to connect the
Red/Black wires to the battery as direct connection to
the battery ter inals can defeat the ‘battery
anage ent syste ’ – if tted.
FAILURE TO FOLLOW THESE INSTRUCTIONS MA INVALIDATE OUR WARRANT .
Installation
Product
Hande an
12V /180W
(red label)
Hande an
12V/90W
(purple label)
Hande an
24V/250W
(blue label)
Height 335 335 335
Width 300 300 300
D (closed) 175 175 175
D (open) 315 315 315
Litres 2.5 2.5 2.5
Fuse 20A 15A 15A
No. of 10 second
hand washes 10 10 10
Weight (e pty) 3 kg 3 kg 3 kg
Weight (full) 5 kg 5 kg 5 kg
IP rated IP34 IP34 IP34

For operation using an auxiliary leisure battery
where the voltage output is at a static +/-12 volts
Non voltage sensing (switch or relay required)
Your Teal sink will have 3 wires connected.
•12V + Red. To auxiliary battery.
•0V - Black. To vehicle battery negative.
•White signal wire (W.W.) to 12V +. To auxiliary
battery.
The unit will switch o when less than 11.9 volts are
detected, thus preserving the battery’s integrity.
To control this unit the installing auto electrician ust
wire the positive feed (red) via a switch or relay.
24V installation details:
non ‘smart’ charging / traditional vehicles
Voltage sensing
In these syste s the alternator will charge the battery
whenever the engine is running.
Your Teal sink will have 2 wires connected.
•12V + Red. To vehicle battery or auxiliary battery.
•0V - Black. To vehicle battery negative.
The White signal wire is unused.
The unit will switch on when it detects a voltage above
25.6 volts and switch o below 25.1 volts.
Consult the vehicle handbook as to how to connect the
Red/Black wires to the battery as direct connection to
the battery ter inals can defeat the ‘battery
anage ent syste ’ – if tted.
Vehicle Mounting
This unit has been designed for xing to a otor vehicle
only. It ust not be used in any other application.
Before installation check that you have all the parts
listed.
Please ensure that you use appropriate ttings before
co encing.
Before co encing installation check that you have
appropriate tools and a suitable workspace.
Failure to follow these instructions ay result in
personal injury, da age to the product or da age to
property.
Check that you will not need to access the area or
ele ents within it in the position where you intend to
x the Hande an.
If you are unsure consult a suitable qualied installer.
Ensure that the position of the unit allows sucient
space for the opening of the lid and the safe opening of
the bowl.
Using the supplied te plate identify the locations for
the 4 ounting points.
Fit suitable fasteners in each hole.
Mount the unit using the 4 bolts provided.
Do not overtighten xings as this ay da age the unit.
Take care not to drop tools or xings into the unit.
Check that the unit is upright and level before lling.
Electrical Connection
This unit ust be connected to a vehicle’s electrical
power supply using 4 30A rated cable direct to the
battery. Do not atte pt to replace this.
Waste Water
All Hande an odels have a re ovable bowl that
retains all the dirty water.
There is no need for a separate waste pipe or waste
water storage container.
Mounting the Handeman

Fill the unit with cold water until water can be seen in
the tank.
Do not use pre-heated water as this ay da age the
unit.
Do not overll – if there is water above the neck of the
tank, use the tap to reduce the water level before
operating.
Replace the cap and tighten.
The unit will heat when the ignition / engine is running.
An orange LED indicates that the power is connected.
Allow to heat up for approxi ately 15 inutes.
The green LED will light to indicate water is at the
correct te perature.
Use tap to discharge water to wash hands.
If a continuous ow of water is required, fully depress
the tap lever.
Waste water will drain through the drain hole and will
be held in the hollow bowl.
To e pty the waste water, carefully detatch the bowl
fro the ain body of the Hande an and pour the
waste water through the water disposal slot into a foul
water drain.
When the water tank is e pty of water the red LED will
light. Rell the water tank and press the reset button.
Disconnect the unit and allow to cool before relling.
LED display
The unit has an LED display to indicate the status.
FLASHING GREEN - unit on standby. Either waiting for
higher battery voltage or white wire to go to +12V.
SOLID GREEN - unit at te perature.
SOLID AMBER - unit heating.
SOLID RED – no water / tilt fault.
FLASHING RED - hardware fault.
Operating instructions
E pty the bowl to a foul water drain and rinse with
clean water.
If unit is left unused for an extended period it is
reco ended that it is e ptied of water and
replenished with fresh water.
Clean all surfaces with an anti-bacterial wipe or
disinfectant paying particular attention to frequent
contact points.
Do not use abrasive cleaners which ay scratch the
external surfaces.
This unit ust not be subjected to a high pressure water
jet.
It is reco ended that the unit is cleaned with a
cleaning solution such as Milton according to the
instructions on a weekly basis.
Cleaning instructions
Towel holder ref GENTWLHLDR
Soap bottle and bracket ref GENSOAPDISP/BRKT
Metal ounting bracket ref HMMOUNTBRKT
Optional extras
At the end of its useful life, the
handwash unit should not be disposed
of in general household waste.
Units should be taken to a recycling
facility for electrical and electronic
ite s.
Please see WEEE regulations.
Disposal

All Teal Patents products are tested before leaving the
factory.
The unit is covered by a two year return to anufacturer
warranty fro date of purchase – please ensure that you
retain proof of purchase.
Any faulty ite s will be repaired or replaced, and the
repairs guaranteed for the re ainder of the original
warranty period.
Should a unit need repair, those repairs only will be
covered by a further 12 onths warranty.
Exclusions
Teal Patents will not be liable to repair or replace goods
where:
•The fault has been caused through isuse,
accidental da age, use contrary to the
anufacturers instructions, da age in transit or
power surges.
•The appliance has been used on a voltage supply
other than that specied on the product
•Repairs have been atte pted by so eone other
than Teal Patents or an authorised dealer
•The appliance is second hand
•The warranty does not cover any clai s for
consequential loss or da age.
This guarantee does not eect your statutory rights as a
consu er.
Guarantee
Troubleshooting guide
The Handeman
12V and 24V
Teal Patents Ltd
Unit 2, Waterloo Avenue
Chel sley Wood Industrial Estate
Chel sley Wood
Bir ingha , B37 6QQ, UK
Tel: [phone]
E ail: enquir[email protected]
No water dispensed. Check water level in tank
Water cold. Check Orange LED is on. If not, check power
supply. If LED is on leave unit for 15 inutes to fully heat
water. If water is still cold unplug unit and return to
supplier.
Red LED solid. Unit cut-out activated.
•Low water.
•Check water level. Rell if required and press
and release reset button.
•Unit tilted.
•Return unit to upright position. Rell if
required and press and release reset button.
Red LED ashing. Hardware fault.
•Unplug unit. Check water level and rell if required.
Plug unit in. If fault persists contact Teal or the
retailer.
Water around unit. Clean up any spillage fro lling
unit. Check waste pipe is securely tted. If further water
is seen switch o unit and contact the supplier for
advice.
