Teba therm TP-24 User manual

MANUFACTURER:
ARAL MAKİNA MADENİ EŞYA SAN.
VE TİC.LTD.ŞTİ. /O.S.B.8.CD.NO:16 TEL: [phone] www.teba.com.tr
KAYSERI/TURKEY F AX: [phone] [email protected]İMALATCI:
Installation and User Manual
Pellet/Wood Boiler
Model TP-24 / TP-35
Tested according to DIN EN 14785
Type BA 1
For product efficiency and emission values, see the declaration of
conformity!
TR

Sayfa 2/ 21
Index
1.0 General 3
2.0 Features 4
3.0 Warnings 4-5
4.0 Location and installation 5
4.1 General 5
4.2 Safety 5-6
4.3 Installation safety distances 6
4.3.1 Electric 6
4.3.2 Tesisat 7
4.3.3 Chimney connection 7-8
4.3.4 Safety distances 8-9
5.0 Control Panel 10
5.1 Buttons and their functions 10-11
5.2 Symbols 11-12
5.3 Error codes and their explanation 12-13-14
5.4 Menu functions 15
5.4.1 Settings menu 14
5.4.1.1 Combustion menu 14-15
5.4.1.2 Heat management menu 15
5.4.1.3 Timer menu 16-17
5.4.1.4 Manual loading menu
5.4.1.5 Wood burning
6.0 Cleaning and maintnance 19
6.1 Heat exhanger cleaning 20
6.2 Ash bin cleaning 20
6.3 Fire pot cleaning 21
6.4 Fire pot Cleaning 22-23
7.0 General warranty policy

Sayfa 3/ 21
1.0 INTRODUCTION
Pellet stoves and boilers are domestic heating appliances. They are fully
automatic and easy to use and they can be used both inside and outside of
the houses.
Pellet stoves and boilers uses peller as fuel and heats your office or house.
Some products look like a fireplace.They are comfortable and money saving
devices. By means of radiators they are capable of heating your house
equally.
After completing R&D projects our company started manufacturing fully
automatic pellet boilers on 2011 with DAIWA and TEBA brands. The
products has succesfully passed the official tests. Average efficiency of our
products is nearly 92%.
By the 2014 April we started serial production and started to sell in
domestic market and export.
If you are reading this document most probably you are an owner of
DAIWA or TEBA brand pellet stove or boiler.
* Please read this manual carefully. This manual contains useful
information about the function and the use of the product.
* Under the light of these information you will be able to use your product
effectively, save money and nature.
* Please keep this booklet for future use. Before starting to use your
product at the beginning of winter please scan the booklet to refresh your
knowledge.
2.0 FEATURES

Sayfa 4/ 21
TECHNICAL FEATURES
MODEL TP-24
Inside use
√
Outside use
--
Oven
--
Sanitary water
--
Pellet level sensor
--
Hot air blower
--
Thermal power (kW)
25
Boiler in-out diameter
1’’-3/4’’
Sanitary water in-out
--
Operation pressure
1-1,5 bar
Flue pipe diameter
80mm
Pellet storage capacity
25kg
Thermal efficiency
94%
Electric
230Volt-50Hz
Weight
177kg
Boiler capacity
50lt
3.0 WARNINGS!
● USE ONLY 6MM NATURAL PELLETS MANUFACTURED ACCORDING TO DIN
PLUS STANDARTS.
● DO NOT USE 8MM OR 10 MM PELET, AND SEEDS.
● CLEAN THE FIRE POT EVERYDAY.
● HEAT EXCHANGER PIPES MUST BE CLEANED IN 3-4 DAY PERIODS BY THE
BRUSH SUPPLIED WITH YOUR STOVE OR BOILER.
● IF YOU ARE NOT GOING TO USE YOUR PRODUCT FOR A LONG TIME
GENERAL MAINTENANCE AND CLEANING MUST BE CARIED OUT AND FUEL
STORAGE MUST BE EMPTIED.

Sayfa 5/ 21
● DAMAGES CAUSED BY USING INAPPROPRIATE PELLET NON-REGULAR
CLEANING ARE NOT COVERED BY WARRANTY.
4.0 PLACEMENT AND INSTALLATION
4.1 GENERAL
Your appliance was tested according to enforcement rules. Thermal
efficiency and flue gas emissions are in the official ranges. Your appliance
was tested and approved according to EN14785 by an authorized
institution.
Although the product is packed to prevent damaging your porduct would
be damaged while it is being transported. Please check your product
carefully on arrival and do not accept damaged product and report it with
the transporter, otherwise the supplier shall not pay for damages.
4.2 SAFETY
* Product must be installed by an authorized person.
* The floor where you are going to install your product must stand the
weight of the product. If the floor is made of combustible material please
use glass, metal or marble base under the product.
* Install you product in a well ventilated area.
* The product must be connected to separate chimney, not to commenly
used chimney. Must not be connected to kitchen aspirator and bathroom
ventilation windows.
*Product must be connected to chimney with the shortest way and with
the least number of elbow. Increasing the number of elbow and the
distance may lead to unwanted results. If the flue pipe is directly
connected to outside a cap must be used to eliminate the effect of the
wind. If it is connected to a present chimney you must use ‘’H’’ shaped

Sayfa 6/ 21
apparatus or a patented apparatus manufactured by ARAL MAKİNA. Use of
these apparatuses prevent the unwanted results.
* If the flue pipe is connected to outside directly please cover the tip of the
pipe with a 2x2cm mesh so that birds can’t nest in it.
* For better efficiency and longer the life time of the product quality pellet
and wood must be used. Do not use wet and highly humidified . Use of saw
dust and coal will cause serious damages to your stove.
*Inside use products radiates heat around for this reason they musn’t
installed in a small areas. All the pellet stoves and boilers are designed to
take burning air from outside, using this feature provides better air quality
inside your home.
INSTALLATION
* Installation must be done by an authorized person. Pellet stove or boiler
is a fully automatic product. Expansion vessel,circulation
pump,thermostates, safety valve, safety switches are readily installed
inside ste product. Ignition is made by a resistance and fuel is fed by an
auger.
4.3 INSTALLATION
Radiators must be connected to the boiler by an authorized pesrson. The
material used in piping must have a quality certificate. Supplier is not
responsible of the problems arised from piping and fittings. The main pipe
from boiler to radiators must be ¾’’ (hot water)and 1’’ return (cold water).
Pipes would be PVC or metal. In piping possible least number of elbows
should be used. Connection between main pipe and radiators may be ½’’.
Piping must be done according to the drawing supplied by the
manufacturer. After all the pipings and connections done the system is
filled with water as to manometer reads 1-1.5bar. After water is filled all

Sayfa 7/ 21
the connections are controlled for leakage, if there is no leak and the air
inside the pipes is removed boiler may be started. After the set
temeperature is reached the pump starts, then loosen the purging valves
and check whether there is air inside the radiators or not. This procedure is
repeated few times in a time interval to be sure that there is no air in the
system.
*According to the weather conditions of the region where the boiler is
being used,it is recomended to use 1/3 portion antifreeze against coorosion
and freezing.
4.3.1 Electric
Your product must be connected to 230V / 50 Hz electric system. Damages
caused by non regular electric are not covered by warranty.
4.3.2 Flue pipe connection
It is recommended to use stainless steel flue pipe. Pellet stoves must not
connected to commonly used chimneys. They must be connected to
separate chimney. Flue pipe must be connected to the chimney through a
the possible shortest way and with the least number of elbows.

Sayfa 8/ 21
4.3.3 Minimum Safety Distances

Sayfa 9/ 21
While you are installing your product please check the fire and chimney
regulations on force in your country. . Minimum saftey distances specified
below must be complied with;
A from the rear wall 25 cm
B from the side wall 15 cm
C from the radiation area (front side of the stove) 80 cm
There mustn’t be any combustible material within 80 cm (80cm) from the
door of the stove. This distance would be 40cm if, a fire protection panel is
placed between the stoves door and the material.
If the stove is to be placed on a fire sensitive floor, fire protective base like
marble, glass or metal should be used.
Minimum dimensions of a base is specified below;
D 50 cm (from the door to edge of the base)
E 30 cm (from the inner edge of the door to edge of the base).
CONTROL PANEL

Sayfa 10 / 21
4.4 USE AND FUNCTOINS
LED
LED
Fix
Blinking
L1
Stabilization phase
Ignition Start phase
L3
Stove OFF
Extinguishing phase
L4
Work phase
Modulation/Standby phase
L5
Engine Auger ON
L6
Igniter Resistance ON
L7
Chrono Program enabled
L8
Pump ON
DISPLAY
Display
Fix
Blinking
D1
Time
D2
Work Combustion Power set
Combustion power change
D3
Room Thermostat set
Room Thermostat change
BUTTONS
Click [P click]
Long Pressure [P long]
P1
Display other data
Ignition/Extinguishing
/Block Reset
P2
Combustion Power Setting
Manual Pellet Loading

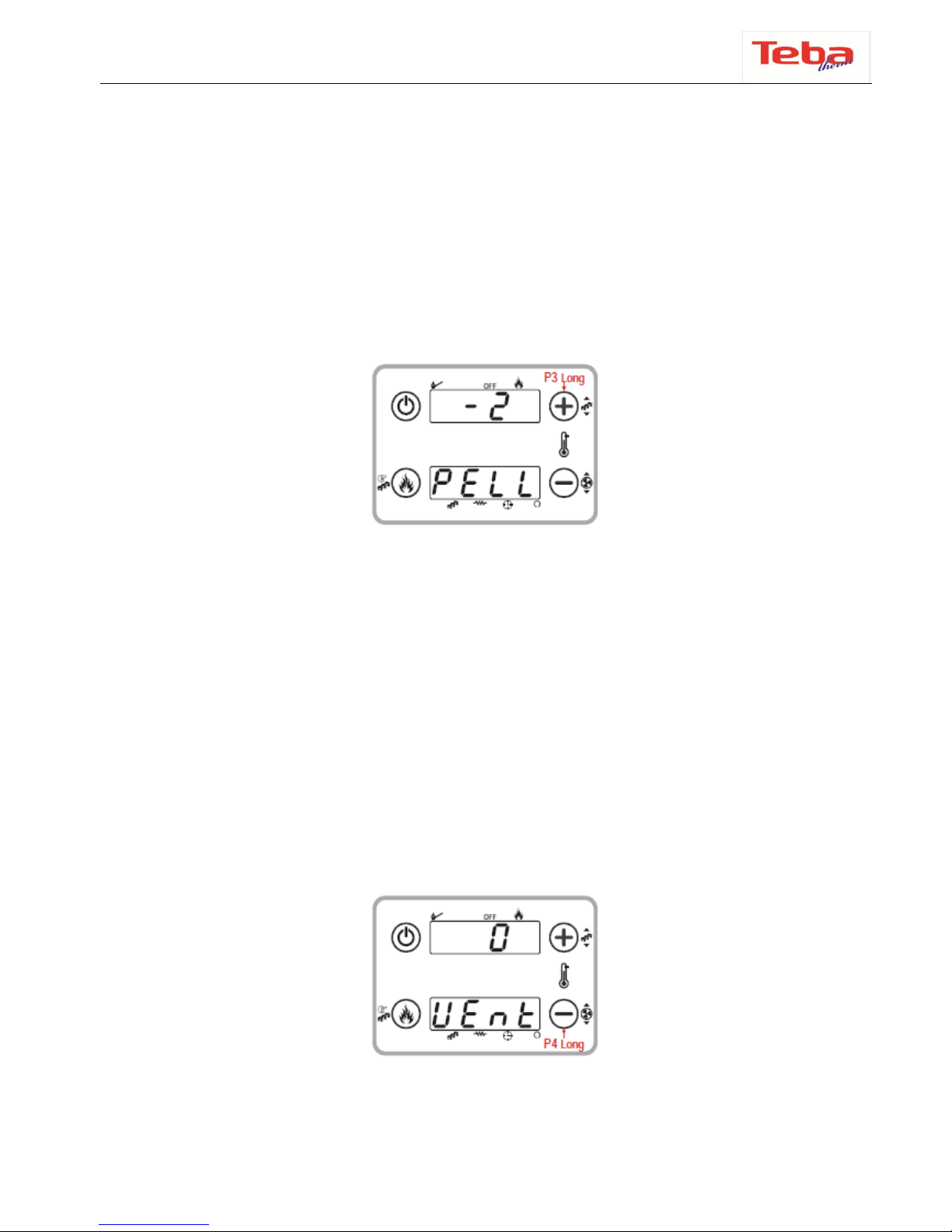

P3
Thermostat Setting (+)
Pellet Loading Correction

Sayfa 11 / 21
P4
Thermostat Setting (-)
Combustion Fan Speed
Correction
ALARMS
DESCRIPTION
Display
Safety Thermostat HV1: signalled also in case of Stove OFF Block
Safety PressureSwitch HV2: signalled with Combustion Fan ON Block
Extinguishing for Exhausting Temperature lowering Block
Extinguishing for Exhausting over Temperature Block
Encoder Error: No Encoder Signal (in case of P25=1 or 2) Block
Encoder Error: Combustion Fan regulation failed (in case of P25=1 or 2) Block
Failed Ignition Block
Lack of Voltage Supply Block
Lack of Fuel Block
DAY and TIME not correct due to prolonged absence of power supply Block
Anomaly in probe control during Check Up phase Block
Extinguishing for water over Temperature Block
Low pressure in to the Boiler Block
High pressure in to the Boiler Block
The reset of the BLOCK Condition is done by the Long Pressure of the button P1

Sayfa 12 / 21

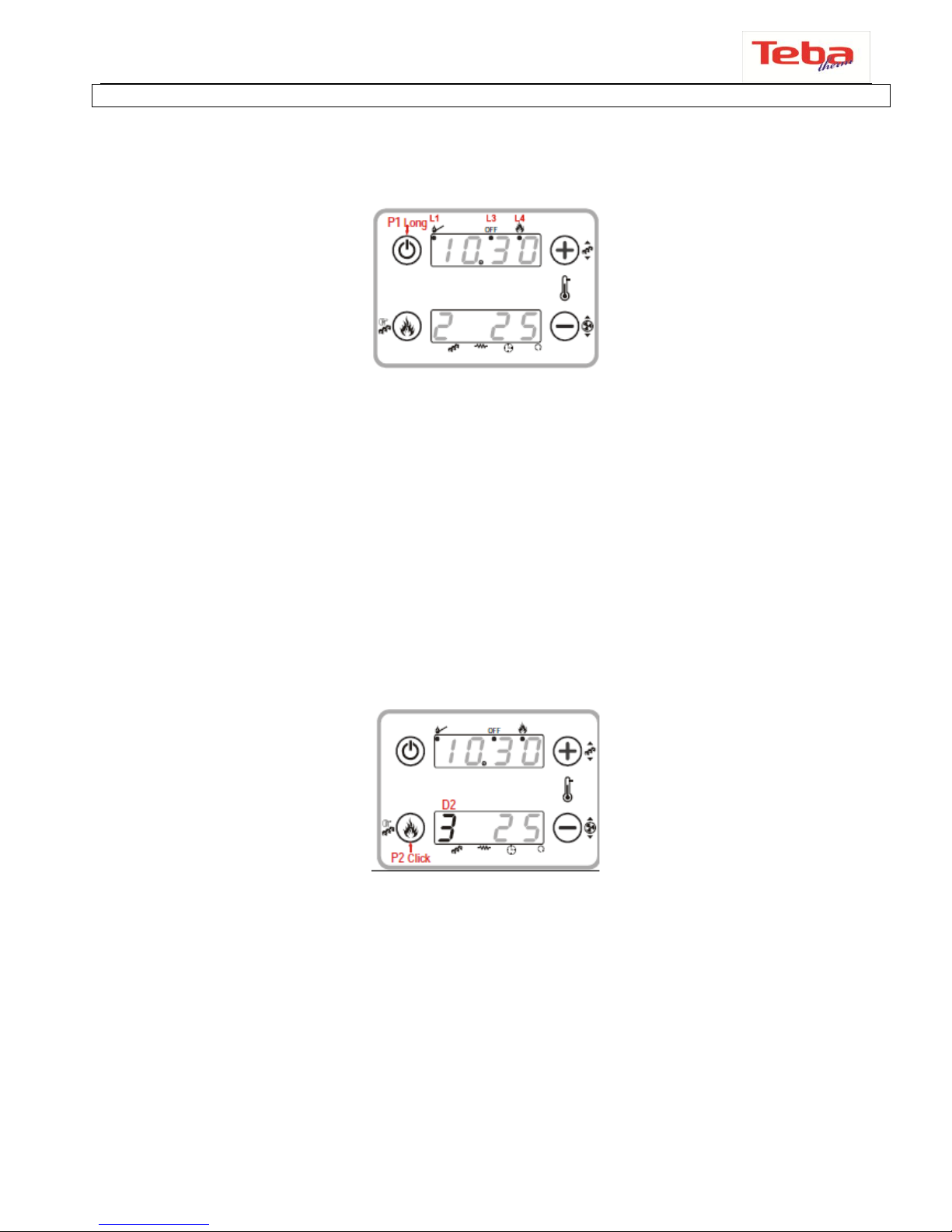

Ignition/Exstinguishing
The Ignition is extinguishing are activated with a long pushing of the button P1
The Ignition is signalled by the first blinking than fix led L1
The Work state is signalled by the fix led L4
The Modulation state is signalled by the blinking L4
The Extinguishing is activated with a long pressure of the button P1
The Extinguishing is signalled by the blinking led L3
The Extinguishing finished =OFF state is signalled by the fix led L3
Combustion Power Setting
Click button P2: the display D2 blinks
With other click of the button P2 the power is changed according to the values
Ex.: 1 –2 –3 –4 –5 –A (A= Automatic Combustion)
After 3 seconds the new value is memorised and the display shows as normal .
Wood burning : Combustion power 5 is adjusted to burn wood. If you would
like to burn wood there must be pellet in your storage also. Then adjust the
combustion power to 5 and put some wood to burning chamber so that it will

Sayfa 13 / 21
not block the entrance of the pellet to fire pot and start your appliance
normally. In this mode it will start with pellet as to wood catch the fire then
auger stops pellet feding and your appliance runs on wood. If the flame starts
to decrease add some wood. Do not keep the door open more than 20
seconds, otherwise it will go in extiguishing phase.
Work Thermostat Setting
Click button P3 or P4: the display D3 blinks
With other click of the buttons P3 / P4 the value of the thermostat is
increased or decreased
After 3 seconds the new value is memorised and the display shows as normal
Manual Pellet Loading

Sayfa 14 / 21
The long pressure of button P2 activates the Pellet Manual Loading with
activation of Auger engine in continuous way. The bottom display shows the
actual function
The up display shows the passed loading time
To stop the loading push any button
The loading stops automatically after 300 seconds
Pellet Loading Correction
The long pressure of button P2 activates the Pellet Manual Loading with
activation of Auger engine in continuous way. The bottom display shows
the actual function
The up display shows the passed loading time
To stop the loading push any button
The loading stops automatically after 300 seconds
Combustion Fan Speed Correction
The activation is with a long pushing of the button P2
The bottom display shows UEnt

Sayfa 15 / 21
The Display D1 shows the blinking value
With buttons P3 / P4 the blinking value increases or decreases
The values are between the range –7 ÷ 7. The default value is ‘0’
After 3 seconds the new value is memorised and the display shows as normal
Display
By clicking perform activation P1.
tA = Room/buffer temperature
tF = Exhausting Temperature
UF= Combustion Fan Speed [RPM/Volt]]
HF02+Product Code
User’s Menu (2)
Push contemporary the buttons P2 and P4 for three seconds to enter into User
Menu (2)
 To scroll the Menu push the buttons P3 or P4
 To enter in a submenu push the button P2
 To modify the blinking value push the button P3 (to increase) or P4 (to
decrease)
 To exit push the button P1
Chrono
It allows to programme and enable the ignitions/extinguishing
4.1.1 Enable

Sayfa 16 / 21
It enables the Programming set.
Push the button P2 to enter
Push the buttons P3/P4 for select
ON= enable programming set OFF=disable programming set
To confirm, push the button P2, or push P1 to esc
4.1.2 Program
It allows to schedule the 3 time bands available for every day of the week
Select
Push the button P2 to enter
Use the buttons P3/P4 to visualize the time bands set:
 The upper display visualizes the TIME SET
- - - - if the BAND is disabled
 The bottom display visualizes: DAY / BAND / ON/OFF
 The long pressure of the button P1 Enables / Disables the selected time
band
PROGRAM CHRONO ACROSS MIDNIGHT
Set the time ON for the previous day to the wanted value:

Sayfa 17 / 21
Example 20.30
 Set the time OFF for the previous day at: 23:59
 Set the time ON for the next day at 00:00
 Set the time OFF for the next day to the wanted value:
Example 6:30
The system will turn ON on Tuesday at 20.30, and will turn OFF
on Wednesday at 6.30
Time and Date
It allows to set the current day and time

Sayfa 18 / 21
5CLEANING AND MAINTANANCE
Parts to be cleaned
Cleaning period
Ash bin
daily
Fire pot
daily
Second ash bin
monthly
Glass
daily
.
5.3.1 ASH BIN CLEANING
The ash bin under the fire pot should be cleaned daily. Your product is
equipped with two ash bin. The second ash bin is located behid the ash bin
that you see under the fire pot. To clean the second ash bin, remove the
ash bin (Picture 1) then remove the second ash bin (Picture 2,3,4) Second
ash bin should be cleaned mothly.

Sayfa 19 / 21
5.4 FIRE POT CLEANING
Be sure that your product is cool then, open the door carefully so that the
ashes do not spill around. Clean inside the fire chamber by a vacuum
cleaner (refer to picture2). After vacuum cleaning clean the fire pot with a
metal brush as shown in picture1.

Sayfa 20 / 21
After cleaning the burning chamber and fire pot replace the pot. Be sure
that pot is seated well to its place.
7.0 GENERAL WARRANTY POLICY
ARAL MAKİNA MADENİ EŞYA SAN. VE TİC.LTD. ŞTİ warrants the product
against the production faults for 2(two) years period from the date of
installation. Invoice of the product must be presented to the authorised
technical service to include the product in warranty. Pump, glass, electronic
