WALL-MOUNTED CONDENSING BOILERS
WH 46
WH 65
0085
GB
IE
INSTALLATION, OPERATION AND MAINTENANCE MANUAL

2926.772.1 - GB/IEINSTRUCTIONS PERTAINING TO THE USER
Dear Customer,
We are sure your new boiler will comply with all your requirements.
Do not dispose of this booklet as it contains the information, which will help you to run your
boiler correctly and efciently.
POTTERTON GOLD HIGH OUTPUT boilers bear the CE mark in compliance with the
basic requirements as laid down in the following Directives:
- Gas Directive 2009/142/CE
- Performance Directive 92/42/CEE
- Electromagnetic Compatibility Directive 2004/108/CE
- Low Voltage Directive 2006/95/CE
Do not leave any parts of the packaging (plastic bags, polystyrene, etc.) within children’s reach as they are a
potential source of danger.
1. Instructions prior to installation 3
2. Instructions prior to commissioning 3
3. Commissioning of the boiler 4
4. Filling the boiler 10
5. Turning off the boiler 10
6. Prolonged standstill of the system. Frost protection 10
7. Servicing instructions 10
8. General information 11
9. Instructions prior to installation 11
10. Boiler installation 12

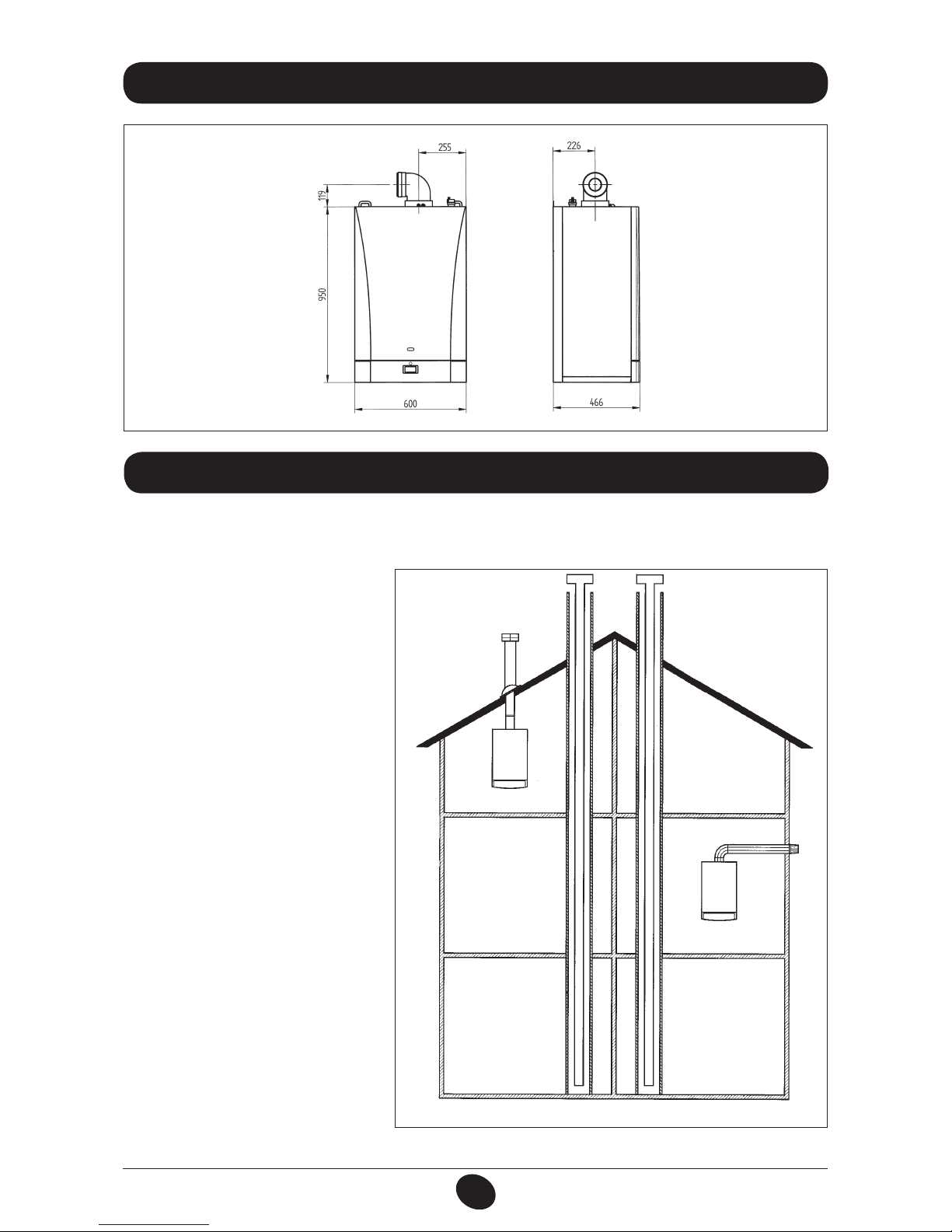

11. Boiler size 13
12. Installation of ue and air ducts 13
13. Hydraulic system 16
14. Connecting the mains supply 20
15. Gas valve adjustment 27
16. Setting the boiler parameters 29
17. Control and operation devices 30
18. Positioning of the ignition and ame sensing electrode 31
19. Check of combustion parameters 31
20. Activating the chimney-sweep function 32
21. Annual service 32
22. Boiler schematic 33
23. Illustrated wiring diagram 34
24. Technical data 35
CONTENTS
INSTRUCTIONS PERTAINING TO THE USER
INSTRUCTIONS PERTAINING TO THE INSTALLER

3926.772.1 - GB/IEINSTRUCTIONS PERTAINING TO THE USER
This boiler is designed to heat water at a lower than boiling temperature at atmospheric pressure. The boiler
must be connected to a central heating system and/or to a domestic hot water supply system in compliance
with its performances and output power.
The boiler must be installed by a Qualied Service Engineer ensuring that the following operations are carried
out:
a) Careful checking that the boiler is t for operation with the type of gas available. For more details see the
notice on the packaging and the label on the appliance itself.
b) Careful checking that the ue terminal draft is appropriate; that the terminal is not obstructed and that no
other appliance exhaust gases are expelled through the same ue duct, unless the ue is especially desi-
gned to collect the exhaust gas coming from more than one appliance, in conformity with the standards
and regulations in force.
c) Careful checking that, in case the ue has been connected to pre-existing ue ducts, thorough cleaning
has been carried out in that residual combustion products may come off during operation of the boiler and
obstruct the ue duct.
d) To ensure correct operation of the appliance and avoid invalidating the warranty, observe the following
precautions:
1. Hot water circuit:
If the water hardness is greater than 20 °F (1 °F = 10 mg calcium carbonate per litre of water) a
polyphosphate or comparable treatment must be used in response to current regulations.
2. Heating circuit
2.1.New system
Before proceeding with installation of the boiler, the system must be cleaned and ushed out thoroughly
to eliminate residual thread-cutting swarf, solder and solvents if any, using suitable proprietary
products.
To avoid damaging metal, plastic and rubber parts, use only neutral cleaners, i.e. non-acid and non
alkaline. The recommended products for cleaning are:
SENTINEL X300 or X400 and FERNOX heating circuit restore. The use of this product must be strictly
in accordance with the maker’s directions. Finally the system must be dosed with a suitable inhibitor
at 1% system volume.
2.2. Existing system
Before proceeding with installation of the boiler, the system must be cleaned and ushed out to remove
sludge and contaminants, using suitable proprietary products as described in section 2.1.
To avoid damaging metal, plastic and rubber parts, use only neutral cleaners, i.e. non-acid and non-
alkaline such as SENTINEL X100 and FERNOX heating circuit protective.
Remember that the presence of foreign matter in the heating system can adversely affect the operation
of the boiler (e.g. overheating, noisy operation, or failure of the heat exchanger may occur).
Failure to observe the above will render the warranty null and void.
1. INSTRUCTIONS PRIOR TO INSTALLATION
Initial lighting of the boiler must be carried out by a qualied service engineer. Ensure the following operations
are carried out:
a) Compliance of boiler parameters with (electricity, water, gas) supply systems settings.
b) Compliance of installation with the standards and regulations in force.
c) Appropriate connection to the power supply and earthing of the appliance.
Failure to observe the above will render the warranty null and void.
Prior to commissioning remove the protective plastic coating from the unit. Do not use any tools or abrasive
detergents as you may damage the painted surfaces.
2. INSTRUCTIONS PRIOR TO COMMISSIONING

4926.772.1 - GB/IEINSTRUCTIONS PERTAINING TO THE USER
020503_1100
Figure 1
KEYS DISPLAY SYMBOLS
Central heating mode setting key
Data display reset key
Parameter setting key (increase value)
Parameter setting key (decrease value)
Program access and scroll key
Program access and scroll keys
Reset key
Hot water temperature setting key
Central heating water temperature setting key
Hot water on/off key
Resettable alarm warning
MAIN display
SECONDARY display
Flame present (on)
Outdoor temperature
Standby (off)
Operation in manual mode at minimum tem-
perature
Operation in manual mode at the maximum
temperature set
Operation in automatic mode
Operation in central heating mode
Operation in hot water mode
IMPORTANT: The instructions contained in this manual relating to the operation of the hot water circuit
are relevant only if the appliance is actually connected to a hot water system.
To correctly light the burner proceed as follows:
1) Provide power supply to the boiler;
2) Open the gas cock;
3) Follow the directions given below regarding the adjustments to be made at the boiler control panel.
3. COMMISSIONING OF THE BOILER

5926.772.1 - GB/IEINSTRUCTIONS PERTAINING TO THE USER
a) Automatic operation. Operation of the boiler is controlled by the timed program as described in point
3-5.1 “Daily timed program for operation of the central heating system”;
b) Manual operation at the maximum temperature set. The boiler comes into operation regardless of
the timed program set. The operating temperature is that set using the key (point 3-3: “Setting
the maximum central heating temperature”);
c) Manual operation at minimum temperature. The operating temperature is that set in point 3-6:
“setting the minimum central heating temperature”.
The manual transition from positions a) and b) to position c) involves shut-down of the burner and
disconnection of the pump after the post-circulation delay interval (the factory setting for this parameter
is 3 minutes).
d) standby. The boiler does not work in central heating mode, although the frost protection function is
still enabled.
(1) Hot water on/off key: Press this key to activate or inhibit this function, which is identied by the
appearance on the display of two black dashes under the symbol.
(4) Reset key. In case of a fault, referred to in point 3-7 “Faults and resetting the boiler”, the boiler
can be restarted by pressing this key for at least two seconds.
If this key is pressed with no fault present, the display will show the message “E153”, and the same
key has to be pressed again (for at least two seconds) to restart the boiler.
(9) Data key. This key can be pressed repeatedly to display the following information:
- Temperature (°C) of the hot water ( );
- outdoor temperature (°C) ( ); only provided with the outdoor temperature sensor probe
connected.
Press either of the keys to return to the main menu.
020503_0800
Figure 2
Dash
“Automatic mode”
active
(2) This key can be pressed to set the central heating water output temperature as described in point
3-3.
(3) This key can be pressed to set the hot water temperature as described in point 3-4.
(10) Central heating mode operating key
The key can be pressed to activate four boiler central heating operating modes; these modes are
identied by a black cursor line underneath the relative symbol on the display, and are as follows:
3.1 DESCRIPTION OF KEYS

6926.772.1 - GB/IEINSTRUCTIONS PERTAINING TO THE USER

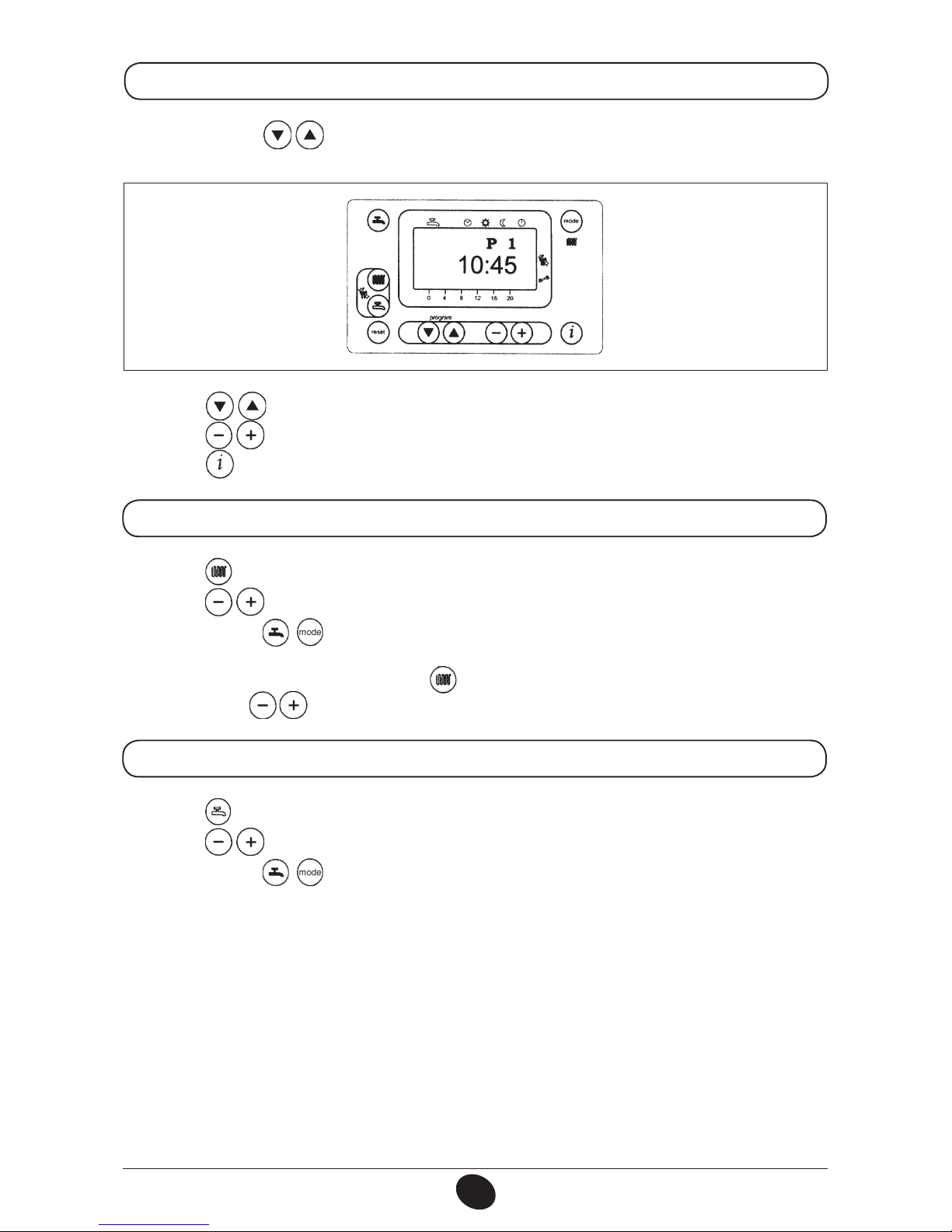

a) Press either of the keys to access the programming function;
the display will show the letter P followed by a number (program line);
020503_0700
Figure 3
3.2 SETTING THE TIME
- Press the key (2-gure 1) to set the central heating water temperature;
- Press the keys to set the temperature required;
- Press either of the keys (1 or 10 - gure 1) to save and return to the main menu.
N.B – With the outdoor sensor connected, the key (2 - gure 1) can be used to shift the central heating
curve. Press the keys to decrease or increase the room temperature in the premises to be heated.
3.3 SETTING THE MAXIMUM CENTRAL HEATING TEMPERATURE
- Press the key (3-gure 1) to set the maximum hot water temperature;
- Press the keys to set the temperature required;
- Press either of the keys (1 or 10 - gure 1) to save and return to the main menu.
3.4 SETTING THE MAXIMUM HOT WATER TEMPERATURE
b) Press the keys until the display shows P1, referring to the time to be set;
c) Press the keys to set the time; on the display, the letter P will start to ash;
d) Press the key to save and exit the programming function;

7926.772.1 - GB/IEINSTRUCTIONS PERTAINING TO THE USER
- Press either of the keys to access the programming function;
a) Press these keys until the display shows P11, referring to the program start time;
b) Press the keys to set the time;
- Press the key; the display will show P12, referring to the program end time;
-Repeat the operations described in points a and b until the third and last cycle is reached (program line
P16);
-Press the key to save and exit from the programming function.
3.5 SETTING THE DAILY PROGRAM FOR OPERATION IN CENTRAL HEATING AND DOMESTIC HOT WATER MODES
3.5.1 Setting the daily times for central heating mode operation
3.5.2 Setting the daily times for domestic hot water mode operation
- As supplied by the factory the appliance is set up with the hot water function always enabled and the do-
mestic hot water programming function disabled.
The instructions for enabling this program are given in chapter 17, which is addressed specically to installers
(parameter H91).
If the program is enabled program lines from 31 to 36 must be set up as described in heading 3-5.1.
3.6 SETTING THE MINIMUM CENTRAL HEATING TEMPERATURE
- Press either of the keys to access the programming function;
- Press these keys until the display shows p5, referring to the temperature to be set;
- Press the keys to set the temperature required.
This operating mode is enabled when minimum temperature central heating mode “ ” is activated or when
the daily central heating program does not require heat.
N.B – With the outdoor sensor connected, parameter P5 can be used to set the minimum room tempe-
rature in the premises to be heated (night setback).

8926.772.1 - GB/IEINSTRUCTIONS PERTAINING TO THE USER
Parameter
N. Parameter description Factory setting Range
P1 Time of day setting ———- 0…23:59
P5 Minimum central heating temperature setting (°C) 25 25..80
P11 Start of rst daily period of automatic central heating 6:00 00:00…24:00
P12 End of rst daily period of automatic central heating 22:00 00:00…24:00
P13 Start of second daily period of automatic central heating 0:00 00:00…24:00
P14 End of second daily period of automatic central heating 0:00 00:00…24:00
P15 Start of third daily period of automatic heating 0:00 00:00…24:00
P16 End of third daily period of automatic central heating 0:00 00:00…24:00
P31 Start of rst daily period of hot water production (*) 0:00 00:00…24:00
P32 End of rst daily period of hot water production (*) 24:00 00:00…24:00
P33 Start of second daily period of hot water production (*) 0:00 00:00…24:00
P34 End of second daily period of hot water production (*) 0:00 00:00…24:00
P35 Start of third daily period of hot water production (*) 0:00 00:00…24:00
P36 End of third daily period of hot water production (*) 0:00 00:00…24:00
P45
Reset of daily central heating and domestic hot water production programs (factory
settings). Press the - + keys together for about 3 seconds; the number 1 appears on the
display. Conrm by pressing either of the keys
0 0...1
Note: Parameters from P31 to P36 can be displayed only if the domestic hot water program has been enabled
as described in chapter 17 for the attention of the installer (parameter H91).
3.7 TABLE FOR USER-SETTABLE PARAMETERS
If a fault occurs, a ashing warning code appears
on the display.
The fault warnings appear on the main display (gure
1a) together with the symbol (Figure 4).
To reset, press the reset button for at least two
seconds.
020503_0500
Figure 4
3.8 FAULT WARNINGS AND RESETTING THE BOILER
Fault warnings appear on the secondary display
(gure 1 b) alternating with the time, both of them
ashing (gure 4.1). It is not possible to reset mal-
function warnings which appear on the secondary
display as the cause of the alarm has rst to be
removed.
Figure 4.1
0509_0201

9926.772.1 - GB/IEINSTRUCTIONS PERTAINING TO THE USER
All the faults are displayed in order of importance; if several faults occur simultaneously, the rst to be displa-
yed is the one with highest priority. After the cause of the rst fault has been removed, the second one will
be displayed, and so on.
If any given fault occurs frequently, contact the authorised Service Centre.
3.9 FAULT WARNINGS TABLE
Fault code Fault description action required
E10 outdoor temperature probe sensor failure call the authorised service centre.
E20 ntc output sensor failure call the authorised service centre
E40 NTC return heating probe faulty call the authorised service centre
E50 domestic hot water ntc sensor failure call the authorised service centre
E110
Safety or fumes thermostat or heating return
temperature probe tripped
press the reset key (for about 2 seconds: if this device is triggered
repeatedly, call the authorised service centre)
E111 Delivery temperature higher than 95°C If this fault persists, call the authorised service centre
E128 Loss of ame during operation (the ionization current
has fallen below the limit) Call an authorised service centre.
E129 Minimum fan speed limit is hurt Call an authorised service centre.
E132 oor thermostat tripped call the authorised service centre
E133 no gas press the reset key (for about 2 seconds); if the fault persists,
call the authorised service centre)
E151 boiler circuit board error
Press the reset button if the display presents the ( ) symbol,
otherwise switch off the boiler at the mains and switch it on again
after 10 seconds. If the fault persists, call an authorised service
centre. Check the position of the ignition electrodes (chapter 17).
E153 the reset key has been pressed inappropriately press the key again (about 2 seconds)
E154 No circulation or reverse flow call the authorised service centre
E160 fan speed threshold not reached call the authorised service centre.
E164 no hydraulic pressure switch enabling signal
check that the system is at the rated pressure. (refer to the
section on lling the system). if the fault persists, call the
authorised service centre.

10 926.772.1 - GB/IEINSTRUCTIONS PERTAINING TO THE USER
To shut down the boiler switch off the electrical supply to the appliance.
Important: Regularly check that the pressure displayed by the pressure gauge is between 1 to 4 bar, with the
boiler not operating.
In case the pressure is lower open the boiler lling tap.
We recommend you open the tap very slowly in order to let off the air.
In case pressure drops occur frequently have the boiler checked by a Qualied Service Engineer.
We recommend you avoid draining the whole system as raw water makeup will lead to harmful limestone
deposits inside the boiler and on the heating elements.
In case the boiler is not operated during wintertime and is therefore exposed to danger of frost we suggest you
add some specic-purpose anti-freeze to the water contained in the system (e.g.: propylene glycole coupled
with corrosion and scaling inhibitors).
The electronic management of the boilers includes a ‘frost protection’ function which operates the burner to
reach a heating ow temperature of 30° C when the system heating ow temperature drops below 5°C.
The frost protection function is enabled if:
* electrical supply to the boiler is on;
* the gas service cock is open;
* the system pressure is as required;
* the boiler is not isolated.
To maintain efcient and safe operation of your boiler have it checked by a Qualied Service Engineer at the
end of every heating season. Careful servicing will ensure economical operation of the system.
Do not clean the outer casing of the appliance with abrasive, aggressive and/or easily ammable cleaners
(i.e.: gasoline, alcohol, and so on). Always isolate the electrical supply to the appliance before cleaning it (see
section 5 Turning off the boiler).
These boilers are produced for natural gas and can be converted to work with LPG (G 31).
Any gas change must be effected by a Qualified Service Engineer.
4. FILLING THE BOILER
5. TURNING OFF THE BOILER
6. PROLONGED STANDSTILL OF THE SYSTEM. FROST PROTECTION
7. SERVICING INSTRUCTIONS AND GAS CHANGE

11
INSTRUCTIONS PERTAINING TO THE INSTALLER 926.772.1 - GB/IE
This boiler is designed to heat water at a lower than boiling temperature at atmospheric pressure. The boiler
must be connected to a central heating system and, on models with this option, to a domestic hot water supply
system in compliance with its performances and output criteria.
IMPORTANT! The gas boiler is supplied without the following components which must be provided exclusively
by qualied personnel:
• Expansion vessel;
• Pressure relief valve;
• Circulating pump;
• Boiler lling tap.
Before connecting the boiler ensure the following operations have been completed:
a) Check that the boiler is t for operation with the type of gas available. For more details see the notice on
the packaging and the label on the appliance itself.
b) Check that the ue terminal draft is appropriate; that the terminal is not obstructed and that no other applian-
ce exhaust gases are expelled through the same ue duct, unless the ue is especially designed to collect
the exhaust gas coming from more than one appliance, in conformity with the standards and regulations in
force.
c) Check that, in case the ue has been connected to pre-existing ue ducts, thorough cleaning has been
carried out in that residual combustion products may be created during operation of the boiler and obstruct
the ue duct.
To ensure correct operation of the appliance and avoid invalidating the warranty, observe the following
precautions:
1. Hot water circuit:
If the water hardness is greater than 20 °F (1 °F = 10 mg calcium carbonate per litre of water) a
polyphosphate or comparable treatment system responding to current regulations must be used.
2. Heating circuit
2.1.New system
Before proceeding with installation of the boiler, the system must be cleaned and ushed out thoroughly
to eliminate residual thread-cutting swarf, solder and solvents if any, using suitable proprietary products.
The following remarks and instructions are addressed to Service Engineers to help them carry out a faultless
installation. Instructions regarding lighting and operation of the boiler are contained in the ‘Instructions per-
taining to the user’ section.
Note that installation, maintenance and operation of the gas appliances must be performed exclusively by
qualied personnel in compliance with current standards.
Please note the following:
* This boiler can be connected to any type of double- or single feeding pipe convector plates, radiators,
thermoconvectors. Design the system sections as usual though taking into account the available output /
pump head performances.
* Do not leave any packaging components (plastic bags, polystyrene, etc.) within children’s reach as they are
a potential source of danger.
* Initial lighting of the boiler must be effected by a Qualied Service Engineer.
Failure to observe the above will render the warranty null and void.
8. GENERAL INFORMATION
9. INSTRUCTIONS PRIOR TO INSTALLATION

12
INSTRUCTIONS PERTAINING TO THE INSTALLER 926.772.1 - GB/IE
To avoid damaging metal, plastic and rubber parts, use only neutral cleaners, i.e. non-acid and non
alkaline. The recommended products for cleaning are:
SENTINEL X300 or X400 and FERNOX heating circuit restore. Please ensure to use this product
proceeding strictly in accordance with the manufacturers instructions. Finally ll the system with the
correct strength of central heating inhibitor.
2.2. Existing system
Before proceeding with installation of the boiler, the system must be cleaned and ushed out to remove
sludge and contaminants, using suitable proprietary products as described in section 2.1.
To avoid damaging metal, plastic and rubber parts, use only neutral cleaners, i.e. non-acid and non-
alkaline such us SENTINEL X100 and FERNOX heating circuit protective. To use this product proceeding
strictly in accordance with the maker’s directions.
Remember that the presence of foreign matter in the heating system can adversely affect the operation
of the boiler (e.g. overheating and noisy operation of the heat exchanger). Dose with inhibitor.
Failure to observe the above will render the guarantee null and void.

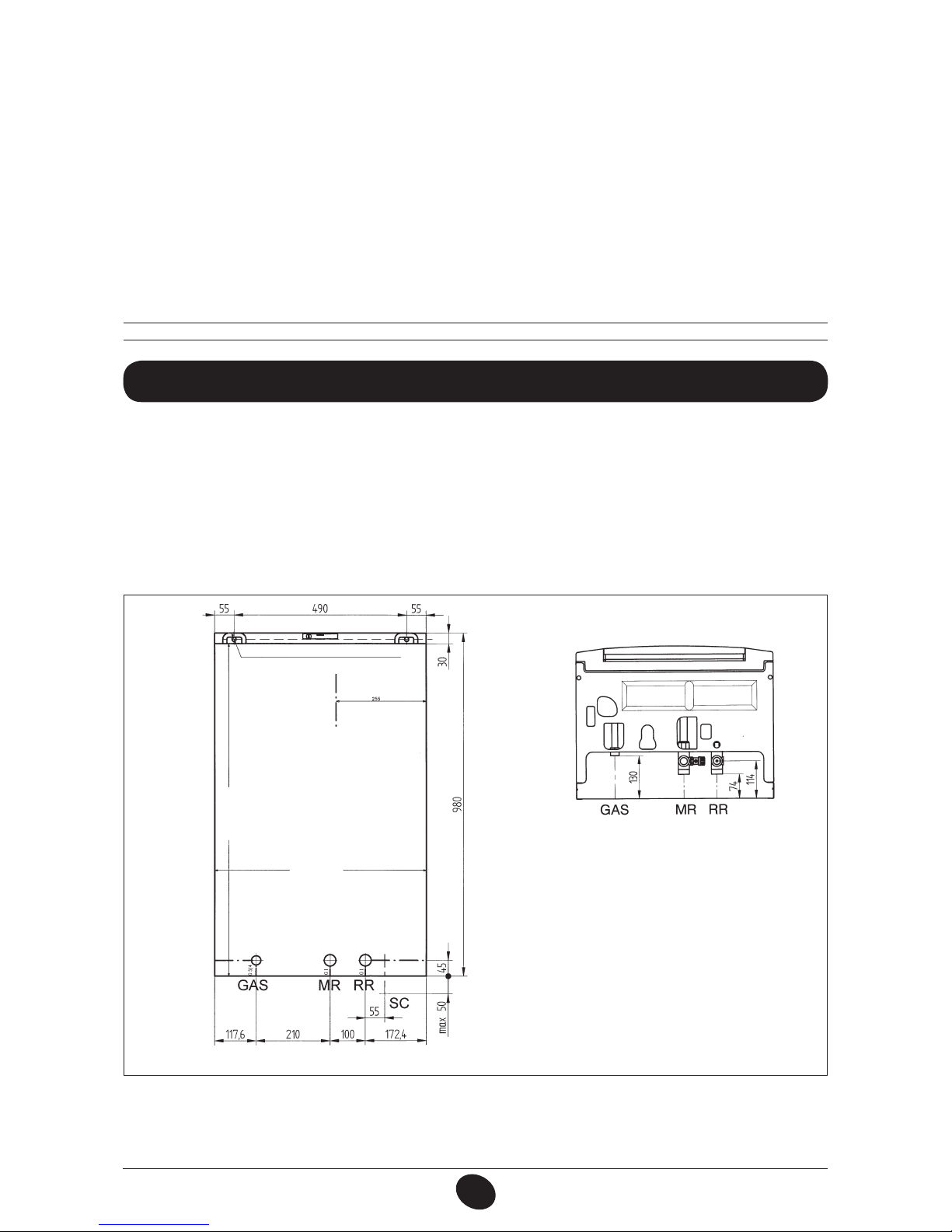

10. BOILER INSTALLATION
Decide upon the boiler location, then tape the template on the wall.
Connect the pipework to the gas and water inlets prearranged on the template lower bar.
If you are either installing the boiler on a pre-existing system or replacing it, we suggest you also t strainers
on the system return pipework to the boiler to collect the deposits and scaling which may remain and be
circulated in the system after the initial lling.
When the boiler is xed on the template connect the ue and air ducts (ttings supplied by the manufacturer)
according to the instructions given in the following relevant sections.
Connect the condensate outlet to the siphon supplied with the boiler. Connect the siphon to a drain, making
sure there is a continuous slope. Horizontal sections must be avoided.
MR: G 1” heating ow
GAS: G 3/4” gas inlet to the boiler
RR: G 1” heating return
SC: condensation drain 22 mm
Figure 5
0506_0806
DRILL HOLES WITH A Ø12 BIT, FIT THE MASONRY
PLUGS AND THE SCREWS PROVIDED
FLUE AXIS
N.B. INCLUDE CONDENSATE DRAIN POINT
BOILER HEIGHT 950
BOILER WIDTH 600
gas inlet to the boiler heating ow heating return condensation drain
0602_0701/CG_1469/1

13
INSTRUCTIONS PERTAINING TO THE INSTALLER 926.772.1 - GB/IE
11. BOILER SIZE
Figure 6
0310_0103
12. INSTALLATION OF FLUE AND AIR DUCTS
0709_1001
C33
Figure 7
C13
We guarantee ease and exibility of installation for the boiler thanks to the ttings and xtures supplied (de-
scribed below).
The boiler is especially designed for connection to an exhaust ue / air ducting, with either concentric, vertical
or horizontal terminal.
Where exhaust and intake flues not
supplied by POTTERTON GOLD HIGH
OUTPUT have been installed, these
must be certied for the type of use
and must have a maximum pressure
drop of 100 Pa for the complete flue
installation.

14
INSTRUCTIONS PERTAINING TO THE INSTALLER 926.772.1 - GB/IE
Concentric flue
This type of duct allows to emit exhaust gases and to draw combustion air from outside the building.
The 87° coaxial bend allows to connect the boiler to a ue-air duct in any direction as it can rotate through
360°.
If the ue outlet is placed outside, the ue-air ducting must protrude at least 18mm out of the wall to allow
alluminium weathering tile to be tted and sealed to avoid water leakages. If the terminal is below 2m then a
terminal gaurd is required.
Ensure a minimum downward slope of 3° towards the boiler.
A 87° bend reduces the total ue length by 1 metre.
A 45° bend reduces the total ue length by 0.5 metre.
HORIZONTAL CONCENTRIC FLUES
Boiler Flue Size Number of Bends 90°
1 2 3 4
WH46 Ø80/125 9 m 8 m 7 m 6 m
WH65 Ø80/125 9 m 8 m 7 m 6 m
VERTICAL CONCENTRIC FLUES
Boiler Flue Size Number of Bends 90°
1 2 3 4
WH46 Ø80/125 9 m 8 m 7 m 6 m
WH65 Ø80/125 9 m 8 m 7 m 6 m
CONVENTIONAL FLUE
Boiler Flue Size Number of Bends 90°
1 2 3 4
WH46 Ø80 59,5 m 59 m 58,5 m 58 m
WH65 Ø80 59,5 m 59 m 58,5 m 58 m
Figure 8
990519_0400
Concentric outlet

15
INSTRUCTIONS PERTAINING TO THE INSTALLER 926.772.1 - GB/IE

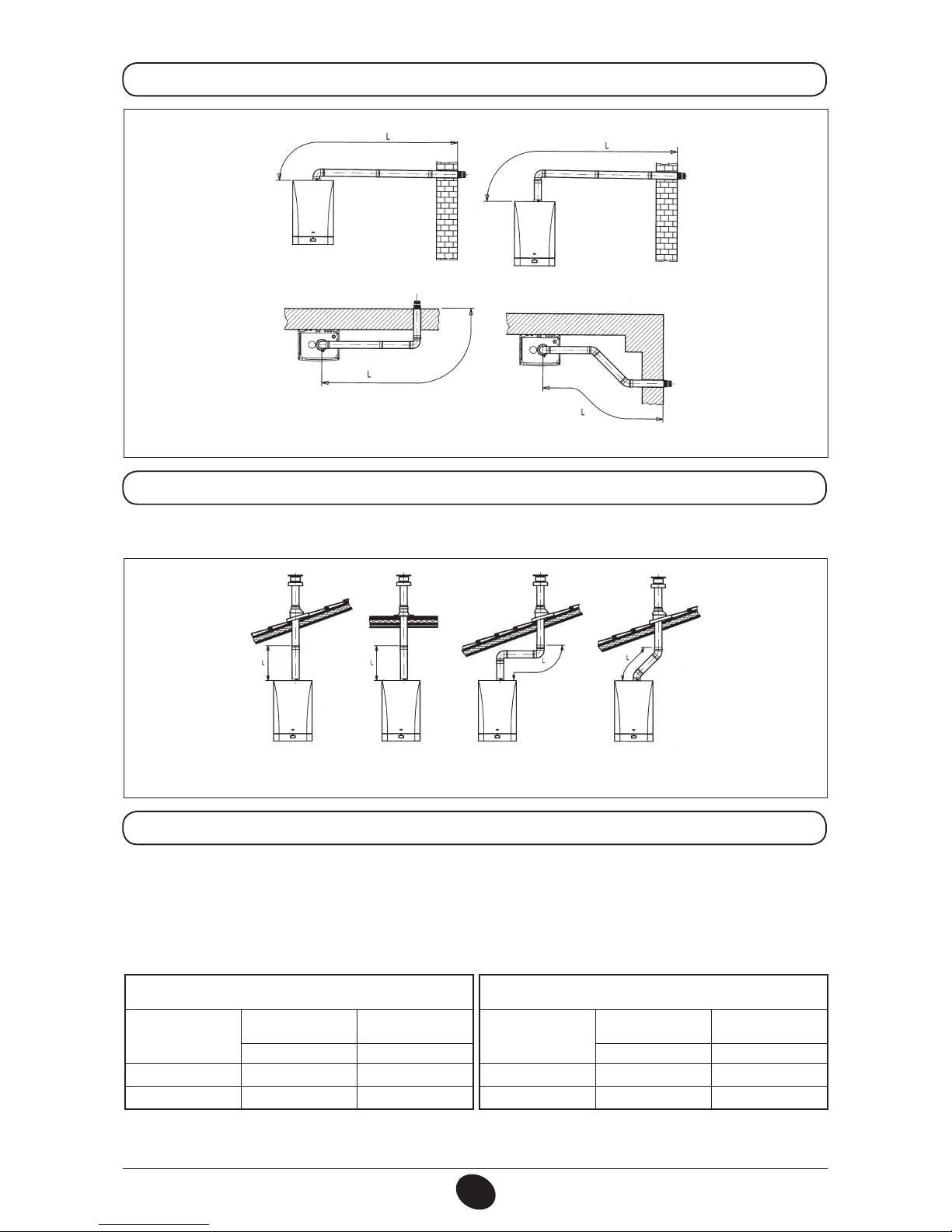

12.2 VERTICAL FLUE TERMINAL Ø 80/125 mm INSTALLATION OPTIONS
This type of installation can be carried out both on a at or pitched roof by tting a terminal, an appropriate
weathering tile and sleeve, (supplementary ttings supplied as options).
L max = 10 m L max = 10 m L max = 9 mL max = 8 m
0310_0107
L = refer also the table
12.1 HORIZONTAL FLUE TERMINAL Ø 80/125 INSTALLATION OPTIONS
0602_0702
L = refer to table
To ensure the correct rated heat output to the maximum and minimum heat input, it is necessary to update
the speed (rpm) of the fan, it depends on the length of the ue (par. 12), in accordance with the installation of
ue and air pipes as indicated in the tables below. The factory-set value is referred to the minimum length of
ue pipe (0÷4 m for concentric, 0÷20 m for twin). To carry such updating, changing the speed of the fan (rpm)
at the maximum and minimum heat input, refer to par. 16.
12.5 FAN RPM UPDATING DEPENDING ON FLUE LENGTH (e.g. figure 7)
(*) Default setting parameters
CONCENTRIC PIPE Ø 80/125
(C13-C33-C43)
Pipes length (m)
Parametres
H536-H613
Parametres
H612
Max heat output (rpm) Min heat output (rpm)
(*) 0 - 4 5500 1900
5 - 10 5900 2100
WH 46 WH 65
CONCENTRIC PIPE Ø 80/125
(C13-C33-C43)
Pipes length (m)
Parametres
H536-H613
Parametres
H612
Max heat output (rpm) Min heat output (rpm)
(*) 0 - 4 6000 1850
5 - 10 6500 2100
(*) Default setting parameters

16
INSTRUCTIONS PERTAINING TO THE INSTALLER 926.772.1 - GB/IE
13. HYDRAULIC DIAGRAM
Applications and Installation Details
(Pumped heating circuits with remote control QAA73 or Room Thermostat, including hot-water tank, without
and with primary loop)
13.1 HYDRAULIC SYSTEM 1
Figure 9a
0602_0704/CG1782
(*)
(*)
(*)
without low loss header
(*) optional extra
Figure 9b
0602_0703/CG1756
(*)
(*)
(*)
with low loss header and primary loop
(*) optional extra
(*)
(*)

17
INSTRUCTIONS PERTAINING TO THE INSTALLER 926.772.1 - GB/IE
• TS: Tank Sensor (QAZ36)*
• B3: Room Control Module (QAA73)*
• B1: Room Thermostat
• B9: Outdoor Temperature Sensor (QAC34)*
• P1: Heating Pump
• PDHW: Hot Water pump
• PLP: Primary Pump (only for gure 9b)
(*) Available Optional Extra
• Pumps (Not Supplied)
• Isolating Valve (Not Supplied)
• Installer Wiring --------------
• Hot Water Cylinder (Not Supplied)
• Low Loss Header (Not Supplied)
• Non return valve (Not supplied)
Applications (pumps, sensor, remote control ...) have to be connected to terminal as follows (see also section 14):
WITH QAA73
REMOTE CONTROL
WITH
ROOM THERMOSTAT
APPLICATION TERMINAL BOARD TERMINAL BOARD
PRIMARY PUMP PLP (only for gure 9b) M1: A – B M1: A – B
DHW PUMP PDHW M3: 13 – 14 M3: 13 – 14
HEATING PUMP P1 M3: 11 – 12 M3: 11 – 12
DHW SENSOR TS M2: 7 – 8 M2: 7 – 8
REMOTE CONTROL QAA73 M2: 1 – 2 NO
ROOM THERMOSTAT M2: 3 – 4 OPEN M2: 3 – 4
PCB
PARAMETER Description Setting Parameter
H552 Hydraulic system H552 = 2
H553 KongHKS H553 = 21
H615 KongAusgang H615 = 9
H632 Wanfo Q8 H632 = 00001100
Parameter changes requires (see also section 16):

18
INSTRUCTIONS PERTAINING TO THE INSTALLER 926.772.1 - GB/IE
(Pumped heating circuits with Room Thermostat and compensated circuit with remote control QAA73, inclu-
ding hot-water tank, with primary loop)
13.2 HYDRAULIC SYSTEM 2
• TS:Tank Sensor (QAZ36)*
• B3: Room Control Module (QAA73)*
• B1: Room Thermostat
• B9: Temperature Sensor (QAC34)*
• Zone Controller (Clip-in AGU2.500)*
• FS: Flow Sensor (QAD36: supplied with AGU2.500)*
• P1: Heating Pump
• P DHW: Hot Water pump
• PLP: Primary Pump
• 3WV: 3-way Valve (power open / power close)
(*) Available Optional Extra
• Pumps (Not Supplied)
• Isolating Valve (Not Supplied)
• Installer Wiring --------------
• Hot Water Cylinder (Not Supplied)
• Low Loss Header (Not Supplied)
• Non Return Valve (Not supplied)
Figure 10
0602_0705/CG1759
AGU 2.500*
HEATING CIRCUIT
COSTANT TEMP.
HEATING CIRCUIT
VARIABLE TEMP.
*
*
*
*

19
INSTRUCTIONS PERTAINING TO THE INSTALLER 926.772.1 - GB/IE
APPLICATION TERMINAL BOARD
PRIMARY PUMP PLP M1: A – B
DHW PUMP PDHW M3: 13 – 14
HEATING PUMP P1 M3: 11 – 12
DHW SENSOR TS M2: 7 – 8
REMOTE CONTROL QAA73 (LOW TEMPERATURE) M2: 1 – 2
ROOM THERMOSTAT M2: 3 – 4
HEATING PUMP P2 CLIP IN AGU 2.500
3 WAY VALVE CLIP IN AGU 2.500
FLOW SENSOR CLIP IN AGU 2.500
Applications (pumps, sensor, remote control ...) have to be connected to terminal as follows (see also section 14):
Parameter changes requires (see also section 16):
PCB
PARAMETER Description Setting Parameter
H552 Hydraulic system H552 = 50
H553 KongHKS H553 = 12
H615 KongAusgang H615 = 9
H632 Wanfo Q8 H632 = 00001111
13.3 HEAT EXCHANGER PRESSURE DROP
Boiler
Hydraulic Resistance and Water Flow Rates
11°C ∆T 15°C ∆T 20°C ∆T 30°C ∆T
kPa Lit/sec kPa Lit/sec kPa Lit/sec kPa Lit/sec
WH46 70,61 0,98 31,38 0,72 11,77 0,54 10,79 0,36
WH65 56,88 1,41 34,32 1,04 20,59 0,78 11,77 0,52
Boiler Minimum Water Flow Rates
Lit/sec
WH46 0,28
WH65 0,35

20
INSTRUCTIONS PERTAINING TO THE INSTALLER 926.772.1 - GB/IE
Figure 11
020523_0400
Terminal board M1
Terminal board M2
Cover
Cover
14. CONNECTING THE MAINS SUPPLY
Electrical safety of the appliance is only guaranteed by correct earthing, in compliance with the applicable
standards and regulations.
Connect the boiler to a 230V earthed power supply by means of the three-pin cable supplied ensure that the
polarity is correct.
Use a double-pole switch isolator with a contact separation of at least 3mm in both poles.
In case you replace the power supply cable t a HAR H05 VV-F’ 3x0.75mm2cable with an 8mm diameter
maximum outer sheath.
The fuse, a fast-acting type rated 2A, is incorporated into the power supply terminals (remove the black fuse
holder to enable inspection and/or replacement).
IMPORTANT: Check that the overall current drawn by accessories connected to the appliance is less than 1
amp. If the value is greater, a relay must be wired between the boiler control circuit board and the accessories
drawing the higher current.
