Techlogix TL-DA12-HD2 User manual

User Manual
TL-DA12-HD2
1x2 HDMI Splitter & Distribution Amplifier
All Rights Reserved
Version: TL-DA12-HD2_160926

TL-DA12-HD2 User Manual
www.tlnetworx.com
Preface
Read this user manual carefully before using this product. Pictures shown in this manual
are for reference only; the actual product may vary.
This manual is only for operation instruction only and not for any maintenance or repair.
Trademarks
Product model and logo are trademarked. Any other trademarks mentioned in this
manual are acknowledged as the properties of the trademark owner. No part of this
publication may be copied or reproduced without prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a commercial installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

TL-DA12-HD2 User Manual
www.tlnetworx.com
SAFETY PRECAUTIONS
To i ns u re pro p er op e ra t io n , please read all instructions carefully before using the device.
Save this manual for further reference.
l Unpack the equipment carefully and save the original box and packing material for
possible future shipment
l Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
l Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
l Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
l Refer all servicing to qualified service personnel.
l To p rev en t fi re or s ho ck ha za rd , do n o t ex po se th e un i t to r ai n, m o is tu re o r install this
product near water.
l Do not remove the housing of the device, as opening or removing housing may
expose you to dangerous voltage or other hazards.
l Install the device in a place with adequate ventilation to avoid damage caused by
overheating.
l Keep the device away from liquids.
l Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the device immediately.
l Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
l Unplug the power cord when left unused for a long period of time.
l If disposing of the unit, do not burn or mix with general household waste. The device
must be disposed of per local regulations for electronic recycling.

TL-DA12-HD2 User Manual
www.tlnetworx.com
Contents
1. Introduction ..................................................................................................................................... 5
1.1 Introduction toTL-DA12-HD2 .......................................................................................... 5
1.2 Features ................................................................................................................................. 5
1.3 Package List .......................................................................................................................... 5
2. Panel Description ........................................................................................................................... 6
3. System Connection ........................................................................................................................ 8
3.1 Usage Precautions ............................................................................................................... 8
3.2 System Diagram ................................................................................................................... 8
3.3 Connection Procedures ..................................................................................................... 8
3.4 EDID Management ............................................................................................................. 9
4. Specification .................................................................................................................................. 10
4.1 Supported Input Video Formats ................................... Error! Bookmark not defined.
5. Panel Drawing ............................................................................................................................... 10
6. Trou bl esho ot in g & Ma in te nan c e ................................................................................................. 2
7. After-sales Service ......................................................................................................................... 3

TL-DA12-HD2 User Manual
www.tlnetworx.com
1. Introduction
1.1 Introduction to the Product
The TL-DA12-HD2 is a 1x2 splitter featuring the capability to repeat HDMI or DVI
source to two displays simultaneously. Compliant with HDMI 2.0 and HDCP 2.2, the TL-
DA12-HD2 provides comprehensive resolution capacities up to 4K@60 4:4:4 and 1080p
with 3D. It’s capable of automatically recognizing the resolution and HDCP compliancy
status of the input signal, and the HDMI signal is automatically equalized for reliable
transmission with proper EDID management.
Moreover, TL-DA12-HD2 supports convenient online update through USB port.
1.2 Features
l Two simultaneous HDMI outputs
l Supports hot-plug
l HDMI 2.0 compliant, capable of transmitting 1080p 3D & 4K@60 4:4:4 signals
l Tran sm its 1080p HDMI up to 15m
l 18 Gbps bandwidth
l HDCP compliant
l Automatically identifies input resolution
l Supports EDID management, automatically adopts the resolution of the first
detected display from either port 1 or 2
l Intuitive indicators for connection status & input HDCP compliance status
l Convenient online firmware update
1.3 Package List
l 1 x Splitter
l 2 x Mounting ears
l 4 x Screws
l 4 x Plastic cushions
l 1 x Power Adapter (DC 5V 2A)
l 1 x User Manual

TL-DA12-HD2 User Manual
www.tlnetworx.com

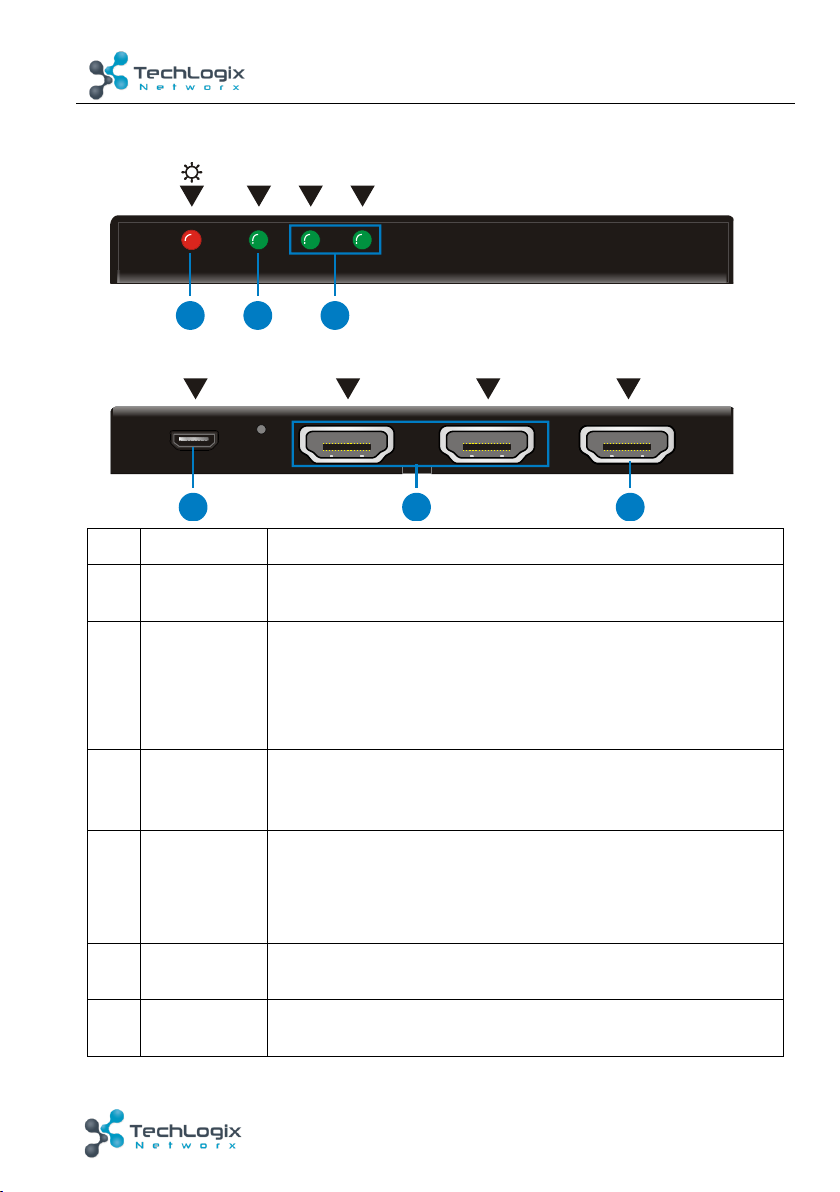

2. Panel Description
No.
Name
Description
①
Power
indicator
Illuminates red when properly powered on
②
Input HDCP
compliant
Indicator
Indicates the HDCP compliancy status of the input signal
Ø Iluminates green when the input signal is HDCP compliant
Ø Blinks green when the input signal is not HDCP compliant
Ø Remains off when there is no input signal
③
Output
signal
Indicators
Illuminates green when there is an HDMI output; corresponds
to HDMI OUTPUT 1 or 2 separately
④
DC 5V
Micro USB port; connect a DC 5V power adapter for power or
plug a USB drive for firmware updates
Note: Firmware updates require auxiliary equipment; please
contact TechLogix for additional details.
⑤
OUT1&
OUT2
HDMI output ports. Connects to HDMI displays, automatically
capturing the input resolution.
⑥
IN
HDMI input port. Connects with an HDMI or DVI source device
such as a DVD player or set top box.
OUT 2 OUT 1
IN
DC 5V
IN 2 1
1
456
23

TL-DA12-HD2 User Manual
www.tlnetworx.com
Note: Output HDCP compliancy status depends on the input signal. When the input
signal is HDCP compliant, then output signal will be HDCP compliant and vice versa.
a) Pictures shown in this manual are for reference only.
b) The HDMI signal contains both a video signal and embedded audio signal (PCM,
Dolby Digital, DTS, DTS-HD), whereas a DVI signal contains solely a video signal.
c) The splitter is capable of switching input signal formats according to the displays.
For example, when the input signal is HDMI and the display can only support DVI
signal, the unit will switch the signal into DVI format.
d) EDID management automatically manages the output signal (e.g. output resolution)
to fit all displays.

TL-DA12-HD2 User Manual
www.tlnetworx.com
3. System Connection
3.1 Usage Precautions
1) System should be installed in a clean environment that has a proper temperature and
humidity.
2) All of the power switches, plugs, sockets and power cords should be installed
properly.
3) All devices should be connected before powering on the devices.
3.2 System Diagram
The following diagram illustrates typical input and output connections that can be
utilized with the TL-DA12-HD2:
3.3 Connection Procedures
Step1. Connect an HDMI or DVI source device (e.g. DVD) to the HDMI INPUT socket of
the TL-DA12-HD2 using a high-quality HDMI cable.
Step2. Connect HDMI displays to the HDMI OUTPUT sockets of TL-DA12-HD2 with
high-quality HDMI cables.
Step3. Connect the DC 5V power adapter to the power port of TL-DA12-HD2.
Note: All the ports support hot-plug. Please note that hot plugging a display may result
in screen splashing at the output ends.
OU T 2 OU T 1
IN
DC 5 V
7

TL-DA12-HD2 User Manual
www.tlnetworx.com
3.4 EDID Management
The TL-DA12-HD2 comprises of one HDMI input port and two HDMI output ports.
EDID management helps distribute and route signals from the source at the resolution
of the first detected display (detecting from output 1 or 2).
For example: when output 1 connects with a 1080p display, the TL-DA12-HD2 will
select 1080p as the output resolution and distribute 1080p signals to the displays
connected to both outputs 1 and 2.
Note: If the display connected to output 2 doesn’t support a 1080p signal, the display
will not show a signal.

TL-DA12-HD2 User Manual
www.tlnetworx.com
4. Specification
I/O Connections
HDMI Input
One (1) HDMI Type A receptacle
HDMI Outputs
Two (2) HDMI Type A receptacle
Power
DC 5V 2A
Supported Video and Audio
Resolutions
480i, 480p, 576i, 576p, 720p, 1080i, 1080p,
1080p 3D, 4Kx2K (24, 25, 30, 60 Hz)
Video Compliance
HDMI 2.0, HDCP 2.2, DVI 1.0
Bandwidth
18 Gbps
Embedded Audio Compatibility
Up to PCM 5 channel, Dolby Digital TrueHD,
and DTS-HD Master Audio
Maximum Passive HDMI Distance
10m (33 ft)
Input DDC Signal
5.0 volts p-p (TTL)
Input Video Signal
0.5 ~ 1.0 volts p-p
Chassis and Environmental
Enclosure
Painted aluminum
Dimensions (W x H x D)
152.4mm x 11mm x 70.4mm (6.00in x 0.43in x
2.77in)
Shipping Weight
0.46Kg(1.00bls)
Operating Temperature
(Environment)
-10° ~ +40° C (+14° ~ +104° F)
Operating Temperature (Chassis)
45° C(113° F)
Operating Humidity (Environment)
10% ~ 90% Non-condensing
Storage Temperature
(Environment)
-15° ~ +70° C(+5° ~ +167° F)
Storage Humidity (Environment)
10% ~ 90% Non-condensing

TL-DA12-HD2 User Manual
www.tlnetworx.com
Power, ESD, Regulatory
Maximum Power Consumption
6.5W
ESD Protection
15KV
Regulatory
CE, FCC
Other
Standard Warranty
3 Year
Indicators
1 Power, 1 Input status, 2 Output connection
status
Included Items
Installation guide, Power adaptor, Mounting “L”
brackets (2 ea), Mounting screws (4 ea), Plastic
cushions (4 ea)
4.1 Supported Input Video Formats
Input Resolution
HDMI
DVI
720 x 480@60Hz
R
R
720 x 480I@30Hz
R
R
720 x 576@50Hz
R
R
720 x 576I@25Hz
R
R
1280 x720@50Hz
R
R
1280 x720@60Hz
R
R
1920 x 1080@25Hz
R
R
1920 x 1080@50Hz
R
R
1920 x 1080@60Hz
R
R
1920 x 1080I@25Hz
R
R
1920 x 1080I@30Hz
R
R
3840 x 2160@25Hz
R
3840 x 2160@30Hz
R
3840 x 2160@60Hz
R
1080P 3D@60Hz
R

1
TL-DA12-HD2 User Manual
www.tlnetworx.com
5. Panel Drawing

2
TL-DA12-HD2 User Manual
www.tlnetworx.com
6. Troubleshooting & Maintenance
Problems
Causes
Solutions
Color loss or no video
signal output on the
HDMI display
The connecting cables
may not be connected
correctly or it may be
broken.
Check whether the cables
are connected correctly
and are in working
condition.
The display is not
compatible with the
present output resolution.
Make sure the resolution
of the display(s) is
compatible with the
present resolution.
No HDMI signal output
from the TL-DA12-HD2
while local HDMI input is
in normal working state
The connecting cables
may not be connected
correctly or it may be
broken.
Check whether the cables
are connected correctly
and in working condition.
Screen blinking
Poor quality of the
connecting cable
Change for another cable
of good quality.
Static becomes stronger
when connecting the
video connectors
Bad grounding
Check the grounding and
make sure it is connected
well.
If your problem persists after following the above troubleshooting steps, please contact
your authorized reseller or TechLogix technical support.

3
TL-DA12-HD2 User Manual
www.tlnetworx.com
7. After-sales Service
1) Product Limited Warranty: We warrant that our products will be free from defects in
materials and workmanship for three years.
2) Warranty coverage may be voided when:
l The warranty period has expired
l The factory applied serial number has been altered or removed from the product
l There is damage, deterioration or malfunction caused by:
l Atypical wear and tear
l Use of supplies or parts not meeting the specifications
l No certificate or invoice as the proof of warranty
l Damage caused by force majeure
l Non-authorized service
3) Te c h ni c al Su p p o r t : When contacting TechLogix support, please have the following
information available:
l Product part number
l Installation and sale date
l Detailed failure information
